Sayfa 4-50 - Isuzu EPC

4-50 — FRONT SUSPENSION (#166092) — 210 parça

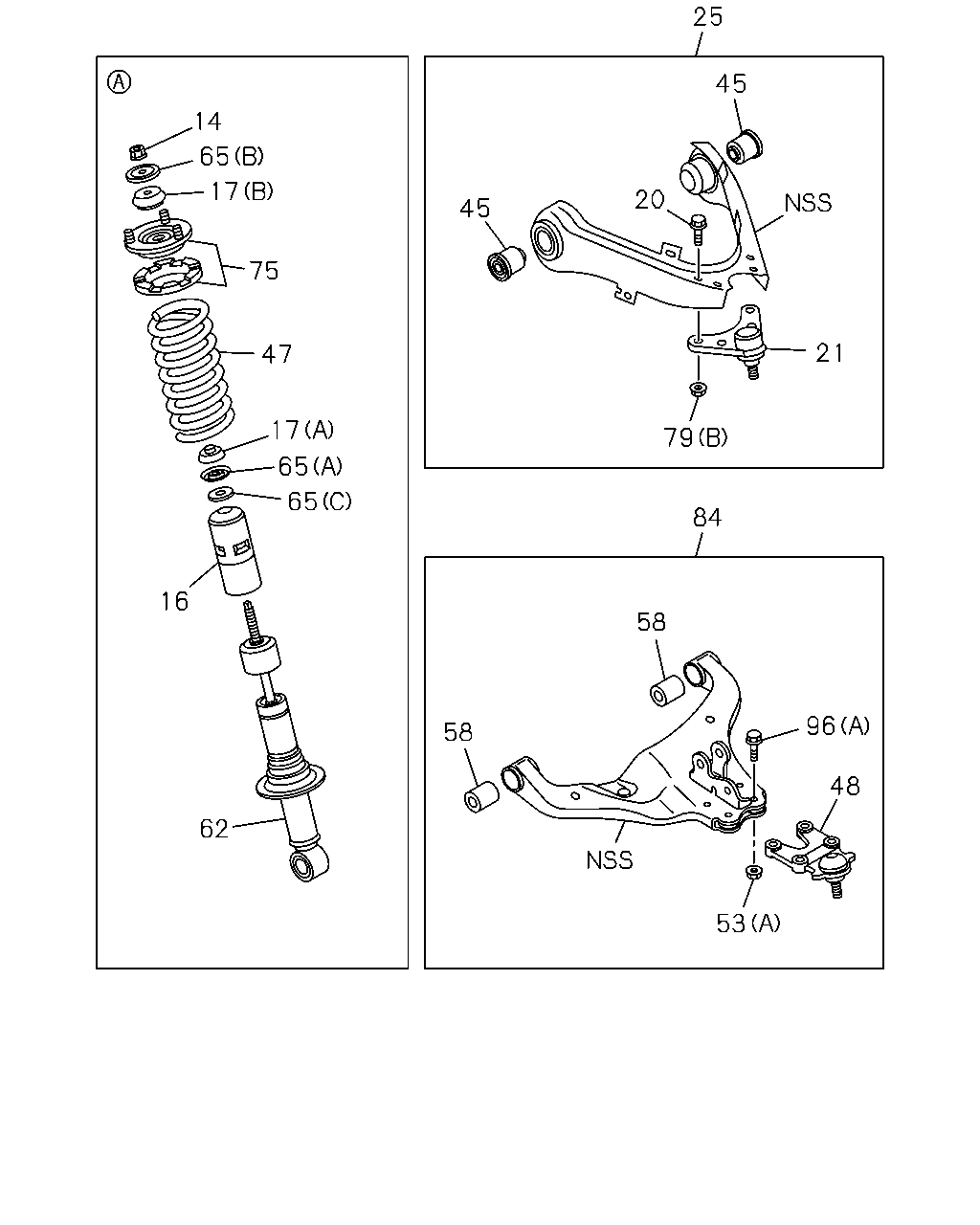

14 65 17 75 47 17 65 65 16 62 45 25 45 20 21 79 84 58 58 96 48 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	NUT; S/ABS,UPR M12 FLANGE THA	8-97236-304-0	02	1	1510-	●	●	●	●	●	●
16	COVER; DUST,FRT S/ABS EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97944-566-0	02	1	1510-	●		●
16	COVER; DUST,FRT S/ABS THA	8-97944-566-0	02	1	1510-		●
16	COVER; DUST,FRT S/ABS HIGH RIDE SUSPENSION<7YC> THA	8-97947-100-0	02	1	1510-	●		●
16	COVER; DUST,FRT S/ABS THA	8-97947-100-0	02	1	1510-				●	●	●
17	BUSHING; RUBBER,S/ABS (A) THA	8-97236-303-0	02	1	1510-	●	●	●	●	●	●
17	BUSHING; RUBBER,S/ABS (B) THA	8-97264-184-0	02	1	1510-	●	●	●	●	●	●
20	BOLT; UPR LINK END TO UPR LINK M8X25 FLANGE IMA	0-28060-825-0	08	1	1510-	●	●	●	●	●	●
21	JOINT ASM; BALL,UPR CONT ARM THA	8-98005-827-0	02	1	1510-	●	●	●	●	●	●
25	ARM; UPR CONT HIGH RIDE SUSPENSION<7YC> THA	8-97945-841-2	01	1	1510-	●		●
25	ARM; UPR CONT THA	8-97945-841-2	01	1	1510-				●	●	●
25	ARM; UPR CONT HIGH RIDE SUSPENSION<7YC> THA	8-97945-842-2	01	1	1510-	●		●
25	ARM; UPR CONT THA	8-97945-842-2	01	1	1510-				●	●	●
25	ARM; UPR CONT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98212-475-0	01	1	1510-	●		●
25	ARM; UPR CONT THA	8-98212-475-0	01	1	1510-		●
25	ARM; UPR CONT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98212-476-0	01	1	1510-	●		●
25	ARM; UPR CONT THA	8-98212-476-0	01	1	1510-		●
45	BUSHING; UPR LINK,FRT HIGH RIDE SUSPENSION<7YC> THA	8-97947-419-0	04	1	1510-	●		●
45	BUSHING; UPR LINK,FRT THA	8-97947-419-0	04	1	1510-				●	●	●
45	BUSHING; UPR LINK,FRT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97364-173-0	04	1	1510-	●		●
45	BUSHING; UPR LINK,FRT THA	8-97364-173-0	04	1	1510-		●
47	SPRING; COIL,FRT SUSP 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97947-184-1	02	1	1510-	●
47	SPRING; COIL,FRT SUSP 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> THA	8-97947-184-1	02	1	1510-		●
47	SPRING; COIL,FRT SUSP RZ4E-TC ENG<RDZ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97947-183-1	02	1	1510-	●
47	SPRING; COIL,FRT SUSP HIGH RIDE SUSPENSION<7YC> THA	8-97947-205-3	02	1	1510-	●
47	SPRING; COIL,FRT SUSP RZ4E-TC ENG<RDZ> THA	8-97947-114-2	02	1	1510-		●
47	SPRING; COIL,FRT SUSP 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> HIGH RIDE SUSPENSION<7YC> THA	8-97947-119-2	02	1	1510-			●
47	SPRING; COIL,FRT SUSP RZ4E-TC ENG<RDZ> THA	8-97947-119-2	02	1	1510-						●
47	SPRING; COIL,FRT SUSP 4JK1-TCS ENG<LKZ>,RZ4E-TC ENG<RDZ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97947-115-2	02	1	1510-			●
47	SPRING; COIL,FRT SUSP RZ4E-TC ENG<RDZ> HIGH RIDE SUSPENSION<7YC> THA	8-98306-966-0	02	1	1510-			●
47	SPRING; COIL,FRT SUSP THA	8-97947-206-2	02	1	1510-				●
47	SPRING; COIL,FRT SUSP 4JJ1-TCX ENG<LS0> THA	8-97947-206-2	02	1	1510-					●
47	SPRING; COIL,FRT SUSP 4JJ1-TCX ENG<LS0> THA	8-97947-117-2	02	1	1510-						●
48	JOINT ASM; BALL,LWR CONT ARM THA	8-98005-875-0	02	1	1510-	●	●	●	●	●	●
53	NUT; LWR LINK (B) M18 THA	0-91110-518-0	02	1	1510-	●	●	●	●	●	●
53	NUT; LWR LINK (A) M12 FLANGE THA	0-91180-212-0	08	1	1510-	●	●	●	●	●	●
58	BUSHING; LWR LINK HIGH RIDE SUSPENSION<7YC> THA	8-97947-087-1	04	1	1510-	●		●
58	BUSHING; LWR LINK THA	8-97947-087-1	04	1	1510-				●	●	●
58	BUSHING; LWR LINK EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97364-174-0	04	1	1510-	●		●
58	BUSHING; LWR LINK THA	8-97364-174-0	04	1	1510-		●
62	ABSORBER ASM; SHOCK,FRT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97947-094-3	02	1	1510-	●
62	ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION<7YC> THA	8-97947-098-3	02	1	1510-	●
62	ABSORBER ASM; SHOCK,FRT THA	8-98212-126-0	02	1	1510-		●
62	ABSORBER ASM; SHOCK,FRT 4JK1-TCS ENG<LKZ>,RZ4E-TC ENG<RDZ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97947-096-2	02	1	1510-			●
62	ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98161-915-2	02	1	1510-			●
62	ABSORBER ASM; SHOCK,FRT THA	8-97947-097-3	02	1	1510-				●
62	ABSORBER ASM; SHOCK,FRT 4JJ1-TCX ENG<LS0> THA	8-97947-097-3	02	1	1510-					●
62	ABSORBER ASM; SHOCK,FRT 4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> THA	8-97947-099-4	02	1	1510-						●
65	WASHER; S/ABS (C) THA	8-97944-892-0	02	1	1510-	●	●	●	●	●	●
65	WASHER; S/ABS (B) THA	8-98005-971-0	02	1	1510-	●	●	●	●	●	●
65	WASHER; S/ABS (A) THA	8-98005-972-0	02	1	1510-	●	●	●	●	●	●
75	BRACKET; FRT S/ABS THA	8-98177-899-1	02	1	1510-	●	●	●	●	●	●
79	NUT; UPR LINK END TO KNUCKLE (A) M14 THA	0-91110-514-0	02	1	1510-	●	●	●	●	●	●
79	NUT; UPR LINK END TO KNUCKLE (B) M8 FLANGE THA	0-91180-208-0	08	1	1510-	●	●	●	●	●	●
84	ARM; LWR CONT HIGH RIDE SUSPENSION<7YC> THA	8-97945-843-1	01	1	1510-	●		●
84	ARM; LWR CONT THA	8-97945-843-1	01	1	1510-				●	●	●
84	ARM; LWR CONT HIGH RIDE SUSPENSION<7YC> THA	8-97945-844-1	01	1	1510-	●		●
84	ARM; LWR CONT THA	8-97945-844-1	01	1	1510-				●	●	●
84	ARM; LWR CONT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98162-164-0	01	1	1510-	●		●
84	ARM; LWR CONT THA	8-98162-164-0	01	1	1510-		●
84	ARM; LWR CONT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98162-165-0	01	1	1510-	●		●
84	ARM; LWR CONT THA	8-98162-165-0	01	1	1510-		●
96	BOLT; LWR LINK (A) M12X37 FLANGE THA	8-97245-639-0	08	1	1510-	●	●	●	●	●	●
96	BOLT; LWR LINK (B) M16X102 W/PLATE THA	8-98186-404-0	04	1	1510-	●	●	●	●	●	●

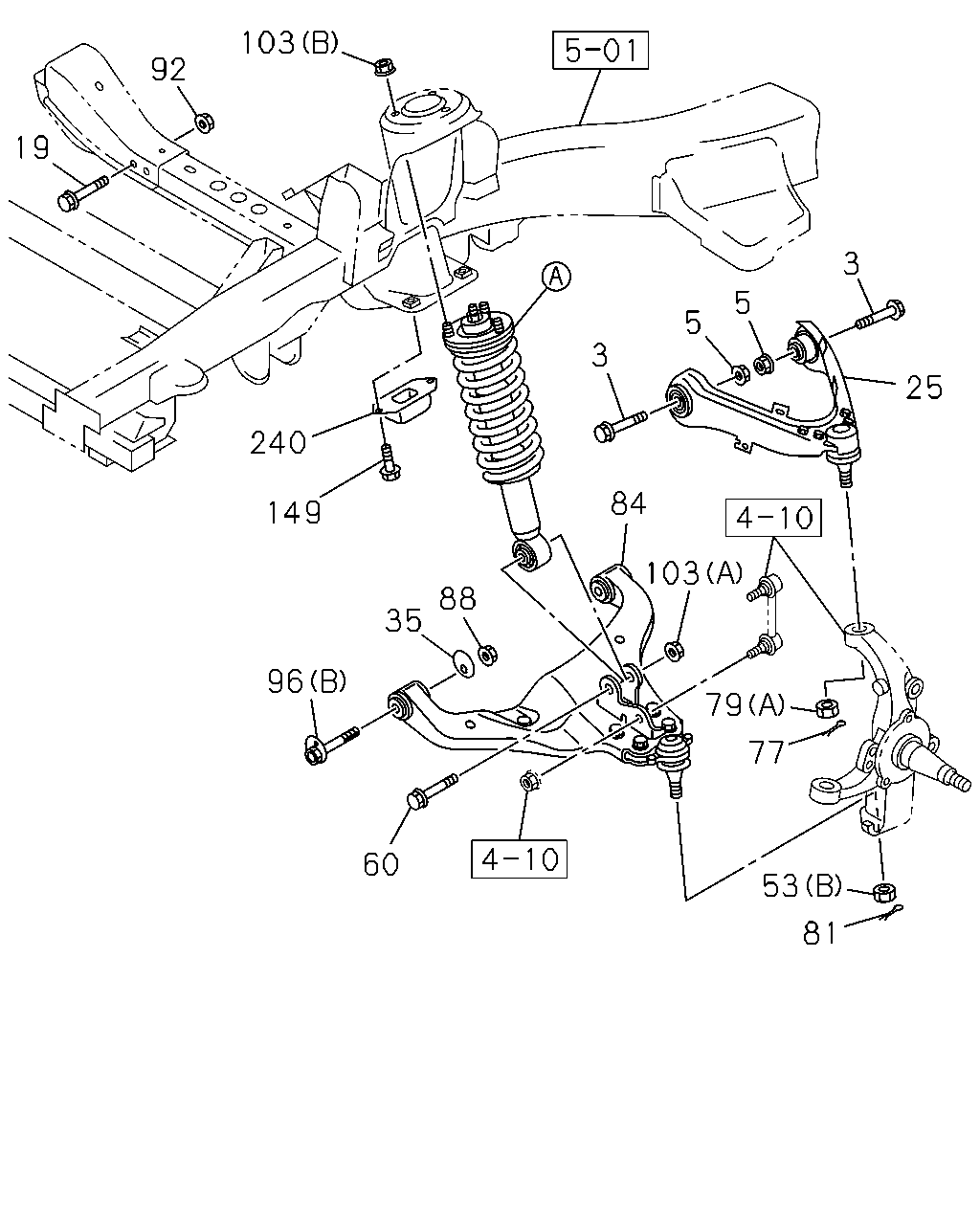

103 92 19 240 149 96 88 35 60 53 81 77 79 103 84 3 5 5 3 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	BOLT; UPR LINK TO FRAME M14X74 THA	8-97947-455-0	04	1	1510-	●	●	●	●	●	●
5	NUT; UPR LINK TO FRAME M14 FLANGE THA	8-97245-635-0	04	1	1510-	●	●	●	●	●	●
19	BOLT; FRT SUSP TO C/MBR HIGH RIDE SUSPENSION<7YC> M10X100 THA	0-28061-000-0	04	1	1510-	●		●
19	BOLT; FRT SUSP TO C/MBR M10X100 THA	0-28061-000-0	04	1	1510-				●	●	●
19	BOLT; FRT SUSP TO C/MBR EXC. HIGH RIDE SUSPENSION<7YC> M10X80 FLANGE THA	0-28061-080-0	04	1	1510-	●		●
19	BOLT; FRT SUSP TO C/MBR M10X80 FLANGE THA	0-28061-080-0	04	1	1510-		●
25	ARM; UPR CONT HIGH RIDE SUSPENSION<7YC> THA	8-97945-841-2	01	1	1510-	●		●
25	ARM; UPR CONT THA	8-97945-841-2	01	1	1510-				●	●	●
25	ARM; UPR CONT HIGH RIDE SUSPENSION<7YC> THA	8-97945-842-2	01	1	1510-	●		●
25	ARM; UPR CONT THA	8-97945-842-2	01	1	1510-				●	●	●
25	ARM; UPR CONT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98212-475-0	01	1	1510-	●		●
25	ARM; UPR CONT THA	8-98212-475-0	01	1	1510-		●
25	ARM; UPR CONT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98212-476-0	01	1	1510-	●		●
25	ARM; UPR CONT THA	8-98212-476-0	01	1	1510-		●
35	PLATE; BUSHING SUPPORT THA	8-97214-814-0	04	1	1510-	●	●	●	●	●	●
53	NUT; LWR LINK (B) M18 THA	0-91110-518-0	02	1	1510-	●	●	●	●	●	●
53	NUT; LWR LINK (A) M12 FLANGE THA	0-91180-212-0	08	1	1510-	●	●	●	●	●	●
60	BOLT; S/ABS TO LWR LINK M14X74 THA	8-97947-455-0	02	1	1510-	●	●	●	●	●	●
77	PIN; SPLIT,LINK END TO KNUCKLE OD=2.8 L=28 IMA	0-81123-028-0	02	1	1510-	●	●	●	●	●	●
79	NUT; UPR LINK END TO KNUCKLE (A) M14 THA	0-91110-514-0	02	1	1510-	●	●	●	●	●	●
79	NUT; UPR LINK END TO KNUCKLE (B) M8 FLANGE THA	0-91180-208-0	08	1	1510-	●	●	●	●	●	●
81	PIN; SPLIT,LWR LINK TO KNUCKLE OD=2.8 L=28 IMA	0-81123-028-0	02	1	1510-	●	●	●	●	●	●
84	ARM; LWR CONT HIGH RIDE SUSPENSION<7YC> THA	8-97945-843-1	01	1	1510-	●		●
84	ARM; LWR CONT THA	8-97945-843-1	01	1	1510-				●	●	●
84	ARM; LWR CONT HIGH RIDE SUSPENSION<7YC> THA	8-97945-844-1	01	1	1510-	●		●
84	ARM; LWR CONT THA	8-97945-844-1	01	1	1510-				●	●	●
84	ARM; LWR CONT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98162-164-0	01	1	1510-	●		●
84	ARM; LWR CONT THA	8-98162-164-0	01	1	1510-		●
84	ARM; LWR CONT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98162-165-0	01	1	1510-	●		●
84	ARM; LWR CONT THA	8-98162-165-0	01	1	1510-		●
88	NUT; LWR LINK M16 FLANGE THA	8-97245-631-0	04	1	1510-	●	●	●	●	●	●
92	NUT; FRT SUSP M10 FLANGE THA	0-91180-210-0	04	1	1510-	●	●	●	●	●	●
96	BOLT; LWR LINK (A) M12X37 FLANGE THA	8-97245-639-0	08	1	1510-	●	●	●	●	●	●
96	BOLT; LWR LINK (B) M16X102 W/PLATE THA	8-98186-404-0	04	1	1510-	●	●	●	●	●	●
103	NUT; S/ABS TO LWR LINK (A) M14 FLANGE THA	8-97245-635-0	02	1	1510-	●	●	●	●	●	●
103	NUT; S/ABS TO LWR LINK (B) M10 FLANGE THA	8-97245-637-0	06	1	1510-	●	●	●	●	●	●
149	BOLT; ARM TO LWR CONT ARM EXC. HIGH RIDE SUSPENSION<7YC> M10X25 FLANGE THA	0-28651-025-0	04	1	1510-	●		●
149	BOLT; ARM TO LWR CONT ARM M10X25 FLANGE THA	0-28651-025-0	04	1	1510-		●
240	BUMPER; LWR CONT ARM HIGH RIDE SUSPENSION<7YC> THA	8-97946-180-0	02	1	1510-	●		●
240	BUMPER; LWR CONT ARM THA	8-97946-180-0	02	1	1510-				●	●	●
240	BUMPER; LWR CONT ARM EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97215-052-0	02	1	1510-	●		●
240	BUMPER; LWR CONT ARM THA	8-97215-052-0	02	1	1510-		●

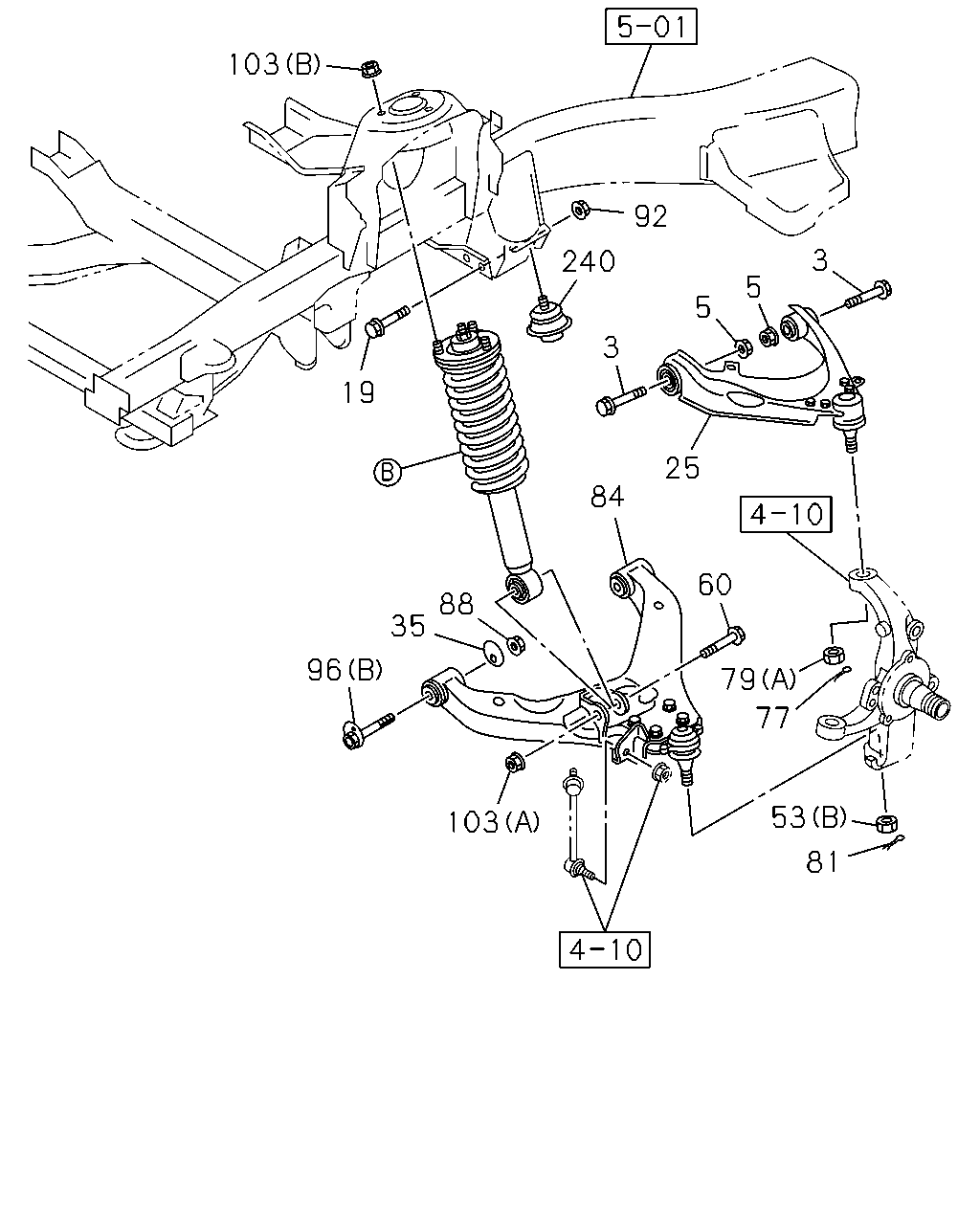

103 19 88 35 96 103 53 81 77 79 60 84 25 3 5 5 3 92 240

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	BOLT; UPR LINK TO FRAME M14X74 THA	8-97947-455-0	04	1	1510-	●	●	●	●	●	●
5	NUT; UPR LINK TO FRAME M14 FLANGE THA	8-97245-635-0	04	1	1510-	●	●	●	●	●	●
19	BOLT; FRT SUSP TO C/MBR HIGH RIDE SUSPENSION<7YC> M10X100 THA	0-28061-000-0	04	1	1510-	●		●
19	BOLT; FRT SUSP TO C/MBR M10X100 THA	0-28061-000-0	04	1	1510-				●	●	●
19	BOLT; FRT SUSP TO C/MBR EXC. HIGH RIDE SUSPENSION<7YC> M10X80 FLANGE THA	0-28061-080-0	04	1	1510-	●		●
19	BOLT; FRT SUSP TO C/MBR M10X80 FLANGE THA	0-28061-080-0	04	1	1510-		●
25	ARM; UPR CONT HIGH RIDE SUSPENSION<7YC> THA	8-97945-841-2	01	1	1510-	●		●
25	ARM; UPR CONT THA	8-97945-841-2	01	1	1510-				●	●	●
25	ARM; UPR CONT HIGH RIDE SUSPENSION<7YC> THA	8-97945-842-2	01	1	1510-	●		●
25	ARM; UPR CONT THA	8-97945-842-2	01	1	1510-				●	●	●
25	ARM; UPR CONT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98212-475-0	01	1	1510-	●		●
25	ARM; UPR CONT THA	8-98212-475-0	01	1	1510-		●
25	ARM; UPR CONT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98212-476-0	01	1	1510-	●		●
25	ARM; UPR CONT THA	8-98212-476-0	01	1	1510-		●
35	PLATE; BUSHING SUPPORT THA	8-97214-814-0	04	1	1510-	●	●	●	●	●	●
53	NUT; LWR LINK (B) M18 THA	0-91110-518-0	02	1	1510-	●	●	●	●	●	●
53	NUT; LWR LINK (A) M12 FLANGE THA	0-91180-212-0	08	1	1510-	●	●	●	●	●	●
60	BOLT; S/ABS TO LWR LINK M14X74 THA	8-97947-455-0	02	1	1510-	●	●	●	●	●	●
77	PIN; SPLIT,LINK END TO KNUCKLE OD=2.8 L=28 IMA	0-81123-028-0	02	1	1510-	●	●	●	●	●	●
79	NUT; UPR LINK END TO KNUCKLE (A) M14 THA	0-91110-514-0	02	1	1510-	●	●	●	●	●	●
79	NUT; UPR LINK END TO KNUCKLE (B) M8 FLANGE THA	0-91180-208-0	08	1	1510-	●	●	●	●	●	●
81	PIN; SPLIT,LWR LINK TO KNUCKLE OD=2.8 L=28 IMA	0-81123-028-0	02	1	1510-	●	●	●	●	●	●
84	ARM; LWR CONT HIGH RIDE SUSPENSION<7YC> THA	8-97945-843-1	01	1	1510-	●		●
84	ARM; LWR CONT THA	8-97945-843-1	01	1	1510-				●	●	●
84	ARM; LWR CONT HIGH RIDE SUSPENSION<7YC> THA	8-97945-844-1	01	1	1510-	●		●
84	ARM; LWR CONT THA	8-97945-844-1	01	1	1510-				●	●	●
84	ARM; LWR CONT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98162-164-0	01	1	1510-	●		●
84	ARM; LWR CONT THA	8-98162-164-0	01	1	1510-		●
84	ARM; LWR CONT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98162-165-0	01	1	1510-	●		●
84	ARM; LWR CONT THA	8-98162-165-0	01	1	1510-		●
88	NUT; LWR LINK M16 FLANGE THA	8-97245-631-0	04	1	1510-	●	●	●	●	●	●
92	NUT; FRT SUSP M10 FLANGE THA	0-91180-210-0	04	1	1510-	●	●	●	●	●	●
96	BOLT; LWR LINK (A) M12X37 FLANGE THA	8-97245-639-0	08	1	1510-	●	●	●	●	●	●
96	BOLT; LWR LINK (B) M16X102 W/PLATE THA	8-98186-404-0	04	1	1510-	●	●	●	●	●	●
103	NUT; S/ABS TO LWR LINK (A) M14 FLANGE THA	8-97245-635-0	02	1	1510-	●	●	●	●	●	●
103	NUT; S/ABS TO LWR LINK (B) M10 FLANGE THA	8-97245-637-0	06	1	1510-	●	●	●	●	●	●
240	BUMPER; LWR CONT ARM HIGH RIDE SUSPENSION<7YC> THA	8-97946-180-0	02	1	1510-	●		●
240	BUMPER; LWR CONT ARM THA	8-97946-180-0	02	1	1510-				●	●	●
240	BUMPER; LWR CONT ARM EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97215-052-0	02	1	1510-	●		●
240	BUMPER; LWR CONT ARM THA	8-97215-052-0	02	1	1510-		●

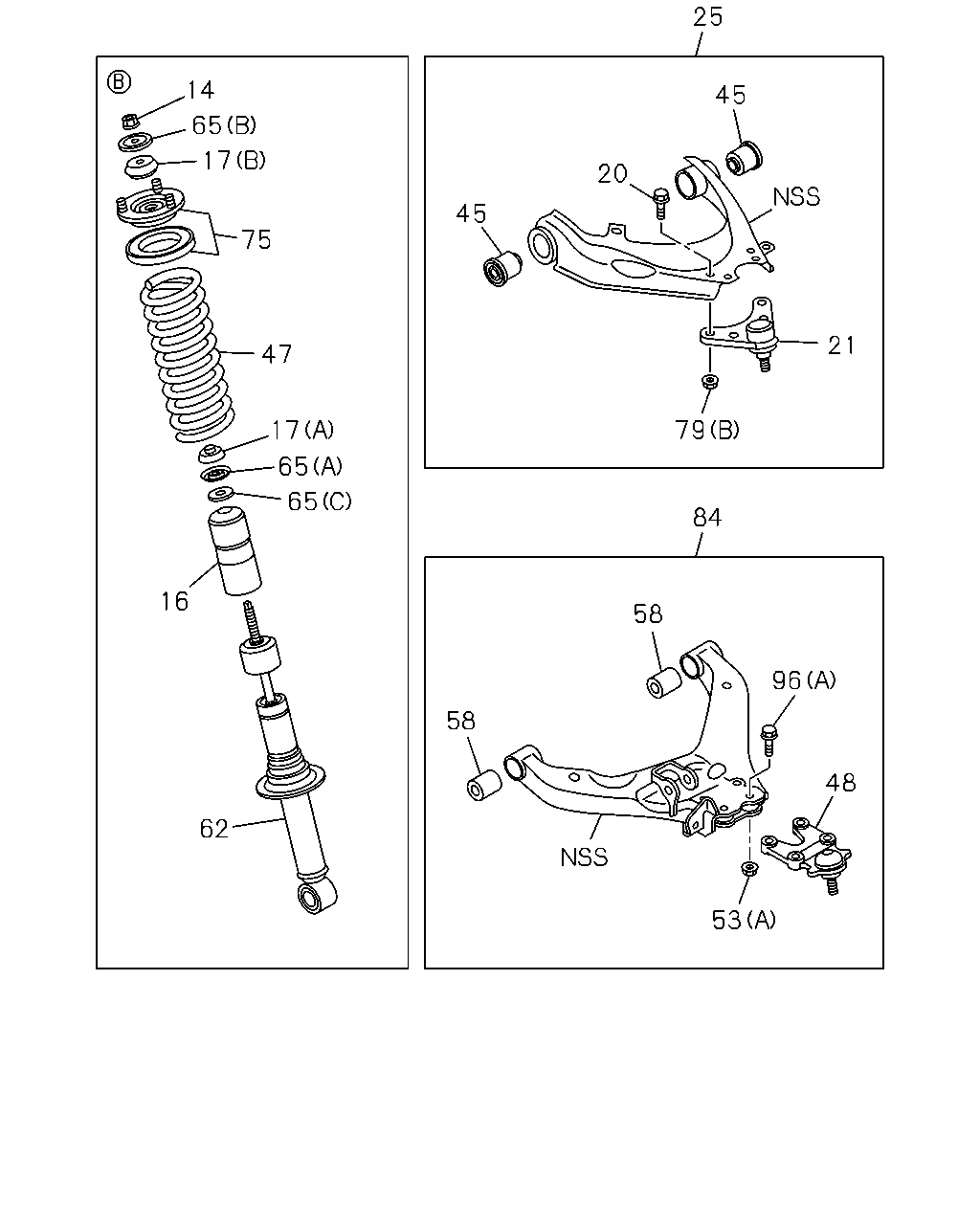

14 65 17 75 47 17 65 65 16 62 58 58 96 48 79 21 45 20 45 25 53 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	NUT; S/ABS,UPR M12 FLANGE THA	8-97236-304-0	02	1	1510-	●	●	●	●	●	●
16	COVER; DUST,FRT S/ABS EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97944-566-0	02	1	1510-	●		●
16	COVER; DUST,FRT S/ABS THA	8-97944-566-0	02	1	1510-		●
16	COVER; DUST,FRT S/ABS HIGH RIDE SUSPENSION<7YC> THA	8-97947-100-0	02	1	1510-	●		●
16	COVER; DUST,FRT S/ABS THA	8-97947-100-0	02	1	1510-				●	●	●
17	BUSHING; RUBBER,S/ABS (A) THA	8-97236-303-0	02	1	1510-	●	●	●	●	●	●
17	BUSHING; RUBBER,S/ABS (B) THA	8-97264-184-0	02	1	1510-	●	●	●	●	●	●
20	BOLT; UPR LINK END TO UPR LINK M8X25 FLANGE IMA	0-28060-825-0	08	1	1510-	●	●	●	●	●	●
21	JOINT ASM; BALL,UPR CONT ARM THA	8-98005-827-0	02	1	1510-	●	●	●	●	●	●
25	ARM; UPR CONT HIGH RIDE SUSPENSION<7YC> THA	8-97945-841-2	01	1	1510-	●		●
25	ARM; UPR CONT THA	8-97945-841-2	01	1	1510-				●	●	●
25	ARM; UPR CONT HIGH RIDE SUSPENSION<7YC> THA	8-97945-842-2	01	1	1510-	●		●
25	ARM; UPR CONT THA	8-97945-842-2	01	1	1510-				●	●	●
25	ARM; UPR CONT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98212-475-0	01	1	1510-	●		●
25	ARM; UPR CONT THA	8-98212-475-0	01	1	1510-		●
25	ARM; UPR CONT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98212-476-0	01	1	1510-	●		●
25	ARM; UPR CONT THA	8-98212-476-0	01	1	1510-		●
45	BUSHING; UPR LINK,FRT HIGH RIDE SUSPENSION<7YC> THA	8-97947-419-0	04	1	1510-	●		●
45	BUSHING; UPR LINK,FRT THA	8-97947-419-0	04	1	1510-				●	●	●
45	BUSHING; UPR LINK,FRT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97364-173-0	04	1	1510-	●		●
45	BUSHING; UPR LINK,FRT THA	8-97364-173-0	04	1	1510-		●
47	SPRING; COIL,FRT SUSP 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97947-184-1	02	1	1510-	●
47	SPRING; COIL,FRT SUSP 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> THA	8-97947-184-1	02	1	1510-		●
47	SPRING; COIL,FRT SUSP RZ4E-TC ENG<RDZ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97947-183-1	02	1	1510-	●
47	SPRING; COIL,FRT SUSP HIGH RIDE SUSPENSION<7YC> THA	8-97947-205-3	02	1	1510-	●
47	SPRING; COIL,FRT SUSP RZ4E-TC ENG<RDZ> THA	8-97947-114-2	02	1	1510-		●
47	SPRING; COIL,FRT SUSP 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> HIGH RIDE SUSPENSION<7YC> THA	8-97947-119-2	02	1	1510-			●
47	SPRING; COIL,FRT SUSP RZ4E-TC ENG<RDZ> THA	8-97947-119-2	02	1	1510-						●
47	SPRING; COIL,FRT SUSP 4JK1-TCS ENG<LKZ>,RZ4E-TC ENG<RDZ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97947-115-2	02	1	1510-			●
47	SPRING; COIL,FRT SUSP RZ4E-TC ENG<RDZ> HIGH RIDE SUSPENSION<7YC> THA	8-98306-966-0	02	1	1510-			●
47	SPRING; COIL,FRT SUSP THA	8-97947-206-2	02	1	1510-				●
47	SPRING; COIL,FRT SUSP 4JJ1-TCX ENG<LS0> THA	8-97947-206-2	02	1	1510-					●
47	SPRING; COIL,FRT SUSP 4JJ1-TCX ENG<LS0> THA	8-97947-117-2	02	1	1510-						●
48	JOINT ASM; BALL,LWR CONT ARM THA	8-98005-875-0	02	1	1510-	●	●	●	●	●	●
53	NUT; LWR LINK (B) M18 THA	0-91110-518-0	02	1	1510-	●	●	●	●	●	●
53	NUT; LWR LINK (A) M12 FLANGE THA	0-91180-212-0	08	1	1510-	●	●	●	●	●	●
58	BUSHING; LWR LINK HIGH RIDE SUSPENSION<7YC> THA	8-97947-087-1	04	1	1510-	●		●
58	BUSHING; LWR LINK THA	8-97947-087-1	04	1	1510-				●	●	●
58	BUSHING; LWR LINK EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97364-174-0	04	1	1510-	●		●
58	BUSHING; LWR LINK THA	8-97364-174-0	04	1	1510-		●
62	ABSORBER ASM; SHOCK,FRT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97947-094-3	02	1	1510-	●
62	ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION<7YC> THA	8-97947-098-3	02	1	1510-	●
62	ABSORBER ASM; SHOCK,FRT THA	8-98212-126-0	02	1	1510-		●
62	ABSORBER ASM; SHOCK,FRT 4JK1-TCS ENG<LKZ>,RZ4E-TC ENG<RDZ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97947-096-2	02	1	1510-			●
62	ABSORBER ASM; SHOCK,FRT HIGH RIDE SUSPENSION<7YC> THA	8-98161-915-2	02	1	1510-			●
62	ABSORBER ASM; SHOCK,FRT THA	8-97947-097-3	02	1	1510-				●
62	ABSORBER ASM; SHOCK,FRT 4JJ1-TCX ENG<LS0> THA	8-97947-097-3	02	1	1510-					●
62	ABSORBER ASM; SHOCK,FRT 4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> THA	8-97947-099-4	02	1	1510-						●
65	WASHER; S/ABS (C) THA	8-97944-892-0	02	1	1510-	●	●	●	●	●	●
65	WASHER; S/ABS (B) THA	8-98005-971-0	02	1	1510-	●	●	●	●	●	●
65	WASHER; S/ABS (A) THA	8-98005-972-0	02	1	1510-	●	●	●	●	●	●
75	BRACKET; FRT S/ABS THA	8-98177-899-1	02	1	1510-	●	●	●	●	●	●
79	NUT; UPR LINK END TO KNUCKLE (A) M14 THA	0-91110-514-0	02	1	1510-	●	●	●	●	●	●
79	NUT; UPR LINK END TO KNUCKLE (B) M8 FLANGE THA	0-91180-208-0	08	1	1510-	●	●	●	●	●	●
84	ARM; LWR CONT HIGH RIDE SUSPENSION<7YC> THA	8-97945-843-1	01	1	1510-	●		●
84	ARM; LWR CONT THA	8-97945-843-1	01	1	1510-				●	●	●
84	ARM; LWR CONT HIGH RIDE SUSPENSION<7YC> THA	8-97945-844-1	01	1	1510-	●		●
84	ARM; LWR CONT THA	8-97945-844-1	01	1	1510-				●	●	●
84	ARM; LWR CONT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98162-164-0	01	1	1510-	●		●
84	ARM; LWR CONT THA	8-98162-164-0	01	1	1510-		●
84	ARM; LWR CONT EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98162-165-0	01	1	1510-	●		●
84	ARM; LWR CONT THA	8-98162-165-0	01	1	1510-		●
96	BOLT; LWR LINK (A) M12X37 FLANGE THA	8-97245-639-0	08	1	1510-	●	●	●	●	●	●
96	BOLT; LWR LINK (B) M16X102 W/PLATE THA	8-98186-404-0	04	1	1510-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
