4-36 — POWER STEERING CONTROL; ENGINE SIDE (#166089) — 8 parça

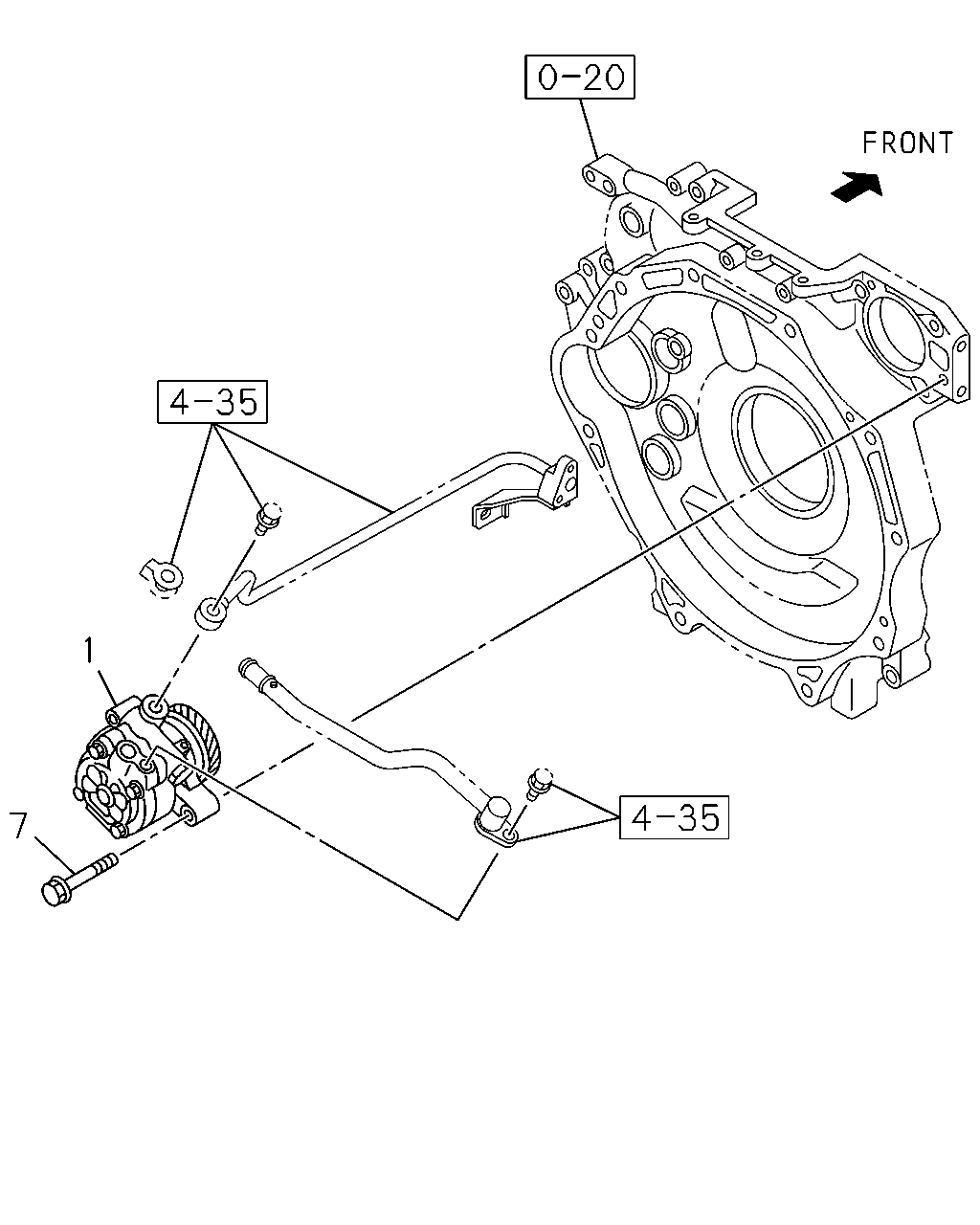

çizim 492753

1 7

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
	1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JK1-TCS ENG<LKZ> THA	8-97946-698-0	01	1	1510-	●	●	●	●
	1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCX ENG<LS0> THA	8-97946-164-0	01	1	1510-	●	●	●	●	●	●
	1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. RZ4E-TC ENG<RDZ> THA	8-98319-938-0	01	1	1510-	●	●	●	●		●
	7	BOLT; OIL PUMP,P/S RZ4E-TC ENG<RDZ> M8X45 FLANGE THA	0-28050-845-0	02	1	1510-	●	●	●	●		●

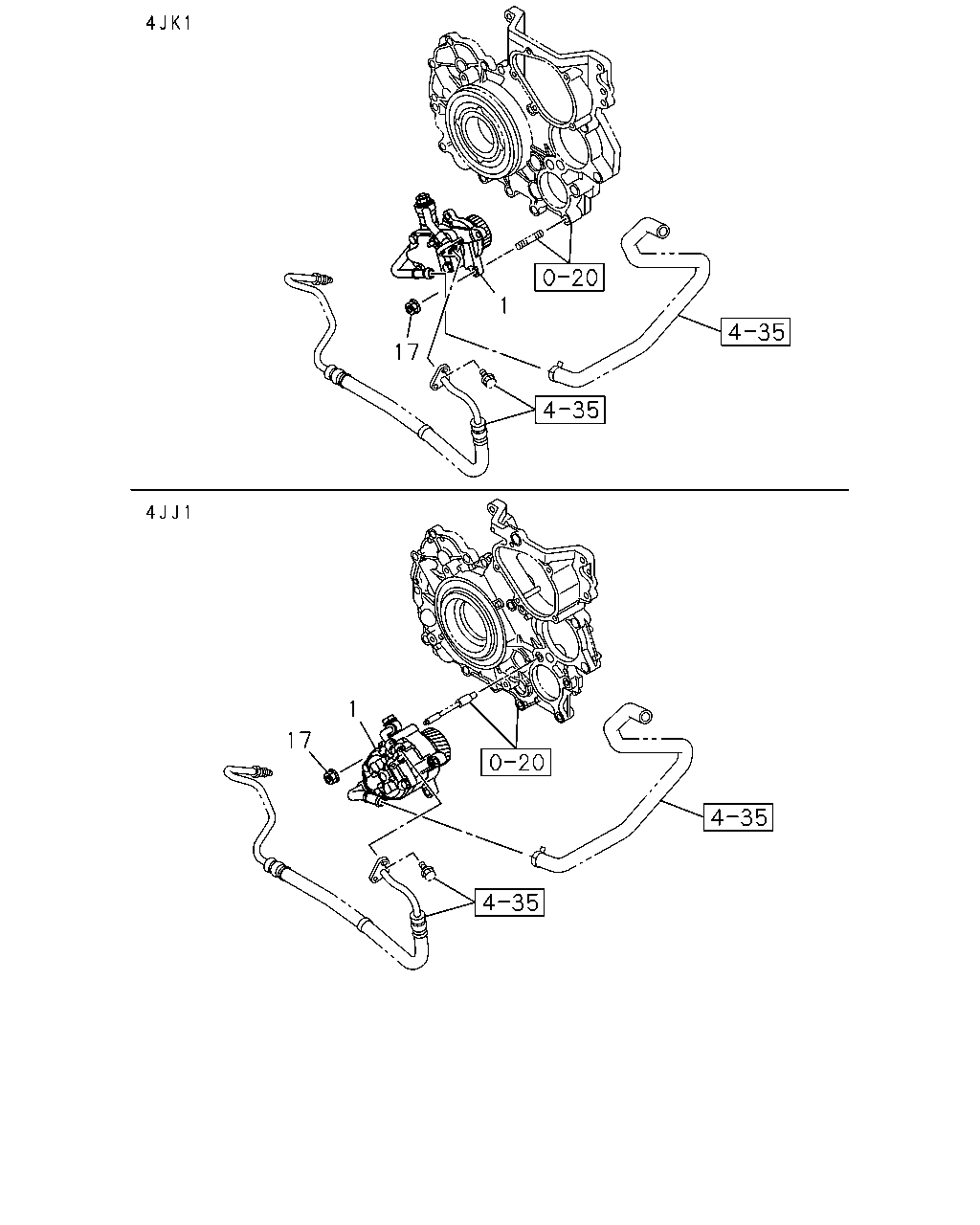

çizim 492974

17 17 1 1

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
	1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JK1-TCS ENG<LKZ> THA	8-97946-698-0	01	1	1510-	●	●	●	●
	1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCX ENG<LS0> THA	8-97946-164-0	01	1	1510-	●	●	●	●	●	●
	1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. RZ4E-TC ENG<RDZ> THA	8-98319-938-0	01	1	1510-	●	●	●	●		●
	17	NUT; POWER STRG PUMP 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M8 FLANGE THA	0-91180-208-0	03	1	1510-	●	●	●	●	●	●
