4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#166088) — 91 parça

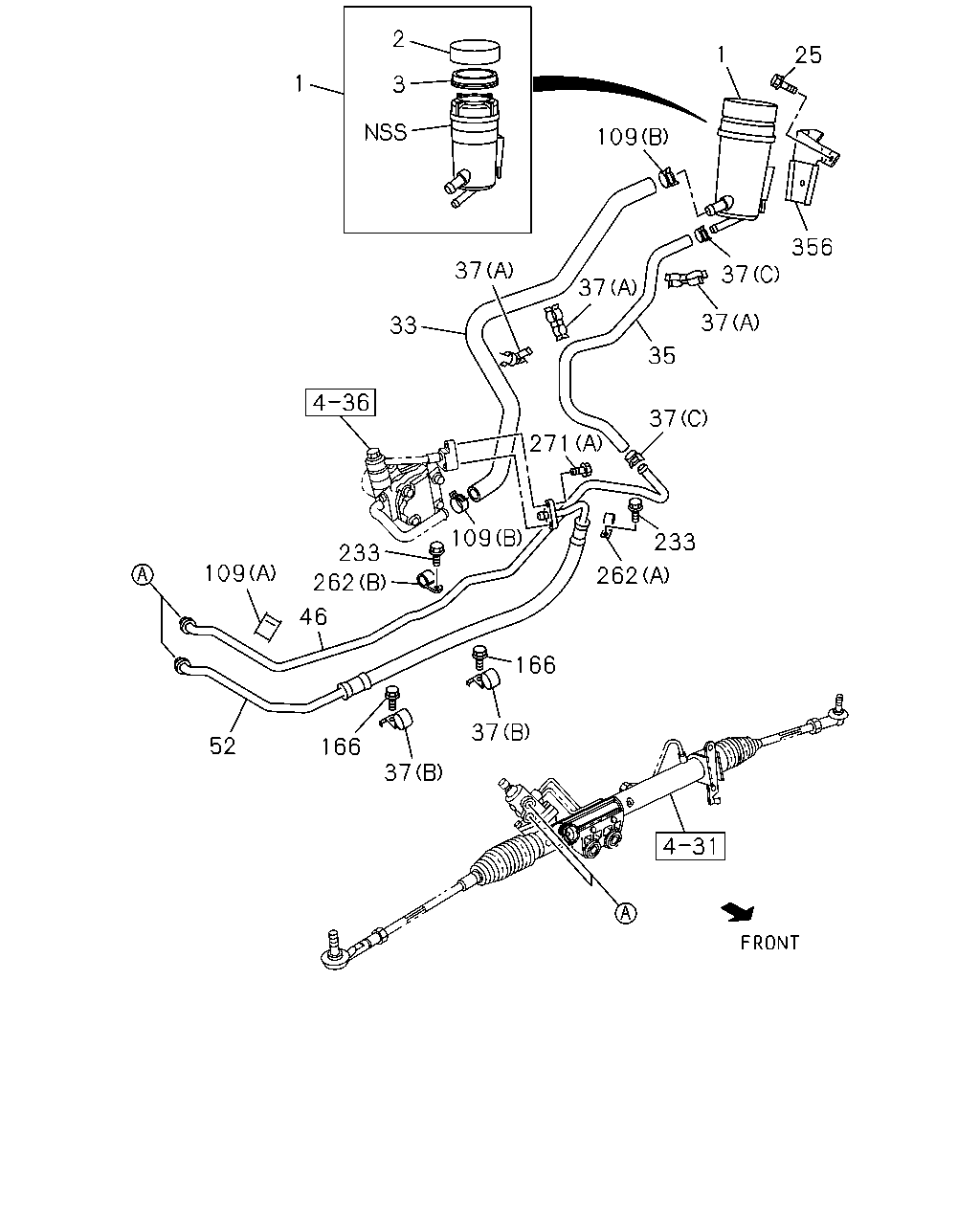

2 3 1 109 1 25 356 37 37 35 37 37 33 233 262 109 46 52 166 37 37 166 262 233 109 37 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK ASM; OIL,P/S THA	8-97234-350-0	01	1	1510-	●	●	●	●	●	●
2	CAP; OIL TANK,P/S THA	8-97349-476-0	01	1	1510-	●	●	●	●	●	●
3	GASKET; OIL TANK,P/S THA	8-97349-477-0	01	1	1510-	●	●	●	●	●	●
25	BOLT; OIL TANK BRKT M6X16 FLANGE THA	0-28650-616-0	02	1	1510-	●	●	●	●	●	●
25	BOLT; OIL TANK BRKT RZ4E-TC ENG<RDZ> M6X16 FLANGE THA	0-28650-616-0	02	1	1510-	●	●	●	●		●
33	HOSE; RUBBER,POWER STRG 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> THA	8-97946-138-2	01	1	1510-	●	●	●	●	●	●
33	HOSE; RUBBER,POWER STRG RZ4E-TC ENG<RDZ> THA	8-98279-105-1	01	1	1510-	●	●	●	●		●
35	HOSE; RETURN,P/S TANK 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> THA	8-97946-140-1	01	1	1510-	●	●	●	●	●	●
35	HOSE; RETURN,P/S TANK RZ4E-TC ENG<RDZ> THA	8-98279-116-0	01	1	1510-	●	●	●	●		●
37	CLIP; HOSE,P/S 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> (A) ID=17.5 & 21 THA	8-97177-580-0	02	1	1510-	●	●	●	●	●	●
37	CLIP; HOSE,P/S 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> (B) ID=21.5 L=21 THA	8-98211-907-0	02	1	1510-	●	●	●	●	●	●
37	CLIP; HOSE,P/S 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> (A) ID=17.5 & 21 THA	8-97177-580-0	01	1	1510-	●	●	●	●	●	●
37	CLIP; HOSE,P/S (C) ID=16 THA	8-98030-682-0	02	1	1510-	●	●	●	●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> HIGH RIDE SUSPENSION<7YC> THA	8-98228-468-1	01	1	1510-	●		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> THA	8-98228-468-1	01	1	1510-				●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCX ENG<LS0> THA	8-98228-468-1	01	1	1510-					●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98228-467-1	01	1	1510-	●		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> THA	8-98228-467-1	01	1	1510-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK RZ4E-TC ENG<RDZ> HIGH RIDE SUSPENSION<7YC> THA	8-98279-117-0	01	1	1510-	●		●
46	PIPE; OIL,P/S UNIT TO OIL TANK RZ4E-TC ENG<RDZ> THA	8-98279-117-0	01	1	1510-				●		●
46	PIPE; OIL,P/S UNIT TO OIL TANK RZ4E-TC ENG<RDZ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97946-149-2	01	1	1510-	●		●
46	PIPE; OIL,P/S UNIT TO OIL TANK RZ4E-TC ENG<RDZ> THA	8-97946-149-2	01	1	1510-		●
52	HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> HIGH RIDE SUSPENSION<7YC> THA	8-98228-466-0	01	1	1510-	●		●
52	HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> THA	8-98228-466-0	01	1	1510-				●
52	HOSE; FLEX,P/S CONT VLV 4JJ1-TCX ENG<LS0> THA	8-98228-466-0	01	1	1510-					●	●
52	HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98228-465-0	01	1	1510-	●		●
52	HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> THA	8-98228-465-0	01	1	1510-		●
52	HOSE; FLEX,P/S CONT VLV RZ4E-TC ENG<RDZ> HIGH RIDE SUSPENSION<7YC> THA	8-98279-114-0	01	1	1510-	●		●
52	HOSE; FLEX,P/S CONT VLV RZ4E-TC ENG<RDZ> THA	8-98279-114-0	01	1	1510-				●		●
52	HOSE; FLEX,P/S CONT VLV RZ4E-TC ENG<RDZ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98279-113-0	01	1	1510-	●		●
52	HOSE; FLEX,P/S CONT VLV RZ4E-TC ENG<RDZ> THA	8-98279-113-0	01	1	1510-		●
109	CLIP; RUBBER HOSE RZ4E-TC ENG<RDZ> (C) ID=15 THA	8-98279-111-1	03	1	1510-	●	●	●	●		●
109	CLIP; RUBBER HOSE (A) ID=10X2 H=22 THA	8-94252-455-2	01	1	1510-	●	●	●	●	●	●
109	CLIP; RUBBER HOSE (B) ID=20.8 THA	8-97944-127-0	02	1	1510-	●	●	●	●	●	●
109	CLIP; RUBBER HOSE RZ4E-TC ENG<RDZ> (B) ID=20.8 THA	8-97944-127-0	02	1	1510-	●	●	●	●		●
166	BOLT; CLIP 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> M6X16 FLANGE THA	0-28650-616-0	02	1	1510-	●	●	●	●	●	●
233	BOLT; PIPE CLIP,P/S M6X16 FLANGE THA	0-28650-616-0	02	1	1510-	●	●	●	●	●	●
262	CLIP; P/S PIPE (A) ID=11 H=20 L=20 IMA	0-95207-310-0	01	1	1510-	●	●	●	●	●	●
262	CLIP; P/S PIPE (B) ID=11 L=20 IMA	0-95235-032-0	01	1	1510-	●	●	●	●	●	●
271	BOLT; P/S OIL PIPE FIX RZ4E-TC ENG<RDZ> (B) M14X28 EYE-BOLT THA	8-98289-592-0	01	1	1510-	●	●	●	●		●
271	BOLT; P/S OIL PIPE FIX (A) M6X16 FLANGE THA	0-28650-616-0	02	1	1510-	●	●	●	●	●	●
356	BRACKET; P/S,RESERVOIR THA	8-97946-163-0	01	1	1510-	●	●	●	●	●	●

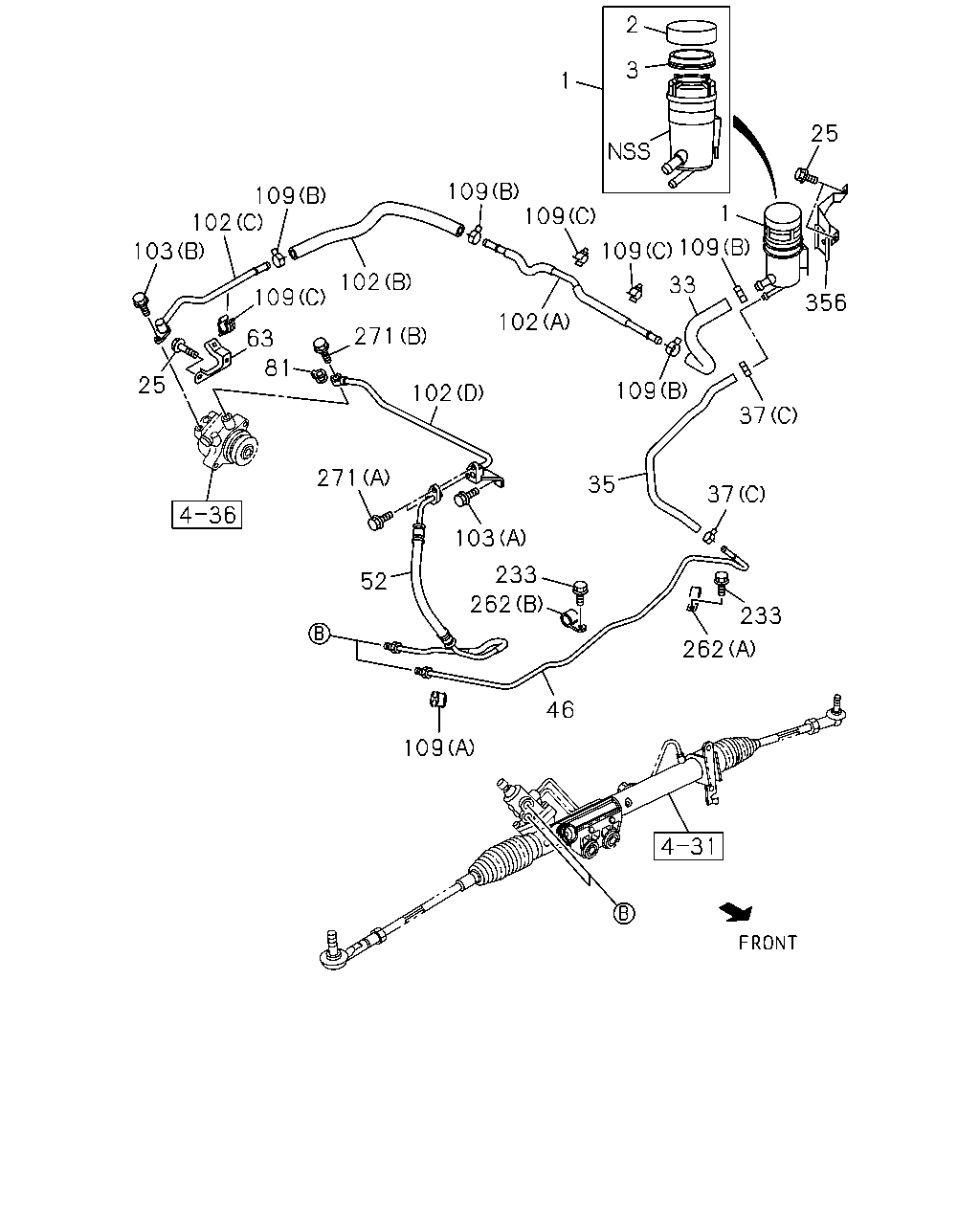

1 2 3 25 109 109 109 1 109 109 102 103 25 81 63 109 102 271 102 102 109 37 37 233 262 233 103 262 46 109 52 271 356 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK ASM; OIL,P/S THA	8-97234-350-0	01	1	1510-	●	●	●	●	●	●
2	CAP; OIL TANK,P/S THA	8-97349-476-0	01	1	1510-	●	●	●	●	●	●
3	GASKET; OIL TANK,P/S THA	8-97349-477-0	01	1	1510-	●	●	●	●	●	●
25	BOLT; OIL TANK BRKT M6X16 FLANGE THA	0-28650-616-0	02	1	1510-	●	●	●	●	●	●
25	BOLT; OIL TANK BRKT RZ4E-TC ENG<RDZ> M6X16 FLANGE THA	0-28650-616-0	02	1	1510-	●	●	●	●		●
33	HOSE; RUBBER,POWER STRG 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> THA	8-97946-138-2	01	1	1510-	●	●	●	●	●	●
33	HOSE; RUBBER,POWER STRG RZ4E-TC ENG<RDZ> THA	8-98279-105-1	01	1	1510-	●	●	●	●		●
35	HOSE; RETURN,P/S TANK 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> THA	8-97946-140-1	01	1	1510-	●	●	●	●	●	●
35	HOSE; RETURN,P/S TANK RZ4E-TC ENG<RDZ> THA	8-98279-116-0	01	1	1510-	●	●	●	●		●
37	CLIP; HOSE,P/S 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> (A) ID=17.5 & 21 THA	8-97177-580-0	02	1	1510-	●	●	●	●	●	●
37	CLIP; HOSE,P/S 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> (B) ID=21.5 L=21 THA	8-98211-907-0	02	1	1510-	●	●	●	●	●	●
37	CLIP; HOSE,P/S 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> (A) ID=17.5 & 21 THA	8-97177-580-0	01	1	1510-	●	●	●	●	●	●
37	CLIP; HOSE,P/S (C) ID=16 THA	8-98030-682-0	02	1	1510-	●	●	●	●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> HIGH RIDE SUSPENSION<7YC> THA	8-98228-468-1	01	1	1510-	●		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> THA	8-98228-468-1	01	1	1510-				●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JJ1-TCX ENG<LS0> THA	8-98228-468-1	01	1	1510-					●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98228-467-1	01	1	1510-	●		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> THA	8-98228-467-1	01	1	1510-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK RZ4E-TC ENG<RDZ> HIGH RIDE SUSPENSION<7YC> THA	8-98279-117-0	01	1	1510-	●		●
46	PIPE; OIL,P/S UNIT TO OIL TANK RZ4E-TC ENG<RDZ> THA	8-98279-117-0	01	1	1510-				●		●
46	PIPE; OIL,P/S UNIT TO OIL TANK RZ4E-TC ENG<RDZ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-97946-149-2	01	1	1510-	●		●
46	PIPE; OIL,P/S UNIT TO OIL TANK RZ4E-TC ENG<RDZ> THA	8-97946-149-2	01	1	1510-		●
52	HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> HIGH RIDE SUSPENSION<7YC> THA	8-98228-466-0	01	1	1510-	●		●
52	HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> THA	8-98228-466-0	01	1	1510-				●
52	HOSE; FLEX,P/S CONT VLV 4JJ1-TCX ENG<LS0> THA	8-98228-466-0	01	1	1510-					●	●
52	HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98228-465-0	01	1	1510-	●		●
52	HOSE; FLEX,P/S CONT VLV 4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> THA	8-98228-465-0	01	1	1510-		●
52	HOSE; FLEX,P/S CONT VLV RZ4E-TC ENG<RDZ> HIGH RIDE SUSPENSION<7YC> THA	8-98279-114-0	01	1	1510-	●		●
52	HOSE; FLEX,P/S CONT VLV RZ4E-TC ENG<RDZ> THA	8-98279-114-0	01	1	1510-				●		●
52	HOSE; FLEX,P/S CONT VLV RZ4E-TC ENG<RDZ> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98279-113-0	01	1	1510-	●		●
52	HOSE; FLEX,P/S CONT VLV RZ4E-TC ENG<RDZ> THA	8-98279-113-0	01	1	1510-		●
63	BRACKET; CLIP,P/S RZ4E-TC ENG<RDZ> THA	8-98279-112-1	01	1	1510-	●	●	●	●		●
81	WASHER; LK,FLEX HOSE RZ4E-TC ENG<RDZ> THA	8-98289-594-0	01	1	1510-	●	●	●	●		●
102	PIPE; SUCTION,P/S RZ4E-TC ENG<RDZ> (A) THA	8-98279-106-1	01	1	1510-	●	●	●	●		●
102	PIPE; SUCTION,P/S RZ4E-TC ENG<RDZ> (B) THA	8-98279-107-0	01	1	1510-	●	●	●	●		●
102	PIPE; SUCTION,P/S RZ4E-TC ENG<RDZ> (C) THA	8-98279-109-1	01	1	1510-	●	●	●	●		●
102	PIPE; SUCTION,P/S RZ4E-TC ENG<RDZ> (D) THA	8-98279-115-0	01	1	1510-	●	●	●	●		●
103	BOLT; P/S SUCTION PIPE RZ4E-TC ENG<RDZ> (A) M8X16 FLANGE THA	0-28050-816-0	01	1	1510-	●	●	●	●		●
103	BOLT; P/S SUCTION PIPE RZ4E-TC ENG<RDZ> (B) M8X16 FLANGE THA	8-98076-109-0	01	1	1510-	●	●	●	●		●
109	CLIP; RUBBER HOSE RZ4E-TC ENG<RDZ> (C) ID=15 THA	8-98279-111-1	03	1	1510-	●	●	●	●		●
109	CLIP; RUBBER HOSE (A) ID=10X2 H=22 THA	8-94252-455-2	01	1	1510-	●	●	●	●	●	●
109	CLIP; RUBBER HOSE (B) ID=20.8 THA	8-97944-127-0	02	1	1510-	●	●	●	●	●	●
109	CLIP; RUBBER HOSE RZ4E-TC ENG<RDZ> (B) ID=20.8 THA	8-97944-127-0	02	1	1510-	●	●	●	●		●
233	BOLT; PIPE CLIP,P/S M6X16 FLANGE THA	0-28650-616-0	02	1	1510-	●	●	●	●	●	●
262	CLIP; P/S PIPE (A) ID=11 H=20 L=20 IMA	0-95207-310-0	01	1	1510-	●	●	●	●	●	●
262	CLIP; P/S PIPE (B) ID=11 L=20 IMA	0-95235-032-0	01	1	1510-	●	●	●	●	●	●
271	BOLT; P/S OIL PIPE FIX RZ4E-TC ENG<RDZ> (B) M14X28 EYE-BOLT THA	8-98289-592-0	01	1	1510-	●	●	●	●		●
271	BOLT; P/S OIL PIPE FIX (A) M6X16 FLANGE THA	0-28650-616-0	02	1	1510-	●	●	●	●	●	●
356	BRACKET; P/S,RESERVOIR THA	8-97946-163-0	01	1	1510-	●	●	●	●	●	●
