◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51632 - TFR/TFS THAILAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#166085) — 25 parça

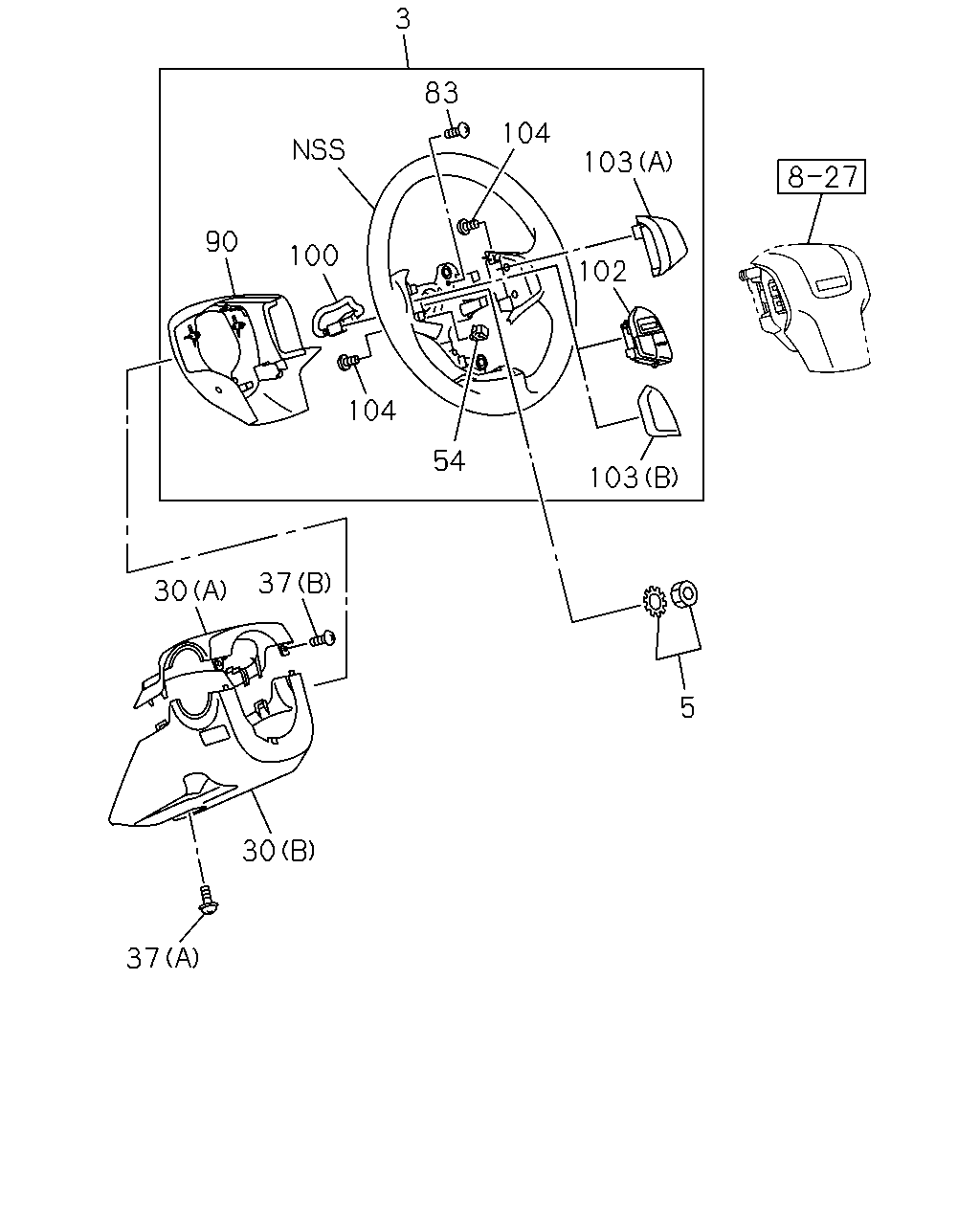

çizim 492945
3 83 103 104 102 103 5 54 104 100 90 37 30 30 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 WHEEL; STRG
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> EXC. SALES PACKAGE SPORTY<XK0> BLACK THA 		8-97466-257-0 01 1 1510- ● ●
3 WHEEL; STRG
STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> BLACK THA 		8-97466-257-0 01 1 1510- ● ●
3 WHEEL; STRG
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> STEERING WHEEL LEATHER<NP5> EXC. SALES PACKAGE SPORTY<XK0>,STEERING WHEEL RADIO CONTROLS<8NE> BLACK THA 		8-97466-255-0 01 1 1510- ● ●
3 WHEEL; STRG
STEERING WHEEL LEATHER<NP5> EXC. STEERING WHEEL RADIO CONTROLS<8NE> BLACK THA 		8-97466-255-0 01 1 1510- ● ●
3 WHEEL; STRG
INTERIOR COLOR DARK GRAY<117>,INTERIOR COLOR BEIGE<120> EXC. STEERING WHEEL LEATHER<NP5>,SALES PACKAGESPORTY<XK0>,STEERING WHEEL RADIO CONTROLS<8NE> BLACK THA 		8-97416-797-3 01 1 1510- ● ●
3 WHEEL; STRG
BLACK THA 		8-97416-797-3 01 1 1510- ● ●
3 WHEEL; STRG
EXC. STEERING WHEEL LEATHER<NP5>,STEERING WHEEL RADIO CONTROLS<8NE> BLACK THA 		8-97416-797-3 01 1 1510- ● ●
3 WHEEL; STRG
INTERIOR COLOR UPR & LWR DARK GRAY<154> STEERING WHEEL LEATHER<NP5> SALES PACKAGE SPORTY<XK0> STEERING WHEEL RADIO CONTROLS<8NE> BLACK THA 		8-97466-259-0 01 1 1510- ● ●
3 WHEEL; STRG
INTERIOR COLOR UPR & LWR DARK GRAY<154> STEERING WHEEL LEATHER<NP5> SALES PACKAGE SPORTY<XK0> EXC. STEERING WHEEL RADIO CONTROLS<8NE> BLACK THA 		8-97466-260-0 01 1 1510- ● ●
5 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER IMA 		8-94455-487-1 01 1 1510- ● ● ● ● ● ●
30 COWL; STEERING
PASSIVE ENTRY AND START SYSTEM<AP3> IMMOBILIZER SYSTEM<7KC> (B) BLACK THA 		8-97427-833-0 01 1 1510- ● ● ● ●
30 COWL; STEERING
IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) BLACK THA 		8-97416-794-6 01 1 1510- ● ● ● ●
30 COWL; STEERING
(A) BLACK THA 		8-97416-863-4 01 1 1510- ● ● ● ● ● ●
30 COWL; STEERING
EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> (B) BLACK THA 		8-97416-795-6 01 1 1510- ● ● ● ●
30 COWL; STEERING
(B) BLACK THA 		8-97416-795-6 01 1 1510- ● ●
37 SCREW; STRG COWL UPR
(A) M4X12 W/PL WASHER THA 		0-36210-412-0 01 1 1510- ● ● ● ● ● ●
37 SCREW; STRG COWL UPR
(B) M5X16 TAPPING THA 		8-98167-449-0 02 1 1510- ● ● ● ● ● ●
54 CLIP; HARNESS
THA 		8-98165-703-0 01 1 1510- ● ● ● ● ● ●
83 SCREW; LWR COVER TO WHEEL
M4X10 TAPPING THA 		0-71240-410-0 02 1 1510- ● ● ● ● ● ●
90 COVER ASM; STRG WHEEL,LWR
BLACK THA 		8-97416-856-1 01 1 1510- ● ● ● ● ● ●
100 HARNESS; STRG WHEEL
STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> THA 		8-98108-695-0 01 1 1510- ● ● ● ●
102 SWITCH ASM; AUDIO CONT,STRG WHEEL
STEERING WHEEL LEATHER<NP5> STEERING WHEEL RADIO CONTROLS<8NE> THA 		8-98298-058-0 01 1 1510- ● ● ● ●
103 BEZEL; COVER,SWITCH HOLE
STEERING WHEEL LEATHER<NP5> (A) THA 		8-98296-779-0 01 1 1510- ● ● ● ●
103 BEZEL; COVER,SWITCH HOLE
STEERING WHEEL LEATHER<NP5> EXC. STEERING WHEEL RADIO CONTROLS<8NE> (B) THA 		8-98296-778-0 01 1 1510- ● ● ● ●
104 SCREW; SWITCH AND BEZEL
STEERING WHEEL LEATHER<NP5> M4X10 TAPPING THA 		0-71240-410-0 04 1 1510- ● ● ● ●
