Sayfa 4-25 - Isuzu EPC

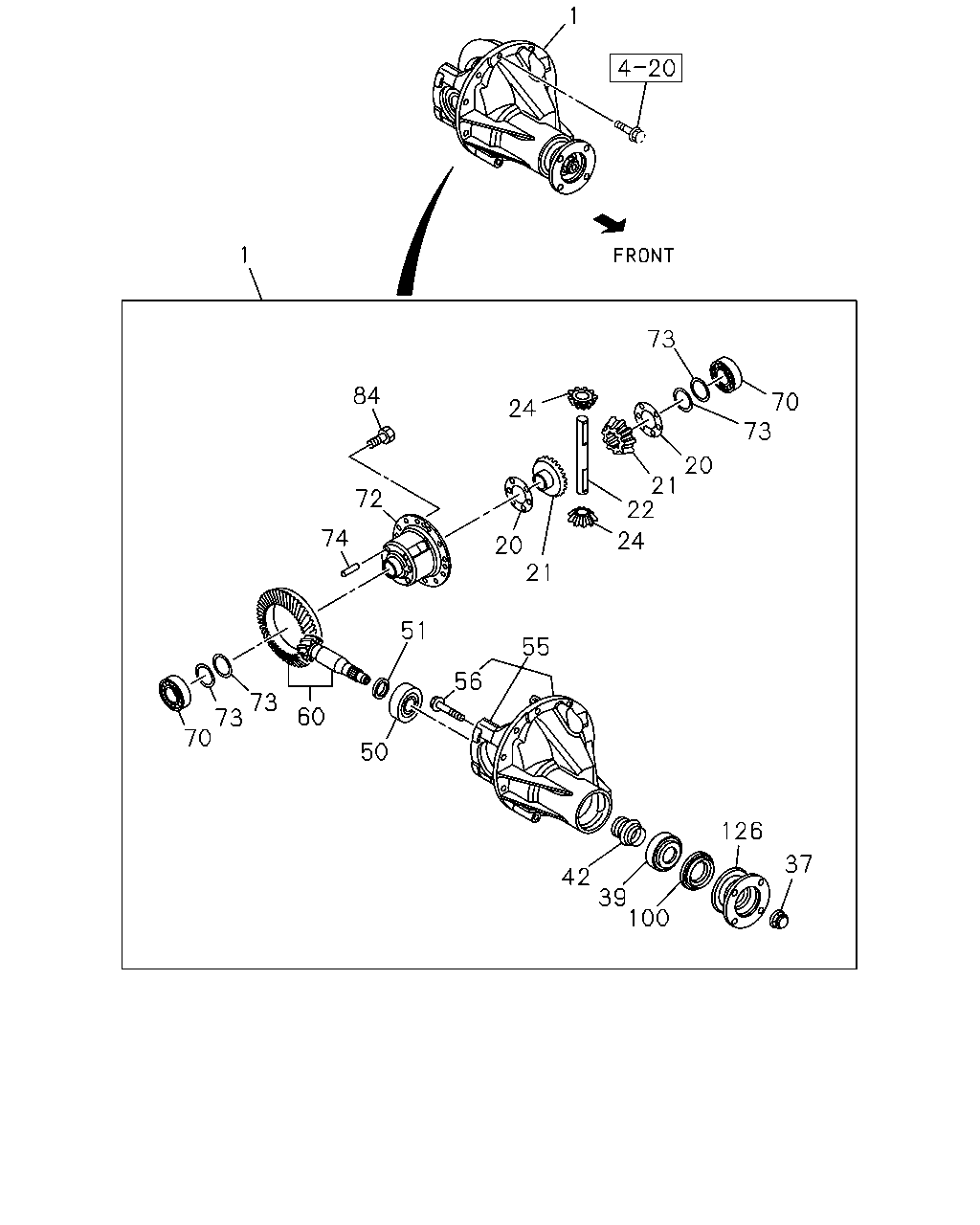

4-25 — REAR FINAL DRIVE (#166084) — 180 parça

1 1 84 24 73 70 73 20 21 22 24 21 20 72 74 51 56 55 50 60 73 73 70 42 39 100 126 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12<GM0> 43/12 THA	8-97947-760-0	01	1	1510-	●	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12<GM0> EXC. LIMITED SLIP DIFF<G80> 43/12 THA	8-97947-760-0	01	1	1510-				●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/12<GU6> 41/12 THA	8-97947-759-0	01	1	1510-	●	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11<GW1> 43/11 THA	8-97947-762-0	01	1	1510-	●		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11<GW1> EXC. LIMITED SLIP DIFF<G80> 43/11 THA	8-97947-762-0	01	1	1510-				●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12<GM0> 43/12 THA	8-97947-558-0	01	1	1510-					●
1	DRIVE ASM; FINAL,RR 43/12 THA	8-97947-558-0	01	1	1510-						●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12<GM0> LIMITED SLIP DIFF<G80> 43/12 THA	8-97947-558-0	01	1	1510-				●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11<GW1> 43/11 THA	8-97947-560-0	01	1	1510-					●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11<GW1> LIMITED SLIP DIFF<G80> 43/11 THA	8-97947-560-0	01	1	1510-				●
20	WASHER; THRUST,SIDE GEAR T=1.60 IMA	8-94365-187-0	02	1	1510-					●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.60 IMA	8-94365-187-0	02	1	1510-				●
20	WASHER; THRUST,SIDE GEAR T=1.70 IMA	8-94365-188-0	02	1	1510-					●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.70 IMA	8-94365-188-0	02	1	1510-				●
20	WASHER; THRUST,SIDE GEAR T=1.50 IMA	8-94453-935-0	02	1	1510-					●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.50 IMA	8-94453-935-0	02	1	1510-				●
20	WASHER; THRUST,SIDE GEAR T=1.80 IMA	8-97066-412-0	02	1	1510-					●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.80 IMA	8-97066-412-0	02	1	1510-				●
20	WASHER; THRUST,SIDE GEAR T=0.80 IMA	8-94435-343-0	02	1	1510-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=0.80 IMA	8-94435-343-0	02	1	1510-				●
20	WASHER; THRUST,SIDE GEAR T=0.90 IMA	8-94435-344-0	02	1	1510-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=0.90 IMA	8-94435-344-0	02	1	1510-				●
20	WASHER; THRUST,SIDE GEAR T=1.10 IMA	8-94435-345-0	02	1	1510-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.10 IMA	8-94435-345-0	02	1	1510-				●
20	WASHER; THRUST,SIDE GEAR T=1.20 IMA	8-94435-346-0	02	1	1510-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.20 IMA	8-94435-346-0	02	1	1510-				●
20	WASHER; THRUST,SIDE GEAR T=1.30 IMA	8-94435-347-0	02	1	1510-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.30 IMA	8-94435-347-0	02	1	1510-				●
20	WASHER; THRUST,SIDE GEAR T=1.00 IMA	9-41562-602-0	02	1	1510-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.00 IMA	9-41562-602-0	02	1	1510-				●
21	GEAR; SIDE,DIFF IMA	8-97200-286-0	02	1	1510-					●	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF<G80> IMA	8-97200-286-0	02	1	1510-				●
21	GEAR; SIDE,DIFF Z=18 IMA	8-98186-828-1	02	1	1510-	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<G80> Z=18 IMA	8-98186-828-1	02	1	1510-				●
22	SPIDER; DIFF PINION IMA	8-94435-308-1	01	1	1510-	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<G80> IMA	8-94435-308-1	01	1	1510-				●
24	GEAR; PINION,DIFF IMA	8-97200-285-1	04	1	1510-					●	●
24	GEAR; PINION,DIFF LIMITED SLIP DIFF<G80> IMA	8-97200-285-1	04	1	1510-				●
24	GEAR; PINION,DIFF Z=10 IMA	8-98186-829-0	02	1	1510-	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF<G80> Z=10 IMA	8-98186-829-0	02	1	1510-				●
37	NUT; DRIVING PINION M24 FLANGE IMA	8-94376-261-1	01	1	1510-	●	●	●	●	●	●
39	BEARING; FINAL PINION JTEKT THA	8-97947-477-0	01	1	1510-	●	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE IMA	8-97035-399-0	01	1	1510-	●	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT THA	8-97947-487-0	01	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=1.94 IMA	8-94435-356-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=1.96 IMA	8-94435-357-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=1.98 IMA	8-94435-358-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.00 IMA	8-94435-359-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.02 IMA	8-94435-360-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.04 IMA	8-94435-361-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.06 IMA	8-94435-362-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.08 IMA	8-94435-363-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.10 IMA	8-94435-364-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.12 IMA	8-94435-365-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.14 IMA	8-94435-366-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.16 IMA	8-94435-367-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.18 IMA	8-94435-368-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.20 IMA	8-94435-369-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.22 IMA	8-94435-370-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.24 IMA	8-94435-371-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.26 IMA	8-94435-372-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.28 IMA	8-94435-373-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.30 IMA	8-94435-374-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.32 IMA	8-94435-375-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.34 IMA	8-94435-376-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.36 IMA	8-94435-377-0	AR	1	1510-	●	●	●	●	●	●
55	CARRIER; DIFF IMA	8-97240-889-2	01	1	1510-	●	●	●	●	●	●
56	BOLT; BRG CAP M12X75 FLANGE IMA	8-98176-233-0	04	1	1510-	●	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/12<GM0> 43/12 IMA	8-97374-174-1	01	1	1510-	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 43/12 IMA	8-97374-174-1	01	1	1510-						●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/12<GU6> 41/12 IMA	8-97374-177-2	01	1	1510-	●	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/11<GW1> 43/11 IMA	8-98014-980-1	01	1	1510-	●		●	●	●
70	BEARING; DIFF CAGE NSK THA	8-97947-476-0	02	1	1510-	●	●	●	●	●	●
72	CAGE; DIFF IMA	8-94325-448-0	01	1	1510-	●	●	●
72	CAGE; DIFF EXC. LIMITED SLIP DIFF<G80> IMA	8-94325-448-0	01	1	1510-				●
73	SHIM; DIFF SIDE BRG T=0.12 THA	8-97947-965-0	AR	1	1510-	●	●	●	●	●	●
73	SHIM; DIFF SIDE BRG T=0.15 THA	8-97947-966-0	AR	1	1510-	●	●	●	●	●	●
73	SHIM; DIFF SIDE BRG T=0.18 THA	8-97947-967-0	AR	1	1510-	●	●	●	●	●	●
73	SHIM; DIFF SIDE BRG T=0.25 THA	8-97947-968-0	AR	1	1510-	●	●	●	●	●	●
73	SHIM; DIFF SIDE BRG T=0.30 THA	8-97947-969-0	AR	1	1510-	●	●	●	●	●	●
73	SHIM; DIFF SIDE BRG T=0.50 THA	8-97947-970-0	AR	1	1510-	●	●	●	●	●	●
74	PIN; LK,CROSS PIN OD=5 L=35 IMA	9-09878-096-0	01	1	1510-	●	●	●
74	PIN; LK,CROSS PIN EXC. LIMITED SLIP DIFF<G80> OD=5 L=35 IMA	9-09878-096-0	01	1	1510-				●
84	BOLT; FINAL DRIVE GEAR M10X18.5 IMA	8-97038-064-0	12	1	1510-	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK THA	8-97947-678-0	01	1	1510-	●	●	●	●	●	●
126	COUPLING; DRIVING PINION THA	8-97946-794-1	01	1	1510-	●	●	●	●	●	●

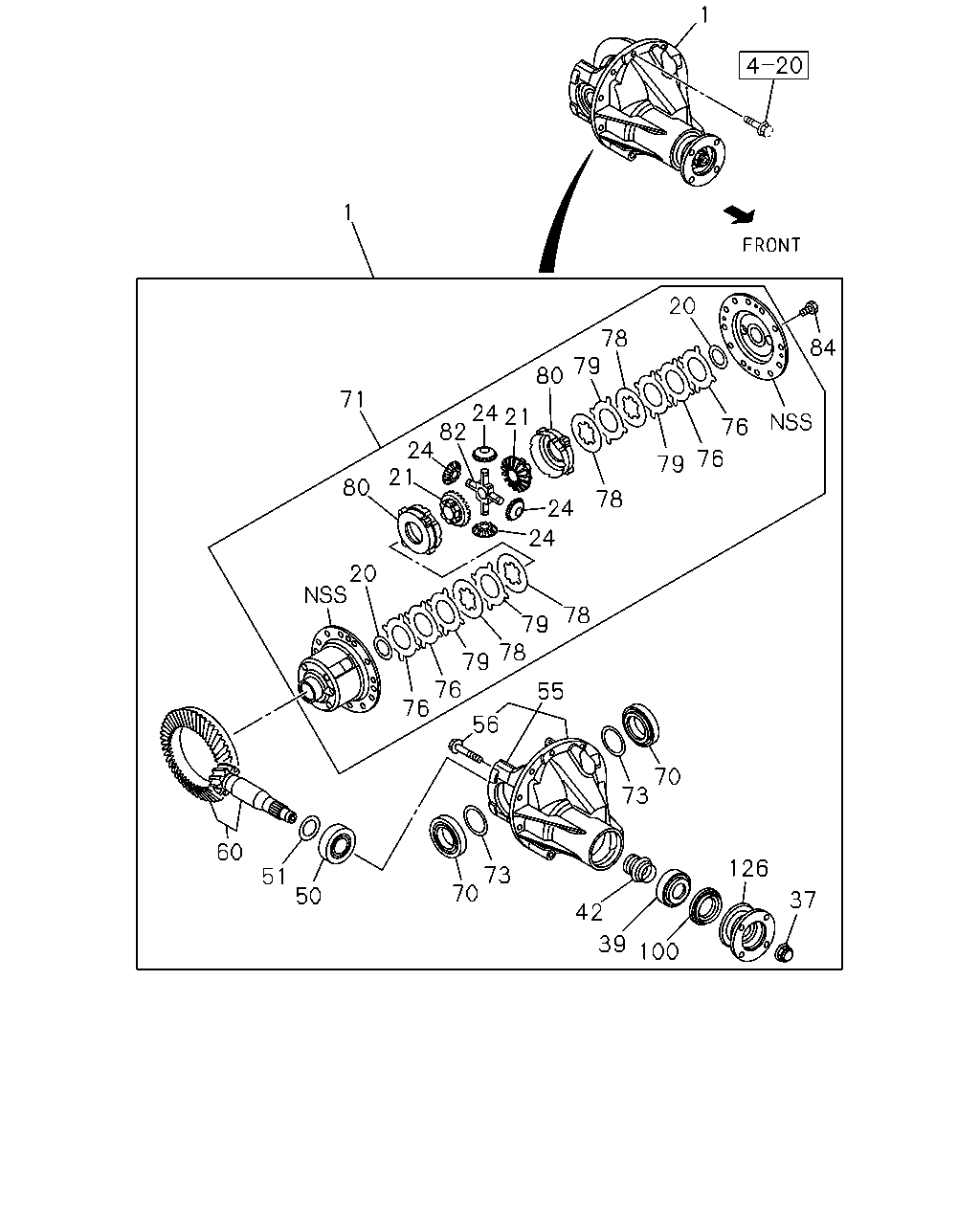

1 1 71 80 21 24 82 24 21 80 79 78 20 84 76 76 79 78 24 24 78 79 78 79 76 76 20 55 56 73 70 126 37 100 39 42 73 70 50 51 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12<GM0> 43/12 THA	8-97947-760-0	01	1	1510-	●	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12<GM0> EXC. LIMITED SLIP DIFF<G80> 43/12 THA	8-97947-760-0	01	1	1510-				●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/12<GU6> 41/12 THA	8-97947-759-0	01	1	1510-	●	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11<GW1> 43/11 THA	8-97947-762-0	01	1	1510-	●		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11<GW1> EXC. LIMITED SLIP DIFF<G80> 43/11 THA	8-97947-762-0	01	1	1510-				●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12<GM0> 43/12 THA	8-97947-558-0	01	1	1510-					●
1	DRIVE ASM; FINAL,RR 43/12 THA	8-97947-558-0	01	1	1510-						●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12<GM0> LIMITED SLIP DIFF<G80> 43/12 THA	8-97947-558-0	01	1	1510-				●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11<GW1> 43/11 THA	8-97947-560-0	01	1	1510-					●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11<GW1> LIMITED SLIP DIFF<G80> 43/11 THA	8-97947-560-0	01	1	1510-				●
20	WASHER; THRUST,SIDE GEAR T=1.60 IMA	8-94365-187-0	02	1	1510-					●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.60 IMA	8-94365-187-0	02	1	1510-				●
20	WASHER; THRUST,SIDE GEAR T=1.70 IMA	8-94365-188-0	02	1	1510-					●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.70 IMA	8-94365-188-0	02	1	1510-				●
20	WASHER; THRUST,SIDE GEAR T=1.50 IMA	8-94453-935-0	02	1	1510-					●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.50 IMA	8-94453-935-0	02	1	1510-				●
20	WASHER; THRUST,SIDE GEAR T=1.80 IMA	8-97066-412-0	02	1	1510-					●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.80 IMA	8-97066-412-0	02	1	1510-				●
20	WASHER; THRUST,SIDE GEAR T=0.80 IMA	8-94435-343-0	02	1	1510-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=0.80 IMA	8-94435-343-0	02	1	1510-				●
20	WASHER; THRUST,SIDE GEAR T=0.90 IMA	8-94435-344-0	02	1	1510-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=0.90 IMA	8-94435-344-0	02	1	1510-				●
20	WASHER; THRUST,SIDE GEAR T=1.10 IMA	8-94435-345-0	02	1	1510-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.10 IMA	8-94435-345-0	02	1	1510-				●
20	WASHER; THRUST,SIDE GEAR T=1.20 IMA	8-94435-346-0	02	1	1510-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.20 IMA	8-94435-346-0	02	1	1510-				●
20	WASHER; THRUST,SIDE GEAR T=1.30 IMA	8-94435-347-0	02	1	1510-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.30 IMA	8-94435-347-0	02	1	1510-				●
20	WASHER; THRUST,SIDE GEAR T=1.00 IMA	9-41562-602-0	02	1	1510-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.00 IMA	9-41562-602-0	02	1	1510-				●
21	GEAR; SIDE,DIFF IMA	8-97200-286-0	02	1	1510-					●	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF<G80> IMA	8-97200-286-0	02	1	1510-				●
21	GEAR; SIDE,DIFF Z=18 IMA	8-98186-828-1	02	1	1510-	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<G80> Z=18 IMA	8-98186-828-1	02	1	1510-				●
24	GEAR; PINION,DIFF IMA	8-97200-285-1	04	1	1510-					●	●
24	GEAR; PINION,DIFF LIMITED SLIP DIFF<G80> IMA	8-97200-285-1	04	1	1510-				●
24	GEAR; PINION,DIFF Z=10 IMA	8-98186-829-0	02	1	1510-	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF<G80> Z=10 IMA	8-98186-829-0	02	1	1510-				●
37	NUT; DRIVING PINION M24 FLANGE IMA	8-94376-261-1	01	1	1510-	●	●	●	●	●	●
39	BEARING; FINAL PINION JTEKT THA	8-97947-477-0	01	1	1510-	●	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE IMA	8-97035-399-0	01	1	1510-	●	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT THA	8-97947-487-0	01	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=1.94 IMA	8-94435-356-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=1.96 IMA	8-94435-357-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=1.98 IMA	8-94435-358-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.00 IMA	8-94435-359-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.02 IMA	8-94435-360-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.04 IMA	8-94435-361-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.06 IMA	8-94435-362-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.08 IMA	8-94435-363-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.10 IMA	8-94435-364-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.12 IMA	8-94435-365-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.14 IMA	8-94435-366-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.16 IMA	8-94435-367-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.18 IMA	8-94435-368-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.20 IMA	8-94435-369-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.22 IMA	8-94435-370-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.24 IMA	8-94435-371-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.26 IMA	8-94435-372-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.28 IMA	8-94435-373-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.30 IMA	8-94435-374-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.32 IMA	8-94435-375-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.34 IMA	8-94435-376-0	AR	1	1510-	●	●	●	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.36 IMA	8-94435-377-0	AR	1	1510-	●	●	●	●	●	●
55	CARRIER; DIFF IMA	8-97240-889-2	01	1	1510-	●	●	●	●	●	●
56	BOLT; BRG CAP M12X75 FLANGE IMA	8-98176-233-0	04	1	1510-	●	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/12<GM0> 43/12 IMA	8-97374-174-1	01	1	1510-	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 43/12 IMA	8-97374-174-1	01	1	1510-						●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/12<GU6> 41/12 IMA	8-97374-177-2	01	1	1510-	●	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/11<GW1> 43/11 IMA	8-98014-980-1	01	1	1510-	●		●	●	●
70	BEARING; DIFF CAGE NSK THA	8-97947-476-0	02	1	1510-	●	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE IMA	8-98167-619-0	01	1	1510-					●	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<G80> IMA	8-98167-619-0	01	1	1510-				●
73	SHIM; DIFF SIDE BRG T=0.12 THA	8-97947-965-0	AR	1	1510-	●	●	●	●	●	●
73	SHIM; DIFF SIDE BRG T=0.15 THA	8-97947-966-0	AR	1	1510-	●	●	●	●	●	●
73	SHIM; DIFF SIDE BRG T=0.18 THA	8-97947-967-0	AR	1	1510-	●	●	●	●	●	●
73	SHIM; DIFF SIDE BRG T=0.25 THA	8-97947-968-0	AR	1	1510-	●	●	●	●	●	●
73	SHIM; DIFF SIDE BRG T=0.30 THA	8-97947-969-0	AR	1	1510-	●	●	●	●	●	●
73	SHIM; DIFF SIDE BRG T=0.50 THA	8-97947-970-0	AR	1	1510-	●	●	●	●	●	●
76	DISC; BEVEL IMA	8-97096-209-0	04	1	1510-					●	●
76	DISC; BEVEL LIMITED SLIP DIFF<G80> IMA	8-97096-209-0	04	1	1510-				●
78	DISC; FRICTION IMA	8-94453-937-0	04	1	1510-					●	●
78	DISC; FRICTION LIMITED SLIP DIFF<G80> IMA	8-94453-937-0	04	1	1510-				●
79	PLATE; FRICTION T=1.85 IMA	8-94365-189-0	04	1	1510-					●	●
79	PLATE; FRICTION LIMITED SLIP DIFF<G80> T=1.85 IMA	8-94365-189-0	04	1	1510-				●
79	PLATE; FRICTION T=1.75 IMA	8-94453-936-0	04	1	1510-					●	●
79	PLATE; FRICTION LIMITED SLIP DIFF<G80> T=1.75 IMA	8-94453-936-0	04	1	1510-				●
80	RING; PRESSURE IMA	8-94453-931-0	02	1	1510-					●	●
80	RING; PRESSURE LIMITED SLIP DIFF<G80> IMA	8-94453-931-0	02	1	1510-				●
82	SPIDER; DIFF PINION IMA	8-94453-932-0	01	1	1510-					●	●
82	SPIDER; DIFF PINION LIMITED SLIP DIFF<G80> IMA	8-94453-932-0	01	1	1510-				●
84	BOLT; FINAL DRIVE GEAR M10X18.5 IMA	8-97038-064-0	12	1	1510-	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK THA	8-97947-678-0	01	1	1510-	●	●	●	●	●	●
126	COUPLING; DRIVING PINION THA	8-97946-794-1	01	1	1510-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
