4-12 — FRONT DRIVE SHAFT (#166081) — 88 parça

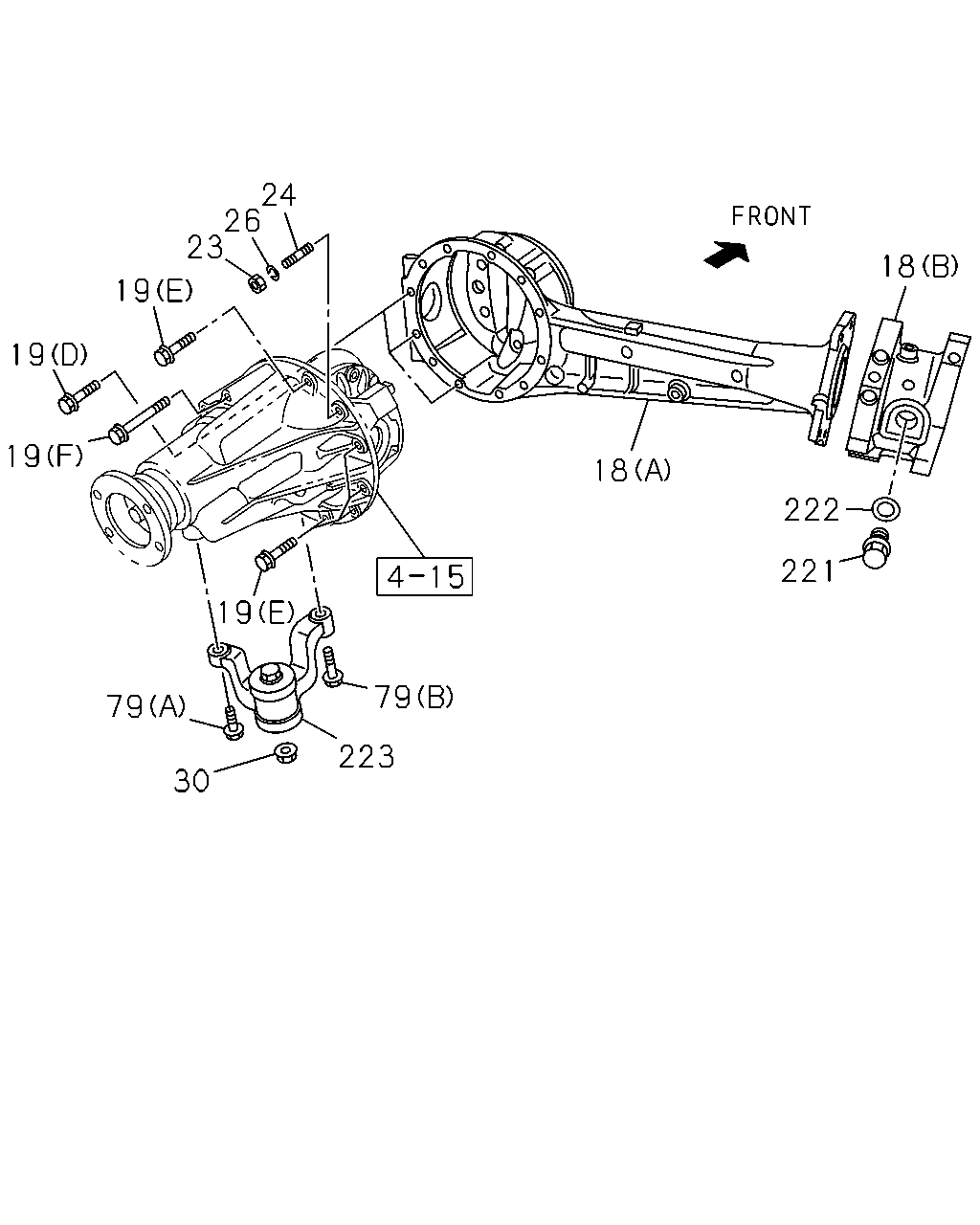

çizim 492874
18 222 221 18 79 223 30 79 19 19 19 23 26 24 19
BalonParca AdiParca NoAdetTipApplied Date A B C
18 CASE; FRT AXLE
(A) THA 		8-98084-280-8 01 1 1510- ● ● ●
18 CASE; FRT AXLE
(B) THA 		8-98084-292-3 01 1 1510- ● ● ●
19 BOLT; FRT AXLE
(C) M12X30 FLANGE IMA 		0-28051-230-0 04 1 1510- ● ● ●
19 BOLT; FRT AXLE
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1510- ● ● ●
19 BOLT; FRT AXLE
(A) M8X40 FLANGE THA 		0-28650-840-0 03 1 1510- ● ● ●
19 BOLT; FRT AXLE
(D) M8X28.5 W/SP WASHER THA 		8-97947-579-0 03 1 1510- ● ● ●
19 BOLT; FRT AXLE
(E) M8X40 W/SP WASHER THA 		8-97947-580-0 05 1 1510- ● ● ●
19 BOLT; FRT AXLE
(F) M8X95 W/SP WASHER THA 		8-97947-581-0 02 1 1510- ● ● ●
19 BOLT; FRT AXLE
(G) M6X16 FLANGE THA 		0-28650-616-0 02 1 1510- ● ● ●
23 NUT; FRT AXLE
M8 IMA 		0-91110-508-0 02 1 1510- ● ● ●
24 STUD; CASE,FRT AXLE
M8X25 L=37 THA 		0-40210-825-0 02 1 1510- ● ● ●
26 WASHER; LK,CASE,FRT AXLE
ID=8.2 THA 		0-91510-808-0 02 1 1510- ● ● ●
30 NUT; FRT AXLE MTG
M14 FLANGE THA 		0-91180-214-0 01 1 1510- ● ● ●
79 BOLT; BRKT
(A) M12X30 FLANGE IMA 		0-28061-230-0 01 1 1510- ● ● ●
79 BOLT; BRKT
(B) M12X40 FLANGE THA 		0-28061-240-0 01 1 1510- ● ● ●
221 PLUG; FILLER
M20X10.5 IMA 		8-98009-333-0 01 1 1510- ● ● ●
222 GASKET; FILLER PLUG
ID=20 OD=30 THA 		8-94462-734-0 01 1 1510- ● ● ●
223 BRACKET; HSG
THA 		8-98103-437-0 01 1 1510- ● ● ●

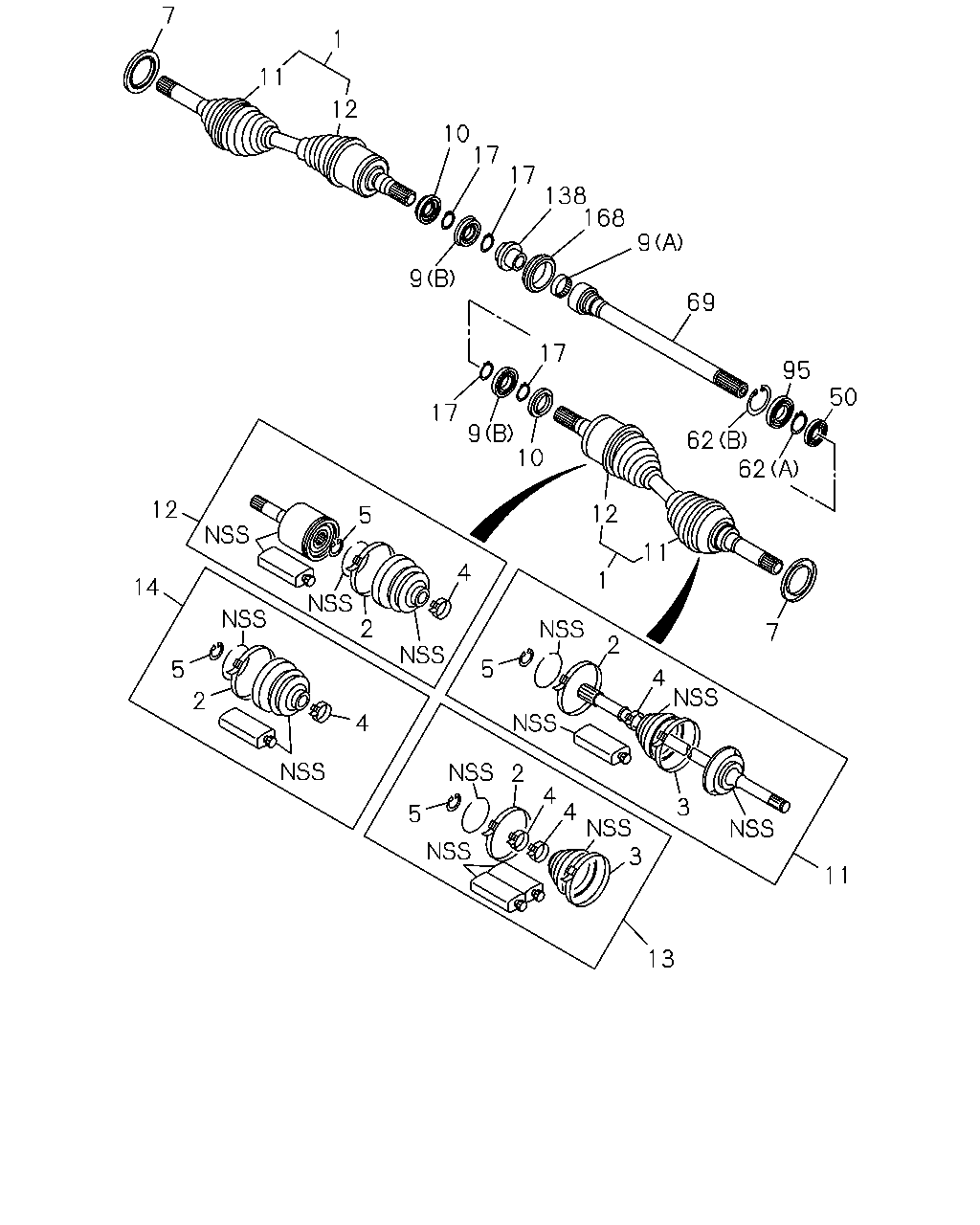

çizim 493274
7 11 1 12 10 17 168 138 17 9 69 62 12 10 11 4 2 11 3 13 3 2 4 4 5 4 4 5 12 14 5 2 2 5 1 7 62 17 9 17 95 50 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT ASM; FRT DRIVE
THA 		8-98147-245-2 02 1 1510- ● ● ●
2 BAND; "A",FRT DRIVE SHAFT
THA 		8-98147-676-0 02 1 1510- ● ● ●
3 BAND; "B",FRT DRIVE SHAFT
THA 		8-97349-959-1 02 1 1510- ● ● ●
4 BAND; "C",FRT DRIVE SHAFT
THA 		8-97222-152-1 04 1 1510- ● ● ●
5 RING; RET,FRT DRIVE SHAFT
THA 		8-97131-402-0 02 1 1510- ● ● ●
7 SEAL; DUST,DRIVE SHAFT
THA 		8-98036-560-0 02 1 1510- ● ● ●
9 BEARING; AXLE SHAFT,INNER
(A) IMA 		8-97101-878-0 01 1 1510- ● ● ●
9 BEARING; AXLE SHAFT,INNER
(B) IMA 		8-94407-724-0 02 1 1510- ● ● ●
10 SEAL; OIL,AXLE SHAFT,INNER
IMA 		8-97373-555-0 02 1 1510- ● ● ●
11 JOINT ASM; OUTSIDE,FRT DRIVE SHAFT
THA 		8-98147-681-1 02 1 1510- ● ● ●
12 JOINT ASM
THA 		8-98147-680-2 02 1 1510- ● ● ●
13 BOOT KIT; OUTSIDE,FRT DRIVE SHAFT
THA 		8-98147-678-1 02 1 1510- ● ● ●
14 BOOT KIT; IN SIDE,FRT DRIVE SHAFT
THA 		8-98147-677-1 02 1 1510- ● ● ●
17 RING; SNAP,DRIVE SHAFT TO TRANS AXLE
ID=27.9 IMA 		9-09180-030-0 04 1 1510- ● ● ●
50 SEAL; OIL,SHAFT,FRT AXLE
IMA 		8-97084-507-0 01 1 1510- ● ● ●
62 RING; SNAP,AXLE SHAFT
(A) ID=37.0 IMA 		9-09180-040-0 01 1 1510- ● ● ●
62 RING; SNAP,AXLE SHAFT
(B) ID=57.9 IMA 		9-09180-162-0 01 1 1510- ● ● ●
69 SHAFT; AXLE,FRT INNER
IMA 		8-97188-174-1 01 1 1510- ● ● ●
95 BEARING; AXLE SHAFT,FRT
IMA 		8-97103-392-0 01 1 1510- ● ● ●
138 GEAR; CLUTCH
Z=17 IMA 		8-97134-857-1 01 1 1510- ● ● ●
168 SLEEVE; FRT AXLE
IMA 		8-97130-567-1 01 1 1510- ● ● ●

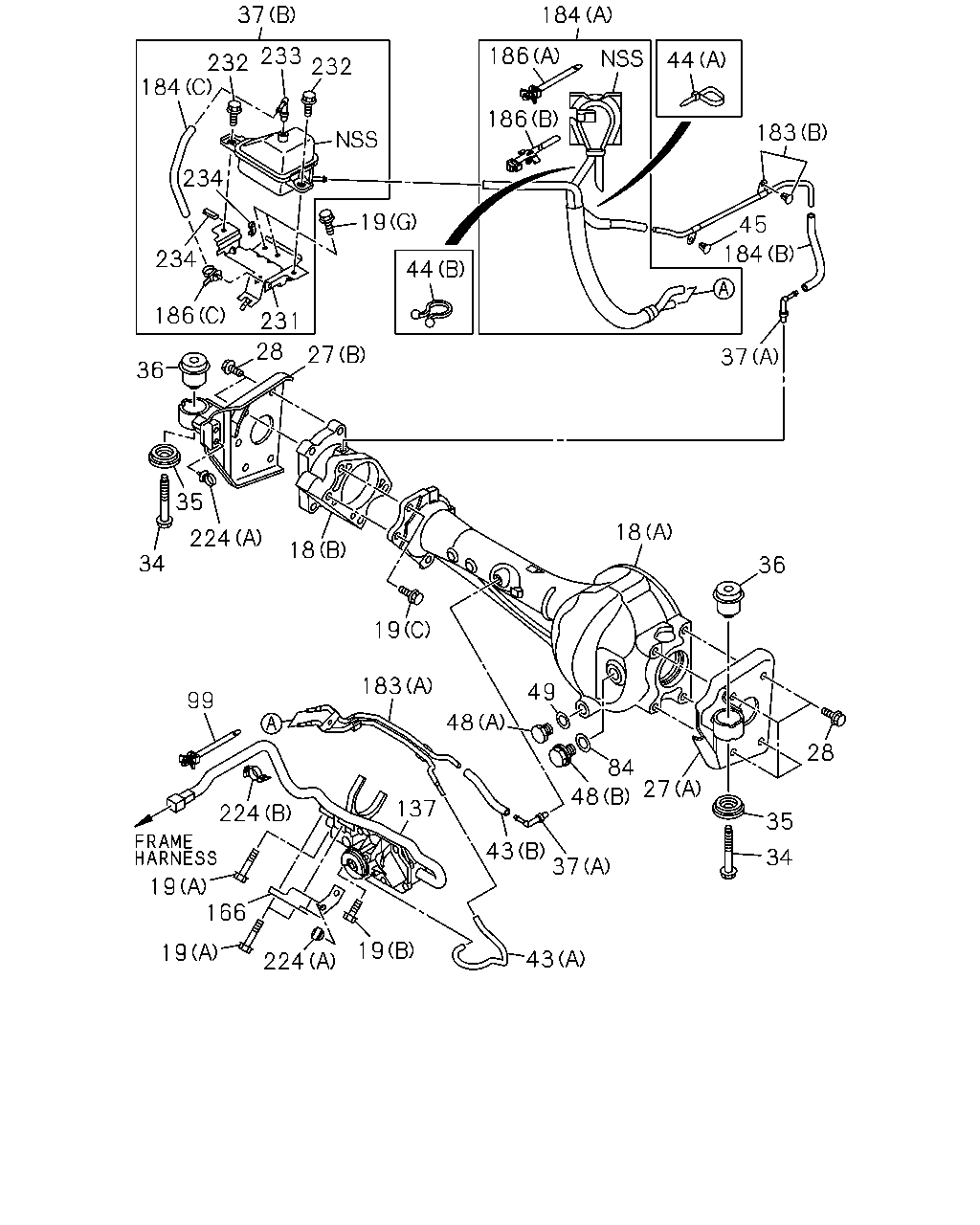

çizim 493373
37 232 233 232 184 234 234 186 231 19 44 27 28 36 35 34 224 18 19 183 99 224 19 166 19 224 19 43 37 43 137 34 35 28 27 48 84 49 48 36 18 37 184 45 183 44 184 186 186
BalonParca AdiParca NoAdetTipApplied Date A B C
18 CASE; FRT AXLE
(A) THA 		8-98084-280-8 01 1 1510- ● ● ●
18 CASE; FRT AXLE
(B) THA 		8-98084-292-3 01 1 1510- ● ● ●
19 BOLT; FRT AXLE
(C) M12X30 FLANGE IMA 		0-28051-230-0 04 1 1510- ● ● ●
19 BOLT; FRT AXLE
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1510- ● ● ●
19 BOLT; FRT AXLE
(A) M8X40 FLANGE THA 		0-28650-840-0 03 1 1510- ● ● ●
19 BOLT; FRT AXLE
(D) M8X28.5 W/SP WASHER THA 		8-97947-579-0 03 1 1510- ● ● ●
19 BOLT; FRT AXLE
(E) M8X40 W/SP WASHER THA 		8-97947-580-0 05 1 1510- ● ● ●
19 BOLT; FRT AXLE
(F) M8X95 W/SP WASHER THA 		8-97947-581-0 02 1 1510- ● ● ●
19 BOLT; FRT AXLE
(G) M6X16 FLANGE THA 		0-28650-616-0 02 1 1510- ● ● ●
27 BRACKET; AXLE CASE
(A) THA 		8-98103-425-0 01 1 1510- ● ● ●
27 BRACKET; AXLE CASE
(B) THA 		8-98103-434-0 01 1 1510- ● ● ●
28 BOLT; BRKT TO AXLE CASE
M12X22 FLANGE THA 		8-98270-578-0 08 1 1510- ● ● ●
34 BOLT; FRT AXLE MTG
M14X85 FLANGE THA 		8-97259-306-0 02 1 1510- ● ● ●
35 WASHER; FRT AXLE MTG
ID=14.2 OD=50 IMA 		8-98008-020-0 02 1 1510- ● ● ●
36 BUSHING; RUBBER,FRT AXLE MTG
IMA 		8-97364-319-0 01 1 1510- ● ● ●
36 BUSHING; RUBBER,FRT AXLE MTG
IMA 		8-97364-323-0 01 1 1510- ● ● ●
37 BREATHER; FRT AXLE CASE
(A) IMA 		8-94226-943-0 02 1 1510- ● ● ●
37 BREATHER; FRT AXLE CASE
(B) THA 		8-98166-418-4 01 1 1510- ● ● ●
43 HOSE; RUBBER,AIR BREATHER
(A) L=250 SERVICED BY L=3000 IMA 		0-04740-300-0 01 1 1510- ● ● ●
43 HOSE; RUBBER,AIR BREATHER
(B) L=120 SERVICED BY L=3000 THA 		0-04950-300-0 01 1 1510- ● ● ●
44 CLIP; AIR BREATHER HOSE
(A) L=129.5 THA 		8-94368-493-0 01 1 1510- ● ● ●
44 CLIP; AIR BREATHER HOSE
RZ4E-TC ENG<RDZ> (B) ID=25 IMA 		8-94120-831-0 01 1 1510- ● ● ●
45 CLIP
OD=14 HOLE ID=6 THA 		8-97031-632-0 01 1 1510- ● ● ●
48 PLUG; DRAIN,AXLE CASE
(A) M16X12.5 IMA 		8-97307-060-0 01 1 1510- ● ● ●
48 PLUG; DRAIN,AXLE CASE
(B) M20X10.5 IMA 		8-98009-333-0 01 1 1510- ● ● ●
49 GASKET; DRAIN PLUG
ID=16.2 OD=24 THA 		9-09571-416-0 01 1 1510- ● ● ●
84 GASKET; PLUG,OIL FILLER
ID=20 OD=30 THA 		8-94462-734-0 01 1 1510- ● ● ●
99 CLIP; RUBBER HOSE
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> ID=34 THA 		8-98069-482-0 01 1 1510- ● ● ●
99 CLIP; RUBBER HOSE
RZ4E-TC ENG<RDZ> L=172 IMA 		8-94232-620-0 01 1 1510- ● ● ●
137 ACTUATOR; AXLE
IMA 		8-98140-853-1 01 1 1510- ● ● ●
166 BRACKET; CLIP
THA 		8-98125-310-3 01 1 1510- ● ● ●
183 PIPE; BREATHER
(A) THA 		8-98125-294-1 01 1 1510- ● ● ●
183 PIPE; BREATHER
(B) THA 		8-98177-662-1 01 1 1510- ● ● ●
184 HOSE; BREATHER
(C) L=190 SERVICED BY L=3000 IMA 		0-04750-300-0 01 1 1510- ● ● ●
184 HOSE; BREATHER
(B) THA 		8-98177-663-0 01 1 1510- ● ● ●
184 HOSE; BREATHER
PROVISIONAL PACKAGE SPEC<BCC> (A) THA 		8-98234-652-1 01 1 1510- ● ●
184 HOSE; BREATHER
(A) THA 		8-98234-652-1 01 1 1510- ●
184 HOSE; BREATHER
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) THA 		8-98166-421-5 01 1 1510- ●
184 HOSE; BREATHER
4JJ1-TCX ENG<LS0> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) THA 		8-98166-421-5 01 1 1510- ●
184 HOSE; BREATHER
RZ4E-TC ENG<RDZ> (A) THA 		8-98182-787-1 01 1 1510- ● ● ●
186 CLIP; HOSE,BREATHER
(C) L=155 THA 		8-97173-307-0 01 1 1510- ● ● ●
186 CLIP; HOSE,BREATHER
(A) L=172 IMA 		8-94232-620-0 01 1 1510- ● ● ●
186 CLIP; HOSE,BREATHER
RZ4E-TC ENG<RDZ> (B) L=170.3 THA 		1-09987-182-0 01 1 1510- ● ● ●
224 CLIP; HARNESS
(B) L=172 IMA 		8-94232-620-0 01 1 1510- ● ● ●
224 CLIP; HARNESS
(A) L=150 IMA 		8-97811-150-1 02 1 1510- ● ● ●
231 BRACKET; CATCH TANK,OIL
THA 		8-98165-859-2 01 1 1510- ● ● ●
232 BOLT; TANK TO BRKT
M6X16 FLANGE THA 		0-28650-616-0 02 1 1510- ● ● ●
233 BREATHER; AIR,OIL TANK
IMA 		8-94226-943-0 01 1 1510- ● ● ●
234 FINISHER; BRKT
L=50 IMA 		8-94270-377-1 02 1 1510- ● ● ●
