4-01 — PROPELLER SHAFT (#166078) — 112 parça

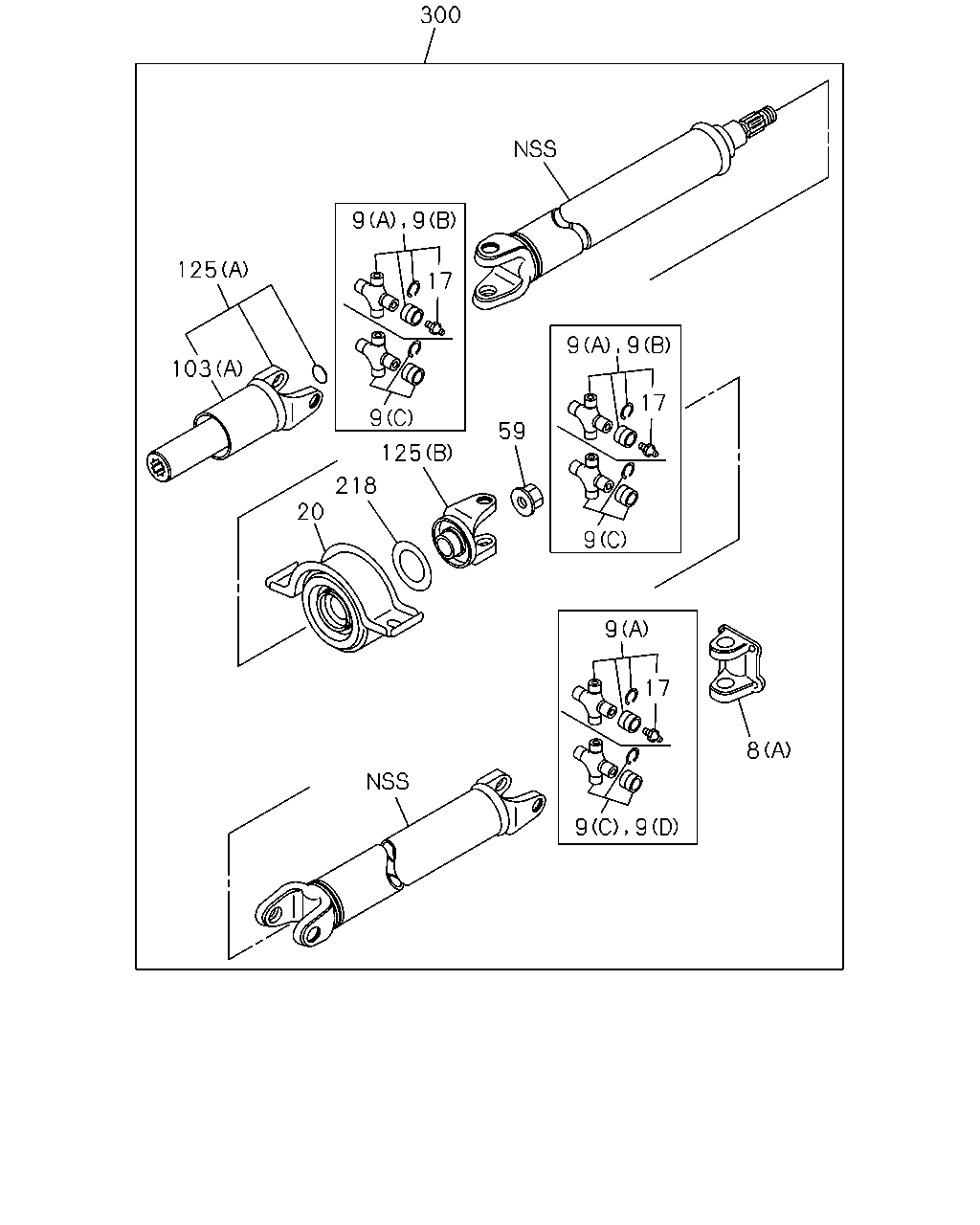

300 9 9 17 9 125 103 20 218 125 59 9 9 9 17 9 9 8 9 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
8	YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H<MWQ> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97948-770-0	01	1	1510-	●	●
8	YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97948-770-0	01	1	1510-			●
8	YOKE; FLANGE,PROP SHAFT (B) THA	8-97948-772-0	02	1	1510-				●	●	●
8	YOKE; FLANGE,PROP SHAFT M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> (A) THA	8-97948-771-0	01	1	1510-	●	●	●
8	YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H<MWQ> HIGH RIDE SUSPENSION<7YC> (A) THA	8-97948-771-0	01	1	1510-	●	●
8	YOKE; FLANGE,PROP SHAFT (A) THA	8-97948-771-0	01	1	1510-				●	●	●
9	JOURNAL ASM; PROP SHAFT 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> HIGH RIDE SUSPENSION<7YC> (C) THA	8-97947-642-0	02	1	1510-	●	●
9	JOURNAL ASM; PROP SHAFT 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> HIGH RIDE SUSPENSION<7YC> (D) THA	8-97947-643-0	01	1	1510-	●	●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H<MWQ> EXC. HIGH RIDE SUSPENSION<7YC> (C) THA	8-97947-642-0	03	1	1510-	●	●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H<MWQ> (C) THA	8-97947-642-0	03	1	1510-			●
9	JOURNAL ASM; PROP SHAFT RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> (C) THA	8-97947-643-0	03	1	1510-	●	●	●
9	JOURNAL ASM; PROP SHAFT 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (C) THA	8-97947-643-0	03	1	1510-	●	●	●
9	JOURNAL ASM; PROP SHAFT 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97947-582-0	04	1	1510-				●
9	JOURNAL ASM; PROP SHAFT 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97947-645-0	01	1	1510-				●
9	JOURNAL ASM; PROP SHAFT 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (B) THA	8-97947-582-0	02	1	1510-				●	●	●
9	JOURNAL ASM; PROP SHAFT RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> (B) THA	8-97947-582-0	02	1	1510-				●		●
9	JOURNAL ASM; PROP SHAFT 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-97947-645-0	03	1	1510-				●	●	●
9	JOURNAL ASM; PROP SHAFT RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> (A) THA	8-97947-645-0	03	1	1510-				●		●
17	NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT THA	0-90301-406-0	05	1	1510-				●	●	●
20	BEARING ASM; CTR,PROP SHAFT HIGH RIDE SUSPENSION<7YC> NSK THA	8-97947-659-0	01	1	1510-	●	●
20	BEARING ASM; CTR,PROP SHAFT M/T MUA 5 SPEED 5H<MWQ> NSK THA	8-97947-659-0	01	1	1510-				●
20	BEARING ASM; CTR,PROP SHAFT HIGH RIDE SUSPENSION<7YC> NTN THA	8-97947-660-0	01	1	1510-	●	●
20	BEARING ASM; CTR,PROP SHAFT M/T MUA 5 SPEED 5H<MWQ> NTN THA	8-97947-660-0	01	1	1510-				●
20	BEARING ASM; CTR,PROP SHAFT EXC. HIGH RIDE SUSPENSION<7YC> NSK THA	8-97947-655-0	01	1	1510-	●	●
20	BEARING ASM; CTR,PROP SHAFT NSK THA	8-97947-655-0	01	1	1510-			●
20	BEARING ASM; CTR,PROP SHAFT EXC. HIGH RIDE SUSPENSION<7YC> NTN THA	8-97947-656-0	01	1	1510-	●	●
20	BEARING ASM; CTR,PROP SHAFT NTN THA	8-97947-656-0	01	1	1510-			●
20	BEARING ASM; CTR,PROP SHAFT 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> NSK THA	8-97947-657-0	01	1	1510-				●	●	●
20	BEARING ASM; CTR,PROP SHAFT RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> NSK THA	8-97947-657-0	01	1	1510-				●		●
20	BEARING ASM; CTR,PROP SHAFT 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> NTN THA	8-97947-658-0	01	1	1510-				●	●	●
20	BEARING ASM; CTR,PROP SHAFT RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> NTN THA	8-97947-658-0	01	1	1510-				●		●
59	NUT; RET TO SUPPORT THA	8-97947-557-0	01	1	1510-	●	●	●	●	●	●
103	BOOT; PROP SHAFT RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> (A) THA	8-97947-640-0	01	1	1510-	●	●	●
103	BOOT; PROP SHAFT (B) THA	8-97943-053-0	01	1	1510-				●	●	●
103	BOOT; PROP SHAFT M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-97940-114-0	01	1	1510-	●	●	●
103	BOOT; PROP SHAFT (A) THA	8-97940-114-0	01	1	1510-				●	●	●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97947-629-0	01	1	1510-	●	●	●	●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H<MWQ> HIGH RIDE SUSPENSION<7YC> (B) THA	8-97948-769-0	01	1	1510-	●	●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97948-769-0	01	1	1510-				●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H<MWQ> EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-97947-663-0	01	1	1510-	●	●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97947-663-0	01	1	1510-			●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-97947-630-0	01	1	1510-	●	●	●		●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> (A) THA	8-97947-630-0	01	1	1510-				●		●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> HIGH RIDE SUSPENSION<7YC> (B) THA	8-97947-732-0	01	1	1510-	●	●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> (B) THA	8-97947-732-0	01	1	1510-				●	●	●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-97947-664-0	01	1	1510-	●	●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> (B) THA	8-97947-664-0	01	1	1510-			●
125	YOKE ASM; SPLINED,PROP SHAFT RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> (A) THA	8-97947-633-0	01	1	1510-	●	●	●
218	WASHER; PL,PROP SHAFT ID=30 H=40 L=35 THA	8-97192-641-0	01	1	1510-	●	●	●	●	●	●
300	SHAFT ASM; PROP,RR 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> HIGH RIDE SUSPENSION<7YC> L=1840 THA	8-97948-743-0	01	1	1510-	●	●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H<MWQ> EXC. HIGH RIDE SUSPENSION<7YC> L=1838.5 THA	8-97948-744-0	01	1	1510-	●	●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H<MWQ> L=1838.5 THA	8-97948-744-0	01	1	1510-			●
300	SHAFT ASM; PROP,RR 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> HIGH RIDE SUSPENSION<7YC> L=1820 THA	8-97948-741-0	01	1	1510-	●	●
300	SHAFT ASM; PROP,RR 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> EXC. HIGH RIDE SUSPENSION<7YC> L=1815.5 THA	8-97948-742-0	01	1	1510-	●	●
300	SHAFT ASM; PROP,RR 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> L=1815.5 THA	8-97948-742-0	01	1	1510-			●
300	SHAFT ASM; PROP,RR RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> HIGH RIDE SUSPENSION<7YC> L=1905 THA	8-97948-970-0	01	1	1510-	●	●
300	SHAFT ASM; PROP,RR RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> EXC. HIGH RIDE SUSPENSION<7YC> L=1902.5 THA	8-97948-972-0	01	1	1510-	●	●
300	SHAFT ASM; PROP,RR RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> L=1902.5 THA	8-97948-972-0	01	1	1510-			●
300	SHAFT ASM; PROP,RR 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> L=1510 THA	8-97948-757-0	01	1	1510-				●
300	SHAFT ASM; PROP,RR M/T MUX 5 SPEED 5S<MZJ> L=1472 THA	8-97948-755-0	01	1	1510-				●	●	●
300	SHAFT ASM; PROP,RR RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> L=1530 THA	8-97948-974-0	01	1	1510-				●		●

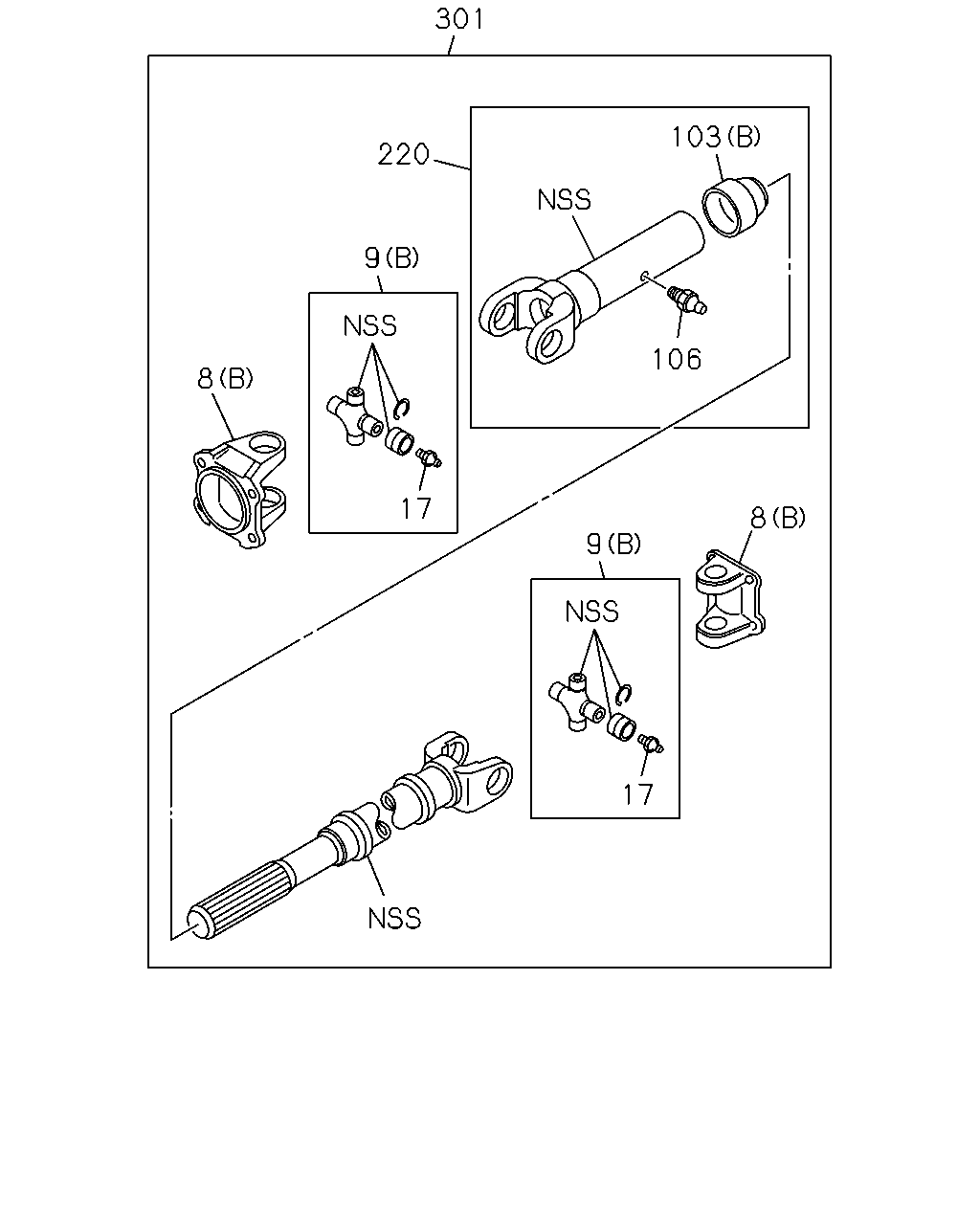

301 220 9 8 17 106 103 9 8 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
8	YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H<MWQ> EXC. HIGH RIDE SUSPENSION<7YC> (A) THA	8-97948-770-0	01	1	1510-	●	●
8	YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97948-770-0	01	1	1510-			●
8	YOKE; FLANGE,PROP SHAFT (B) THA	8-97948-772-0	02	1	1510-				●	●	●
8	YOKE; FLANGE,PROP SHAFT M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> (A) THA	8-97948-771-0	01	1	1510-	●	●	●
8	YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H<MWQ> HIGH RIDE SUSPENSION<7YC> (A) THA	8-97948-771-0	01	1	1510-	●	●
8	YOKE; FLANGE,PROP SHAFT (A) THA	8-97948-771-0	01	1	1510-				●	●	●
9	JOURNAL ASM; PROP SHAFT 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> HIGH RIDE SUSPENSION<7YC> (C) THA	8-97947-642-0	02	1	1510-	●	●
9	JOURNAL ASM; PROP SHAFT 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> HIGH RIDE SUSPENSION<7YC> (D) THA	8-97947-643-0	01	1	1510-	●	●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H<MWQ> EXC. HIGH RIDE SUSPENSION<7YC> (C) THA	8-97947-642-0	03	1	1510-	●	●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H<MWQ> (C) THA	8-97947-642-0	03	1	1510-			●
9	JOURNAL ASM; PROP SHAFT RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> (C) THA	8-97947-643-0	03	1	1510-	●	●	●
9	JOURNAL ASM; PROP SHAFT 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (C) THA	8-97947-643-0	03	1	1510-	●	●	●
9	JOURNAL ASM; PROP SHAFT 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97947-582-0	04	1	1510-				●
9	JOURNAL ASM; PROP SHAFT 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97947-645-0	01	1	1510-				●
9	JOURNAL ASM; PROP SHAFT 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (B) THA	8-97947-582-0	02	1	1510-				●	●	●
9	JOURNAL ASM; PROP SHAFT RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> (B) THA	8-97947-582-0	02	1	1510-				●		●
9	JOURNAL ASM; PROP SHAFT 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-97947-645-0	03	1	1510-				●	●	●
9	JOURNAL ASM; PROP SHAFT RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> (A) THA	8-97947-645-0	03	1	1510-				●		●
17	NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT THA	0-90301-406-0	05	1	1510-				●	●	●
103	BOOT; PROP SHAFT RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> (A) THA	8-97947-640-0	01	1	1510-	●	●	●
103	BOOT; PROP SHAFT (B) THA	8-97943-053-0	01	1	1510-				●	●	●
103	BOOT; PROP SHAFT M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-97940-114-0	01	1	1510-	●	●	●
103	BOOT; PROP SHAFT (A) THA	8-97940-114-0	01	1	1510-				●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT THA	0-90301-406-0	01	1	1510-				●	●	●
220	YOKE; SPLINED M/T MUA 5 SPEED 5H<MWQ>,M/T MVL 6 SPEED 6N<Y5Z> THA	8-97945-105-0	01	1	1510-				●		●
220	YOKE; SPLINED M/T MUX 5 SPEED 5S<MZJ> THA	8-97943-050-0	01	1	1510-				●	●	●
301	SHAFT ASM; PROP,FRT 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> L=671 THA	8-97948-758-0	01	1	1510-				●
301	SHAFT ASM; PROP,FRT M/T MUX 5 SPEED 5S<MZJ> L=710 THA	8-97948-761-0	01	1	1510-				●	●	●
301	SHAFT ASM; PROP,FRT RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> L=651 THA	8-97948-759-0	01	1	1510-				●		●

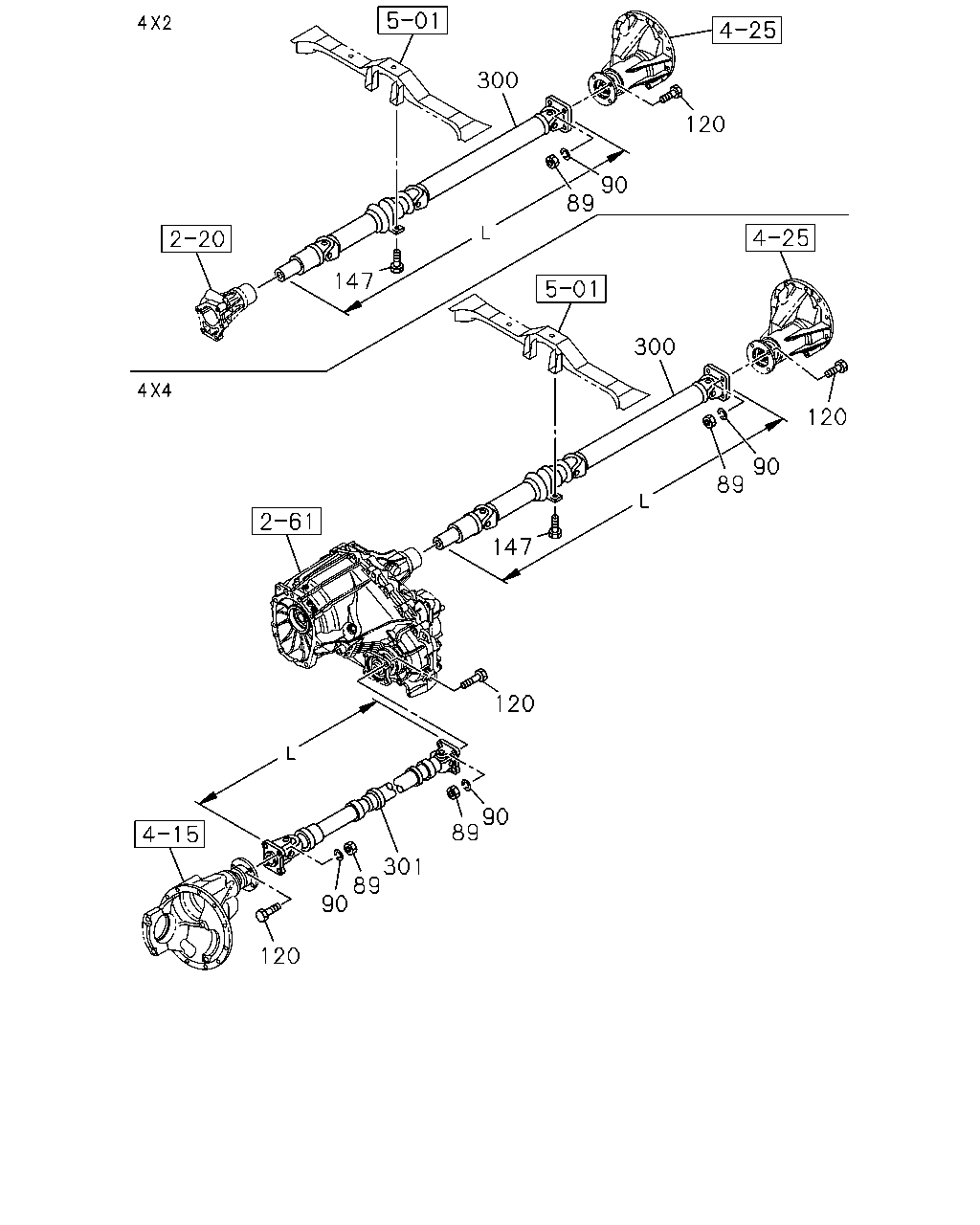

300 90 120 89 147 300 120 90 89 147 120 90 89 301 89 90 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
89	NUT; YOKE TO RR AXLE M10 FLANGE IMA	8-97246-900-0	04	1	1510-	●	●	●	●	●	●
89	NUT; YOKE TO RR AXLE M10 FLANGE IMA	8-97246-900-0	08	1	1510-				●	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=10.1 IMA	8-97246-901-0	04	1	1510-	●	●	●	●	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=10.1 IMA	8-97246-901-0	08	1	1510-				●	●	●
120	BOLT; YOKE TO RR AXLE M10X29 IMA	8-97246-859-0	04	1	1510-	●	●	●	●	●	●
120	BOLT; YOKE TO RR AXLE M10X29 IMA	8-97246-859-0	08	1	1510-				●	●	●
147	BOLT; CENTER BRG MTG M12X25 FLANGE THA	0-28661-225-0	02	1	1510-	●	●	●	●	●	●
300	SHAFT ASM; PROP,RR 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> HIGH RIDE SUSPENSION<7YC> L=1840 THA	8-97948-743-0	01	1	1510-	●	●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H<MWQ> EXC. HIGH RIDE SUSPENSION<7YC> L=1838.5 THA	8-97948-744-0	01	1	1510-	●	●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H<MWQ> L=1838.5 THA	8-97948-744-0	01	1	1510-			●
300	SHAFT ASM; PROP,RR 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> HIGH RIDE SUSPENSION<7YC> L=1820 THA	8-97948-741-0	01	1	1510-	●	●
300	SHAFT ASM; PROP,RR 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> EXC. HIGH RIDE SUSPENSION<7YC> L=1815.5 THA	8-97948-742-0	01	1	1510-	●	●
300	SHAFT ASM; PROP,RR 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> L=1815.5 THA	8-97948-742-0	01	1	1510-			●
300	SHAFT ASM; PROP,RR RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> HIGH RIDE SUSPENSION<7YC> L=1905 THA	8-97948-970-0	01	1	1510-	●	●
300	SHAFT ASM; PROP,RR RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> EXC. HIGH RIDE SUSPENSION<7YC> L=1902.5 THA	8-97948-972-0	01	1	1510-	●	●
300	SHAFT ASM; PROP,RR RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> L=1902.5 THA	8-97948-972-0	01	1	1510-			●
300	SHAFT ASM; PROP,RR 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> L=1510 THA	8-97948-757-0	01	1	1510-				●
300	SHAFT ASM; PROP,RR M/T MUX 5 SPEED 5S<MZJ> L=1472 THA	8-97948-755-0	01	1	1510-				●	●	●
300	SHAFT ASM; PROP,RR RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> L=1530 THA	8-97948-974-0	01	1	1510-				●		●
301	SHAFT ASM; PROP,FRT 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> L=671 THA	8-97948-758-0	01	1	1510-				●
301	SHAFT ASM; PROP,FRT M/T MUX 5 SPEED 5S<MZJ> L=710 THA	8-97948-761-0	01	1	1510-				●	●	●
301	SHAFT ASM; PROP,FRT RZ4E-TC ENG<RDZ> M/T MVL 6 SPEED 6N<Y5Z> L=651 THA	8-97948-759-0	01	1	1510-				●		●
