51632 - TFR/TFS THAILAND
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#166076) — 120 parça
Tümü
A - TFB5CF
B - TFB5WF
C - TFS5CF
D - TFS5WF
E - TFS5SF
F - TFB5SF
◀

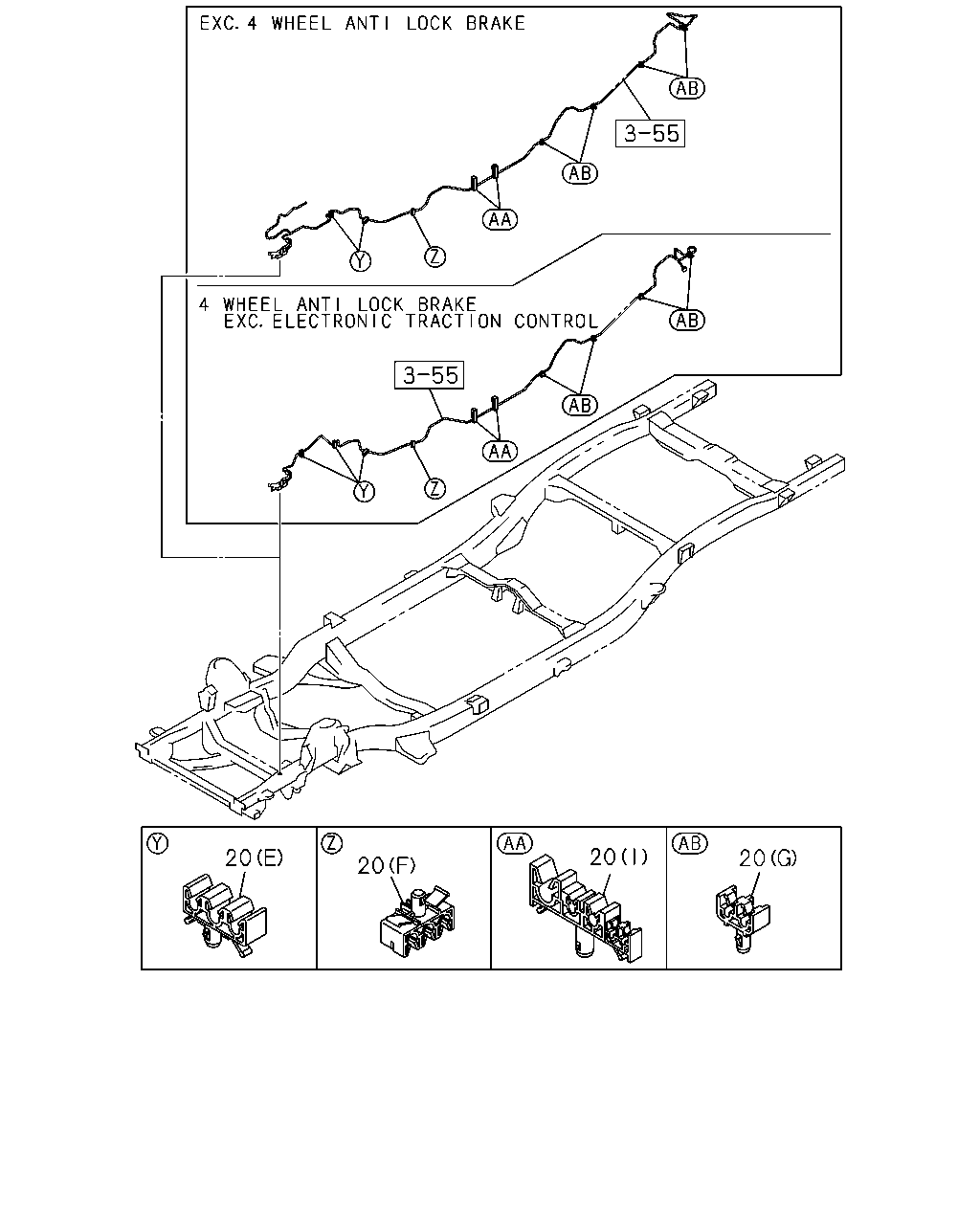

[358A] BRAKE PIPING; REAR NO.2 (22 parça)

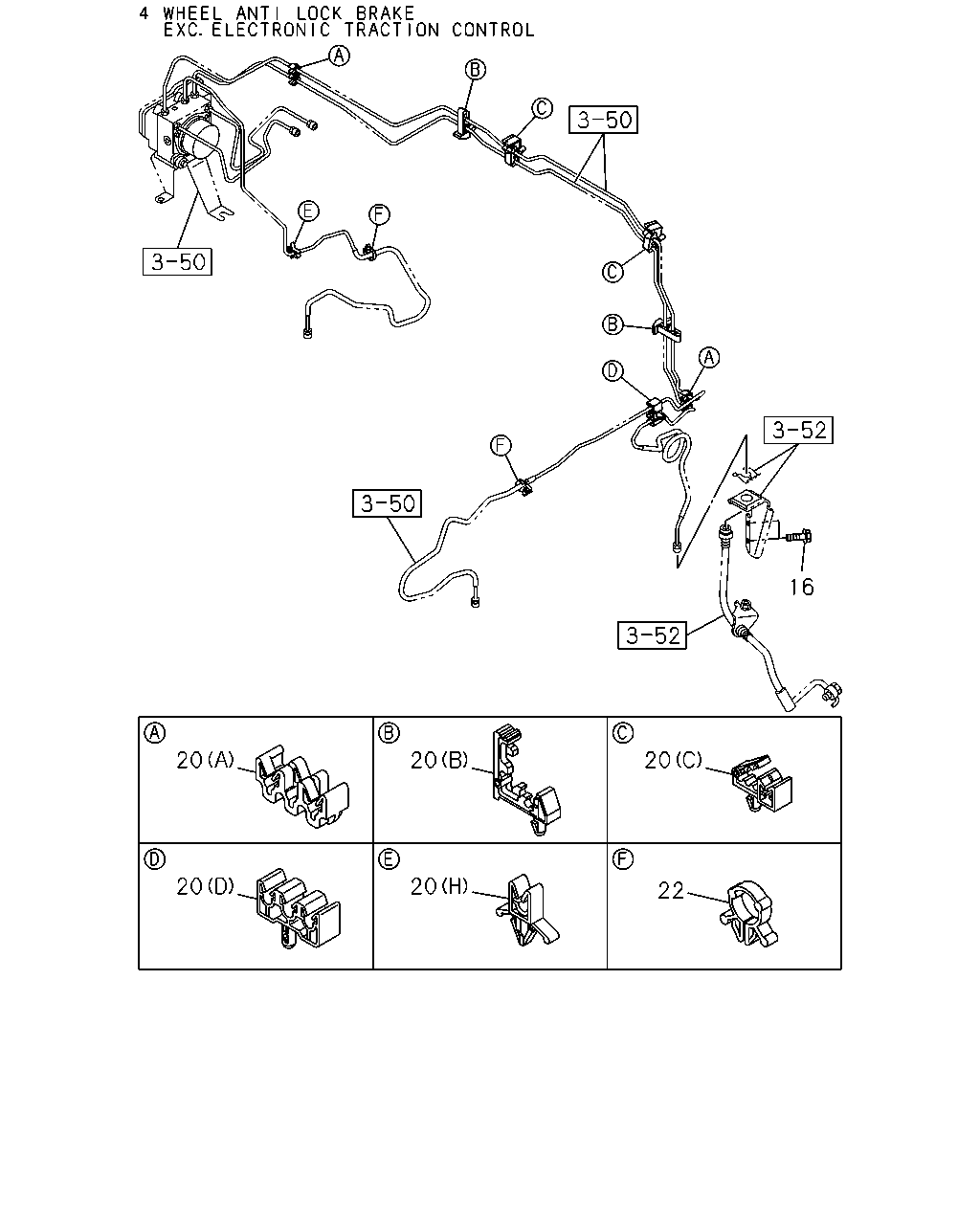

[358A] BRAKE PIPING; FRONT NO.1 (25 parça)

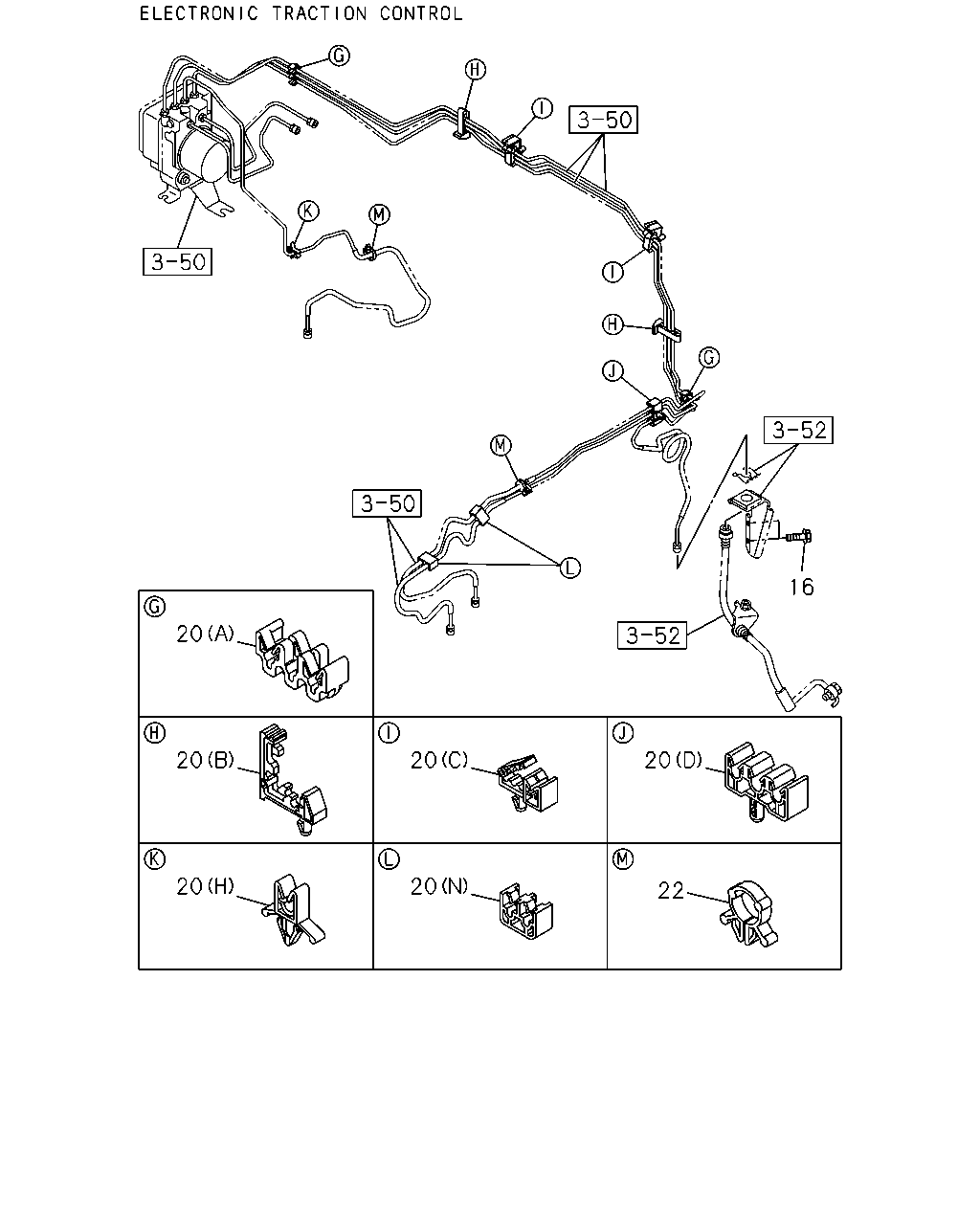

[358A] BRAKE PIPING; FRONT NO.2 (25 parça)

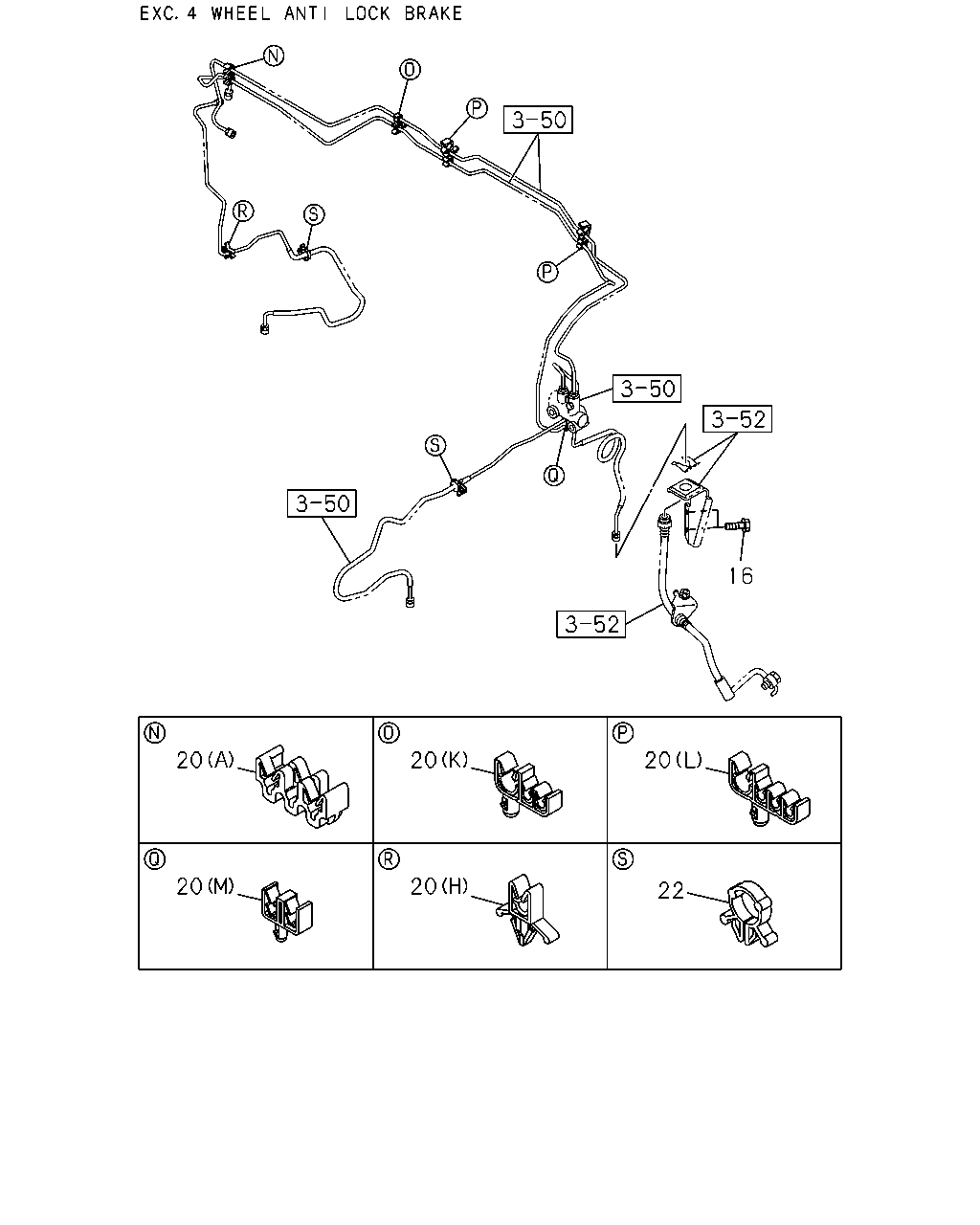

[358A] BRAKE PIPING; FRONT NO.3 (25 parça)

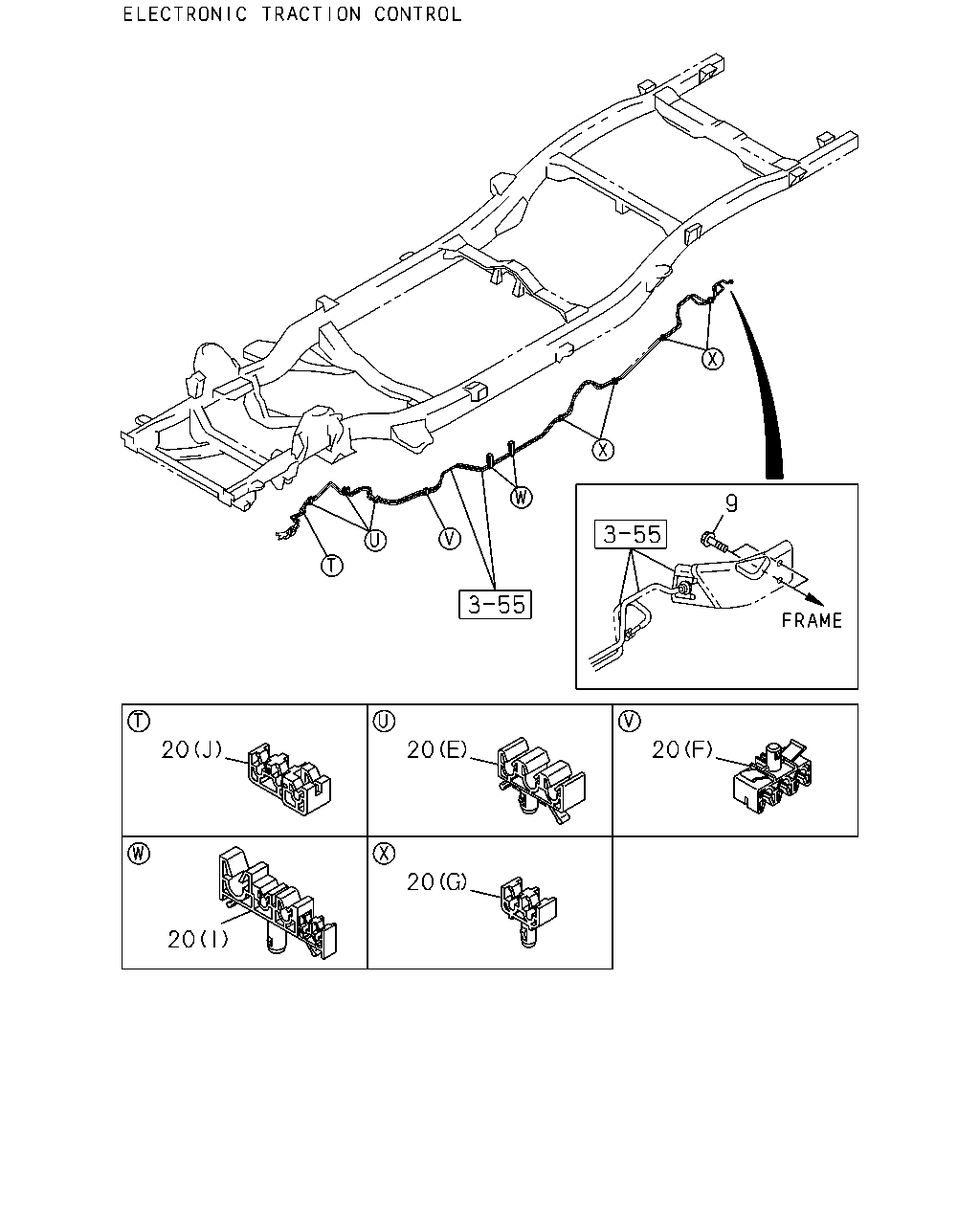

[358A] BRAKE PIPING; REAR NO.1 (23 parça)
▶
20
20
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
20
CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA
8-94487-369-0
02
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.76X3 THA
8-98113-388-0
02
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1 THA
8-98113-389-0
02
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.76 OR 6.8X3 THA
8-98113-396-0
01
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA
8-97216-721-1
03
1
1510-
●
●
20
CLIP; BRK PIPE
(E) ID=4.76X3 THA
8-97216-721-1
03
1
1510-
●
●
●
20
CLIP; BRK PIPE
(H) ID=4.76 THA
8-97300-443-0
01
1
1510-
●
●
●
●
●
●
20
CLIP; BRK PIPE
(F) ID=10 & 6.8X2 OR 8.4X3 THA
8-97249-906-1
01
1
1510-
●
●
●
●
●
●
20
CLIP; BRK PIPE
(G) ID=6.8X2 THA
8-97251-124-0
04
1
1510-
●
●
●
●
●
●
20
CLIP; BRK PIPE
(I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA
8-98113-394-0
02
1
1510-
●
●
●
●
●
●
20
CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA
8-94487-369-0
01
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
(A) ID=4.8X3 THA
8-94487-369-0
01
1
1510-
●
●
20
CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=4.76X2 & 6.35X1 THA
8-98113-390-0
01
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
(K) ID=4.76X2 & 6.35X1 THA
8-98113-390-0
01
1
1510-
●
●
20
CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) ID=4.76X3 & 6.35 OR 10X1 THA
8-98113-391-0
02
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
(L) ID=4.76X3 & 6.35 OR 10X1 THA
8-98113-391-0
02
1
1510-
●
●
20
CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) ID=4.76X2 THA
8-98113-395-0
01
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
(M) ID=4.76X2 THA
8-98113-395-0
01
1
1510-
●
●
20
CLIP; BRK PIPE
EXC. HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA
8-97216-721-1
02
1
1510-
●
●
20
CLIP; BRK PIPE
(E) ID=4.76X3 THA
8-97216-721-1
02
1
1510-
●
20
CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (N) ID=6.8X2 THA
8-97251-122-0
02
1
1510-
●
●
20
CLIP; BRK PIPE
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> (J) ID=8.4 & 6.8X2 THA
8-97251-127-0
01
1
1510-
●
16
20
20
20
20
20
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
16
BOLT; BRKT TO FRAME
HIGH RIDE SUSPENSION<7YC> M8X20 FLANGE THA
0-28650-820-0
04
1
1510-
●
●
16
BOLT; BRKT TO FRAME
M8X20 FLANGE THA
0-28650-820-0
04
1
1510-
●
●
●
20
CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA
8-94487-369-0
02
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.76X3 THA
8-98113-388-0
02
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1 THA
8-98113-389-0
02
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.76 OR 6.8X3 THA
8-98113-396-0
01
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA
8-97216-721-1
03
1
1510-
●
●
20
CLIP; BRK PIPE
(E) ID=4.76X3 THA
8-97216-721-1
03
1
1510-
●
●
●
20
CLIP; BRK PIPE
(H) ID=4.76 THA
8-97300-443-0
01
1
1510-
●
●
●
●
●
●
20
CLIP; BRK PIPE
(F) ID=10 & 6.8X2 OR 8.4X3 THA
8-97249-906-1
01
1
1510-
●
●
●
●
●
●
20
CLIP; BRK PIPE
(G) ID=6.8X2 THA
8-97251-124-0
04
1
1510-
●
●
●
●
●
●
20
CLIP; BRK PIPE
(I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA
8-98113-394-0
02
1
1510-
●
●
●
●
●
●
20
CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA
8-94487-369-0
01
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
(A) ID=4.8X3 THA
8-94487-369-0
01
1
1510-
●
●
20
CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=4.76X2 & 6.35X1 THA
8-98113-390-0
01
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
(K) ID=4.76X2 & 6.35X1 THA
8-98113-390-0
01
1
1510-
●
●
20
CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) ID=4.76X3 & 6.35 OR 10X1 THA
8-98113-391-0
02
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
(L) ID=4.76X3 & 6.35 OR 10X1 THA
8-98113-391-0
02
1
1510-
●
●
20
CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) ID=4.76X2 THA
8-98113-395-0
01
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
(M) ID=4.76X2 THA
8-98113-395-0
01
1
1510-
●
●
20
CLIP; BRK PIPE
EXC. HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA
8-97216-721-1
02
1
1510-
●
●
20
CLIP; BRK PIPE
(E) ID=4.76X3 THA
8-97216-721-1
02
1
1510-
●
20
CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (N) ID=6.8X2 THA
8-97251-122-0
02
1
1510-
●
●
20
CLIP; BRK PIPE
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> (J) ID=8.4 & 6.8X2 THA
8-97251-127-0
01
1
1510-
●
22
CLIP; PIPE TO FRAME
ID=9 THA
5-09707-027-0
02
1
1510-
●
●
●
●
●
●
16
20
20
20
20
20
20
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
16
BOLT; BRKT TO FRAME
HIGH RIDE SUSPENSION<7YC> M8X20 FLANGE THA
0-28650-820-0
04
1
1510-
●
●
16
BOLT; BRKT TO FRAME
M8X20 FLANGE THA
0-28650-820-0
04
1
1510-
●
●
●
20
CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA
8-94487-369-0
02
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.76X3 THA
8-98113-388-0
02
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1 THA
8-98113-389-0
02
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.76 OR 6.8X3 THA
8-98113-396-0
01
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA
8-97216-721-1
03
1
1510-
●
●
20
CLIP; BRK PIPE
(E) ID=4.76X3 THA
8-97216-721-1
03
1
1510-
●
●
●
20
CLIP; BRK PIPE
(H) ID=4.76 THA
8-97300-443-0
01
1
1510-
●
●
●
●
●
●
20
CLIP; BRK PIPE
(F) ID=10 & 6.8X2 OR 8.4X3 THA
8-97249-906-1
01
1
1510-
●
●
●
●
●
●
20
CLIP; BRK PIPE
(G) ID=6.8X2 THA
8-97251-124-0
04
1
1510-
●
●
●
●
●
●
20
CLIP; BRK PIPE
(I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA
8-98113-394-0
02
1
1510-
●
●
●
●
●
●
20
CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA
8-94487-369-0
01
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
(A) ID=4.8X3 THA
8-94487-369-0
01
1
1510-
●
●
20
CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=4.76X2 & 6.35X1 THA
8-98113-390-0
01
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
(K) ID=4.76X2 & 6.35X1 THA
8-98113-390-0
01
1
1510-
●
●
20
CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) ID=4.76X3 & 6.35 OR 10X1 THA
8-98113-391-0
02
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
(L) ID=4.76X3 & 6.35 OR 10X1 THA
8-98113-391-0
02
1
1510-
●
●
20
CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) ID=4.76X2 THA
8-98113-395-0
01
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
(M) ID=4.76X2 THA
8-98113-395-0
01
1
1510-
●
●
20
CLIP; BRK PIPE
EXC. HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA
8-97216-721-1
02
1
1510-
●
●
20
CLIP; BRK PIPE
(E) ID=4.76X3 THA
8-97216-721-1
02
1
1510-
●
20
CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (N) ID=6.8X2 THA
8-97251-122-0
02
1
1510-
●
●
20
CLIP; BRK PIPE
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> (J) ID=8.4 & 6.8X2 THA
8-97251-127-0
01
1
1510-
●
22
CLIP; PIPE TO FRAME
ID=9 THA
5-09707-027-0
02
1
1510-
●
●
●
●
●
●
16
20
20
20
22
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
16
BOLT; BRKT TO FRAME
HIGH RIDE SUSPENSION<7YC> M8X20 FLANGE THA
0-28650-820-0
04
1
1510-
●
●
16
BOLT; BRKT TO FRAME
M8X20 FLANGE THA
0-28650-820-0
04
1
1510-
●
●
●
20
CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA
8-94487-369-0
02
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.76X3 THA
8-98113-388-0
02
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1 THA
8-98113-389-0
02
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.76 OR 6.8X3 THA
8-98113-396-0
01
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA
8-97216-721-1
03
1
1510-
●
●
20
CLIP; BRK PIPE
(E) ID=4.76X3 THA
8-97216-721-1
03
1
1510-
●
●
●
20
CLIP; BRK PIPE
(H) ID=4.76 THA
8-97300-443-0
01
1
1510-
●
●
●
●
●
●
20
CLIP; BRK PIPE
(F) ID=10 & 6.8X2 OR 8.4X3 THA
8-97249-906-1
01
1
1510-
●
●
●
●
●
●
20
CLIP; BRK PIPE
(G) ID=6.8X2 THA
8-97251-124-0
04
1
1510-
●
●
●
●
●
●
20
CLIP; BRK PIPE
(I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA
8-98113-394-0
02
1
1510-
●
●
●
●
●
●
20
CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA
8-94487-369-0
01
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
(A) ID=4.8X3 THA
8-94487-369-0
01
1
1510-
●
●
20
CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=4.76X2 & 6.35X1 THA
8-98113-390-0
01
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
(K) ID=4.76X2 & 6.35X1 THA
8-98113-390-0
01
1
1510-
●
●
20
CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) ID=4.76X3 & 6.35 OR 10X1 THA
8-98113-391-0
02
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
(L) ID=4.76X3 & 6.35 OR 10X1 THA
8-98113-391-0
02
1
1510-
●
●
20
CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) ID=4.76X2 THA
8-98113-395-0
01
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
(M) ID=4.76X2 THA
8-98113-395-0
01
1
1510-
●
●
20
CLIP; BRK PIPE
EXC. HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA
8-97216-721-1
02
1
1510-
●
●
20
CLIP; BRK PIPE
(E) ID=4.76X3 THA
8-97216-721-1
02
1
1510-
●
20
CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (N) ID=6.8X2 THA
8-97251-122-0
02
1
1510-
●
●
20
CLIP; BRK PIPE
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> (J) ID=8.4 & 6.8X2 THA
8-97251-127-0
01
1
1510-
●
22
CLIP; PIPE TO FRAME
ID=9 THA
5-09707-027-0
02
1
1510-
●
●
●
●
●
●
9
20
20
20
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
9
BOLT; BRKT
ELECTRONIC TRACTION CONTROL<NW9> M8X25 FLANGE THA
0-28650-825-0
02
1
1510-
●
●
20
CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA
8-94487-369-0
02
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.76X3 THA
8-98113-388-0
02
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1 THA
8-98113-389-0
02
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.76 OR 6.8X3 THA
8-98113-396-0
01
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA
8-97216-721-1
03
1
1510-
●
●
20
CLIP; BRK PIPE
(E) ID=4.76X3 THA
8-97216-721-1
03
1
1510-
●
●
●
20
CLIP; BRK PIPE
(H) ID=4.76 THA
8-97300-443-0
01
1
1510-
●
●
●
●
●
●
20
CLIP; BRK PIPE
(F) ID=10 & 6.8X2 OR 8.4X3 THA
8-97249-906-1
01
1
1510-
●
●
●
●
●
●
20
CLIP; BRK PIPE
(G) ID=6.8X2 THA
8-97251-124-0
04
1
1510-
●
●
●
●
●
●
20
CLIP; BRK PIPE
(I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA
8-98113-394-0
02
1
1510-
●
●
●
●
●
●
20
CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA
8-94487-369-0
01
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
(A) ID=4.8X3 THA
8-94487-369-0
01
1
1510-
●
●
20
CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=4.76X2 & 6.35X1 THA
8-98113-390-0
01
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
(K) ID=4.76X2 & 6.35X1 THA
8-98113-390-0
01
1
1510-
●
●
20
CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) ID=4.76X3 & 6.35 OR 10X1 THA
8-98113-391-0
02
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
(L) ID=4.76X3 & 6.35 OR 10X1 THA
8-98113-391-0
02
1
1510-
●
●
20
CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) ID=4.76X2 THA
8-98113-395-0
01
1
1510-
●
●
●
●
20
CLIP; BRK PIPE
(M) ID=4.76X2 THA
8-98113-395-0
01
1
1510-
●
●
20
CLIP; BRK PIPE
EXC. HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA
8-97216-721-1
02
1
1510-
●
●
20
CLIP; BRK PIPE
(E) ID=4.76X3 THA
8-97216-721-1
02
1
1510-
●
20
CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (N) ID=6.8X2 THA
8-97251-122-0
02
1
1510-
●
●
20
CLIP; BRK PIPE
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> (J) ID=8.4 & 6.8X2 THA
8-97251-127-0
01
1
1510-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
