◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51632 - TFR/TFS THAILAND ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#166073) — 141 parça

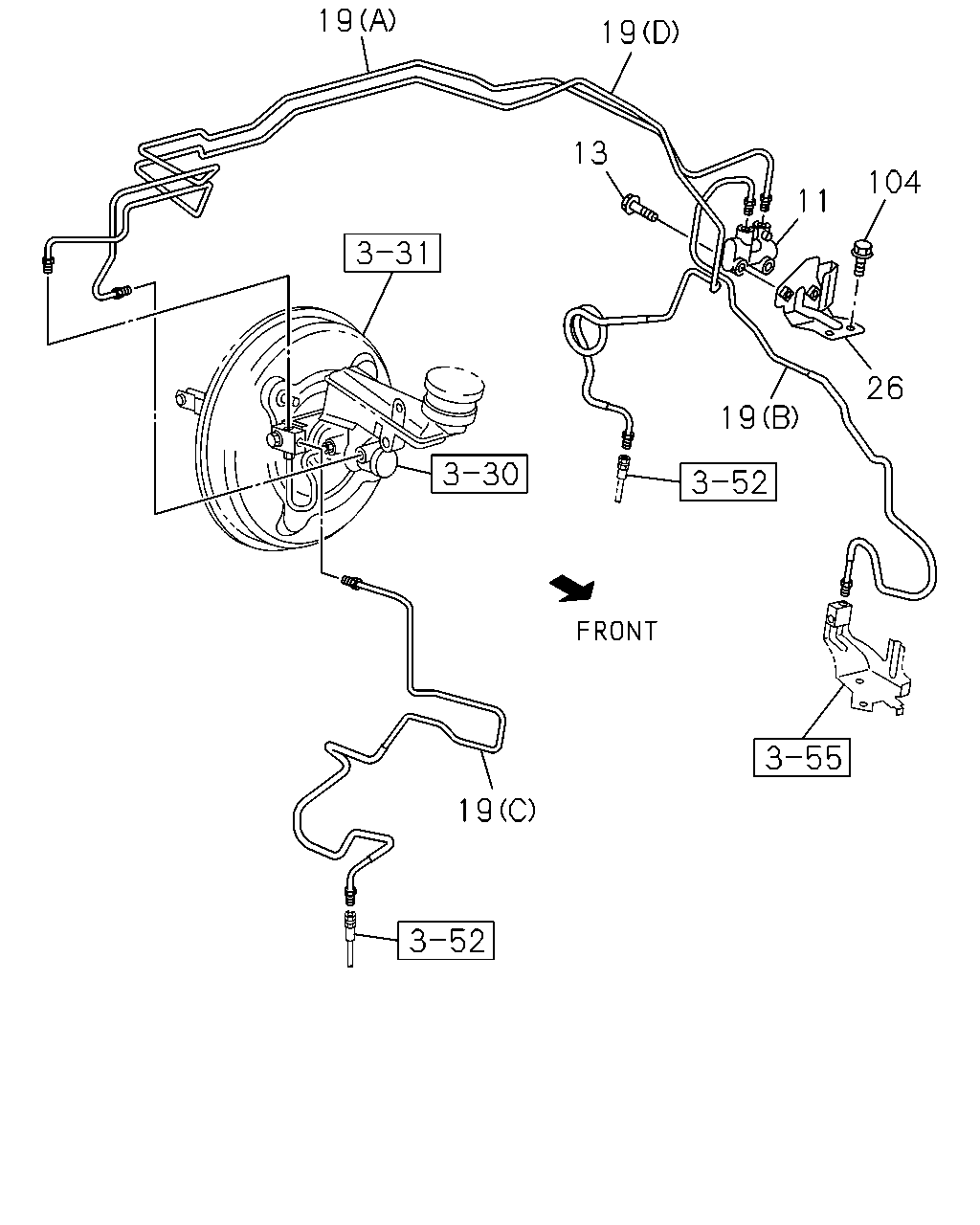

çizim 492453
19 19 13 11 104 19 26 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 VALVE; BRK CONT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-97333-079-0 01 1 1510- ● ● ● ●
11 VALVE; BRK CONT
THA 		8-97333-079-0 01 1 1510- ● ●
13 BOLT; VLV TO BRKT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X45 FLANGE THA 		0-29260-845-0 02 1 1510- ● ● ● ●
13 BOLT; VLV TO BRKT
M8X45 FLANGE THA 		0-29260-845-0 02 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) THA 		8-98099-731-0 01 1 1510- ● ● ● ●
19 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (G) THA 		8-98099-732-0 01 1 1510- ● ● ● ●
19 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (H) THA 		8-98099-744-2 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (H) THA 		8-98099-744-2 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (H) THA 		8-98099-734-3 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> (E) THA 		8-98099-730-0 01 1 1510- ● ● ● ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (I) THA 		8-98159-938-1 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> (I) THA 		8-98159-938-1 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (I) THA 		8-98159-942-1 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA 		8-98221-721-0 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA 		8-98221-721-0 01 1 1510- ● ● ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) THA 		8-98099-721-0 01 1 1510- ● ● ● ● ● ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98221-710-0 01 1 1510- ● ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> (E) THA 		8-98274-216-1 01 1 1510- ● ● ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (I) THA 		8-98290-808-2 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> (I) THA 		8-98290-808-2 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> (I) THA 		8-98306-122-0 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA 		8-98274-209-2 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA 		8-98274-209-2 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) THA 		8-98274-212-1 01 1 1510- ● ● ● ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98274-208-1 01 1 1510- ● ● ●
19 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) THA 		8-98099-727-1 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) THA 		8-98099-727-1 01 1 1510- ● ● ●
19 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) THA 		8-98099-718-4 01 1 1510- ● ● ● ●
19 PIPE; BRK,M/CYL TO UNION
(A) THA 		8-98099-718-4 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98099-713-2 01 1 1510- ●
19 PIPE; BRK,M/CYL TO UNION
(C) THA 		8-98099-713-2 01 1 1510- ●
19 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98099-713-2 01 1 1510- ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (J) THA 		8-98099-736-2 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
ELECTRONIC TRACTION CONTROL<NW9> (K) THA 		8-98099-738-0 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
ELECTRONIC TRACTION CONTROL<NW9> (L) THA 		8-98099-739-0 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> (J) THA 		8-98274-217-1 01 1 1510- ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (J) THA 		8-98274-217-1 01 1 1510- ●
26 BRACKET; PROPORTIONING VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98101-970-1 01 1 1510- ● ● ● ●
26 BRACKET; PROPORTIONING VLV
THA 		8-98101-970-1 01 1 1510- ● ●
104 BOLT; BRKT TO BODY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M6X16 FLANGE THA 		0-28650-616-0 02 1 1510- ● ● ● ●
104 BOLT; BRKT TO BODY
M6X16 FLANGE THA 		0-28650-616-0 02 1 1510- ● ●

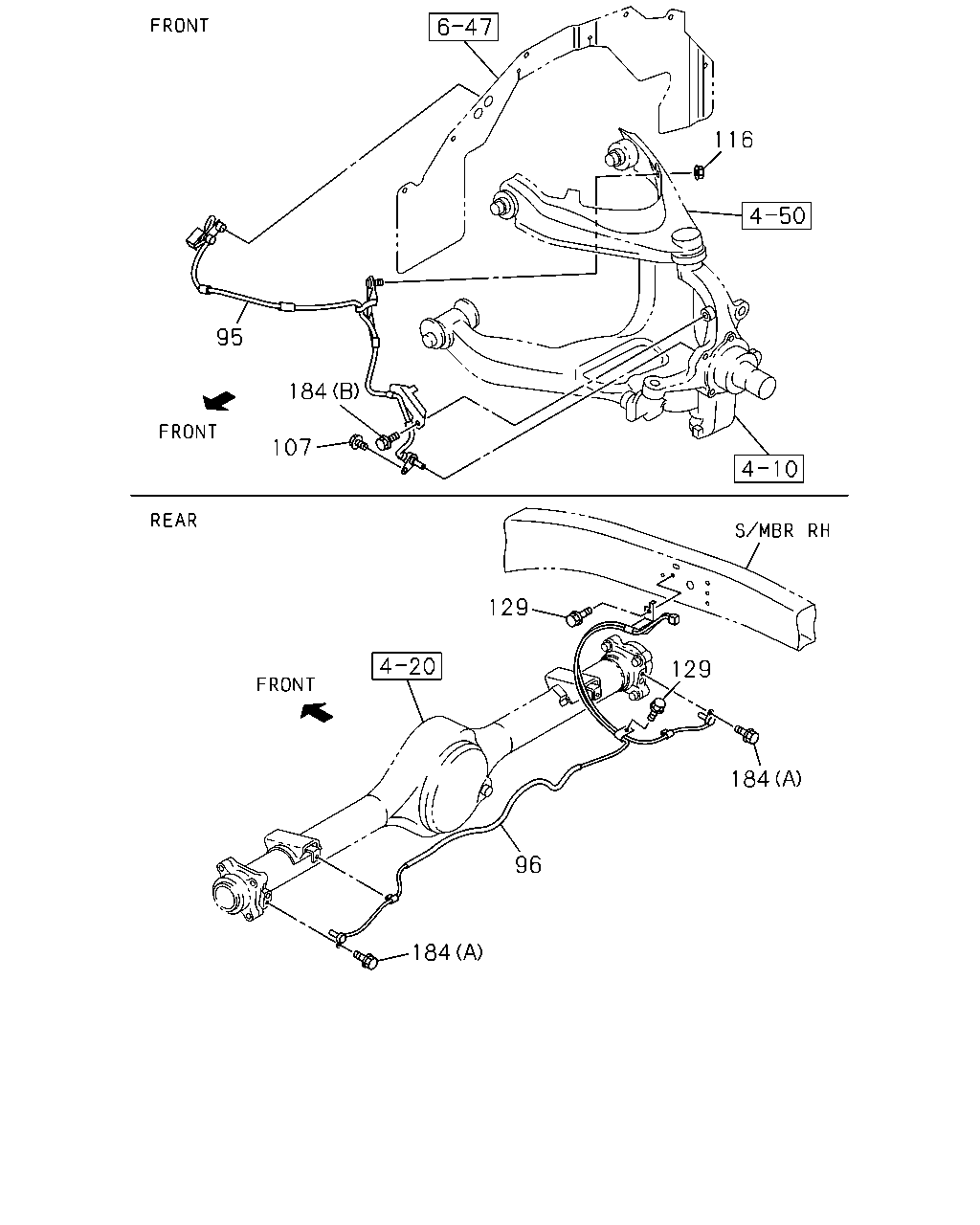

çizim 492466
95 184 107 116 129 129 184 96 184
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
95 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA 		8-98292-432-0 01 1 1510- ● ●
95 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98292-432-0 01 1 1510- ● ●
95 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA 		8-98292-433-0 01 1 1510- ● ●
95 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98292-433-0 01 1 1510- ● ●
95 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98292-430-0 01 1 1510- ● ●
95 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98292-431-0 01 1 1510- ● ●
96 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA 		8-98052-122-1 01 1 1510- ● ●
96 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98052-122-1 01 1 1510- ● ●
96 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98052-121-1 01 1 1510- ● ●
107 BOLT; WHEEL SPD SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> M6X12 FLANGE THA 		0-28050-612-0 02 1 1510- ● ● ● ●
116 NUT
4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE THA 		0-91180-108-0 02 1 1510- ● ● ● ●
129 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> M6X16 FLANGE THA 		0-28650-616-0 02 1 1510- ● ● ● ●
184 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> (B) M6X12 FLANGE THA 		0-28050-612-0 02 1 1510- ● ● ● ●
184 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6X16 FLANGE THA 		0-28650-616-0 02 1 1510- ● ● ● ●
çizim 492471
19 72 89 19 19 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
19 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) THA 		8-98099-731-0 01 1 1510- ● ● ● ●
19 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (G) THA 		8-98099-732-0 01 1 1510- ● ● ● ●
19 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (H) THA 		8-98099-744-2 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (H) THA 		8-98099-744-2 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (H) THA 		8-98099-734-3 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> (E) THA 		8-98099-730-0 01 1 1510- ● ● ● ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (I) THA 		8-98159-938-1 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> (I) THA 		8-98159-938-1 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (I) THA 		8-98159-942-1 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA 		8-98221-721-0 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA 		8-98221-721-0 01 1 1510- ● ● ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) THA 		8-98099-721-0 01 1 1510- ● ● ● ● ● ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98221-710-0 01 1 1510- ● ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> (E) THA 		8-98274-216-1 01 1 1510- ● ● ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (I) THA 		8-98290-808-2 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> (I) THA 		8-98290-808-2 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> (I) THA 		8-98306-122-0 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA 		8-98274-209-2 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA 		8-98274-209-2 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) THA 		8-98274-212-1 01 1 1510- ● ● ● ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98274-208-1 01 1 1510- ● ● ●
19 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) THA 		8-98099-727-1 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) THA 		8-98099-727-1 01 1 1510- ● ● ●
19 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) THA 		8-98099-718-4 01 1 1510- ● ● ● ●
19 PIPE; BRK,M/CYL TO UNION
(A) THA 		8-98099-718-4 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98099-713-2 01 1 1510- ●
19 PIPE; BRK,M/CYL TO UNION
(C) THA 		8-98099-713-2 01 1 1510- ●
19 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98099-713-2 01 1 1510- ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (J) THA 		8-98099-736-2 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
ELECTRONIC TRACTION CONTROL<NW9> (K) THA 		8-98099-738-0 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
ELECTRONIC TRACTION CONTROL<NW9> (L) THA 		8-98099-739-0 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> (J) THA 		8-98274-217-1 01 1 1510- ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (J) THA 		8-98274-217-1 01 1 1510- ●
72 BOLT; BRKT TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> M6X16 FLANGE THA 		0-28650-616-0 03 1 1510- ● ● ● ●
89 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA 		8-98232-464-0 01 1 1510- ●
89 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98232-464-0 01 1 1510- ●
89 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98232-465-0 01 1 1510- ●
89 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> THA 		8-98232-465-0 01 1 1510- ●
89 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98279-485-1 01 1 1510- ●
89 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98232-466-0 01 1 1510- ●
89 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98232-466-0 01 1 1510- ●
89 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98279-487-1 01 1 1510- ●

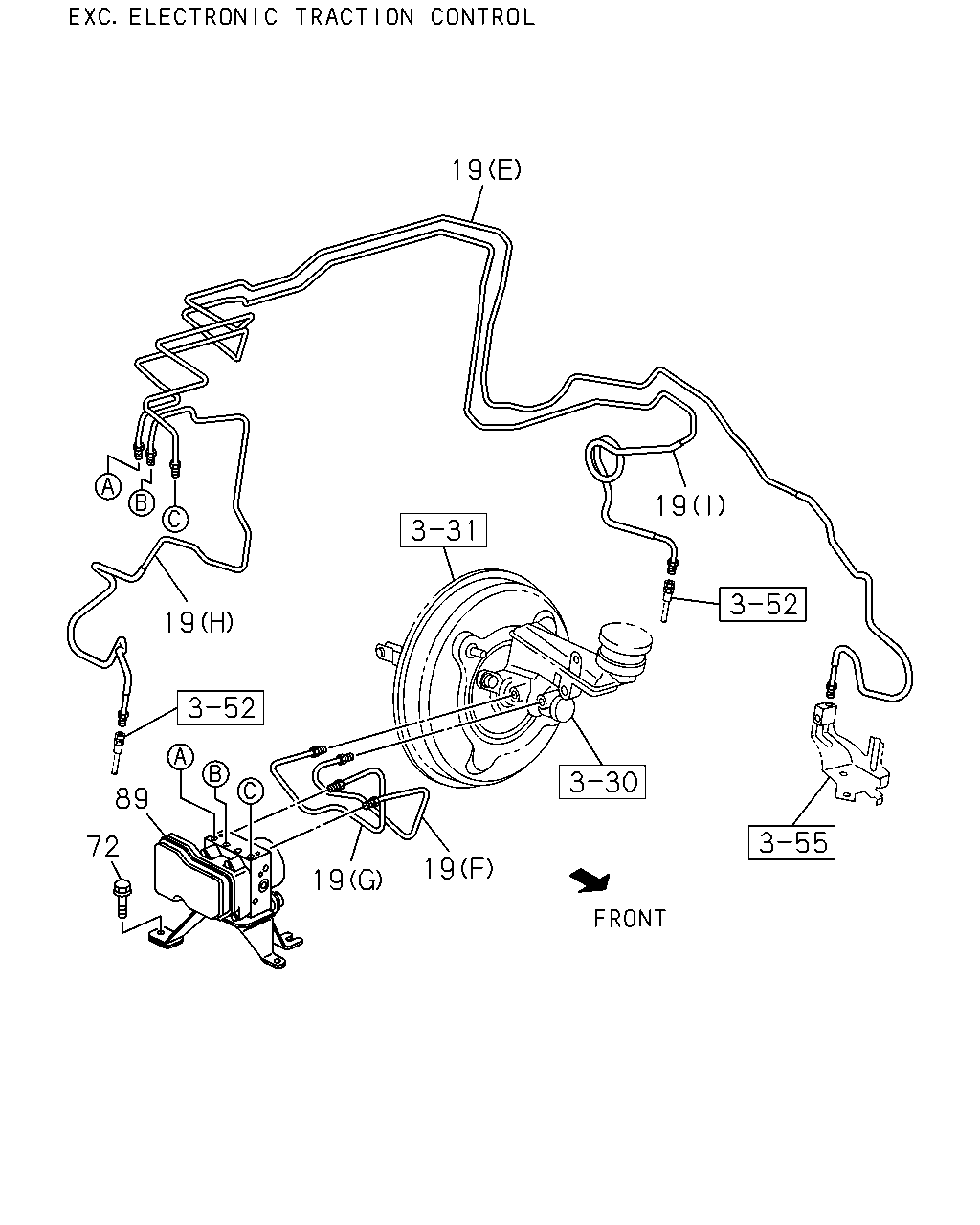

çizim 492477
19 19 19 89 72 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
19 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F) THA 		8-98099-731-0 01 1 1510- ● ● ● ●
19 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (G) THA 		8-98099-732-0 01 1 1510- ● ● ● ●
19 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (H) THA 		8-98099-744-2 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (H) THA 		8-98099-744-2 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (H) THA 		8-98099-734-3 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> (E) THA 		8-98099-730-0 01 1 1510- ● ● ● ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (I) THA 		8-98159-938-1 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> (I) THA 		8-98159-938-1 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> (I) THA 		8-98159-942-1 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA 		8-98221-721-0 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA 		8-98221-721-0 01 1 1510- ● ● ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) THA 		8-98099-721-0 01 1 1510- ● ● ● ● ● ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98221-710-0 01 1 1510- ● ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> (E) THA 		8-98274-216-1 01 1 1510- ● ● ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> (I) THA 		8-98290-808-2 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> (I) THA 		8-98290-808-2 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> (I) THA 		8-98306-122-0 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA 		8-98274-209-2 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA 		8-98274-209-2 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) THA 		8-98274-212-1 01 1 1510- ● ● ● ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> (D) THA 		8-98274-208-1 01 1 1510- ● ● ●
19 PIPE; BRK,M/CYL TO UNION
HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) THA 		8-98099-727-1 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) THA 		8-98099-727-1 01 1 1510- ● ● ●
19 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) THA 		8-98099-718-4 01 1 1510- ● ● ● ●
19 PIPE; BRK,M/CYL TO UNION
(A) THA 		8-98099-718-4 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98099-713-2 01 1 1510- ●
19 PIPE; BRK,M/CYL TO UNION
(C) THA 		8-98099-713-2 01 1 1510- ●
19 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> (C) THA 		8-98099-713-2 01 1 1510- ●
19 PIPE; BRK,M/CYL TO UNION
4JK1-TCS ENG<LKZ>,4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (J) THA 		8-98099-736-2 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
ELECTRONIC TRACTION CONTROL<NW9> (K) THA 		8-98099-738-0 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
ELECTRONIC TRACTION CONTROL<NW9> (L) THA 		8-98099-739-0 01 1 1510- ● ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> HIGH RIDE SUSPENSION<7YC> (J) THA 		8-98274-217-1 01 1 1510- ●
19 PIPE; BRK,M/CYL TO UNION
RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (J) THA 		8-98274-217-1 01 1 1510- ●
72 BOLT; BRKT TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> M6X16 FLANGE THA 		0-28650-616-0 03 1 1510- ● ● ● ●
89 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA 		8-98232-464-0 01 1 1510- ●
89 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98232-464-0 01 1 1510- ●
89 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98232-465-0 01 1 1510- ●
89 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION<7YC> THA 		8-98232-465-0 01 1 1510- ●
89 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98279-485-1 01 1 1510- ●
89 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98232-466-0 01 1 1510- ●
89 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98232-466-0 01 1 1510- ●
89 HYDRAULIC UNIT; ANTI LOCK BRK
4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98279-487-1 01 1 1510- ●

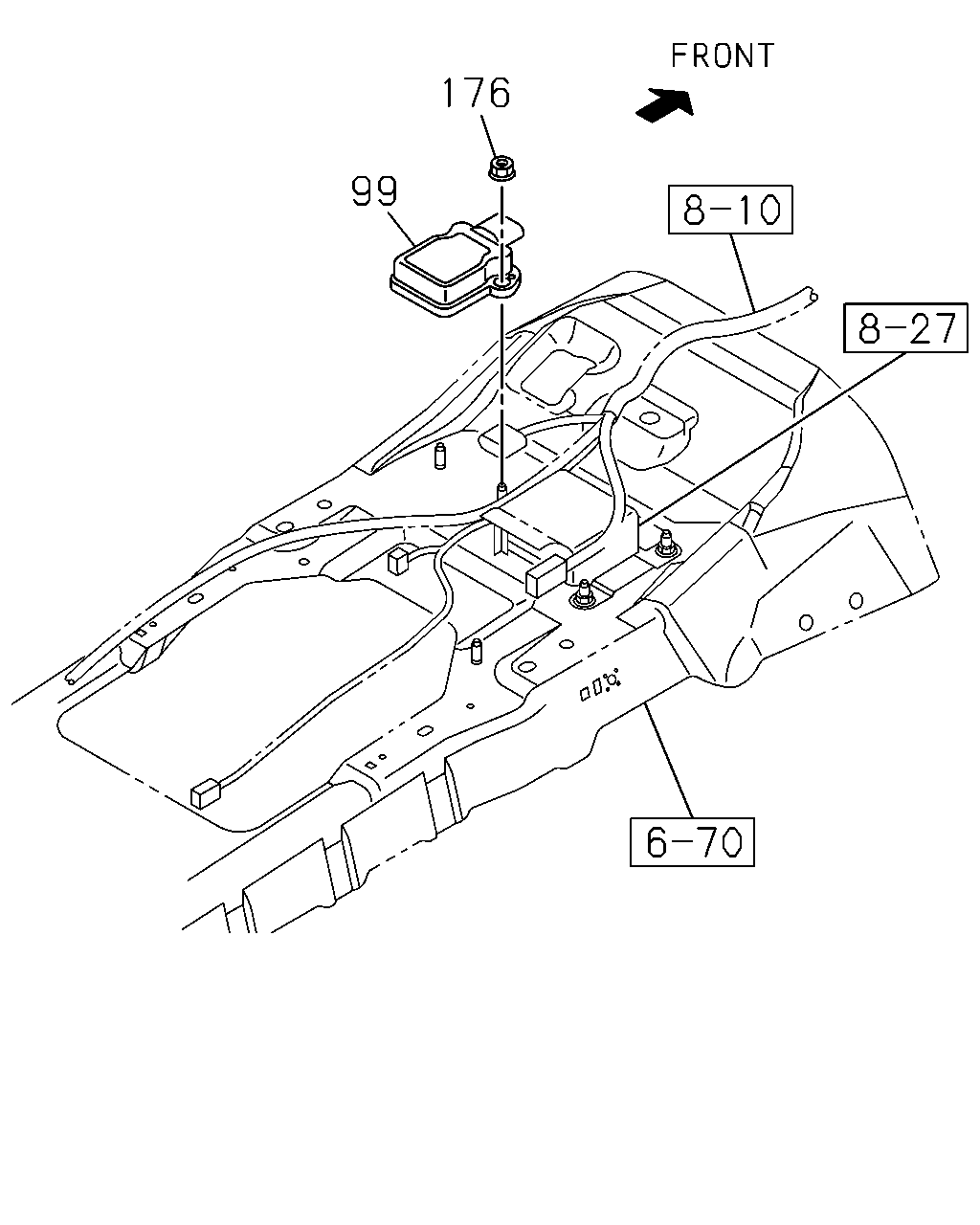

çizim 493312
99 176
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
99 SENSOR; DECELERATION
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98052-116-1 01 1 1510- ● ●
176 NUT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> M6 FLANGE THA 		0-91180-106-0 02 1 1510- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
