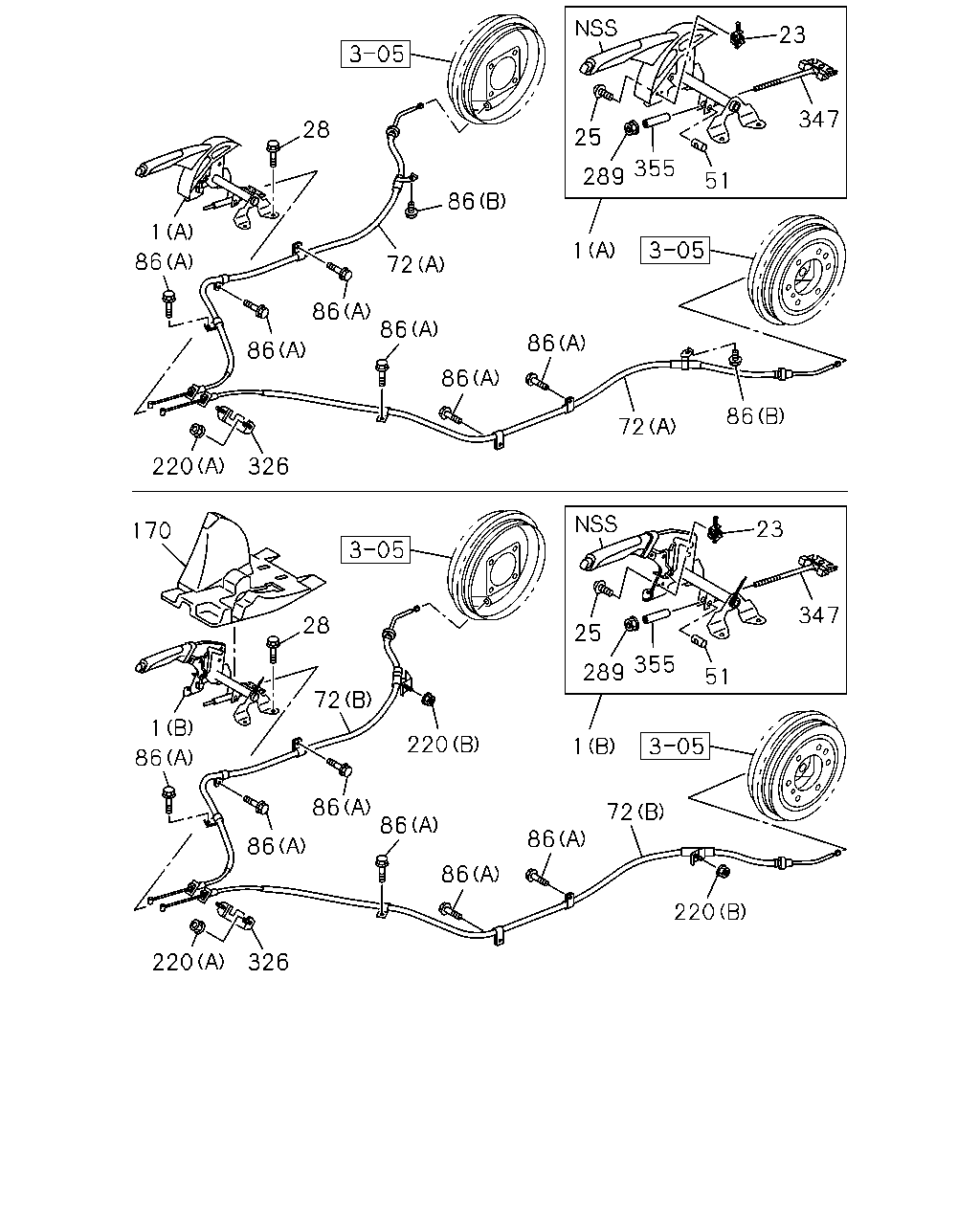

3-11 — PARKING BRAKE CONTROL (#166070) — 42 parça

86 1 86 86 86 72 86 28 289 25 23 347 51 355 86 220 72 86 86 86 86 86 326 220 86 1 72 28 170 220 326 72 86 23 347 51 355 289 25 220 1 1 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	STEM ASM; PARKING BRK (A) THA	8-98061-827-0	01	1	1510-	●	●	●	●
1	STEM ASM; PARKING BRK FRONT SEAT BUCKET STANDARD<A50> (A) THA	8-98061-827-0	01	1	1510-					●
1	STEM ASM; PARKING BRK FRONT SEAT SPLIT BENCH<AM6> (B) THA	8-98160-175-1	01	1	1510-					●
1	STEM ASM; PARKING BRK (B) THA	8-98160-175-1	01	1	1510-						●
23	SWITCH; PARKING BRK THA	8-97947-494-0	01	1	1510-	●	●	●	●	●	●
25	SCREW; SW,PARKING BRK THA	8-97103-556-0	01	1	1510-	●	●	●	●	●	●
28	BOLT; HAND BRK LEVER M8X20 FLANGE THA	0-28650-820-0	04	1	1510-	●	●	●	●	●	●
51	PIN; JOINT,RELAY LEVER THA	8-97947-496-0	01	1	1510-	●	●	●	●	●	●
72	CABLE; PARKING BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-98067-048-1	01	1	1510-	●
72	CABLE; PARKING BRK (A) THA	8-98067-048-1	01	1	1510-			●
72	CABLE; PARKING BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-98067-049-1	01	1	1510-	●
72	CABLE; PARKING BRK (A) THA	8-98067-049-1	01	1	1510-			●
72	CABLE; PARKING BRK EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-98067-046-1	01	1	1510-	●	●
72	CABLE; PARKING BRK (B) THA	8-98067-046-1	01	1	1510-					●
72	CABLE; PARKING BRK EXC. HIGH RIDE SUSPENSION<7YC> (B) THA	8-98067-047-1	01	1	1510-	●	●
72	CABLE; PARKING BRK (B) THA	8-98067-047-1	01	1	1510-					●
72	CABLE; PARKING BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-98102-148-1	01	1	1510-		●
72	CABLE; PARKING BRK 4JJ1-TCX ENG<LS0> (A) THA	8-98102-148-1	01	1	1510-						●
72	CABLE; PARKING BRK 4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> (A) THA	8-98102-148-1	01	1	1510-				●
72	CABLE; PARKING BRK HIGH RIDE SUSPENSION<7YC> (A) THA	8-98102-149-1	01	1	1510-		●
72	CABLE; PARKING BRK 4JJ1-TCX ENG<LS0> (A) THA	8-98102-149-1	01	1	1510-						●
72	CABLE; PARKING BRK 4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> (A) THA	8-98102-149-1	01	1	1510-				●
86	BOLT HIGH RIDE SUSPENSION<7YC> (B) M8X12 FLANGE THA	0-28050-812-0	02	1	1510-	●	●
86	BOLT (B) M8X12 FLANGE THA	0-28050-812-0	02	1	1510-			●
86	BOLT 4JJ1-TCX ENG<LS0> (B) M8X12 FLANGE THA	0-28050-812-0	02	1	1510-						●
86	BOLT 4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> (B) M8X12 FLANGE THA	0-28050-812-0	02	1	1510-				●
86	BOLT (A) M6X20 FLANGE THA	0-28650-620-0	06	1	1510-	●	●	●		●
86	BOLT 4JJ1-TCX ENG<LS0> (A) M6X20 FLANGE THA	0-28650-620-0	06	1	1510-						●
86	BOLT 4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> (A) M6X20 FLANGE THA	0-28650-620-0	06	1	1510-				●
170	COVER; PARKING BRK LEVER FRONT SEAT SPLIT BENCH<AM6> THA	8-97948-802-0	01	1	1510-					●
170	COVER; PARKING BRK LEVER THA	8-97948-802-0	01	1	1510-						●
220	NUT; CLIP,PARKING CONT CABLE (A) M8 FLANGE THA	0-91180-108-0	02	1	1510-	●	●	●		●
220	NUT; CLIP,PARKING CONT CABLE 4JJ1-TCX ENG<LS0> (A) M8 FLANGE THA	0-91180-108-0	02	1	1510-						●
220	NUT; CLIP,PARKING CONT CABLE 4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> (A) M8 FLANGE THA	0-91180-108-0	02	1	1510-				●
220	NUT; CLIP,PARKING CONT CABLE EXC. HIGH RIDE SUSPENSION<7YC> (B) M6 FLANGE THA	0-91180-106-0	02	1	1510-	●	●
220	NUT; CLIP,PARKING CONT CABLE (B) M6 FLANGE THA	0-91180-106-0	02	1	1510-					●
289	NUT; PARKING BRK THA	8-98017-654-0	01	1	1510-	●	●	●	●	●	●
326	RETAINER; PARK CABLE THA	8-98134-214-1	01	1	1510-	●	●	●		●
326	RETAINER; PARK CABLE 4JJ1-TCX ENG<LS0> THA	8-98134-214-1	01	1	1510-						●
326	RETAINER; PARK CABLE 4JJ1-TCX ENG<LS0>,RZ4E-TC ENG<RDZ> THA	8-98134-214-1	01	1	1510-				●
347	EQUALIZER; HAND BRK THA	8-97947-495-0	01	1	1510-	●	●	●	●	●	●
355	SPACER; HAND BRK LEVER THA	8-97947-497-0	01	1	1510-	●	●	●	●	●	●
