Isuzu WW
▶
PICKUP
▶
TFR
▶
51632 - TFR/TFS THAILAND
▶
2 - Clutch, Transmission, Trans Axle
▶
2-61 - TRANSFER CASE AND GEAR SHIFTER
▶

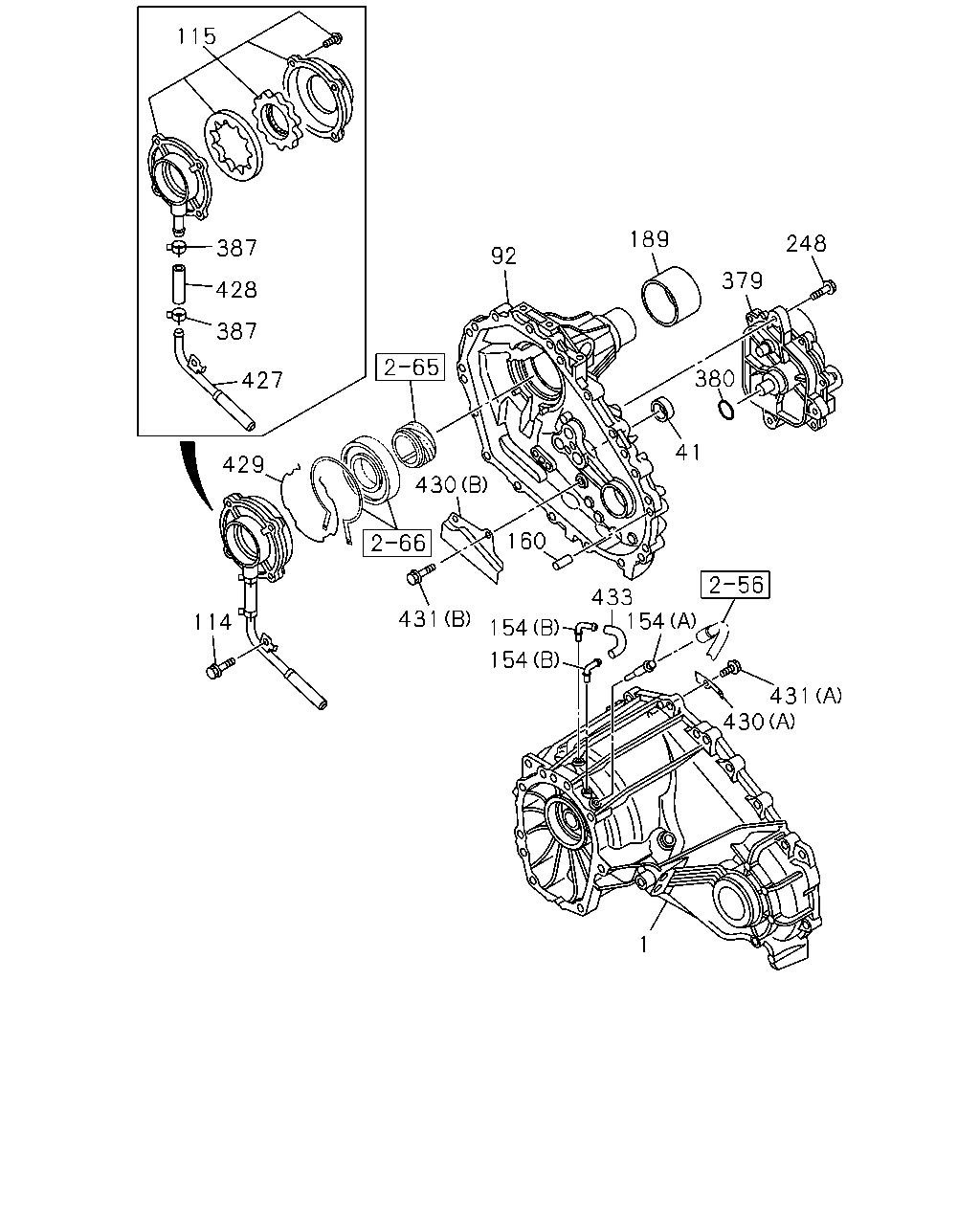

2-61 — TRANSFER CASE AND GEAR SHIFTER
(#166063) — 21 parça
Tümü
A - TFS5CF
B - TFS5SF
C - TFS5WF
115
387
428
387
427
429
114
430
92
189
379
248
380
41
433
160
154
154
431
431
430
154
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
CASE; TRANSFER
IMA
8-98177-505-0
01
1
1510-
●
●
●
41
SEAL; OIL,SHIFT ROD
IMA
8-97238-998-0
01
1
1510-
●
●
●
92
COVER; RR,TRANSFER
IMA
8-98118-921-0
01
1
1510-
●
●
●
114
BOLT; OIL PUMP,TRANSFER
M8X20 FLANGE THA
0-28650-820-0
01
1
1510-
●
●
●
115
PUMP ASM; OIL,TRANSFER
IMA
8-98029-157-0
01
1
1510-
●
●
●
154
PIPE; BREATHER
(B) IMA
8-97358-318-0
02
1
1510-
●
●
●
154
PIPE; BREATHER
(A) IMA
8-97358-319-0
01
1
1510-
●
●
●
160
PIN; KNOCK,SHIFT CASE
OD=10 L=20 IMA
8-97135-423-0
02
1
1510-
●
●
●
189
COVER; DUST,OIL SEAL
IMA
8-98173-748-0
01
1
1510-
●
●
●
248
BOLT
M8X30 FLANGE THA
0-28650-830-0
03
1
1510-
●
●
●
379
ACTUATOR; TRANSFER,2-4 SHIFT
IMA
8-98196-415-0
01
1
1510-
●
●
●
380
GASKET; ACTUATOR
ID=29.7 OD=36.7 IMA
8-97318-475-0
01
1
1510-
●
●
●
387
CLAMP; HOSE
ID=16 THA
8-97329-628-0
02
1
1510-
●
●
●
427
SCREEN; OIL PUMP
IMA
8-98063-358-0
01
1
1510-
●
●
●
428
HOSE; OIL PUMP
L=50 IMA
8-98064-220-0
01
1
1510-
●
●
●
429
RING; SNAP,OIL PUMP
IMA
8-97240-666-0
01
1
1510-
●
●
●
430
PLATE; BAFFLE
(A) IMA
8-97239-130-0
01
1
1510-
●
●
●
430
PLATE; BAFFLE
(B) IMA
8-98063-360-0
01
1
1510-
●
●
●
431
BOLT; BAFFLE PLATE
(A) M6X16 FLANGE THA
0-28650-616-0
01
1
1510-
●
●
●
431
BOLT; BAFFLE PLATE
(B) M8X20 FLANGE THA
0-28650-820-0
02
1
1510-
●
●
●
433
HOSE; AIR,TRANSFER
IMA
8-97236-080-0
01
1
1510-
●
●
●
