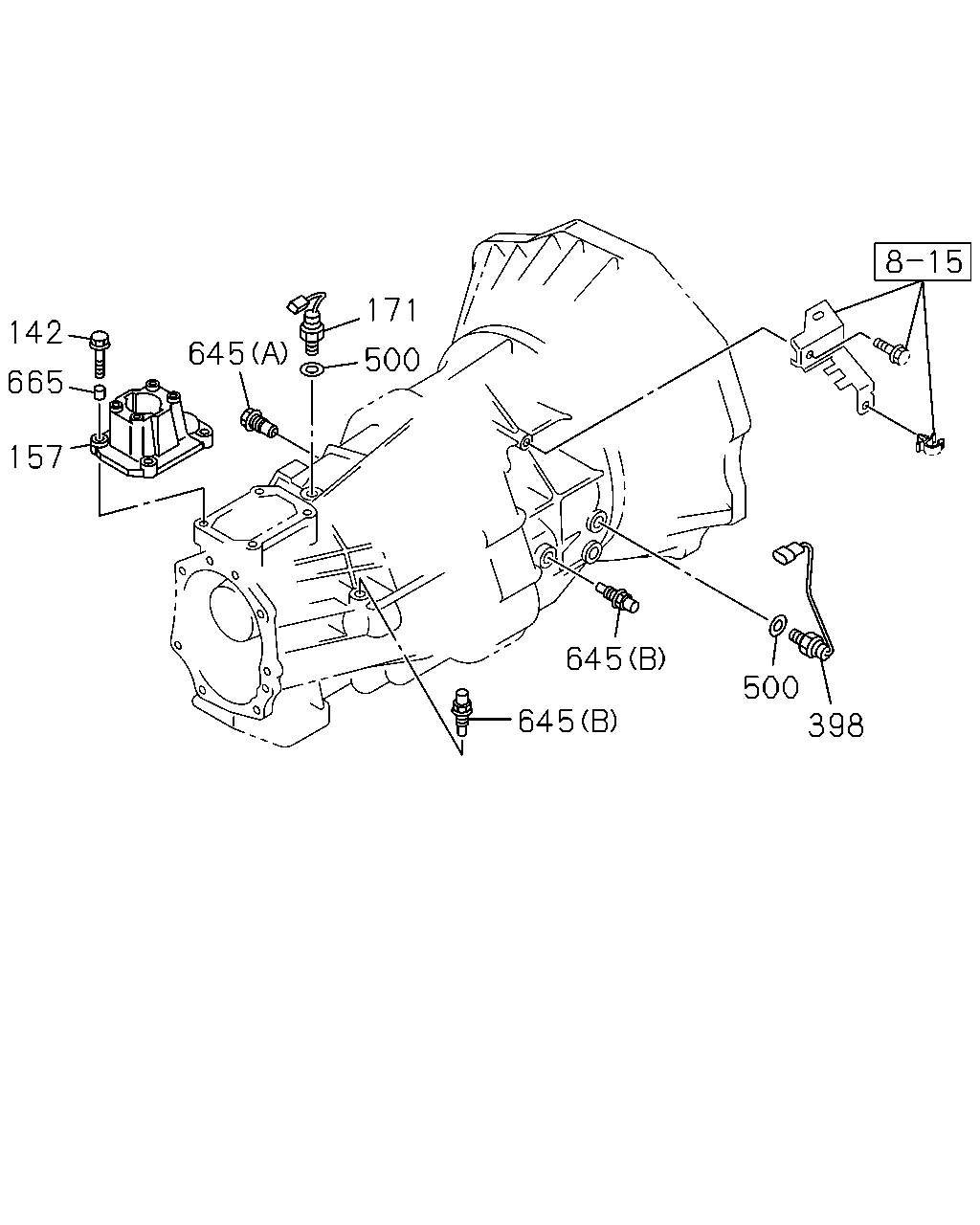

2-30 — GEAR SHIFTER AND QUADRANT BOX (#166059) — 151 parça

142 665 157 645 171 500 645 645 500 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
142	BOLT; QUAD BOX M8X22 FLANGE IMA	8-97365-376-0	04	1	1510-	●
142	BOLT; QUAD BOX M8X35 FLANGE THA	0-28650-835-0	04	1	1510-		●
142	BOLT; QUAD BOX M8X45 FLANGE IMA	8-98275-946-0	04	1	1510-			●
157	BOX; QUAD,TRANS THA	8-98094-798-1	01	1	1510-		●
171	SWITCH; NEUTRAL IMA	8-98180-974-0	01	1	1510-		●
171	SWITCH; NEUTRAL IMA	8-98103-743-0	01	1	1510-	●
171	SWITCH; NEUTRAL IMA	8-98180-973-0	01	1	1510-			●
398	SWITCH; REV LAMP IMA	8-98103-750-0	01	1	1510-	●
398	SWITCH; REV LAMP IMA	8-98180-973-0	01	1	1510-		●
398	SWITCH; REV LAMP IMA	8-98180-974-0	01	1	1510-			●
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 OD=20.0 THA	9-09571-414-0	02	1	1510-		●
645	DETENT ASM (A) THA	8-97362-469-2	01	1	1510-		●
645	DETENT ASM (B) IMA	8-98019-536-0	02	1	1510-		●
645	DETENT ASM (C) IMA	8-98019-536-0	04	1	1510-			●
665	DOWEL OD=11 L=8 IMA	9-11229-058-1	02	1	1510-		●

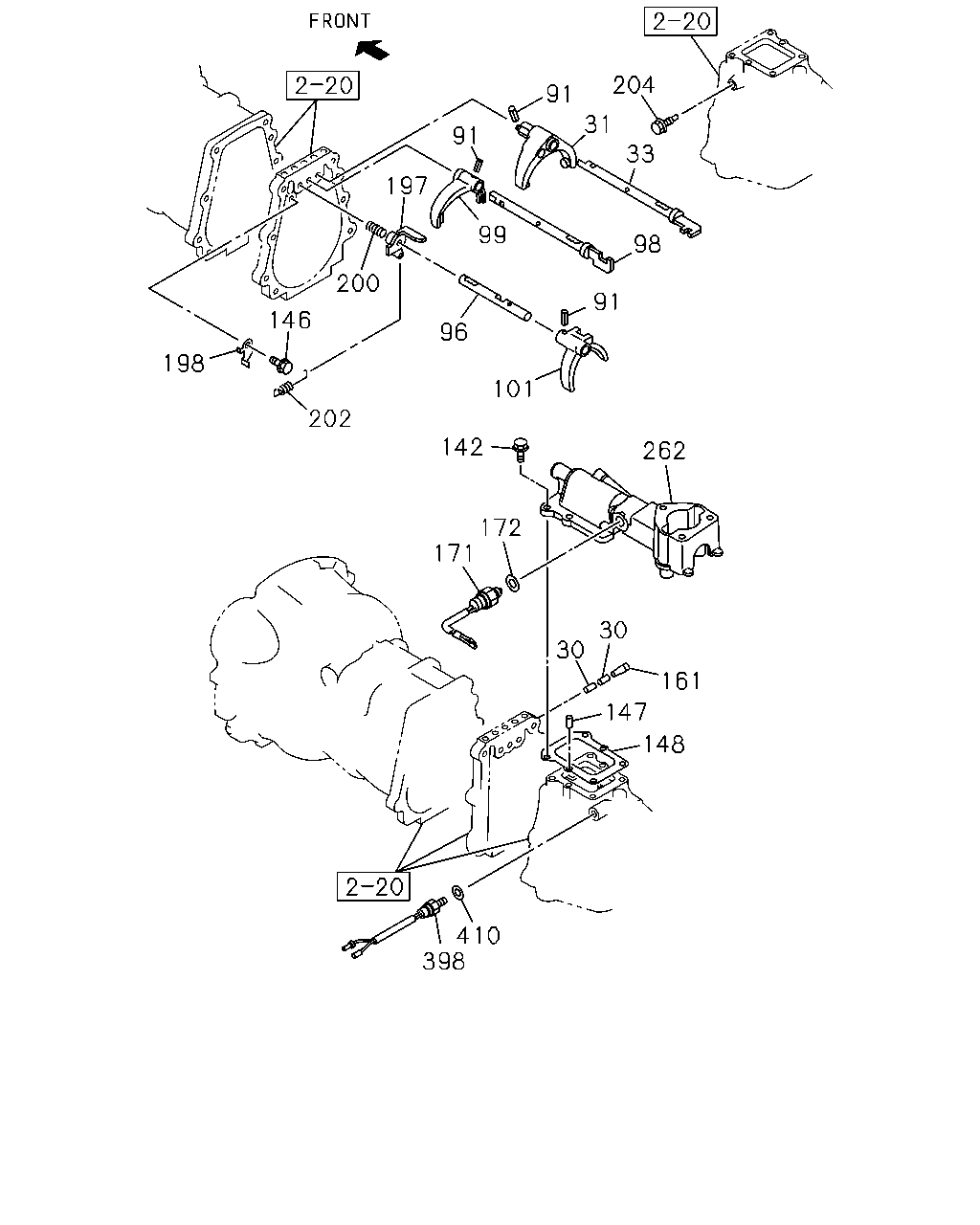

204 31 91 33 98 91 99 91 197 200 146 198 202 96 101 142 262 172 171 30 30 161 147 148 410 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	PIN; INTER LK OD=5.5 L=10 IMA	5-33534-002-1	02	1	1510-	●
31	ARM; SHIFT,LOW & 2ND IMA	8-94421-912-2	01	1	1510-	●
31	ARM; SHIFT,LOW & 2ND IMA	8-97362-435-0	01	1	1510-		●
33	ROD; SHIFT,LOW & 2ND IMA	8-97019-061-2	01	1	1510-	●
33	ROD; SHIFT,LOW & 2ND IMA	8-97362-441-0	01	1	1510-		●
91	PIN; SPR,SHIFT ARM D=4.2 L=25 IMA	8-94171-541-0	03	1	1510-	●
96	ROD; SHIFT,5TH THA	8-97232-886-0	01	1	1510-	●
98	ROD; SHIFT,TOP & 3RD MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98275-450-1	01	1	1510-			●
98	ROD; SHIFT,TOP & 3RD IMA	8-97019-060-3	01	1	1510-	●
98	ROD; SHIFT,TOP & 3RD EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-002-0	01	1	1510-			●
99	ARM; SHIFT,4TH & 3RD IMA	8-94421-911-2	01	1	1510-	●
99	ARM; SHIFT,4TH & 3RD THA	8-97362-439-2	01	1	1510-		●
101	ARM; SHIFT,REV & 5TH THA	8-97232-894-0	01	1	1510-	●
142	BOLT; QUAD BOX M8X22 FLANGE IMA	8-97365-376-0	04	1	1510-	●
142	BOLT; QUAD BOX M8X35 FLANGE THA	0-28650-835-0	04	1	1510-		●
142	BOLT; QUAD BOX M8X45 FLANGE IMA	8-98275-946-0	04	1	1510-			●
146	BOLT; REV INHIBITOR M8X20 FLANGE THA	0-28650-820-0	01	1	1510-	●
147	PIN; KNOCK OD=6 L=12 IMA	9-08150-612-0	02	1	1510-	●		●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-599-0	01	1	1510-	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). IMA	8-98275-461-0	01	1	1510-			●
161	PLUG; INTER LK HOLE IMA	8-94239-543-1	01	1	1510-	●
171	SWITCH; NEUTRAL IMA	8-98180-974-0	01	1	1510-		●
171	SWITCH; NEUTRAL IMA	8-98103-743-0	01	1	1510-	●
171	SWITCH; NEUTRAL IMA	8-98180-973-0	01	1	1510-			●
172	GASKET; NEUTRAL SW ID=14.2 THA	8-94462-114-0	01	1	1510-	●
197	INHIBITOR; REV SHIFT IMA	8-94448-753-0	01	1	1510-	●
198	BRACKET; REV INHIBITOR IMA	8-94448-199-0	01	1	1510-	●
200	SPRING; REV INHIBITOR,COMP IMA	8-94448-807-0	01	1	1510-	●
202	SPRING; REV INHIBITOR,EXT IMA	8-97017-500-0	01	1	1510-	●
204	STOPPER; REV INHIBITOR IMA	8-98035-673-0	01	1	1510-	●
262	BOX ASM; SHIFT CONT IMA	8-98219-761-0	01	1	1510-	●
262	BOX ASM; SHIFT CONT IMA	8-98275-460-3	01	1	1510-			●
398	SWITCH; REV LAMP IMA	8-98103-750-0	01	1	1510-	●
398	SWITCH; REV LAMP IMA	8-98180-973-0	01	1	1510-		●
398	SWITCH; REV LAMP IMA	8-98180-974-0	01	1	1510-			●
410	GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	1510-	●		●

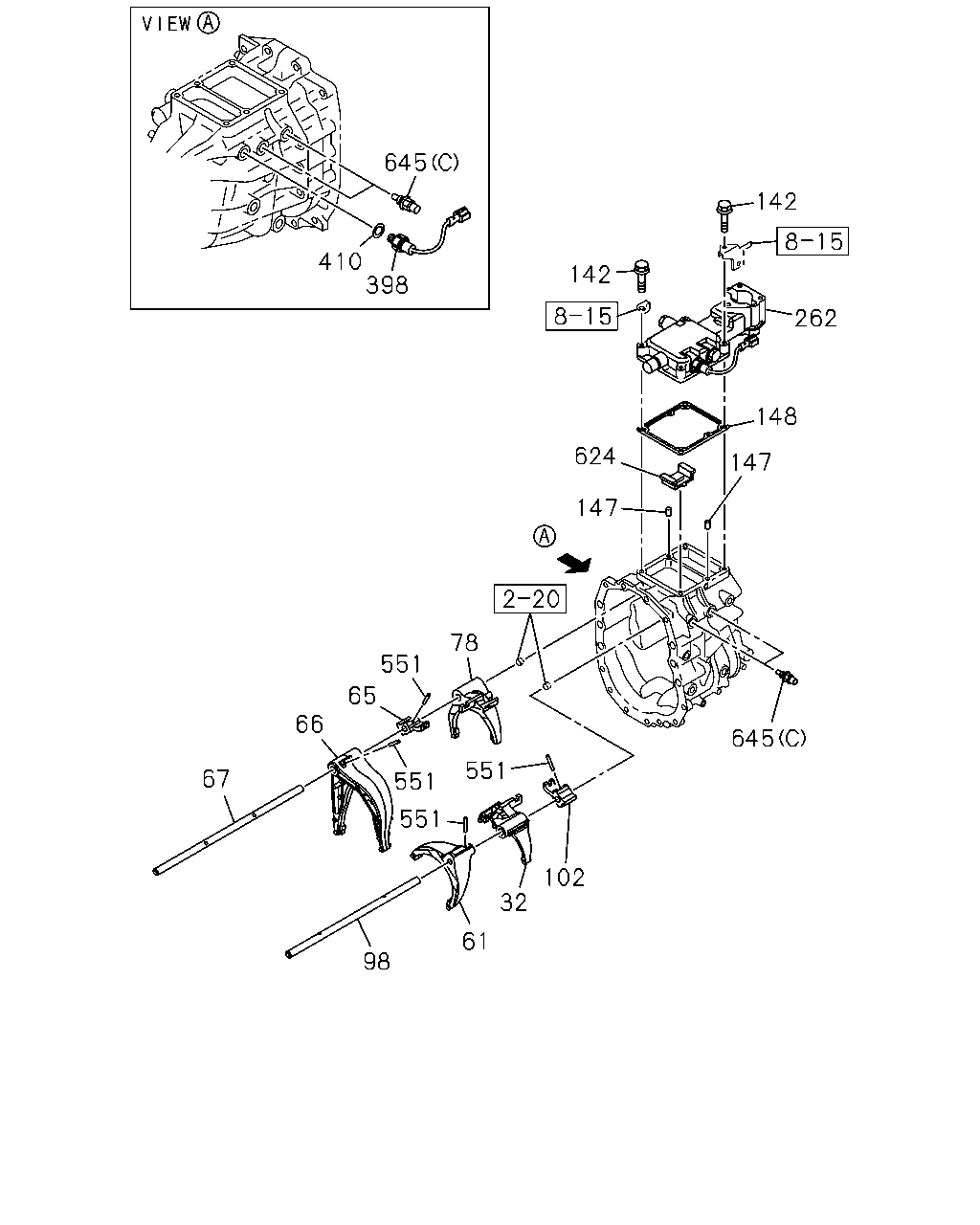

645 410 398 142 624 147 78 551 65 66 67 551 551 551 102 32 61 98 645 147 148 262 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	ARM; SHIFT,1ST & 2ND MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98275-453-0	01	1	1510-			●
32	ARM; SHIFT,1ST & 2ND EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98304-169-0	01	1	1510-			●
61	ARM; SHIFT,3RD & 4TH IMA	8-98275-455-0	01	1	1510-			●
65	BLOCK ASM; SHIFT,5TH & 6TH IMA	8-98275-458-1	01	1	1510-			●
66	ARM; SHIFT,5TH & 6TH IMA	8-98275-456-1	01	1	1510-			●
67	ROD; SHIFT,5TH & 6TH MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98275-451-1	01	1	1510-			●
67	ROD; SHIFT,5TH & 6TH EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-003-0	01	1	1510-			●
78	ARM; SHIFT,REV MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98275-453-0	01	1	1510-			●
78	ARM; SHIFT,REV THA	8-97362-434-1	01	1	1510-		●
78	ARM; SHIFT,REV EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98304-169-0	01	1	1510-			●
98	ROD; SHIFT,TOP & 3RD MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98275-450-1	01	1	1510-			●
98	ROD; SHIFT,TOP & 3RD IMA	8-97019-060-3	01	1	1510-	●
98	ROD; SHIFT,TOP & 3RD EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-002-0	01	1	1510-			●
102	BLOCK; SHIFT,3RD & 4TH IMA	8-98275-458-1	01	1	1510-			●
142	BOLT; QUAD BOX M8X22 FLANGE IMA	8-97365-376-0	04	1	1510-	●
142	BOLT; QUAD BOX M8X35 FLANGE THA	0-28650-835-0	04	1	1510-		●
142	BOLT; QUAD BOX M8X45 FLANGE IMA	8-98275-946-0	04	1	1510-			●
147	PIN; KNOCK OD=6 L=12 IMA	9-08150-612-0	02	1	1510-	●		●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-599-0	01	1	1510-	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). IMA	8-98275-461-0	01	1	1510-			●
262	BOX ASM; SHIFT CONT IMA	8-98219-761-0	01	1	1510-	●
262	BOX ASM; SHIFT CONT IMA	8-98275-460-3	01	1	1510-			●
398	SWITCH; REV LAMP IMA	8-98103-750-0	01	1	1510-	●
398	SWITCH; REV LAMP IMA	8-98180-973-0	01	1	1510-		●
398	SWITCH; REV LAMP IMA	8-98180-974-0	01	1	1510-			●
410	GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	1510-	●		●
551	PIN; SPRING D=4.2 L=25 IMA	8-94171-541-0	02	1	1510-		●
551	PIN; SPRING L=32 IMA	8-97011-596-2	04	1	1510-			●
624	PLATE; INTER LOCK IMA	8-98275-459-0	01	1	1510-			●
645	DETENT ASM (A) THA	8-97362-469-2	01	1	1510-		●
645	DETENT ASM (B) IMA	8-98019-536-0	02	1	1510-		●
645	DETENT ASM (C) IMA	8-98019-536-0	04	1	1510-			●

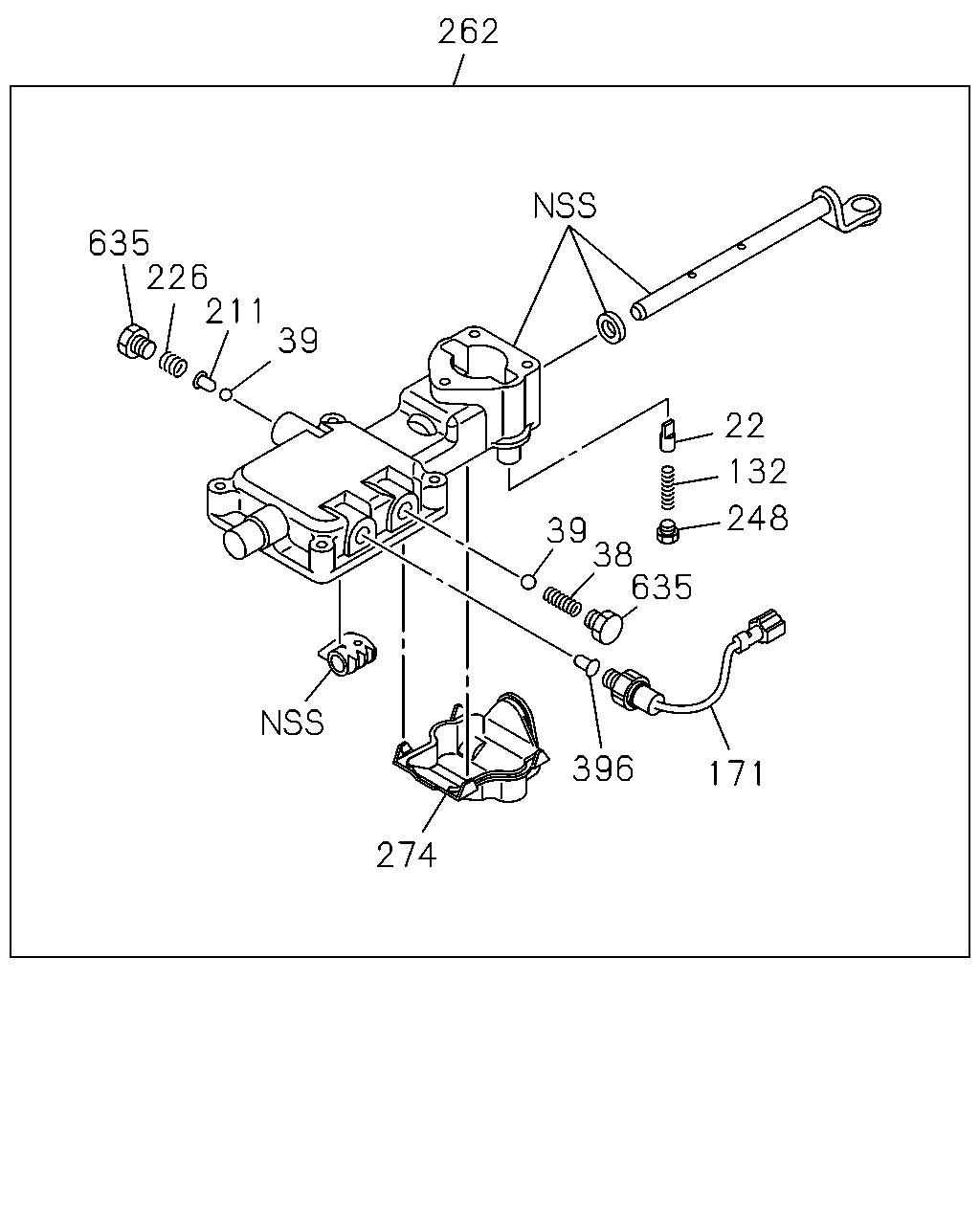

262 635 226 211 39 274 396 171 39 38 635 22 132 248

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	CAP; RETURN SPR,SHIFT BLOCK IMA	8-97181-326-0	02	1	1510-	●		●
38	SPRING; DETENT IMA	8-98276-615-1	01	1	1510-			●
39	BALL; DETENT IMA	8-98276-613-0	02	1	1510-			●
132	SPRING; SELECT STOP IMA	8-97181-395-0	02	1	1510-	●
132	SPRING; SELECT STOP IMA	8-98276-618-1	02	1	1510-			●
171	SWITCH; NEUTRAL IMA	8-98180-974-0	01	1	1510-		●
171	SWITCH; NEUTRAL IMA	8-98103-743-0	01	1	1510-	●
171	SWITCH; NEUTRAL IMA	8-98180-973-0	01	1	1510-			●
211	SEAT; BALL IMA	8-98276-614-1	01	1	1510-			●
226	SPRING; REV INHIBITOR IMA	8-98276-616-2	01	1	1510-			●
248	RETAINER; CONT BOX IMA	8-98210-983-0	02	1	1510-	●		●
262	BOX ASM; SHIFT CONT IMA	8-98219-761-0	01	1	1510-	●
262	BOX ASM; SHIFT CONT IMA	8-98275-460-3	01	1	1510-			●
274	COVER; SHAFT,QUAD BOX IMA	8-97181-324-1	01	1	1510-	●
274	COVER; SHAFT,QUAD BOX IMA	8-98276-619-1	01	1	1510-			●
396	PLUNGER; SHIFT ROD IMA	8-98276-620-0	01	1	1510-			●
635	PLUG; DETENT IMA	8-98276-617-2	02	1	1510-			●

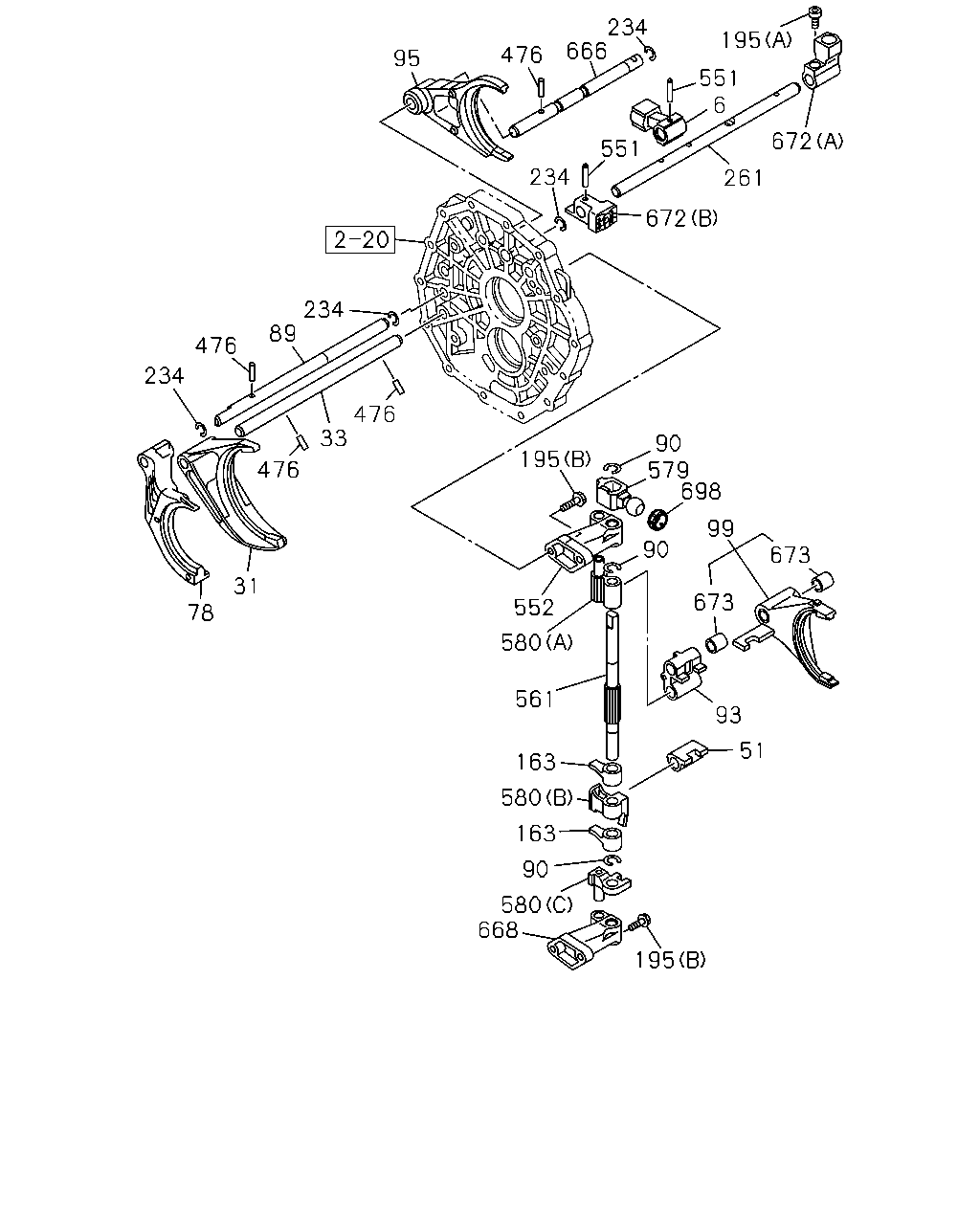

195 672 261 551 234 666 476 95 551 234 6 672 234 89 476 234 476 33 476 31 78 195 552 580 561 163 580 163 90 580 668 90 579 698 99 90 673 673 93 51 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	LEVER; RELAY IMA	8-98095-658-1	01	1	1510-		●
31	ARM; SHIFT,LOW & 2ND IMA	8-94421-912-2	01	1	1510-	●
31	ARM; SHIFT,LOW & 2ND IMA	8-97362-435-0	01	1	1510-		●
33	ROD; SHIFT,LOW & 2ND IMA	8-97019-061-2	01	1	1510-	●
33	ROD; SHIFT,LOW & 2ND IMA	8-97362-441-0	01	1	1510-		●
51	BLOCK; SHIFT,1ST & 2ND IMA	8-98186-703-0	01	1	1510-		●
78	ARM; SHIFT,REV MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98275-453-0	01	1	1510-			●
78	ARM; SHIFT,REV THA	8-97362-434-1	01	1	1510-		●
78	ARM; SHIFT,REV EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98304-169-0	01	1	1510-			●
89	ROD; SHIFT,REV IMA	8-98106-032-0	01	1	1510-		●
90	RING; SNAP,SHIFT ROD ID=12 IMA	8-94460-357-0	03	1	1510-		●
93	BLOCK; SHIFT,REV & 5TH THA	8-98106-035-0	01	1	1510-		●
95	ARM; SHIFT,5TH IMA	8-97362-436-1	01	1	1510-		●
99	ARM; SHIFT,4TH & 3RD IMA	8-94421-911-2	01	1	1510-	●
99	ARM; SHIFT,4TH & 3RD THA	8-97362-439-2	01	1	1510-		●
163	LEVER; SELECT,INTERNAL IMA	8-98052-461-0	02	1	1510-		●
195	BOLT (A) M8X8.5 TAPER IMA	8-97250-975-0	01	1	1510-		●
195	BOLT (B) M8X30 FLANGE IMA	8-98034-764-0	04	1	1510-		●
234	RING; SNAP ID=12 IMA	8-94460-357-0	04	1	1510-		●
261	ROD; GEAR CONT IMA	8-97257-909-0	01	1	1510-	●
261	ROD; GEAR CONT IMA	8-97362-444-0	01	1	1510-		●
476	PIN; SHIFT ROD D=4.2 L=25 IMA	8-94171-541-0	04	1	1510-		●
551	PIN; SPRING D=4.2 L=25 IMA	8-94171-541-0	02	1	1510-		●
551	PIN; SPRING L=32 IMA	8-97011-596-2	04	1	1510-			●
552	BRACKET THA	8-97362-465-1	01	1	1510-		●
561	ROD; SHIFT IMA	8-98095-659-1	01	1	1510-		●
579	BLOCK; SHIFT,ROD GUIDE IMA	8-98095-657-0	01	1	1510-		●
580	BLOCK; INTERLOCK (A) IMA	8-97362-461-1	01	1	1510-		●
580	BLOCK; INTERLOCK (B) IMA	8-98052-462-0	01	1	1510-		●
580	BLOCK; INTERLOCK (C) IMA	8-98186-700-0	01	1	1510-		●
666	ROD; GEAR SHIFT,3RD,4TH & 4TH IMA	8-97362-442-2	01	1	1510-		●
668	BRACKET; SHIFT ROD THA	8-97362-465-1	01	1	1510-		●
672	BLOCK; SHIFT,T/M CONTROL (A) IMA	8-97362-467-0	01	1	1510-		●
672	BLOCK; SHIFT,T/M CONTROL (B) IMA	8-98095-689-1	01	1	1510-		●
673	BEARING; SHIFT ARM THA	8-97362-853-0	02	1	1510-		●
698	SEAT; SHIFT CONT IMA	8-98073-812-0	01	1	1510-		●

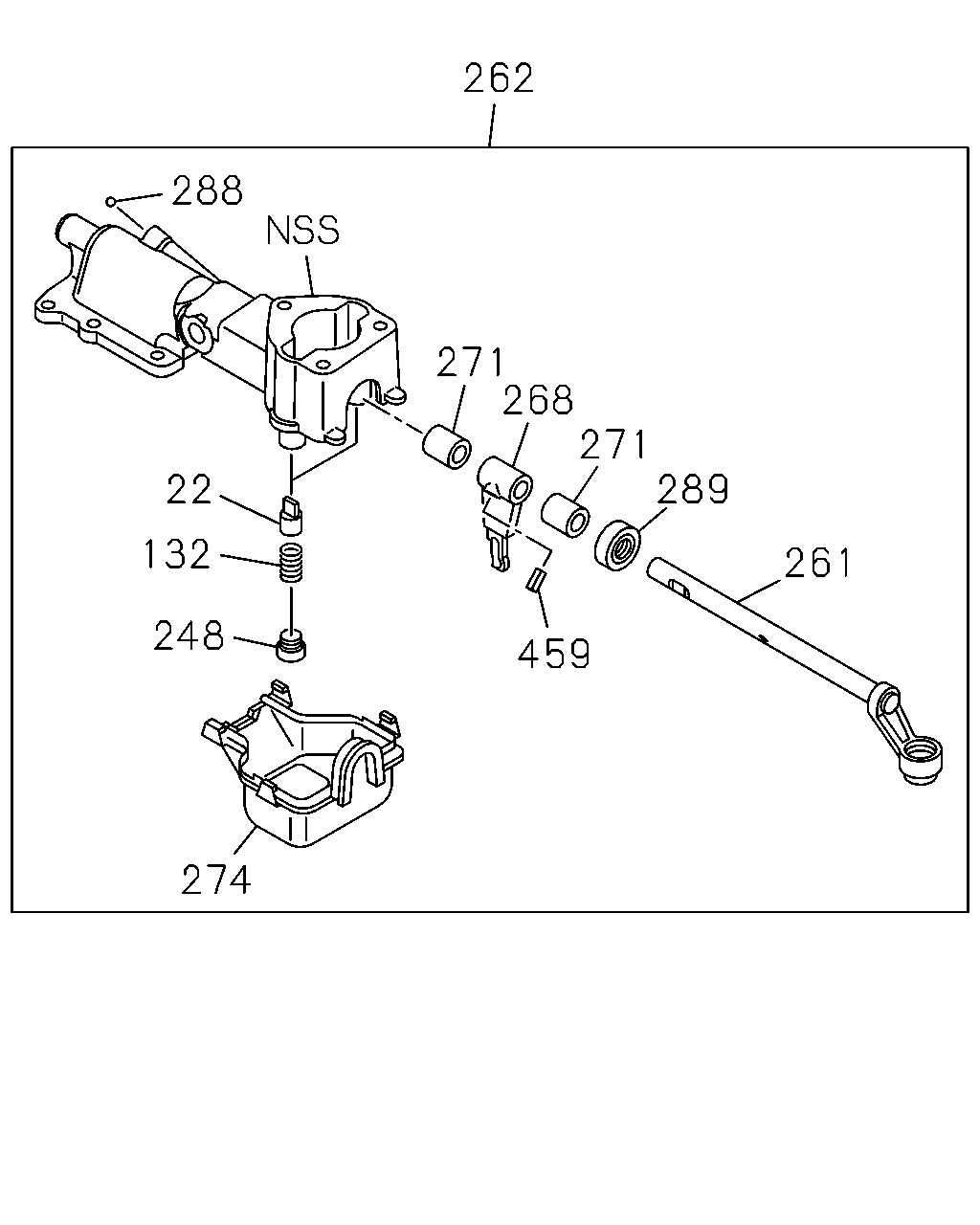

262 288 271 271 268 289 261 459 274 248 132 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	CAP; RETURN SPR,SHIFT BLOCK IMA	8-97181-326-0	02	1	1510-	●		●
132	SPRING; SELECT STOP IMA	8-97181-395-0	02	1	1510-	●
132	SPRING; SELECT STOP IMA	8-98276-618-1	02	1	1510-			●
248	RETAINER; CONT BOX IMA	8-98210-983-0	02	1	1510-	●		●
261	ROD; GEAR CONT IMA	8-97257-909-0	01	1	1510-	●
261	ROD; GEAR CONT IMA	8-97362-444-0	01	1	1510-		●
262	BOX ASM; SHIFT CONT IMA	8-98219-761-0	01	1	1510-	●
262	BOX ASM; SHIFT CONT IMA	8-98275-460-3	01	1	1510-			●
268	LEVER; CONT,INTERNAL IMA	8-97184-895-0	01	1	1510-	●
271	BUSHING; QUAD BOX ID=14 L=12 IMA	8-98017-908-0	02	1	1510-	●
274	COVER; SHAFT,QUAD BOX IMA	8-97181-324-1	01	1	1510-	●
274	COVER; SHAFT,QUAD BOX IMA	8-98276-619-1	01	1	1510-			●
288	PLUG; AIR BREATHER IMA	9-00097-517-0	01	1	1510-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). IMA	8-98017-744-0	01	1	1510-	●
459	PIN; SPR,ROD TO ARM OD=5 IMA	8-97184-905-0	01	1	1510-	●
