Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#166058) — 586 parça

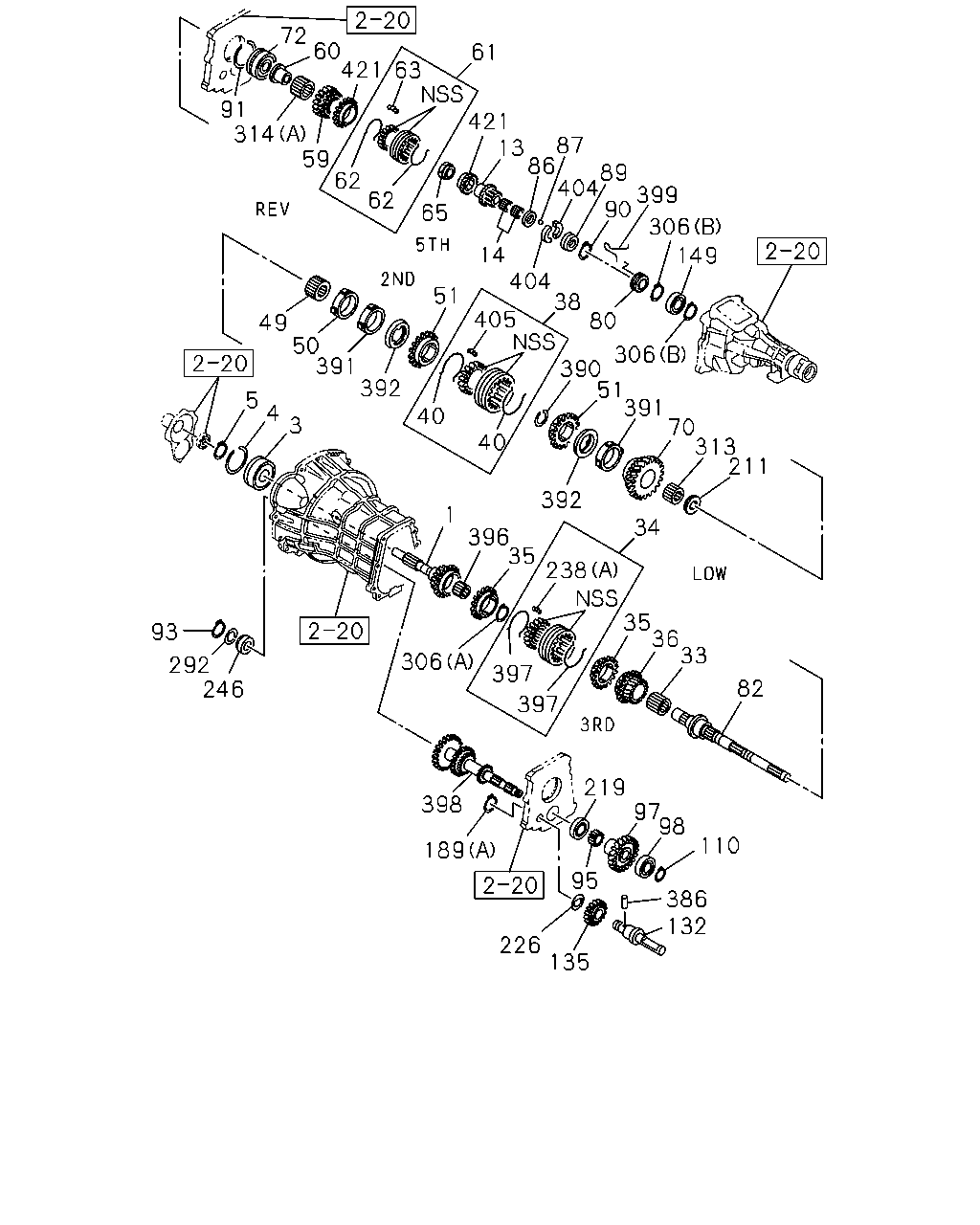

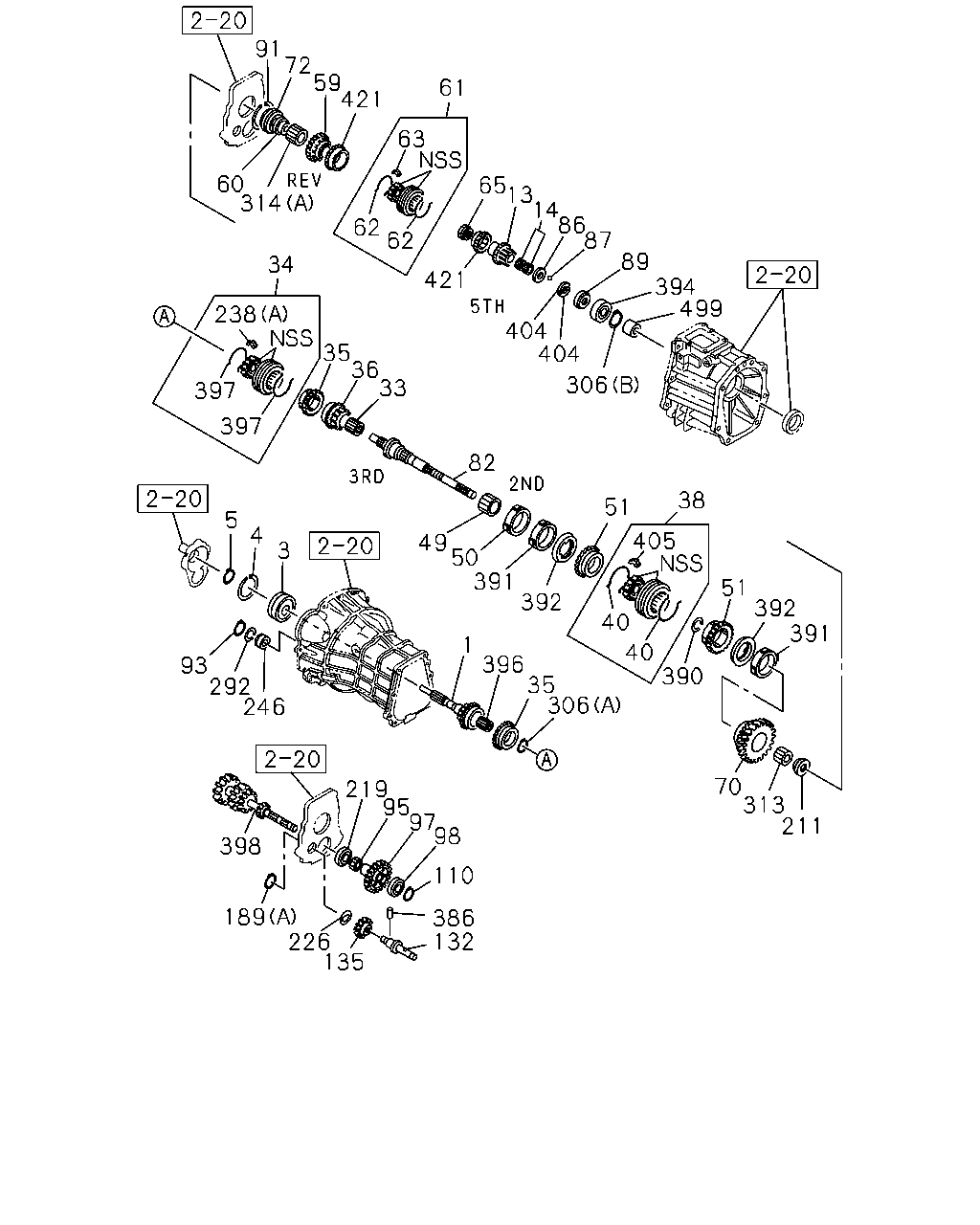

61 72 91 314 59 60 421 63 62 62 421 13 87 86 65 14 404 404 89 90 399 306 149 38 80 306 51 405 390 51 391 70 313 211 34 392 40 40 392 391 50 49 5 4 3 1 396 35 238 35 36 33 82 93 292 246 306 397 397 398 189 95 219 97 98 110 386 132 135 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS MADE IN JAPAN TRANSMISSION<8QP> Z=29 IMA	8-98275-414-0	01	1	1510-	●
1	SHAFT; TOP GEAR,TRANS Z=26 IMA	8-98210-225-0	01	1	1510-		●
1	SHAFT; TOP GEAR,TRANS EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=29 THA	8-98304-147-0	01	1	1510-	●
3	BEARING; TOP GEAR SHAFT EXC. MADE IN JAPAN TRANSMISSION<8QP> NSK THA	8-98326-388-0	01	1	1510-	●
3	BEARING; TOP GEAR SHAFT NSK THA	8-97948-796-0	01	1	1510-		●
3	BEARING; TOP GEAR SHAFT MADE IN JAPAN TRANSMISSION<8QP> NSK IMA	8-98275-470-0	01	1	1510-	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK IMA	8-94422-083-0	01	1	1510-		●
4	RING; SNAP,BRG TO TOP GEAR SHAFT IMA	8-98275-956-0	01	1	1510-	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.4 IMA	8-97254-316-0	01	1	1510-		●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=32.2 IMA	9-09180-035-0	01	1	1510-	●
13	GEAR; 5TH,MAINSHAFT Z=22 IMA	8-98210-227-0	01	1	1510-		●
14	BEARING; NEEDLE,5TH MADE IN JAPAN TRANSMISSION<8QP> JTEKT IMA	8-98275-440-0	01	1	1510-	●
14	BEARING; NEEDLE,5TH NTN IMA	8-98172-356-0	01	1	1510-		●
14	BEARING; NEEDLE,5TH NSK IMA	8-97362-728-0	01	1	1510-			●
14	BEARING; NEEDLE,5TH EXC. MADE IN JAPAN TRANSMISSION<8QP> JTEKT THA	8-98303-004-0	01	1	1510-	●
33	BEARING; NEEDLE,3RD GEAR MADE IN JAPAN TRANSMISSION<8QP> JTEKT IMA	8-98275-441-0	01	1	1510-	●
33	BEARING; NEEDLE,3RD GEAR NSK IMA	1-09811-028-1	01	1	1510-		●	●
33	BEARING; NEEDLE,3RD GEAR EXC. MADE IN JAPAN TRANSMISSION<8QP> JTEKT THA	8-98303-247-0	01	1	1510-	●
34	SYNCHRONIZER; 4TH & 3RD MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98275-420-0	01	1	1510-	●
34	SYNCHRONIZER; 4TH & 3RD IMA	8-97977-991-0	01	1	1510-		●
34	SYNCHRONIZER; 4TH & 3RD THA	8-97362-474-3	01	1	1510-			●
34	SYNCHRONIZER; 4TH & 3RD EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98304-166-0	01	1	1510-	●
35	RING; BLOCK,4TH & 3RD Z=45 IMA	8-94151-510-3	02	1	1510-		●
36	GEAR; 3RD,MAINSHAFT MADE IN JAPAN TRANSMISSION<8QP> Z=29 IMA	8-98275-311-0	01	1	1510-	●
36	GEAR; 3RD,MAINSHAFT Z=27 THA	8-98233-597-0	01	1	1510-		●
36	GEAR; 3RD,MAINSHAFT EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=29 THA	8-98304-152-0	01	1	1510-	●
38	SYNCHRONIZER; LOW & 2ND MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98275-419-0	01	1	1510-	●
38	SYNCHRONIZER; LOW & 2ND IMA	8-97977-989-0	01	1	1510-		●
38	SYNCHRONIZER; LOW & 2ND THA	8-97362-503-1	01	1	1510-			●
38	SYNCHRONIZER; LOW & 2ND EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98304-165-0	01	1	1510-	●
40	SPRING; INSERT,LOW & 2ND IMA	8-94448-045-0	02	1	1510-		●	●
49	BEARING; NEEDLE,2ND GEAR MADE IN JAPAN TRANSMISSION<8QP> JTEKT IMA	8-98275-440-0	01	1	1510-	●
49	BEARING; NEEDLE,2ND GEAR JTEKT IMA	9-00096-625-0	01	1	1510-		●
49	BEARING; NEEDLE,2ND GEAR EXC. MADE IN JAPAN TRANSMISSION<8QP> JTEKT THA	8-98303-004-0	01	1	1510-	●
50	GEAR; 2ND,MAINSHAFT MADE IN JAPAN TRANSMISSION<8QP> Z=37 IMA	8-98275-310-0	01	1	1510-	●
50	GEAR; 2ND,MAINSHAFT Z=34 THA	8-97301-183-1	01	1	1510-		●
50	GEAR; 2ND,MAINSHAFT EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=37 THA	8-98304-151-0	01	1	1510-	●
51	RING; BLOCK,LOW & 2ND Z=36 IMA	8-98115-804-0	02	1	1510-		●	●
51	RING; BLOCK,LOW & 2ND Z=45 IMA	8-98275-754-0	02	1	1510-	●
59	GEAR; REV MAINSHAFT MADE IN JAPAN TRANSMISSION<8QP> Z=40 IMA	8-98275-314-1	01	1	1510-	●
59	GEAR; REV MAINSHAFT Z=41 IMA	8-98210-228-0	01	1	1510-		●
59	GEAR; REV MAINSHAFT EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=40 THA	8-98304-155-0	01	1	1510-	●
60	COLLAR; REV MAIN IMA	8-97031-079-0	01	1	1510-		●
61	SYNCHRONIZER; REV & 5TH IMA	8-97030-106-1	01	1	1510-		●
62	SPRING; INSERT,REV & 5TH IMA	5-33264-012-0	02	1	1510-		●
63	INSERT; SYN,REV & 5TH IMA	5-33263-001-0	03	1	1510-		●
65	NUT; MAINSHAFT M34 IMA	8-94422-071-1	01	1	1510-		●
70	GEAR; 1ST,MAINSHAFT MADE IN JAPAN TRANSMISSION<8QP> Z=43 IMA	8-98275-309-0	01	1	1510-	●
70	GEAR; 1ST,MAINSHAFT Z=45 THA	8-97301-182-1	01	1	1510-		●
70	GEAR; 1ST,MAINSHAFT EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=43 THA	8-98304-149-0	01	1	1510-	●
72	BEARING; BALL,MAINSHAFT NSK THA	8-97948-799-0	01	1	1510-		●
80	GEAR; SPD DRIVE 4X2<TFB***> Z=6 IMA	8-94472-608-1	01	1	1510-		●
80	GEAR; SPD DRIVE 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=7 IMA	8-98123-463-0	01	1	1510-			●
80	GEAR; SPD DRIVE 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=6 IMA	8-98275-944-0	01	1	1510-	●
82	SHAFT; MAIN,TRANS 4X2<TFB***> Z=28-34-26-27 IMA	8-97300-981-0	01	1	1510-		●
82	SHAFT; MAIN,TRANS 4X2<TFB***> Z=26-50-44-19 IMA	8-98275-416-1	01	1	1510-	●
82	SHAFT; MAIN,TRANS 4X4<TFS***> Z=28-34-26-27 IMA	8-97300-980-0	01	1	1510-		●
82	SHAFT; MAIN,TRANS 4X4<TFS***> Z=26-50-44-19 IMA	8-98275-417-1	01	1	1510-	●
86	WASHER; THRUST,5TH T=7.90 WHITE IMA	8-94422-110-2	01	1	1510-		●
86	WASHER; THRUST,5TH T=8.00 YELLOW IMA	8-94422-111-2	01	1	1510-		●
86	WASHER; THRUST,5TH T=8.10 GREEN IMA	8-94422-112-2	01	1	1510-		●
86	WASHER; THRUST,5TH T=8.20 BLUE IMA	8-94422-113-2	01	1	1510-		●
87	BALL; THRUST WASHER IMA	8-94201-356-0	01	1	1510-	●	●
89	RING; RET,THRUST RING ID=31.8 IMA	8-94422-395-0	01	1	1510-		●
90	RING; SNAP,THRUST RING 4X2<TFB***> ID=29.6 IMA	9-09180-032-0	01	1	1510-		●
91	RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2 IMA	8-94322-411-0	01	1	1510-		●
93	RING; SNAP,COUNTER FRT BRG ID=23.2 IMA	9-09180-025-0	01	1	1510-		●
93	RING; SNAP,COUNTER FRT BRG ID=32.2 IMA	9-09180-035-0	01	1	1510-	●
95	GEAR; REV,COUNTER Z=19 IMA	8-94377-433-0	01	1	1510-		●
95	GEAR; REV,COUNTER Z=41 THA	8-98210-237-0	01	1	1510-			●
97	GEAR; 5TH,COUNTER MADE IN JAPAN TRANSMISSION<8QP> Z=46 IMA	8-98275-312-0	01	1	1510-	●
97	GEAR; 5TH,COUNTER Z=50 IMA	8-94377-434-0	01	1	1510-		●
97	GEAR; 5TH,COUNTER Z=27 THA	8-98040-114-0	01	1	1510-			●
97	GEAR; 5TH,COUNTER EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=46 THA	8-98304-153-0	01	1	1510-	●
98	BEARING; BALL,COUNTER END NSK THA	8-97948-797-0	01	1	1510-		●
110	RING; SNAP,COUNTER BRG T=1.10 WHITE IMA	8-94422-103-0	01	1	1510-		●
110	RING; SNAP,COUNTER BRG T=1.20 YELLOW IMA	8-94422-104-0	01	1	1510-		●
110	RING; SNAP,COUNTER BRG T=1.30 BLUE IMA	8-94422-105-0	01	1	1510-		●
110	RING; SNAP,COUNTER BRG T=1.40 PINK IMA	8-94422-106-0	01	1	1510-		●
110	RING; SNAP,COUNTER BRG T=1.50 GREEN IMA	8-94422-107-0	01	1	1510-		●
110	RING; SNAP,COUNTER BRG T=1.60 BROWN IMA	8-94422-108-0	01	1	1510-		●
132	SHAFT; REV MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98275-433-0	01	1	1510-	●
132	SHAFT; REV IMA	8-98245-493-0	01	1	1510-		●
132	SHAFT; REV THA	8-98023-113-0	01	1	1510-			●
132	SHAFT; REV EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-001-0	01	1	1510-	●
135	GEAR; REV IDLER MADE IN JAPAN TRANSMISSION<8QP> Z=23 IMA	8-98275-331-0	01	1	1510-	●
135	GEAR; REV IDLER Z=33 THA	8-98233-606-0	01	1	1510-		●
135	GEAR; REV IDLER Z=32 THA	8-98233-615-0	01	1	1510-			●
135	GEAR; REV IDLER EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=23 THA	8-98304-164-0	01	1	1510-	●
149	BEARING; NEEDLE,MAINSHAFT,RR 4X2<TFB***> THA	8-97948-800-0	01	1	1510-		●
189	RING; SNAP,REV,GEAR (A) T=1.20 WHITE IMA	8-94422-100-0	01	1	1510-		●
189	RING; SNAP,REV,GEAR (A) T=1.30 YELLOW IMA	8-94422-101-0	01	1	1510-		●
189	RING; SNAP,REV,GEAR (A) T=1.40 BLUE IMA	8-94422-102-0	01	1	1510-		●
189	RING; SNAP,REV,GEAR (B) T=2.00 BLUE IMA	8-98275-959-0	01	1	1510-	●
189	RING; SNAP,REV,GEAR (B) T=1.90 LIGHT GREEN IMA	8-98299-379-0	01	1	1510-	●
189	RING; SNAP,REV,GEAR (C) OD=95.5 IMA	9-09180-190-0	01	1	1510-	●
211	BEARING; THRUST NEEDLE,1ST GEAR NSK IMA	8-94148-935-0	01	1	1510-		●
219	BEARING; BALL,CLUSTER,RR NSK IMA	8-94436-929-0	01	1	1510-		●
226	WASHER; THRUST,REV GEAR,COUNTER ID=30.0 IMA	8-94223-069-1	01	1	1510-		●
238	INSERT (A) IMA	8-94448-202-2	03	1	1510-		●
238	INSERT (B) IMA	8-94249-576-2	03	1	1510-			●
238	INSERT (C) IMA	8-98004-522-0	06	1	1510-			●
246	BEARING; ROLLER,COUNTER SHAFT FRT NSK IMA	8-97029-600-4	01	1	1510-		●
292	RING; SNAP,BRG OUTER NSK IMA	8-94422-081-0	01	1	1510-		●
292	RING; SNAP,BRG OUTER IMA	8-98275-956-0	01	1	1510-	●
306	RING; SNAP,MAINSHAFT 4X2<TFB***> (B) ID=27.9 IMA	9-09180-030-0	02	1	1510-		●
306	RING; SNAP,MAINSHAFT (A) T=1.90 BLUE IMA	8-97129-615-0	01	1	1510-		●
306	RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW IMA	8-97129-616-0	01	1	1510-		●
306	RING; SNAP,MAINSHAFT (A) T=1.80 WHITE IMA	8-97129-617-0	01	1	1510-		●
306	RING; SNAP,MAINSHAFT (C) T=1.90 ORANGE IMA	8-98275-952-0	01	1	1510-	●
306	RING; SNAP,MAINSHAFT (C) T=1.95 PURPLE IMA	8-98275-953-0	01	1	1510-	●
306	RING; SNAP,MAINSHAFT (C) T=1.75 PINK IMA	8-98276-251-0	01	1	1510-	●
306	RING; SNAP,MAINSHAFT 4X4<TFS***> (B) ID=27.9 IMA	9-09180-030-0	01	1	1510-		●
313	BEARING; NEEDLE,LOW GEAR MADE IN JAPAN TRANSMISSION<8QP> JTEKT IMA	8-98275-440-0	01	1	1510-	●
313	BEARING; NEEDLE,LOW GEAR NSK IMA	1-09811-028-1	01	1	1510-		●
313	BEARING; NEEDLE,LOW GEAR EXC. MADE IN JAPAN TRANSMISSION<8QP> JTEKT THA	8-98303-004-0	01	1	1510-	●
314	BEARING; NEEDLE,REV GEAR MADE IN JAPAN TRANSMISSION<8QP> (B) JTEKT IMA	8-98275-442-0	01	1	1510-	●
314	BEARING; NEEDLE,REV GEAR MADE IN JAPAN TRANSMISSION<8QP> (C) JTEKT IMA	8-98275-443-0	01	1	1510-	●
314	BEARING; NEEDLE,REV GEAR (A) NSK IMA	8-94422-064-0	01	1	1510-		●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT IMA	8-94422-065-1	01	1	1510-		●
314	BEARING; NEEDLE,REV GEAR (A) NSK IMA	8-97362-719-0	01	1	1510-			●
314	BEARING; NEEDLE,REV GEAR EXC. MADE IN JAPAN TRANSMISSION<8QP> (B) JTEKT THA	8-98303-249-0	01	1	1510-	●
314	BEARING; NEEDLE,REV GEAR EXC. MADE IN JAPAN TRANSMISSION<8QP> (C) JTEKT THA	8-98303-251-0	01	1	1510-	●
386	PIN; REV SHAFT OD=6 L=40 IMA	9-08150-640-0	01	1	1510-		●
386	PIN; REV SHAFT OD=4 L=8 THA	9-08160-408-0	01	1	1510-			●
390	RING; SNAP,CLU HUB T=1.80 WHITE IMA	8-94422-088-2	01	1	1510-		●
390	RING; SNAP,CLU HUB T=1.85 YELLOW IMA	8-94422-089-1	01	1	1510-		●
390	RING; SNAP,CLU HUB T=1.90 BLUE IMA	8-94422-090-2	01	1	1510-		●
390	RING; SNAP,CLU HUB T=1.90 GREEN IMA	8-98275-957-0	01	1	1510-	●
390	RING; SNAP,CLU HUB T=2.00 WHITE IMA	8-98275-958-0	01	1	1510-	●
391	RING; INSIDE,SYN OD=95.8 IMA	8-94363-056-0	02	1	1510-		●
391	RING; INSIDE,SYN OD=78.5 IMA	8-98275-431-0	02	1	1510-	●
392	RING; OUTSIDE,SYN EXC. MADE IN JAPAN TRANSMISSION<8QP> OD=84.5 THA	8-98326-392-0	02	1	1510-	●
392	RING; OUTSIDE,SYN OD=90.0 IMA	8-98115-793-0	02	1	1510-		●
392	RING; OUTSIDE,SYN MADE IN JAPAN TRANSMISSION<8QP> OD=84.5 IMA	8-98275-430-0	02	1	1510-	●
396	BEARING; NEEDLE,MAINSHAFT NSK IMA	8-98172-355-0	01	1	1510-		●
396	BEARING; NEEDLE,MAINSHAFT NSK IMA	8-98275-439-1	01	1	1510-	●
397	SPRING; INSERT,4TH & 3RD IMA	8-94422-075-0	02	1	1510-		●
398	GEAR; COUNTER MADE IN JAPAN TRANSMISSION<8QP> Z=40 IMA	8-98275-327-0	01	1	1510-	●
398	GEAR; COUNTER Z=44-32-25-19 THA	8-97301-186-2	01	1	1510-		●
398	GEAR; COUNTER Z=23 IMA	8-98106-584-0	01	1	1510-			●
398	GEAR; COUNTER EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=40 THA	8-98304-158-0	01	1	1510-	●
399	CLIP; SPEEDOMETER DRIVE GEAR 4X2<TFB***> IMA	8-94310-229-0	01	1	1510-		●
399	CLIP; SPEEDOMETER DRIVE GEAR 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-94310-229-0	01	1	1510-	●		●
404	PLATE; THRUST IMA	8-94421-892-0	02	1	1510-		●
405	INSERT; SYN,LOW & 2ND IMA	8-94363-062-1	03	1	1510-		●	●
421	RING; BLOCK,REV & 5TH Z=36 IMA	8-97071-688-0	02	1	1510-		●

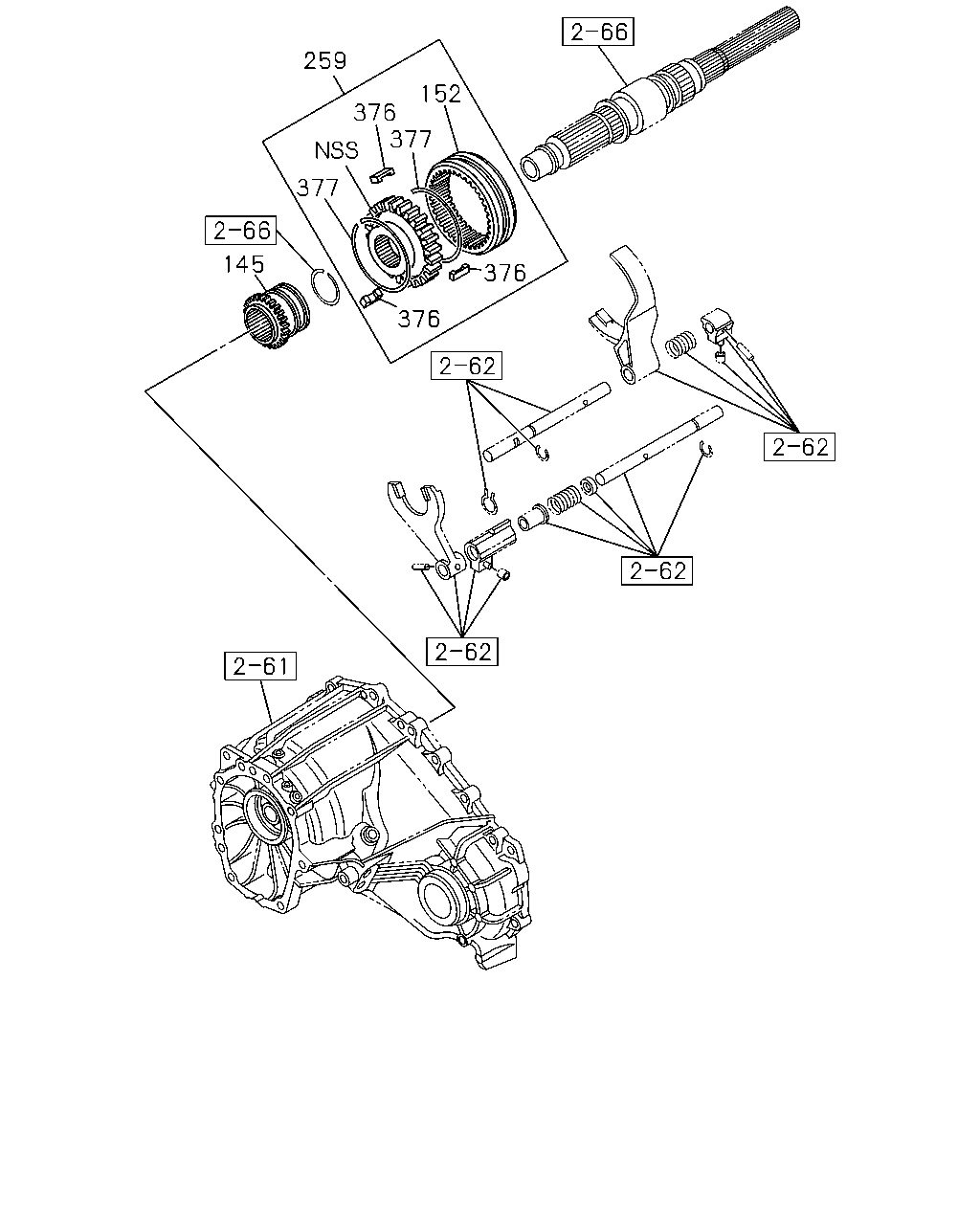

376 376 152 377 376 259 377 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
145	SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4<TFS***> IMA	8-98063-369-1	01	1	1510-	●	●	●
152	SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4<TFS***> IMA	8-94363-060-0	01	1	1510-	●	●	●
259	SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4<TFS***> IMA	8-97234-225-0	01	1	1510-	●	●	●
376	INSERT; 4X2-4X4 SYN,TRANSFER 4X4<TFS***> IMA	8-97238-590-0	03	1	1510-	●	●	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER 4X4<TFS***> IMA	8-94448-045-0	02	1	1510-	●	●	●

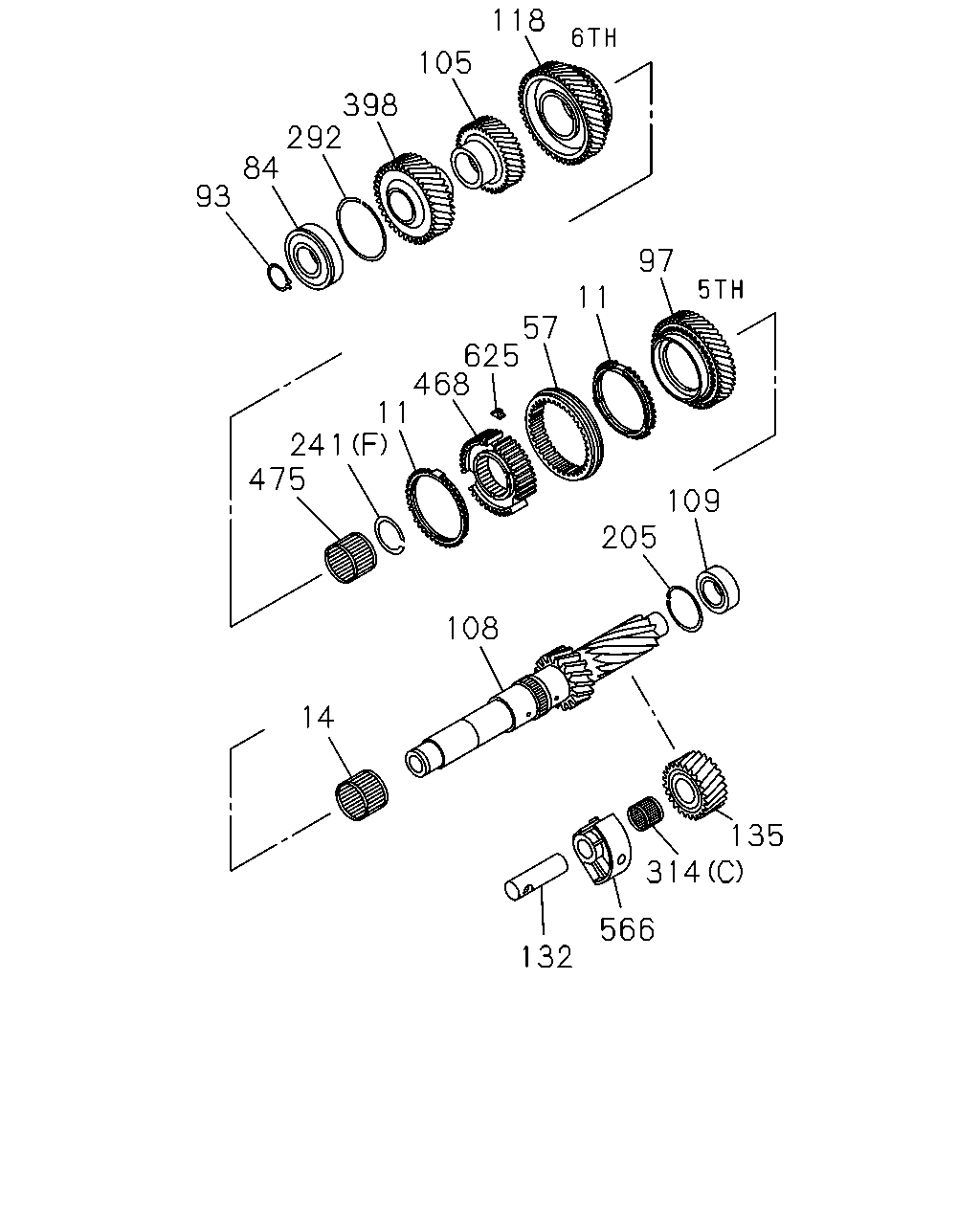

135 314 566 132 109 205 108 14 97 11 57 625 468 11 241 475 118 105 398 292 84 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	RING; BLOCK,5TH & 6TH IMA	8-98275-753-0	02	1	1510-	●
14	BEARING; NEEDLE,5TH MADE IN JAPAN TRANSMISSION<8QP> JTEKT IMA	8-98275-440-0	01	1	1510-	●
14	BEARING; NEEDLE,5TH NTN IMA	8-98172-356-0	01	1	1510-		●
14	BEARING; NEEDLE,5TH NSK IMA	8-97362-728-0	01	1	1510-			●
14	BEARING; NEEDLE,5TH EXC. MADE IN JAPAN TRANSMISSION<8QP> JTEKT THA	8-98303-004-0	01	1	1510-	●
57	SLEEVE; REV THA	8-98275-429-1	02	1	1510-	●
84	BEARING; COUNTER SHAFT,FRT EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98326-389-0	01	1	1510-	●
84	BEARING; COUNTER SHAFT,FRT IMA	8-97362-724-0	01	1	1510-			●
84	BEARING; COUNTER SHAFT,FRT MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98275-469-0	01	1	1510-	●
93	RING; SNAP,COUNTER FRT BRG ID=23.2 IMA	9-09180-025-0	01	1	1510-		●
93	RING; SNAP,COUNTER FRT BRG ID=32.2 IMA	9-09180-035-0	01	1	1510-	●
97	GEAR; 5TH,COUNTER MADE IN JAPAN TRANSMISSION<8QP> Z=46 IMA	8-98275-312-0	01	1	1510-	●
97	GEAR; 5TH,COUNTER Z=50 IMA	8-94377-434-0	01	1	1510-		●
97	GEAR; 5TH,COUNTER Z=27 THA	8-98040-114-0	01	1	1510-			●
97	GEAR; 5TH,COUNTER EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=46 THA	8-98304-153-0	01	1	1510-	●
105	GEAR; 3RD,COUNTER MADE IN JAPAN TRANSMISSION<8QP> Z=28 IMA	8-98275-326-0	01	1	1510-	●
105	GEAR; 3RD,COUNTER Z=31 THA	8-98233-612-0	01	1	1510-			●
105	GEAR; 3RD,COUNTER EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=28 THA	8-98304-159-0	01	1	1510-	●
108	SHAFT; COUNTER MADE IN JAPAN TRANSMISSION<8QP> Z=50-21-12 IMA	8-98275-418-1	01	1	1510-	●
108	SHAFT; COUNTER Z=26-34-26-26 THA	8-98023-108-1	01	1	1510-			●
108	SHAFT; COUNTER EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=50-21-12 THA	8-98304-148-0	01	1	1510-	●
109	BEARING; COUNTER SHAFT,RR IMA	8-98275-468-0	01	1	1510-	●
118	GEAR; 6TH,COUNTER MADE IN JAPAN TRANSMISSION<8QP> Z=50 IMA	8-98275-313-0	01	1	1510-	●
118	GEAR; 6TH,COUNTER EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=50 THA	8-98304-154-0	01	1	1510-	●
132	SHAFT; REV MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98275-433-0	01	1	1510-	●
132	SHAFT; REV IMA	8-98245-493-0	01	1	1510-		●
132	SHAFT; REV THA	8-98023-113-0	01	1	1510-			●
132	SHAFT; REV EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-001-0	01	1	1510-	●
135	GEAR; REV IDLER MADE IN JAPAN TRANSMISSION<8QP> Z=23 IMA	8-98275-331-0	01	1	1510-	●
135	GEAR; REV IDLER Z=33 THA	8-98233-606-0	01	1	1510-		●
135	GEAR; REV IDLER Z=32 THA	8-98233-615-0	01	1	1510-			●
135	GEAR; REV IDLER EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=23 THA	8-98304-164-0	01	1	1510-	●
205	RING; SNAP,COUNTER GEAR OD=60.2 IMA	9-09180-156-0	01	1	1510-	●
241	RING; SNAP (A) ID=34.4 T=1.9 IMA	8-97254-735-0	01	1	1510-			●
241	RING; SNAP (B) ID=27.1 T=1.9 IMA	8-97362-871-0	01	1	1510-			●
241	RING; SNAP (B) ID=27.1 T=2.1 IMA	8-97362-872-0	01	1	1510-			●
241	RING; SNAP (B) ID=27.1 T=2.3 IMA	8-97362-873-0	01	1	1510-			●
241	RING; SNAP (C) ID=37 T=1.95 IMA	8-98004-523-1	01	1	1510-			●
241	RING; SNAP (C) ID=37 T=2.1 IMA	8-98004-524-1	01	1	1510-			●
241	RING; SNAP (D) ID=27.9 IMA	9-09180-030-0	01	1	1510-			●
241	RING; SNAP (E) ID=35.7 T=1.8 IMA	8-97256-855-0	01	1	1510-	●
241	RING; SNAP (F) T=1.90 GREEN IMA	8-98275-957-0	01	1	1510-	●
292	RING; SNAP,BRG OUTER NSK IMA	8-94422-081-0	01	1	1510-		●
292	RING; SNAP,BRG OUTER IMA	8-98275-956-0	01	1	1510-	●
314	BEARING; NEEDLE,REV GEAR MADE IN JAPAN TRANSMISSION<8QP> (B) JTEKT IMA	8-98275-442-0	01	1	1510-	●
314	BEARING; NEEDLE,REV GEAR MADE IN JAPAN TRANSMISSION<8QP> (C) JTEKT IMA	8-98275-443-0	01	1	1510-	●
314	BEARING; NEEDLE,REV GEAR (A) NSK IMA	8-94422-064-0	01	1	1510-		●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT IMA	8-94422-065-1	01	1	1510-		●
314	BEARING; NEEDLE,REV GEAR (A) NSK IMA	8-97362-719-0	01	1	1510-			●
314	BEARING; NEEDLE,REV GEAR EXC. MADE IN JAPAN TRANSMISSION<8QP> (B) JTEKT THA	8-98303-249-0	01	1	1510-	●
314	BEARING; NEEDLE,REV GEAR EXC. MADE IN JAPAN TRANSMISSION<8QP> (C) JTEKT THA	8-98303-251-0	01	1	1510-	●
398	GEAR; COUNTER MADE IN JAPAN TRANSMISSION<8QP> Z=40 IMA	8-98275-327-0	01	1	1510-	●
398	GEAR; COUNTER Z=44-32-25-19 THA	8-97301-186-2	01	1	1510-		●
398	GEAR; COUNTER Z=23 IMA	8-98106-584-0	01	1	1510-			●
398	GEAR; COUNTER EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=40 THA	8-98304-158-0	01	1	1510-	●
468	HUB; CLU,5TH & 6TH IMA	8-98275-424-0	01	1	1510-	●
475	BEARING; 6TH MADE IN JAPAN TRANSMISSION<8QP> JTEKT IMA	8-98275-440-0	01	1	1510-	●
475	BEARING; 6TH EXC. MADE IN JAPAN TRANSMISSION<8QP> JTEKT THA	8-98303-004-0	01	1	1510-	●
566	BRACKET; REV IDLER IMA	8-98275-372-0	01	1	1510-	●
566	BRACKET; REV IDLER THA	8-97362-516-0	01	1	1510-			●
625	KEY; CLU HUB EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98326-393-0	12	1	1510-	●
625	KEY; CLU HUB MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98275-436-0	12	1	1510-	●

392 57 58 313 70 390 391 189 189 625 66 59 314 265 306 364 594 265 80 399 306 394 594 391 51 625 38 392 51 49 50 87 82 296 33 5 3 4 396 241 1 481 34 590 588 625 589 36

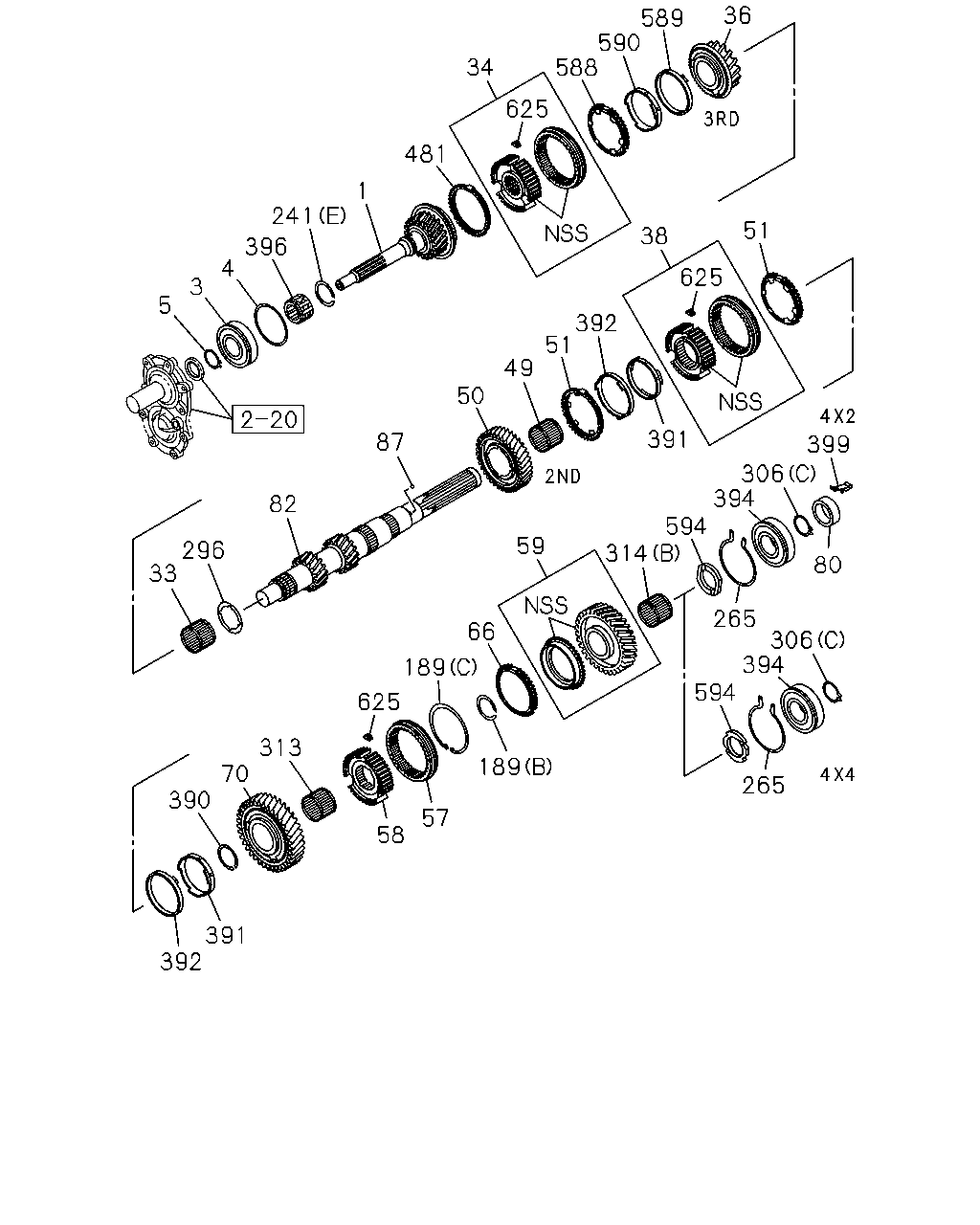

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS MADE IN JAPAN TRANSMISSION<8QP> Z=29 IMA	8-98275-414-0	01	1	1510-	●
1	SHAFT; TOP GEAR,TRANS Z=26 IMA	8-98210-225-0	01	1	1510-		●
1	SHAFT; TOP GEAR,TRANS EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=29 THA	8-98304-147-0	01	1	1510-	●
3	BEARING; TOP GEAR SHAFT EXC. MADE IN JAPAN TRANSMISSION<8QP> NSK THA	8-98326-388-0	01	1	1510-	●
3	BEARING; TOP GEAR SHAFT NSK THA	8-97948-796-0	01	1	1510-		●
3	BEARING; TOP GEAR SHAFT MADE IN JAPAN TRANSMISSION<8QP> NSK IMA	8-98275-470-0	01	1	1510-	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK IMA	8-94422-083-0	01	1	1510-		●
4	RING; SNAP,BRG TO TOP GEAR SHAFT IMA	8-98275-956-0	01	1	1510-	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.4 IMA	8-97254-316-0	01	1	1510-		●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=32.2 IMA	9-09180-035-0	01	1	1510-	●
33	BEARING; NEEDLE,3RD GEAR MADE IN JAPAN TRANSMISSION<8QP> JTEKT IMA	8-98275-441-0	01	1	1510-	●
33	BEARING; NEEDLE,3RD GEAR NSK IMA	1-09811-028-1	01	1	1510-		●	●
33	BEARING; NEEDLE,3RD GEAR EXC. MADE IN JAPAN TRANSMISSION<8QP> JTEKT THA	8-98303-247-0	01	1	1510-	●
34	SYNCHRONIZER; 4TH & 3RD MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98275-420-0	01	1	1510-	●
34	SYNCHRONIZER; 4TH & 3RD IMA	8-97977-991-0	01	1	1510-		●
34	SYNCHRONIZER; 4TH & 3RD THA	8-97362-474-3	01	1	1510-			●
34	SYNCHRONIZER; 4TH & 3RD EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98304-166-0	01	1	1510-	●
36	GEAR; 3RD,MAINSHAFT MADE IN JAPAN TRANSMISSION<8QP> Z=29 IMA	8-98275-311-0	01	1	1510-	●
36	GEAR; 3RD,MAINSHAFT Z=27 THA	8-98233-597-0	01	1	1510-		●
36	GEAR; 3RD,MAINSHAFT EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=29 THA	8-98304-152-0	01	1	1510-	●
38	SYNCHRONIZER; LOW & 2ND MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98275-419-0	01	1	1510-	●
38	SYNCHRONIZER; LOW & 2ND IMA	8-97977-989-0	01	1	1510-		●
38	SYNCHRONIZER; LOW & 2ND THA	8-97362-503-1	01	1	1510-			●
38	SYNCHRONIZER; LOW & 2ND EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98304-165-0	01	1	1510-	●
49	BEARING; NEEDLE,2ND GEAR MADE IN JAPAN TRANSMISSION<8QP> JTEKT IMA	8-98275-440-0	01	1	1510-	●
49	BEARING; NEEDLE,2ND GEAR JTEKT IMA	9-00096-625-0	01	1	1510-		●
49	BEARING; NEEDLE,2ND GEAR EXC. MADE IN JAPAN TRANSMISSION<8QP> JTEKT THA	8-98303-004-0	01	1	1510-	●
50	GEAR; 2ND,MAINSHAFT MADE IN JAPAN TRANSMISSION<8QP> Z=37 IMA	8-98275-310-0	01	1	1510-	●
50	GEAR; 2ND,MAINSHAFT Z=34 THA	8-97301-183-1	01	1	1510-		●
50	GEAR; 2ND,MAINSHAFT EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=37 THA	8-98304-151-0	01	1	1510-	●
51	RING; BLOCK,LOW & 2ND Z=36 IMA	8-98115-804-0	02	1	1510-		●	●
51	RING; BLOCK,LOW & 2ND Z=45 IMA	8-98275-754-0	02	1	1510-	●
57	SLEEVE; REV THA	8-98275-429-1	02	1	1510-	●
58	HUB; CLU,REV IMA	8-98275-426-1	01	1	1510-	●
59	GEAR; REV MAINSHAFT MADE IN JAPAN TRANSMISSION<8QP> Z=40 IMA	8-98275-314-1	01	1	1510-	●
59	GEAR; REV MAINSHAFT Z=41 IMA	8-98210-228-0	01	1	1510-		●
59	GEAR; REV MAINSHAFT EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=40 THA	8-98304-155-0	01	1	1510-	●
66	RING; BLOCK,SYN IMA	8-98275-753-0	01	1	1510-	●
70	GEAR; 1ST,MAINSHAFT MADE IN JAPAN TRANSMISSION<8QP> Z=43 IMA	8-98275-309-0	01	1	1510-	●
70	GEAR; 1ST,MAINSHAFT Z=45 THA	8-97301-182-1	01	1	1510-		●
70	GEAR; 1ST,MAINSHAFT EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=43 THA	8-98304-149-0	01	1	1510-	●
80	GEAR; SPD DRIVE 4X2<TFB***> Z=6 IMA	8-94472-608-1	01	1	1510-		●
80	GEAR; SPD DRIVE 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=7 IMA	8-98123-463-0	01	1	1510-			●
80	GEAR; SPD DRIVE 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=6 IMA	8-98275-944-0	01	1	1510-	●
82	SHAFT; MAIN,TRANS 4X2<TFB***> Z=28-34-26-27 IMA	8-97300-981-0	01	1	1510-		●
82	SHAFT; MAIN,TRANS 4X2<TFB***> Z=26-50-44-19 IMA	8-98275-416-1	01	1	1510-	●
82	SHAFT; MAIN,TRANS 4X4<TFS***> Z=28-34-26-27 IMA	8-97300-980-0	01	1	1510-		●
82	SHAFT; MAIN,TRANS 4X4<TFS***> Z=26-50-44-19 IMA	8-98275-417-1	01	1	1510-	●
87	BALL; THRUST WASHER IMA	8-94201-356-0	01	1	1510-	●	●
189	RING; SNAP,REV,GEAR (A) T=1.20 WHITE IMA	8-94422-100-0	01	1	1510-		●
189	RING; SNAP,REV,GEAR (A) T=1.30 YELLOW IMA	8-94422-101-0	01	1	1510-		●
189	RING; SNAP,REV,GEAR (A) T=1.40 BLUE IMA	8-94422-102-0	01	1	1510-		●
189	RING; SNAP,REV,GEAR (B) T=2.00 BLUE IMA	8-98275-959-0	01	1	1510-	●
189	RING; SNAP,REV,GEAR (B) T=1.90 LIGHT GREEN IMA	8-98299-379-0	01	1	1510-	●
189	RING; SNAP,REV,GEAR (C) OD=95.5 IMA	9-09180-190-0	01	1	1510-	●
241	RING; SNAP (A) ID=34.4 T=1.9 IMA	8-97254-735-0	01	1	1510-			●
241	RING; SNAP (B) ID=27.1 T=1.9 IMA	8-97362-871-0	01	1	1510-			●
241	RING; SNAP (B) ID=27.1 T=2.1 IMA	8-97362-872-0	01	1	1510-			●
241	RING; SNAP (B) ID=27.1 T=2.3 IMA	8-97362-873-0	01	1	1510-			●
241	RING; SNAP (C) ID=37 T=1.95 IMA	8-98004-523-1	01	1	1510-			●
241	RING; SNAP (C) ID=37 T=2.1 IMA	8-98004-524-1	01	1	1510-			●
241	RING; SNAP (D) ID=27.9 IMA	9-09180-030-0	01	1	1510-			●
241	RING; SNAP (E) ID=35.7 T=1.8 IMA	8-97256-855-0	01	1	1510-	●
241	RING; SNAP (F) T=1.90 GREEN IMA	8-98275-957-0	01	1	1510-	●
265	RING; SNAP,BRG OUTER IMA	8-98275-955-0	01	1	1510-	●
296	WASHER; THRUST IMA	8-98275-465-0	01	1	1510-	●
306	RING; SNAP,MAINSHAFT 4X2<TFB***> (B) ID=27.9 IMA	9-09180-030-0	02	1	1510-		●
306	RING; SNAP,MAINSHAFT (A) T=1.90 BLUE IMA	8-97129-615-0	01	1	1510-		●
306	RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW IMA	8-97129-616-0	01	1	1510-		●
306	RING; SNAP,MAINSHAFT (A) T=1.80 WHITE IMA	8-97129-617-0	01	1	1510-		●
306	RING; SNAP,MAINSHAFT (C) T=1.90 ORANGE IMA	8-98275-952-0	01	1	1510-	●
306	RING; SNAP,MAINSHAFT (C) T=1.95 PURPLE IMA	8-98275-953-0	01	1	1510-	●
306	RING; SNAP,MAINSHAFT (C) T=1.75 PINK IMA	8-98276-251-0	01	1	1510-	●
306	RING; SNAP,MAINSHAFT 4X4<TFS***> (B) ID=27.9 IMA	9-09180-030-0	01	1	1510-		●
313	BEARING; NEEDLE,LOW GEAR MADE IN JAPAN TRANSMISSION<8QP> JTEKT IMA	8-98275-440-0	01	1	1510-	●
313	BEARING; NEEDLE,LOW GEAR NSK IMA	1-09811-028-1	01	1	1510-		●
313	BEARING; NEEDLE,LOW GEAR EXC. MADE IN JAPAN TRANSMISSION<8QP> JTEKT THA	8-98303-004-0	01	1	1510-	●
314	BEARING; NEEDLE,REV GEAR MADE IN JAPAN TRANSMISSION<8QP> (B) JTEKT IMA	8-98275-442-0	01	1	1510-	●
314	BEARING; NEEDLE,REV GEAR MADE IN JAPAN TRANSMISSION<8QP> (C) JTEKT IMA	8-98275-443-0	01	1	1510-	●
314	BEARING; NEEDLE,REV GEAR (A) NSK IMA	8-94422-064-0	01	1	1510-		●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT IMA	8-94422-065-1	01	1	1510-		●
314	BEARING; NEEDLE,REV GEAR (A) NSK IMA	8-97362-719-0	01	1	1510-			●
314	BEARING; NEEDLE,REV GEAR EXC. MADE IN JAPAN TRANSMISSION<8QP> (B) JTEKT THA	8-98303-249-0	01	1	1510-	●
314	BEARING; NEEDLE,REV GEAR EXC. MADE IN JAPAN TRANSMISSION<8QP> (C) JTEKT THA	8-98303-251-0	01	1	1510-	●
390	RING; SNAP,CLU HUB T=1.80 WHITE IMA	8-94422-088-2	01	1	1510-		●
390	RING; SNAP,CLU HUB T=1.85 YELLOW IMA	8-94422-089-1	01	1	1510-		●
390	RING; SNAP,CLU HUB T=1.90 BLUE IMA	8-94422-090-2	01	1	1510-		●
390	RING; SNAP,CLU HUB T=1.90 GREEN IMA	8-98275-957-0	01	1	1510-	●
390	RING; SNAP,CLU HUB T=2.00 WHITE IMA	8-98275-958-0	01	1	1510-	●
391	RING; INSIDE,SYN OD=95.8 IMA	8-94363-056-0	02	1	1510-		●
391	RING; INSIDE,SYN OD=78.5 IMA	8-98275-431-0	02	1	1510-	●
392	RING; OUTSIDE,SYN EXC. MADE IN JAPAN TRANSMISSION<8QP> OD=84.5 THA	8-98326-392-0	02	1	1510-	●
392	RING; OUTSIDE,SYN OD=90.0 IMA	8-98115-793-0	02	1	1510-		●
392	RING; OUTSIDE,SYN MADE IN JAPAN TRANSMISSION<8QP> OD=84.5 IMA	8-98275-430-0	02	1	1510-	●
394	BEARING; BALL,MAINSHAFT RR EXC. MADE IN JAPAN TRANSMISSION<8QP> NSK THA	8-98326-391-0	01	1	1510-	●
394	BEARING; BALL,MAINSHAFT RR MADE IN JAPAN TRANSMISSION<8QP> NSK IMA	8-98275-467-1	01	1	1510-	●
394	BEARING; BALL,MAINSHAFT RR 4X4<TFS***> NSK THA	8-97948-798-0	01	1	1510-		●
396	BEARING; NEEDLE,MAINSHAFT NSK IMA	8-98172-355-0	01	1	1510-		●
396	BEARING; NEEDLE,MAINSHAFT NSK IMA	8-98275-439-1	01	1	1510-	●
399	CLIP; SPEEDOMETER DRIVE GEAR 4X2<TFB***> IMA	8-94310-229-0	01	1	1510-		●
399	CLIP; SPEEDOMETER DRIVE GEAR 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-94310-229-0	01	1	1510-	●		●
481	RING; BLOCK IMA	8-98275-753-0	01	1	1510-	●
588	RING; BLOCK,3RD Z=36 IMA	8-98052-559-0	01	1	1510-			●
588	RING; BLOCK,3RD Z=45 IMA	8-98275-754-0	01	1	1510-	●
589	RING; OUTSIDE,3RD EXC. MADE IN JAPAN TRANSMISSION<8QP> OD=84.5 THA	8-98326-392-0	01	1	1510-	●
589	RING; OUTSIDE,3RD MADE IN JAPAN TRANSMISSION<8QP> OD=84.5 IMA	8-98275-430-0	01	1	1510-	●
590	RING; INSIDE,3RD IMA	8-98275-432-0	01	1	1510-	●
594	WASHER; THRUST,REV IDLE IMA	8-98307-778-0	01	1	1510-	●
625	KEY; CLU HUB EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98326-393-0	12	1	1510-	●
625	KEY; CLU HUB MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98275-436-0	12	1	1510-	●

326 131 386 97 566 300 135 132 108 51 562 563 241 555 238 555 241 564 106 398 560 105 357 202 559 357 51 40 405 40 357 357 561 95 314 531 84 558 29 601 400 557 592 570 38 588 252 241 241 567 238 567 353 568 33 178 555 238 555 34 299 263 80 399 14 176 473 554 471

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	BEARING; NEEDLE,5TH MADE IN JAPAN TRANSMISSION<8QP> JTEKT IMA	8-98275-440-0	01	1	1510-	●
14	BEARING; NEEDLE,5TH NTN IMA	8-98172-356-0	01	1	1510-		●
14	BEARING; NEEDLE,5TH NSK IMA	8-97362-728-0	01	1	1510-			●
14	BEARING; NEEDLE,5TH EXC. MADE IN JAPAN TRANSMISSION<8QP> JTEKT THA	8-98303-004-0	01	1	1510-	●
29	COLLAR; 3RD GEAR IMA	8-97362-568-1	01	1	1510-			●
33	BEARING; NEEDLE,3RD GEAR MADE IN JAPAN TRANSMISSION<8QP> JTEKT IMA	8-98275-441-0	01	1	1510-	●
33	BEARING; NEEDLE,3RD GEAR NSK IMA	1-09811-028-1	01	1	1510-		●	●
33	BEARING; NEEDLE,3RD GEAR EXC. MADE IN JAPAN TRANSMISSION<8QP> JTEKT THA	8-98303-247-0	01	1	1510-	●
34	SYNCHRONIZER; 4TH & 3RD MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98275-420-0	01	1	1510-	●
34	SYNCHRONIZER; 4TH & 3RD IMA	8-97977-991-0	01	1	1510-		●
34	SYNCHRONIZER; 4TH & 3RD THA	8-97362-474-3	01	1	1510-			●
34	SYNCHRONIZER; 4TH & 3RD EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98304-166-0	01	1	1510-	●
38	SYNCHRONIZER; LOW & 2ND MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98275-419-0	01	1	1510-	●
38	SYNCHRONIZER; LOW & 2ND IMA	8-97977-989-0	01	1	1510-		●
38	SYNCHRONIZER; LOW & 2ND THA	8-97362-503-1	01	1	1510-			●
38	SYNCHRONIZER; LOW & 2ND EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98304-165-0	01	1	1510-	●
40	SPRING; INSERT,LOW & 2ND IMA	8-94448-045-0	02	1	1510-		●	●
51	RING; BLOCK,LOW & 2ND Z=36 IMA	8-98115-804-0	02	1	1510-		●	●
51	RING; BLOCK,LOW & 2ND Z=45 IMA	8-98275-754-0	02	1	1510-	●
80	GEAR; SPD DRIVE 4X2<TFB***> Z=6 IMA	8-94472-608-1	01	1	1510-		●
80	GEAR; SPD DRIVE 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=7 IMA	8-98123-463-0	01	1	1510-			●
80	GEAR; SPD DRIVE 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=6 IMA	8-98275-944-0	01	1	1510-	●
84	BEARING; COUNTER SHAFT,FRT EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98326-389-0	01	1	1510-	●
84	BEARING; COUNTER SHAFT,FRT IMA	8-97362-724-0	01	1	1510-			●
84	BEARING; COUNTER SHAFT,FRT MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98275-469-0	01	1	1510-	●
95	GEAR; REV,COUNTER Z=19 IMA	8-94377-433-0	01	1	1510-		●
95	GEAR; REV,COUNTER Z=41 THA	8-98210-237-0	01	1	1510-			●
97	GEAR; 5TH,COUNTER MADE IN JAPAN TRANSMISSION<8QP> Z=46 IMA	8-98275-312-0	01	1	1510-	●
97	GEAR; 5TH,COUNTER Z=50 IMA	8-94377-434-0	01	1	1510-		●
97	GEAR; 5TH,COUNTER Z=27 THA	8-98040-114-0	01	1	1510-			●
97	GEAR; 5TH,COUNTER EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=46 THA	8-98304-153-0	01	1	1510-	●
105	GEAR; 3RD,COUNTER MADE IN JAPAN TRANSMISSION<8QP> Z=28 IMA	8-98275-326-0	01	1	1510-	●
105	GEAR; 3RD,COUNTER Z=31 THA	8-98233-612-0	01	1	1510-			●
105	GEAR; 3RD,COUNTER EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=28 THA	8-98304-159-0	01	1	1510-	●
106	GEAR; 2ND,COUNTER Z=38 THA	8-98210-236-0	01	1	1510-			●
108	SHAFT; COUNTER MADE IN JAPAN TRANSMISSION<8QP> Z=50-21-12 IMA	8-98275-418-1	01	1	1510-	●
108	SHAFT; COUNTER Z=26-34-26-26 THA	8-98023-108-1	01	1	1510-			●
108	SHAFT; COUNTER EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=50-21-12 THA	8-98304-148-0	01	1	1510-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=12.2 IMA	9-09571-412-0	01	1	1510-			●
132	SHAFT; REV MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98275-433-0	01	1	1510-	●
132	SHAFT; REV IMA	8-98245-493-0	01	1	1510-		●
132	SHAFT; REV THA	8-98023-113-0	01	1	1510-			●
132	SHAFT; REV EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-001-0	01	1	1510-	●
135	GEAR; REV IDLER MADE IN JAPAN TRANSMISSION<8QP> Z=23 IMA	8-98275-331-0	01	1	1510-	●
135	GEAR; REV IDLER Z=33 THA	8-98233-606-0	01	1	1510-		●
135	GEAR; REV IDLER Z=32 THA	8-98233-615-0	01	1	1510-			●
135	GEAR; REV IDLER EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=23 THA	8-98304-164-0	01	1	1510-	●
176	COLLAR; 5TH GEAR THA	8-97362-567-0	01	1	1510-			●
178	BEARING; NEEDLE,MAINSHAFT IMA	8-97362-869-0	01	1	1510-			●
202	BEARING; COUNTER GEAR IMA	8-97362-725-0	01	1	1510-			●
238	INSERT (A) IMA	8-94448-202-2	03	1	1510-		●
238	INSERT (B) IMA	8-94249-576-2	03	1	1510-			●
238	INSERT (C) IMA	8-98004-522-0	06	1	1510-			●
241	RING; SNAP (A) ID=34.4 T=1.9 IMA	8-97254-735-0	01	1	1510-			●
241	RING; SNAP (B) ID=27.1 T=1.9 IMA	8-97362-871-0	01	1	1510-			●
241	RING; SNAP (B) ID=27.1 T=2.1 IMA	8-97362-872-0	01	1	1510-			●
241	RING; SNAP (B) ID=27.1 T=2.3 IMA	8-97362-873-0	01	1	1510-			●
241	RING; SNAP (C) ID=37 T=1.95 IMA	8-98004-523-1	01	1	1510-			●
241	RING; SNAP (C) ID=37 T=2.1 IMA	8-98004-524-1	01	1	1510-			●
241	RING; SNAP (D) ID=27.9 IMA	9-09180-030-0	01	1	1510-			●
241	RING; SNAP (E) ID=35.7 T=1.8 IMA	8-97256-855-0	01	1	1510-	●
241	RING; SNAP (F) T=1.90 GREEN IMA	8-98275-957-0	01	1	1510-	●
252	SPACER IMA	8-98024-456-0	01	1	1510-			●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.1 IMA	8-98004-525-0	01	1	1510-			●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.2 IMA	8-98004-526-0	01	1	1510-			●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.3 IMA	8-98004-527-0	01	1	1510-			●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.4 IMA	8-98004-528-0	01	1	1510-			●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.5 IMA	8-98004-529-0	01	1	1510-			●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.6 IMA	8-98004-530-0	01	1	1510-			●
299	BEARING; OUTPUT SHAFT FRT IMA	8-97362-722-0	01	1	1510-			●
300	RING; SNAP,COUNTER SHAFT,RR END ID=29 T=2.3 IMA	8-98024-222-1	01	1	1510-			●
300	RING; SNAP,COUNTER SHAFT,RR END ID=29 T=2.5 IMA	8-98024-223-1	01	1	1510-			●
300	RING; SNAP,COUNTER SHAFT,RR END ID=29 T=2.7 IMA	8-98024-224-1	01	1	1510-			●
314	BEARING; NEEDLE,REV GEAR MADE IN JAPAN TRANSMISSION<8QP> (B) JTEKT IMA	8-98275-442-0	01	1	1510-	●
314	BEARING; NEEDLE,REV GEAR MADE IN JAPAN TRANSMISSION<8QP> (C) JTEKT IMA	8-98275-443-0	01	1	1510-	●
314	BEARING; NEEDLE,REV GEAR (A) NSK IMA	8-94422-064-0	01	1	1510-		●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT IMA	8-94422-065-1	01	1	1510-		●
314	BEARING; NEEDLE,REV GEAR (A) NSK IMA	8-97362-719-0	01	1	1510-			●
314	BEARING; NEEDLE,REV GEAR EXC. MADE IN JAPAN TRANSMISSION<8QP> (B) JTEKT THA	8-98303-249-0	01	1	1510-	●
314	BEARING; NEEDLE,REV GEAR EXC. MADE IN JAPAN TRANSMISSION<8QP> (C) JTEKT THA	8-98303-251-0	01	1	1510-	●
326	BOLT; REV SHAFT M12X70 IMA	9-92621-270-0	01	1	1510-			●
353	SYNCHRONIZER; 5TH THA	8-98004-511-1	01	1	1510-			●
357	RING (B) OD=95.8 IMA	8-94363-056-0	02	1	1510-			●
357	RING (A) OD=90.0 IMA	8-98115-793-0	02	1	1510-			●
386	PIN; REV SHAFT OD=6 L=40 IMA	9-08150-640-0	01	1	1510-		●
386	PIN; REV SHAFT OD=4 L=8 THA	9-08160-408-0	01	1	1510-			●
398	GEAR; COUNTER MADE IN JAPAN TRANSMISSION<8QP> Z=40 IMA	8-98275-327-0	01	1	1510-	●
398	GEAR; COUNTER Z=44-32-25-19 THA	8-97301-186-2	01	1	1510-		●
398	GEAR; COUNTER Z=23 IMA	8-98106-584-0	01	1	1510-			●
398	GEAR; COUNTER EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=40 THA	8-98304-158-0	01	1	1510-	●
399	CLIP; SPEEDOMETER DRIVE GEAR 4X2<TFB***> IMA	8-94310-229-0	01	1	1510-		●
399	CLIP; SPEEDOMETER DRIVE GEAR 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-94310-229-0	01	1	1510-	●		●
400	BEARING; OUTPUT SHAFT RR IMA	8-97362-723-0	01	1	1510-			●
405	INSERT; SYN,LOW & 2ND IMA	8-94363-062-1	03	1	1510-		●	●
471	SHAFT; INPUT Z=24-14-20-27 IMA	8-98106-034-0	01	1	1510-			●
473	BEARING; INPUT SHAFT IMA	8-97362-721-1	01	1	1510-			●
531	RING; BLOCK,REV OD=74 IMA	8-98037-846-0	01	1	1510-			●
554	IMPELLER; OIL IMA	8-97362-730-0	01	1	1510-			●
555	SPRING; INSERT (A) IMA	5-33264-012-0	02	1	1510-			●
555	SPRING; INSERT (B) IMA	8-97109-690-0	02	1	1510-			●
557	GEAR; OUTPUT 4X2<TFB***> Z=31-27 IMA	8-98210-238-0	01	1	1510-			●
557	GEAR; OUTPUT 4X4<TFS***> Z=31-27 IMA	8-98210-239-0	01	1	1510-			●
558	GEAR; 5TH,INPUT SHAFT Z=46 THA	8-98233-610-0	01	1	1510-			●
559	BEARING; NEEDLE,LOW & 2ND IMA	8-97362-727-0	01	1	1510-			●
560	RING; DUM IMA	8-97078-729-1	01	1	1510-			●
561	GEAR; LOW,COUNTER Z=45 THA	8-98210-235-0	01	1	1510-			●
562	BEARING; NEEDLE,LOW & 2ND IMA	8-97362-727-0	01	1	1510-			●
563	COLLAR; 1ST GEAR THA	8-97362-569-1	01	1	1510-			●
564	SYNCHRONIZER; REV THA	8-97362-496-1	01	1	1510-			●
566	BRACKET; REV IDLER IMA	8-98275-372-0	01	1	1510-	●
566	BRACKET; REV IDLER THA	8-97362-516-0	01	1	1510-			●
567	SPRING; INSERT,5TH IMA	5-33264-012-0	02	1	1510-			●
568	GEAR; 3RD,INPUT SHAFT Z=28 THA	8-98233-608-0	01	1	1510-			●
570	SPRING; PLATE IMA	8-98072-467-2	01	1	1510-			●
588	RING; BLOCK,3RD Z=36 IMA	8-98052-559-0	01	1	1510-			●
588	RING; BLOCK,3RD Z=45 IMA	8-98275-754-0	01	1	1510-	●
592	RING; BLOCK,4TH IMA	8-98197-460-0	01	1	1510-			●
601	RING; BLOCK,5TH IMA	8-98283-241-0	01	1	1510-			●

91 72 59 421 61 63 65 13 14 86 87 89 394 499 404 404 62 62 60 314 34 238 397 35 36 33 82 51 38 405 51 392 391 70 313 211 306 35 396 391 392 50 49 5 4 3 93 292 246 219 95 97 98 110 386 132 398 189 226 135 1 390 40 40 306 421 397

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS MADE IN JAPAN TRANSMISSION<8QP> Z=29 IMA	8-98275-414-0	01	1	1510-	●
1	SHAFT; TOP GEAR,TRANS Z=26 IMA	8-98210-225-0	01	1	1510-		●
1	SHAFT; TOP GEAR,TRANS EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=29 THA	8-98304-147-0	01	1	1510-	●
3	BEARING; TOP GEAR SHAFT EXC. MADE IN JAPAN TRANSMISSION<8QP> NSK THA	8-98326-388-0	01	1	1510-	●
3	BEARING; TOP GEAR SHAFT NSK THA	8-97948-796-0	01	1	1510-		●
3	BEARING; TOP GEAR SHAFT MADE IN JAPAN TRANSMISSION<8QP> NSK IMA	8-98275-470-0	01	1	1510-	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK IMA	8-94422-083-0	01	1	1510-		●
4	RING; SNAP,BRG TO TOP GEAR SHAFT IMA	8-98275-956-0	01	1	1510-	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.4 IMA	8-97254-316-0	01	1	1510-		●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=32.2 IMA	9-09180-035-0	01	1	1510-	●
13	GEAR; 5TH,MAINSHAFT Z=22 IMA	8-98210-227-0	01	1	1510-		●
14	BEARING; NEEDLE,5TH MADE IN JAPAN TRANSMISSION<8QP> JTEKT IMA	8-98275-440-0	01	1	1510-	●
14	BEARING; NEEDLE,5TH NTN IMA	8-98172-356-0	01	1	1510-		●
14	BEARING; NEEDLE,5TH NSK IMA	8-97362-728-0	01	1	1510-			●
14	BEARING; NEEDLE,5TH EXC. MADE IN JAPAN TRANSMISSION<8QP> JTEKT THA	8-98303-004-0	01	1	1510-	●
33	BEARING; NEEDLE,3RD GEAR MADE IN JAPAN TRANSMISSION<8QP> JTEKT IMA	8-98275-441-0	01	1	1510-	●
33	BEARING; NEEDLE,3RD GEAR NSK IMA	1-09811-028-1	01	1	1510-		●	●
33	BEARING; NEEDLE,3RD GEAR EXC. MADE IN JAPAN TRANSMISSION<8QP> JTEKT THA	8-98303-247-0	01	1	1510-	●
34	SYNCHRONIZER; 4TH & 3RD MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98275-420-0	01	1	1510-	●
34	SYNCHRONIZER; 4TH & 3RD IMA	8-97977-991-0	01	1	1510-		●
34	SYNCHRONIZER; 4TH & 3RD THA	8-97362-474-3	01	1	1510-			●
34	SYNCHRONIZER; 4TH & 3RD EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98304-166-0	01	1	1510-	●
35	RING; BLOCK,4TH & 3RD Z=45 IMA	8-94151-510-3	02	1	1510-		●
36	GEAR; 3RD,MAINSHAFT MADE IN JAPAN TRANSMISSION<8QP> Z=29 IMA	8-98275-311-0	01	1	1510-	●
36	GEAR; 3RD,MAINSHAFT Z=27 THA	8-98233-597-0	01	1	1510-		●
36	GEAR; 3RD,MAINSHAFT EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=29 THA	8-98304-152-0	01	1	1510-	●
38	SYNCHRONIZER; LOW & 2ND MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98275-419-0	01	1	1510-	●
38	SYNCHRONIZER; LOW & 2ND IMA	8-97977-989-0	01	1	1510-		●
38	SYNCHRONIZER; LOW & 2ND THA	8-97362-503-1	01	1	1510-			●
38	SYNCHRONIZER; LOW & 2ND EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98304-165-0	01	1	1510-	●
40	SPRING; INSERT,LOW & 2ND IMA	8-94448-045-0	02	1	1510-		●	●
49	BEARING; NEEDLE,2ND GEAR MADE IN JAPAN TRANSMISSION<8QP> JTEKT IMA	8-98275-440-0	01	1	1510-	●
49	BEARING; NEEDLE,2ND GEAR JTEKT IMA	9-00096-625-0	01	1	1510-		●
49	BEARING; NEEDLE,2ND GEAR EXC. MADE IN JAPAN TRANSMISSION<8QP> JTEKT THA	8-98303-004-0	01	1	1510-	●
50	GEAR; 2ND,MAINSHAFT MADE IN JAPAN TRANSMISSION<8QP> Z=37 IMA	8-98275-310-0	01	1	1510-	●
50	GEAR; 2ND,MAINSHAFT Z=34 THA	8-97301-183-1	01	1	1510-		●
50	GEAR; 2ND,MAINSHAFT EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=37 THA	8-98304-151-0	01	1	1510-	●
51	RING; BLOCK,LOW & 2ND Z=36 IMA	8-98115-804-0	02	1	1510-		●	●
51	RING; BLOCK,LOW & 2ND Z=45 IMA	8-98275-754-0	02	1	1510-	●
59	GEAR; REV MAINSHAFT MADE IN JAPAN TRANSMISSION<8QP> Z=40 IMA	8-98275-314-1	01	1	1510-	●
59	GEAR; REV MAINSHAFT Z=41 IMA	8-98210-228-0	01	1	1510-		●
59	GEAR; REV MAINSHAFT EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=40 THA	8-98304-155-0	01	1	1510-	●
60	COLLAR; REV MAIN IMA	8-97031-079-0	01	1	1510-		●
61	SYNCHRONIZER; REV & 5TH IMA	8-97030-106-1	01	1	1510-		●
62	SPRING; INSERT,REV & 5TH IMA	5-33264-012-0	02	1	1510-		●
63	INSERT; SYN,REV & 5TH IMA	5-33263-001-0	03	1	1510-		●
65	NUT; MAINSHAFT M34 IMA	8-94422-071-1	01	1	1510-		●
70	GEAR; 1ST,MAINSHAFT MADE IN JAPAN TRANSMISSION<8QP> Z=43 IMA	8-98275-309-0	01	1	1510-	●
70	GEAR; 1ST,MAINSHAFT Z=45 THA	8-97301-182-1	01	1	1510-		●
70	GEAR; 1ST,MAINSHAFT EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=43 THA	8-98304-149-0	01	1	1510-	●
72	BEARING; BALL,MAINSHAFT NSK THA	8-97948-799-0	01	1	1510-		●
82	SHAFT; MAIN,TRANS 4X2<TFB***> Z=28-34-26-27 IMA	8-97300-981-0	01	1	1510-		●
82	SHAFT; MAIN,TRANS 4X2<TFB***> Z=26-50-44-19 IMA	8-98275-416-1	01	1	1510-	●
82	SHAFT; MAIN,TRANS 4X4<TFS***> Z=28-34-26-27 IMA	8-97300-980-0	01	1	1510-		●
82	SHAFT; MAIN,TRANS 4X4<TFS***> Z=26-50-44-19 IMA	8-98275-417-1	01	1	1510-	●
86	WASHER; THRUST,5TH T=7.90 WHITE IMA	8-94422-110-2	01	1	1510-		●
86	WASHER; THRUST,5TH T=8.00 YELLOW IMA	8-94422-111-2	01	1	1510-		●
86	WASHER; THRUST,5TH T=8.10 GREEN IMA	8-94422-112-2	01	1	1510-		●
86	WASHER; THRUST,5TH T=8.20 BLUE IMA	8-94422-113-2	01	1	1510-		●
87	BALL; THRUST WASHER IMA	8-94201-356-0	01	1	1510-	●	●
89	RING; RET,THRUST RING ID=31.8 IMA	8-94422-395-0	01	1	1510-		●
91	RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2 IMA	8-94322-411-0	01	1	1510-		●
93	RING; SNAP,COUNTER FRT BRG ID=23.2 IMA	9-09180-025-0	01	1	1510-		●
93	RING; SNAP,COUNTER FRT BRG ID=32.2 IMA	9-09180-035-0	01	1	1510-	●
95	GEAR; REV,COUNTER Z=19 IMA	8-94377-433-0	01	1	1510-		●
95	GEAR; REV,COUNTER Z=41 THA	8-98210-237-0	01	1	1510-			●
97	GEAR; 5TH,COUNTER MADE IN JAPAN TRANSMISSION<8QP> Z=46 IMA	8-98275-312-0	01	1	1510-	●
97	GEAR; 5TH,COUNTER Z=50 IMA	8-94377-434-0	01	1	1510-		●
97	GEAR; 5TH,COUNTER Z=27 THA	8-98040-114-0	01	1	1510-			●
97	GEAR; 5TH,COUNTER EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=46 THA	8-98304-153-0	01	1	1510-	●
98	BEARING; BALL,COUNTER END NSK THA	8-97948-797-0	01	1	1510-		●
110	RING; SNAP,COUNTER BRG T=1.10 WHITE IMA	8-94422-103-0	01	1	1510-		●
110	RING; SNAP,COUNTER BRG T=1.20 YELLOW IMA	8-94422-104-0	01	1	1510-		●
110	RING; SNAP,COUNTER BRG T=1.30 BLUE IMA	8-94422-105-0	01	1	1510-		●
110	RING; SNAP,COUNTER BRG T=1.40 PINK IMA	8-94422-106-0	01	1	1510-		●
110	RING; SNAP,COUNTER BRG T=1.50 GREEN IMA	8-94422-107-0	01	1	1510-		●
110	RING; SNAP,COUNTER BRG T=1.60 BROWN IMA	8-94422-108-0	01	1	1510-		●
132	SHAFT; REV MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98275-433-0	01	1	1510-	●
132	SHAFT; REV IMA	8-98245-493-0	01	1	1510-		●
132	SHAFT; REV THA	8-98023-113-0	01	1	1510-			●
132	SHAFT; REV EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-001-0	01	1	1510-	●
135	GEAR; REV IDLER MADE IN JAPAN TRANSMISSION<8QP> Z=23 IMA	8-98275-331-0	01	1	1510-	●
135	GEAR; REV IDLER Z=33 THA	8-98233-606-0	01	1	1510-		●
135	GEAR; REV IDLER Z=32 THA	8-98233-615-0	01	1	1510-			●
135	GEAR; REV IDLER EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=23 THA	8-98304-164-0	01	1	1510-	●
189	RING; SNAP,REV,GEAR (A) T=1.20 WHITE IMA	8-94422-100-0	01	1	1510-		●
189	RING; SNAP,REV,GEAR (A) T=1.30 YELLOW IMA	8-94422-101-0	01	1	1510-		●
189	RING; SNAP,REV,GEAR (A) T=1.40 BLUE IMA	8-94422-102-0	01	1	1510-		●
189	RING; SNAP,REV,GEAR (B) T=2.00 BLUE IMA	8-98275-959-0	01	1	1510-	●
189	RING; SNAP,REV,GEAR (B) T=1.90 LIGHT GREEN IMA	8-98299-379-0	01	1	1510-	●
189	RING; SNAP,REV,GEAR (C) OD=95.5 IMA	9-09180-190-0	01	1	1510-	●
211	BEARING; THRUST NEEDLE,1ST GEAR NSK IMA	8-94148-935-0	01	1	1510-		●
219	BEARING; BALL,CLUSTER,RR NSK IMA	8-94436-929-0	01	1	1510-		●
226	WASHER; THRUST,REV GEAR,COUNTER ID=30.0 IMA	8-94223-069-1	01	1	1510-		●
238	INSERT (A) IMA	8-94448-202-2	03	1	1510-		●
238	INSERT (B) IMA	8-94249-576-2	03	1	1510-			●
238	INSERT (C) IMA	8-98004-522-0	06	1	1510-			●
246	BEARING; ROLLER,COUNTER SHAFT FRT NSK IMA	8-97029-600-4	01	1	1510-		●
292	RING; SNAP,BRG OUTER NSK IMA	8-94422-081-0	01	1	1510-		●
292	RING; SNAP,BRG OUTER IMA	8-98275-956-0	01	1	1510-	●
306	RING; SNAP,MAINSHAFT 4X2<TFB***> (B) ID=27.9 IMA	9-09180-030-0	02	1	1510-		●
306	RING; SNAP,MAINSHAFT (A) T=1.90 BLUE IMA	8-97129-615-0	01	1	1510-		●
306	RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW IMA	8-97129-616-0	01	1	1510-		●
306	RING; SNAP,MAINSHAFT (A) T=1.80 WHITE IMA	8-97129-617-0	01	1	1510-		●
306	RING; SNAP,MAINSHAFT (C) T=1.90 ORANGE IMA	8-98275-952-0	01	1	1510-	●
306	RING; SNAP,MAINSHAFT (C) T=1.95 PURPLE IMA	8-98275-953-0	01	1	1510-	●
306	RING; SNAP,MAINSHAFT (C) T=1.75 PINK IMA	8-98276-251-0	01	1	1510-	●
306	RING; SNAP,MAINSHAFT 4X4<TFS***> (B) ID=27.9 IMA	9-09180-030-0	01	1	1510-		●
313	BEARING; NEEDLE,LOW GEAR MADE IN JAPAN TRANSMISSION<8QP> JTEKT IMA	8-98275-440-0	01	1	1510-	●
313	BEARING; NEEDLE,LOW GEAR NSK IMA	1-09811-028-1	01	1	1510-		●
313	BEARING; NEEDLE,LOW GEAR EXC. MADE IN JAPAN TRANSMISSION<8QP> JTEKT THA	8-98303-004-0	01	1	1510-	●
314	BEARING; NEEDLE,REV GEAR MADE IN JAPAN TRANSMISSION<8QP> (B) JTEKT IMA	8-98275-442-0	01	1	1510-	●
314	BEARING; NEEDLE,REV GEAR MADE IN JAPAN TRANSMISSION<8QP> (C) JTEKT IMA	8-98275-443-0	01	1	1510-	●
314	BEARING; NEEDLE,REV GEAR (A) NSK IMA	8-94422-064-0	01	1	1510-		●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT IMA	8-94422-065-1	01	1	1510-		●
314	BEARING; NEEDLE,REV GEAR (A) NSK IMA	8-97362-719-0	01	1	1510-			●
314	BEARING; NEEDLE,REV GEAR EXC. MADE IN JAPAN TRANSMISSION<8QP> (B) JTEKT THA	8-98303-249-0	01	1	1510-	●
314	BEARING; NEEDLE,REV GEAR EXC. MADE IN JAPAN TRANSMISSION<8QP> (C) JTEKT THA	8-98303-251-0	01	1	1510-	●
386	PIN; REV SHAFT OD=6 L=40 IMA	9-08150-640-0	01	1	1510-		●
386	PIN; REV SHAFT OD=4 L=8 THA	9-08160-408-0	01	1	1510-			●
390	RING; SNAP,CLU HUB T=1.80 WHITE IMA	8-94422-088-2	01	1	1510-		●
390	RING; SNAP,CLU HUB T=1.85 YELLOW IMA	8-94422-089-1	01	1	1510-		●
390	RING; SNAP,CLU HUB T=1.90 BLUE IMA	8-94422-090-2	01	1	1510-		●
390	RING; SNAP,CLU HUB T=1.90 GREEN IMA	8-98275-957-0	01	1	1510-	●
390	RING; SNAP,CLU HUB T=2.00 WHITE IMA	8-98275-958-0	01	1	1510-	●
391	RING; INSIDE,SYN OD=95.8 IMA	8-94363-056-0	02	1	1510-		●
391	RING; INSIDE,SYN OD=78.5 IMA	8-98275-431-0	02	1	1510-	●
392	RING; OUTSIDE,SYN EXC. MADE IN JAPAN TRANSMISSION<8QP> OD=84.5 THA	8-98326-392-0	02	1	1510-	●
392	RING; OUTSIDE,SYN OD=90.0 IMA	8-98115-793-0	02	1	1510-		●
392	RING; OUTSIDE,SYN MADE IN JAPAN TRANSMISSION<8QP> OD=84.5 IMA	8-98275-430-0	02	1	1510-	●
394	BEARING; BALL,MAINSHAFT RR EXC. MADE IN JAPAN TRANSMISSION<8QP> NSK THA	8-98326-391-0	01	1	1510-	●
394	BEARING; BALL,MAINSHAFT RR MADE IN JAPAN TRANSMISSION<8QP> NSK IMA	8-98275-467-1	01	1	1510-	●
394	BEARING; BALL,MAINSHAFT RR 4X4<TFS***> NSK THA	8-97948-798-0	01	1	1510-		●
396	BEARING; NEEDLE,MAINSHAFT NSK IMA	8-98172-355-0	01	1	1510-		●
396	BEARING; NEEDLE,MAINSHAFT NSK IMA	8-98275-439-1	01	1	1510-	●
397	SPRING; INSERT,4TH & 3RD IMA	8-94422-075-0	02	1	1510-		●
398	GEAR; COUNTER MADE IN JAPAN TRANSMISSION<8QP> Z=40 IMA	8-98275-327-0	01	1	1510-	●
398	GEAR; COUNTER Z=44-32-25-19 THA	8-97301-186-2	01	1	1510-		●
398	GEAR; COUNTER Z=23 IMA	8-98106-584-0	01	1	1510-			●
398	GEAR; COUNTER EXC. MADE IN JAPAN TRANSMISSION<8QP> Z=40 THA	8-98304-158-0	01	1	1510-	●
404	PLATE; THRUST IMA	8-94421-892-0	02	1	1510-		●
405	INSERT; SYN,LOW & 2ND IMA	8-94363-062-1	03	1	1510-		●	●
421	RING; BLOCK,REV & 5TH Z=36 IMA	8-97071-688-0	02	1	1510-		●
499	COLLAR; OIL SEAL 4X4<TFS***> IMA	8-97300-954-0	01	1	1510-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
