Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#166056) — 439 parça

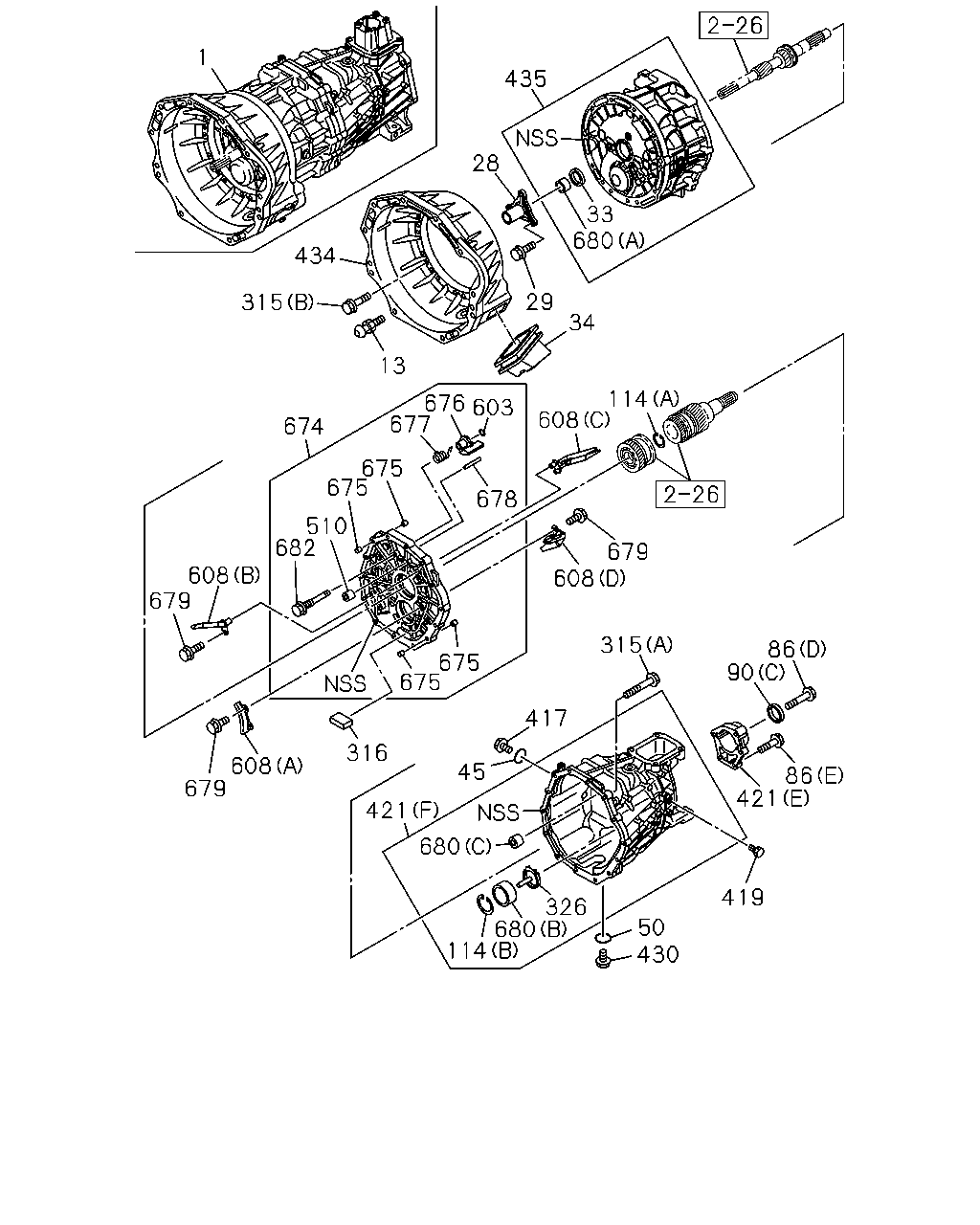

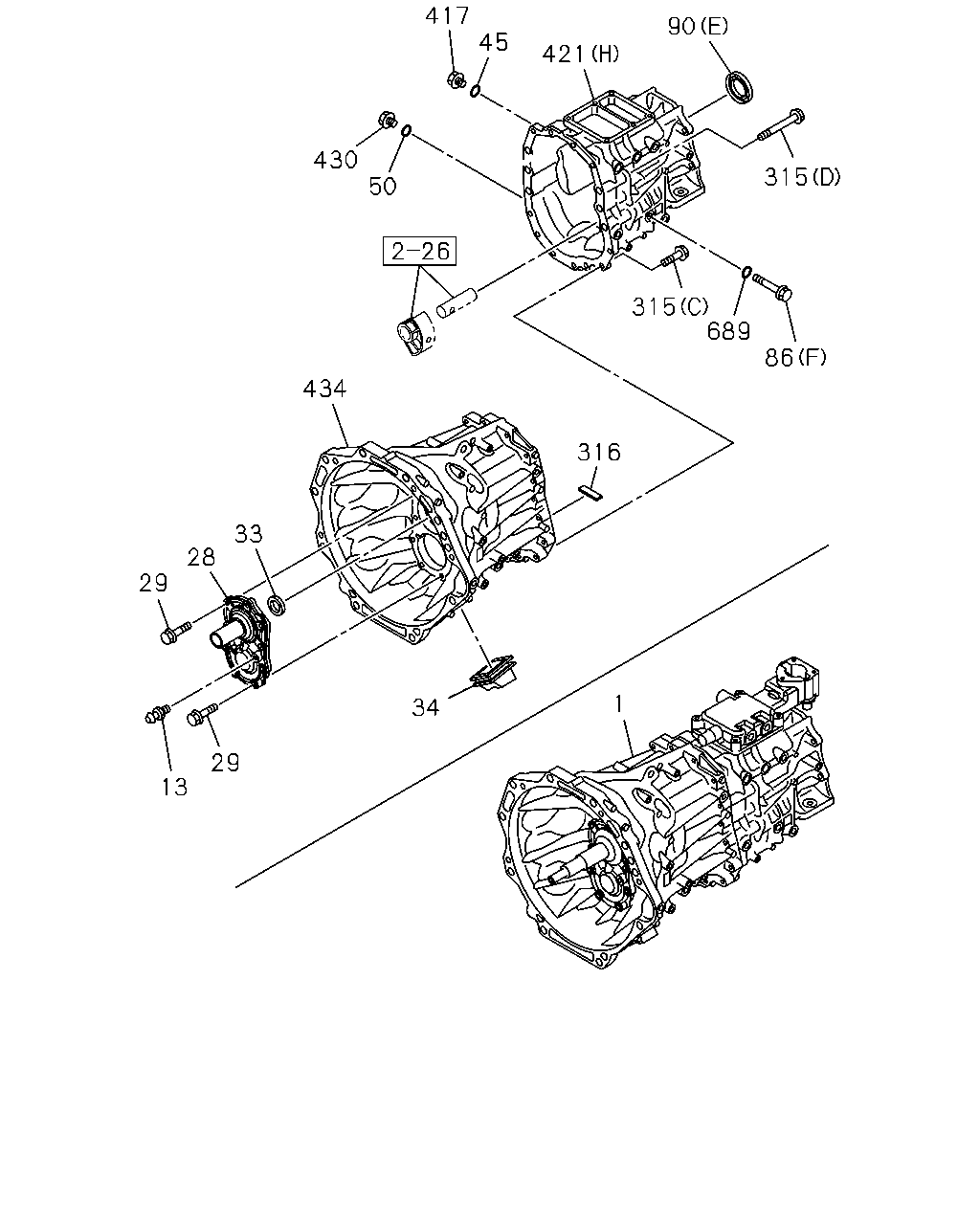

86 689 315 315 90 414 421 45 417 430 316 434 33 28 29 29 13 34 1 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98274-759-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> MADE IN JAPAN TRANSMISSION<8QP> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-98274-760-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> THA	8-97977-999-0	01	1	1510-		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98274-762-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-299-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-296-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-297-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> THA	8-97977-997-0	01	1	1510-		●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98087-608-0	01	1	1510-			●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98102-485-0	01	1	1510-			●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> THA	8-98102-382-0	01	1	1510-			●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	1510-	●	●	●
28	COVER; FRT,TRANS CASE THA	8-97381-406-0	01	1	1510-		●
28	COVER; FRT,TRANS CASE THA	8-98094-800-0	01	1	1510-			●
28	COVER; FRT,TRANS CASE IMA	8-98275-338-1	01	1	1510-	●
29	BOLT; FRT COVER M8X22 FLANGE IMA	8-97365-376-0	06	1	1510-		●
29	BOLT; FRT COVER M8X20 FLANGE THA	0-28650-820-0	03	1	1510-			●
29	BOLT; FRT COVER M8X30 FLANGE IMA	8-98275-947-0	09	1	1510-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97947-839-0	01	1	1510-		●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	1510-	●
34	COVER; DUST,SHIFT FORK THA	8-98097-470-0	01	1	1510-			●
34	COVER; DUST,SHIFT FORK THA	8-97500-668-0	01	1	1510-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1510-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> ID=17 IMA	8-97115-712-0	01	1	1510-	●	●	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	01	1	1510-		●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	07	1	1510-		●
86	BOLT; RR COVER (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1510-			●
86	BOLT; RR COVER (E) M8X35 FLANGE THA	0-28650-835-0	03	1	1510-			●
86	BOLT; RR COVER (F) M12X63 FLANGE IMA	8-98275-948-0	01	1	1510-	●
86	BOLT; RR COVER 4X4<TFS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1510-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> (D) NOK THA	8-97947-840-0	01	1	1510-		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (E) NOK IMA	8-98189-443-0	01	1	1510-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (A) NOK THA	8-97947-841-0	01	1	1510-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (C) JTEKT IMA	8-98004-531-0	01	1	1510-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (B) NOK IMA	8-97046-705-3	01	1	1510-	●	●	●
315	BOLT; CASE (A) M8X60 FLANGE THA	0-28050-860-0	14	1	1510-			●
315	BOLT; CASE (B) M8X35 FLANGE IMA	8-98046-876-0	11	1	1510-			●
315	BOLT; CASE (D) M8X100 FLANGE THA	0-28050-800-0	06	1	1510-	●
315	BOLT; CASE (C) M8X40 FLANGE THA	0-28050-840-0	11	1	1510-	●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	1510-	●	●	●
414	COVER; DUST,RR COVER 4X2<TFB***> IMA	8-98027-802-0	01	1	1510-		●	●
414	COVER; DUST,RR COVER 4X2<TFB***> IMA	8-98275-350-1	01	1	1510-	●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> IMA	8-97365-373-0	01	1	1510-	●	●	●
421	COVER; RR,TRANS 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> MADE IN JAPAN TRANSMISSION<8QP> (G) IMA	8-98275-341-0	01	1	1510-	●
421	COVER; RR,TRANS 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MADE IN JAPAN TRANSMISSION<8QP> (G) THA	8-98303-302-0	01	1	1510-	●
421	COVER; RR,TRANS 4X2<TFB***> MADE IN JAPAN TRANSMISSION<8QP> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (G) IMA	8-98275-363-0	01	1	1510-	●
421	COVER; RR,TRANS 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MADE IN JAPAN TRANSMISSION<8QP> (G) THA	8-98303-303-0	01	1	1510-	●
421	COVER; RR,TRANS 4X4<TFS***> MADE IN JAPAN TRANSMISSION<8QP> (H) IMA	8-98275-370-0	01	1	1510-	●
421	COVER; RR,TRANS 4X2<TFB***> (A) THA	8-97978-059-0	01	1	1510-		●
421	COVER; RR,TRANS 4X2<TFB***> (C) THA	8-98108-318-0	01	1	1510-			●
421	COVER; RR,TRANS 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-98108-411-0	01	1	1510-			●
421	COVER; RR,TRANS 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-97382-905-2	01	1	1510-			●
421	COVER; RR,TRANS 4X4<TFS***> (B) THA	8-97978-061-0	01	1	1510-		●
421	COVER; RR,TRANS 4X4<TFS***> (E) THA	8-97362-423-1	01	1	1510-			●
421	COVER; RR,TRANS 4X4<TFS***> (F) THA	8-98108-319-0	01	1	1510-			●
421	COVER; RR,TRANS 4X4<TFS***> EXC. MADE IN JAPAN TRANSMISSION<8QP> (H) THA	8-98303-304-0	01	1	1510-	●
430	PLUG; OIL DRAIN 4X4<TFS***> IMA	8-97365-374-0	01	1	1510-	●	●	●
434	HOUSING; CLU MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98275-339-0	01	1	1510-	●
434	HOUSING; CLU EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-300-0	01	1	1510-	●
434	HOUSING; CLU THA	8-98108-316-0	01	1	1510-			●
689	GASKET ALSO INCLUDED IN GASKET SET(M/T). ID=12.2 IMA	9-09571-412-0	01	1	1510-	●

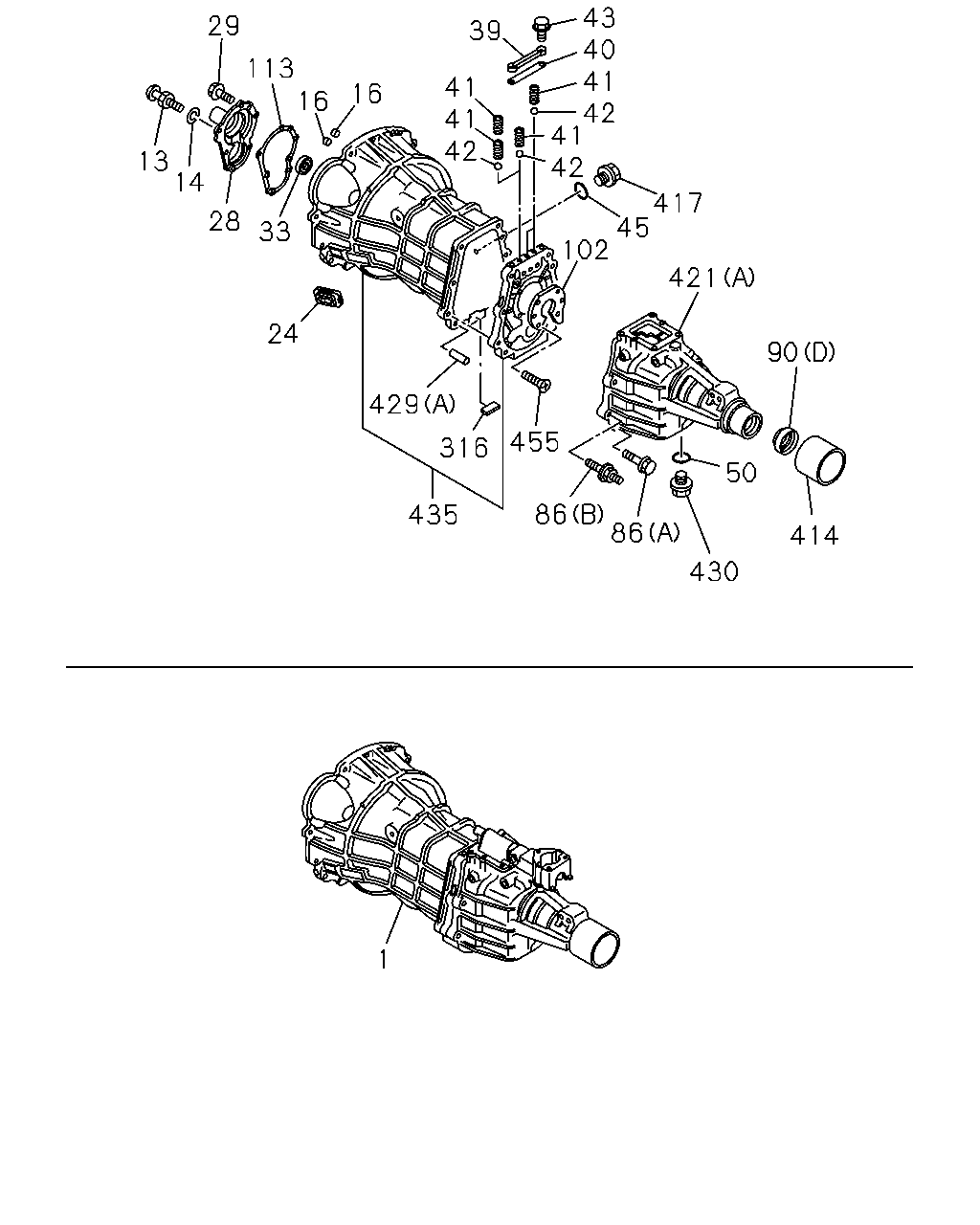

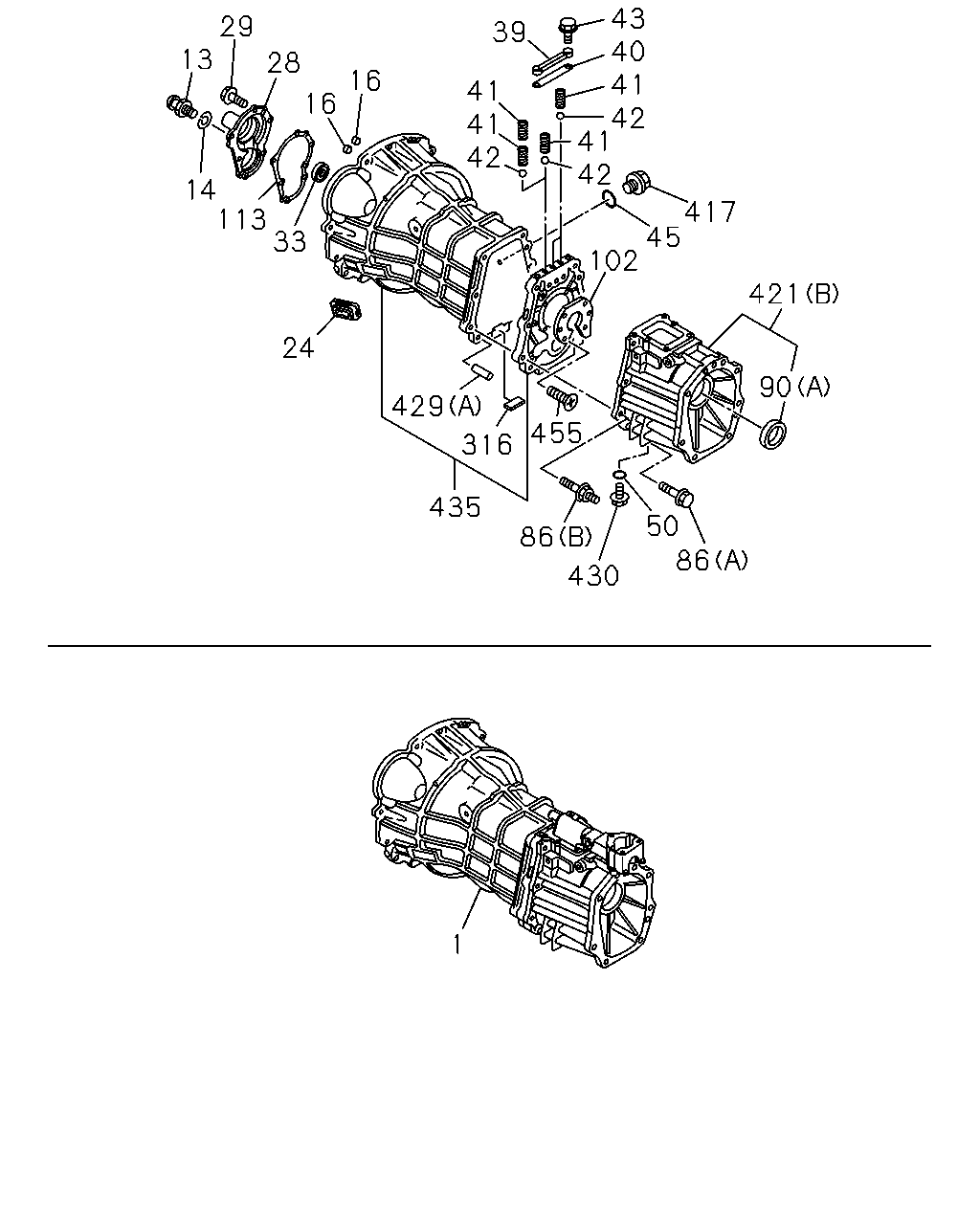

421 90 417 45 102 42 41 42 41 40 43 39 41 42 41 16 16 28 29 13 14 24 33 113 429 435 316 455 50 86 86 430 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98274-759-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> MADE IN JAPAN TRANSMISSION<8QP> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-98274-760-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> THA	8-97977-999-0	01	1	1510-		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98274-762-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-299-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-296-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-297-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> THA	8-97977-997-0	01	1	1510-		●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98087-608-0	01	1	1510-			●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98102-485-0	01	1	1510-			●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> THA	8-98102-382-0	01	1	1510-			●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	1510-	●	●	●
14	WASHER; LK,SUPPORT ID=12.2 IMA	0-91510-512-0	01	1	1510-		●
16	PLUG; SHIFT ROD OD=14 IMA	8-97358-601-0	02	1	1510-		●
24	COVER; CHECK HOLE,DUST IMA	8-94156-700-0	01	1	1510-		●
28	COVER; FRT,TRANS CASE THA	8-97381-406-0	01	1	1510-		●
28	COVER; FRT,TRANS CASE THA	8-98094-800-0	01	1	1510-			●
28	COVER; FRT,TRANS CASE IMA	8-98275-338-1	01	1	1510-	●
29	BOLT; FRT COVER M8X22 FLANGE IMA	8-97365-376-0	06	1	1510-		●
29	BOLT; FRT COVER M8X20 FLANGE THA	0-28650-820-0	03	1	1510-			●
29	BOLT; FRT COVER M8X30 FLANGE IMA	8-98275-947-0	09	1	1510-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97947-839-0	01	1	1510-		●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	1510-	●
39	PLATE; DETENT SPR IMA	8-98035-571-0	01	1	1510-		●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-600-1	01	1	1510-		●
41	SPRING; DETENT BALL L=26.8 IMA	8-94320-193-0	02	1	1510-		●
41	SPRING; DETENT BALL L=27.6 IMA	8-97214-402-0	01	1	1510-		●
41	SPRING; DETENT BALL L=26.6 IMA	8-97214-403-0	01	1	1510-		●
42	BALL; DETENT,GEAR SHIFT IMA	8-94435-335-0	03	1	1510-		●
43	BOLT; PLATE TO PLATE M8X22 FLANGE IMA	8-97365-376-0	02	1	1510-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1510-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> ID=17 IMA	8-97115-712-0	01	1	1510-	●	●	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	01	1	1510-		●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	07	1	1510-		●
86	BOLT; RR COVER (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1510-			●
86	BOLT; RR COVER (E) M8X35 FLANGE THA	0-28650-835-0	03	1	1510-			●
86	BOLT; RR COVER (F) M12X63 FLANGE IMA	8-98275-948-0	01	1	1510-	●
86	BOLT; RR COVER 4X4<TFS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1510-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> (D) NOK THA	8-97947-840-0	01	1	1510-		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (E) NOK IMA	8-98189-443-0	01	1	1510-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (A) NOK THA	8-97947-841-0	01	1	1510-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (C) JTEKT IMA	8-98004-531-0	01	1	1510-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (B) NOK IMA	8-97046-705-3	01	1	1510-	●	●	●
102	RETAINER; BRG UPR,MAINSHAFT IMA	8-97138-673-0	01	1	1510-		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-589-0	01	1	1510-		●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	1510-	●	●	●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> IMA	8-97365-373-0	01	1	1510-	●	●	●
421	COVER; RR,TRANS 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> MADE IN JAPAN TRANSMISSION<8QP> (G) IMA	8-98275-341-0	01	1	1510-	●
421	COVER; RR,TRANS 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MADE IN JAPAN TRANSMISSION<8QP> (G) THA	8-98303-302-0	01	1	1510-	●
421	COVER; RR,TRANS 4X2<TFB***> MADE IN JAPAN TRANSMISSION<8QP> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (G) IMA	8-98275-363-0	01	1	1510-	●
421	COVER; RR,TRANS 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MADE IN JAPAN TRANSMISSION<8QP> (G) THA	8-98303-303-0	01	1	1510-	●
421	COVER; RR,TRANS 4X4<TFS***> MADE IN JAPAN TRANSMISSION<8QP> (H) IMA	8-98275-370-0	01	1	1510-	●
421	COVER; RR,TRANS 4X2<TFB***> (A) THA	8-97978-059-0	01	1	1510-		●
421	COVER; RR,TRANS 4X2<TFB***> (C) THA	8-98108-318-0	01	1	1510-			●
421	COVER; RR,TRANS 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-98108-411-0	01	1	1510-			●
421	COVER; RR,TRANS 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-97382-905-2	01	1	1510-			●
421	COVER; RR,TRANS 4X4<TFS***> (B) THA	8-97978-061-0	01	1	1510-		●
421	COVER; RR,TRANS 4X4<TFS***> (E) THA	8-97362-423-1	01	1	1510-			●
421	COVER; RR,TRANS 4X4<TFS***> (F) THA	8-98108-319-0	01	1	1510-			●
421	COVER; RR,TRANS 4X4<TFS***> EXC. MADE IN JAPAN TRANSMISSION<8QP> (H) THA	8-98303-304-0	01	1	1510-	●
429	PIN; STRAIGHT (A) OD=10 L=40 IMA	5-09740-018-1	02	1	1510-		●
429	PIN; STRAIGHT 4X4<TFS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	1510-	●	●	●
430	PLUG; OIL DRAIN 4X4<TFS***> IMA	8-97365-374-0	01	1	1510-	●	●	●
435	CASE; TRANS IMA	8-98047-230-0	01	1	1510-		●
435	CASE; TRANS THA	8-98108-317-1	01	1	1510-			●
455	SCREW; BRG RET M8X22 IMA	8-98035-654-0	04	1	1510-		●

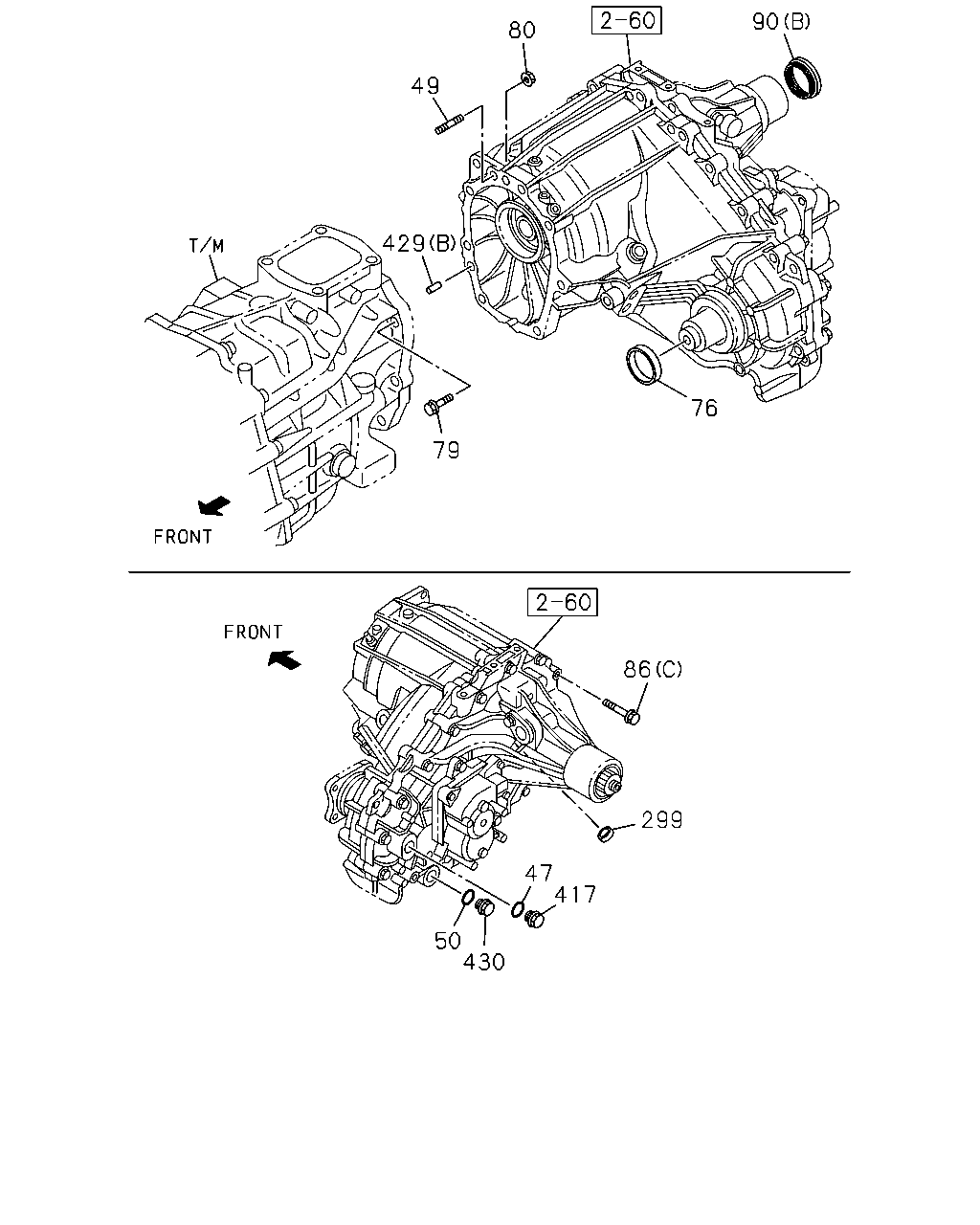

90 80 49 429 79 76 86 299 417 47 50 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> ID=17 IMA	8-97115-712-0	01	1	1510-	●	●	●
49	STUD; TRANSFER CASE 4X4<TFS***> M10X30 L=45 IMA	8-98035-675-0	01	1	1510-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> ID=17 IMA	8-97115-712-0	01	1	1510-	●	●	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> NOK IMA	8-97238-999-0	01	1	1510-	●	●	●
79	BOLT; TRANSFER CASE 4X4<TFS***> M10X35 FLANGE THA	0-28051-035-0	06	1	1510-	●	●	●
80	NUT; TRANSFER CASE 4X4<TFS***> M10 FLANGE THA	0-91180-110-0	01	1	1510-	●	●	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	01	1	1510-		●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	07	1	1510-		●
86	BOLT; RR COVER (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1510-			●
86	BOLT; RR COVER (E) M8X35 FLANGE THA	0-28650-835-0	03	1	1510-			●
86	BOLT; RR COVER (F) M12X63 FLANGE IMA	8-98275-948-0	01	1	1510-	●
86	BOLT; RR COVER 4X4<TFS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1510-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> (D) NOK THA	8-97947-840-0	01	1	1510-		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (E) NOK IMA	8-98189-443-0	01	1	1510-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (A) NOK THA	8-97947-841-0	01	1	1510-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (C) JTEKT IMA	8-98004-531-0	01	1	1510-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (B) NOK IMA	8-97046-705-3	01	1	1510-	●	●	●
299	PLUG; SHIFTER ROD 4X4<TFS***> OD=15.6 IMA	8-94173-641-0	02	1	1510-	●	●	●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> IMA	8-97365-373-0	01	1	1510-	●	●	●
429	PIN; STRAIGHT (A) OD=10 L=40 IMA	5-09740-018-1	02	1	1510-		●
429	PIN; STRAIGHT 4X4<TFS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	1510-	●	●	●
430	PLUG; OIL DRAIN 4X4<TFS***> IMA	8-97365-374-0	01	1	1510-	●	●	●

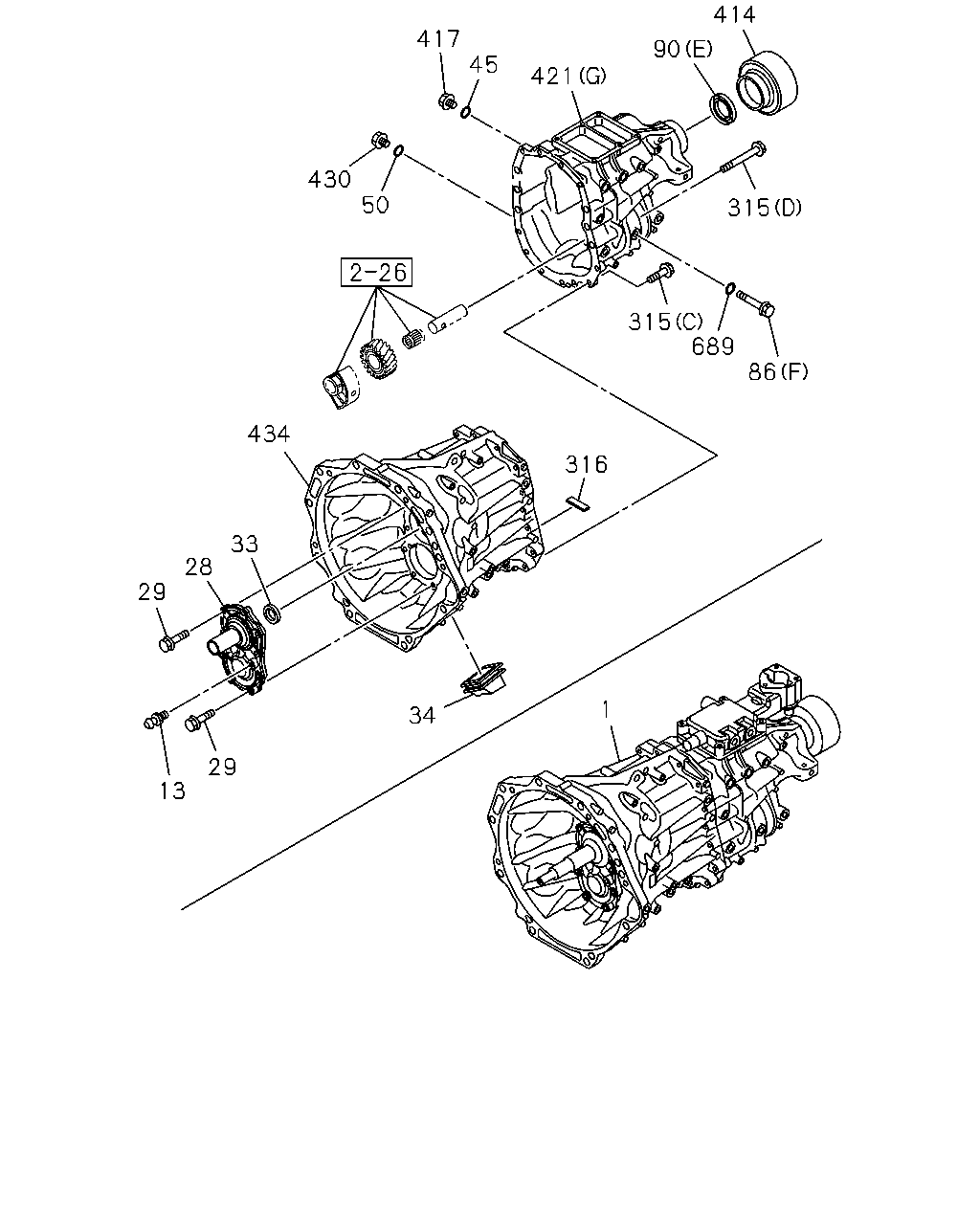

417 421 90 45 315 315 86 689 316 1 34 33 434 430 28 29 29 13 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98274-759-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> MADE IN JAPAN TRANSMISSION<8QP> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-98274-760-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> THA	8-97977-999-0	01	1	1510-		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98274-762-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-299-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-296-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-297-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> THA	8-97977-997-0	01	1	1510-		●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98087-608-0	01	1	1510-			●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98102-485-0	01	1	1510-			●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> THA	8-98102-382-0	01	1	1510-			●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	1510-	●	●	●
28	COVER; FRT,TRANS CASE THA	8-97381-406-0	01	1	1510-		●
28	COVER; FRT,TRANS CASE THA	8-98094-800-0	01	1	1510-			●
28	COVER; FRT,TRANS CASE IMA	8-98275-338-1	01	1	1510-	●
29	BOLT; FRT COVER M8X22 FLANGE IMA	8-97365-376-0	06	1	1510-		●
29	BOLT; FRT COVER M8X20 FLANGE THA	0-28650-820-0	03	1	1510-			●
29	BOLT; FRT COVER M8X30 FLANGE IMA	8-98275-947-0	09	1	1510-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97947-839-0	01	1	1510-		●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	1510-	●
34	COVER; DUST,SHIFT FORK THA	8-98097-470-0	01	1	1510-			●
34	COVER; DUST,SHIFT FORK THA	8-97500-668-0	01	1	1510-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1510-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> ID=17 IMA	8-97115-712-0	01	1	1510-	●	●	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	01	1	1510-		●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	07	1	1510-		●
86	BOLT; RR COVER (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1510-			●
86	BOLT; RR COVER (E) M8X35 FLANGE THA	0-28650-835-0	03	1	1510-			●
86	BOLT; RR COVER (F) M12X63 FLANGE IMA	8-98275-948-0	01	1	1510-	●
86	BOLT; RR COVER 4X4<TFS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1510-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> (D) NOK THA	8-97947-840-0	01	1	1510-		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (E) NOK IMA	8-98189-443-0	01	1	1510-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (A) NOK THA	8-97947-841-0	01	1	1510-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (C) JTEKT IMA	8-98004-531-0	01	1	1510-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (B) NOK IMA	8-97046-705-3	01	1	1510-	●	●	●
315	BOLT; CASE (A) M8X60 FLANGE THA	0-28050-860-0	14	1	1510-			●
315	BOLT; CASE (B) M8X35 FLANGE IMA	8-98046-876-0	11	1	1510-			●
315	BOLT; CASE (D) M8X100 FLANGE THA	0-28050-800-0	06	1	1510-	●
315	BOLT; CASE (C) M8X40 FLANGE THA	0-28050-840-0	11	1	1510-	●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	1510-	●	●	●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> IMA	8-97365-373-0	01	1	1510-	●	●	●
421	COVER; RR,TRANS 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> MADE IN JAPAN TRANSMISSION<8QP> (G) IMA	8-98275-341-0	01	1	1510-	●
421	COVER; RR,TRANS 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MADE IN JAPAN TRANSMISSION<8QP> (G) THA	8-98303-302-0	01	1	1510-	●
421	COVER; RR,TRANS 4X2<TFB***> MADE IN JAPAN TRANSMISSION<8QP> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (G) IMA	8-98275-363-0	01	1	1510-	●
421	COVER; RR,TRANS 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MADE IN JAPAN TRANSMISSION<8QP> (G) THA	8-98303-303-0	01	1	1510-	●
421	COVER; RR,TRANS 4X4<TFS***> MADE IN JAPAN TRANSMISSION<8QP> (H) IMA	8-98275-370-0	01	1	1510-	●
421	COVER; RR,TRANS 4X2<TFB***> (A) THA	8-97978-059-0	01	1	1510-		●
421	COVER; RR,TRANS 4X2<TFB***> (C) THA	8-98108-318-0	01	1	1510-			●
421	COVER; RR,TRANS 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-98108-411-0	01	1	1510-			●
421	COVER; RR,TRANS 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-97382-905-2	01	1	1510-			●
421	COVER; RR,TRANS 4X4<TFS***> (B) THA	8-97978-061-0	01	1	1510-		●
421	COVER; RR,TRANS 4X4<TFS***> (E) THA	8-97362-423-1	01	1	1510-			●
421	COVER; RR,TRANS 4X4<TFS***> (F) THA	8-98108-319-0	01	1	1510-			●
421	COVER; RR,TRANS 4X4<TFS***> EXC. MADE IN JAPAN TRANSMISSION<8QP> (H) THA	8-98303-304-0	01	1	1510-	●
430	PLUG; OIL DRAIN 4X4<TFS***> IMA	8-97365-374-0	01	1	1510-	●	●	●
434	HOUSING; CLU MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98275-339-0	01	1	1510-	●
434	HOUSING; CLU EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-300-0	01	1	1510-	●
434	HOUSING; CLU THA	8-98108-316-0	01	1	1510-			●
689	GASKET ALSO INCLUDED IN GASKET SET(M/T). ID=12.2 IMA	9-09571-412-0	01	1	1510-	●

435 28 33 434 315 1 13 29 680 34 114 608 603 676 677 675 674 675 678 608 315 679 86 421 414 90 25 86 419 50 430 326 45 417 421 316 608 679 608 679 675 510 682 675 680 114 680

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98274-759-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> MADE IN JAPAN TRANSMISSION<8QP> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-98274-760-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> THA	8-97977-999-0	01	1	1510-		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98274-762-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-299-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-296-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-297-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> THA	8-97977-997-0	01	1	1510-		●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98087-608-0	01	1	1510-			●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98102-485-0	01	1	1510-			●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> THA	8-98102-382-0	01	1	1510-			●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	1510-	●	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> IMA	8-98004-774-0	01	1	1510-			●
28	COVER; FRT,TRANS CASE THA	8-97381-406-0	01	1	1510-		●
28	COVER; FRT,TRANS CASE THA	8-98094-800-0	01	1	1510-			●
28	COVER; FRT,TRANS CASE IMA	8-98275-338-1	01	1	1510-	●
29	BOLT; FRT COVER M8X22 FLANGE IMA	8-97365-376-0	06	1	1510-		●
29	BOLT; FRT COVER M8X20 FLANGE THA	0-28650-820-0	03	1	1510-			●
29	BOLT; FRT COVER M8X30 FLANGE IMA	8-98275-947-0	09	1	1510-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97947-839-0	01	1	1510-		●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	1510-	●
34	COVER; DUST,SHIFT FORK THA	8-98097-470-0	01	1	1510-			●
34	COVER; DUST,SHIFT FORK THA	8-97500-668-0	01	1	1510-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1510-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> ID=17 IMA	8-97115-712-0	01	1	1510-	●	●	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	01	1	1510-		●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	07	1	1510-		●
86	BOLT; RR COVER (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1510-			●
86	BOLT; RR COVER (E) M8X35 FLANGE THA	0-28650-835-0	03	1	1510-			●
86	BOLT; RR COVER (F) M12X63 FLANGE IMA	8-98275-948-0	01	1	1510-	●
86	BOLT; RR COVER 4X4<TFS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1510-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> (D) NOK THA	8-97947-840-0	01	1	1510-		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (E) NOK IMA	8-98189-443-0	01	1	1510-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (A) NOK THA	8-97947-841-0	01	1	1510-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (C) JTEKT IMA	8-98004-531-0	01	1	1510-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (B) NOK IMA	8-97046-705-3	01	1	1510-	●	●	●
114	RING; SNAP,BALL BRG (A) OD=77 IMA	8-98024-221-0	01	1	1510-			●
114	RING; SNAP,BALL BRG (B) OD=60.2 IMA	9-09180-156-0	01	1	1510-			●
315	BOLT; CASE (A) M8X60 FLANGE THA	0-28050-860-0	14	1	1510-			●
315	BOLT; CASE (B) M8X35 FLANGE IMA	8-98046-876-0	11	1	1510-			●
315	BOLT; CASE (D) M8X100 FLANGE THA	0-28050-800-0	06	1	1510-	●
315	BOLT; CASE (C) M8X40 FLANGE THA	0-28050-840-0	11	1	1510-	●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	1510-	●	●	●
326	NOZZLE; OIL,OUTLET IMA	8-98023-517-0	01	1	1510-			●
414	COVER; DUST,RR COVER 4X2<TFB***> IMA	8-98027-802-0	01	1	1510-		●	●
414	COVER; DUST,RR COVER 4X2<TFB***> IMA	8-98275-350-1	01	1	1510-	●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> IMA	8-97365-373-0	01	1	1510-	●	●	●
419	PLUG; RR COVER M12X9 IMA	8-98047-054-0	01	1	1510-			●
421	COVER; RR,TRANS 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> MADE IN JAPAN TRANSMISSION<8QP> (G) IMA	8-98275-341-0	01	1	1510-	●
421	COVER; RR,TRANS 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MADE IN JAPAN TRANSMISSION<8QP> (G) THA	8-98303-302-0	01	1	1510-	●
421	COVER; RR,TRANS 4X2<TFB***> MADE IN JAPAN TRANSMISSION<8QP> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (G) IMA	8-98275-363-0	01	1	1510-	●
421	COVER; RR,TRANS 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MADE IN JAPAN TRANSMISSION<8QP> (G) THA	8-98303-303-0	01	1	1510-	●
421	COVER; RR,TRANS 4X4<TFS***> MADE IN JAPAN TRANSMISSION<8QP> (H) IMA	8-98275-370-0	01	1	1510-	●
421	COVER; RR,TRANS 4X2<TFB***> (A) THA	8-97978-059-0	01	1	1510-		●
421	COVER; RR,TRANS 4X2<TFB***> (C) THA	8-98108-318-0	01	1	1510-			●
421	COVER; RR,TRANS 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-98108-411-0	01	1	1510-			●
421	COVER; RR,TRANS 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-97382-905-2	01	1	1510-			●
421	COVER; RR,TRANS 4X4<TFS***> (B) THA	8-97978-061-0	01	1	1510-		●
421	COVER; RR,TRANS 4X4<TFS***> (E) THA	8-97362-423-1	01	1	1510-			●
421	COVER; RR,TRANS 4X4<TFS***> (F) THA	8-98108-319-0	01	1	1510-			●
421	COVER; RR,TRANS 4X4<TFS***> EXC. MADE IN JAPAN TRANSMISSION<8QP> (H) THA	8-98303-304-0	01	1	1510-	●
430	PLUG; OIL DRAIN 4X4<TFS***> IMA	8-97365-374-0	01	1	1510-	●	●	●
434	HOUSING; CLU MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98275-339-0	01	1	1510-	●
434	HOUSING; CLU EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-300-0	01	1	1510-	●
434	HOUSING; CLU THA	8-98108-316-0	01	1	1510-			●
435	CASE; TRANS IMA	8-98047-230-0	01	1	1510-		●
435	CASE; TRANS THA	8-98108-317-1	01	1	1510-			●
510	BEARING THA	8-97362-853-0	01	1	1510-			●
603	RING; SNAP IMA	8-98039-270-0	01	1	1510-			●
608	GUTTER; OIL (A) IMA	8-97362-391-0	01	1	1510-			●
608	GUTTER; OIL (B) IMA	8-97362-564-1	01	1	1510-			●
608	GUTTER; OIL (D) IMA	8-98004-505-0	01	1	1510-			●
608	GUTTER; OIL (C) IMA	8-98142-574-0	01	1	1510-			●
674	PLATE; INTERMEDIATE THA	8-98042-863-0	01	1	1510-			●
675	DOWEL OD=11 L=8 IMA	9-11229-058-1	04	1	1510-			●
676	INHIBITOR IMA	8-98037-604-1	01	1	1510-			●
677	SPRING; INHIBITOR IMA	8-97362-852-0	01	1	1510-			●
678	PIN IMA	9-08160-436-0	01	1	1510-			●
679	BOLT; GUTTER M6X12 FLANGE THA	0-28050-612-0	04	1	1510-			●
680	BEARING (A) IMA	8-97362-720-1	01	1	1510-			●
680	BEARING (C) THA	8-97362-853-0	01	1	1510-			●
680	BEARING (B) IMA	8-98024-431-0	01	1	1510-			●
682	BOLT; INHIBITOR M10X50 IMA	8-98042-618-0	01	1	1510-			●

435 28 33 680 34 29 114 608 603 676 677 675 675 678 674 13 315 434 1 510 682 608 679 679 316 675 675 417 608 315 86 90 86 421 419 50 326 680 680 421 608 114 430 45 679

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98274-759-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> MADE IN JAPAN TRANSMISSION<8QP> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-98274-760-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> THA	8-97977-999-0	01	1	1510-		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98274-762-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-299-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-296-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-297-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> THA	8-97977-997-0	01	1	1510-		●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98087-608-0	01	1	1510-			●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98102-485-0	01	1	1510-			●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> THA	8-98102-382-0	01	1	1510-			●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	1510-	●	●	●
28	COVER; FRT,TRANS CASE THA	8-97381-406-0	01	1	1510-		●
28	COVER; FRT,TRANS CASE THA	8-98094-800-0	01	1	1510-			●
28	COVER; FRT,TRANS CASE IMA	8-98275-338-1	01	1	1510-	●
29	BOLT; FRT COVER M8X22 FLANGE IMA	8-97365-376-0	06	1	1510-		●
29	BOLT; FRT COVER M8X20 FLANGE THA	0-28650-820-0	03	1	1510-			●
29	BOLT; FRT COVER M8X30 FLANGE IMA	8-98275-947-0	09	1	1510-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97947-839-0	01	1	1510-		●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	1510-	●
34	COVER; DUST,SHIFT FORK THA	8-98097-470-0	01	1	1510-			●
34	COVER; DUST,SHIFT FORK THA	8-97500-668-0	01	1	1510-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1510-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> ID=17 IMA	8-97115-712-0	01	1	1510-	●	●	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	01	1	1510-		●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	07	1	1510-		●
86	BOLT; RR COVER (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1510-			●
86	BOLT; RR COVER (E) M8X35 FLANGE THA	0-28650-835-0	03	1	1510-			●
86	BOLT; RR COVER (F) M12X63 FLANGE IMA	8-98275-948-0	01	1	1510-	●
86	BOLT; RR COVER 4X4<TFS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1510-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> (D) NOK THA	8-97947-840-0	01	1	1510-		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (E) NOK IMA	8-98189-443-0	01	1	1510-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (A) NOK THA	8-97947-841-0	01	1	1510-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (C) JTEKT IMA	8-98004-531-0	01	1	1510-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (B) NOK IMA	8-97046-705-3	01	1	1510-	●	●	●
114	RING; SNAP,BALL BRG (A) OD=77 IMA	8-98024-221-0	01	1	1510-			●
114	RING; SNAP,BALL BRG (B) OD=60.2 IMA	9-09180-156-0	01	1	1510-			●
315	BOLT; CASE (A) M8X60 FLANGE THA	0-28050-860-0	14	1	1510-			●
315	BOLT; CASE (B) M8X35 FLANGE IMA	8-98046-876-0	11	1	1510-			●
315	BOLT; CASE (D) M8X100 FLANGE THA	0-28050-800-0	06	1	1510-	●
315	BOLT; CASE (C) M8X40 FLANGE THA	0-28050-840-0	11	1	1510-	●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	1510-	●	●	●
326	NOZZLE; OIL,OUTLET IMA	8-98023-517-0	01	1	1510-			●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> IMA	8-97365-373-0	01	1	1510-	●	●	●
419	PLUG; RR COVER M12X9 IMA	8-98047-054-0	01	1	1510-			●
421	COVER; RR,TRANS 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> MADE IN JAPAN TRANSMISSION<8QP> (G) IMA	8-98275-341-0	01	1	1510-	●
421	COVER; RR,TRANS 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MADE IN JAPAN TRANSMISSION<8QP> (G) THA	8-98303-302-0	01	1	1510-	●
421	COVER; RR,TRANS 4X2<TFB***> MADE IN JAPAN TRANSMISSION<8QP> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (G) IMA	8-98275-363-0	01	1	1510-	●
421	COVER; RR,TRANS 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MADE IN JAPAN TRANSMISSION<8QP> (G) THA	8-98303-303-0	01	1	1510-	●
421	COVER; RR,TRANS 4X4<TFS***> MADE IN JAPAN TRANSMISSION<8QP> (H) IMA	8-98275-370-0	01	1	1510-	●
421	COVER; RR,TRANS 4X2<TFB***> (A) THA	8-97978-059-0	01	1	1510-		●
421	COVER; RR,TRANS 4X2<TFB***> (C) THA	8-98108-318-0	01	1	1510-			●
421	COVER; RR,TRANS 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-98108-411-0	01	1	1510-			●
421	COVER; RR,TRANS 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-97382-905-2	01	1	1510-			●
421	COVER; RR,TRANS 4X4<TFS***> (B) THA	8-97978-061-0	01	1	1510-		●
421	COVER; RR,TRANS 4X4<TFS***> (E) THA	8-97362-423-1	01	1	1510-			●
421	COVER; RR,TRANS 4X4<TFS***> (F) THA	8-98108-319-0	01	1	1510-			●
421	COVER; RR,TRANS 4X4<TFS***> EXC. MADE IN JAPAN TRANSMISSION<8QP> (H) THA	8-98303-304-0	01	1	1510-	●
430	PLUG; OIL DRAIN 4X4<TFS***> IMA	8-97365-374-0	01	1	1510-	●	●	●
434	HOUSING; CLU MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98275-339-0	01	1	1510-	●
434	HOUSING; CLU EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-300-0	01	1	1510-	●
434	HOUSING; CLU THA	8-98108-316-0	01	1	1510-			●
435	CASE; TRANS IMA	8-98047-230-0	01	1	1510-		●
435	CASE; TRANS THA	8-98108-317-1	01	1	1510-			●
510	BEARING THA	8-97362-853-0	01	1	1510-			●
603	RING; SNAP IMA	8-98039-270-0	01	1	1510-			●
608	GUTTER; OIL (A) IMA	8-97362-391-0	01	1	1510-			●
608	GUTTER; OIL (B) IMA	8-97362-564-1	01	1	1510-			●
608	GUTTER; OIL (D) IMA	8-98004-505-0	01	1	1510-			●
608	GUTTER; OIL (C) IMA	8-98142-574-0	01	1	1510-			●
674	PLATE; INTERMEDIATE THA	8-98042-863-0	01	1	1510-			●
675	DOWEL OD=11 L=8 IMA	9-11229-058-1	04	1	1510-			●
676	INHIBITOR IMA	8-98037-604-1	01	1	1510-			●
677	SPRING; INHIBITOR IMA	8-97362-852-0	01	1	1510-			●
678	PIN IMA	9-08160-436-0	01	1	1510-			●
679	BOLT; GUTTER M6X12 FLANGE THA	0-28050-612-0	04	1	1510-			●
680	BEARING (A) IMA	8-97362-720-1	01	1	1510-			●
680	BEARING (C) THA	8-97362-853-0	01	1	1510-			●
680	BEARING (B) IMA	8-98024-431-0	01	1	1510-			●
682	BOLT; INHIBITOR M10X50 IMA	8-98042-618-0	01	1	1510-			●

29 113 16 16 41 41 42 43 40 41 42 41 42 45 417 421 102 90 50 414 430 86 86 435 316 429 24 33 28 14 13 39 1 455

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98274-759-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> MADE IN JAPAN TRANSMISSION<8QP> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> IMA	8-98274-760-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> THA	8-97977-999-0	01	1	1510-		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> MADE IN JAPAN TRANSMISSION<8QP> IMA	8-98274-762-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-299-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-296-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MADE IN JAPAN TRANSMISSION<8QP> THA	8-98303-297-0	01	1	1510-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> THA	8-97977-997-0	01	1	1510-		●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98087-608-0	01	1	1510-			●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98102-485-0	01	1	1510-			●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> THA	8-98102-382-0	01	1	1510-			●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	1510-	●	●	●
14	WASHER; LK,SUPPORT ID=12.2 IMA	0-91510-512-0	01	1	1510-		●
16	PLUG; SHIFT ROD OD=14 IMA	8-97358-601-0	02	1	1510-		●
24	COVER; CHECK HOLE,DUST IMA	8-94156-700-0	01	1	1510-		●
28	COVER; FRT,TRANS CASE THA	8-97381-406-0	01	1	1510-		●
28	COVER; FRT,TRANS CASE THA	8-98094-800-0	01	1	1510-			●
28	COVER; FRT,TRANS CASE IMA	8-98275-338-1	01	1	1510-	●
29	BOLT; FRT COVER M8X22 FLANGE IMA	8-97365-376-0	06	1	1510-		●
29	BOLT; FRT COVER M8X20 FLANGE THA	0-28650-820-0	03	1	1510-			●
29	BOLT; FRT COVER M8X30 FLANGE IMA	8-98275-947-0	09	1	1510-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97947-839-0	01	1	1510-		●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	1510-	●
39	PLATE; DETENT SPR IMA	8-98035-571-0	01	1	1510-		●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-600-1	01	1	1510-		●
41	SPRING; DETENT BALL L=26.8 IMA	8-94320-193-0	02	1	1510-		●
41	SPRING; DETENT BALL L=27.6 IMA	8-97214-402-0	01	1	1510-		●
41	SPRING; DETENT BALL L=26.6 IMA	8-97214-403-0	01	1	1510-		●
42	BALL; DETENT,GEAR SHIFT IMA	8-94435-335-0	03	1	1510-		●
43	BOLT; PLATE TO PLATE M8X22 FLANGE IMA	8-97365-376-0	02	1	1510-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1510-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> ID=17 IMA	8-97115-712-0	01	1	1510-	●	●	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	01	1	1510-		●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	07	1	1510-		●
86	BOLT; RR COVER (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1510-			●
86	BOLT; RR COVER (E) M8X35 FLANGE THA	0-28650-835-0	03	1	1510-			●
86	BOLT; RR COVER (F) M12X63 FLANGE IMA	8-98275-948-0	01	1	1510-	●
86	BOLT; RR COVER 4X4<TFS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1510-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> (D) NOK THA	8-97947-840-0	01	1	1510-		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (E) NOK IMA	8-98189-443-0	01	1	1510-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (A) NOK THA	8-97947-841-0	01	1	1510-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (C) JTEKT IMA	8-98004-531-0	01	1	1510-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (B) NOK IMA	8-97046-705-3	01	1	1510-	●	●	●
102	RETAINER; BRG UPR,MAINSHAFT IMA	8-97138-673-0	01	1	1510-		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-589-0	01	1	1510-		●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	1510-	●	●	●
414	COVER; DUST,RR COVER 4X2<TFB***> IMA	8-98027-802-0	01	1	1510-		●	●
414	COVER; DUST,RR COVER 4X2<TFB***> IMA	8-98275-350-1	01	1	1510-	●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> IMA	8-97365-373-0	01	1	1510-	●	●	●
421	COVER; RR,TRANS 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> MADE IN JAPAN TRANSMISSION<8QP> (G) IMA	8-98275-341-0	01	1	1510-	●
421	COVER; RR,TRANS 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MADE IN JAPAN TRANSMISSION<8QP> (G) THA	8-98303-302-0	01	1	1510-	●
421	COVER; RR,TRANS 4X2<TFB***> MADE IN JAPAN TRANSMISSION<8QP> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (G) IMA	8-98275-363-0	01	1	1510-	●
421	COVER; RR,TRANS 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,MADE IN JAPAN TRANSMISSION<8QP> (G) THA	8-98303-303-0	01	1	1510-	●
421	COVER; RR,TRANS 4X4<TFS***> MADE IN JAPAN TRANSMISSION<8QP> (H) IMA	8-98275-370-0	01	1	1510-	●
421	COVER; RR,TRANS 4X2<TFB***> (A) THA	8-97978-059-0	01	1	1510-		●
421	COVER; RR,TRANS 4X2<TFB***> (C) THA	8-98108-318-0	01	1	1510-			●
421	COVER; RR,TRANS 4X2<TFB***> 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-98108-411-0	01	1	1510-			●
421	COVER; RR,TRANS 4X2<TFB***> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-97382-905-2	01	1	1510-			●
421	COVER; RR,TRANS 4X4<TFS***> (B) THA	8-97978-061-0	01	1	1510-		●
421	COVER; RR,TRANS 4X4<TFS***> (E) THA	8-97362-423-1	01	1	1510-			●
421	COVER; RR,TRANS 4X4<TFS***> (F) THA	8-98108-319-0	01	1	1510-			●
421	COVER; RR,TRANS 4X4<TFS***> EXC. MADE IN JAPAN TRANSMISSION<8QP> (H) THA	8-98303-304-0	01	1	1510-	●
429	PIN; STRAIGHT (A) OD=10 L=40 IMA	5-09740-018-1	02	1	1510-		●
429	PIN; STRAIGHT 4X4<TFS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	1510-	●	●	●
430	PLUG; OIL DRAIN 4X4<TFS***> IMA	8-97365-374-0	01	1	1510-	●	●	●
435	CASE; TRANS IMA	8-98047-230-0	01	1	1510-		●
435	CASE; TRANS THA	8-98108-317-1	01	1	1510-			●
455	SCREW; BRG RET M8X22 IMA	8-98035-654-0	04	1	1510-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
