◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51632 - TFR/TFS THAILAND ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06 - CLUTCH SLAVE CYLINDER ▶
2-06 — CLUTCH SLAVE CYLINDER (#166053) — 48 parça

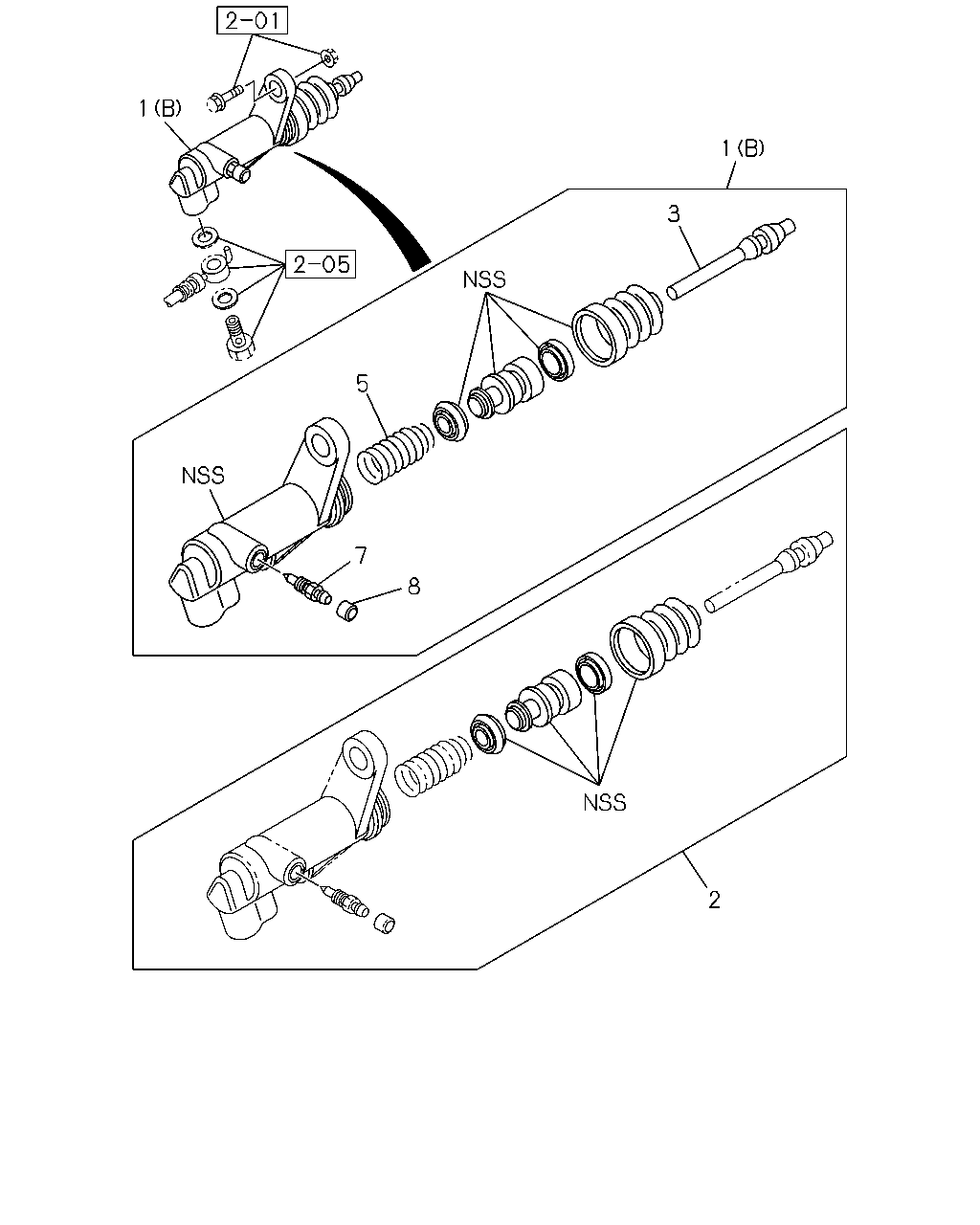

çizim 492271
1 5 3 1 7 8 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CYLINDER; SLAVE,CLU
4X2<TFB***> (A) THA 		8-97945-177-0 01 1 1510- ●
1 CYLINDER; SLAVE,CLU
(C) THA 		8-97946-624-2 01 1 1510- ●
1 CYLINDER; SLAVE,CLU
(D) THA 		8-97949-006-0 01 1 1510- ●
1 CYLINDER; SLAVE,CLU
4X4<TFS***> (B) THA 		8-97946-625-1 01 1 1510- ●
2 REPAIR KIT; CLU SLAVE CYL
THA 		5-87832-048-0 01 1 1510- ● ●
2 REPAIR KIT; CLU SLAVE CYL
THA 		5-87832-360-0 01 1 1510- ●
3 ROD; PUSH,SLAVE CYL
THA 		8-97945-722-0 01 1 1510- ●
3 ROD; PUSH,SLAVE CYL
THA 		8-98187-063-0 01 1 1510- ●
3 ROD; PUSH,SLAVE CYL
THA 		8-98280-478-0 01 1 1510- ●
5 SPRING ASM; PISTON,SLAVE CYL
THA 		8-97942-801-0 01 1 1510- ● ● ●
7 SCREW; BLEEDER,SLAVE CYL
M8X10 IMA 		8-98020-477-0 01 1 1510- ● ● ●
8 CAP; BLEEDER,SLAVE CYL
OD=10 IMA 		8-97940-638-0 01 1 1510- ● ● ●

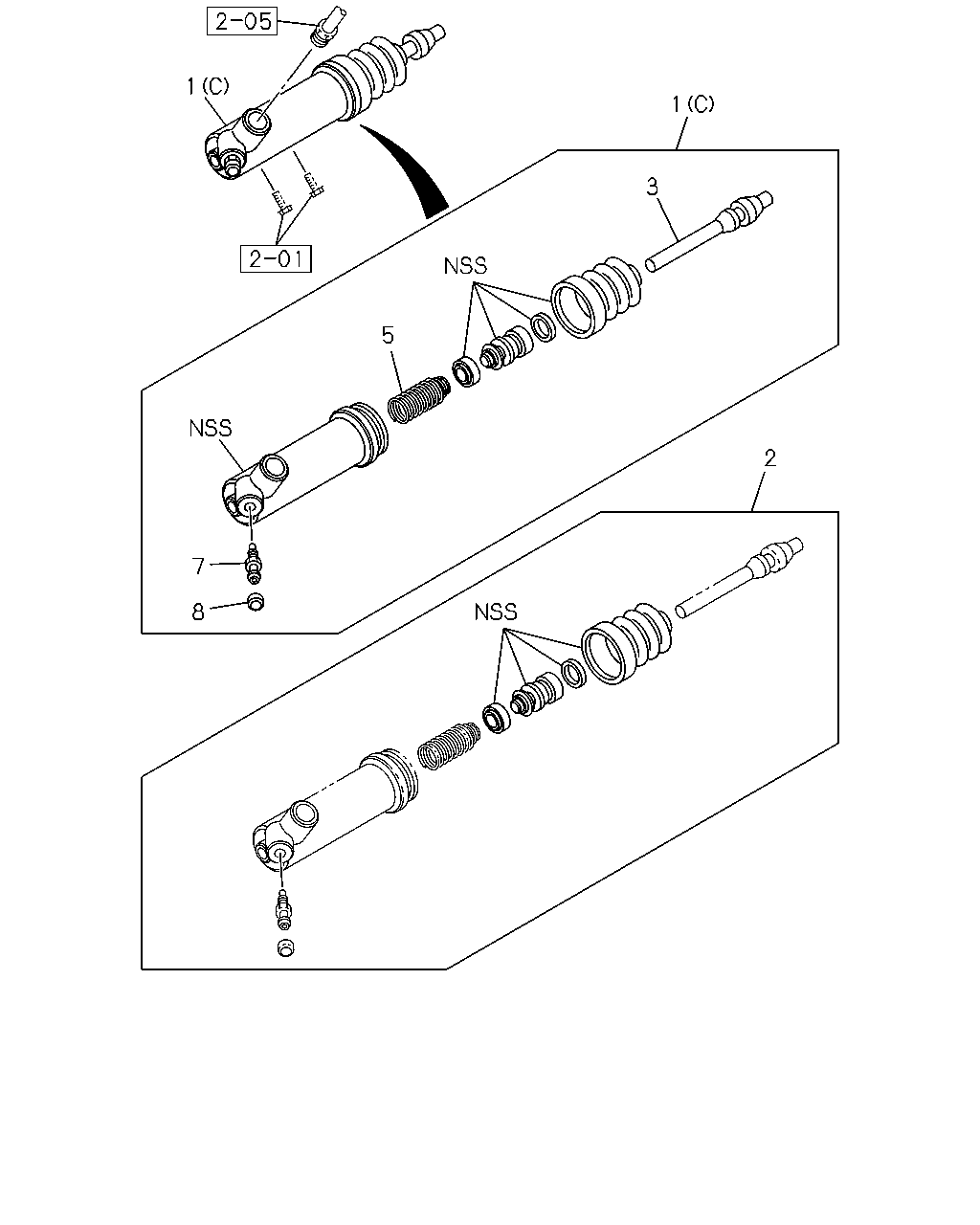

çizim 492276
1 5 3 1 2 7 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CYLINDER; SLAVE,CLU
4X2<TFB***> (A) THA 		8-97945-177-0 01 1 1510- ●
1 CYLINDER; SLAVE,CLU
(C) THA 		8-97946-624-2 01 1 1510- ●
1 CYLINDER; SLAVE,CLU
(D) THA 		8-97949-006-0 01 1 1510- ●
1 CYLINDER; SLAVE,CLU
4X4<TFS***> (B) THA 		8-97946-625-1 01 1 1510- ●
2 REPAIR KIT; CLU SLAVE CYL
THA 		5-87832-048-0 01 1 1510- ● ●
2 REPAIR KIT; CLU SLAVE CYL
THA 		5-87832-360-0 01 1 1510- ●
3 ROD; PUSH,SLAVE CYL
THA 		8-97945-722-0 01 1 1510- ●
3 ROD; PUSH,SLAVE CYL
THA 		8-98187-063-0 01 1 1510- ●
3 ROD; PUSH,SLAVE CYL
THA 		8-98280-478-0 01 1 1510- ●
5 SPRING ASM; PISTON,SLAVE CYL
THA 		8-97942-801-0 01 1 1510- ● ● ●
7 SCREW; BLEEDER,SLAVE CYL
M8X10 IMA 		8-98020-477-0 01 1 1510- ● ● ●
8 CAP; BLEEDER,SLAVE CYL
OD=10 IMA 		8-97940-638-0 01 1 1510- ● ● ●

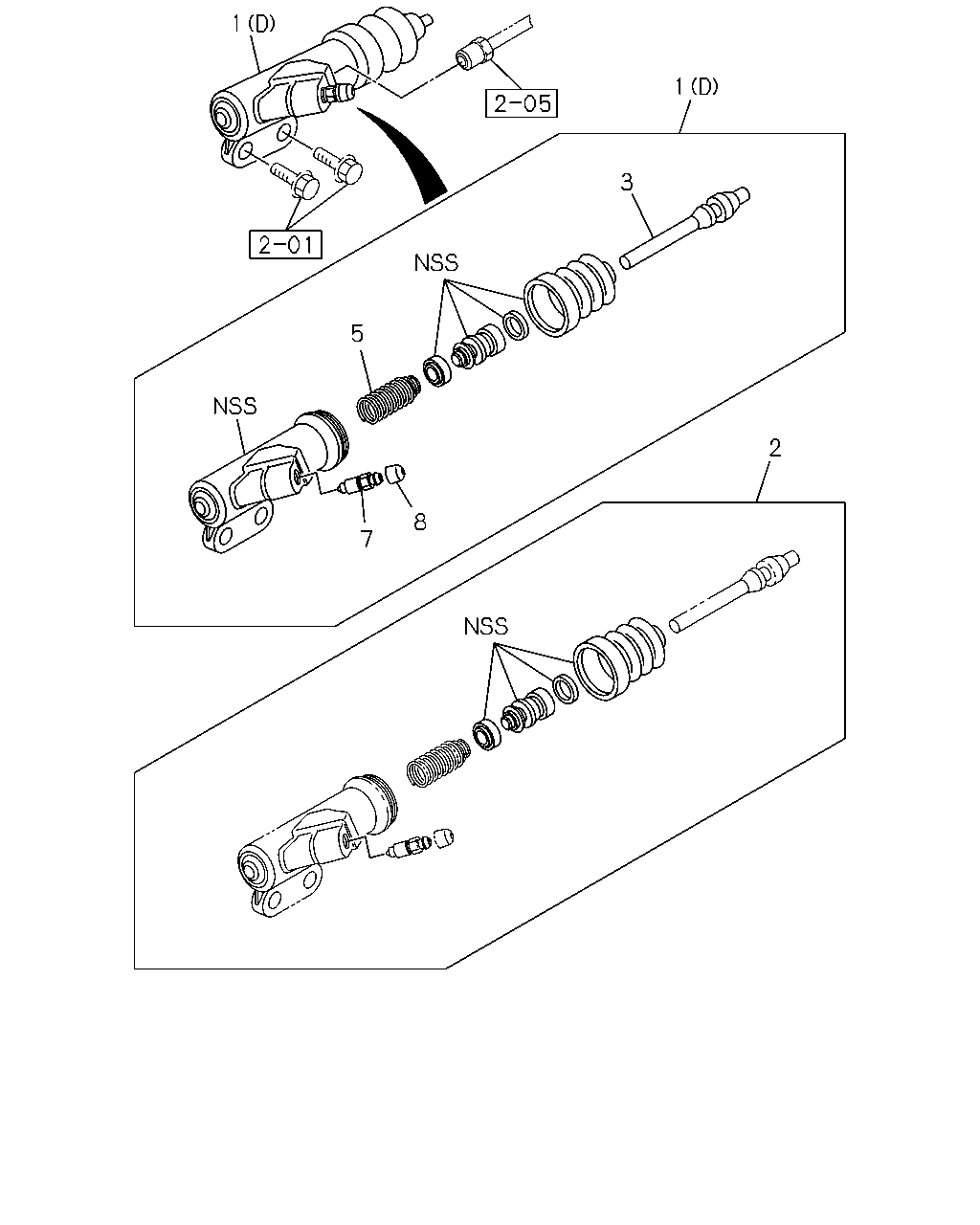

çizim 492277
1 5 3 1 8 7 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CYLINDER; SLAVE,CLU
4X2<TFB***> (A) THA 		8-97945-177-0 01 1 1510- ●
1 CYLINDER; SLAVE,CLU
(C) THA 		8-97946-624-2 01 1 1510- ●
1 CYLINDER; SLAVE,CLU
(D) THA 		8-97949-006-0 01 1 1510- ●
1 CYLINDER; SLAVE,CLU
4X4<TFS***> (B) THA 		8-97946-625-1 01 1 1510- ●
2 REPAIR KIT; CLU SLAVE CYL
THA 		5-87832-048-0 01 1 1510- ● ●
2 REPAIR KIT; CLU SLAVE CYL
THA 		5-87832-360-0 01 1 1510- ●
3 ROD; PUSH,SLAVE CYL
THA 		8-97945-722-0 01 1 1510- ●
3 ROD; PUSH,SLAVE CYL
THA 		8-98187-063-0 01 1 1510- ●
3 ROD; PUSH,SLAVE CYL
THA 		8-98280-478-0 01 1 1510- ●
5 SPRING ASM; PISTON,SLAVE CYL
THA 		8-97942-801-0 01 1 1510- ● ● ●
7 SCREW; BLEEDER,SLAVE CYL
M8X10 IMA 		8-98020-477-0 01 1 1510- ● ● ●
8 CAP; BLEEDER,SLAVE CYL
OD=10 IMA 		8-97940-638-0 01 1 1510- ● ● ●

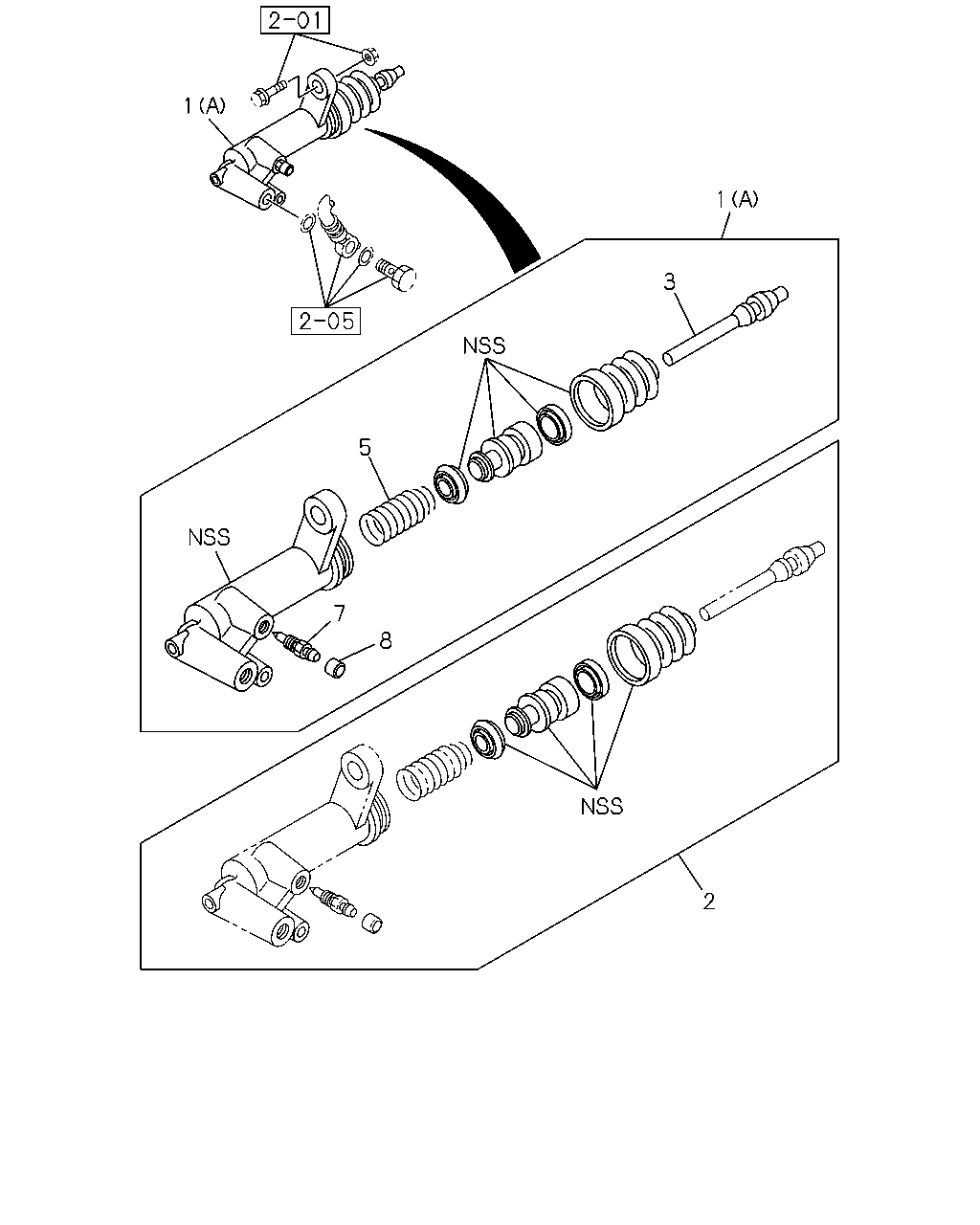

çizim 493344
1 1 3 5 7 8 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CYLINDER; SLAVE,CLU
4X2<TFB***> (A) THA 		8-97945-177-0 01 1 1510- ●
1 CYLINDER; SLAVE,CLU
(C) THA 		8-97946-624-2 01 1 1510- ●
1 CYLINDER; SLAVE,CLU
(D) THA 		8-97949-006-0 01 1 1510- ●
1 CYLINDER; SLAVE,CLU
4X4<TFS***> (B) THA 		8-97946-625-1 01 1 1510- ●
2 REPAIR KIT; CLU SLAVE CYL
THA 		5-87832-048-0 01 1 1510- ● ●
2 REPAIR KIT; CLU SLAVE CYL
THA 		5-87832-360-0 01 1 1510- ●
3 ROD; PUSH,SLAVE CYL
THA 		8-97945-722-0 01 1 1510- ●
3 ROD; PUSH,SLAVE CYL
THA 		8-98187-063-0 01 1 1510- ●
3 ROD; PUSH,SLAVE CYL
THA 		8-98280-478-0 01 1 1510- ●
5 SPRING ASM; PISTON,SLAVE CYL
THA 		8-97942-801-0 01 1 1510- ● ● ●
7 SCREW; BLEEDER,SLAVE CYL
M8X10 IMA 		8-98020-477-0 01 1 1510- ● ● ●
8 CAP; BLEEDER,SLAVE CYL
OD=10 IMA 		8-97940-638-0 01 1 1510- ● ● ●
