◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51632 - TFR/TFS THAILAND ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#166051) — 15 parça

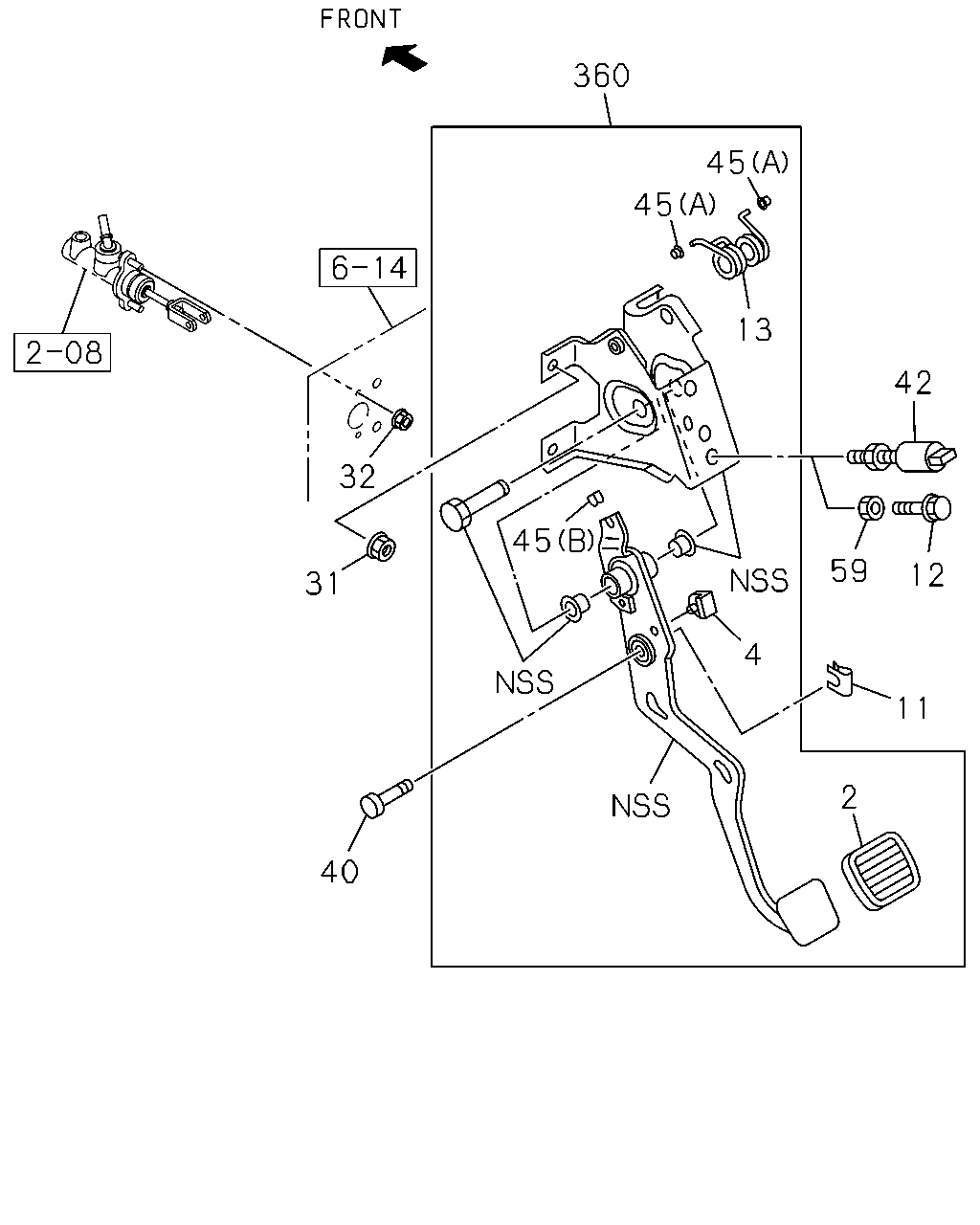

çizim 492342
11 12 42 45 45 13 360 32 31 40 45 4 2 59
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 COVER; CLU PEDAL
THA 		8-97318-799-0 01 1 1510- ● ● ● ● ● ●
4 STOPPER; CLU PEDAL
THA 		8-97947-783-0 01 1 1510- ● ● ● ● ● ●
11 PIN; SNAP,PUSH ROD TO PEDAL
IMA 		8-98007-161-0 01 1 1510- ● ● ● ● ● ●
12 BOLT; CLU PEDAL ADJ
M/T MUA 5 SPEED 5H<MWQ> M10X35 THA 		0-20851-035-0 01 1 1510- ● ● ● ●
13 SPRING; ASSIST,CLU PEDAL
THA 		8-97942-312-0 01 1 1510- ● ● ● ● ● ●
31 NUT; MTG BRKT TO BODY
M8 FLANGE THA 		0-91180-108-0 04 1 1510- ● ● ● ● ● ●
32 NUT; BRKT TO CLU M/CYL
M8 FLANGE THA 		0-91180-108-0 02 1 1510- ● ● ● ● ● ●
40 PIN; JOINT,CLU DAMPER
OD=7.9 L=27.5 IMA 		8-97312-338-0 01 1 1510- ● ● ● ● ● ●
42 SWITCH; CLU
M/T MUX 5 SPEED 5S<MZJ>,M/T MVL 6 SPEED 6N<Y5Z> THA 		8-98154-210-0 01 1 1510- ● ● ● ● ● ●
45 BUSHING; ASSIST SPRING,CLU PEDAL
(A) THA 		8-97942-313-0 02 1 1510- ● ● ● ● ● ●
45 BUSHING; ASSIST SPRING,CLU PEDAL
(B) THA 		8-97942-314-0 01 1 1510- ● ● ● ● ● ●
59 NUT; CLU PEDAL ADJ
M/T MUA 5 SPEED 5H<MWQ> M10 THA 		0-91110-510-0 01 1 1510- ● ● ● ●
360 PEDAL ASM; CLUTCH
M/T MVL 6 SPEED 6N<Y5Z> THA 		8-98307-539-0 01 1 1510- ● ● ● ● ●
360 PEDAL ASM; CLUTCH
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98219-798-0 01 1 1510- ● ● ● ●
360 PEDAL ASM; CLUTCH
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98219-800-0 01 1 1510- ● ● ● ● ● ●
