1-50 — EXHAUST PIPE AND SILENCER (#166049) — 67 parça

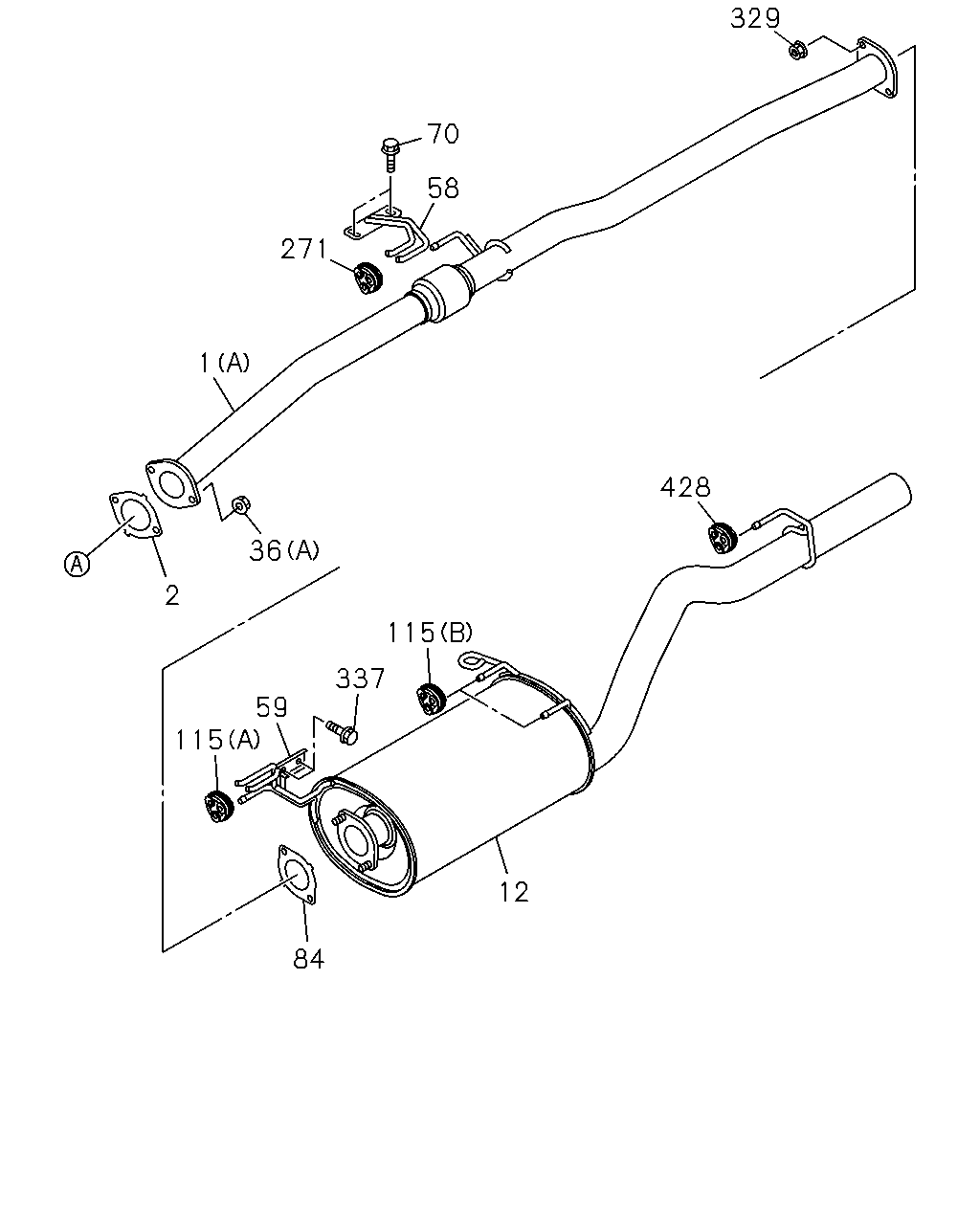

çizim 492326
70 58 329 271 1 2 36 337 59 115 115 84 12 428
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PIPE; EXH
(A) THA 		8-98065-528-1 01 1 1510- ●
1 PIPE; EXH
(A) THA 		8-98140-583-1 01 1 1510- ●
1 PIPE; EXH
(A) THA 		8-98298-923-0 01 1 1510- ●
1 PIPE; EXH
(B) THA 		8-98308-485-0 01 1 1510- ●
2 GASKET; PIPE TO MANIF
ID=65 THA 		8-97263-052-0 01 1 1510- ● ● ●
12 SILENCER ASM; EXH
THA 		8-98125-376-3 01 1 1510- ●
12 SILENCER ASM; EXH
THA 		8-98140-590-2 01 1 1510- ●
12 SILENCER ASM; EXH
4X2 EXTENDED CAB<TFB5CF> 4X2 REGULAR CAB<TFB5SF> 4X2 CREW CAB<TFB5WF> 4X4 EXTENDED CAB<TFS5CF> 4X4 CREW CAB<TFS5WF> THA 		8-98140-589-2 01 1 1510- ●
36 NUT; EXH PIPE
(B) M10 FLANGE THA 		0-91180-110-0 02 1 1510- ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 1510- ● ● ●
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 1510- ● ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97365-312-0 01 1 1510- ● ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-97945-706-0 02 1 1510- ● ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 1510- ● ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 1510- ●
115 RUBBER; MTG,SILENCER
(A) THA 		8-97289-169-0 01 1 1510- ● ● ●
115 RUBBER; MTG,SILENCER
(B) THA 		8-98124-470-0 02 1 1510- ● ● ●
271 RUBBER; HANGER,RR PIPE
THA 		8-97289-169-0 01 1 1510- ● ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE THA 		0-91180-110-0 02 1 1510- ● ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-97945-706-0 02 1 1510- ● ● ●
428 RUBBER; MTG,CLAMP,EXH PIPE
THA 		8-98124-470-0 01 1 1510- ● ● ●

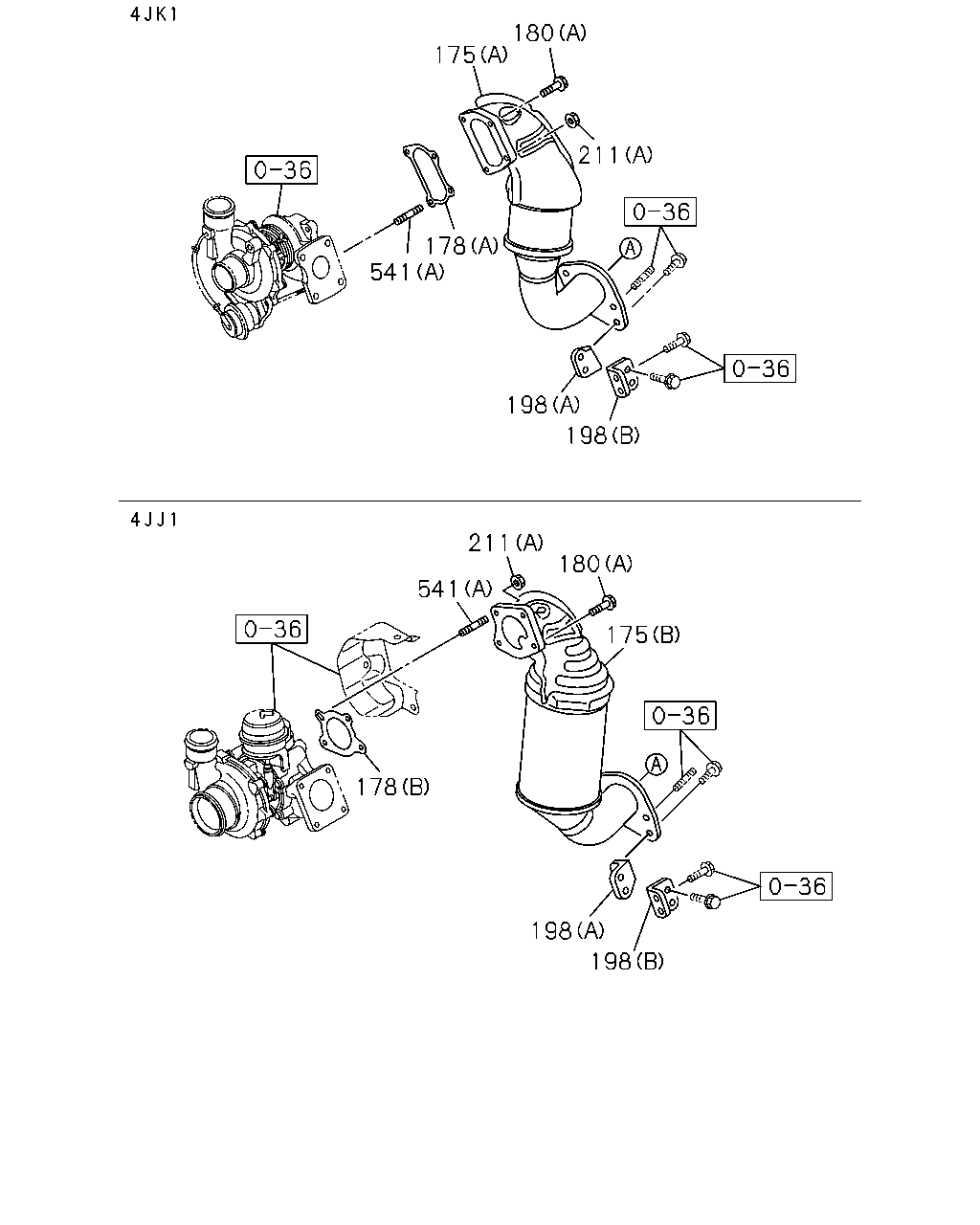

çizim 492330
541 178 211 180 175 198 198 211 180 175 541 178 198 198
BalonParca AdiParca NoAdetTipApplied Date A B C
175 CONVERTER; CATALYST
(A) THA 		8-98199-767-0 01 1 1510- ●
175 CONVERTER; CATALYST
(B) THA 		8-98132-074-2 01 1 1510- ●
175 CONVERTER; CATALYST
4X2 EXTENDED CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> 4X4 EXTENDED CAB<TFS5CF> 4X4 REGULAR CAB<TFS5SF> 4X4 CREW CAB<TFS5WF> (C) THA 		8-98247-684-2 01 1 1510- ●
175 CONVERTER; CATALYST
4X2 REGULAR CAB<TFB*S*> (C) THA 		8-98291-266-2 01 1 1510- ●
178 GASKET; CONV TO MANIF
(A) THA 		8-97312-284-1 01 1 1510- ●
178 GASKET; CONV TO MANIF
(B) THA 		8-98132-538-0 01 1 1510- ●
178 GASKET; CONV TO MANIF
(C) THA 		8-98248-957-0 01 1 1510- ●
180 BOLT; CONV TO PIPE
(A) M8X23 FLANGE IMA 		8-97378-077-0 02 1 1510- ● ●
180 BOLT; CONV TO PIPE
(B) M10X30 FLANGE IMA 		8-98032-158-0 02 1 1510- ●
198 BRACKET; CONV MTG
(B) THA 		8-98196-696-1 01 1 1510- ● ●
198 BRACKET; CONV MTG
(A) THA 		8-98203-739-0 01 1 1510- ● ●
198 BRACKET; CONV MTG
(C) THA 		8-98248-139-3 01 1 1510- ●
211 NUT; CONV
(A) M8 FLANGE THA 		8-97379-384-0 02 1 1510- ● ●
211 NUT; CONV
(B) M10 FLANGE THA 		8-97309-942-0 04 1 1510- ●
541 STUD; CONV TO PIPE
(A) M8X25 L=36 THA 		8-97378-062-0 02 1 1510- ● ●
541 STUD; CONV TO PIPE
(B) M10X28.5 L=41.5 IMA 		8-97378-063-0 02 1 1510- ●

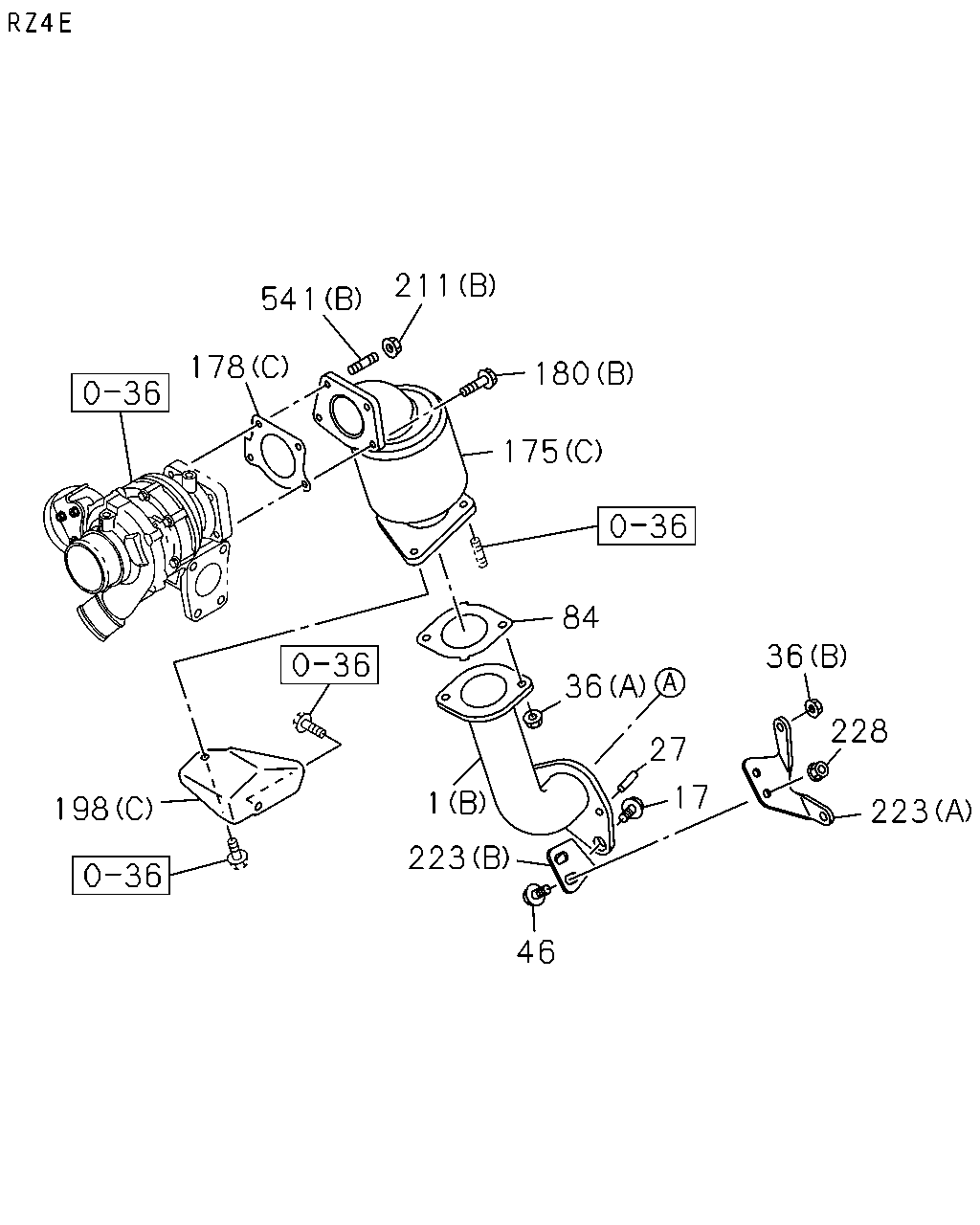

çizim 492339
541 211 180 175 84 36 36 228 223 17 27 46 223 1 178 198
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PIPE; EXH
(A) THA 		8-98065-528-1 01 1 1510- ●
1 PIPE; EXH
(A) THA 		8-98140-583-1 01 1 1510- ●
1 PIPE; EXH
(A) THA 		8-98298-923-0 01 1 1510- ●
1 PIPE; EXH
(B) THA 		8-98308-485-0 01 1 1510- ●
17 BOLT; EXH PIPE
M10X30 FLANGE THA 		8-98013-800-0 01 1 1510- ●
27 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 1510- ●
36 NUT; EXH PIPE
(B) M10 FLANGE THA 		0-91180-110-0 02 1 1510- ●
36 NUT; EXH PIPE
(A) M10 FLANGE IMA 		8-97096-192-1 02 1 1510- ● ● ●
46 BOLT; BRKT,EXH PIPE
M10X30 FLANGE THA 		8-98013-800-0 02 1 1510- ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 1510- ● ● ●
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 1510- ●
175 CONVERTER; CATALYST
(A) THA 		8-98199-767-0 01 1 1510- ●
175 CONVERTER; CATALYST
(B) THA 		8-98132-074-2 01 1 1510- ●
175 CONVERTER; CATALYST
4X2 EXTENDED CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> 4X4 EXTENDED CAB<TFS5CF> 4X4 REGULAR CAB<TFS5SF> 4X4 CREW CAB<TFS5WF> (C) THA 		8-98247-684-2 01 1 1510- ●
175 CONVERTER; CATALYST
4X2 REGULAR CAB<TFB*S*> (C) THA 		8-98291-266-2 01 1 1510- ●
178 GASKET; CONV TO MANIF
(A) THA 		8-97312-284-1 01 1 1510- ●
178 GASKET; CONV TO MANIF
(B) THA 		8-98132-538-0 01 1 1510- ●
178 GASKET; CONV TO MANIF
(C) THA 		8-98248-957-0 01 1 1510- ●
180 BOLT; CONV TO PIPE
(A) M8X23 FLANGE IMA 		8-97378-077-0 02 1 1510- ● ●
180 BOLT; CONV TO PIPE
(B) M10X30 FLANGE IMA 		8-98032-158-0 02 1 1510- ●
198 BRACKET; CONV MTG
(B) THA 		8-98196-696-1 01 1 1510- ● ●
198 BRACKET; CONV MTG
(A) THA 		8-98203-739-0 01 1 1510- ● ●
198 BRACKET; CONV MTG
(C) THA 		8-98248-139-3 01 1 1510- ●
211 NUT; CONV
(A) M8 FLANGE THA 		8-97379-384-0 02 1 1510- ● ●
211 NUT; CONV
(B) M10 FLANGE THA 		8-97309-942-0 04 1 1510- ●
223 BRACKET; EXH PIPE
(A) THA 		8-98299-044-0 01 1 1510- ●
223 BRACKET; EXH PIPE
(B) THA 		8-98299-045-0 01 1 1510- ●
228 NUT; BRKT
M10 FLANGE THA 		0-91180-110-0 02 1 1510- ●
541 STUD; CONV TO PIPE
(A) M8X25 L=36 THA 		8-97378-062-0 02 1 1510- ● ●
541 STUD; CONV TO PIPE
(B) M10X28.5 L=41.5 IMA 		8-97378-063-0 02 1 1510- ●
