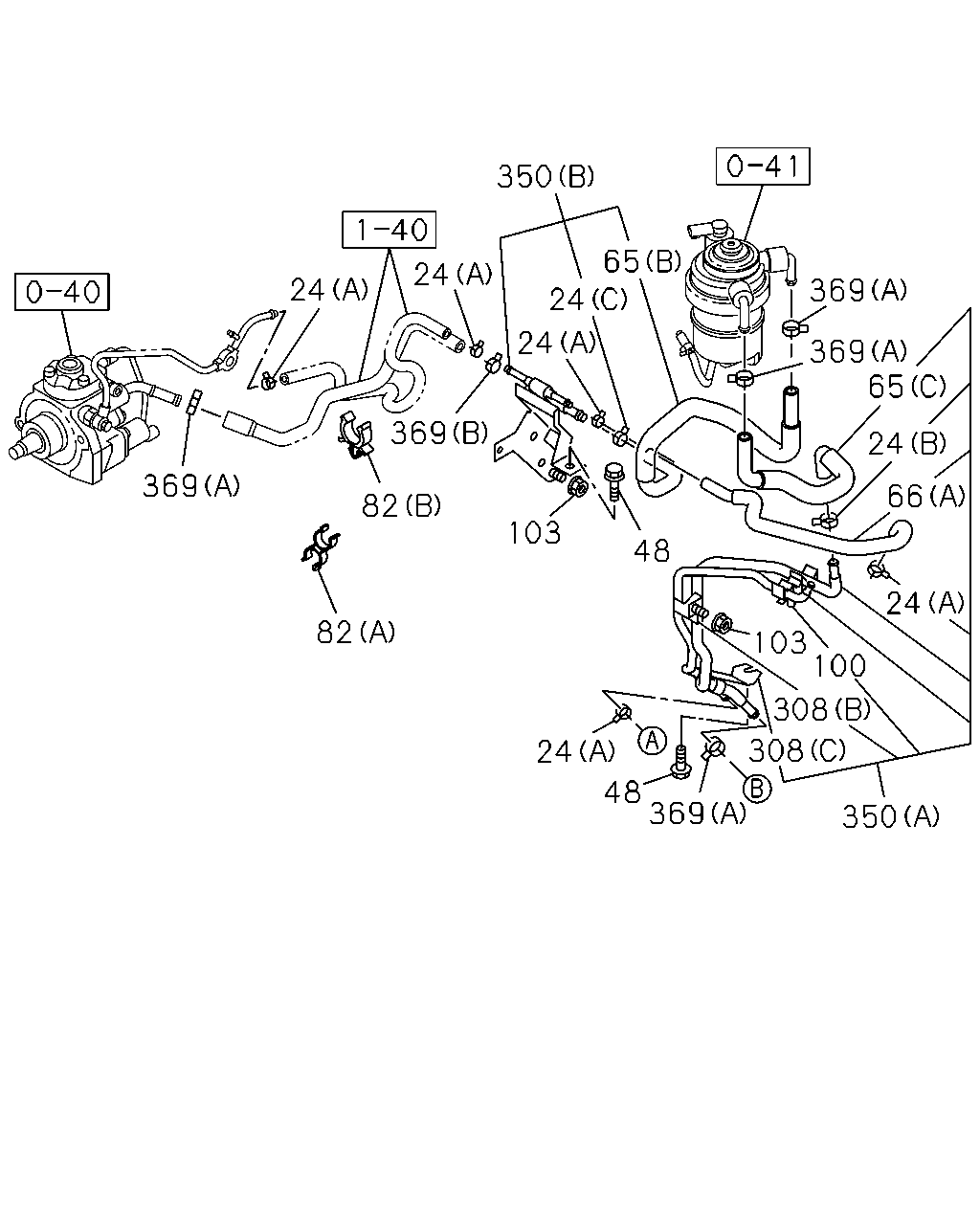

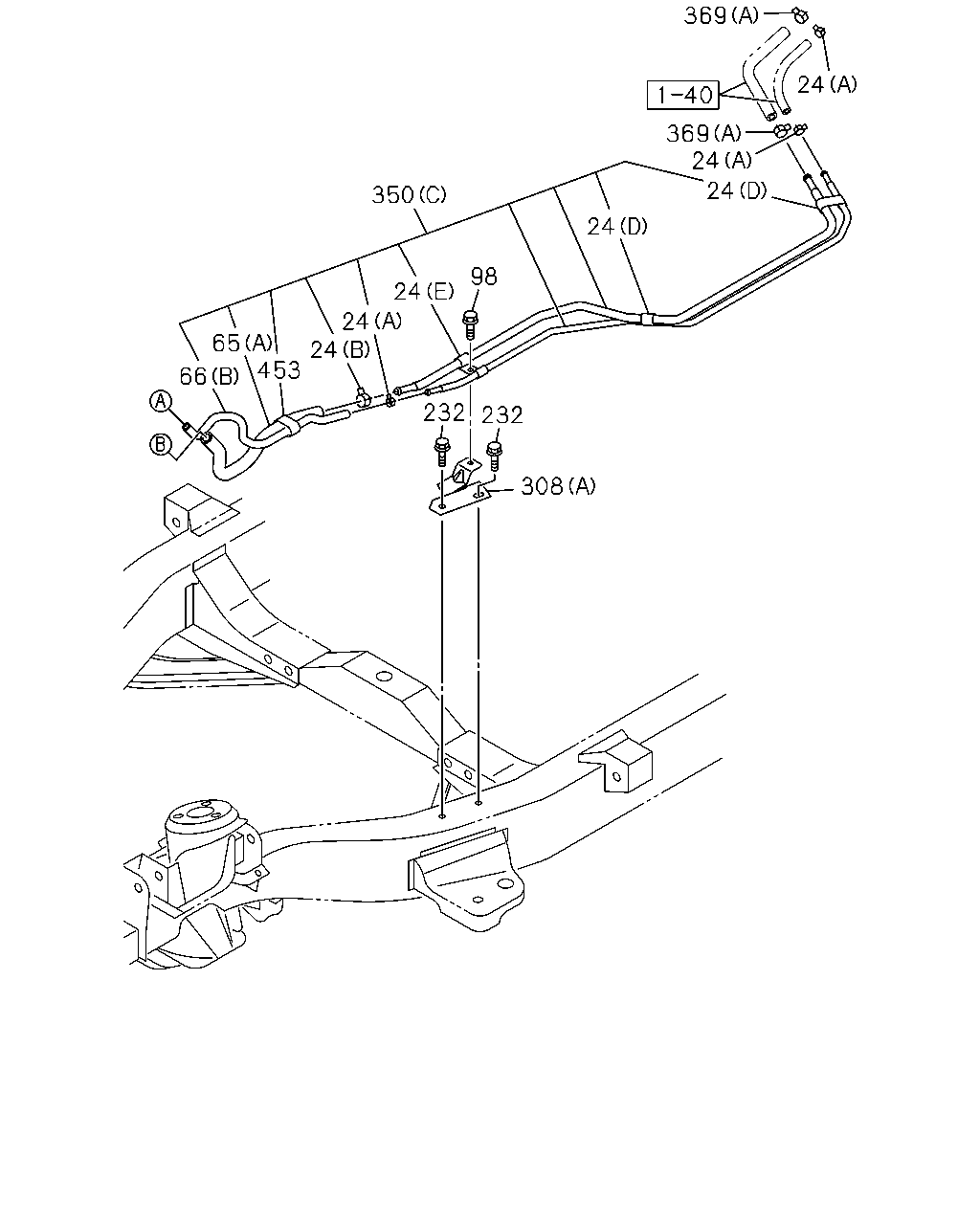

1-41 — FUEL PIPING; CHASSIS (#166048) — 52 parça

369 24 369 24 24 24 98 24 350 24 24 453 65 66 232 232 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	CLIP; FUEL HOSE (A) ID=11.5 THA	8-98051-892-0	01	1	1510-	●	●	●
24	CLIP; FUEL HOSE (A) ID=11.5 THA	8-98051-892-0	01	1	1510-	●	●	●
24	CLIP; FUEL HOSE (B) ID=17.2 THA	8-98052-395-0	01	1	1510-	●	●	●
24	CLIP; FUEL HOSE (B) ID=17.2 THA	8-98052-395-0	01	1	1510-	●	●	●
24	CLIP; FUEL HOSE (C) ID=16 THA	8-98030-682-0	01	1	1510-	●	●	●
24	CLIP; FUEL HOSE (A) ID=11.5 THA	8-98051-892-0	06	1	1510-	●	●	●
24	CLIP; FUEL HOSE (A) ID=11.5 THA	8-98051-892-0	06	1	1510-	●	●	●
24	CLIP; FUEL HOSE (D) THA	8-98233-886-0	02	1	1510-	●	●	●
24	CLIP; FUEL HOSE (E) THA	8-98233-887-0	01	1	1510-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE (B) THA	8-98100-729-4	01	1	1510-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE (C) THA	8-98100-731-2	01	1	1510-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE (A) THA	8-98248-701-0	01	1	1510-	●	●	●
66	HOSE; FUEL,RETURN PIPE (A) THA	8-98100-720-2	01	1	1510-	●	●	●
66	HOSE; FUEL,RETURN PIPE (B) THA	8-98248-702-0	01	1	1510-	●	●	●
98	BOLT; BRKT,FUEL PIPE M6X16 FLANGE THA	0-28650-616-0	01	1	1510-	●	●	●
232	BOLT; CLIP,PIPE M10X25 FLANGE THA	0-28061-025-0	02	1	1510-	●	●	●
308	BRACKET; FUEL PIPE (A) THA	8-98128-259-0	01	1	1510-	●	●	●
308	BRACKET; FUEL PIPE (B) THA	8-98233-889-0	01	1	1510-	●	●	●
308	BRACKET; FUEL PIPE (C) THA	8-98233-890-0	01	1	1510-	●	●	●
350	PIPE; FUEL,DEL & RET (B) THA	8-98113-293-6	01	1	1510-	●	●	●
350	PIPE; FUEL,DEL & RET (C) THA	8-98248-684-0	01	1	1510-	●	●	●
350	PIPE; FUEL,DEL & RET (A) THA	8-98248-691-0	01	1	1510-	●	●	●
369	CLAMP; HOSE,FUEL (B) ID=15.2 THA	8-98186-048-0	01	1	1510-	●	●	●
369	CLAMP; HOSE,FUEL (A) ID=17.2 THA	8-98052-395-0	06	1	1510-	●	●	●
453	BAND; FLEX HOSE THA	8-98233-888-0	01	1	1510-	●	●	●

369 82 82 369 24 24 350 65 24 24 103 24 48 369 350 308 100 308 103 24 66 24 65 369 369 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	CLIP; FUEL HOSE (A) ID=11.5 THA	8-98051-892-0	01	1	1510-	●	●	●
24	CLIP; FUEL HOSE (A) ID=11.5 THA	8-98051-892-0	01	1	1510-	●	●	●
24	CLIP; FUEL HOSE (B) ID=17.2 THA	8-98052-395-0	01	1	1510-	●	●	●
24	CLIP; FUEL HOSE (B) ID=17.2 THA	8-98052-395-0	01	1	1510-	●	●	●
24	CLIP; FUEL HOSE (C) ID=16 THA	8-98030-682-0	01	1	1510-	●	●	●
24	CLIP; FUEL HOSE (A) ID=11.5 THA	8-98051-892-0	06	1	1510-	●	●	●
24	CLIP; FUEL HOSE (A) ID=11.5 THA	8-98051-892-0	06	1	1510-	●	●	●
24	CLIP; FUEL HOSE (D) THA	8-98233-886-0	02	1	1510-	●	●	●
24	CLIP; FUEL HOSE (E) THA	8-98233-887-0	01	1	1510-	●	●	●
48	BOLT; BRKT M6X16 FLANGE THA	0-28650-616-0	02	1	1510-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE (B) THA	8-98100-729-4	01	1	1510-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE (C) THA	8-98100-731-2	01	1	1510-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE (A) THA	8-98248-701-0	01	1	1510-	●	●	●
66	HOSE; FUEL,RETURN PIPE (A) THA	8-98100-720-2	01	1	1510-	●	●	●
66	HOSE; FUEL,RETURN PIPE (B) THA	8-98248-702-0	01	1	1510-	●	●	●
82	CLIP; FUEL HOSE (B) ID=17 THA	8-94382-792-1	01	1	1510-	●	●	●
82	CLIP; FUEL HOSE (A) ID=13 & 16.5 THA	8-98192-457-0	01	1	1510-			●
100	CLIP; FUEL PIPE THA	8-98113-581-0	01	1	1510-	●	●	●
103	NUT; BRKT M6 FLANGE THA	0-91180-106-0	02	1	1510-	●	●	●
308	BRACKET; FUEL PIPE (A) THA	8-98128-259-0	01	1	1510-	●	●	●
308	BRACKET; FUEL PIPE (B) THA	8-98233-889-0	01	1	1510-	●	●	●
308	BRACKET; FUEL PIPE (C) THA	8-98233-890-0	01	1	1510-	●	●	●
350	PIPE; FUEL,DEL & RET (B) THA	8-98113-293-6	01	1	1510-	●	●	●
350	PIPE; FUEL,DEL & RET (C) THA	8-98248-684-0	01	1	1510-	●	●	●
350	PIPE; FUEL,DEL & RET (A) THA	8-98248-691-0	01	1	1510-	●	●	●
369	CLAMP; HOSE,FUEL (B) ID=15.2 THA	8-98186-048-0	01	1	1510-	●	●	●
369	CLAMP; HOSE,FUEL (A) ID=17.2 THA	8-98052-395-0	06	1	1510-	●	●	●
