0-66 — GENERATOR (#166040) — 41 parça

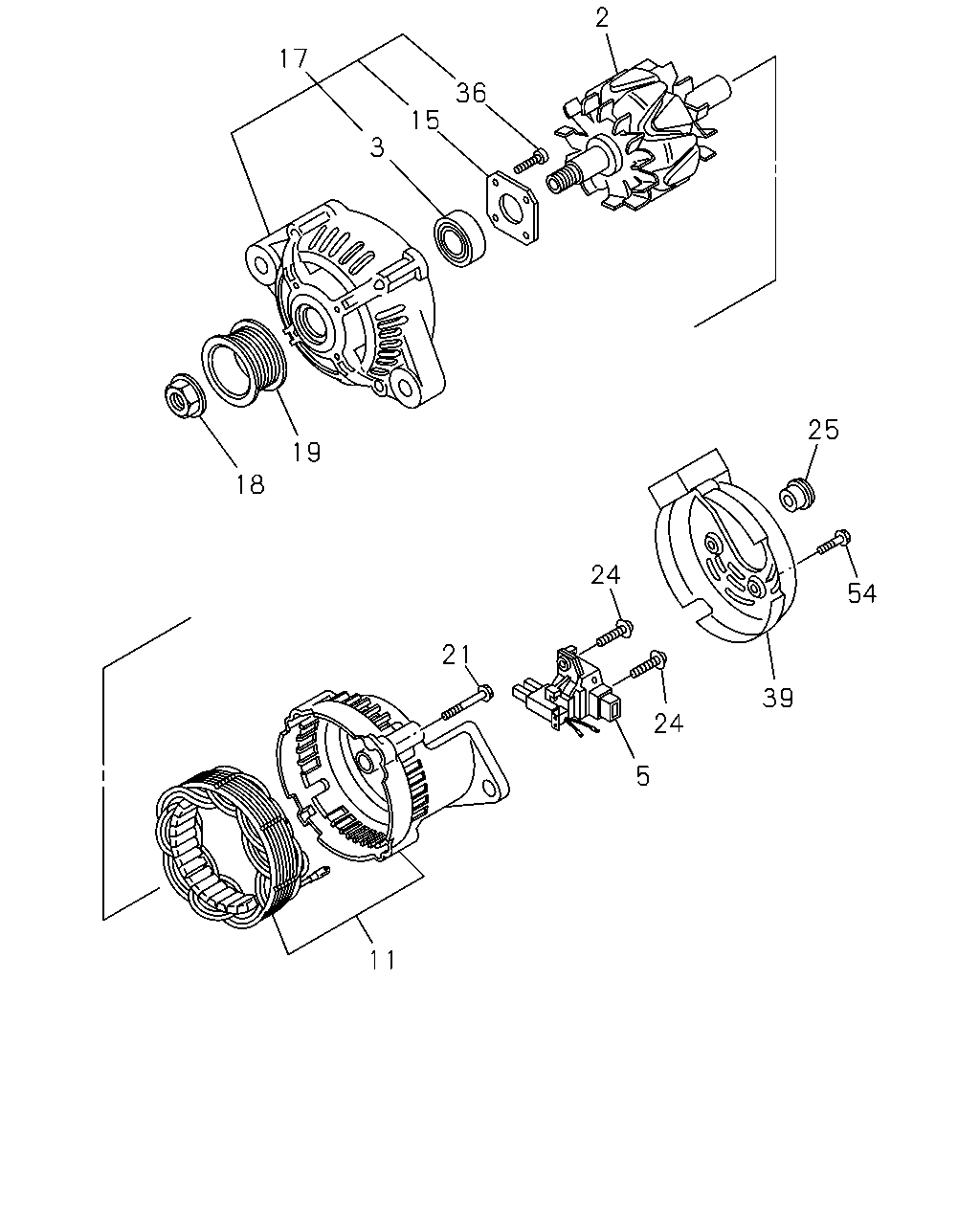

çizim 492221
17 3 15 36 2 19 18 11 21 24 24 5 39 54 25
BalonParca AdiParca NoAdetTipApplied Date
2 ROTOR; GEN
THA ASM PART: A = 8-98225-812-0, B = 8-98225-813-0, C = 8-98247-689-1 		8-97378-924-0 01 1 -
3 BEARING; ROTOR,GEN
THA ASM PART: A = 8-98225-812-0, B = 8-98225-813-0, C = 8-98247-689-1 		8-98228-965-0 01 1 -
5 HOLDER; BRUSH,GEN
THA ASM PART: A = 8-98225-812-0, B = 8-98225-813-0 		8-97378-926-0 01 1 -
5 HOLDER; BRUSH,GEN
THA ASM PART: C = 8-98247-689-1 		8-98249-245-0 01 1 -
11 COVER; RR,GEN
THA ASM PART: A = 8-98225-812-0 		8-98232-103-0 01 1 -
11 COVER; RR,GEN
THA ASM PART: B = 8-98225-813-0 		8-98232-110-0 01 1 -
11 COVER; RR,GEN
THA ASM PART: C = 8-98247-689-1 		8-98285-770-0 01 1 -
15 RETAINER; ROTOR,GEN
IMA ASM PART: A = 8-98225-812-0, B = 8-98225-813-0, C = 8-98247-689-1 		8-94406-982-0 01 1 -
17 COVER ASM; FRT,GEN
THA ASM PART: A = 8-98225-812-0, B = 8-98225-813-0 		8-98232-102-0 01 1 -
17 COVER ASM; FRT,GEN
THA ASM PART: C = 8-98247-689-1 		8-98285-769-0 01 1 -
18 NUT; PULLEY,GEN
IMA ASM PART: A = 8-98225-812-0, B = 8-98225-813-0 		8-94123-043-0 01 1 -
19 PULLEY; GEN
THA ASM PART: A = 8-98225-812-0, B = 8-98225-813-0 		8-98232-101-0 01 1 -
19 PULLEY; GEN
THA ASM PART: C = 8-98247-689-1 		8-98300-761-0 01 1 -
21 BOLT; THROUGH,GEN
IMA ASM PART: A = 8-98225-812-0, B = 8-98225-813-0, C = 8-98247-689-1 		8-97319-752-0 04 1 -
24 SCREW; RECTIFIER,GEN
IMA ASM PART: A = 8-98225-812-0, B = 8-98225-813-0, C = 8-98247-689-1 		8-97032-313-0 03 1 -
25 BUSHING; INSULATION TERMINAL
THA ASM PART: A = 8-98225-812-0, B = 8-98225-813-0 		8-98232-107-0 01 1 -
25 BUSHING; INSULATION TERMINAL
THA ASM PART: C = 8-98247-689-1 		8-98285-771-0 01 1 -
36 SCREW; FRT COVER
IMA ASM PART: A = 8-98225-812-0, B = 8-98225-813-0, C = 8-98247-689-1 		8-97142-562-0 04 1 -
39 COVER; END,RR COVER,GEN
THA ASM PART: A = 8-98225-812-0, B = 8-98225-813-0 		8-98232-104-0 01 1 -
39 COVER; END,RR COVER,GEN
THA ASM PART: C = 8-98247-689-1 		8-98249-246-0 01 1 -
54 BOLT; RECTIFIER,GEN
THA ASM PART: A = 8-98225-812-0, B = 8-98225-813-0, C = 8-98247-689-1 		8-98232-109-0 03 1 -

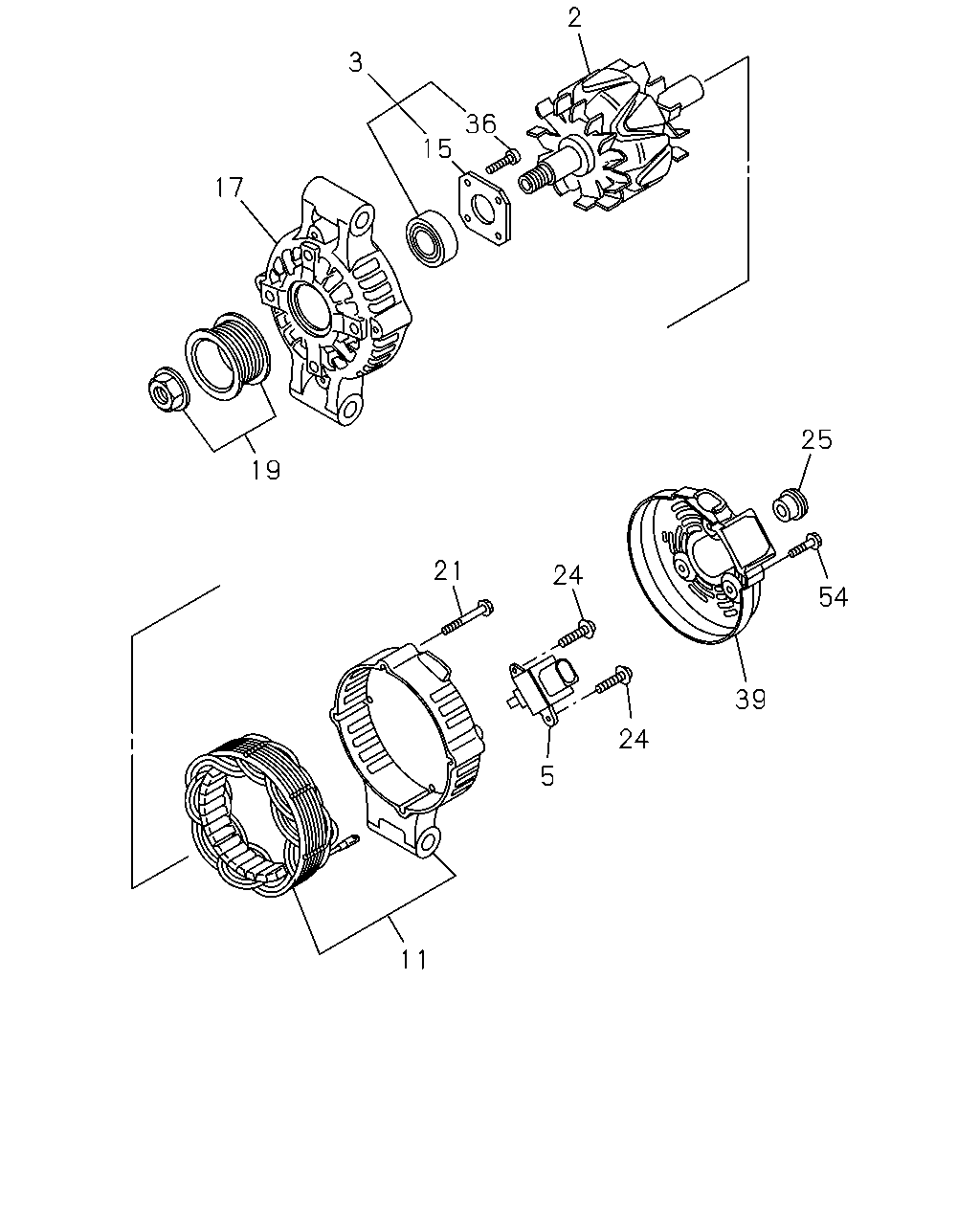

çizim 492223
2 36 15 3 17 19 21 24 25 54 39 24 5 11
BalonParca AdiParca NoAdetTipApplied Date
2 ROTOR; GEN
THA ASM PART: A = 8-98225-812-0, B = 8-98225-813-0, C = 8-98247-689-1 		8-97378-924-0 01 1 -
3 BEARING; ROTOR,GEN
THA ASM PART: A = 8-98225-812-0, B = 8-98225-813-0, C = 8-98247-689-1 		8-98228-965-0 01 1 -
5 HOLDER; BRUSH,GEN
THA ASM PART: A = 8-98225-812-0, B = 8-98225-813-0 		8-97378-926-0 01 1 -
5 HOLDER; BRUSH,GEN
THA ASM PART: C = 8-98247-689-1 		8-98249-245-0 01 1 -
11 COVER; RR,GEN
THA ASM PART: A = 8-98225-812-0 		8-98232-103-0 01 1 -
11 COVER; RR,GEN
THA ASM PART: B = 8-98225-813-0 		8-98232-110-0 01 1 -
11 COVER; RR,GEN
THA ASM PART: C = 8-98247-689-1 		8-98285-770-0 01 1 -
15 RETAINER; ROTOR,GEN
IMA ASM PART: A = 8-98225-812-0, B = 8-98225-813-0, C = 8-98247-689-1 		8-94406-982-0 01 1 -
17 COVER ASM; FRT,GEN
THA ASM PART: A = 8-98225-812-0, B = 8-98225-813-0 		8-98232-102-0 01 1 -
17 COVER ASM; FRT,GEN
THA ASM PART: C = 8-98247-689-1 		8-98285-769-0 01 1 -
19 PULLEY; GEN
THA ASM PART: A = 8-98225-812-0, B = 8-98225-813-0 		8-98232-101-0 01 1 -
19 PULLEY; GEN
THA ASM PART: C = 8-98247-689-1 		8-98300-761-0 01 1 -
21 BOLT; THROUGH,GEN
IMA ASM PART: A = 8-98225-812-0, B = 8-98225-813-0, C = 8-98247-689-1 		8-97319-752-0 04 1 -
24 SCREW; RECTIFIER,GEN
IMA ASM PART: A = 8-98225-812-0, B = 8-98225-813-0, C = 8-98247-689-1 		8-97032-313-0 03 1 -
25 BUSHING; INSULATION TERMINAL
THA ASM PART: A = 8-98225-812-0, B = 8-98225-813-0 		8-98232-107-0 01 1 -
25 BUSHING; INSULATION TERMINAL
THA ASM PART: C = 8-98247-689-1 		8-98285-771-0 01 1 -
36 SCREW; FRT COVER
IMA ASM PART: A = 8-98225-812-0, B = 8-98225-813-0, C = 8-98247-689-1 		8-97142-562-0 04 1 -
39 COVER; END,RR COVER,GEN
THA ASM PART: A = 8-98225-812-0, B = 8-98225-813-0 		8-98232-104-0 01 1 -
39 COVER; END,RR COVER,GEN
THA ASM PART: C = 8-98247-689-1 		8-98249-246-0 01 1 -
54 BOLT; RECTIFIER,GEN
THA ASM PART: A = 8-98225-812-0, B = 8-98225-813-0, C = 8-98247-689-1 		8-98232-109-0 03 1 -
