0-65 — STARTER (#166039) — 57 parça

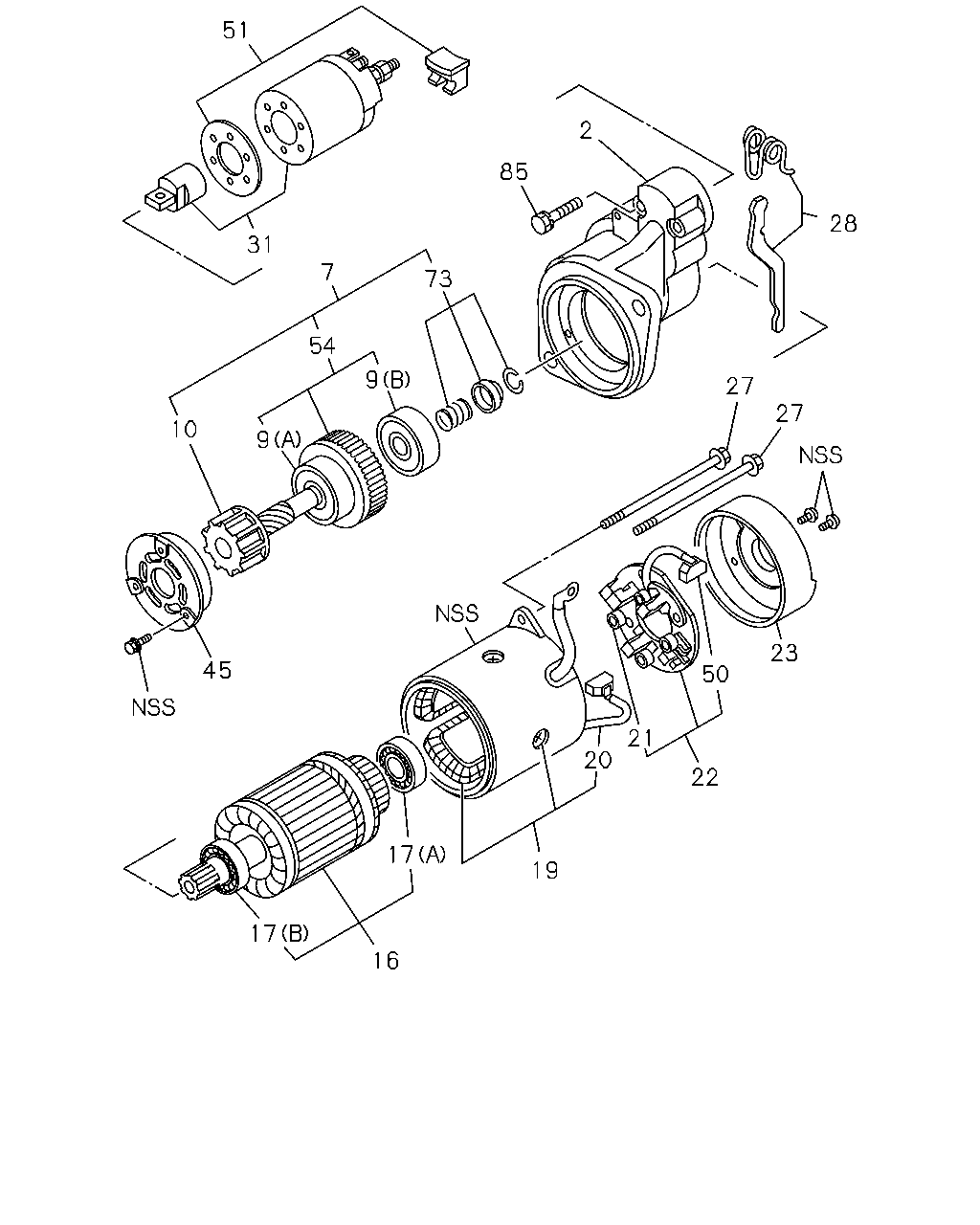

51 31 54 9 10 45 17 17 16 19 22 21 20 50 27 23 27 28 2 85 73 7 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER THA ASM PART: A = 8-98028-199-0	8-97368-562-0	01	1	-
2	CASE; PINION,STARTER THA ASM PART: B = 8-98248-271-2	8-98283-906-0	01	1	-
7	CLUTCH ASM; PINION,STARTER THA ASM PART: A = 8-98028-199-0	8-97229-910-0	01	1	-
7	CLUTCH ASM; PINION,STARTER THA ASM PART: B = 8-98248-271-2	8-98283-908-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (A), THA ASM PART: A = 8-98028-199-0	8-97047-549-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (B), THA ASM PART: A = 8-98028-199-0	8-97047-550-0	01	1	-
10	SHAFT; GEAR STARTER THA ASM PART: A = 8-98028-199-0	8-97130-189-1	01	1	-
16	ARMATURE; STARTER THA ASM PART: A = 8-98028-199-0	8-97262-027-0	01	1	-
16	ARMATURE; STARTER THA ASM PART: B = 8-98248-271-2	8-98283-905-0	01	1	-
17	BEARING; ARMATURE,STARTER (A), THA ASM PART: A = 8-98028-199-0	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (B), THA ASM PART: A = 8-98028-199-0	8-94228-437-0	01	1	-
19	COIL; FIELD,STARTER THA ASM PART: A = 8-98028-199-0	8-97376-957-1	01	1	-
20	BRUSH; (+),STARTER THA ASM PART: A = 8-98028-199-0	8-97113-286-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER IMA ASM PART: A = 8-98028-199-0	8-94242-064-0	04	1	-
22	HOLDER; BRUSH STARTER THA ASM PART: A = 8-98028-199-0	8-97112-559-1	01	1	-
22	HOLDER; BRUSH STARTER THA ASM PART: B = 8-98248-271-2	8-98283-904-0	01	1	-
23	COVER; RR COVER STARTER THA ASM PART: A = 8-98028-199-0	8-97319-418-0	01	1	-
23	COVER; RR COVER STARTER THA ASM PART: B = 8-98248-271-2	8-98283-907-0	01	1	-
27	BOLT; THROUGH,STARTER THA ASM PART: A = 8-98028-199-0	8-97319-423-0	02	1	-
27	BOLT; THROUGH,STARTER THA ASM PART: B = 8-98248-271-2	8-98283-912-0	02	1	-
28	LEVER; SHIFT,STARTER THA ASM PART: A = 8-98028-199-0	8-97351-967-0	01	1	-
28	LEVER; SHIFT,STARTER THA ASM PART: B = 8-98248-271-2	8-98283-909-0	01	1	-
31	SWITCH; ENGAGE STARTER THA ASM PART: A = 8-98028-199-0	8-97368-561-1	01	1	-
31	SWITCH; ENGAGE STARTER THA ASM PART: B = 8-98248-271-2	8-98163-127-0	01	1	-
45	RETAINER; BEARING,STARTER THA ASM PART: A = 8-98028-199-0	8-94435-570-0	01	1	-
50	BRUSH; (-),STARTER THA ASM PART: A = 8-98028-199-0	8-97113-286-0	02	1	-
51	COVER SET; DUST ENGAGE SW STARTER THA ASM PART: A = 8-98028-199-0	8-97368-563-0	01	1	-
54	CLUTCH; PINION,STARTER THA ASM PART: A = 8-98028-199-0	8-97229-911-0	01	1	-
73	STOPPER SET; PINION IMA ASM PART: A = 8-98028-199-0	8-94228-450-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER THA ASM PART: A = 8-98028-199-0	8-94408-500-0	02	1	-

124 97 13 16 23 22 58 144 97 97 41 27 7 28 2 91 35 138 31 114 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER THA ASM PART: A = 8-98028-199-0	8-97368-562-0	01	1	-
2	CASE; PINION,STARTER THA ASM PART: B = 8-98248-271-2	8-98283-906-0	01	1	-
7	CLUTCH ASM; PINION,STARTER THA ASM PART: A = 8-98028-199-0	8-97229-910-0	01	1	-
7	CLUTCH ASM; PINION,STARTER THA ASM PART: B = 8-98248-271-2	8-98283-908-0	01	1	-
13	YOKE; STARTER THA ASM PART: B = 8-98248-271-2	8-98283-903-0	01	1	-
16	ARMATURE; STARTER THA ASM PART: A = 8-98028-199-0	8-97262-027-0	01	1	-
16	ARMATURE; STARTER THA ASM PART: B = 8-98248-271-2	8-98283-905-0	01	1	-
22	HOLDER; BRUSH STARTER THA ASM PART: A = 8-98028-199-0	8-97112-559-1	01	1	-
22	HOLDER; BRUSH STARTER THA ASM PART: B = 8-98248-271-2	8-98283-904-0	01	1	-
23	COVER; RR COVER STARTER THA ASM PART: A = 8-98028-199-0	8-97319-418-0	01	1	-
23	COVER; RR COVER STARTER THA ASM PART: B = 8-98248-271-2	8-98283-907-0	01	1	-
27	BOLT; THROUGH,STARTER THA ASM PART: A = 8-98028-199-0	8-97319-423-0	02	1	-
27	BOLT; THROUGH,STARTER THA ASM PART: B = 8-98248-271-2	8-98283-912-0	02	1	-
28	LEVER; SHIFT,STARTER THA ASM PART: A = 8-98028-199-0	8-97351-967-0	01	1	-
28	LEVER; SHIFT,STARTER THA ASM PART: B = 8-98248-271-2	8-98283-909-0	01	1	-
31	SWITCH; ENGAGE STARTER THA ASM PART: A = 8-98028-199-0	8-97368-561-1	01	1	-
31	SWITCH; ENGAGE STARTER THA ASM PART: B = 8-98248-271-2	8-98163-127-0	01	1	-
35	NUT; MAG SW FIX,STARTER THA ASM PART: B = 8-98248-271-2	8-98163-135-0	02	1	-
41	SCREW; RR COVER,STARTER THA ASM PART: B = 8-98248-271-2	8-97125-853-0	02	1	-
58	PIPE; DRAIN RR COVER STARTER THA ASM PART: B = 8-98248-271-2	8-98283-914-0	01	1	-
91	COVER; STARTER THA ASM PART: B = 8-98248-271-2	8-98283-916-0	01	1	-
97	GEAR; STARTER THA ASM PART: B = 8-98248-271-2	8-98283-910-0	03	1	-
114	NUT; TERMINAL (A), THA ASM PART: B = 8-98248-271-2	8-94154-639-0	01	1	-
114	NUT; TERMINAL (B), THA ASM PART: B = 8-98248-271-2	8-94377-238-0	01	1	-
124	WASHER; STARTER THA ASM PART: B = 8-98248-271-2	8-94367-789-0	01	1	-
138	SEAL; STARTER THA ASM PART: B = 8-98248-271-2	8-98283-913-0	01	1	-
144	PLATE; STARTER THA ASM PART: B = 8-98248-271-2	8-98283-911-0	01	1	-
