0-60 — ENGINE ELECTRICAL CONTROL PARTS (#166037) — 100 parça

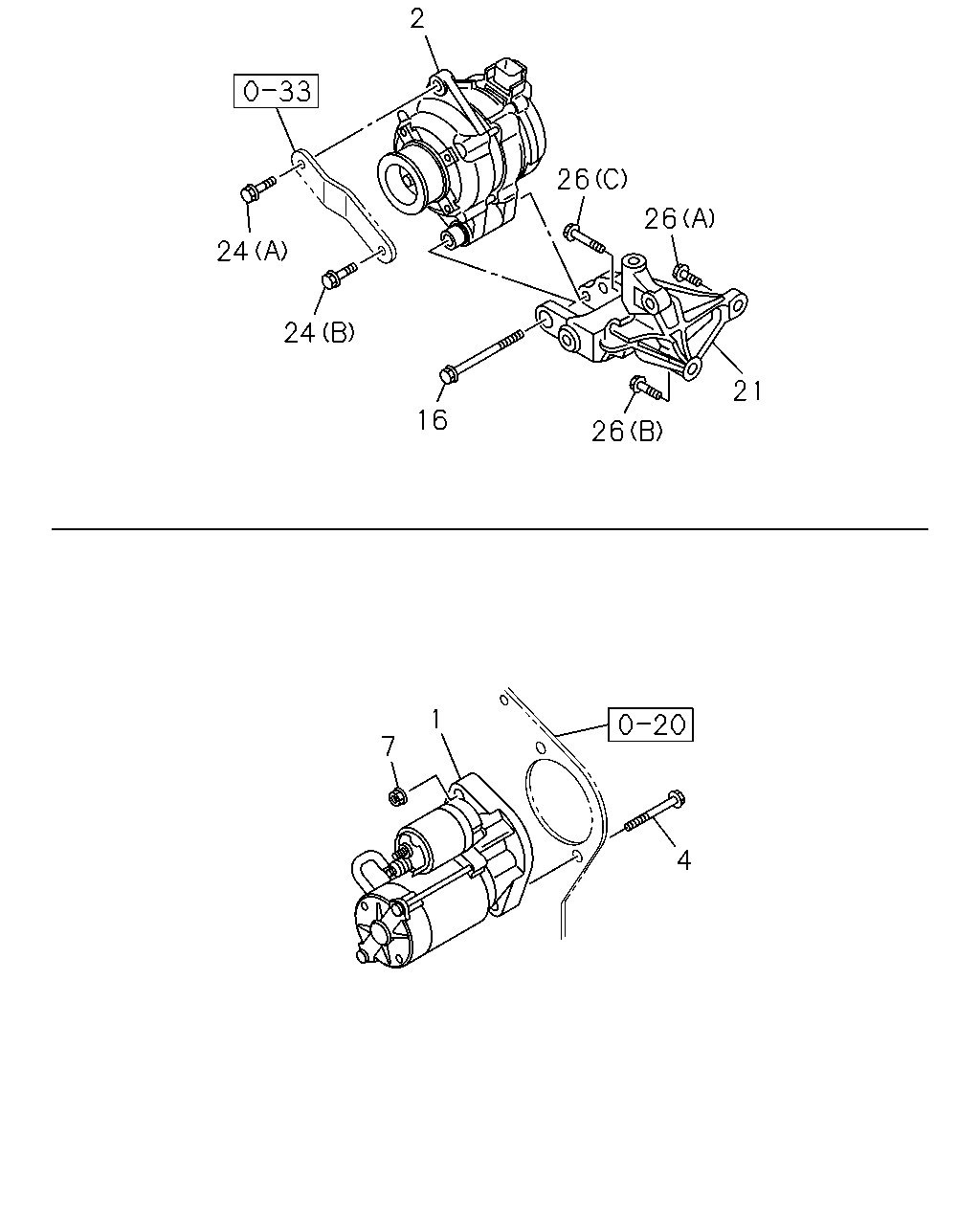

çizim 492181
2 24 24 16 21 26 26 26 4 1 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW THA 		8-98028-199-0 01 1 1510- ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.6KW THA 		8-98248-271-2 01 1 1510- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-98225-813-0 01 1 1510- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-98225-812-0 01 1 1510- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-98247-689-1 01 1 1510- ●
4 BOLT; STARTER
M12X60 THA 		8-97161-846-1 02 1 1510- ● ●
4 BOLT; STARTER
M10X40 FLANGE IMA 		0-28151-040-0 01 1 1510- ●
7 NUT; STARTER
M12 FLANGE THA 		0-91180-112-0 02 1 1510- ● ●
16 BOLT; GEN
M10X95 FLANGE THA 		8-98236-407-0 01 1 1510- ● ●
16 BOLT; GEN
M10X70 FLANGE IMA 		0-28151-070-0 03 1 1510- ●
21 BRACKET; GEN
THA 		8-98275-351-0 01 1 1510- ● ●
21 BRACKET; GEN
THA 		8-98260-495-3 01 1 1510- ●
24 BOLT; GEN BRKT
(A) M8X25 FLANGE THA 		0-28050-825-0 01 1 1510- ● ●
24 BOLT; GEN BRKT
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1510- ● ●
24 BOLT; GEN BRKT
(C) M10X40 FLANGE IMA 		0-28151-040-0 02 1 1510- ●
26 BOLT; GEN BRKT
(A) M10X25 FLANGE THA 		0-28051-025-0 01 1 1510- ● ●
26 BOLT; GEN BRKT
(B) M10X35 FLANGE THA 		0-28051-035-0 01 1 1510- ● ●
26 BOLT; GEN BRKT
(C) M10X45 FLANGE THA 		0-28051-045-0 01 1 1510- ● ●

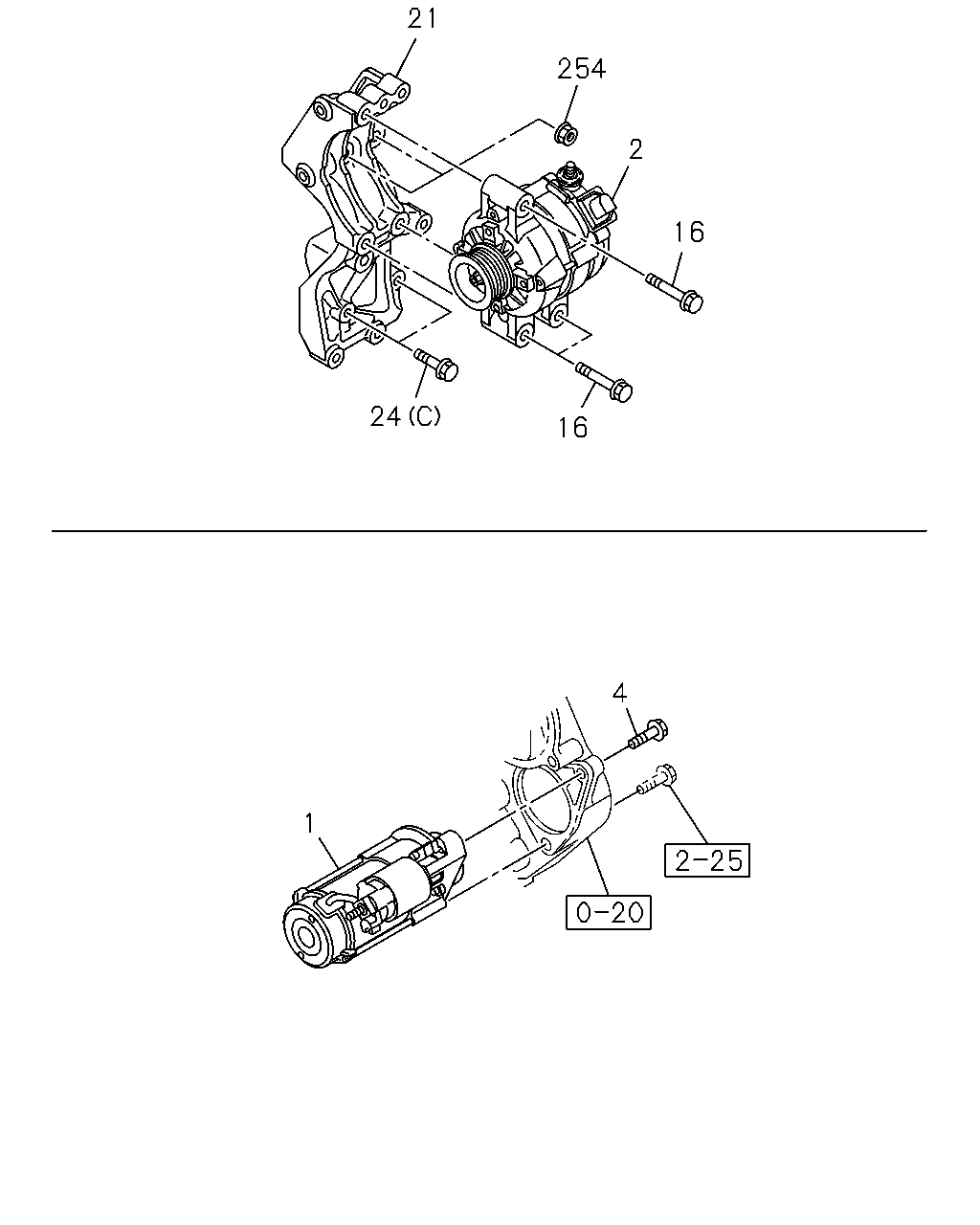

çizim 492182
21 254 24 16 16 2 4 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW THA 		8-98028-199-0 01 1 1510- ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.6KW THA 		8-98248-271-2 01 1 1510- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-98225-813-0 01 1 1510- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-98225-812-0 01 1 1510- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A THA 		8-98247-689-1 01 1 1510- ●
4 BOLT; STARTER
M12X60 THA 		8-97161-846-1 02 1 1510- ● ●
4 BOLT; STARTER
M10X40 FLANGE IMA 		0-28151-040-0 01 1 1510- ●
16 BOLT; GEN
M10X95 FLANGE THA 		8-98236-407-0 01 1 1510- ● ●
16 BOLT; GEN
M10X70 FLANGE IMA 		0-28151-070-0 03 1 1510- ●
21 BRACKET; GEN
THA 		8-98275-351-0 01 1 1510- ● ●
21 BRACKET; GEN
THA 		8-98260-495-3 01 1 1510- ●
24 BOLT; GEN BRKT
(A) M8X25 FLANGE THA 		0-28050-825-0 01 1 1510- ● ●
24 BOLT; GEN BRKT
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1510- ● ●
24 BOLT; GEN BRKT
(C) M10X40 FLANGE IMA 		0-28151-040-0 02 1 1510- ●
254 NUT; GEN BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1510- ●

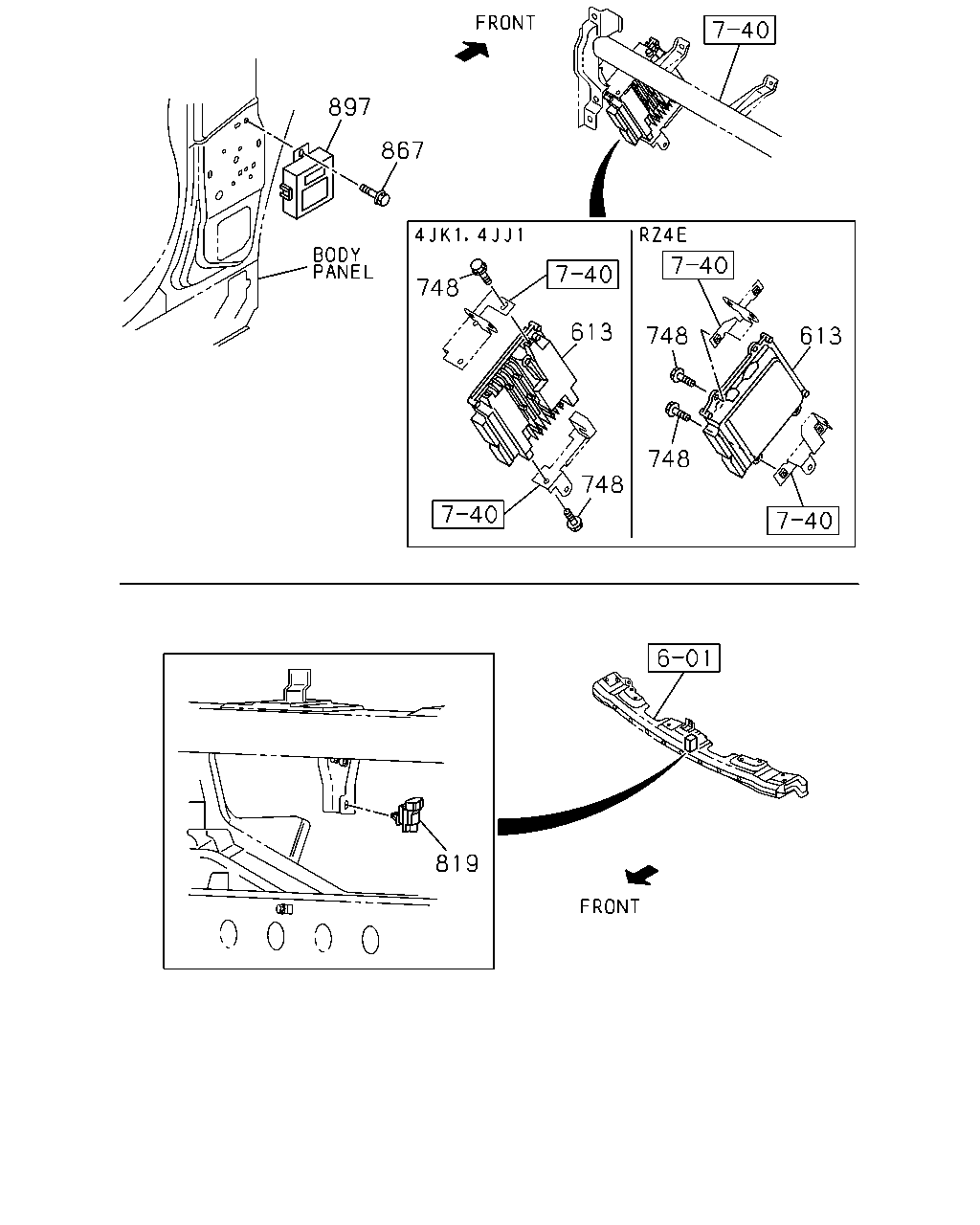

çizim 492190
897 867 613 748 748 748 748 613 819
BalonParca AdiParca NoAdetTipApplied Date A B C
613 CONTROL UNIT; ENG
4X2<TFB***> PASSIVE ENTRY AND START SYSTEM<AP3> PROVISIONAL PACKAGE SPEC<BCC> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION<7YC> THA 		8-98318-232-0 01 1 1510- ●
613 CONTROL UNIT; ENG
4X2<TFB***> PROVISIONAL PACKAGE SPEC<BCC> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION<7YC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98318-230-0 01 1 1510- ●
613 CONTROL UNIT; ENG
4X2<TFB***> PROVISIONAL PACKAGE SPEC<BCC> HIGH RIDE SUSPENSION<7YC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> THA 		8-98318-231-0 01 1 1510- ●
613 CONTROL UNIT; ENG
4X2<TFB***> PROVISIONAL PACKAGE SPEC<BCC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION<7YC> THA 		8-98305-364-0 01 1 1510- ●
613 CONTROL UNIT; ENG
4X4<TFS***> PASSIVE ENTRY AND START SYSTEM<AP3> PROVISIONAL PACKAGE SPEC<BCC> IMMOBILIZER SYSTEM<7KC> THA 		8-98305-365-0 01 1 1510- ●
613 CONTROL UNIT; ENG
4X4<TFS***> PROVISIONAL PACKAGE SPEC<BCC> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98305-362-0 01 1 1510- ●
613 CONTROL UNIT; ENG
4X4<TFS***> PROVISIONAL PACKAGE SPEC<BCC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> THA 		8-98305-363-0 01 1 1510- ●
613 CONTROL UNIT; ENG
4X2<TFB***> PROVISIONAL PACKAGE SPEC<BCC> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION<7YC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98223-067-5 01 1 1510- ●
613 CONTROL UNIT; ENG
4X2<TFB***> PROVISIONAL PACKAGE SPEC<BCC> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,HIGH RIDE SUSPENSION<7YC> THA 		8-98223-068-5 01 1 1510- ●
613 CONTROL UNIT; ENG
4X2<TFB***> PROVISIONAL PACKAGE SPEC<BCC> HIGH RIDE SUSPENSION<7YC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> THA 		8-98223-069-5 01 1 1510- ●
613 CONTROL UNIT; ENG
4X4<TFS***> PROVISIONAL PACKAGE SPEC<BCC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> THA 		8-98223-069-5 01 1 1510- ●
613 CONTROL UNIT; ENG
4X2<TFB***> PROVISIONAL PACKAGE SPEC<BCC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION<7YC> THA 		8-98223-070-5 01 1 1510- ●
613 CONTROL UNIT; ENG
4X2 EXTENDED CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> PASSIVE ENTRY AND START SYSTEM<AP3> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION<7YC> THA 		8-98290-615-3 01 1 1510- ●
613 CONTROL UNIT; ENG
4X4 EXTENDED CAB<TFS5CF> 4X4 CREW CAB<TFS5WF> PASSIVE ENTRY AND START SYSTEM<AP3> IMMOBILIZER SYSTEM<7KC> THA 		8-98290-615-3 01 1 1510- ●
613 CONTROL UNIT; ENG
4X2 EXTENDED CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> PASSIVE ENTRY AND START SYSTEM<AP3> IMMOBILIZER SYSTEM<7KC> EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98290-616-3 01 1 1510- ●
613 CONTROL UNIT; ENG
4X2 EXTENDED CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> IMMOBILIZER SYSTEM<7KC> HIGH RIDE SUSPENSION<7YC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98277-984-3 01 1 1510- ●
613 CONTROL UNIT; ENG
4X4 EXTENDED CAB<TFS5CF> 4X4 CREW CAB<TFS5WF> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98277-984-3 01 1 1510- ●
613 CONTROL UNIT; ENG
4X2 EXTENDED CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> IMMOBILIZER SYSTEM<7KC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,HIGH RIDE SUSPENSION<7YC> THA 		8-98277-986-3 01 1 1510- ●
613 CONTROL UNIT; ENG
4X2 EXTENDED CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> HIGH RIDE SUSPENSION<7YC> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> THA 		8-98277-983-3 01 1 1510- ●
613 CONTROL UNIT; ENG
4X4<TFS***> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC> THA 		8-98277-983-3 01 1 1510- ●
613 CONTROL UNIT; ENG
4X2 EXTENDED CAB<TFB5CF> 4X2 CREW CAB<TFB5WF> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, IMMOBILIZER SYSTEM<7KC>,HIGH RIDE SUSPENSION<7YC> THA 		8-98277-985-3 01 1 1510- ●
613 CONTROL UNIT; ENG
4X2 REGULAR CAB<TFB*S*> THA 		8-98290-614-3 01 1 1510- ●
748 BOLT; CONT UNIT
M6X16 FLANGE THA 		0-28650-616-0 04 1 1510- ● ● ●
819 SENSOR; MASS AIR FLOW (MAF)
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> IMA 		8-98008-687-0 01 1 1510- ● ● ●
867 BOLT
M6X16 FLANGE THA 		0-28650-616-0 01 1 1510- ● ● ●
897 DRM
THA 		8-98221-054-4 01 1 1510- ● ●
897 DRM
THA 		8-98275-755-0 01 1 1510- ●

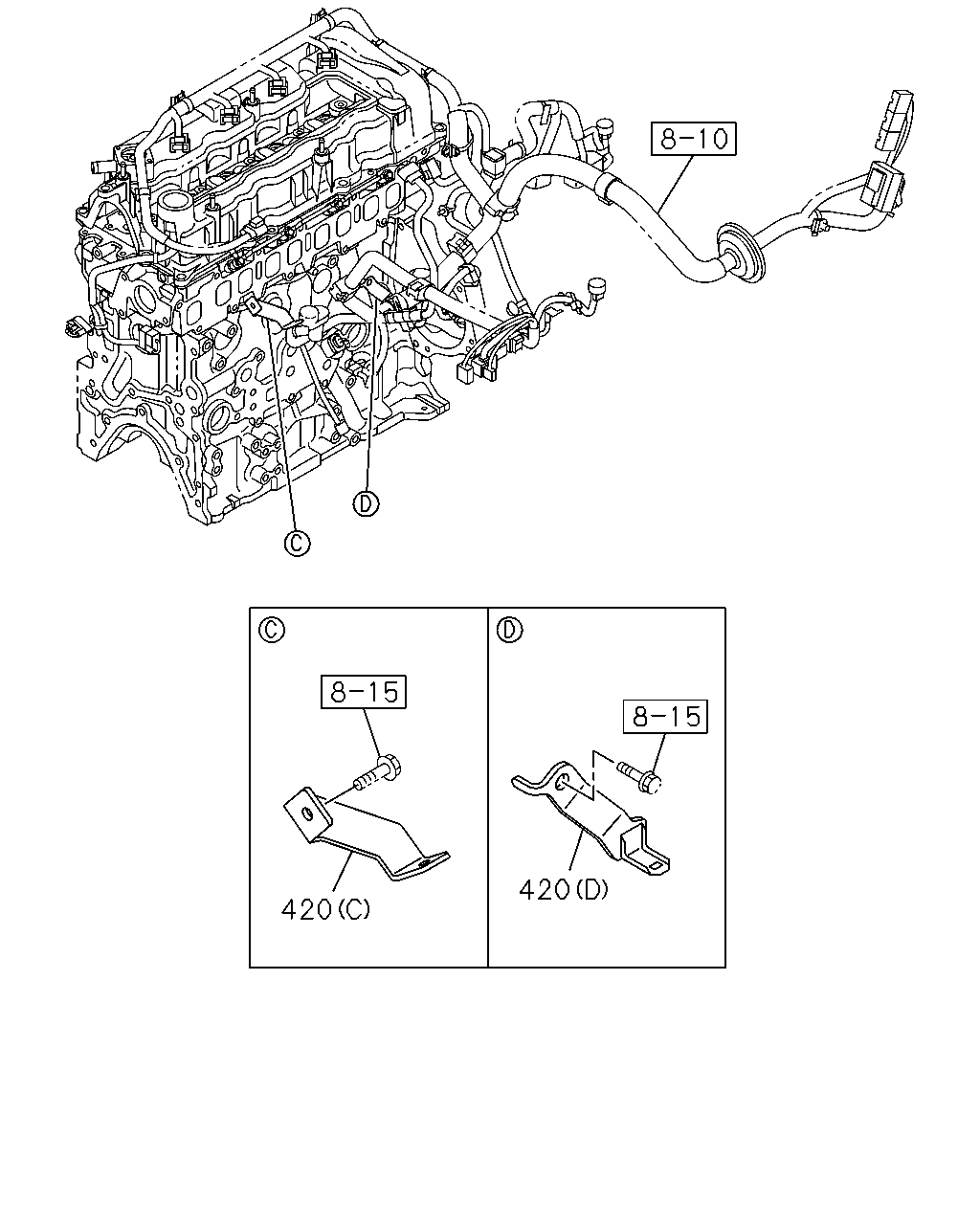

çizim 492193
420 420
BalonParca AdiParca NoAdetTipApplied Date A B C
420 BRACKET; HARNESS
(A) THA 		8-98179-101-0 01 1 1510- ● ●
420 BRACKET; HARNESS
(B) THA 		8-98226-846-1 01 1 1510- ● ●
420 BRACKET; HARNESS
(C) THA 		8-98286-828-0 01 1 1510- ●
420 BRACKET; HARNESS
(D) THA 		8-98286-829-1 01 1 1510- ●

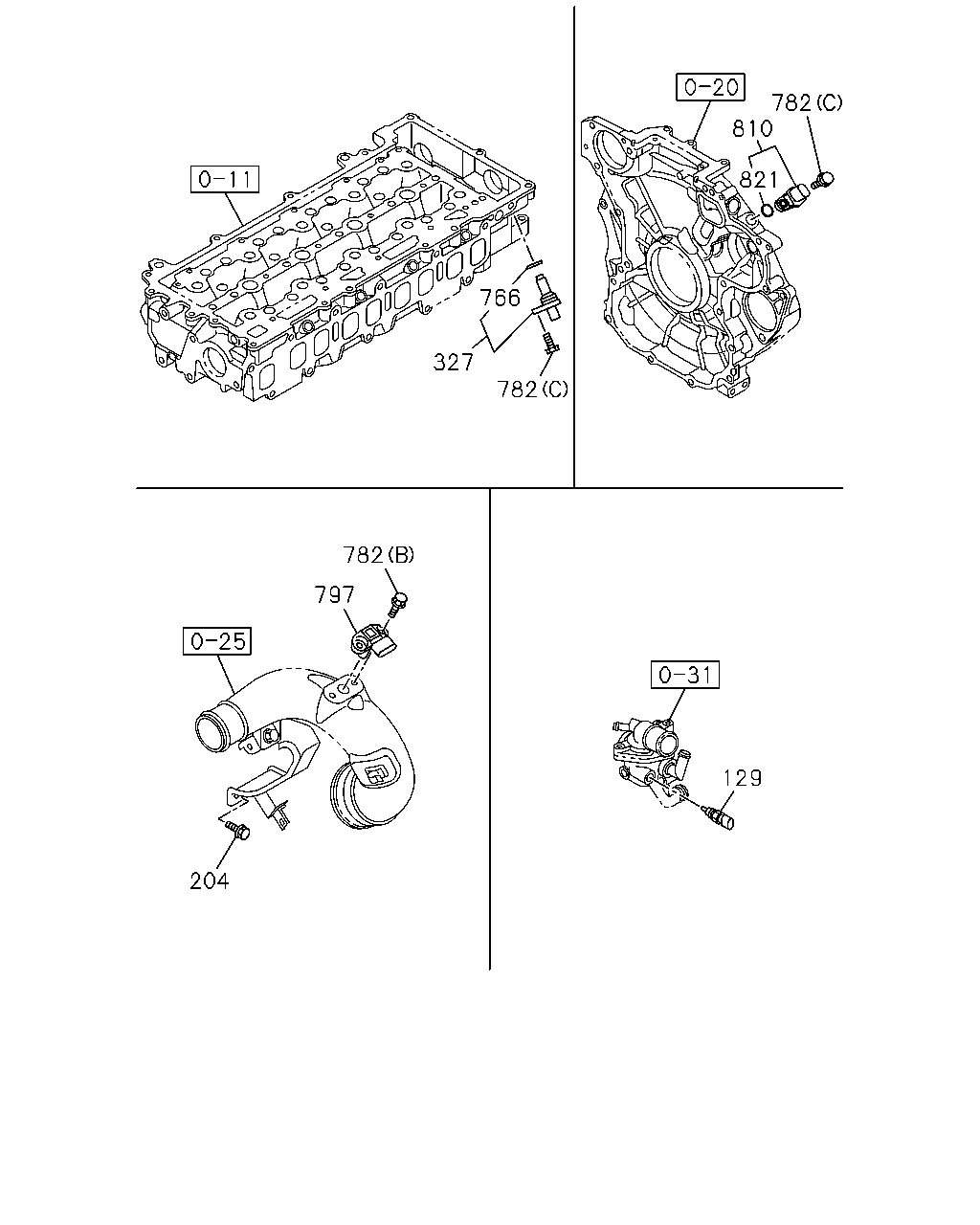

çizim 492196
766 327 810 782 821 782 782 797 204 129
BalonParca AdiParca NoAdetTipApplied Date A B C
129 SENSOR; GLOW PLUG,THERMO
NISHIDA IMA 		8-98260-257-0 01 1 1510- ● ● ●
204 BOLT; BRKT
M8X16 FLANGE THA 		0-28050-816-0 02 1 1510- ●
327 SENSOR; CAMSHAFT POSITION
IMA 		8-98019-024-0 01 1 1510- ● ●
327 SENSOR; CAMSHAFT POSITION
IMA 		8-98258-187-0 01 1 1510- ●
766 GASKET; SENSOR
ID=14.2 OD=18.8 IMA 		8-97369-404-0 01 1 1510- ● ●
766 GASKET; SENSOR
ID=17.8 OD=22.6 IMA 		8-98318-106-0 01 1 1510- ●
782 BOLT; SENSOR
(A) M6X16 FLANGE THA 		0-28050-616-0 01 1 1510- ● ●
782 BOLT; SENSOR
(B) M6X12 FLANGE THA 		0-28050-612-0 02 1 1510- ●
782 BOLT; SENSOR
(C) M6X16 FLANGE THA 		0-28050-616-0 02 1 1510- ●
797 SENSOR; MAT
IMA 		8-98121-697-1 01 1 1510- ●
810 SENSOR; CRANK ANGLE
IMA 		8-98183-621-0 01 1 1510- ●
821 GASKET; CRANKSHAFT SENSOR
ID=14.2 OD=18.8 IMA 		8-97369-404-0 01 1 1510- ●

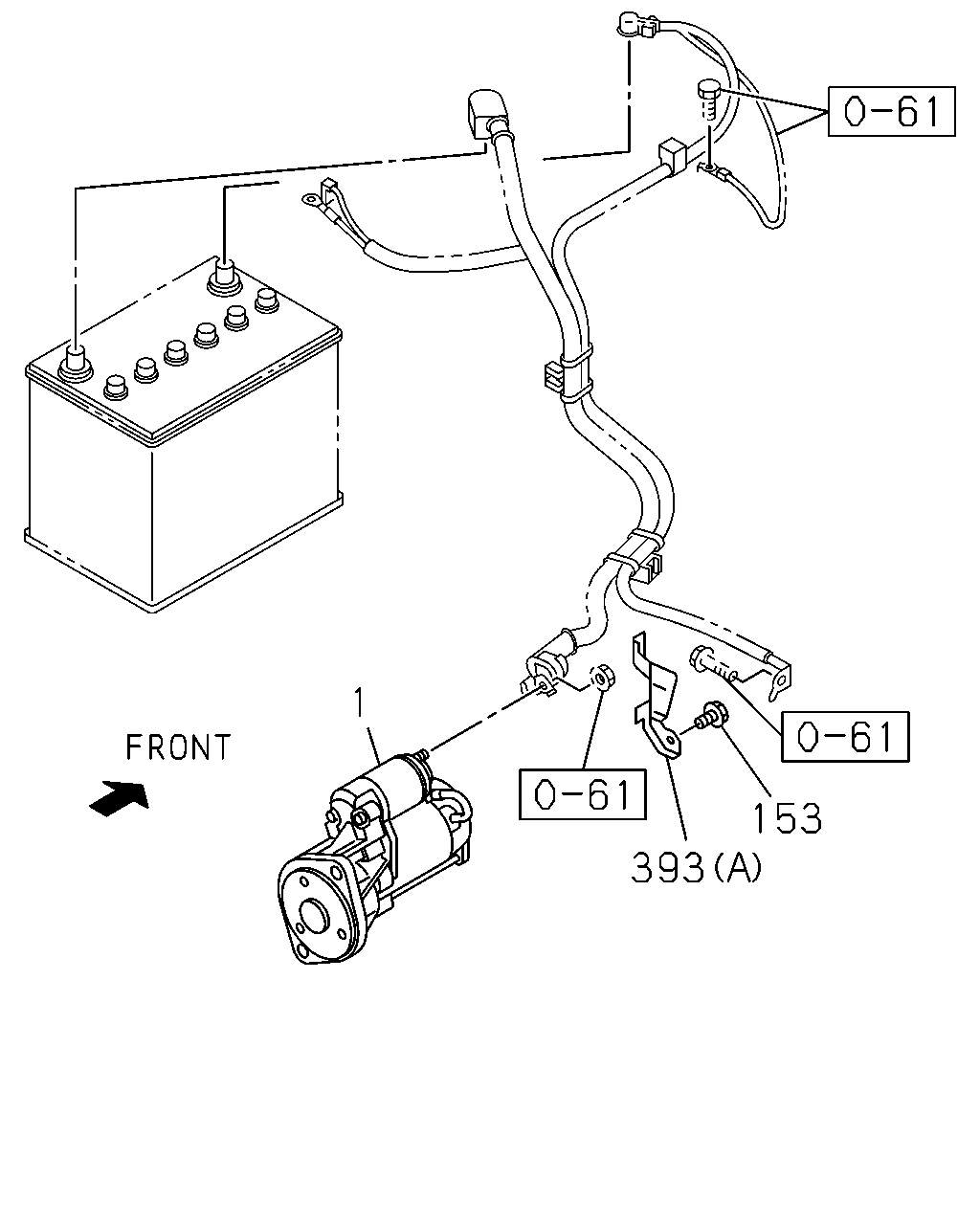

çizim 492197
393 153 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW THA 		8-98028-199-0 01 1 1510- ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.6KW THA 		8-98248-271-2 01 1 1510- ●
153 BOLT; BRKT FIX
M6X10 FLANGE THA 		8-98043-527-0 01 1 1510- ● ●
153 BOLT; BRKT FIX
M8X12 FLANGE THA 		8-97012-320-1 01 1 1510- ●
393 BRACKET; HARNESS TO BODY
(A) THA 		8-98102-992-4 01 1 1510- ● ●
393 BRACKET; HARNESS TO BODY
(B) THA 		8-98292-143-1 01 1 1510- ●

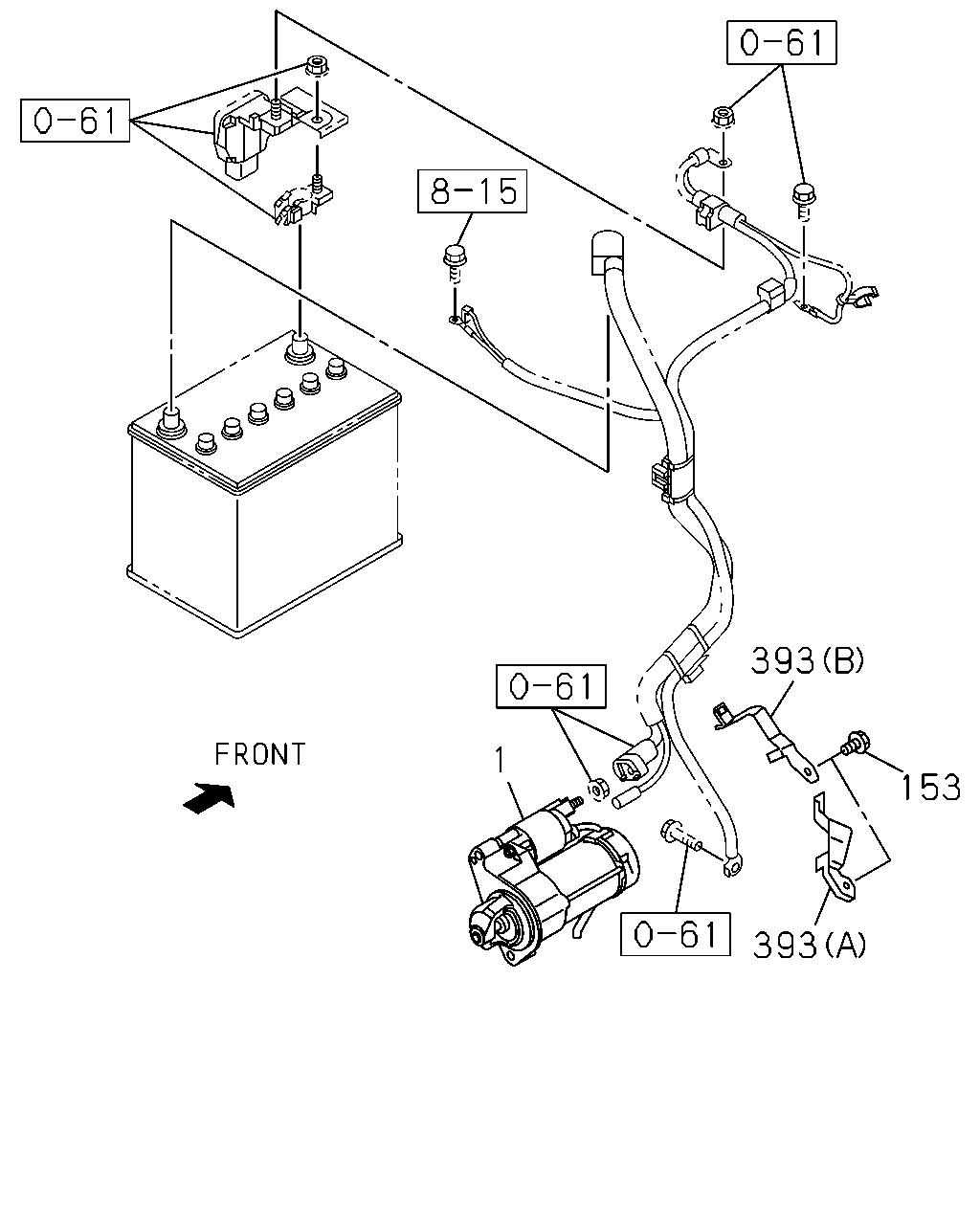

çizim 493064
393 153 393 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW THA 		8-98028-199-0 01 1 1510- ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.6KW THA 		8-98248-271-2 01 1 1510- ●
153 BOLT; BRKT FIX
M6X10 FLANGE THA 		8-98043-527-0 01 1 1510- ● ●
153 BOLT; BRKT FIX
M8X12 FLANGE THA 		8-97012-320-1 01 1 1510- ●
393 BRACKET; HARNESS TO BODY
(A) THA 		8-98102-992-4 01 1 1510- ● ●
393 BRACKET; HARNESS TO BODY
(B) THA 		8-98292-143-1 01 1 1510- ●

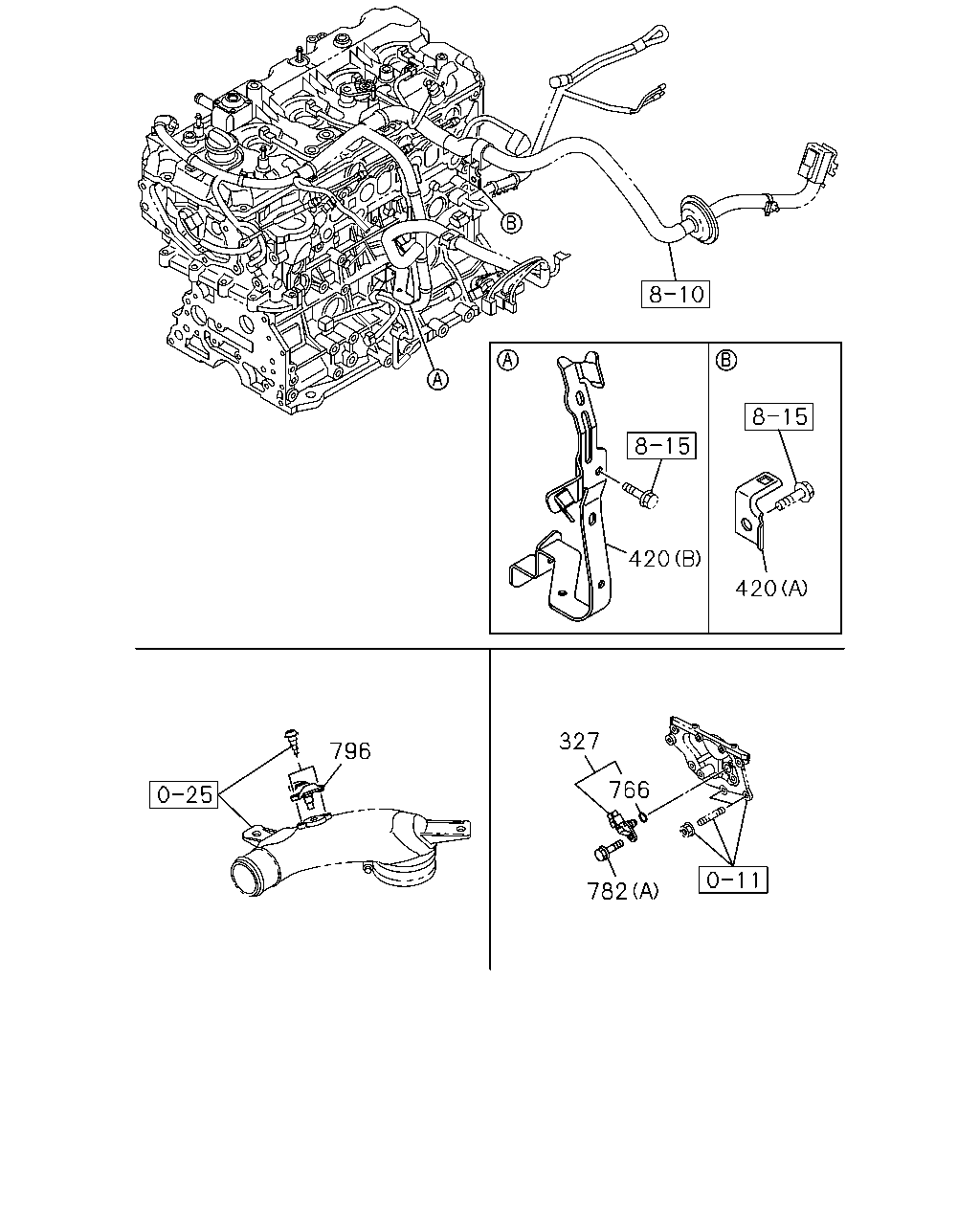

çizim 493277
420 420 327 766 782 796
BalonParca AdiParca NoAdetTipApplied Date A B C
327 SENSOR; CAMSHAFT POSITION
IMA 		8-98019-024-0 01 1 1510- ● ●
327 SENSOR; CAMSHAFT POSITION
IMA 		8-98258-187-0 01 1 1510- ●
420 BRACKET; HARNESS
(A) THA 		8-98179-101-0 01 1 1510- ● ●
420 BRACKET; HARNESS
(B) THA 		8-98226-846-1 01 1 1510- ● ●
420 BRACKET; HARNESS
(C) THA 		8-98286-828-0 01 1 1510- ●
420 BRACKET; HARNESS
(D) THA 		8-98286-829-1 01 1 1510- ●
766 GASKET; SENSOR
ID=14.2 OD=18.8 IMA 		8-97369-404-0 01 1 1510- ● ●
766 GASKET; SENSOR
ID=17.8 OD=22.6 IMA 		8-98318-106-0 01 1 1510- ●
782 BOLT; SENSOR
(A) M6X16 FLANGE THA 		0-28050-616-0 01 1 1510- ● ●
782 BOLT; SENSOR
(B) M6X12 FLANGE THA 		0-28050-612-0 02 1 1510- ●
782 BOLT; SENSOR
(C) M6X16 FLANGE THA 		0-28050-616-0 02 1 1510- ●
796 SENSOR; MAP
IMA 		8-98009-418-0 01 1 1510- ●
