0-52 — OIL AND VACUUM PIPING; ENGINE (#166035) — 98 parça

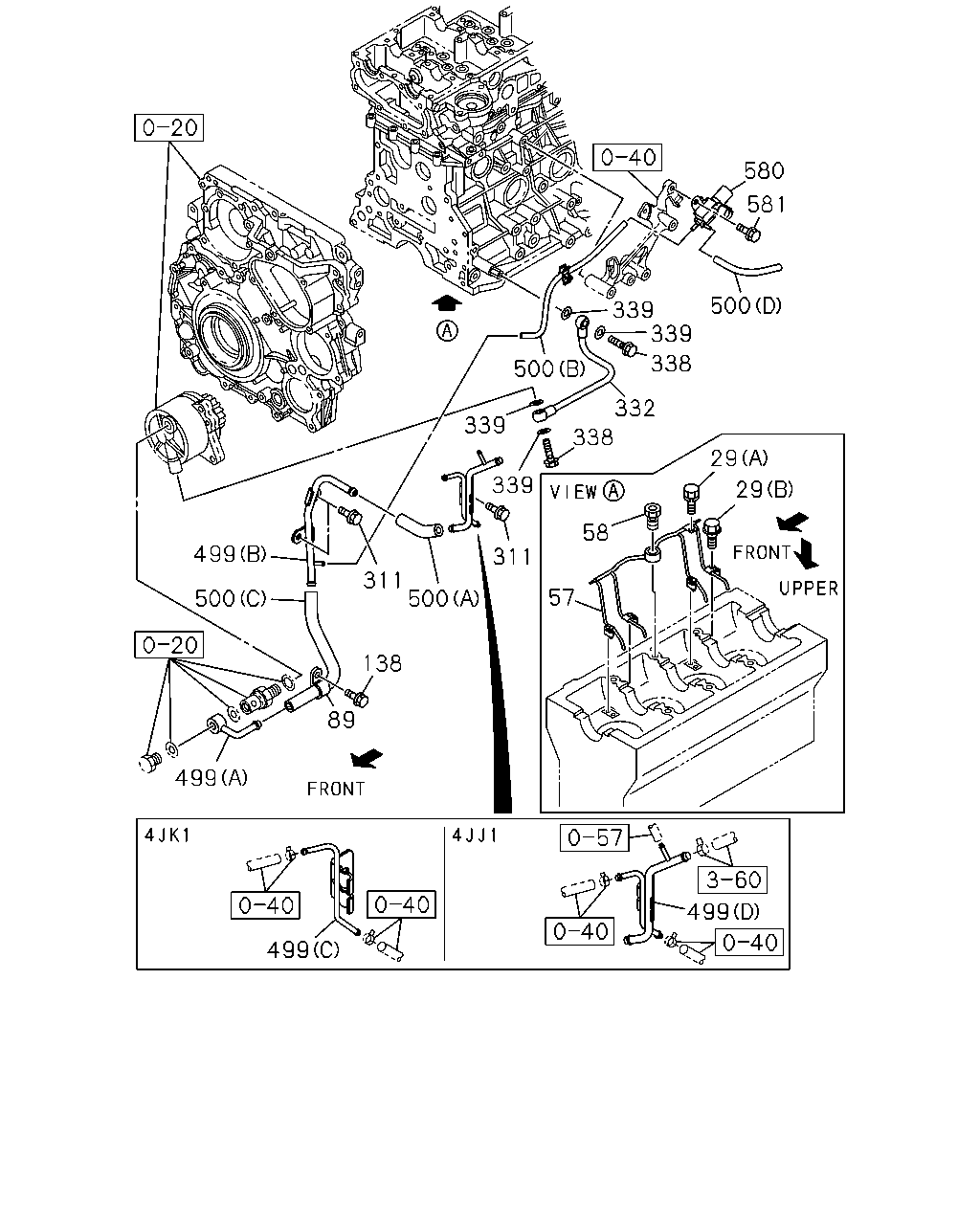

çizim 492161
580 581 500 339 339 338 500 332 339 338 29 58 57 29 339 311 311 500 499 500 138 89 499 499 499
BalonParca AdiParca NoAdetTipApplied Date A B C
29 BOLT; OIL PIPE,OIL JET
(A) M8X10 FLANGE THA 		0-28050-810-0 01 1 1510- ● ●
29 BOLT; OIL PIPE,OIL JET
(B) M6X20 FLANGE THA 		8-97380-673-1 04 1 1510- ● ●
57 PIPE; OIL,OIL JET
THA 		8-97312-132-3 01 1 1510- ● ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING
THA 		8-97379-464-0 01 1 1510- ● ●
89 CLIP; VAC HOSE
ID=16 L=20 THA 		0-95235-536-0 01 1 1510- ● ●
138 BOLT; CLIP FIX
M8X16 FLANGE THA 		0-28050-816-0 01 1 1510- ● ●
311 BOLT; PIPE FIX
M8X16 FLANGE THA 		0-28050-816-0 03 1 1510- ● ●
332 PIPE; OIL,C/BL TO VAC PUMP
THA 		8-98233-768-0 01 1 1510- ● ●
338 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT THA 		8-97910-296-1 02 1 1510- ● ●
339 GASKET; OIL PIPE
ID=8.2 OD=14.0 T=1.0 THA 		9-09571-408-0 04 1 1510- ● ●
499 PIPE; VACUUM
(A) THA 		8-98011-527-1 01 1 1510- ● ●
499 PIPE; VACUUM
(B) THA 		8-98228-436-0 01 1 1510- ● ●
499 PIPE; VACUUM
(C) THA 		8-98132-059-3 01 1 1510- ●
499 PIPE; VACUUM
(D) THA 		8-98132-058-2 01 1 1510- ●
500 HOSE; VACUUM
(A) THA 		0-08508-090-0 01 1 1510- ● ●
500 HOSE; VACUUM
(D) THA 		8-98228-430-0 01 1 1510- ● ●
500 HOSE; VACUUM
(C) THA 		8-98228-437-0 01 1 1510- ● ●
500 HOSE; VACUUM
(B) THA 		8-98228-438-0 01 1 1510- ● ●
580 VALVE; VAC SW
IMA 		8-97352-145-0 01 1 1510- ● ●
581 BOLT; VSV
M8X16 FLANGE THA 		0-28050-816-0 01 1 1510- ● ●

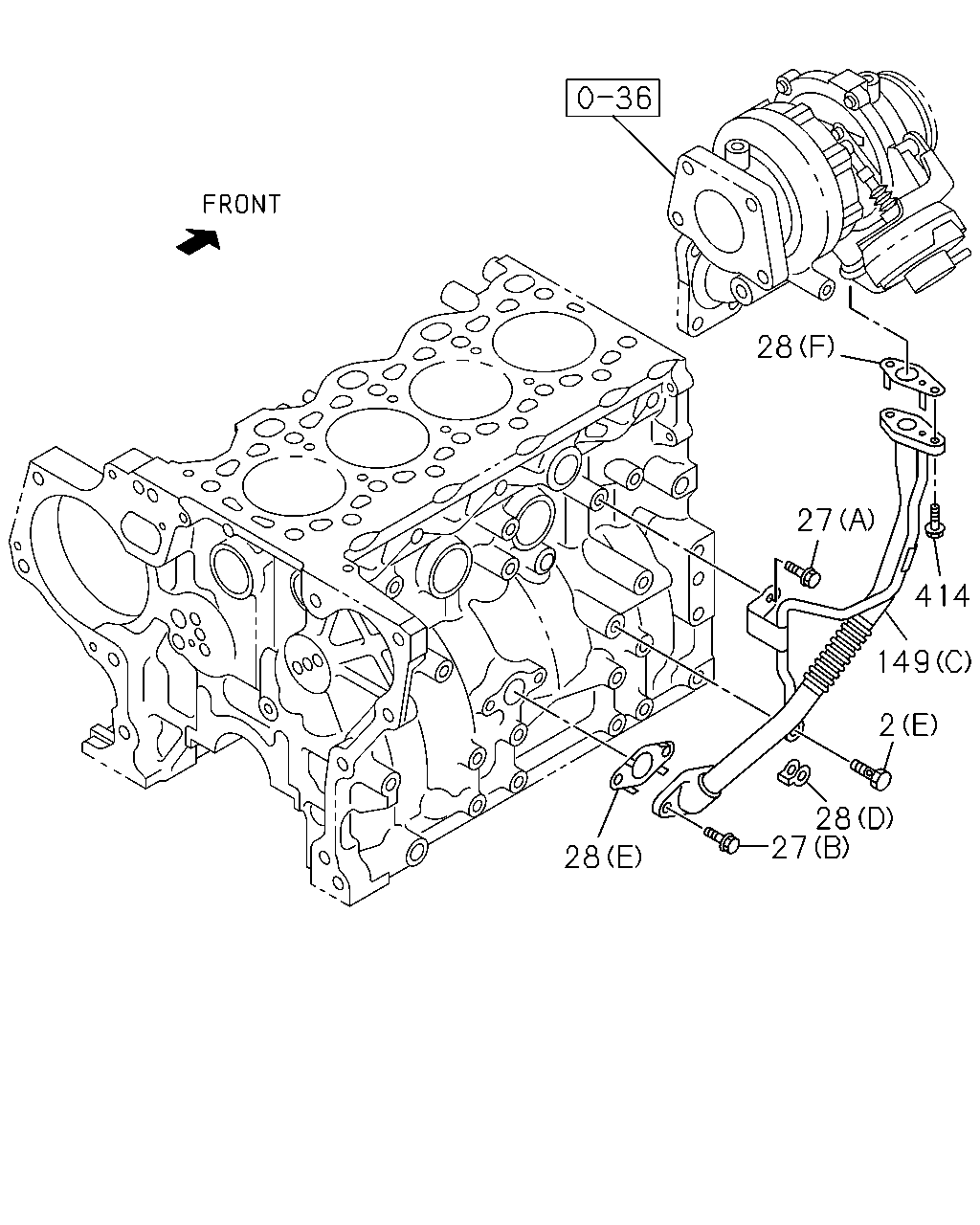

çizim 492167
28 27 414 149 2 28 27 28
BalonParca AdiParca NoAdetTipApplied Date A B C
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE IMA 		1-09675-086-0 01 1 1510- ● ●
2 BOLT; EYE,OIL PIPE
(D) M8X23 FLANGE IMA 		8-98108-689-0 01 1 1510- ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X27 FLANGE IMA 		8-94443-535-0 01 1 1510- ●
2 BOLT; EYE,OIL PIPE
(A) M10X25 FLANGE THA 		8-98151-063-1 01 1 1510- ●
2 BOLT; EYE,OIL PIPE
(E) M10X23 IMA 		8-98037-824-0 01 1 1510- ●
27 BOLT; OIL PIPE FIX
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 1510- ●
27 BOLT; OIL PIPE FIX
(B) M8X20 FLANGE THA 		0-28050-820-0 02 1 1510- ●
28 GASKET; OIL PIPE
(B) ID=8.3 OD=15.0 IMA 		8-98065-992-0 02 1 1510- ● ●
28 GASKET; OIL PIPE
(C) ID=14.2 OD=20.0 IMA 		8-98113-762-0 01 1 1510- ● ●
28 GASKET; OIL PIPE
(A) ID=8.2 OD=14.0 T=1.0 THA 		9-09571-408-0 01 1 1510- ● ●
28 GASKET; OIL PIPE
(D) ID=10.2 IMA 		8-98136-142-0 01 1 1510- ●
28 GASKET; OIL PIPE
(E) THA 		8-98247-536-1 01 1 1510- ●
28 GASKET; OIL PIPE
(F) THA 		8-98292-482-0 01 1 1510- ●
149 PIPE; OIL RETURN,TURBOCHARGER
(B) THA 		8-98189-782-0 01 1 1510- ●
149 PIPE; OIL RETURN,TURBOCHARGER
(A) THA 		8-98156-381-0 01 1 1510- ●
149 PIPE; OIL RETURN,TURBOCHARGER
(C) THA 		8-98247-191-2 01 1 1510- ●
414 BOLT; OIL PIPE
M6X16 FLANGE THA 		0-28050-616-0 02 1 1510- ● ●
414 BOLT; OIL PIPE
M6X20 HEX SOCKET THA 		0-58330-620-0 02 1 1510- ●

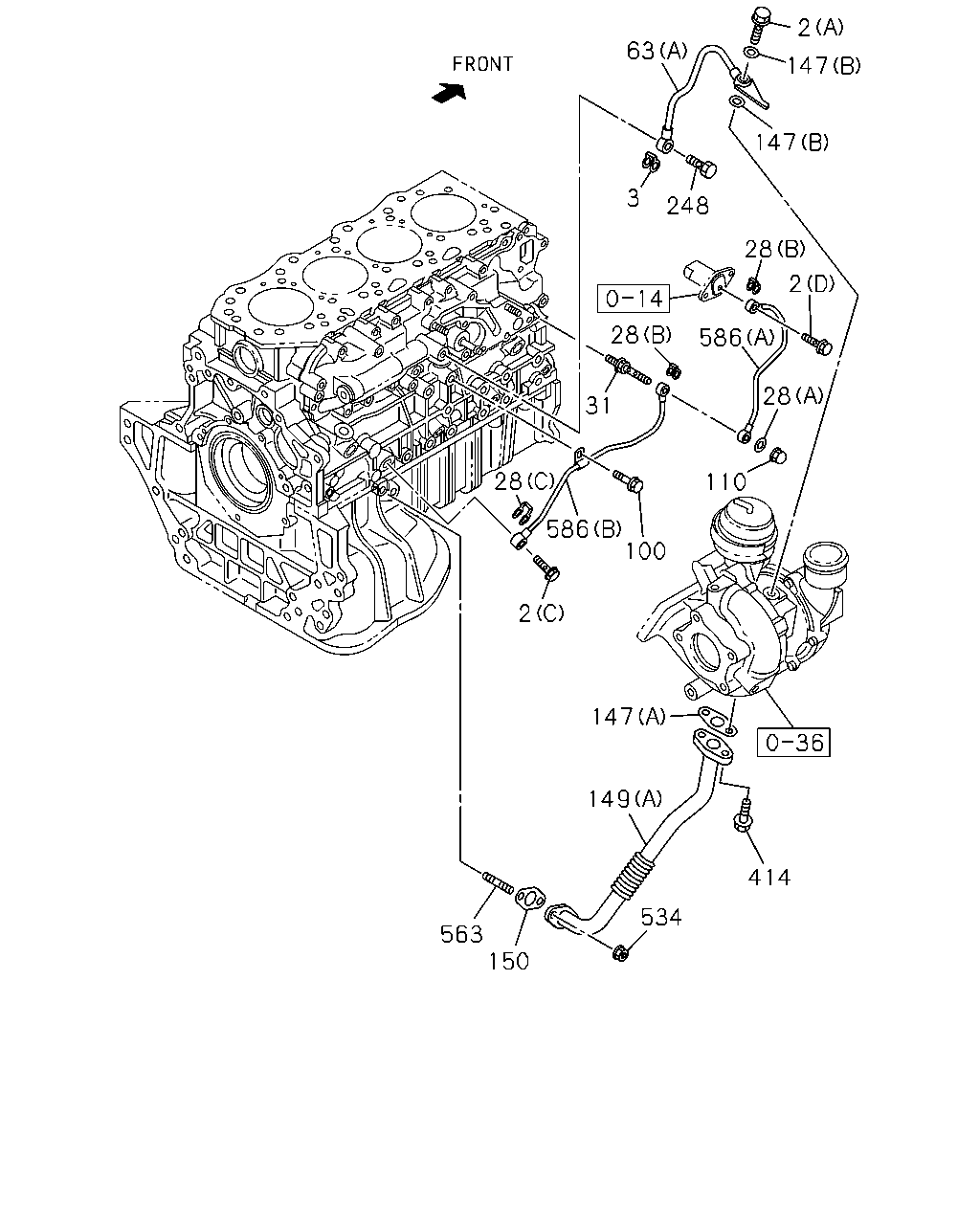

çizim 492169
63 2 147 147 3 248 28 2 586 28 28 110 100 31 28 586 2 147 149 414 534 150 563
BalonParca AdiParca NoAdetTipApplied Date A B C
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE IMA 		1-09675-086-0 01 1 1510- ● ●
2 BOLT; EYE,OIL PIPE
(D) M8X23 FLANGE IMA 		8-98108-689-0 01 1 1510- ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X27 FLANGE IMA 		8-94443-535-0 01 1 1510- ●
2 BOLT; EYE,OIL PIPE
(A) M10X25 FLANGE THA 		8-98151-063-1 01 1 1510- ●
2 BOLT; EYE,OIL PIPE
(E) M10X23 IMA 		8-98037-824-0 01 1 1510- ●
3 GASKET; EYE BOLT,OIL PIPE
ID=10.2 IMA 		8-98136-142-0 01 1 1510- ● ●
28 GASKET; OIL PIPE
(B) ID=8.3 OD=15.0 IMA 		8-98065-992-0 02 1 1510- ● ●
28 GASKET; OIL PIPE
(C) ID=14.2 OD=20.0 IMA 		8-98113-762-0 01 1 1510- ● ●
28 GASKET; OIL PIPE
(A) ID=8.2 OD=14.0 T=1.0 THA 		9-09571-408-0 01 1 1510- ● ●
28 GASKET; OIL PIPE
(D) ID=10.2 IMA 		8-98136-142-0 01 1 1510- ●
28 GASKET; OIL PIPE
(E) THA 		8-98247-536-1 01 1 1510- ●
28 GASKET; OIL PIPE
(F) THA 		8-98292-482-0 01 1 1510- ●
31 NIPPLE; OIL PIPE
THA 		8-98186-104-0 01 1 1510- ● ●
63 PIPE; OIL,TURBOCHARGER FEED
(B) THA 		8-98215-470-0 01 1 1510- ●
63 PIPE; OIL,TURBOCHARGER FEED
(A) THA 		8-98132-014-1 01 1 1510- ●
100 BOLT; CLIP
M8X12 FLANGE THA 		0-28050-812-0 01 1 1510- ● ●
110 NUT; CAP OIL PIPE
M8 CAP NUT FLANGE IMA 		8-98251-964-0 01 1 1510- ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(A) THA 		8-98132-017-0 01 1 1510- ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(B) ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 1510- ● ●
149 PIPE; OIL RETURN,TURBOCHARGER
(B) THA 		8-98189-782-0 01 1 1510- ●
149 PIPE; OIL RETURN,TURBOCHARGER
(A) THA 		8-98156-381-0 01 1 1510- ●
149 PIPE; OIL RETURN,TURBOCHARGER
(C) THA 		8-98247-191-2 01 1 1510- ●
150 GASKET; OIL PIPE TO C/BL
THA 		8-98132-018-1 01 1 1510- ● ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M10X24 THA 		8-97944-505-1 01 1 1510- ● ●
414 BOLT; OIL PIPE
M6X16 FLANGE THA 		0-28050-616-0 02 1 1510- ● ●
414 BOLT; OIL PIPE
M6X20 HEX SOCKET THA 		0-58330-620-0 02 1 1510- ●
534 NUT; OIL PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 1510- ● ●
563 STUD; OIL PIPE
M8X20 L=32 THA 		0-41010-820-0 02 1 1510- ● ●
586 PIPE; OIL,TENSIONER
(B) THA 		8-98228-274-0 01 1 1510- ● ●
586 PIPE; OIL,TENSIONER
(A) THA 		8-98251-165-0 01 1 1510- ● ●

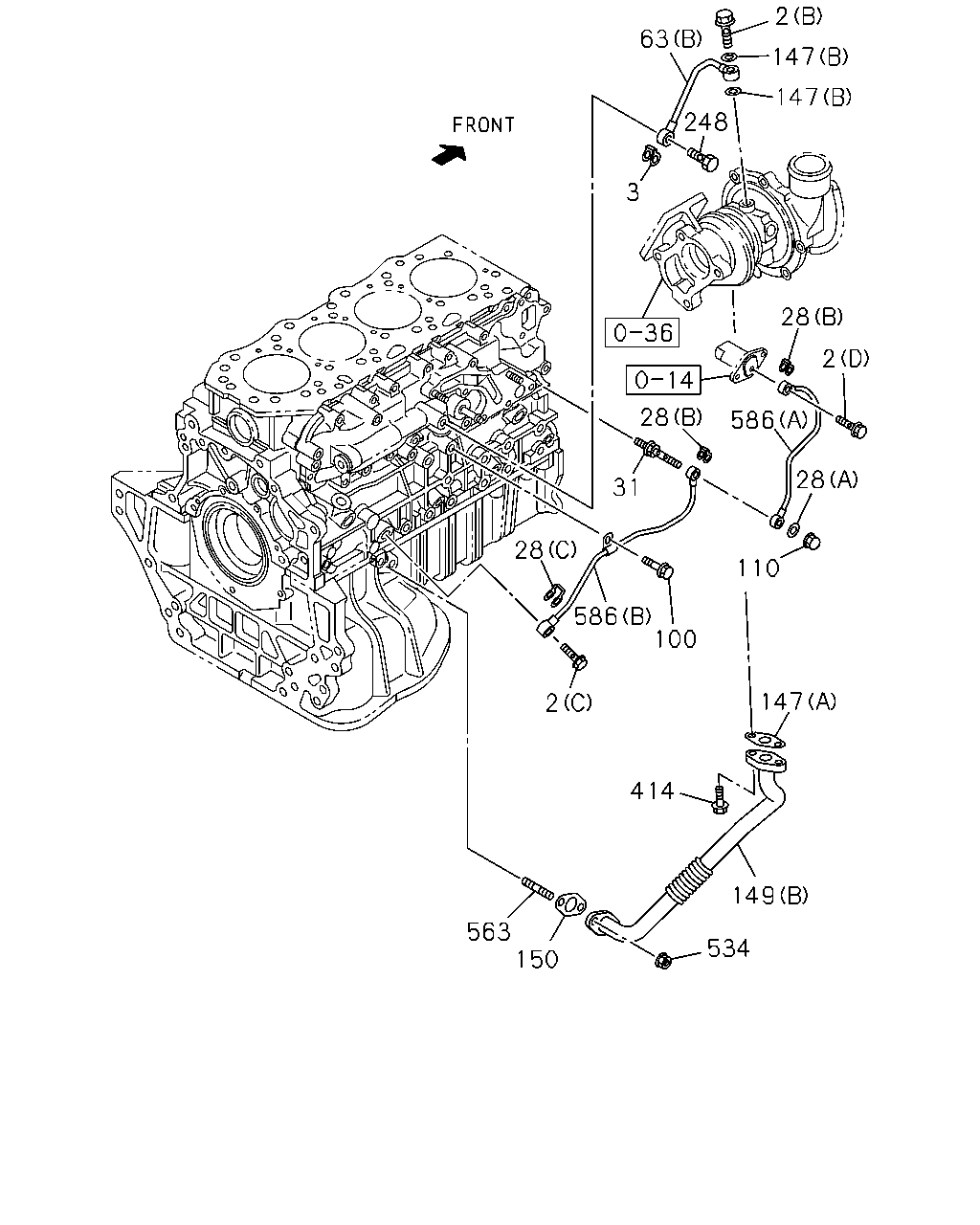

çizim 492170
63 2 147 147 248 3 28 2 586 28 28 31 110 100 147 414 149 534 150 563 586 28 2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE IMA 		1-09675-086-0 01 1 1510- ● ●
2 BOLT; EYE,OIL PIPE
(D) M8X23 FLANGE IMA 		8-98108-689-0 01 1 1510- ● ●
2 BOLT; EYE,OIL PIPE
(B) M10X27 FLANGE IMA 		8-94443-535-0 01 1 1510- ●
2 BOLT; EYE,OIL PIPE
(A) M10X25 FLANGE THA 		8-98151-063-1 01 1 1510- ●
2 BOLT; EYE,OIL PIPE
(E) M10X23 IMA 		8-98037-824-0 01 1 1510- ●
3 GASKET; EYE BOLT,OIL PIPE
ID=10.2 IMA 		8-98136-142-0 01 1 1510- ● ●
28 GASKET; OIL PIPE
(B) ID=8.3 OD=15.0 IMA 		8-98065-992-0 02 1 1510- ● ●
28 GASKET; OIL PIPE
(C) ID=14.2 OD=20.0 IMA 		8-98113-762-0 01 1 1510- ● ●
28 GASKET; OIL PIPE
(A) ID=8.2 OD=14.0 T=1.0 THA 		9-09571-408-0 01 1 1510- ● ●
28 GASKET; OIL PIPE
(D) ID=10.2 IMA 		8-98136-142-0 01 1 1510- ●
28 GASKET; OIL PIPE
(E) THA 		8-98247-536-1 01 1 1510- ●
28 GASKET; OIL PIPE
(F) THA 		8-98292-482-0 01 1 1510- ●
31 NIPPLE; OIL PIPE
THA 		8-98186-104-0 01 1 1510- ● ●
63 PIPE; OIL,TURBOCHARGER FEED
(B) THA 		8-98215-470-0 01 1 1510- ●
63 PIPE; OIL,TURBOCHARGER FEED
(A) THA 		8-98132-014-1 01 1 1510- ●
100 BOLT; CLIP
M8X12 FLANGE THA 		0-28050-812-0 01 1 1510- ● ●
110 NUT; CAP OIL PIPE
M8 CAP NUT FLANGE IMA 		8-98251-964-0 01 1 1510- ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(A) THA 		8-98132-017-0 01 1 1510- ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
(B) ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 1510- ● ●
149 PIPE; OIL RETURN,TURBOCHARGER
(B) THA 		8-98189-782-0 01 1 1510- ●
149 PIPE; OIL RETURN,TURBOCHARGER
(A) THA 		8-98156-381-0 01 1 1510- ●
149 PIPE; OIL RETURN,TURBOCHARGER
(C) THA 		8-98247-191-2 01 1 1510- ●
150 GASKET; OIL PIPE TO C/BL
THA 		8-98132-018-1 01 1 1510- ● ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M10X24 THA 		8-97944-505-1 01 1 1510- ● ●
414 BOLT; OIL PIPE
M6X16 FLANGE THA 		0-28050-616-0 02 1 1510- ● ●
414 BOLT; OIL PIPE
M6X20 HEX SOCKET THA 		0-58330-620-0 02 1 1510- ●
534 NUT; OIL PIPE
M8 FLANGE THA 		0-91180-208-0 02 1 1510- ● ●
563 STUD; OIL PIPE
M8X20 L=32 THA 		0-41010-820-0 02 1 1510- ● ●
586 PIPE; OIL,TENSIONER
(B) THA 		8-98228-274-0 01 1 1510- ● ●
586 PIPE; OIL,TENSIONER
(A) THA 		8-98251-165-0 01 1 1510- ● ●
