Sayfa 0-50 - Isuzu EPC

0-50 — OIL COOLER AND OIL FILTER (#166033) — 52 parça

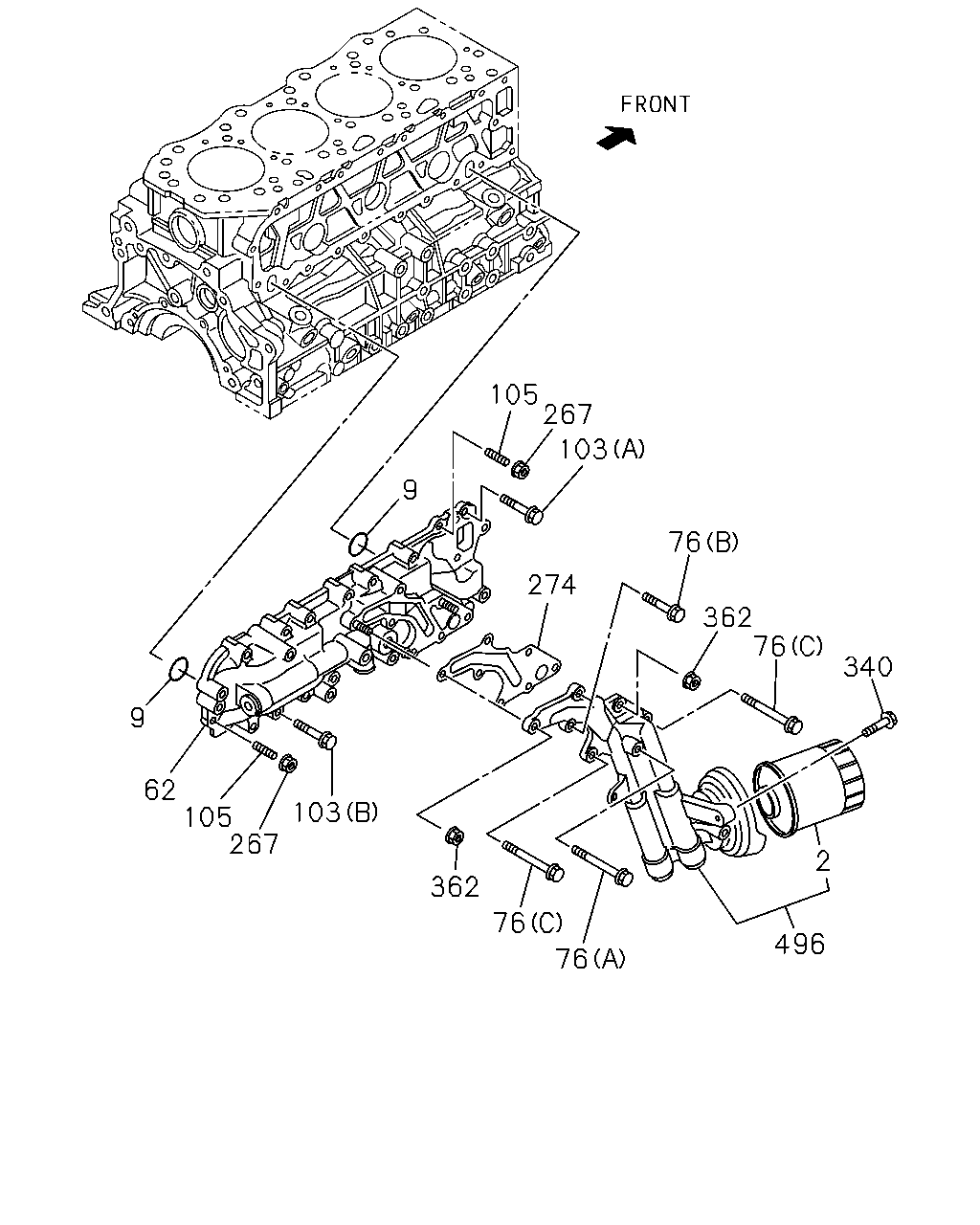

105 9 267 103 274 9 62 105 267 103 362 76 76 496 2 340 76 362 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	ELEMENT; OIL FILTER THA	8-98165-071-0	01	1	1510-	●	●
2	ELEMENT; OIL FILTER THA	8-98270-524-0	01	1	1510-			●
9	GASKET; CENTER BOLT ID=26.2 THA	9-09566-226-0	02	1	1510-	●	●
62	COOLER ASM; OIL THA	8-98251-175-0	01	1	1510-	●	●
76	BOLT; OIL FILTER (A) M8X100 FLANGE THA	0-28050-800-0	01	1	1510-	●	●
76	BOLT; OIL FILTER (B) M8X25 FLANGE THA	0-28050-825-0	02	1	1510-	●	●
76	BOLT; OIL FILTER (C) M8X80 FLANGE THA	0-28050-880-0	02	1	1510-	●	●
76	BOLT; OIL FILTER (D) M8X30 FLANGE THA	0-28050-830-0	05	1	1510-			●
103	BOLT; OIL COOLER (A) M8X20 FLANGE THA	0-28050-820-0	01	1	1510-	●	●
103	BOLT; OIL COOLER (B) M8X45 FLANGE THA	0-28050-845-0	13	1	1510-	●	●
103	BOLT; OIL COOLER (C)	8-98332-978-0	06	1	1510-			●
105	STUD; OIL COOLER M8X20 L=32 THA	0-41010-820-0	02	1	1510-	●	●
267	NUT; OIL COOLER M8 FLANGE THA	0-91180-208-0	02	1	1510-	●	●
274	GASKET; OIL FILTER THA	8-98226-841-0	01	1	1510-	●	●
340	BOLT; BRKT M8X40 FLANGE THA	0-28650-840-0	01	1	1510-	●	●
362	NUT; OIL FILTER M8 FLANGE THA	0-91180-208-0	02	1	1510-	●	●	●
496	FILTER ASM; OIL THA	8-98226-423-1	01	1	1510-	●	●
496	FILTER ASM; OIL THA	8-98302-408-0	01	1	1510-			●

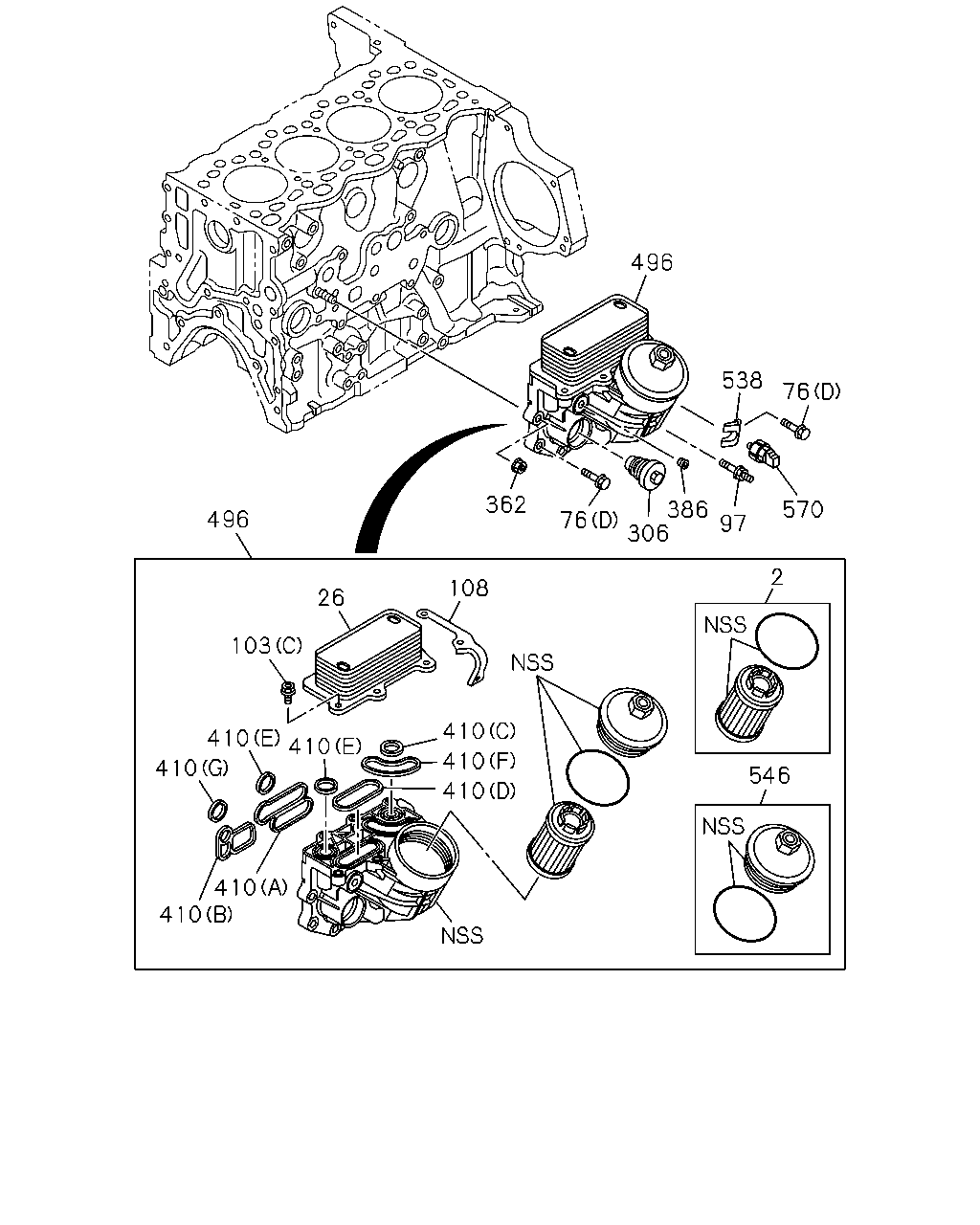

496 538 76 570 97 386 306 76 362 496 26 108 2 546 410 410 410 410 410 410 103 410 410

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	ELEMENT; OIL FILTER THA	8-98165-071-0	01	1	1510-	●	●
2	ELEMENT; OIL FILTER THA	8-98270-524-0	01	1	1510-			●
26	CORE ASM; OIL COOLER THA	8-98270-541-0	01	1	1510-			●
76	BOLT; OIL FILTER (A) M8X100 FLANGE THA	0-28050-800-0	01	1	1510-	●	●
76	BOLT; OIL FILTER (B) M8X25 FLANGE THA	0-28050-825-0	02	1	1510-	●	●
76	BOLT; OIL FILTER (C) M8X80 FLANGE THA	0-28050-880-0	02	1	1510-	●	●
76	BOLT; OIL FILTER (D) M8X30 FLANGE THA	0-28050-830-0	05	1	1510-			●
97	STUD; OIL COOLER BRKT M8X12,M8X30 L=50 IMA	8-98028-225-0	01	1	1510-			●
103	BOLT; OIL COOLER (A) M8X20 FLANGE THA	0-28050-820-0	01	1	1510-	●	●
103	BOLT; OIL COOLER (B) M8X45 FLANGE THA	0-28050-845-0	13	1	1510-	●	●
103	BOLT; OIL COOLER (C)	8-98332-978-0	06	1	1510-			●
108	BRACKET; OIL COOLER	8-98332-979-0	01	1	1510-			●
306	VALVE; OIL FILTER IMA	8-98307-472-0	01	1	1510-			●
362	NUT; OIL FILTER M8 FLANGE THA	0-91180-208-0	02	1	1510-	●	●	●
386	PLUG; OIL FILTER PT1/8 IMA	1-09605-050-0	01	1	1510-			●
410	GASKET (A) THA	8-98312-760-0	01	1	1510-			●
410	GASKET (B) THA	8-98312-761-0	01	1	1510-			●
410	GASKET (C) THA	8-98312-762-0	01	1	1510-			●
410	GASKET (D) THA	8-98312-763-0	01	1	1510-			●
410	GASKET (E) THA	8-98312-764-0	02	1	1510-			●
410	GASKET (F) THA	8-98312-765-0	01	1	1510-			●
410	GASKET (G) THA	8-98312-766-0	01	1	1510-			●
496	FILTER ASM; OIL THA	8-98226-423-1	01	1	1510-	●	●
496	FILTER ASM; OIL THA	8-98302-408-0	01	1	1510-			●
538	CLIP; FLEX THA	8-98312-152-0	01	1	1510-			●
546	CAP; OIL FILTER THA	8-98312-728-0	01	1	1510-			●
570	SWITCH; OIL PRESSURE IMA	8-97176-230-0	01	1	1510-			●

582 278 201 278 342 462

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
201	PIPE; VINYL,OIL DRAIN EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98199-904-0	01	1	1510-	●	●
278	CLAMP; RUBBER HOSE EXC. PROVISIONAL PACKAGE SPEC<BCC> ID=14 IMA	8-97173-221-0	02	1	1510-	●	●
342	HOSE; OIL DRAIN EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98199-910-0	01	1	1510-	●	●
462	CLIP; HOSE,DRAIN EXC. PROVISIONAL PACKAGE SPEC<BCC> IMA	8-97025-737-1	01	1	1510-	●	●
582	TRAY; OIL 4X2<TFB***> PROVISIONAL PACKAGE SPEC<BCC> HIGH RIDE SUSPENSION<7YC> THA	8-98235-616-3	01	1	1510-	●	●
582	TRAY; OIL 4X4<TFS***> PROVISIONAL PACKAGE SPEC<BCC> THA	8-98235-616-3	01	1	1510-	●	●
582	TRAY; OIL 4X2<TFB***> PROVISIONAL PACKAGE SPEC<BCC> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98236-507-2	01	1	1510-	●	●
