◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51632 - TFR/TFS THAILAND ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#166030) — 115 parça

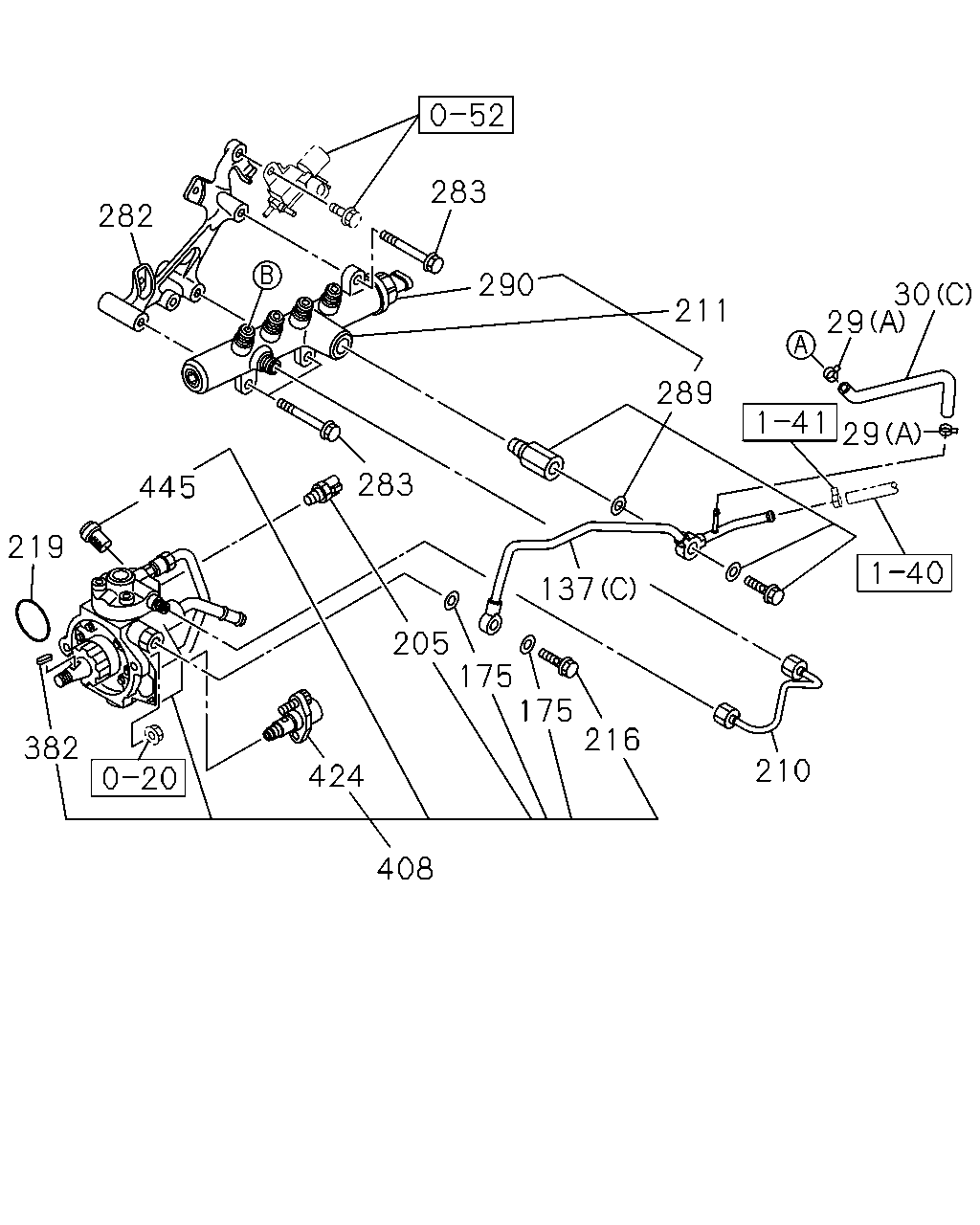

çizim 492127
283 290 211 289 29 30 29 210 216 175 282 445 219 382 424 408 175 205 283 137
BalonParca AdiParca NoAdetTipApplied Date A B C
29 CLIP; HOSE
(A) ID=10.5 THA 		8-97944-126-0 10 1 1510- ● ●
29 CLIP; HOSE
(B) ID=12 WO/PVC COATING THA 		8-94123-526-1 02 1 1510- ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 08 1 1510- ●
30 HOSE; RUBBER,FUEL LEAK
(A) L=96 THA 		8-98053-693-0 03 1 1510- ● ●
30 HOSE; RUBBER,FUEL LEAK
(C) THA 		8-98179-014-0 01 1 1510- ● ●
30 HOSE; RUBBER,FUEL LEAK
(B) THA 		8-98189-998-0 01 1 1510- ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=160 SERVICED BY L=3000 IMA 		0-01558-300-0 01 1 1510- ●
30 HOSE; RUBBER,FUEL LEAK
(E) THA 		8-98250-822-0 03 1 1510- ●
30 HOSE; RUBBER,FUEL LEAK
(F) THA 		8-98250-851-0 01 1 1510- ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-98158-737-1 01 1 1510- ● ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-98211-775-0 03 1 1510- ● ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-98211-776-0 01 1 1510- ● ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
IMA 		1-15619-508-0 02 1 1510- ● ●
205 SENSOR; FUEL TEMP
IMA 		8-98023-581-0 01 1 1510- ● ● ●
210 PIPE; INJ,C/R
THA 		8-98233-237-0 01 1 1510- ● ●
210 PIPE; INJ,C/R
THA 		8-98247-225-1 01 1 1510- ●
211 RAIL ASM; COMMON
THA 		8-98228-475-0 01 1 1510- ● ●
216 BOLT; EYE
THA 		8-98220-020-0 01 1 1510- ●
216 BOLT; EYE
THA 		8-98209-777-0 01 1 1510- ● ●
219 GASKET
ID=49.7 THA 		1-09623-541-0 01 1 1510- ● ●
282 BRACKET; COMMON RAIL
THA 		8-98205-942-0 01 1 1510- ● ●
283 BOLT; COMMON RAIL
M8X66 FLANGE THA 		8-98228-566-0 03 1 1510- ● ●
289 LIMITER; FUEL PRESS
THA 		8-98138-695-0 01 1 1510- ●
289 LIMITER; FUEL PRESS
THA 		8-98032-549-0 01 1 1510- ● ●
290 SENSOR; PRESS
THA 		8-98178-706-0 01 1 1510- ●
290 SENSOR; PRESS
THA 		8-98181-616-0 01 1 1510- ● ●
382 KEY; DRIVE SHAFT
IMA 		8-98161-995-0 01 1 1510- ● ● ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-98155-988-3 01 1 1510- ● ●
424 OVERHAUL KIT; SUPPLY PUMP
THA 		8-98283-485-0 01 1 1510- ●
424 OVERHAUL KIT; SUPPLY PUMP
THA 		8-98145-455-1 01 1 1510- ● ●
445 SCREW; FILTER,INLET
THA 		8-98209-778-0 01 1 1510- ● ● ●

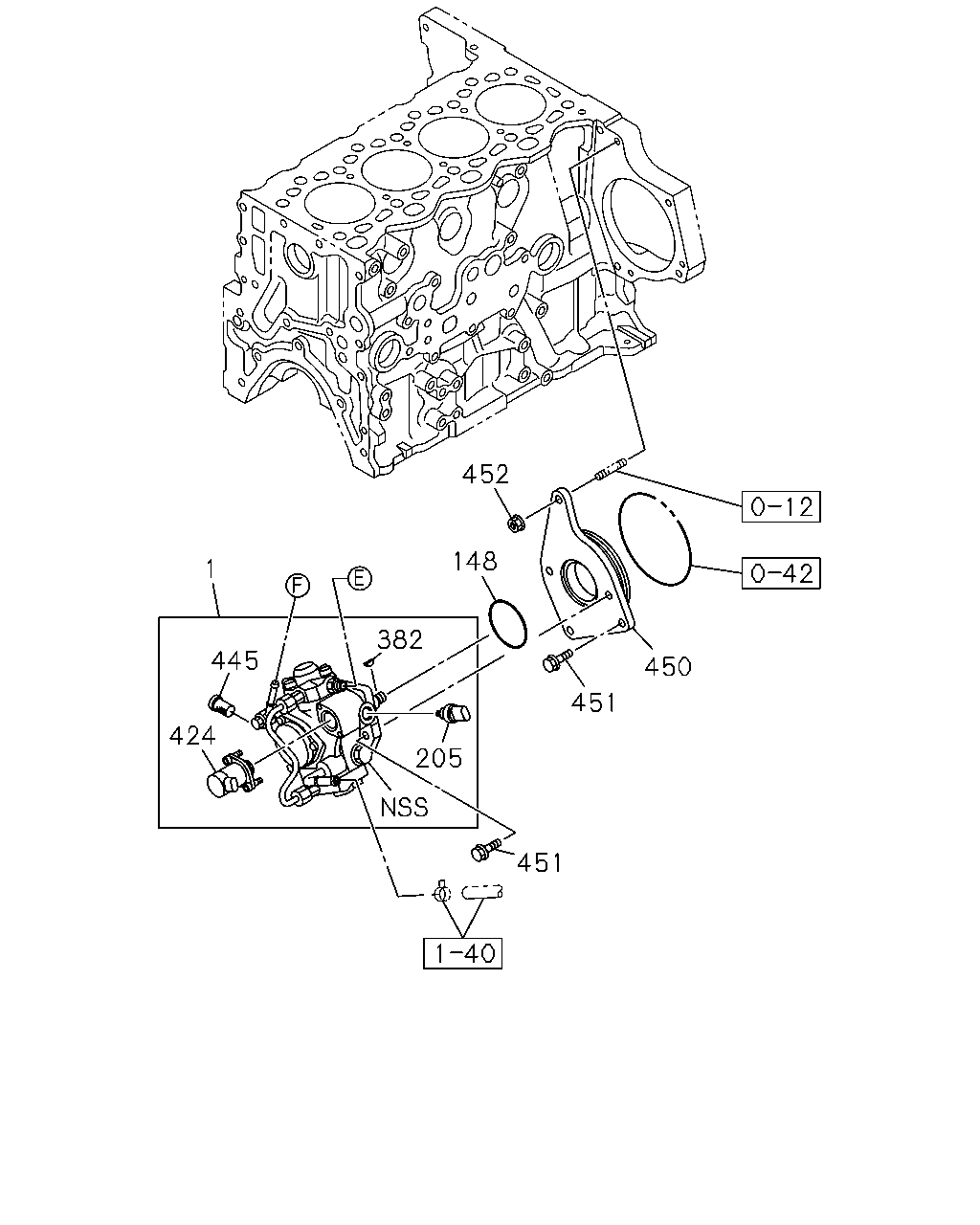

çizim 492134
452 148 450 451 451 205 382 1 445 424
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; INJ
THA 		8-98247-350-1 01 1 1510- ●
148 RING
ID=49.7 THA 		1-09623-541-0 01 1 1510- ●
205 SENSOR; FUEL TEMP
IMA 		8-98023-581-0 01 1 1510- ● ● ●
382 KEY; DRIVE SHAFT
IMA 		8-98161-995-0 01 1 1510- ● ● ●
424 OVERHAUL KIT; SUPPLY PUMP
THA 		8-98283-485-0 01 1 1510- ●
424 OVERHAUL KIT; SUPPLY PUMP
THA 		8-98145-455-1 01 1 1510- ● ●
445 SCREW; FILTER,INLET
THA 		8-98209-778-0 01 1 1510- ● ● ●
450 ADAPTER; SUPPLY PUMP
THA 		8-98248-086-4 01 1 1510- ●
451 BOLT; SUPPLY PUMP
M8X25 FLANGE THA 		0-28050-825-0 03 1 1510- ●
452 NUT; SUPPLY PUMP
M8 FLANGE THA 		0-91180-208-0 02 1 1510- ●

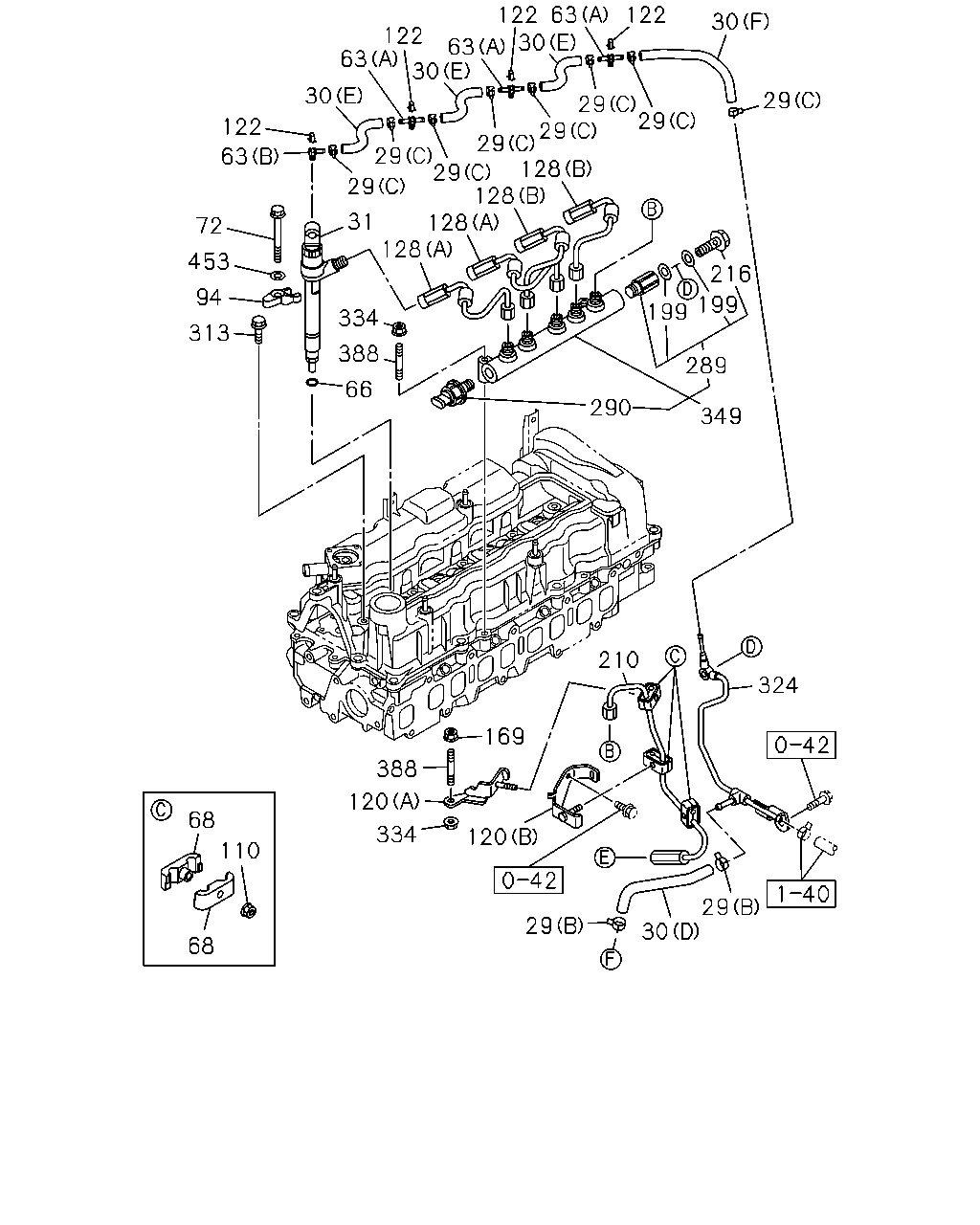

çizim 493198
122 30 63 30 29 29 31 128 334 388 66 122 63 72 453 94 313 128 29 128 128 29 29 63 122 30 63 122 30 29 29 29 216 199 199 289 349 290 210 324 29 30 29 120 169 388 120 334 110 68 68
BalonParca AdiParca NoAdetTipApplied Date A B C
29 CLIP; HOSE
(A) ID=10.5 THA 		8-97944-126-0 10 1 1510- ● ●
29 CLIP; HOSE
(B) ID=12 WO/PVC COATING THA 		8-94123-526-1 02 1 1510- ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 08 1 1510- ●
30 HOSE; RUBBER,FUEL LEAK
(A) L=96 THA 		8-98053-693-0 03 1 1510- ● ●
30 HOSE; RUBBER,FUEL LEAK
(C) THA 		8-98179-014-0 01 1 1510- ● ●
30 HOSE; RUBBER,FUEL LEAK
(B) THA 		8-98189-998-0 01 1 1510- ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=160 SERVICED BY L=3000 IMA 		0-01558-300-0 01 1 1510- ●
30 HOSE; RUBBER,FUEL LEAK
(E) THA 		8-98250-822-0 03 1 1510- ●
30 HOSE; RUBBER,FUEL LEAK
(F) THA 		8-98250-851-0 01 1 1510- ●
31 NOZZLE ASM; INJ
THA 		8-98228-474-0 04 1 1510- ●
31 NOZZLE ASM; INJ
THA 		8-98106-693-2 04 1 1510- ●
31 NOZZLE ASM; INJ
THA 		8-98247-354-0 04 1 1510- ●
63 PIPE; FUEL,NOZZLE LEAK OFF
(A) IMA 		8-98161-061-0 03 1 1510- ●
63 PIPE; FUEL,NOZZLE LEAK OFF
(B) IMA 		8-98161-062-0 01 1 1510- ●
66 GASKET; INJ NOZZLE
IMA 		8-98181-540-0 04 1 1510- ● ● ●
68 CLIP; INJ PIPE
ID=11 & 11 L=19 IMA 		8-98148-996-2 04 1 1510- ● ●
68 CLIP; INJ PIPE
ID=11 & 11 L=19 IMA 		8-98148-996-2 06 1 1510- ●
72 BOLT; BRKT TO INJ PUMP
M8X80 FLANGE THA 		8-98287-955-2 04 1 1510- ●
94 BRACKET; INJ NOZZLE
THA 		8-98248-087-1 04 1 1510- ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 1510- ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 03 1 1510- ●
120 BRACKET; INJ PIPE
(A) THA 		8-98248-157-2 01 1 1510- ●
120 BRACKET; INJ PIPE
(B) THA 		8-98315-357-1 01 1 1510- ●
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 1510- ● ● ●
128 PIPE ASM; INJ
(A) THA 		8-98247-227-3 02 1 1510- ●
128 PIPE ASM; INJ
(B) THA 		8-98247-229-3 02 1 1510- ●
169 NUT; BRKT
M8 FLANGE THA 		0-91180-208-0 01 1 1510- ●
199 GASKET; EYE BOLT
IMA 		8-97602-218-0 02 1 1510- ●
210 PIPE; INJ,C/R
THA 		8-98233-237-0 01 1 1510- ● ●
210 PIPE; INJ,C/R
THA 		8-98247-225-1 01 1 1510- ●
216 BOLT; EYE
THA 		8-98220-020-0 01 1 1510- ●
216 BOLT; EYE
THA 		8-98209-777-0 01 1 1510- ● ●
289 LIMITER; FUEL PRESS
THA 		8-98138-695-0 01 1 1510- ●
289 LIMITER; FUEL PRESS
THA 		8-98032-549-0 01 1 1510- ● ●
290 SENSOR; PRESS
THA 		8-98178-706-0 01 1 1510- ●
290 SENSOR; PRESS
THA 		8-98181-616-0 01 1 1510- ● ●
313 BOLT; BRKT,INJ NOZZLE
M8X85 W/WASHER THA 		8-98228-637-0 04 1 1510- ● ●
313 BOLT; BRKT,INJ NOZZLE
M6X25 FLANGE THA 		8-98247-614-1 04 1 1510- ●
324 PIPE; FUEL RETURN
THA 		8-98248-159-0 01 1 1510- ●
334 NUT; FLANGE
M8 FLANGE THA 		0-91180-208-0 02 1 1510- ●
349 RAIL; COMMON
THA 		8-98247-356-0 01 1 1510- ●
388 STUD; RAIL
M8X72.5 L=100 THA 		8-98320-912-0 02 1 1510- ●
453 WASHER; INJ NOZZLE
THA 		8-98302-470-0 04 1 1510- ●

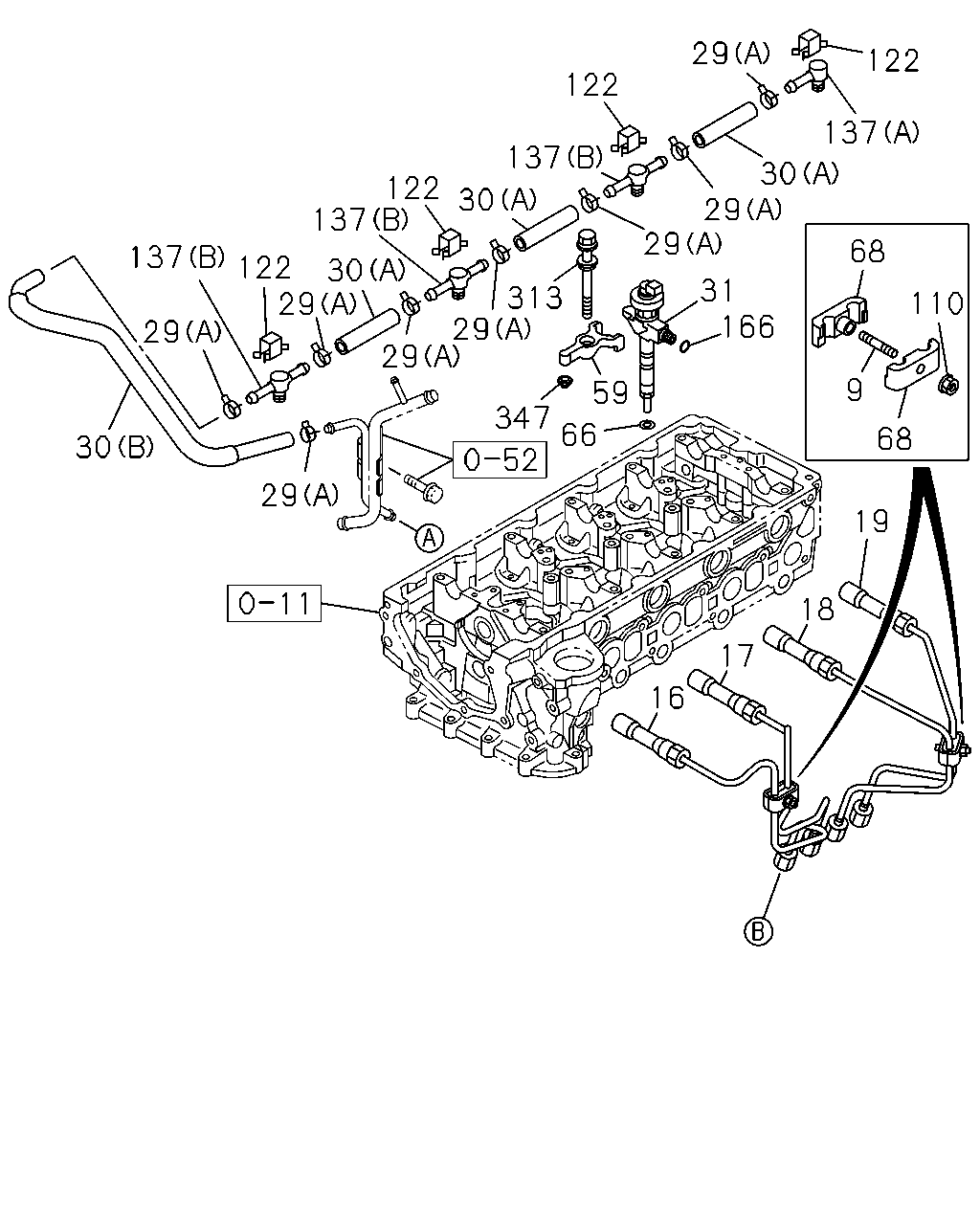

çizim 493258
137 122 29 137 122 137 122 29 122 137 30 29 29 31 166 68 68 110 9 19 18 17 16 347 59 66 313 29 29 29 30 29 30 30
BalonParca AdiParca NoAdetTipApplied Date A B C
9 STUD; CLIP
M6X30 L=38 THA 		0-41010-630-0 02 1 1510- ● ●
16 PIPE; INJ NO.1
THA 		8-98223-194-0 01 1 1510- ● ●
17 PIPE; INJ NO.2
THA 		8-98223-195-1 01 1 1510- ● ●
18 PIPE; INJ NO.3
THA 		8-98223-196-0 01 1 1510- ● ●
19 PIPE; INJ NO.4
THA 		8-98223-197-0 01 1 1510- ● ●
29 CLIP; HOSE
(A) ID=10.5 THA 		8-97944-126-0 10 1 1510- ● ●
29 CLIP; HOSE
(B) ID=12 WO/PVC COATING THA 		8-94123-526-1 02 1 1510- ●
29 CLIP; HOSE
(C) ID=10.5 THA 		8-97944-126-0 08 1 1510- ●
30 HOSE; RUBBER,FUEL LEAK
(A) L=96 THA 		8-98053-693-0 03 1 1510- ● ●
30 HOSE; RUBBER,FUEL LEAK
(C) THA 		8-98179-014-0 01 1 1510- ● ●
30 HOSE; RUBBER,FUEL LEAK
(B) THA 		8-98189-998-0 01 1 1510- ● ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=160 SERVICED BY L=3000 IMA 		0-01558-300-0 01 1 1510- ●
30 HOSE; RUBBER,FUEL LEAK
(E) THA 		8-98250-822-0 03 1 1510- ●
30 HOSE; RUBBER,FUEL LEAK
(F) THA 		8-98250-851-0 01 1 1510- ●
31 NOZZLE ASM; INJ
THA 		8-98228-474-0 04 1 1510- ●
31 NOZZLE ASM; INJ
THA 		8-98106-693-2 04 1 1510- ●
31 NOZZLE ASM; INJ
THA 		8-98247-354-0 04 1 1510- ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98092-539-0 04 1 1510- ● ●
66 GASKET; INJ NOZZLE
IMA 		8-98181-540-0 04 1 1510- ● ● ●
68 CLIP; INJ PIPE
ID=11 & 11 L=19 IMA 		8-98148-996-2 04 1 1510- ● ●
68 CLIP; INJ PIPE
ID=11 & 11 L=19 IMA 		8-98148-996-2 06 1 1510- ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 1510- ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 03 1 1510- ●
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 1510- ● ● ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-98158-737-1 01 1 1510- ● ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-98211-775-0 03 1 1510- ● ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-98211-776-0 01 1 1510- ● ●
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 THA 		9-09566-111-0 04 1 1510- ● ●
313 BOLT; BRKT,INJ NOZZLE
M8X85 W/WASHER THA 		8-98228-637-0 04 1 1510- ● ●
313 BOLT; BRKT,INJ NOZZLE
M6X25 FLANGE THA 		8-98247-614-1 04 1 1510- ●
347 PIN
THA 		8-98165-035-0 04 1 1510- ● ●
