0-36 — TURBOCHARGER SYSTEM (#166028) — 134 parça

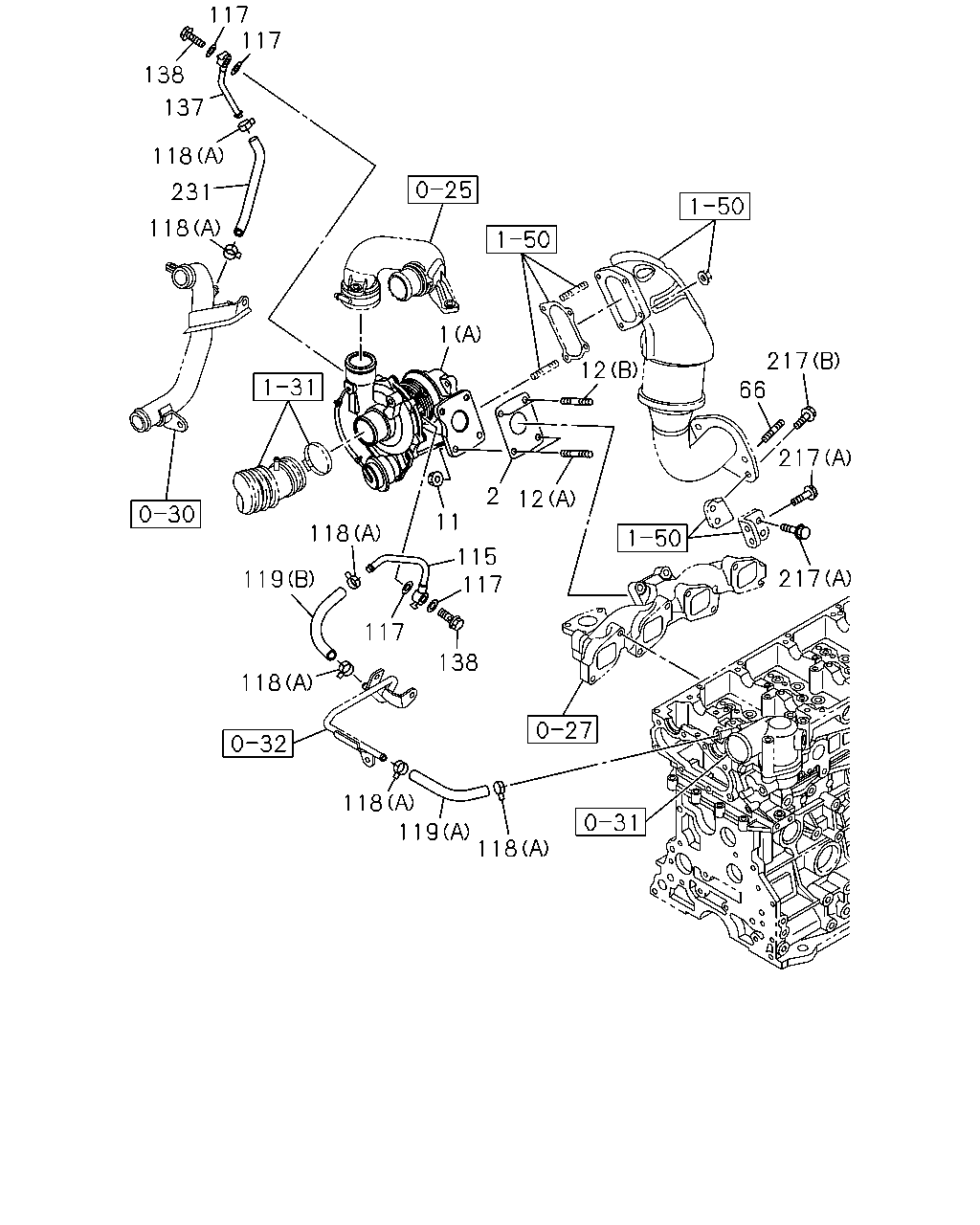

çizim 492104
119 118 118 118 117 138 117 11 118 119 115 12 2 1 12 217 66 217 217 138 117 137 117 118 118 231
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
(A) SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-98221-675-1 01 1 1510- ●
1 TURBOCHARGER ASM
(B) THA 		8-98221-673-1 01 1 1510- ●
1 TURBOCHARGER ASM
(C) THA 		8-98247-359-2 01 1 1510- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-98132-073-0 01 1 1510- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-98248-088-2 01 1 1510- ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 1510- ● ●
11 NUT; TURBOCHARGER
M10 FLANGE THA 		8-97309-942-0 04 1 1510- ●
12 STUD; TURBOCHARGER
(A) M8X25 L=36 THA 		8-97378-062-0 02 1 1510- ● ●
12 STUD; TURBOCHARGER
(B) M8X30 L=41 IMA 		8-97378-064-0 02 1 1510- ● ●
12 STUD; TURBOCHARGER
(C) M10X28.5 L=41.5 IMA 		8-97378-063-0 04 1 1510- ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 1510- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
THA 		8-98132-443-0 01 1 1510- ●
117 GASKET; WATER PIPE
ID=14.2 OD=20.0 THA 		9-09571-414-0 04 1 1510- ●
117 GASKET; WATER PIPE
THA 		8-98299-210-0 01 1 1510- ●
118 CLIP; WATER HOSE
(A) ID=15.1 THA 		8-98179-581-0 06 1 1510- ● ●
118 CLIP; WATER HOSE
(A) ID=15.1 THA 		8-98179-581-0 04 1 1510- ●
118 CLIP; WATER HOSE
(B) ID=20.8 THA 		8-97944-127-0 06 1 1510- ● ● ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-98179-580-0 01 1 1510- ● ●
119 HOSE; WATER,TURBOCHARGER
(A) THA 		8-98239-061-0 01 1 1510- ● ●
119 HOSE; WATER,TURBOCHARGER
(C) THA 		8-98298-388-0 01 1 1510- ●
137 PIPE; WATER,TURBOCHARGER IN
THA 		8-98132-444-1 01 1 1510- ●
138 BOLT; EYE,WATER PIPE
M14X31 EYE-BOLT THA 		8-98037-067-0 02 1 1510- ●
217 BOLT; BRKT
(A) M12X30 FLANGE THA 		0-28661-230-0 03 1 1510- ● ●
217 BOLT; BRKT
(B) M12X35 FLANGE THA 		0-28661-235-0 02 1 1510- ● ●
217 BOLT; BRKT
(C) M8X30 FLANGE THA 		0-28050-830-0 02 1 1510- ●
217 BOLT; BRKT
(D) M10X20 FLANGE THA 		0-28151-020-0 02 1 1510- ●
231 HOSE; RUBBER,TURBOCHARGER OUT
THA 		8-98228-461-0 01 1 1510- ●
231 HOSE; RUBBER,TURBOCHARGER OUT
THA 		8-98228-462-0 01 1 1510- ●
231 HOSE; RUBBER,TURBOCHARGER OUT
THA 		8-98298-389-0 01 1 1510- ●

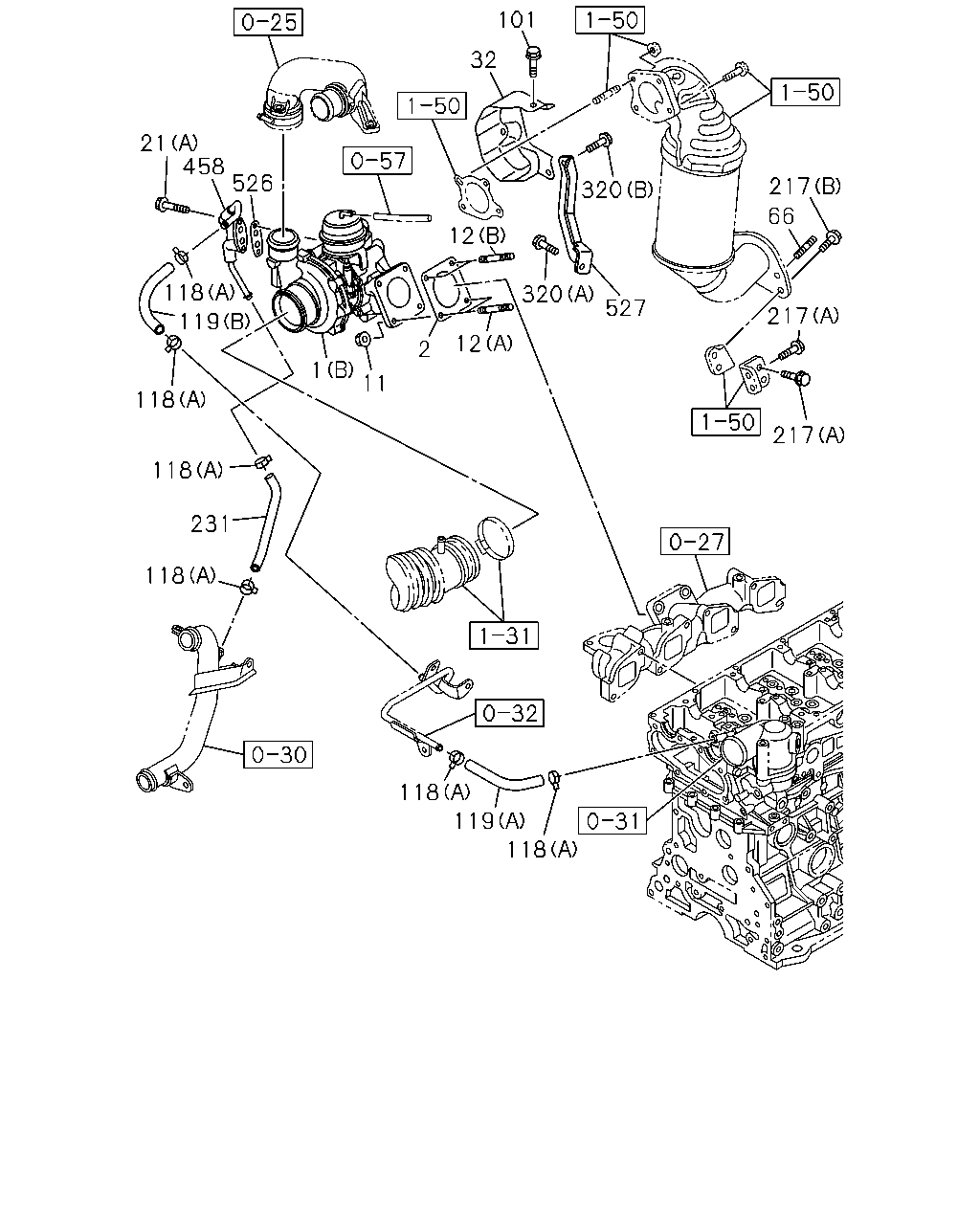

çizim 492105
101 32 320 217 66 217 217 21 458 526 12 320 527 12 2 11 11 118 119 118 118 231 118 118 119 118
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-98132-073-0 01 1 1510- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-98248-088-2 01 1 1510- ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 1510- ● ●
11 NUT; TURBOCHARGER
M10 FLANGE THA 		8-97309-942-0 04 1 1510- ●
12 STUD; TURBOCHARGER
(A) M8X25 L=36 THA 		8-97378-062-0 02 1 1510- ● ●
12 STUD; TURBOCHARGER
(B) M8X30 L=41 IMA 		8-97378-064-0 02 1 1510- ● ●
12 STUD; TURBOCHARGER
(C) M10X28.5 L=41.5 IMA 		8-97378-063-0 04 1 1510- ●
21 BOLT; PIPE
(A) M6X45 FLANGE THA 		0-28050-645-0 02 1 1510- ●
21 BOLT; PIPE
(B) M8X16 FLANGE THA 		0-28050-816-0 02 1 1510- ● ● ●
32 PROTECTOR; HEAT,TURBOCHARGER
THA 		8-98156-389-0 01 1 1510- ●
32 PROTECTOR; HEAT,TURBOCHARGER
THA 		8-98247-223-2 01 1 1510- ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 1510- ● ●
101 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 02 1 1510- ● ●
118 CLIP; WATER HOSE
(A) ID=15.1 THA 		8-98179-581-0 06 1 1510- ● ●
118 CLIP; WATER HOSE
(A) ID=15.1 THA 		8-98179-581-0 04 1 1510- ●
118 CLIP; WATER HOSE
(B) ID=20.8 THA 		8-97944-127-0 06 1 1510- ● ● ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-98179-580-0 01 1 1510- ● ●
119 HOSE; WATER,TURBOCHARGER
(A) THA 		8-98239-061-0 01 1 1510- ● ●
119 HOSE; WATER,TURBOCHARGER
(C) THA 		8-98298-388-0 01 1 1510- ●
217 BOLT; BRKT
(A) M12X30 FLANGE THA 		0-28661-230-0 03 1 1510- ● ●
217 BOLT; BRKT
(B) M12X35 FLANGE THA 		0-28661-235-0 02 1 1510- ● ●
217 BOLT; BRKT
(C) M8X30 FLANGE THA 		0-28050-830-0 02 1 1510- ●
217 BOLT; BRKT
(D) M10X20 FLANGE THA 		0-28151-020-0 02 1 1510- ●
231 HOSE; RUBBER,TURBOCHARGER OUT
THA 		8-98228-461-0 01 1 1510- ●
231 HOSE; RUBBER,TURBOCHARGER OUT
THA 		8-98228-462-0 01 1 1510- ●
231 HOSE; RUBBER,TURBOCHARGER OUT
THA 		8-98298-389-0 01 1 1510- ●
320 BOLT; BRKT,TURBOCHARGER
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1510- ●
320 BOLT; BRKT,TURBOCHARGER
(B) M8X18 FLANGE IMA 		8-97378-076-0 01 1 1510- ●
320 BOLT; BRKT,TURBOCHARGER
(C) M10X20 FLANGE THA 		0-28151-020-0 02 1 1510- ●
320 BOLT; BRKT,TURBOCHARGER
(D) M10X25 FLANGE THA 		8-98189-923-0 01 1 1510- ●
458 PIPE; WATER,TURBOCHARGER
THA 		8-98184-505-0 01 1 1510- ●
458 PIPE; WATER,TURBOCHARGER
THA 		8-98298-390-1 01 1 1510- ●
526 GASKET; PLATE
THA 		8-97352-985-0 01 1 1510- ●
527 BRACKET; TURBOCHARGER
THA 		8-98156-388-0 01 1 1510- ●
527 BRACKET; TURBOCHARGER
THA 		8-98248-089-2 01 1 1510- ●

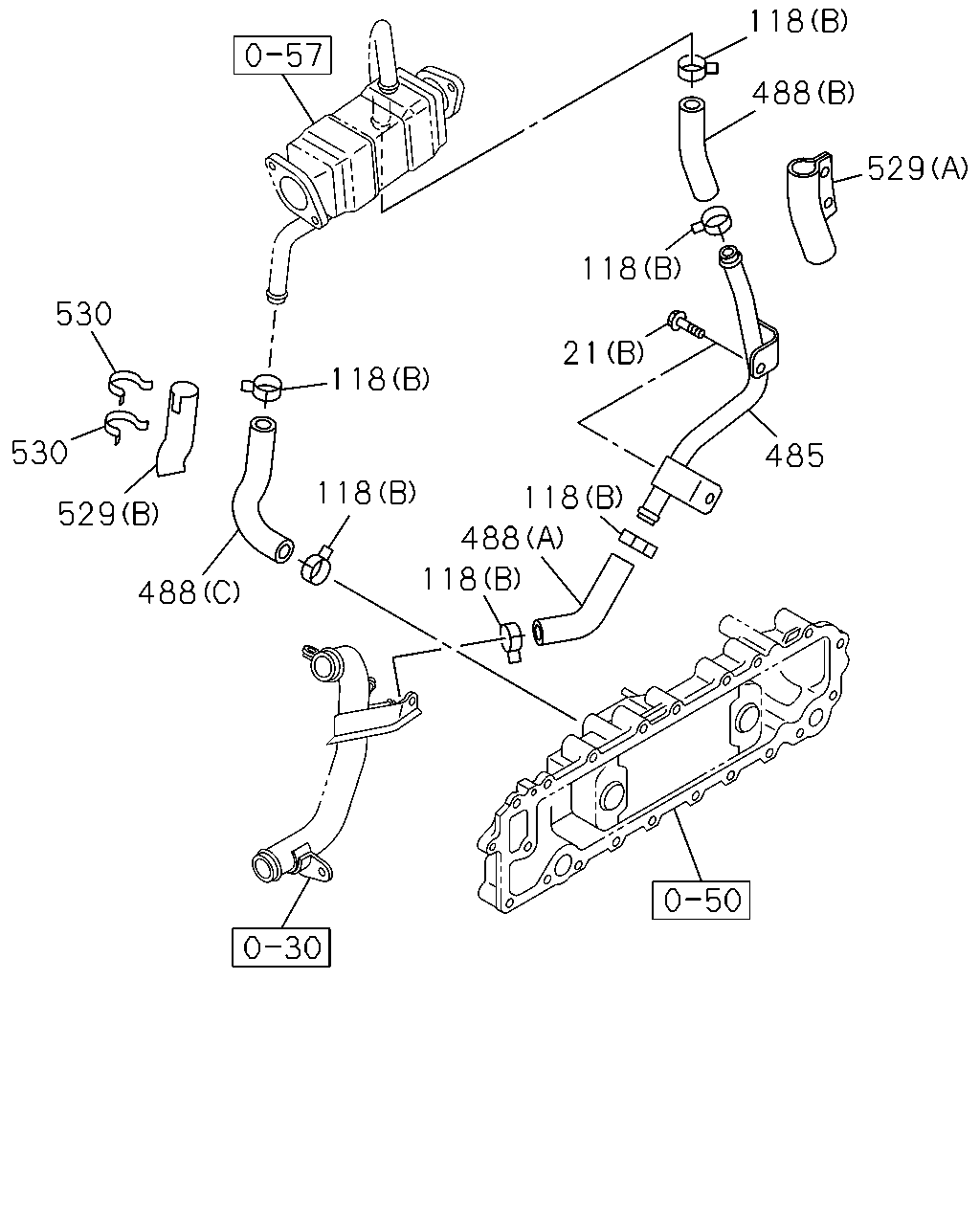

çizim 492106
118 488 529 118 21 485 118 488 118 118 118 530 530 529 488
BalonParca AdiParca NoAdetTipApplied Date A B C
21 BOLT; PIPE
(A) M6X45 FLANGE THA 		0-28050-645-0 02 1 1510- ●
21 BOLT; PIPE
(B) M8X16 FLANGE THA 		0-28050-816-0 02 1 1510- ● ● ●
118 CLIP; WATER HOSE
(A) ID=15.1 THA 		8-98179-581-0 06 1 1510- ● ●
118 CLIP; WATER HOSE
(A) ID=15.1 THA 		8-98179-581-0 04 1 1510- ●
118 CLIP; WATER HOSE
(B) ID=20.8 THA 		8-97944-127-0 06 1 1510- ● ● ●
485 PIPE; WATER EGR
THA 		8-98228-429-0 01 1 1510- ● ●
488 HOSE; RUBBER
(A) THA 		8-98132-368-0 01 1 1510- ● ●
488 HOSE; RUBBER
(C) THA 		8-98215-481-0 01 1 1510- ● ●
488 HOSE; RUBBER
(B) THA 		8-98239-031-0 01 1 1510- ● ●
488 HOSE; RUBBER
(D) THA 		8-98248-220-1 01 1 1510- ●
488 HOSE; RUBBER
(E) THA 		8-98248-222-1 01 1 1510- ●
529 INSULATOR; HOSE
(B) THA 		8-98031-883-0 01 1 1510- ● ●
529 INSULATOR; HOSE
(A) THA 		8-98228-426-0 01 1 1510- ● ●
530 CLIP; INSULATOR
IMA 		8-97101-337-0 02 1 1510- ● ●

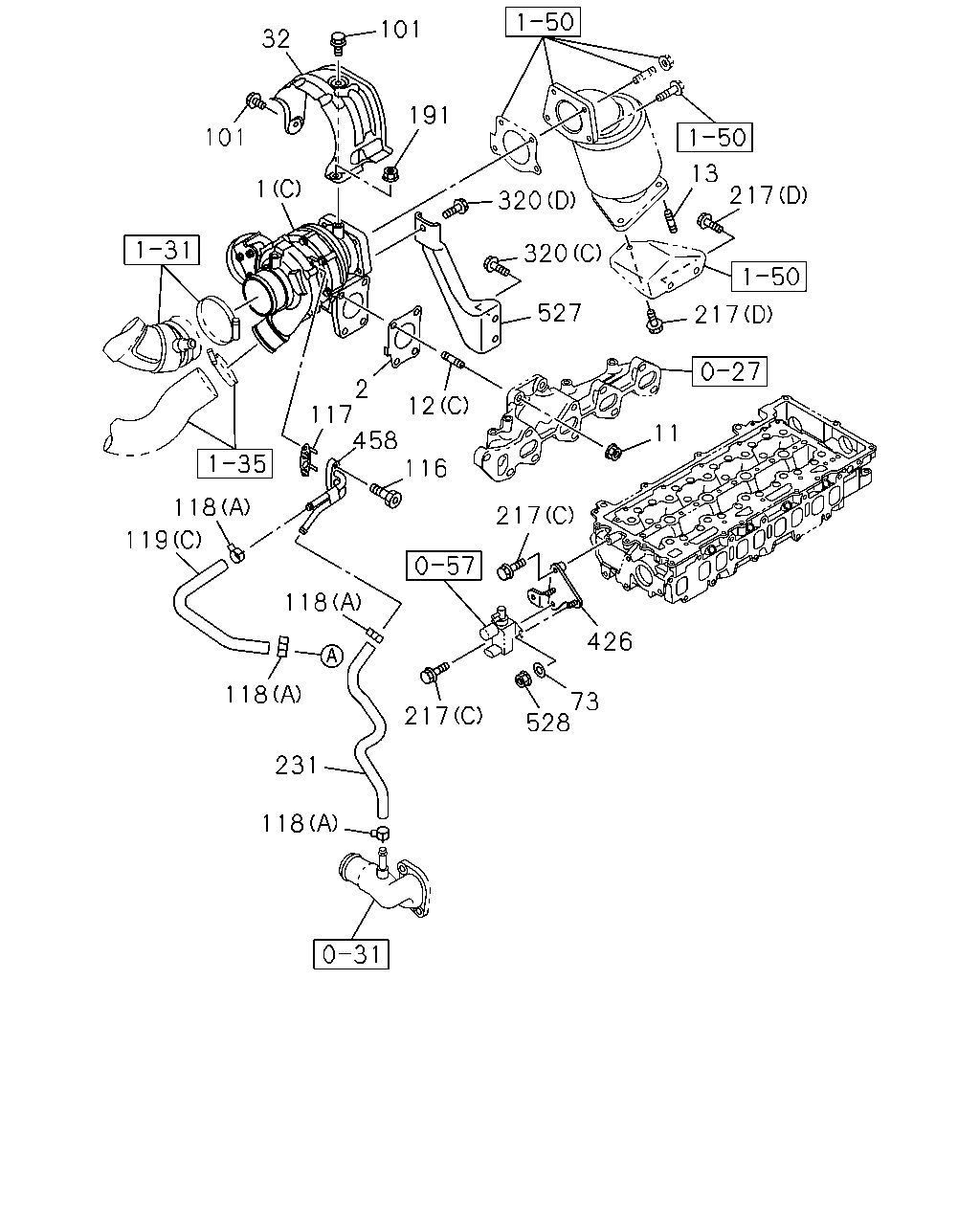

çizim 492110
101 191 101 32 1 320 320 13 217 217 527 11 217 12 2 116 117 458 118 119 118 118 217 426 73 528 231 118
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
(A) SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-98221-675-1 01 1 1510- ●
1 TURBOCHARGER ASM
(B) THA 		8-98221-673-1 01 1 1510- ●
1 TURBOCHARGER ASM
(C) THA 		8-98247-359-2 01 1 1510- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-98132-073-0 01 1 1510- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-98248-088-2 01 1 1510- ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 1510- ● ●
11 NUT; TURBOCHARGER
M10 FLANGE THA 		8-97309-942-0 04 1 1510- ●
12 STUD; TURBOCHARGER
(A) M8X25 L=36 THA 		8-97378-062-0 02 1 1510- ● ●
12 STUD; TURBOCHARGER
(B) M8X30 L=41 IMA 		8-97378-064-0 02 1 1510- ● ●
12 STUD; TURBOCHARGER
(C) M10X28.5 L=41.5 IMA 		8-97378-063-0 04 1 1510- ●
13 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 1510- ●
32 PROTECTOR; HEAT,TURBOCHARGER
THA 		8-98156-389-0 01 1 1510- ●
32 PROTECTOR; HEAT,TURBOCHARGER
THA 		8-98247-223-2 01 1 1510- ●
73 WASHER; PL
ID=8.4 OD=18 IMA 		0-91610-608-0 02 1 1510- ●
101 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 02 1 1510- ● ●
116 BOLT; WATER PIPE
M6X20 HEX SOCKET THA 		0-58330-620-0 02 1 1510- ●
117 GASKET; WATER PIPE
ID=14.2 OD=20.0 THA 		9-09571-414-0 04 1 1510- ●
117 GASKET; WATER PIPE
THA 		8-98299-210-0 01 1 1510- ●
118 CLIP; WATER HOSE
(A) ID=15.1 THA 		8-98179-581-0 06 1 1510- ● ●
118 CLIP; WATER HOSE
(A) ID=15.1 THA 		8-98179-581-0 04 1 1510- ●
118 CLIP; WATER HOSE
(B) ID=20.8 THA 		8-97944-127-0 06 1 1510- ● ● ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-98179-580-0 01 1 1510- ● ●
119 HOSE; WATER,TURBOCHARGER
(A) THA 		8-98239-061-0 01 1 1510- ● ●
119 HOSE; WATER,TURBOCHARGER
(C) THA 		8-98298-388-0 01 1 1510- ●
191 NUT; HEAT PROTECTOR
M8 FLANGE THA 		0-91180-108-0 01 1 1510- ●
217 BOLT; BRKT
(A) M12X30 FLANGE THA 		0-28661-230-0 03 1 1510- ● ●
217 BOLT; BRKT
(B) M12X35 FLANGE THA 		0-28661-235-0 02 1 1510- ● ●
217 BOLT; BRKT
(C) M8X30 FLANGE THA 		0-28050-830-0 02 1 1510- ●
217 BOLT; BRKT
(D) M10X20 FLANGE THA 		0-28151-020-0 02 1 1510- ●
231 HOSE; RUBBER,TURBOCHARGER OUT
THA 		8-98228-461-0 01 1 1510- ●
231 HOSE; RUBBER,TURBOCHARGER OUT
THA 		8-98228-462-0 01 1 1510- ●
231 HOSE; RUBBER,TURBOCHARGER OUT
THA 		8-98298-389-0 01 1 1510- ●
320 BOLT; BRKT,TURBOCHARGER
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1510- ●
320 BOLT; BRKT,TURBOCHARGER
(B) M8X18 FLANGE IMA 		8-97378-076-0 01 1 1510- ●
320 BOLT; BRKT,TURBOCHARGER
(C) M10X20 FLANGE THA 		0-28151-020-0 02 1 1510- ●
320 BOLT; BRKT,TURBOCHARGER
(D) M10X25 FLANGE THA 		8-98189-923-0 01 1 1510- ●
426 BRACKET; VLV
THA 		8-98249-314-2 01 1 1510- ●
458 PIPE; WATER,TURBOCHARGER
THA 		8-98184-505-0 01 1 1510- ●
458 PIPE; WATER,TURBOCHARGER
THA 		8-98298-390-1 01 1 1510- ●
527 BRACKET; TURBOCHARGER
THA 		8-98156-388-0 01 1 1510- ●
527 BRACKET; TURBOCHARGER
THA 		8-98248-089-2 01 1 1510- ●
528 NUT; VLV
M8 FLANGE THA 		0-91180-108-0 02 1 1510- ●

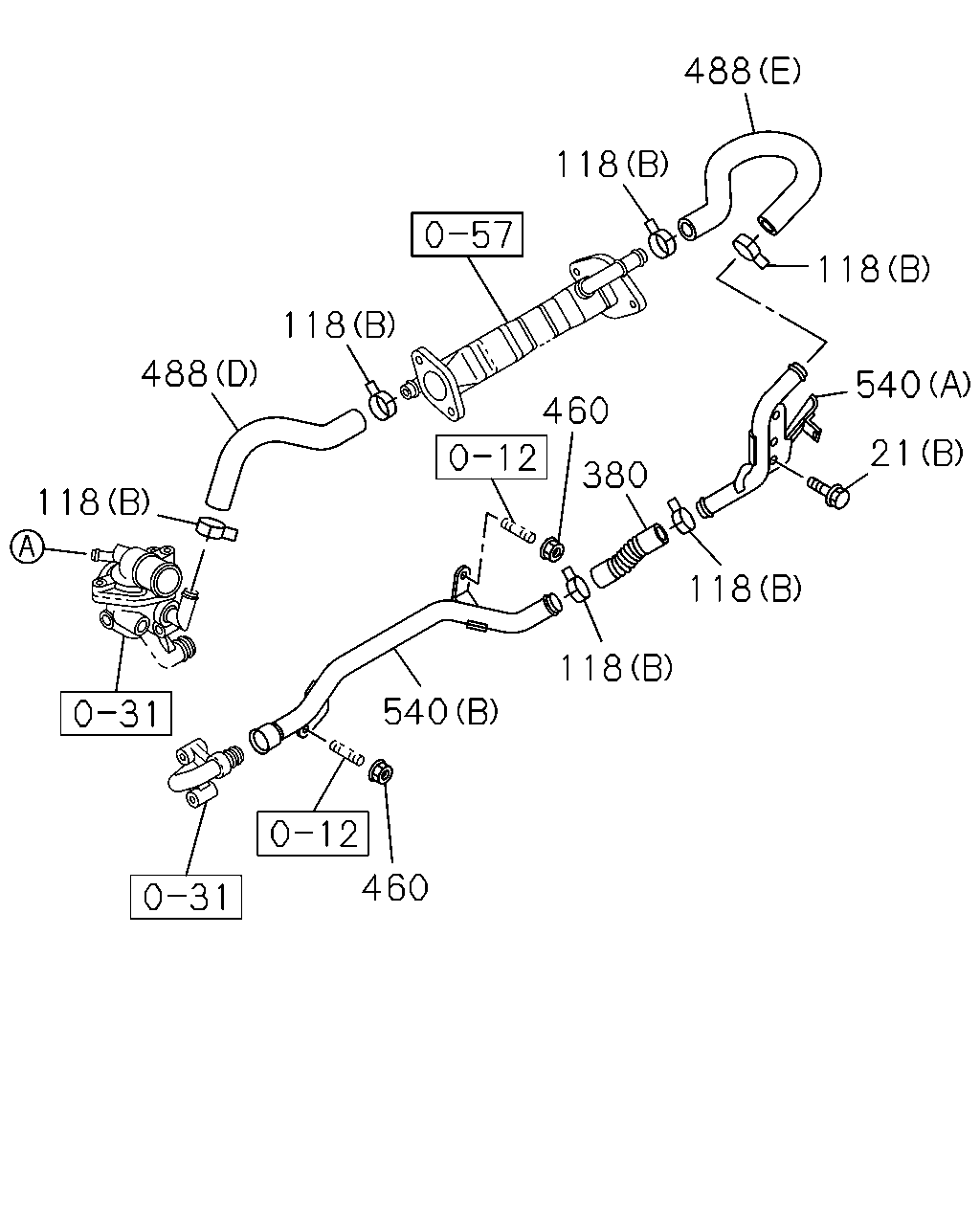

çizim 492114
488 118 118 488 118 540 21 118 118 380 460 540 460 118
BalonParca AdiParca NoAdetTipApplied Date A B C
21 BOLT; PIPE
(A) M6X45 FLANGE THA 		0-28050-645-0 02 1 1510- ●
21 BOLT; PIPE
(B) M8X16 FLANGE THA 		0-28050-816-0 02 1 1510- ● ● ●
118 CLIP; WATER HOSE
(A) ID=15.1 THA 		8-98179-581-0 06 1 1510- ● ●
118 CLIP; WATER HOSE
(A) ID=15.1 THA 		8-98179-581-0 04 1 1510- ●
118 CLIP; WATER HOSE
(B) ID=20.8 THA 		8-97944-127-0 06 1 1510- ● ● ●
380 HOSE; RUBBER,PIPE TO PIPE
THA 		8-98248-978-2 01 1 1510- ●
460 NUT; PIPE
M8 FLANGE THA 		0-91180-108-0 02 1 1510- ●
488 HOSE; RUBBER
(A) THA 		8-98132-368-0 01 1 1510- ● ●
488 HOSE; RUBBER
(C) THA 		8-98215-481-0 01 1 1510- ● ●
488 HOSE; RUBBER
(B) THA 		8-98239-031-0 01 1 1510- ● ●
488 HOSE; RUBBER
(D) THA 		8-98248-220-1 01 1 1510- ●
488 HOSE; RUBBER
(E) THA 		8-98248-222-1 01 1 1510- ●
540 PIPE; WATER
(A) THA 		8-98247-211-2 01 1 1510- ●
540 PIPE; WATER
(B) THA 		8-98286-826-2 01 1 1510- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
