0-31 — THERMOSTAT AND HOUSING (#166025) — 25 parça

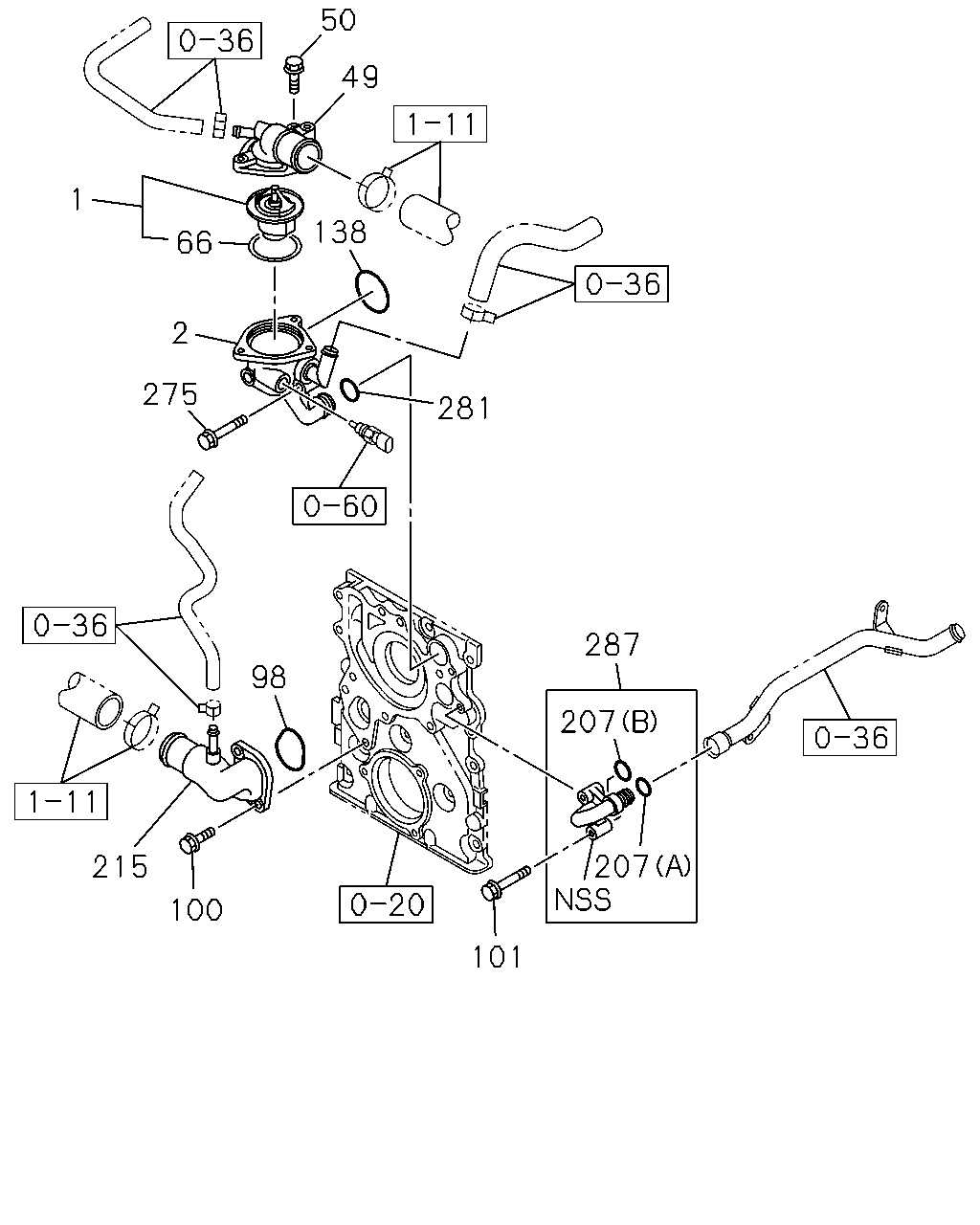

50 49 138 281 287 207 207 101 100 215 98 275 2 66 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	THERMOSTAT 85 CELSIUS IMA	8-98017-027-2	01	1	1510-	●	●
1	THERMOSTAT 82 CELSIUS IMA	8-98227-722-0	01	1	1510-			●
2	HOUSING; THERMOSTAT THA	8-98290-422-1	01	1	1510-			●
49	PIPE; WATER OUTLET THA	8-97355-456-7	01	1	1510-	●	●
49	PIPE; WATER OUTLET THA	8-98248-219-2	01	1	1510-			●
50	BOLT; OUTLET PIPE M8X80 FLANGE THA	0-28050-880-0	02	1	1510-	●	●
50	BOLT; OUTLET PIPE M6X20 FLANGE IMA	0-28050-620-0	03	1	1510-			●
66	GASKET; THERMOSTAT HSG IMA	8-98114-587-0	01	1	1510-	●	●	●
98	GASKET; WATER PIPE THA	8-98292-489-1	01	1	1510-			●
100	BOLT; WATER PIPE M8X20 FLANGE THA	0-28050-820-0	02	1	1510-			●
101	BOLT; PIPE M6X35 FLANGE IMA	0-28050-635-0	02	1	1510-			●
138	GASKET; WATER PIPE THA	8-98292-489-1	01	1	1510-			●
207	GASKET (A) IMA	9-09561-220-0	01	1	1510-			●
207	GASKET (B) IMA	9-09562-217-0	01	1	1510-			●
215	PIPE; WATER,INL THA	8-98247-212-3	01	1	1510-			●
275	BOLT; THERMOSTAT HSG M8X45 FLANGE THA	0-28050-845-0	02	1	1510-			●
281	GASKET THA	9-09568-222-0	01	1	1510-			●
287	ADAPTER THA	8-98291-663-2	01	1	1510-			●

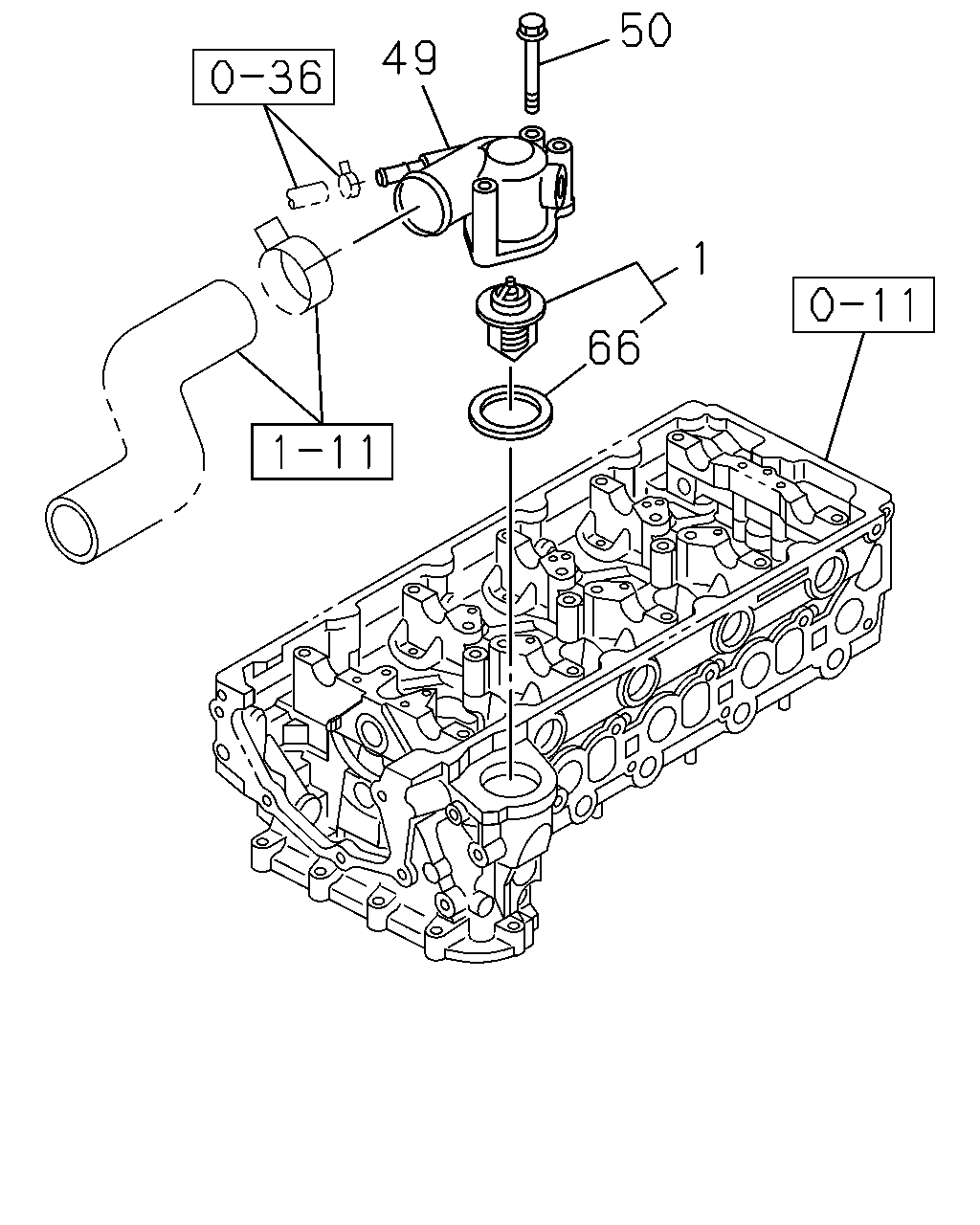

50 1 66 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	THERMOSTAT 85 CELSIUS IMA	8-98017-027-2	01	1	1510-	●	●
1	THERMOSTAT 82 CELSIUS IMA	8-98227-722-0	01	1	1510-			●
49	PIPE; WATER OUTLET THA	8-97355-456-7	01	1	1510-	●	●
49	PIPE; WATER OUTLET THA	8-98248-219-2	01	1	1510-			●
50	BOLT; OUTLET PIPE M8X80 FLANGE THA	0-28050-880-0	02	1	1510-	●	●
50	BOLT; OUTLET PIPE M6X20 FLANGE IMA	0-28050-620-0	03	1	1510-			●
66	GASKET; THERMOSTAT HSG IMA	8-98114-587-0	01	1	1510-	●	●	●
