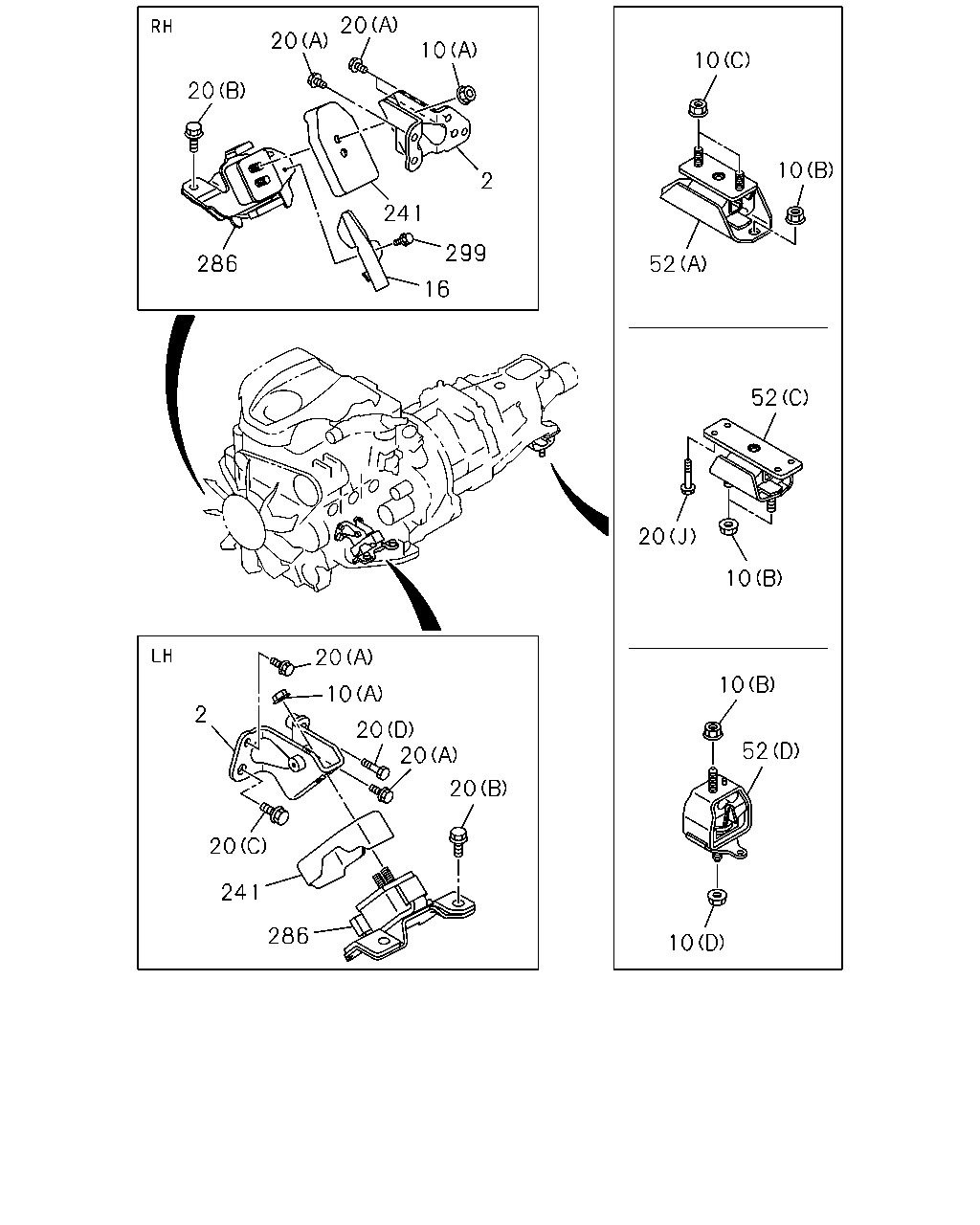

0-22 — ENGINE MOUNTING (#166021) — 64 parça

20 286 241 2 299 16 20 20 10 10 10 52 52 20 10 20 10 20 20 20 2 20 241 286 10 52 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	FOOT; ENG THA	8-98132-100-0	01	1	1510-	●	●
2	FOOT; ENG THA	8-98132-101-0	01	1	1510-	●	●
2	FOOT; ENG THA	8-98248-256-2	01	1	1510-			●
2	FOOT; ENG THA	8-98248-257-1	01	1	1510-			●
10	NUT; MTG RUBBER 4X2<TFB***> (C) M10 FLANGE THA	0-91180-210-0	02	1	1510-	●
10	NUT; MTG RUBBER (A) M10 FLANGE THA	0-91180-210-0	04	1	1510-	●	●
10	NUT; MTG RUBBER (B) M12 FLANGE THA	0-91180-212-0	02	1	1510-	●	●	●
10	NUT; MTG RUBBER 4X4<TFS***> (D) M14 FLANGE THA	8-97245-651-0	02	1	1510-			●
16	PROTECTOR; HEAT,ENG MTG,FRT THA	8-98182-916-1	01	1	1510-	●	●
20	BOLT; ENG FOOT (A) M10X20 FLANGE THA	0-28051-020-0	06	1	1510-	●	●
20	BOLT; ENG FOOT (C) M14X20 FLANGE IMA	0-28851-420-0	01	1	1510-	●	●
20	BOLT; ENG FOOT (D) M10X35 W/LK WASHER THA	0-50741-035-0	01	1	1510-	●	●
20	BOLT; ENG FOOT (B) M10X30 FLANGE THA	8-98013-800-0	04	1	1510-	●	●
20	BOLT; ENG FOOT 4X4<TFS***> (G) M10X35 FLANGE THA	0-28751-035-0	02	1	1510-	●
20	BOLT; ENG FOOT 4X2 EXTENDED CAB<TFB5CF> 4X2 REGULAR CAB<TFB5SF> (G) M10X35 FLANGE THA	0-28751-035-0	02	1	1510-		●
20	BOLT; ENG FOOT 4X2 CREW CAB<TFBW> HIGH RIDE SUSPENSION<7YC> (G) M10X35 FLANGE THA	0-28751-035-0	02	1	1510-		●
20	BOLT; ENG FOOT 4X2<TFB***> (G) M10X35 FLANGE THA	0-28751-035-0	02	1	1510-			●
20	BOLT; ENG FOOT (F) M12X30 FLANGE THA	0-28661-230-0	04	1	1510-			●
20	BOLT; ENG FOOT (E) M12X27.8 FLANGE THA	8-98278-658-0	02	1	1510-			●
20	BOLT; ENG FOOT (H) M10X20 FLANGE THA	0-28151-020-0	06	1	1510-			●
20	BOLT; ENG FOOT (I) M10X45 FLANGE THA	0-28151-045-0	02	1	1510-			●
20	BOLT; ENG FOOT 4X4<TFS***> (J) M8X35 FLANGE THA	0-28650-835-0	04	1	1510-		●
52	RUBBER; CUSHION,ENG MTG,RR 4X2<TFB***> (A) THA	8-98270-984-0	01	1	1510-	●
52	RUBBER; CUSHION,ENG MTG,RR 4X2 EXTENDED CAB<TFB5CF> 4X2 REGULAR CAB<TFB5SF> (B) THA	8-98270-988-0	01	1	1510-		●
52	RUBBER; CUSHION,ENG MTG,RR 4X2 CREW CAB<TFBW> HIGH RIDE SUSPENSION<7YC> (B) THA	8-98270-988-0	01	1	1510-		●
52	RUBBER; CUSHION,ENG MTG,RR 4X2<TFB***> (B) THA	8-98278-647-0	01	1	1510-			●
52	RUBBER; CUSHION,ENG MTG,RR 4X4<TFS***> (B) THA	8-98270-985-0	01	1	1510-	●
52	RUBBER; CUSHION,ENG MTG,RR 4X4<TFS***> (C) THA	8-98238-912-0	01	1	1510-		●
52	RUBBER; CUSHION,ENG MTG,RR 4X4<TFS***> (D) THA	8-98278-648-0	02	1	1510-			●
241	COVER; ENG MTG THA	8-98101-956-2	01	1	1510-	●	●
241	COVER; ENG MTG THA	8-98101-957-1	01	1	1510-	●	●
286	MOUNTING ASM; ENGINE THA	8-98075-376-2	01	1	1510-	●	●
286	MOUNTING ASM; ENGINE THA	8-98250-592-0	01	1	1510-	●	●
299	BOLT M6X10 FLANGE THA	0-28050-610-0	01	1	1510-	●	●

52 10 20 20 2 20 20 1 20 20 2 20 20 1

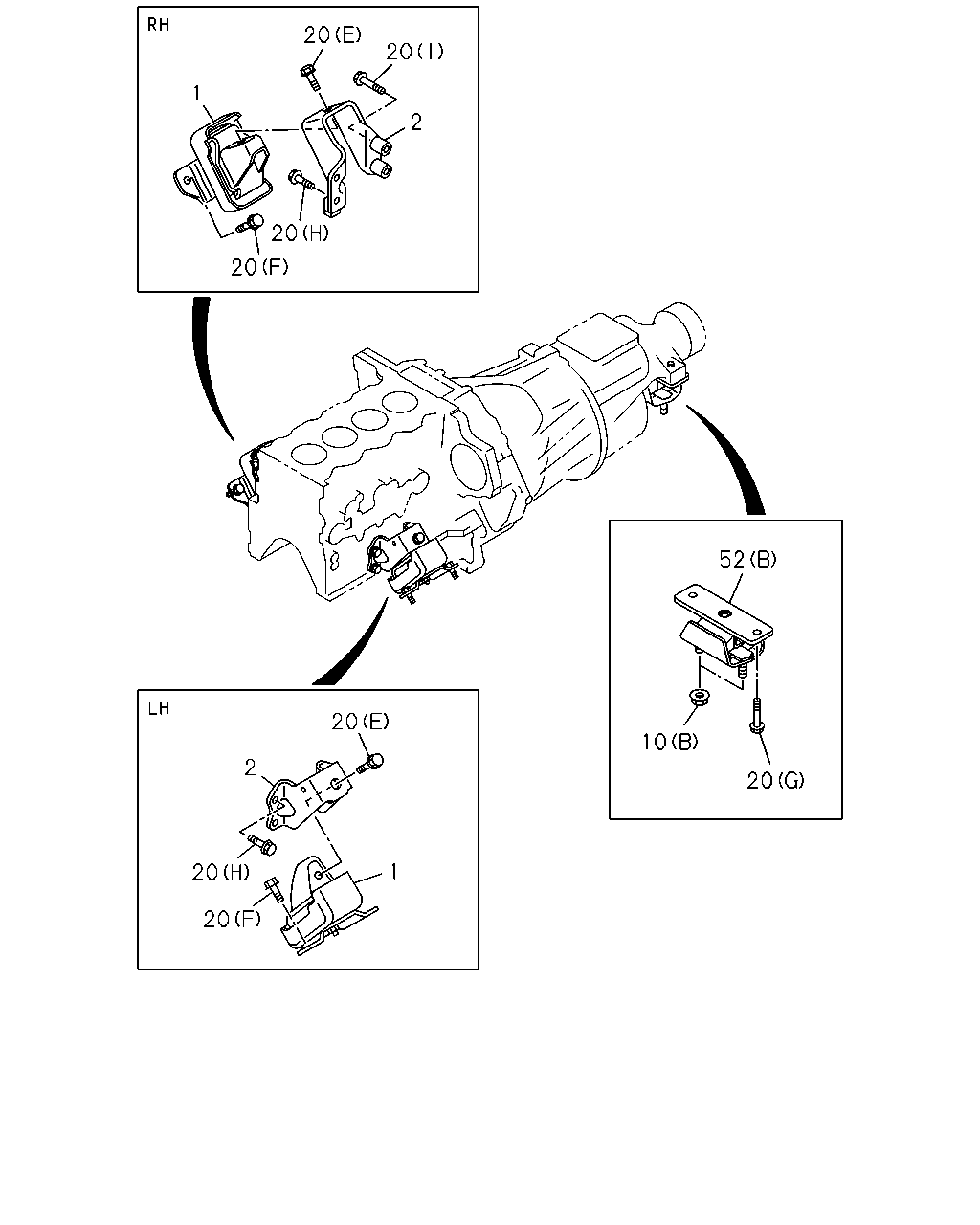

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RUBBER; ENG FOOT,FRT THA	8-98278-652-2	01	1	1510-			●
1	RUBBER; ENG FOOT,FRT THA	8-98278-654-3	01	1	1510-			●
2	FOOT; ENG THA	8-98132-100-0	01	1	1510-	●	●
2	FOOT; ENG THA	8-98132-101-0	01	1	1510-	●	●
2	FOOT; ENG THA	8-98248-256-2	01	1	1510-			●
2	FOOT; ENG THA	8-98248-257-1	01	1	1510-			●
10	NUT; MTG RUBBER 4X2<TFB***> (C) M10 FLANGE THA	0-91180-210-0	02	1	1510-	●
10	NUT; MTG RUBBER (A) M10 FLANGE THA	0-91180-210-0	04	1	1510-	●	●
10	NUT; MTG RUBBER (B) M12 FLANGE THA	0-91180-212-0	02	1	1510-	●	●	●
10	NUT; MTG RUBBER 4X4<TFS***> (D) M14 FLANGE THA	8-97245-651-0	02	1	1510-			●
20	BOLT; ENG FOOT (A) M10X20 FLANGE THA	0-28051-020-0	06	1	1510-	●	●
20	BOLT; ENG FOOT (C) M14X20 FLANGE IMA	0-28851-420-0	01	1	1510-	●	●
20	BOLT; ENG FOOT (D) M10X35 W/LK WASHER THA	0-50741-035-0	01	1	1510-	●	●
20	BOLT; ENG FOOT (B) M10X30 FLANGE THA	8-98013-800-0	04	1	1510-	●	●
20	BOLT; ENG FOOT 4X4<TFS***> (G) M10X35 FLANGE THA	0-28751-035-0	02	1	1510-	●
20	BOLT; ENG FOOT 4X2 EXTENDED CAB<TFB5CF> 4X2 REGULAR CAB<TFB5SF> (G) M10X35 FLANGE THA	0-28751-035-0	02	1	1510-		●
20	BOLT; ENG FOOT 4X2 CREW CAB<TFBW> HIGH RIDE SUSPENSION<7YC> (G) M10X35 FLANGE THA	0-28751-035-0	02	1	1510-		●
20	BOLT; ENG FOOT 4X2<TFB***> (G) M10X35 FLANGE THA	0-28751-035-0	02	1	1510-			●
20	BOLT; ENG FOOT (F) M12X30 FLANGE THA	0-28661-230-0	04	1	1510-			●
20	BOLT; ENG FOOT (E) M12X27.8 FLANGE THA	8-98278-658-0	02	1	1510-			●
20	BOLT; ENG FOOT (H) M10X20 FLANGE THA	0-28151-020-0	06	1	1510-			●
20	BOLT; ENG FOOT (I) M10X45 FLANGE THA	0-28151-045-0	02	1	1510-			●
20	BOLT; ENG FOOT 4X4<TFS***> (J) M8X35 FLANGE THA	0-28650-835-0	04	1	1510-		●
52	RUBBER; CUSHION,ENG MTG,RR 4X2<TFB***> (A) THA	8-98270-984-0	01	1	1510-	●
52	RUBBER; CUSHION,ENG MTG,RR 4X2 EXTENDED CAB<TFB5CF> 4X2 REGULAR CAB<TFB5SF> (B) THA	8-98270-988-0	01	1	1510-		●
52	RUBBER; CUSHION,ENG MTG,RR 4X2 CREW CAB<TFBW> HIGH RIDE SUSPENSION<7YC> (B) THA	8-98270-988-0	01	1	1510-		●
52	RUBBER; CUSHION,ENG MTG,RR 4X2<TFB***> (B) THA	8-98278-647-0	01	1	1510-			●
52	RUBBER; CUSHION,ENG MTG,RR 4X4<TFS***> (B) THA	8-98270-985-0	01	1	1510-	●
52	RUBBER; CUSHION,ENG MTG,RR 4X4<TFS***> (C) THA	8-98238-912-0	01	1	1510-		●
52	RUBBER; CUSHION,ENG MTG,RR 4X4<TFS***> (D) THA	8-98278-648-0	02	1	1510-			●
