Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#166020) — 88 parça

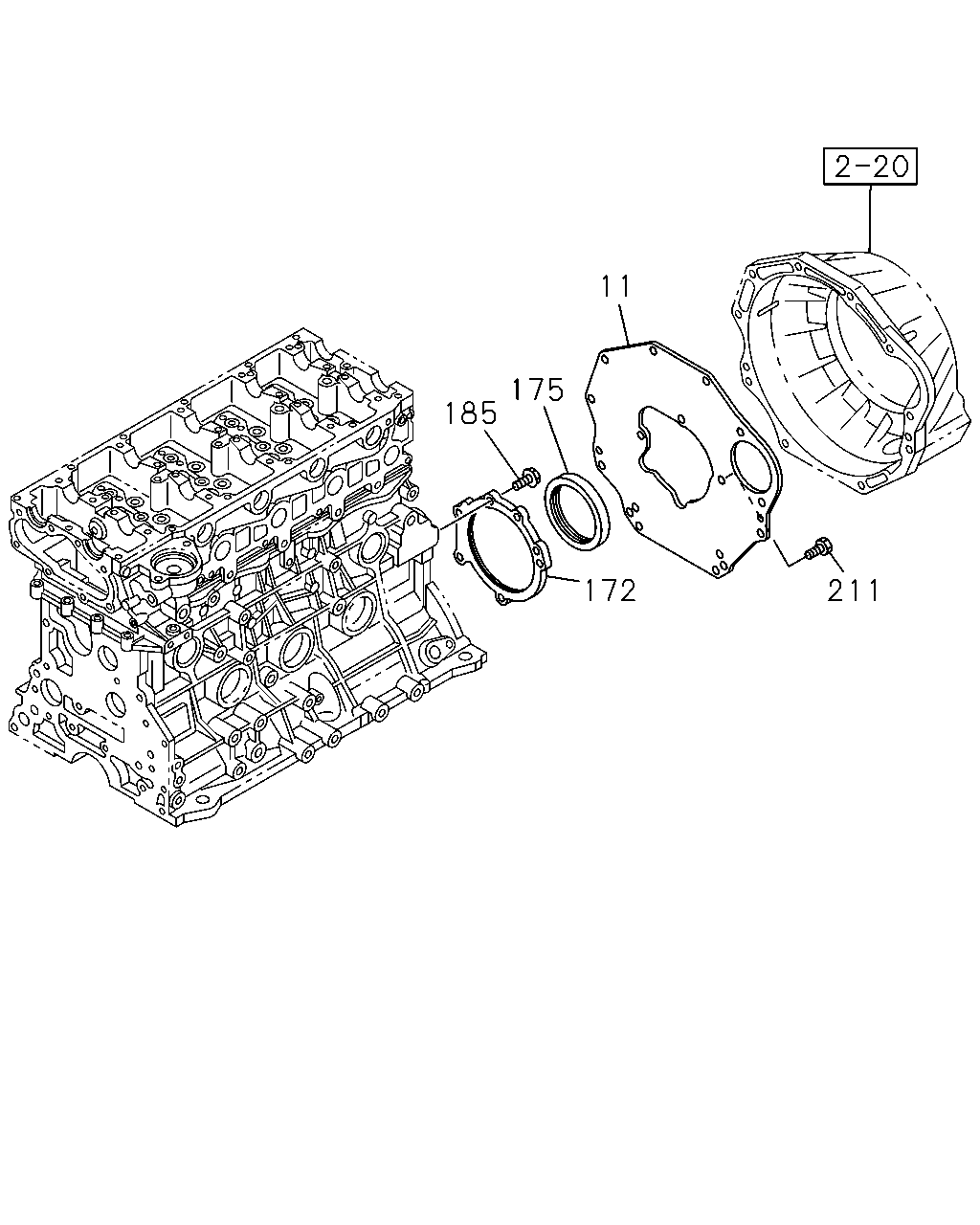

11 211 172 175 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	PLATE; RR,C/BL THA	8-98162-657-1	01	1	1510-	●
11	PLATE; RR,C/BL THA	8-98132-021-0	01	1	1510-		●
172	RETAINER; CR/SHF THA	8-97379-826-0	01	1	1510-	●	●
175	SEAL; OIL,CR/SHF,RR ID=95 OD=118 IMA	8-97071-561-1	01	1	1510-	●	●
175	SEAL; OIL,CR/SHF,RR THA	8-98259-276-0	01	1	1510-			●
185	BOLT; RET TO C/BL M8X25 FLANGE THA	0-28650-825-0	05	1	1510-	●	●
211	BOLT; HSG M12X25 THA	8-97916-324-1	03	1	1510-	●	●
211	BOLT; HSG M10X40 FLANGE IMA	0-28161-040-0	14	1	1510-			●

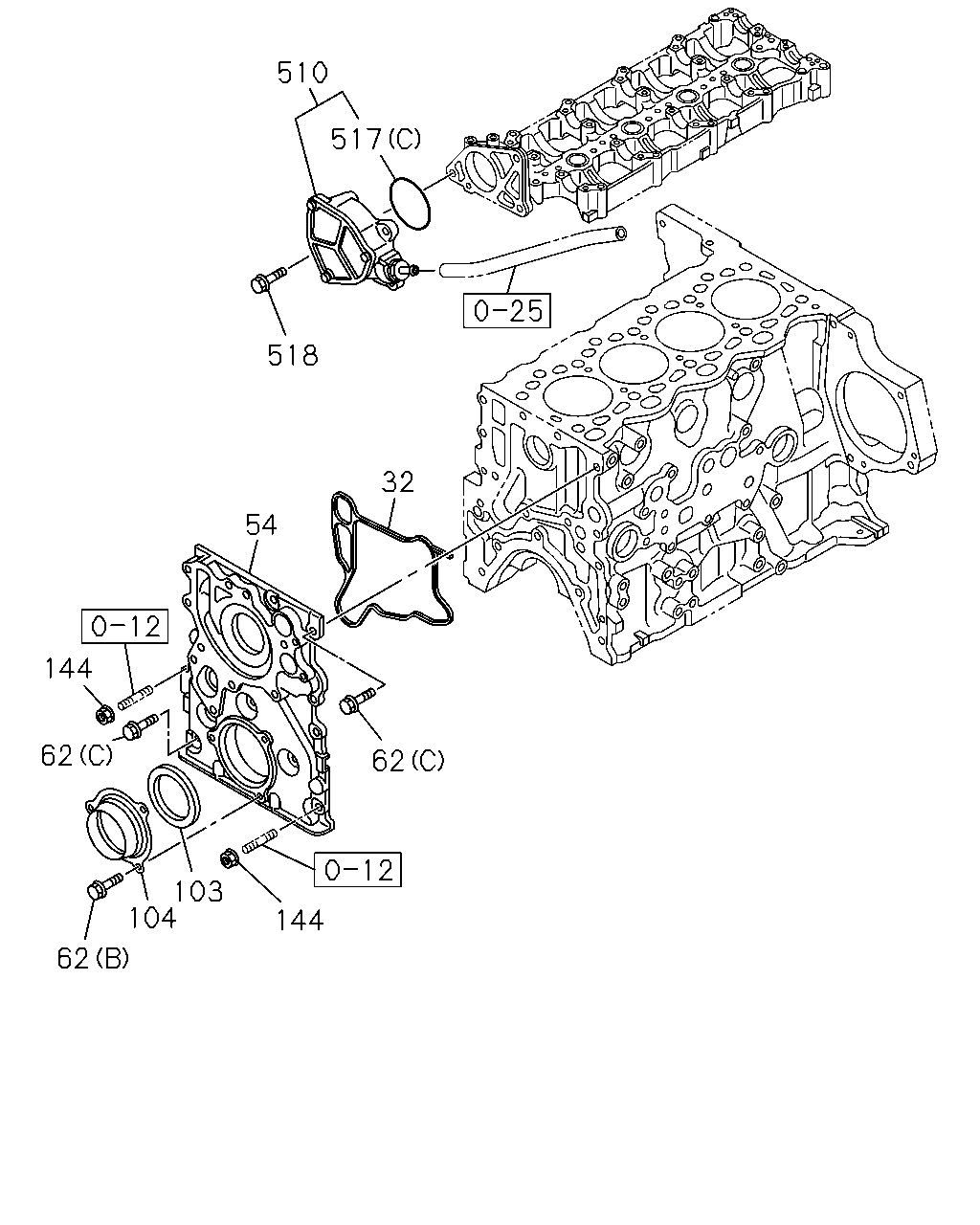

510 517 518 32 54 144 62 103 144 104 62 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	GASKET; GEAR CASE TO C/BL THA	8-98228-292-0	01	1	1510-	●	●
32	GASKET; GEAR CASE TO C/BL THA	8-98248-248-0	01	1	1510-			●
54	COVER; GEAR CASE THA	8-98228-336-1	01	1	1510-	●	●
54	COVER; GEAR CASE THA	8-98248-078-2	01	1	1510-			●
62	BOLT; COVER (A) M6X20 FLANGE THA	0-28650-620-0	04	1	1510-	●	●
62	BOLT; COVER (B) M6X12 FLANGE THA	0-28050-612-0	03	1	1510-			●
62	BOLT; COVER (C) M8X20 FLANGE THA	0-28050-820-0	08	1	1510-			●
103	SEAL; OIL,CR/SHF,FRT THA	8-97943-951-0	01	1	1510-	●	●
103	SEAL; OIL,CR/SHF,FRT THA	8-98259-275-0	01	1	1510-			●
104	COVER; DUST,OIL SEAL FRT,CR/SHF THA	8-98248-079-0	01	1	1510-			●
144	NUT; COVER M8 FLANGE THA	0-91180-108-0	02	1	1510-			●
510	PUMP ASM; VACUUM THA	8-98251-765-0	01	1	1510-	●	●
510	PUMP ASM; VACUUM THA	8-98247-221-3	01	1	1510-			●
517	GASKET; VAC PUMP (C) THA	8-98317-822-0	01	1	1510-			●
517	GASKET; VAC PUMP (A) IMA	0-95690-271-0	01	1	1510-	●	●
517	GASKET; VAC PUMP (B) THA	8-98251-768-0	01	1	1510-	●	●
518	BOLT; VAC PUMP THA	8-97184-180-0	03	1	1510-	●	●
518	BOLT; VAC PUMP M8X25 FLANGE THA	0-28050-825-0	03	1	1510-			●

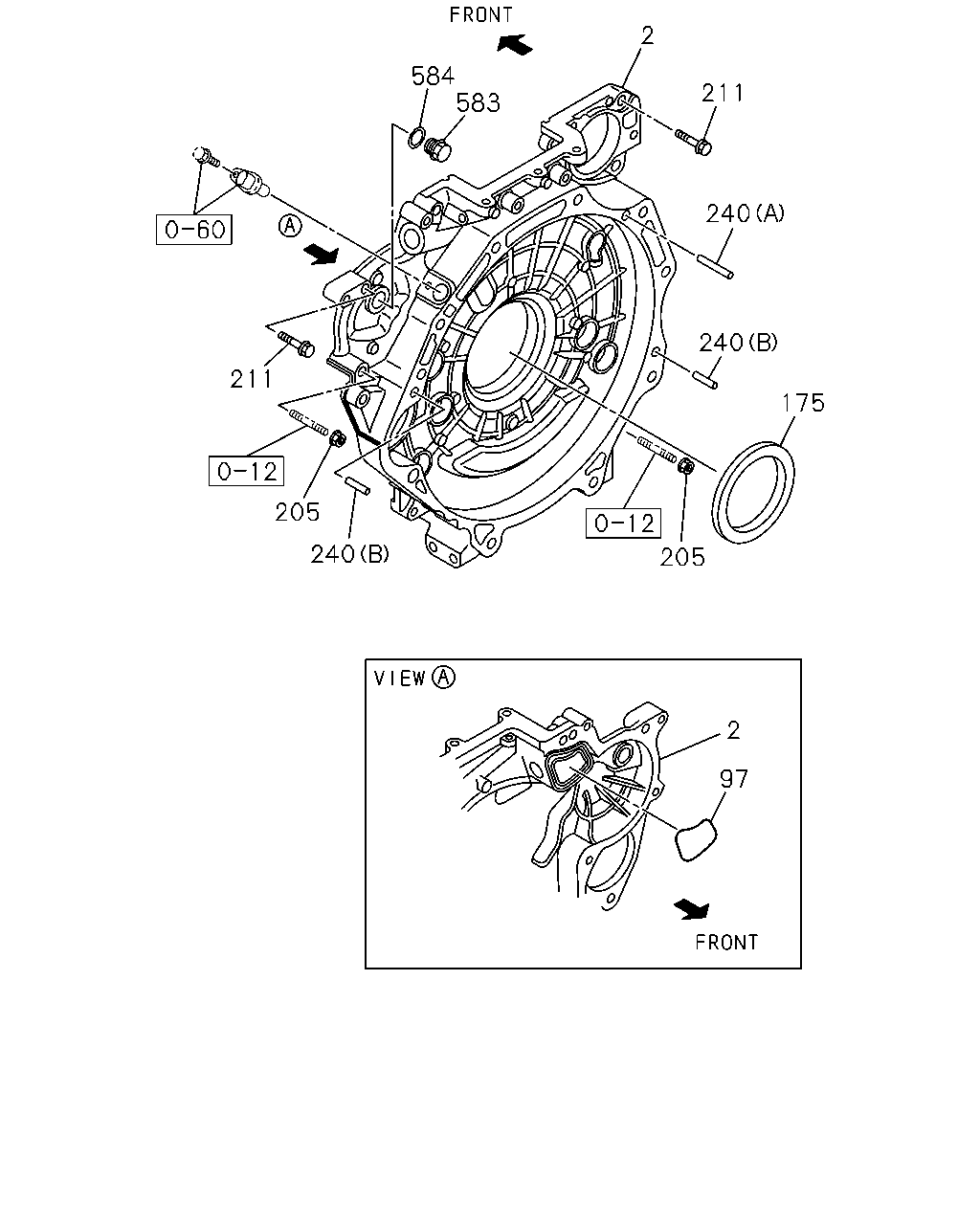

211 240 240 175 205 583 2 584 211 205 240 2 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOUSING; FLYWHEEL THA	8-98290-423-3	01	1	1510-			●
97	GASKET; BLOCK TO HSG THA	8-98248-823-1	01	1	1510-			●
175	SEAL; OIL,CR/SHF,RR ID=95 OD=118 IMA	8-97071-561-1	01	1	1510-	●	●
175	SEAL; OIL,CR/SHF,RR THA	8-98259-276-0	01	1	1510-			●
205	NUT; HSG M10 FLANGE THA	0-91180-210-0	02	1	1510-			●
211	BOLT; HSG M12X25 THA	8-97916-324-1	03	1	1510-	●	●
211	BOLT; HSG M10X40 FLANGE IMA	0-28161-040-0	14	1	1510-			●
240	PIN; FLYWHEEL HSG (A) THA	9-08150-850-0	01	1	1510-			●
240	PIN; FLYWHEEL HSG (B) THA	9-08151-030-0	02	1	1510-			●
583	PLUG; FRT COVER THA	1-09604-078-0	01	1	1510-			●
584	GASKET; PLUG,FRT COVER IMA	1-09630-088-0	01	1	1510-			●

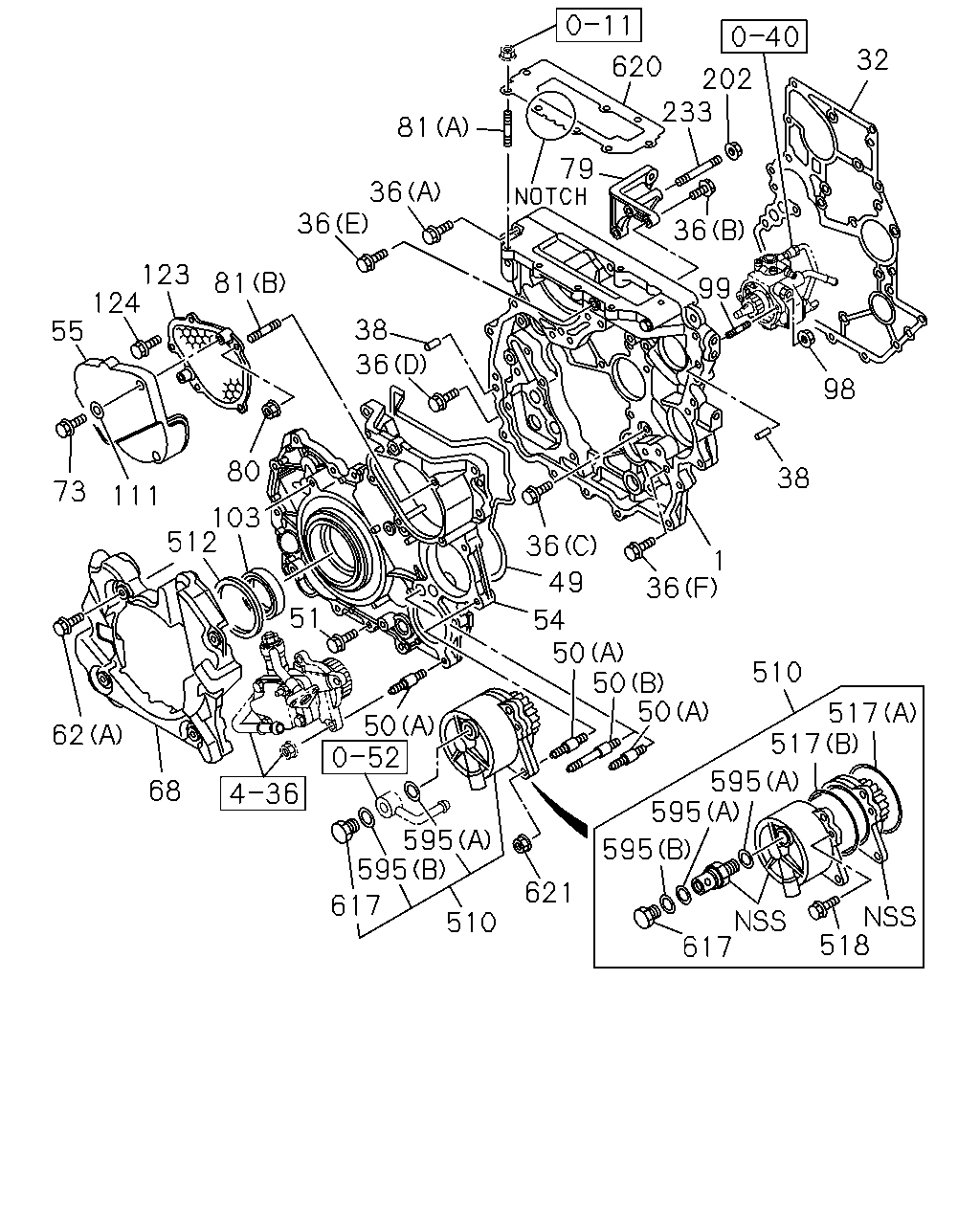

81 36 36 81 123 124 55 111 73 512 103 80 38 36 36 49 54 50 50 50 510 36 1 38 98 99 36 233 202 32 620 79 517 517 595 595 595 617 518 621 510 617 595 595 50 51 68 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CASE; TIMING GEAR THA	8-98217-735-0	01	1	1510-	●	●
32	GASKET; GEAR CASE TO C/BL THA	8-98228-292-0	01	1	1510-	●	●
32	GASKET; GEAR CASE TO C/BL THA	8-98248-248-0	01	1	1510-			●
36	BOLT; GEAR CASE (C) M8X16 FLANGE THA	0-28050-816-0	01	1	1510-	●	●
36	BOLT; GEAR CASE (E) M8X35 FLANGE THA	0-28050-835-0	01	1	1510-	●	●
36	BOLT; GEAR CASE (F) M8X45 FLANGE THA	0-28050-845-0	02	1	1510-	●	●
36	BOLT; GEAR CASE (A) M8X60 FLANGE THA	0-28050-860-0	01	1	1510-	●	●
36	BOLT; GEAR CASE (D) M8X25 FLANGE THA	0-28650-825-0	16	1	1510-	●	●
36	BOLT; GEAR CASE (B) M8X30 FLANGE THA	0-28650-830-0	03	1	1510-	●	●
38	PIN; GEAR CASE COVER OD=10 L=20 THA	9-08151-020-0	02	1	1510-	●	●
49	GASKET; GEAR CASE TO COVER THA	8-97945-298-0	01	1	1510-	●	●
50	STUD (A) M8X27,M8X14 L=64.5 THA	8-97354-808-2	06	1	1510-	●
50	STUD (A) M8X27,M8X14 L=64.5 THA	8-97354-808-2	05	1	1510-		●
50	STUD (B) M8X70,M8X14 L=107.5 THA	8-98134-221-0	01	1	1510-		●
51	BOLT; GEAR CASE COVER THA	8-97354-697-1	14	1	1510-	●	●
54	COVER; GEAR CASE THA	8-98228-336-1	01	1	1510-	●	●
54	COVER; GEAR CASE THA	8-98248-078-2	01	1	1510-			●
55	COVER; NOISE SHIELD THA	8-97375-190-1	01	1	1510-	●	●
62	BOLT; COVER (A) M6X20 FLANGE THA	0-28650-620-0	04	1	1510-	●	●
62	BOLT; COVER (B) M6X12 FLANGE THA	0-28050-612-0	03	1	1510-			●
62	BOLT; COVER (C) M8X20 FLANGE THA	0-28050-820-0	08	1	1510-			●
68	COVER ASM; GEAR CASE COVER THA	8-98228-636-0	01	1	1510-	●	●
73	BOLT; COVER FIX M6X12 FLANGE THA	0-28050-612-0	02	1	1510-	●	●
79	BRACKET; GEAR CASE COVER THA	8-98107-106-0	01	1	1510-	●	●
80	NUT; COVER M6 FLANGE THA	0-91180-206-0	02	1	1510-	●	●
81	STUD; GEAR CASE COVER FIX (B) M6X16 L=25 THA	0-41010-616-0	02	1	1510-	●	●
81	STUD; GEAR CASE COVER FIX (A) M8X30 L=48 THA	0-49140-830-0	02	1	1510-	●	●
98	NUT; STUD,INJ PUMP M8 FLANGE THA	0-91180-208-0	02	1	1510-	●	●
99	STUD; INJ PUMP M8X30 L=48 THA	0-49140-830-0	02	1	1510-	●	●
103	SEAL; OIL,CR/SHF,FRT THA	8-97943-951-0	01	1	1510-	●	●
103	SEAL; OIL,CR/SHF,FRT THA	8-98259-275-0	01	1	1510-			●
111	WASHER; PL ID=6.4 OD=22 THA	0-91614-806-0	02	1	1510-	●	●
123	COVER; TIMING,LWR THA	8-97371-720-1	01	1	1510-	●	●
124	BOLT; TIMING COVER M6X16 FLANGE THA	0-28050-616-0	03	1	1510-	●	●
202	NUT; BRKT M8 FLANGE THA	0-91180-208-0	01	1	1510-	●	●
233	STUD; BRKT M8X71 L=83 THA	8-97367-083-0	01	1	1510-	●	●
510	PUMP ASM; VACUUM THA	8-98251-765-0	01	1	1510-	●	●
510	PUMP ASM; VACUUM THA	8-98247-221-3	01	1	1510-			●
512	RUBBER; SPACE THA	8-97373-716-0	01	1	1510-	●	●
517	GASKET; VAC PUMP (C) THA	8-98317-822-0	01	1	1510-			●
517	GASKET; VAC PUMP (A) IMA	0-95690-271-0	01	1	1510-	●	●
517	GASKET; VAC PUMP (B) THA	8-98251-768-0	01	1	1510-	●	●
518	BOLT; VAC PUMP THA	8-97184-180-0	03	1	1510-	●	●
518	BOLT; VAC PUMP M8X25 FLANGE THA	0-28050-825-0	03	1	1510-			●
595	GASKET; VLV (A) ID=18 OD=24 IMA	5-19679-002-0	02	1	1510-	●	●
595	GASKET; VLV (B) ID=12 OD=24 IMA	5-19679-003-0	01	1	1510-	●	●
617	BOLT; CHECK VLV THA	8-97376-402-0	01	1	1510-	●	●
620	GASKET; GEAR CASE GRADE A T=1.40 1-NOTCH THA	8-97328-828-2	01	1	1510-	●	●
620	GASKET; GEAR CASE GRADE B T=1.45 2-NOTCH THA	8-97331-631-2	01	1	1510-	●	●
620	GASKET; GEAR CASE GRADE C T=1.50 3-NOTCH THA	8-97331-632-2	01	1	1510-	●	●
621	NUT; VAC PUMP M8 FLANGE THA	0-91180-208-0	03	1	1510-	●	●
