0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#166019) — 141 parça

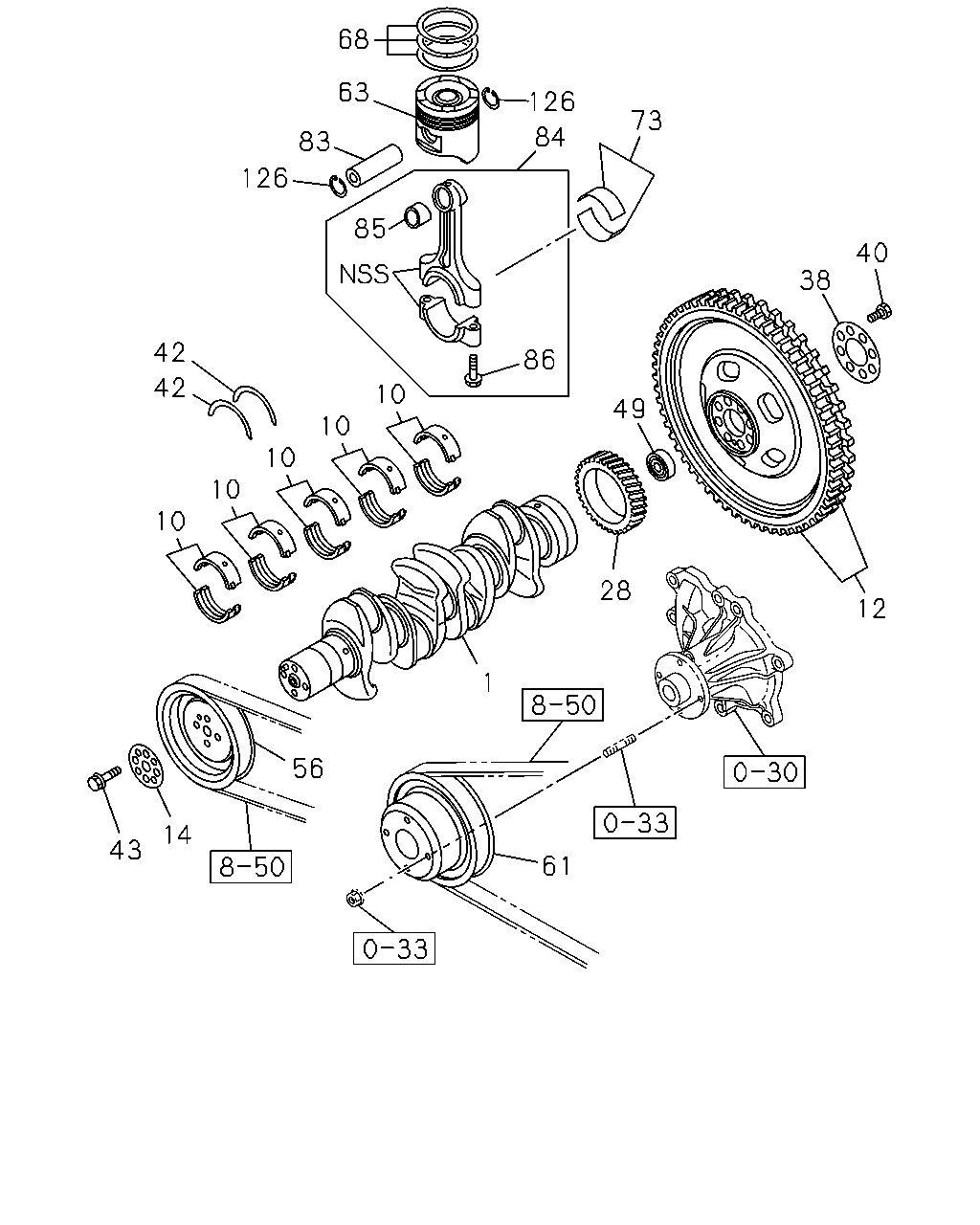

40 38 73 84 126 68 63 83 126 42 42 10 10 10 10 10 14 43 56 1 28 49 86 12 61 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT THA	8-98131-999-1	01	1	1510-	●
1	CRANKSHAFT THA	8-97311-632-1	01	1	1510-		●
1	CRANKSHAFT IMA	8-98281-613-2	01	1	1510-			●
10	METAL SET; CRANKSHAFT,STANDARD GREEN THA	8-97388-502-0	05	1	1510-	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK THA	8-97388-503-0	05	1	1510-	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE THA	8-97388-504-0	05	1	1510-	●	●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW THA	8-97388-505-0	05	1	1510-	●	●
10	METAL SET; CRANKSHAFT,STANDARD RED THA	8-97388-506-0	05	1	1510-	●	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE=1 IMA	8-98333-349-0	05	1	1510-			●
10	METAL SET; CRANKSHAFT,STANDARD GRADE=2 IMA	8-98333-350-0	05	1	1510-			●
10	METAL SET; CRANKSHAFT,STANDARD GRADE=3 IMA	8-98333-351-0	05	1	1510-			●
10	METAL SET; CRANKSHAFT,STANDARD GRADE=4 IMA	8-98333-352-0	05	1	1510-			●
12	FLYWHEEL THA	8-98077-180-0	01	1	1510-	●
12	FLYWHEEL THA	8-98283-475-0	01	1	1510-		●
12	FLYWHEEL THA	8-98247-949-1	01	1	1510-			●
14	WASHER; PULLEY DAMPER EXC. REFRIGERATION KIT<7FH> ID=16.5 OD=45 T=12 IMA	5-09503-127-1	01	1	1510-	●
14	WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12 IMA	5-09503-127-1	01	1	1510-		●
14	WASHER; PULLEY DAMPER THA	8-98286-647-1	01	1	1510-			●
14	WASHER; PULLEY DAMPER REFRIGERATION KIT<7FH> ID=16.5 OD=45 T=40 IMA	8-98101-010-0	01	1	1510-	●
28	GEAR; CR/SHF Z=57 IMA	8-98319-857-0	01	1	1510-			●
28	GEAR; CR/SHF Z=44 THA	8-97312-199-1	01	1	1510-	●	●
38	WASHER; FLYWHEEL THA	8-94133-970-1	01	1	1510-	●	●
38	WASHER; FLYWHEEL THA	8-98286-638-0	01	1	1510-			●
40	BOLT; FLYWHEEL M13X36 THA	8-97941-069-0	08	1	1510-	●	●
40	BOLT; FLYWHEEL M12X38 FLANGE THA	8-98286-206-0	08	1	1510-			●
42	WASHER; THRUST,CR/SHF THA	8-97354-055-1	02	1	1510-	●	●
43	BOLT; CR/SHF PULLEY EXC. REFRIGERATION KIT<7FH> M16X43 THA	8-97373-852-1	01	1	1510-	●
43	BOLT; CR/SHF PULLEY M16X43 THA	8-97373-852-1	01	1	1510-		●
43	BOLT; CR/SHF PULLEY M10X31 FLANGE THA	8-98287-328-0	04	1	1510-			●
43	BOLT; CR/SHF PULLEY REFRIGERATION KIT<7FH> M16X69 IMA	8-98246-605-0	01	1	1510-	●
49	BEARING; PILOT NSK THA	8-97920-344-2	01	1	1510-	●	●
49	BEARING; PILOT NACHI THA	8-97922-552-1	01	1	1510-	●	●	●
56	PULLEY; CR/SHF DAMPER EXC. REFRIGERATION KIT<7FH> 2-GROOVE THA	8-98183-902-0	01	1	1510-	●
56	PULLEY; CR/SHF DAMPER 2-GROOVE THA	8-98183-902-0	01	1	1510-		●
56	PULLEY; CR/SHF DAMPER 1-GROOVE THA	8-98247-364-1	01	1	1510-			●
56	PULLEY; CR/SHF DAMPER REFRIGERATION KIT<7FH> 3-GROOVE THA	8-98101-013-0	01	1	1510-	●
61	PULLEY; FAN DRIVE 1-GROOVE THA	8-98131-628-0	01	1	1510-	●	●
61	PULLEY; FAN DRIVE 1-GROOVE THA	8-98248-080-1	01	1	1510-			●
63	PISTON GRADE=A THA	8-98228-070-0	04	1	1510-	●
63	PISTON GRADE=B THA	8-98228-071-0	04	1	1510-	●
63	PISTON GRADE=C THA	8-98228-072-0	04	1	1510-	●
63	PISTON GRADE=A THA	8-98228-067-0	04	1	1510-		●
63	PISTON GRADE=B THA	8-98228-068-0	04	1	1510-		●
63	PISTON GRADE=C THA	8-98228-069-0	04	1	1510-		●
63	PISTON GRADE=A IMA	8-98248-252-1	04	1	1510-			●
63	PISTON GRADE=B IMA	8-98248-253-1	04	1	1510-			●
63	PISTON GRADE=C IMA	8-98248-254-1	04	1	1510-			●
68	RING SET; PISTON,STANDARD THA	8-98171-040-0	04	1	1510-	●
68	RING SET; PISTON,STANDARD THA	8-98171-044-0	04	1	1510-		●
68	RING SET; PISTON,STANDARD IMA	8-98333-347-0	04	1	1510-			●
73	METAL SET; CONN ROD,STANDARD THA	8-97388-735-0	04	1	1510-	●	●
73	METAL SET; CONN ROD,STANDARD IMA	8-98333-348-0	04	1	1510-			●
83	PIN; PISTON THA	8-98150-333-0	04	1	1510-	●	●
83	PIN; PISTON IMA	8-98285-227-0	04	1	1510-			●
84	ROD ASM; CONN THA	8-97357-716-3	04	1	1510-	●	●
84	ROD ASM; CONN IMA	8-98247-332-3	04	1	1510-			●
85	BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. IMA	8-97383-066-0	04	1	1510-	●	●
85	BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. IMA	8-98247-334-0	04	1	1510-			●
86	BOLT; CONNROD M11X44.5 IMA	8-98048-538-0	08	1	1510-	●	●
86	BOLT; CONNROD M9X45.5 FLANGE IMA	8-98258-467-0	08	1	1510-			●
126	RING; SNAP,PISTON PIN OD=37.5 IMA	8-94460-687-0	08	1	1510-	●	●	●

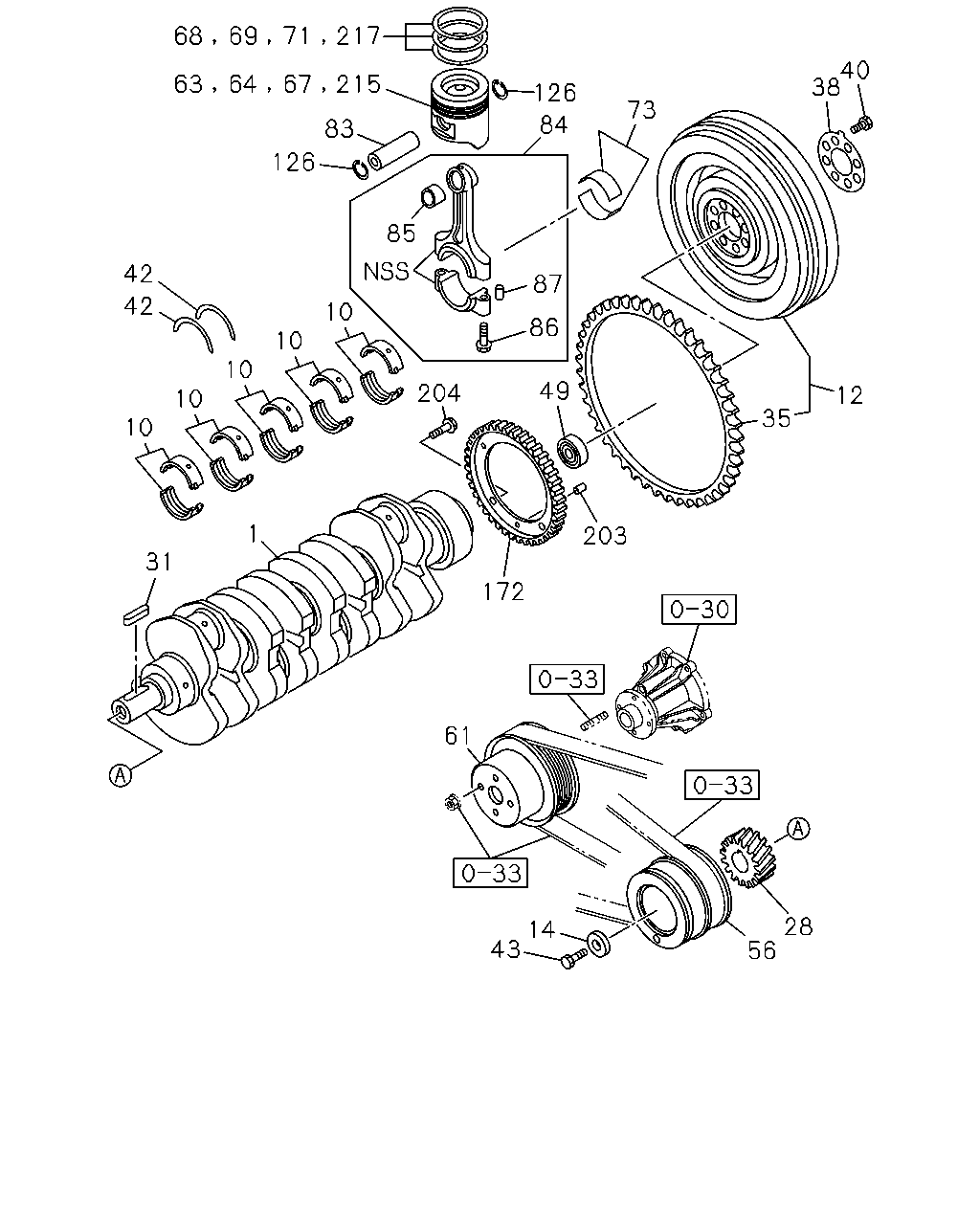

40 38 73 126 84 217 71 69 68 215 67 64 63 83 126 10 10 10 10 10 42 42 87 85 86 204 49 35 12 203 172 1 31 61 43 28 56 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CRANKSHAFT THA	8-98131-999-1	01	1	1510-	●
1	CRANKSHAFT THA	8-97311-632-1	01	1	1510-		●
1	CRANKSHAFT IMA	8-98281-613-2	01	1	1510-			●
10	METAL SET; CRANKSHAFT,STANDARD GREEN THA	8-97388-502-0	05	1	1510-	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK THA	8-97388-503-0	05	1	1510-	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE THA	8-97388-504-0	05	1	1510-	●	●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW THA	8-97388-505-0	05	1	1510-	●	●
10	METAL SET; CRANKSHAFT,STANDARD RED THA	8-97388-506-0	05	1	1510-	●	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE=1 IMA	8-98333-349-0	05	1	1510-			●
10	METAL SET; CRANKSHAFT,STANDARD GRADE=2 IMA	8-98333-350-0	05	1	1510-			●
10	METAL SET; CRANKSHAFT,STANDARD GRADE=3 IMA	8-98333-351-0	05	1	1510-			●
10	METAL SET; CRANKSHAFT,STANDARD GRADE=4 IMA	8-98333-352-0	05	1	1510-			●
12	FLYWHEEL THA	8-98077-180-0	01	1	1510-	●
12	FLYWHEEL THA	8-98283-475-0	01	1	1510-		●
12	FLYWHEEL THA	8-98247-949-1	01	1	1510-			●
14	WASHER; PULLEY DAMPER EXC. REFRIGERATION KIT<7FH> ID=16.5 OD=45 T=12 IMA	5-09503-127-1	01	1	1510-	●
14	WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12 IMA	5-09503-127-1	01	1	1510-		●
14	WASHER; PULLEY DAMPER THA	8-98286-647-1	01	1	1510-			●
14	WASHER; PULLEY DAMPER REFRIGERATION KIT<7FH> ID=16.5 OD=45 T=40 IMA	8-98101-010-0	01	1	1510-	●
28	GEAR; CR/SHF Z=57 IMA	8-98319-857-0	01	1	1510-			●
28	GEAR; CR/SHF Z=44 THA	8-97312-199-1	01	1	1510-	●	●
31	KEY; FEATHER,CR/SHF IMA	9-08030-743-0	01	1	1510-	●	●
35	GEAR; RING Z=108 THA	8-97912-516-1	01	1	1510-	●
35	GEAR; RING Z=122 IMA	8-94364-395-1	01	1	1510-		●
38	WASHER; FLYWHEEL THA	8-94133-970-1	01	1	1510-	●	●
38	WASHER; FLYWHEEL THA	8-98286-638-0	01	1	1510-			●
40	BOLT; FLYWHEEL M13X36 THA	8-97941-069-0	08	1	1510-	●	●
40	BOLT; FLYWHEEL M12X38 FLANGE THA	8-98286-206-0	08	1	1510-			●
42	WASHER; THRUST,CR/SHF THA	8-97354-055-1	02	1	1510-	●	●
43	BOLT; CR/SHF PULLEY EXC. REFRIGERATION KIT<7FH> M16X43 THA	8-97373-852-1	01	1	1510-	●
43	BOLT; CR/SHF PULLEY M16X43 THA	8-97373-852-1	01	1	1510-		●
43	BOLT; CR/SHF PULLEY M10X31 FLANGE THA	8-98287-328-0	04	1	1510-			●
43	BOLT; CR/SHF PULLEY REFRIGERATION KIT<7FH> M16X69 IMA	8-98246-605-0	01	1	1510-	●
49	BEARING; PILOT NSK THA	8-97920-344-2	01	1	1510-	●	●
49	BEARING; PILOT NACHI THA	8-97922-552-1	01	1	1510-	●	●	●
56	PULLEY; CR/SHF DAMPER EXC. REFRIGERATION KIT<7FH> 2-GROOVE THA	8-98183-902-0	01	1	1510-	●
56	PULLEY; CR/SHF DAMPER 2-GROOVE THA	8-98183-902-0	01	1	1510-		●
56	PULLEY; CR/SHF DAMPER 1-GROOVE THA	8-98247-364-1	01	1	1510-			●
56	PULLEY; CR/SHF DAMPER REFRIGERATION KIT<7FH> 3-GROOVE THA	8-98101-013-0	01	1	1510-	●
61	PULLEY; FAN DRIVE 1-GROOVE THA	8-98131-628-0	01	1	1510-	●	●
61	PULLEY; FAN DRIVE 1-GROOVE THA	8-98248-080-1	01	1	1510-			●
63	PISTON GRADE=A THA	8-98228-070-0	04	1	1510-	●
63	PISTON GRADE=B THA	8-98228-071-0	04	1	1510-	●
63	PISTON GRADE=C THA	8-98228-072-0	04	1	1510-	●
63	PISTON GRADE=A THA	8-98228-067-0	04	1	1510-		●
63	PISTON GRADE=B THA	8-98228-068-0	04	1	1510-		●
63	PISTON GRADE=C THA	8-98228-069-0	04	1	1510-		●
63	PISTON GRADE=A IMA	8-98248-252-1	04	1	1510-			●
63	PISTON GRADE=B IMA	8-98248-253-1	04	1	1510-			●
63	PISTON GRADE=C IMA	8-98248-254-1	04	1	1510-			●
64	PISTON; O/S=0.50 THA	8-98230-240-0	04	1	1510-	●
64	PISTON; O/S=0.50 THA	8-98230-237-0	04	1	1510-		●
67	PISTON; O/S=0.25 THA	8-98230-239-0	04	1	1510-	●
67	PISTON; O/S=0.25 THA	8-98230-236-0	04	1	1510-		●
68	RING SET; PISTON,STANDARD THA	8-98171-040-0	04	1	1510-	●
68	RING SET; PISTON,STANDARD THA	8-98171-044-0	04	1	1510-		●
68	RING SET; PISTON,STANDARD IMA	8-98333-347-0	04	1	1510-			●
69	RING SET; PISTON,O/S=0.50 THA	8-98171-042-0	04	1	1510-	●
69	RING SET; PISTON,O/S=0.50 THA	8-98171-046-0	04	1	1510-		●
71	RING SET; PISTON,O/S=0.25 THA	8-98171-041-0	04	1	1510-	●
71	RING SET; PISTON,O/S=0.25 THA	8-98171-045-0	04	1	1510-		●
73	METAL SET; CONN ROD,STANDARD THA	8-97388-735-0	04	1	1510-	●	●
73	METAL SET; CONN ROD,STANDARD IMA	8-98333-348-0	04	1	1510-			●
83	PIN; PISTON THA	8-98150-333-0	04	1	1510-	●	●
83	PIN; PISTON IMA	8-98285-227-0	04	1	1510-			●
84	ROD ASM; CONN THA	8-97357-716-3	04	1	1510-	●	●
84	ROD ASM; CONN IMA	8-98247-332-3	04	1	1510-			●
85	BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. IMA	8-97383-066-0	04	1	1510-	●	●
85	BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. IMA	8-98247-334-0	04	1	1510-			●
86	BOLT; CONNROD M11X44.5 IMA	8-98048-538-0	08	1	1510-	●	●
86	BOLT; CONNROD M9X45.5 FLANGE IMA	8-98258-467-0	08	1	1510-			●
87	PIN; CONNROD BIG END OD=5 L=8 THA	9-08160-508-0	08	1	1510-	●	●
126	RING; SNAP,PISTON PIN OD=37.5 IMA	8-94460-687-0	08	1	1510-	●	●	●
172	ROTOR; CRANK SENSOR IMA	8-98163-693-0	01	1	1510-	●	●
203	PIN; ROTOR OD=5 L=8 THA	9-08160-508-0	01	1	1510-	●	●
204	BOLT; ROTOR THA	8-97944-142-1	03	1	1510-	●	●
215	PISTON; O/S=0.75 THA	8-98230-241-0	04	1	1510-	●
215	PISTON; O/S=0.75 THA	8-98230-238-0	04	1	1510-		●
217	RING SET; PISTON,O/S=0.75 THA	8-98171-043-0	04	1	1510-	●
217	RING SET; PISTON,O/S=0.75 THA	8-98171-047-0	04	1	1510-		●
