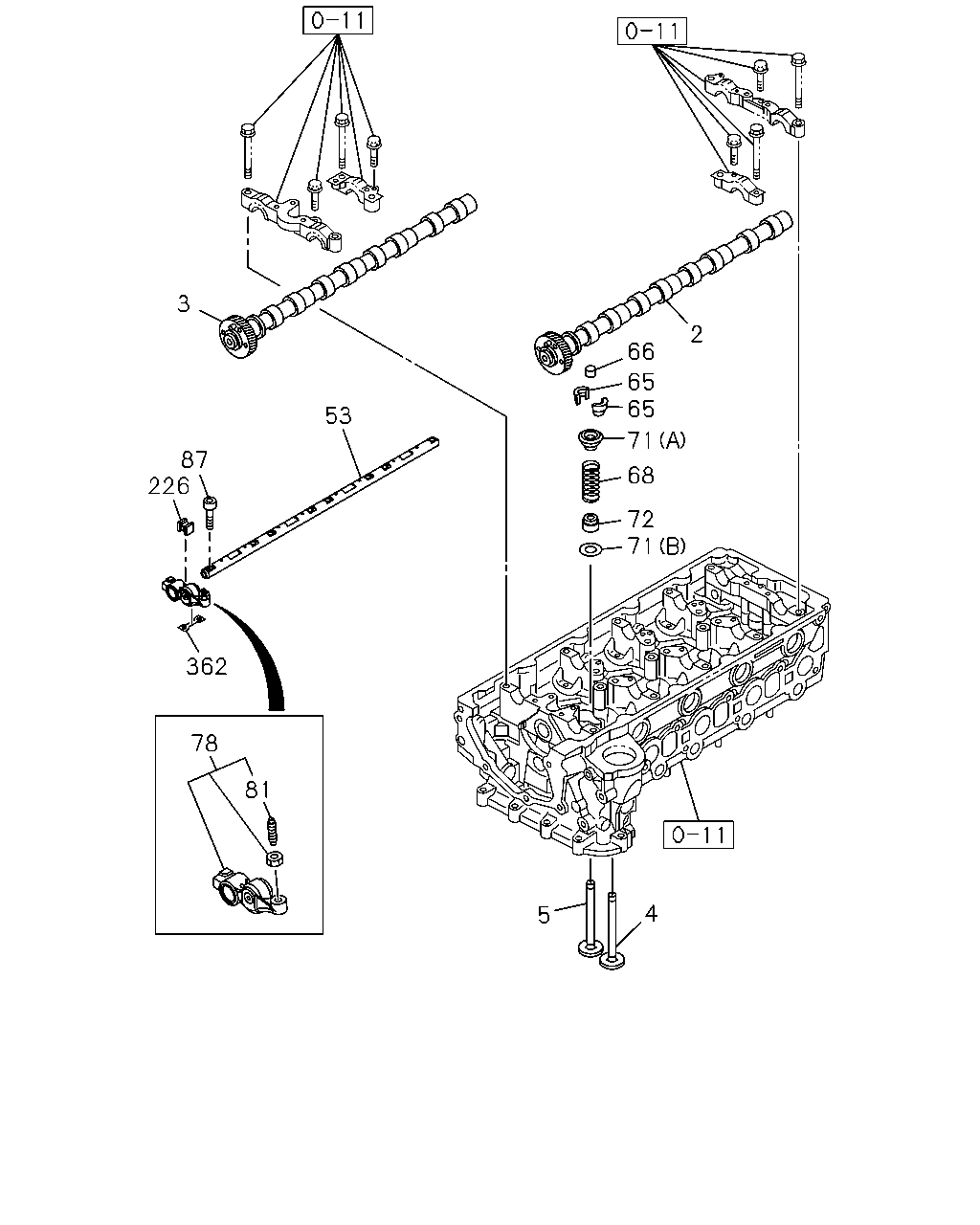

0-14 — CAMSHAFT AND VALVE (#166018) — 132 parça

3 53 87 226 362 78 81 5 4 71 68 72 71 65 65 66 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	CAMSHAFT; INL THA	8-98228-489-1	01	1	1510-	●	●
2	CAMSHAFT; INL THA	8-98247-397-3	01	1	1510-			●
3	CAMSHAFT; EXH THA	8-98228-492-1	01	1	1510-	●	●
3	CAMSHAFT; EXH THA	8-98247-398-3	01	1	1510-			●
4	VALVE; INL THA	8-97309-675-1	08	1	1510-	●	●
4	VALVE; INL THA	8-98247-695-0	08	1	1510-			●
5	VALVE; EXH THA	8-97309-677-1	08	1	1510-	●	●
5	VALVE; EXH THA	8-98247-696-0	08	1	1510-			●
53	SHAFT; ROCKER ARM THA	8-98244-914-0	02	1	1510-	●	●
65	COLLAR; SPLIT IMA	8-94239-501-0	32	1	1510-	●	●
65	COLLAR; SPLIT IMA	8-98250-250-0	32	1	1510-			●
66	CAP; VLV STEM END THA	8-98147-945-0	16	1	1510-	●	●
66	CAP; VLV STEM END THA	8-98299-554-0	16	1	1510-			●
68	SPRING; VLV H=49 NATURAL THA	8-97311-669-0	16	1	1510-	●	●
68	SPRING; VLV INLET H=51 THA	8-98250-115-1	08	1	1510-			●
68	SPRING; VLV EXHAUST H=57 THA	8-98306-921-1	08	1	1510-			●
71	SEAT; SPR (B) OD=31 THA	8-97144-584-0	16	1	1510-	●	●
71	SEAT; SPR (A) OD=29.5 THA	8-97311-668-0	16	1	1510-	●	●
71	SEAT; SPR (C) THA	8-98250-251-0	16	1	1510-			●
71	SEAT; SPR (D) THA	8-98250-252-0	16	1	1510-			●
72	SEAL; VLV GUIDE THA	8-97328-647-0	16	1	1510-	●	●
72	SEAL; VLV GUIDE THA	8-98250-249-0	16	1	1510-			●
78	ARM; ROCKER IMA	8-98204-885-1	16	1	1510-	●	●
78	ARM; ROCKER THA	8-98247-698-0	16	1	1510-			●
81	SCREW; ADJ,ROCKER ARM M8 L=22 IMA	8-98029-893-0	16	1	1510-	●	●
87	BOLT; ROCKER SHAFT M6X25 HEX SOCKET IMA	8-98224-626-0	14	1	1510-	●	●
226	SPRING; CMPR,ROCKER ARM IMA	8-98204-889-0	08	1	1510-	●	●
362	PLATE THA	8-98233-620-0	06	1	1510-	●	●

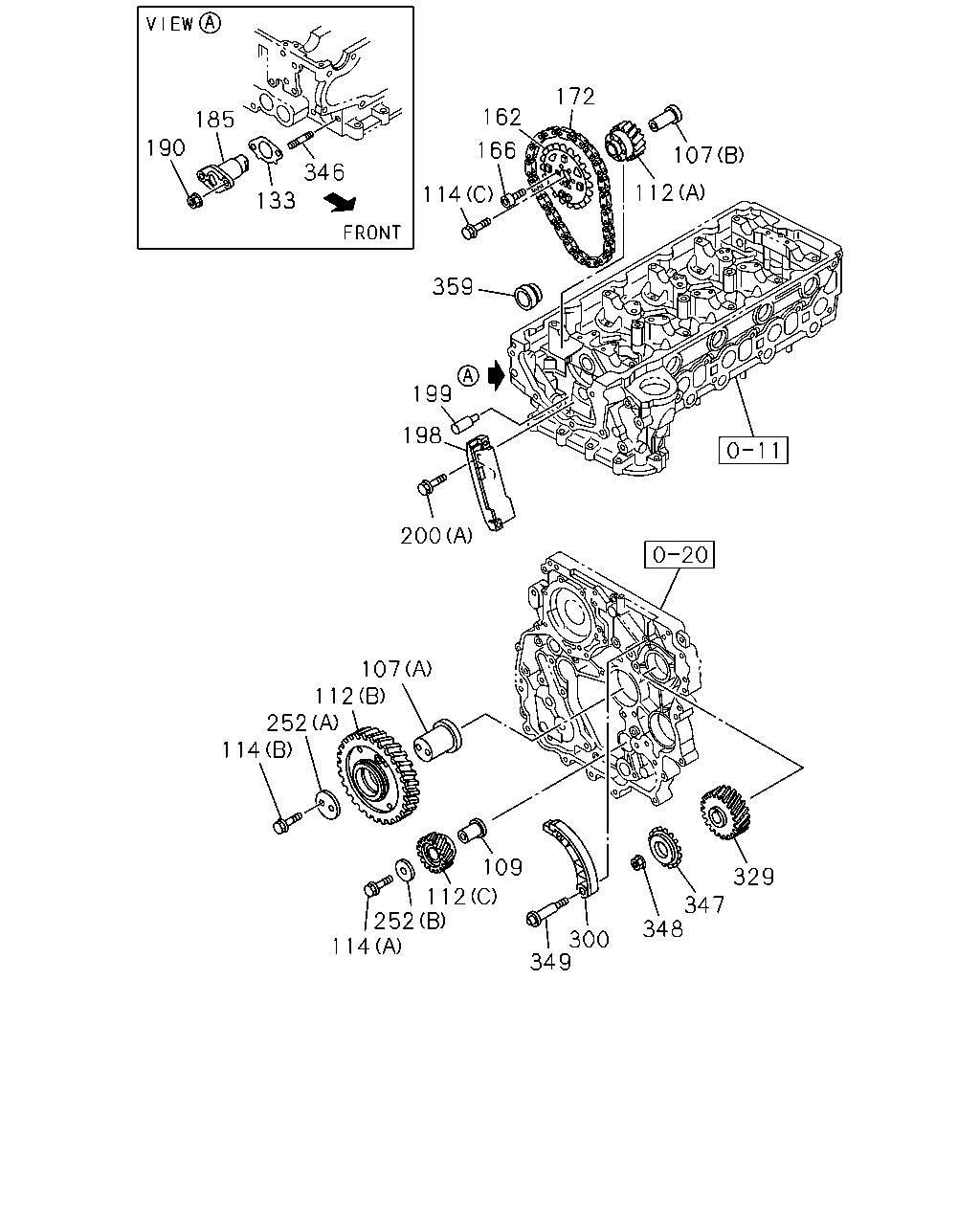

185 190 133 346 114 166 162 172 107 112 359 199 198 200 107 112 252 114 112 252 109 114 300 347 348 329 349

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
107	SHAFT; IDLE GEAR (A) THA	8-97312-315-2	01	1	1510-	●	●
107	SHAFT; IDLE GEAR (B) THA	8-98245-905-0	01	1	1510-	●	●
107	SHAFT; IDLE GEAR (C) THA	8-98248-172-2	01	1	1510-			●
109	SHAFT; IDLE GEAR THA	8-97312-319-1	01	1	1510-	●	●
109	SHAFT; IDLE GEAR THA	8-98260-494-2	01	1	1510-			●
112	GEAR; IDLE (C) Z=34 THA	8-98021-052-1	01	1	1510-	●	●
112	GEAR; IDLE (A) Z=35 THA	8-98231-907-0	01	1	1510-	●	●
112	GEAR; IDLE (B) Z=80 THA	8-98233-470-1	01	1	1510-	●	●
112	GEAR; IDLE (D) Z=63 THA	8-98319-960-0	01	1	1510-			●
112	GEAR; IDLE (E) Z=66 THA	8-98319-961-1	01	1	1510-			●
114	BOLT; IDLE GEAR (B) M10X60 FLANGE THA	0-28061-060-0	02	1	1510-	●	●
114	BOLT; IDLE GEAR (A) M12X60 FLANGE THA	0-28161-260-0	01	1	1510-	●	●
114	BOLT; IDLE GEAR (C) M12X75 FLANGE IMA	8-98176-233-0	01	1	1510-	●	●
133	GASKET; CHAIN TENSIONER THA	8-97312-336-0	01	1	1510-	●	●
133	GASKET; CHAIN TENSIONER ID=22.5 IMA	9-09571-422-0	01	1	1510-			●
162	SPROCKET; IDLE THA	8-97312-331-1	01	1	1510-	●	●
166	BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET THA	0-58330-616-0	06	1	1510-	●	●
172	CHAIN; TIMING,CM/SHF THA	8-98119-279-1	01	1	1510-	●	●
172	CHAIN; TIMING,CM/SHF THA	8-98247-668-0	01	1	1510-			●
185	TENSIONER; CHAIN THA	8-98258-885-0	01	1	1510-	●	●
185	TENSIONER; CHAIN THA	8-98248-163-0	01	1	1510-			●
190	NUT; CHAIN TENSIONER M6 FLANGE THA	0-91180-206-0	02	1	1510-	●	●
198	GUIDE; TIMING CHAIN THA	8-98173-188-0	01	1	1510-	●	●
198	GUIDE; TIMING CHAIN THA	8-98247-669-0	01	1	1510-			●
199	JET; OIL,TIMING CHAIN THA	8-97356-061-1	01	1	1510-	●	●
200	BOLT; CHAIN GUIDE,LWR (A) M8X20 THA	1-09070-120-1	02	1	1510-	●	●
200	BOLT; CHAIN GUIDE,LWR (B) THA	8-98248-165-0	01	1	1510-			●
200	BOLT; CHAIN GUIDE,LWR (C) THA	8-98253-288-0	01	1	1510-			●
252	FLANGE; IDLE SHAFT (A) THA	8-97312-316-1	01	1	1510-	●	●
252	FLANGE; IDLE SHAFT (B) THA	8-97312-323-1	01	1	1510-	●	●
252	FLANGE; IDLE SHAFT (C) THA	8-98248-173-0	02	1	1510-			●
300	LEVER; TENSION,TIMING CHAIN THA	8-98119-278-1	01	1	1510-	●	●
300	LEVER; TENSION,TIMING CHAIN THA	8-98247-670-0	01	1	1510-			●
329	GEAR; INJ PUMP Z=44 THA	8-97312-298-3	01	1	1510-	●	●
329	GEAR; INJ PUMP Z=57 THA	8-98319-909-0	01	1	1510-			●
346	STUD; CHAIN M6X18 L=27 THA	0-41010-618-0	02	1	1510-	●	●
347	SPROCKET; I/PUMP IMA	8-98246-954-0	01	1	1510-	●	●
348	NUT; SPROCKET M14 FLANGE THA	8-97312-423-2	01	1	1510-	●	●
349	PIVOT; CHAIN LEVER THA	8-97312-328-0	01	1	1510-	●	●
349	PIVOT; CHAIN LEVER THA	8-98248-165-0	01	1	1510-			●
359	SLEEVE; GEAR THA	8-97947-983-0	01	1	1510-	●	●

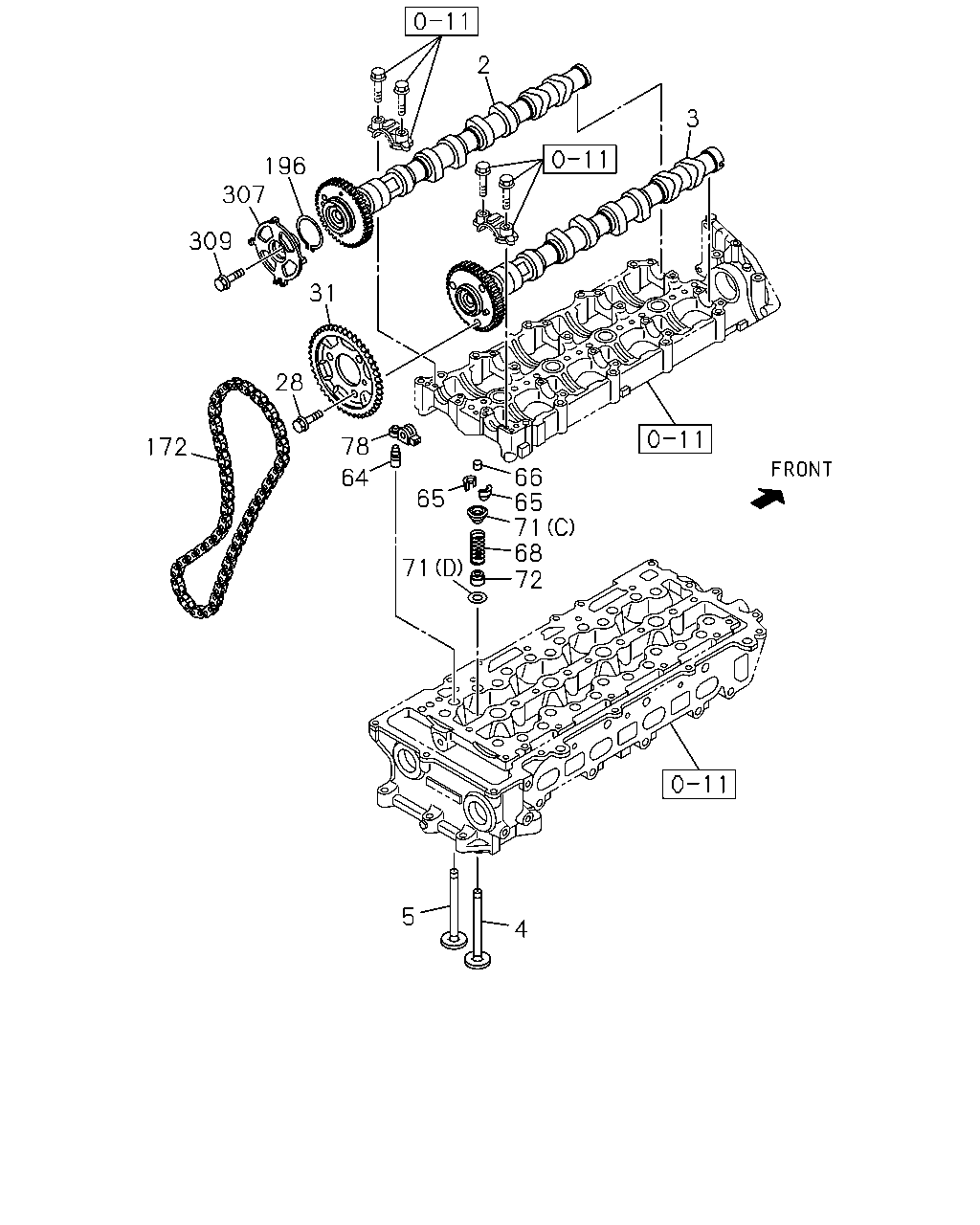

196 307 309 31 28 172 78 64 71 65 66 71 68 72 65 5 4 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	CAMSHAFT; INL THA	8-98228-489-1	01	1	1510-	●	●
2	CAMSHAFT; INL THA	8-98247-397-3	01	1	1510-			●
3	CAMSHAFT; EXH THA	8-98228-492-1	01	1	1510-	●	●
3	CAMSHAFT; EXH THA	8-98247-398-3	01	1	1510-			●
4	VALVE; INL THA	8-97309-675-1	08	1	1510-	●	●
4	VALVE; INL THA	8-98247-695-0	08	1	1510-			●
5	VALVE; EXH THA	8-97309-677-1	08	1	1510-	●	●
5	VALVE; EXH THA	8-98247-696-0	08	1	1510-			●
28	BOLT; CAM PULLEY M8X20 FLANGE THA	0-28050-820-0	03	1	1510-			●
31	SPROCKET; CM/SHF THA	8-98247-667-1	01	1	1510-			●
64	ADJUSTER; VLV LASH THA	8-98248-261-0	16	1	1510-			●
65	COLLAR; SPLIT IMA	8-94239-501-0	32	1	1510-	●	●
65	COLLAR; SPLIT IMA	8-98250-250-0	32	1	1510-			●
66	CAP; VLV STEM END THA	8-98147-945-0	16	1	1510-	●	●
66	CAP; VLV STEM END THA	8-98299-554-0	16	1	1510-			●
68	SPRING; VLV H=49 NATURAL THA	8-97311-669-0	16	1	1510-	●	●
68	SPRING; VLV INLET H=51 THA	8-98250-115-1	08	1	1510-			●
68	SPRING; VLV EXHAUST H=57 THA	8-98306-921-1	08	1	1510-			●
71	SEAT; SPR (B) OD=31 THA	8-97144-584-0	16	1	1510-	●	●
71	SEAT; SPR (A) OD=29.5 THA	8-97311-668-0	16	1	1510-	●	●
71	SEAT; SPR (C) THA	8-98250-251-0	16	1	1510-			●
71	SEAT; SPR (D) THA	8-98250-252-0	16	1	1510-			●
72	SEAL; VLV GUIDE THA	8-97328-647-0	16	1	1510-	●	●
72	SEAL; VLV GUIDE THA	8-98250-249-0	16	1	1510-			●
78	ARM; ROCKER IMA	8-98204-885-1	16	1	1510-	●	●
78	ARM; ROCKER THA	8-98247-698-0	16	1	1510-			●
172	CHAIN; TIMING,CM/SHF THA	8-98119-279-1	01	1	1510-	●	●
172	CHAIN; TIMING,CM/SHF THA	8-98247-668-0	01	1	1510-			●
196	RING; SNAP ID=37.0 IMA	9-09180-040-0	01	1	1510-			●
307	ROTOR; CAM ANGLE SENSOR THA	8-98247-688-0	01	1	1510-			●
309	BOLT; ROTOR M8X40 FLANGE THA	0-28050-840-0	01	1	1510-			●

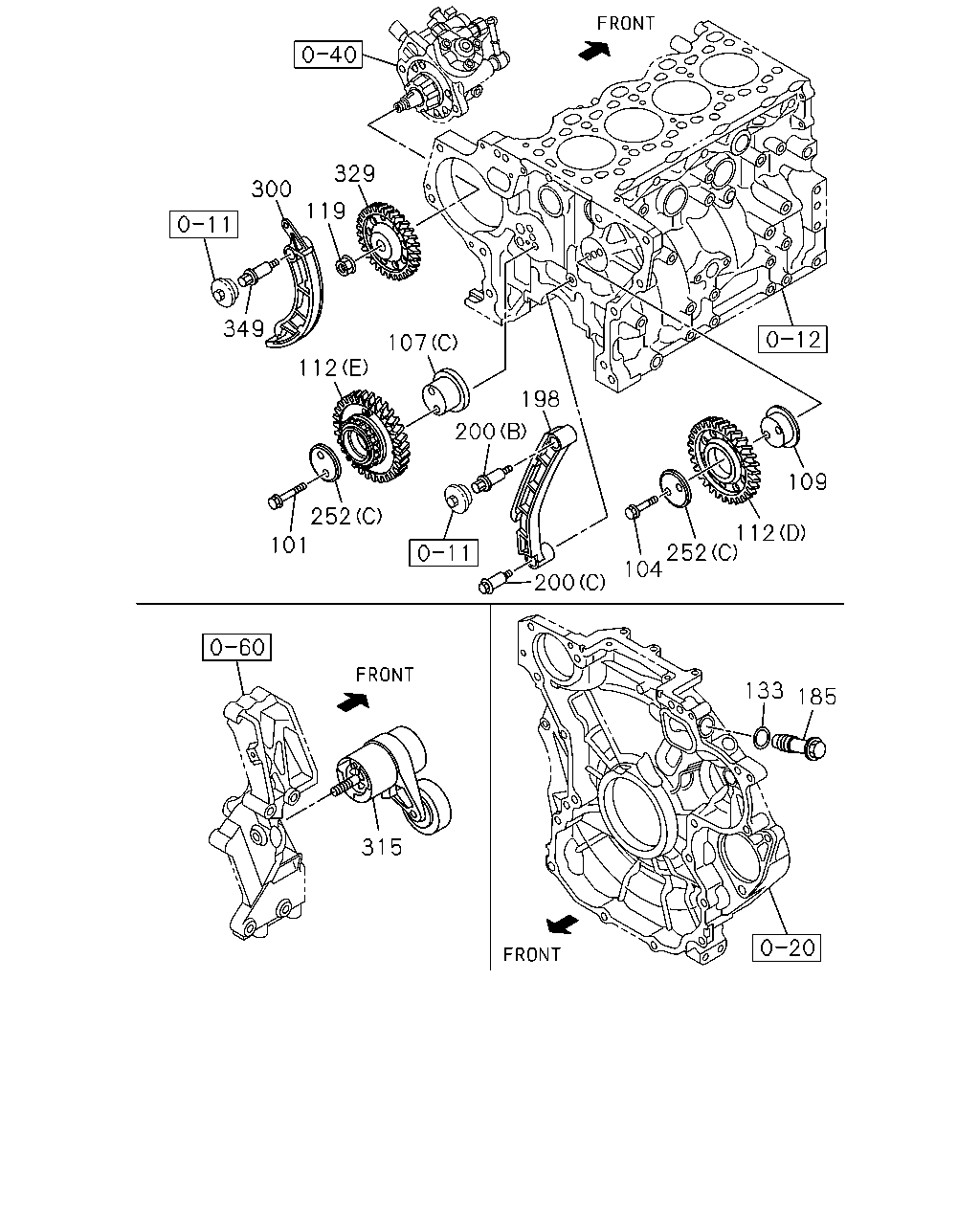

329 119 300 349 107 112 200 252 101 198 200 252 104 112 109 185 133 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
101	BOLT; THRUST COLLAR M10X60 FLANGE IMA	0-28161-060-0	02	1	1510-			●
104	BOLT; SHAFT IDLE M10X40 FLANGE IMA	0-28161-040-0	02	1	1510-			●
107	SHAFT; IDLE GEAR (A) THA	8-97312-315-2	01	1	1510-	●	●
107	SHAFT; IDLE GEAR (B) THA	8-98245-905-0	01	1	1510-	●	●
107	SHAFT; IDLE GEAR (C) THA	8-98248-172-2	01	1	1510-			●
109	SHAFT; IDLE GEAR THA	8-97312-319-1	01	1	1510-	●	●
109	SHAFT; IDLE GEAR THA	8-98260-494-2	01	1	1510-			●
112	GEAR; IDLE (C) Z=34 THA	8-98021-052-1	01	1	1510-	●	●
112	GEAR; IDLE (A) Z=35 THA	8-98231-907-0	01	1	1510-	●	●
112	GEAR; IDLE (B) Z=80 THA	8-98233-470-1	01	1	1510-	●	●
112	GEAR; IDLE (D) Z=63 THA	8-98319-960-0	01	1	1510-			●
112	GEAR; IDLE (E) Z=66 THA	8-98319-961-1	01	1	1510-			●
119	NUT; PULLEY M14 FLANGE THA	0-91180-114-0	01	1	1510-			●
133	GASKET; CHAIN TENSIONER THA	8-97312-336-0	01	1	1510-	●	●
133	GASKET; CHAIN TENSIONER ID=22.5 IMA	9-09571-422-0	01	1	1510-			●
185	TENSIONER; CHAIN THA	8-98258-885-0	01	1	1510-	●	●
185	TENSIONER; CHAIN THA	8-98248-163-0	01	1	1510-			●
198	GUIDE; TIMING CHAIN THA	8-98173-188-0	01	1	1510-	●	●
198	GUIDE; TIMING CHAIN THA	8-98247-669-0	01	1	1510-			●
200	BOLT; CHAIN GUIDE,LWR (A) M8X20 THA	1-09070-120-1	02	1	1510-	●	●
200	BOLT; CHAIN GUIDE,LWR (B) THA	8-98248-165-0	01	1	1510-			●
200	BOLT; CHAIN GUIDE,LWR (C) THA	8-98253-288-0	01	1	1510-			●
252	FLANGE; IDLE SHAFT (A) THA	8-97312-316-1	01	1	1510-	●	●
252	FLANGE; IDLE SHAFT (B) THA	8-97312-323-1	01	1	1510-	●	●
252	FLANGE; IDLE SHAFT (C) THA	8-98248-173-0	02	1	1510-			●
300	LEVER; TENSION,TIMING CHAIN THA	8-98119-278-1	01	1	1510-	●	●
300	LEVER; TENSION,TIMING CHAIN THA	8-98247-670-0	01	1	1510-			●
315	TENSIONER; AUTO THA	8-98248-178-3	01	1	1510-			●
329	GEAR; INJ PUMP Z=44 THA	8-97312-298-3	01	1	1510-	●	●
329	GEAR; INJ PUMP Z=57 THA	8-98319-909-0	01	1	1510-			●
349	PIVOT; CHAIN LEVER THA	8-97312-328-0	01	1	1510-	●	●
349	PIVOT; CHAIN LEVER THA	8-98248-165-0	01	1	1510-			●
