0-13 — OIL PAN AND LEVEL GAUGE (#166017) — 91 parça

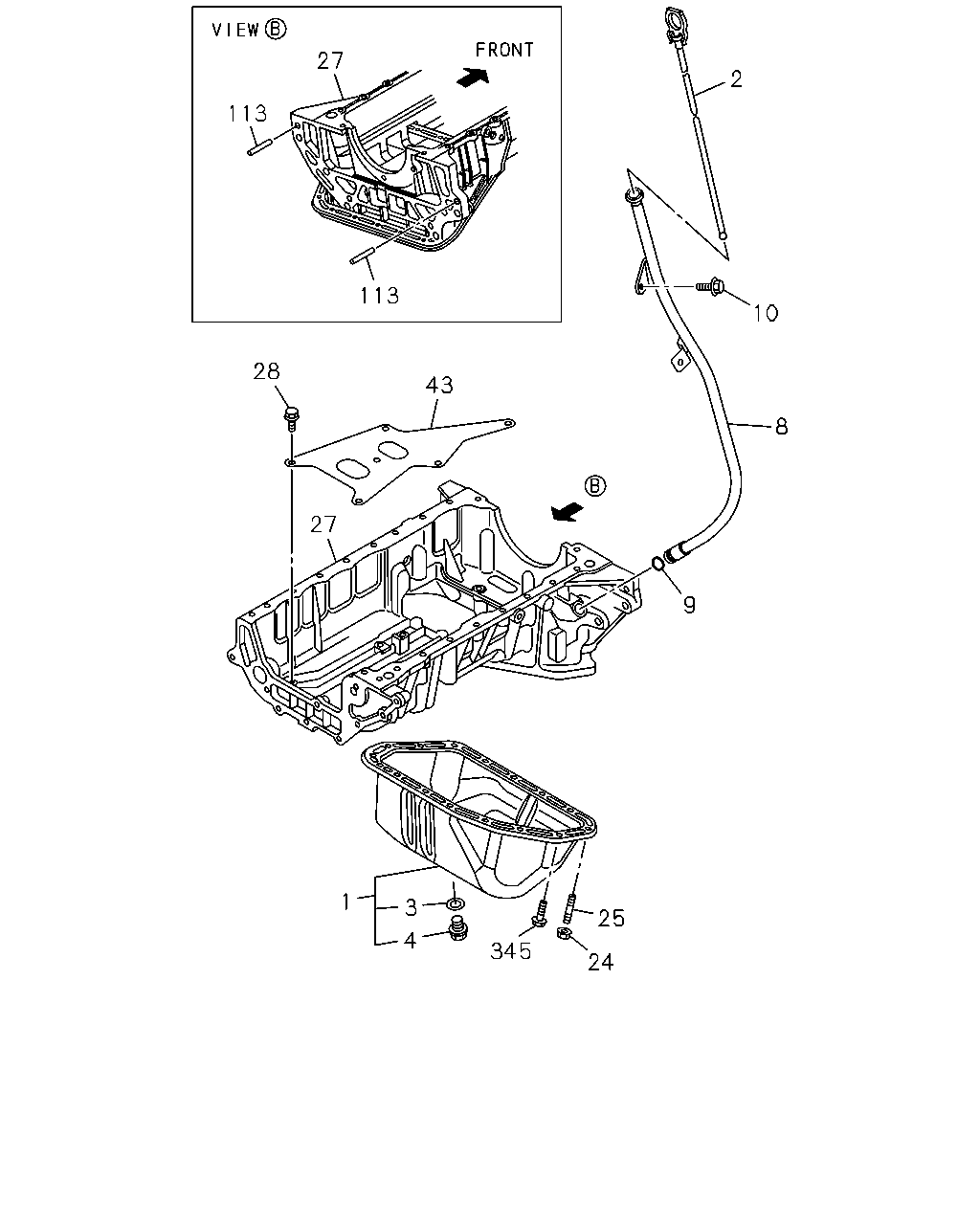

27 113 113 2 10 8 43 28 27 9 1 4 3 345 24 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PAN ASM; OIL 4X2<TFB***> THA	8-98156-371-0	01	1	1510-	●	●
1	PAN ASM; OIL THA	8-98291-256-2	01	1	1510-			●
1	PAN ASM; OIL 4X4<TFS***> THA	8-98132-001-2	01	1	1510-	●	●
2	GAUGE; OIL LEVEL THA	8-98318-048-0	01	1	1510-			●
2	GAUGE; OIL LEVEL 4X2<TFB***> THA	8-98228-327-2	01	1	1510-	●	●
2	GAUGE; OIL LEVEL 4X4<TFS***> THA	8-98228-328-2	01	1	1510-	●	●
3	GASKET; DRAIN PLUG ID=14.2 OD=24 THA	8-98316-093-1	01	1	1510-			●
3	GASKET; DRAIN PLUG ID=14.2 OD=24 IMA	8-94158-328-0	01	1	1510-	●	●
4	PLUG; DRAIN,OIL M14X14 IMA	8-97329-621-0	01	1	1510-	●	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE THA	8-98318-019-0	01	1	1510-			●
8	TUBE; GUIDE,OIL LEVEL GAUGE THA	8-98228-277-2	01	1	1510-	●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ID=11 OD=15.8 THA	8-98034-629-0	01	1	1510-	●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ID=11 IMA	1-09623-469-0	01	1	1510-			●
10	BOLT; GUIDE TUBE M8X16 FLANGE THA	0-28050-816-0	01	1	1510-	●	●	●
24	NUT; OIL PAN M8 FLANGE THA	0-91180-208-0	02	1	1510-	●	●
24	NUT; OIL PAN M6 FLANGE THA	0-91180-106-0	02	1	1510-			●
25	STUD; OIL PAN M8X16 L=28 THA	0-41010-816-0	02	1	1510-	●	●
25	STUD; OIL PAN M6X16 L=25 THA	0-41010-616-0	02	1	1510-			●
27	CRANKCASE 4X2<TFB***> THA	8-98225-707-3	01	1	1510-	●
27	CRANKCASE 4X2<TFB***> THA	8-98225-709-3	01	1	1510-		●
27	CRANKCASE THA	8-98247-187-2	01	1	1510-			●
27	CRANKCASE 4X4<TFS***> THA	8-98225-708-2	01	1	1510-	●
27	CRANKCASE 4X4<TFS***> THA	8-98225-710-2	01	1	1510-		●
28	BOLT; CRANKCASE TO C/BL M8X16 FLANGE THA	0-28050-816-0	06	1	1510-	●	●
28	BOLT; CRANKCASE TO C/BL M8X25 FLANGE THA	0-28050-825-0	12	1	1510-			●
43	PLATE; CRANKCASE THA	8-98225-711-0	01	1	1510-	●	●
43	PLATE; CRANKCASE THA	8-98292-481-1	01	1	1510-			●
113	PIN; STRAIGHT OD=10 L=32 THA	9-08161-032-0	02	1	1510-		●
345	BOLT; SENSOR,OIL LEVEL 4X2<TFB***> M8X12 FLANGE THA	0-28050-812-0	21	1	1510-	●	●
345	BOLT; SENSOR,OIL LEVEL 4X4<TFS***> M8X12 FLANGE THA	0-28050-812-0	14	1	1510-	●	●

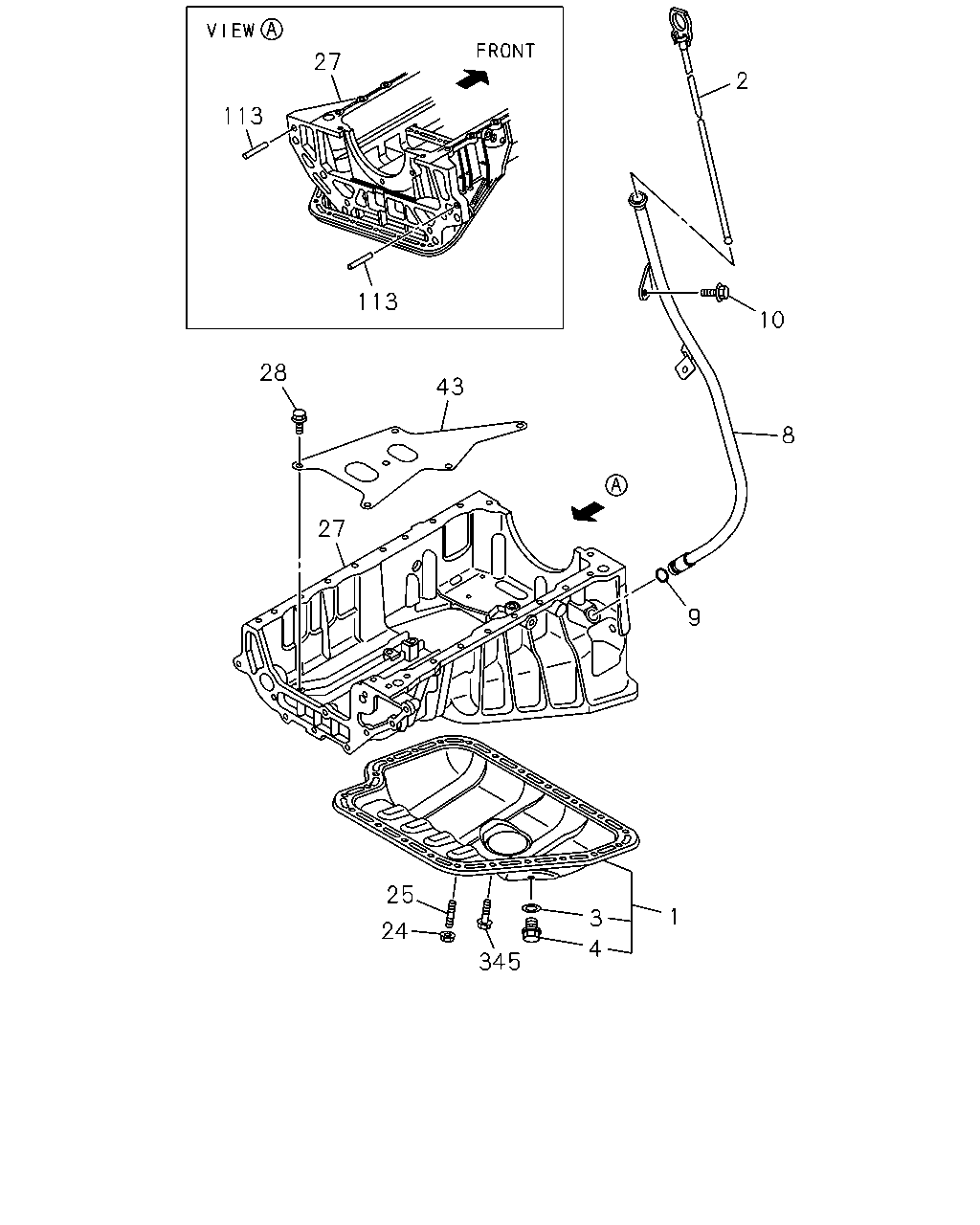

27 113 113 2 10 8 9 43 28 27 1 3 4 345 25 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PAN ASM; OIL 4X2<TFB***> THA	8-98156-371-0	01	1	1510-	●	●
1	PAN ASM; OIL THA	8-98291-256-2	01	1	1510-			●
1	PAN ASM; OIL 4X4<TFS***> THA	8-98132-001-2	01	1	1510-	●	●
2	GAUGE; OIL LEVEL THA	8-98318-048-0	01	1	1510-			●
2	GAUGE; OIL LEVEL 4X2<TFB***> THA	8-98228-327-2	01	1	1510-	●	●
2	GAUGE; OIL LEVEL 4X4<TFS***> THA	8-98228-328-2	01	1	1510-	●	●
3	GASKET; DRAIN PLUG ID=14.2 OD=24 THA	8-98316-093-1	01	1	1510-			●
3	GASKET; DRAIN PLUG ID=14.2 OD=24 IMA	8-94158-328-0	01	1	1510-	●	●
4	PLUG; DRAIN,OIL M14X14 IMA	8-97329-621-0	01	1	1510-	●	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE THA	8-98318-019-0	01	1	1510-			●
8	TUBE; GUIDE,OIL LEVEL GAUGE THA	8-98228-277-2	01	1	1510-	●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ID=11 OD=15.8 THA	8-98034-629-0	01	1	1510-	●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ID=11 IMA	1-09623-469-0	01	1	1510-			●
10	BOLT; GUIDE TUBE M8X16 FLANGE THA	0-28050-816-0	01	1	1510-	●	●	●
24	NUT; OIL PAN M8 FLANGE THA	0-91180-208-0	02	1	1510-	●	●
24	NUT; OIL PAN M6 FLANGE THA	0-91180-106-0	02	1	1510-			●
25	STUD; OIL PAN M8X16 L=28 THA	0-41010-816-0	02	1	1510-	●	●
25	STUD; OIL PAN M6X16 L=25 THA	0-41010-616-0	02	1	1510-			●
27	CRANKCASE 4X2<TFB***> THA	8-98225-707-3	01	1	1510-	●
27	CRANKCASE 4X2<TFB***> THA	8-98225-709-3	01	1	1510-		●
27	CRANKCASE THA	8-98247-187-2	01	1	1510-			●
27	CRANKCASE 4X4<TFS***> THA	8-98225-708-2	01	1	1510-	●
27	CRANKCASE 4X4<TFS***> THA	8-98225-710-2	01	1	1510-		●
28	BOLT; CRANKCASE TO C/BL M8X16 FLANGE THA	0-28050-816-0	06	1	1510-	●	●
28	BOLT; CRANKCASE TO C/BL M8X25 FLANGE THA	0-28050-825-0	12	1	1510-			●
43	PLATE; CRANKCASE THA	8-98225-711-0	01	1	1510-	●	●
43	PLATE; CRANKCASE THA	8-98292-481-1	01	1	1510-			●
113	PIN; STRAIGHT OD=10 L=32 THA	9-08161-032-0	02	1	1510-		●
345	BOLT; SENSOR,OIL LEVEL 4X2<TFB***> M8X12 FLANGE THA	0-28050-812-0	21	1	1510-	●	●
345	BOLT; SENSOR,OIL LEVEL 4X4<TFS***> M8X12 FLANGE THA	0-28050-812-0	14	1	1510-	●	●

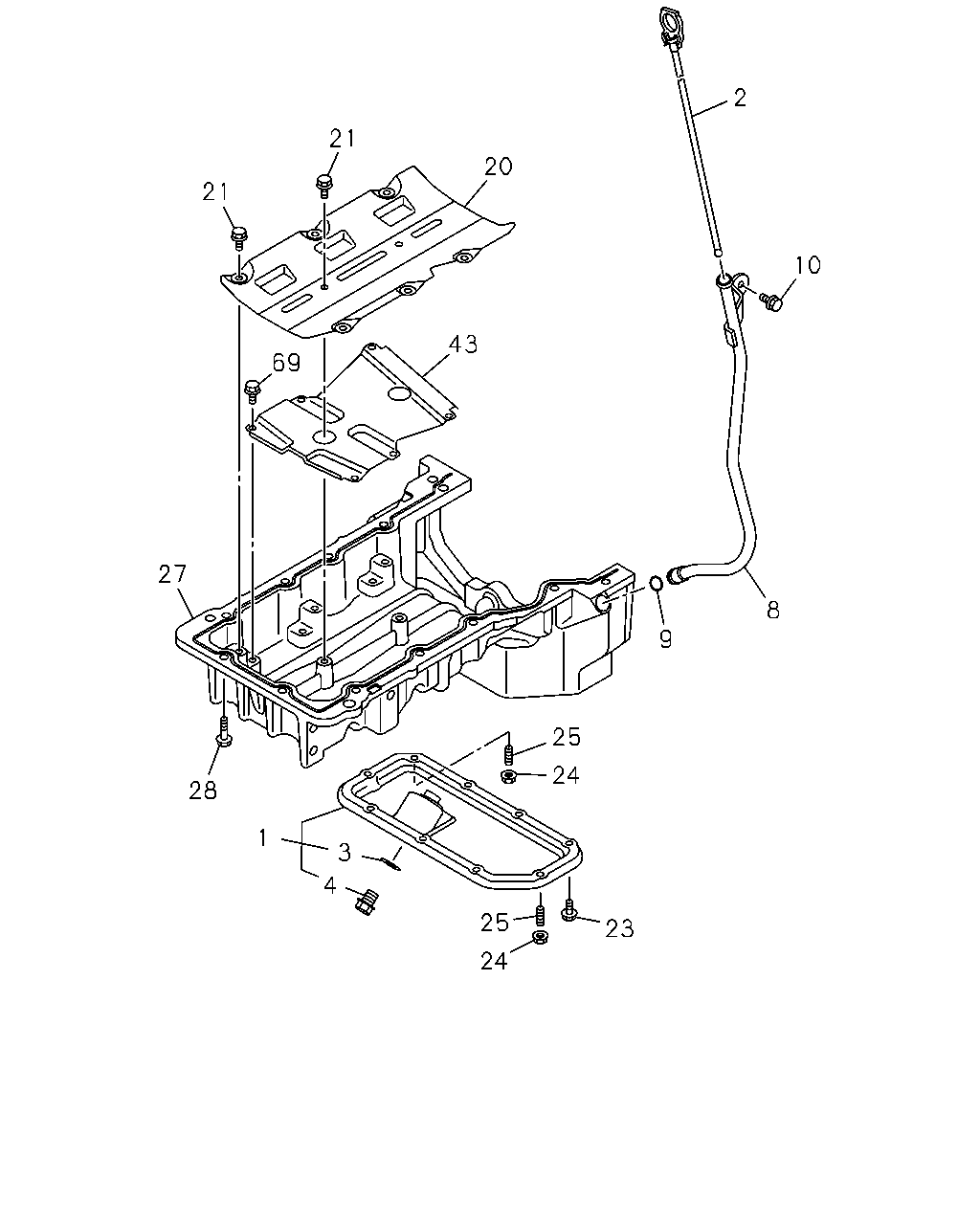

2 10 8 9 25 24 23 25 24 3 4 1 28 27 43 69 20 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PAN ASM; OIL 4X2<TFB***> THA	8-98156-371-0	01	1	1510-	●	●
1	PAN ASM; OIL THA	8-98291-256-2	01	1	1510-			●
1	PAN ASM; OIL 4X4<TFS***> THA	8-98132-001-2	01	1	1510-	●	●
2	GAUGE; OIL LEVEL THA	8-98318-048-0	01	1	1510-			●
2	GAUGE; OIL LEVEL 4X2<TFB***> THA	8-98228-327-2	01	1	1510-	●	●
2	GAUGE; OIL LEVEL 4X4<TFS***> THA	8-98228-328-2	01	1	1510-	●	●
3	GASKET; DRAIN PLUG ID=14.2 OD=24 THA	8-98316-093-1	01	1	1510-			●
3	GASKET; DRAIN PLUG ID=14.2 OD=24 IMA	8-94158-328-0	01	1	1510-	●	●
4	PLUG; DRAIN,OIL M14X14 IMA	8-97329-621-0	01	1	1510-	●	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE THA	8-98318-019-0	01	1	1510-			●
8	TUBE; GUIDE,OIL LEVEL GAUGE THA	8-98228-277-2	01	1	1510-	●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ID=11 OD=15.8 THA	8-98034-629-0	01	1	1510-	●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ID=11 IMA	1-09623-469-0	01	1	1510-			●
10	BOLT; GUIDE TUBE M8X16 FLANGE THA	0-28050-816-0	01	1	1510-	●	●	●
20	PLATE; BAFFLE,CRANKCASE THA	8-98247-188-0	01	1	1510-			●
21	BOLT; BAFFLE PLATE,CRANKCASE M6X12 FLANGE THA	0-28050-612-0	08	1	1510-			●
23	BOLT; OIL PAN M6X12 FLANGE THA	0-28050-612-0	07	1	1510-			●
24	NUT; OIL PAN M8 FLANGE THA	0-91180-208-0	02	1	1510-	●	●
24	NUT; OIL PAN M6 FLANGE THA	0-91180-106-0	02	1	1510-			●
25	STUD; OIL PAN M8X16 L=28 THA	0-41010-816-0	02	1	1510-	●	●
25	STUD; OIL PAN M6X16 L=25 THA	0-41010-616-0	02	1	1510-			●
27	CRANKCASE 4X2<TFB***> THA	8-98225-707-3	01	1	1510-	●
27	CRANKCASE 4X2<TFB***> THA	8-98225-709-3	01	1	1510-		●
27	CRANKCASE THA	8-98247-187-2	01	1	1510-			●
27	CRANKCASE 4X4<TFS***> THA	8-98225-708-2	01	1	1510-	●
27	CRANKCASE 4X4<TFS***> THA	8-98225-710-2	01	1	1510-		●
28	BOLT; CRANKCASE TO C/BL M8X16 FLANGE THA	0-28050-816-0	06	1	1510-	●	●
28	BOLT; CRANKCASE TO C/BL M8X25 FLANGE THA	0-28050-825-0	12	1	1510-			●
43	PLATE; CRANKCASE THA	8-98225-711-0	01	1	1510-	●	●
43	PLATE; CRANKCASE THA	8-98292-481-1	01	1	1510-			●
69	BOLT; PLATE M6X12 FLANGE THA	0-28050-612-0	06	1	1510-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
