0-11 — CYLINDER HEAD (#166015) — 97 parça

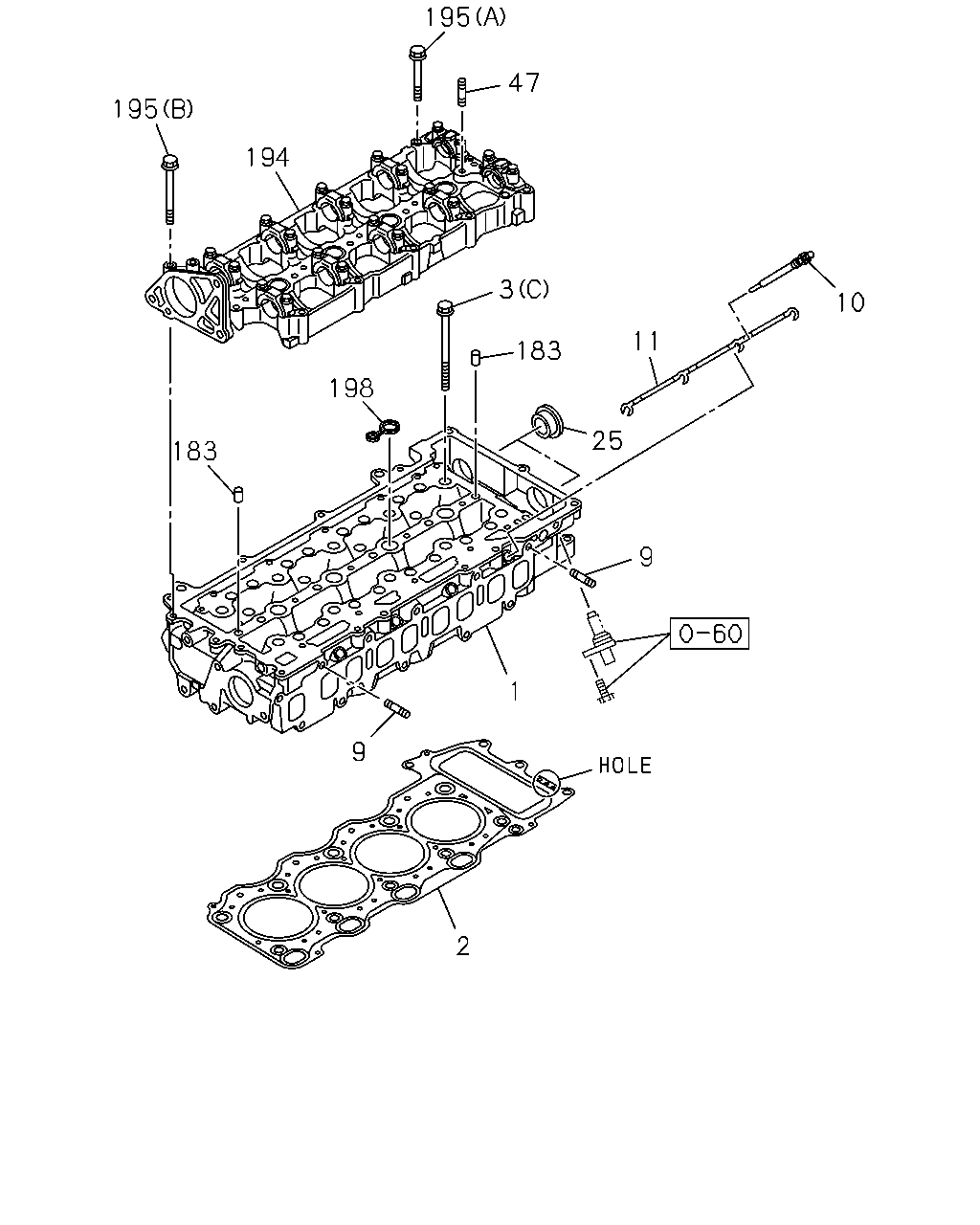

çizim 492017
11 25 9 1 2 9 183 3 198 183 194 195 47 195 10
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEAD ASM; CYL
IMA 		8-98270-378-1 01 1 1510- ● ●
1 HEAD ASM; CYL
IMA 		8-98243-869-3 01 1 1510- ●
2 GASKET; CYL HD
OVER SIZE IMA 		8-97388-314-0 01 1 1510- ● ●
2 GASKET; CYL HD
STD GRADE A T=1.14 1-HOLE THA 		8-98261-318-0 01 1 1510- ● ●
2 GASKET; CYL HD
STD GRADE B T=1.19 2-HOLE THA 		8-98261-319-0 01 1 1510- ● ●
2 GASKET; CYL HD
STD GRADE C T=1.24 3-HOLE THA 		8-98261-320-0 01 1 1510- ● ●
2 GASKET; CYL HD
T=0.95 1-HOLE THA 		8-98258-164-0 01 1 1510- ●
2 GASKET; CYL HD
T=1.00 2-HOLE THA 		8-98258-165-0 01 1 1510- ●
2 GASKET; CYL HD
T=1.05 3-HOLE THA 		8-98258-166-0 01 1 1510- ●
3 BOLT; CYL HD TO BLOCK
(A) M11X114 W/WASHER IMA 		8-98201-019-0 18 1 1510- ● ●
3 BOLT; CYL HD TO BLOCK
(B) M8X35 FLANGE THA 		0-28650-835-0 04 1 1510- ●
3 BOLT; CYL HD TO BLOCK
(C) M12X176.5 W/WASHER THA 		8-98273-485-0 10 1 1510- ●
9 STUD; INL MANIF
M8X30 L=41 IMA 		0-41010-830-0 02 1 1510- ●
10 PLUG; GLOW
NGK THA 		8-98117-567-1 04 1 1510- ● ●
10 PLUG; GLOW
NGK THA 		8-98259-502-0 04 1 1510- ●
11 CONNECTOR; GLOW PLUG
THA 		8-98209-370-0 01 1 1510- ● ●
11 CONNECTOR; GLOW PLUG
THA 		8-98287-709-0 01 1 1510- ●
25 PLUG; CYL HD
THA 		8-98287-944-0 02 1 1510- ●
47 STUD; CYL HD
M6X25 L=34 THA 		0-41010-625-0 01 1 1510- ●
183 DOWEL; CYL HEAD
THA 		8-98286-973-0 02 1 1510- ●
194 CARRIER; CAM SHAFT
THA 		8-98243-890-1 01 1 1510- ●
195 BOLT; CARRIER
(A) M6X50 FLANGE IMA 		0-28050-650-0 15 1 1510- ●
195 BOLT; CARRIER
(B) M6X70 FLANGE IMA 		0-28050-670-0 02 1 1510- ●
198 GASKET; CAM CARRIER
THA 		8-98248-244-0 04 1 1510- ●

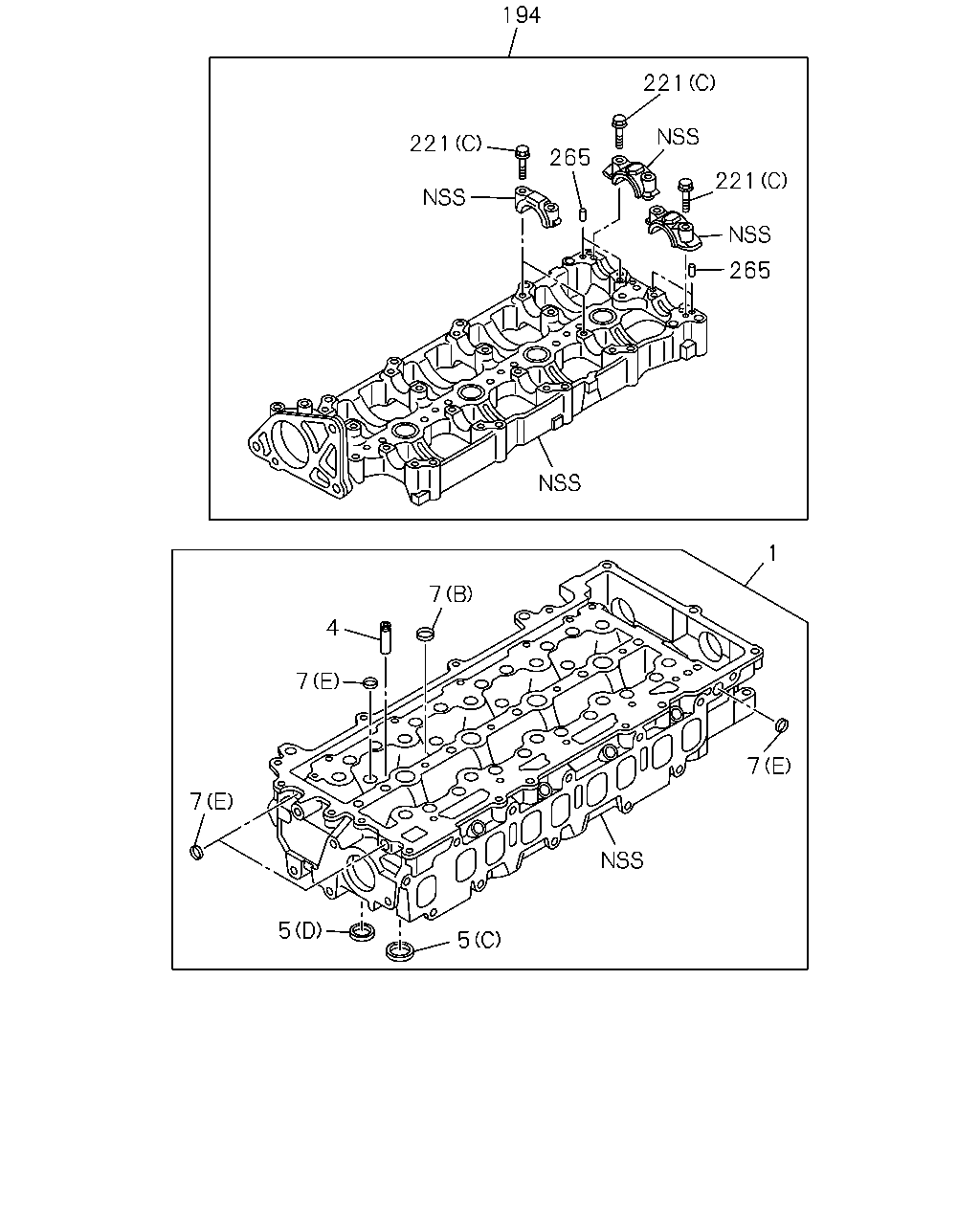

çizim 492020
194 221 265 221 221 265 1 7 4 7 7 5 5 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEAD ASM; CYL
IMA 		8-98270-378-1 01 1 1510- ● ●
1 HEAD ASM; CYL
IMA 		8-98243-869-3 01 1 1510- ●
4 GUIDE; VLV
L=42 IMA 		8-98250-248-0 16 1 1510- ●
4 GUIDE; VLV
L=42 IMA 		8-94239-423-0 16 1 1510- ● ●
5 SEAT; VLV INSERT
(C) INLET ID=24 OD=29 IMA 		8-98301-295-0 08 1 1510- ●
5 SEAT; VLV INSERT
(D) EXHAUST ID=22 OD=26 IMA 		8-98301-296-0 08 1 1510- ●
5 SEAT; VLV INSERT
(A) INLET ID=29 OD=35 IMA 		8-97311-378-0 08 1 1510- ● ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=26 OD=32 IMA 		8-97311-379-0 08 1 1510- ● ●
7 CUP; SEALING,CYL HEAD
(E) OD=12.3 IMA 		5-09600-013-0 07 1 1510- ●
7 CUP; SEALING,CYL HEAD
(B) OD=18 IMA 		5-11219-008-0 03 1 1510- ●
7 CUP; SEALING,CYL HEAD
(B) OD=18 IMA 		5-11219-008-0 06 1 1510- ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=14 IMA 		5-11219-011-0 02 1 1510- ● ●
7 CUP; SEALING,CYL HEAD
(D) OD=8 IMA 		8-97233-429-0 01 1 1510- ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=24 IMA 		8-97333-120-0 05 1 1510- ● ●
194 CARRIER; CAM SHAFT
THA 		8-98243-890-1 01 1 1510- ●
221 BOLT; BRKT
(A) M6X30 FLANGE IMA 		0-28050-630-0 08 1 1510- ● ●
221 BOLT; BRKT
(B) M8X85 THA 		1-09044-074-0 21 1 1510- ● ●
221 BOLT; BRKT
(C) M6X30 FLANGE THA 		0-28060-630-0 20 1 1510- ●
265 PIN; CAM CARRIER SET
IMA 		8-98224-627-0 04 1 1510- ●

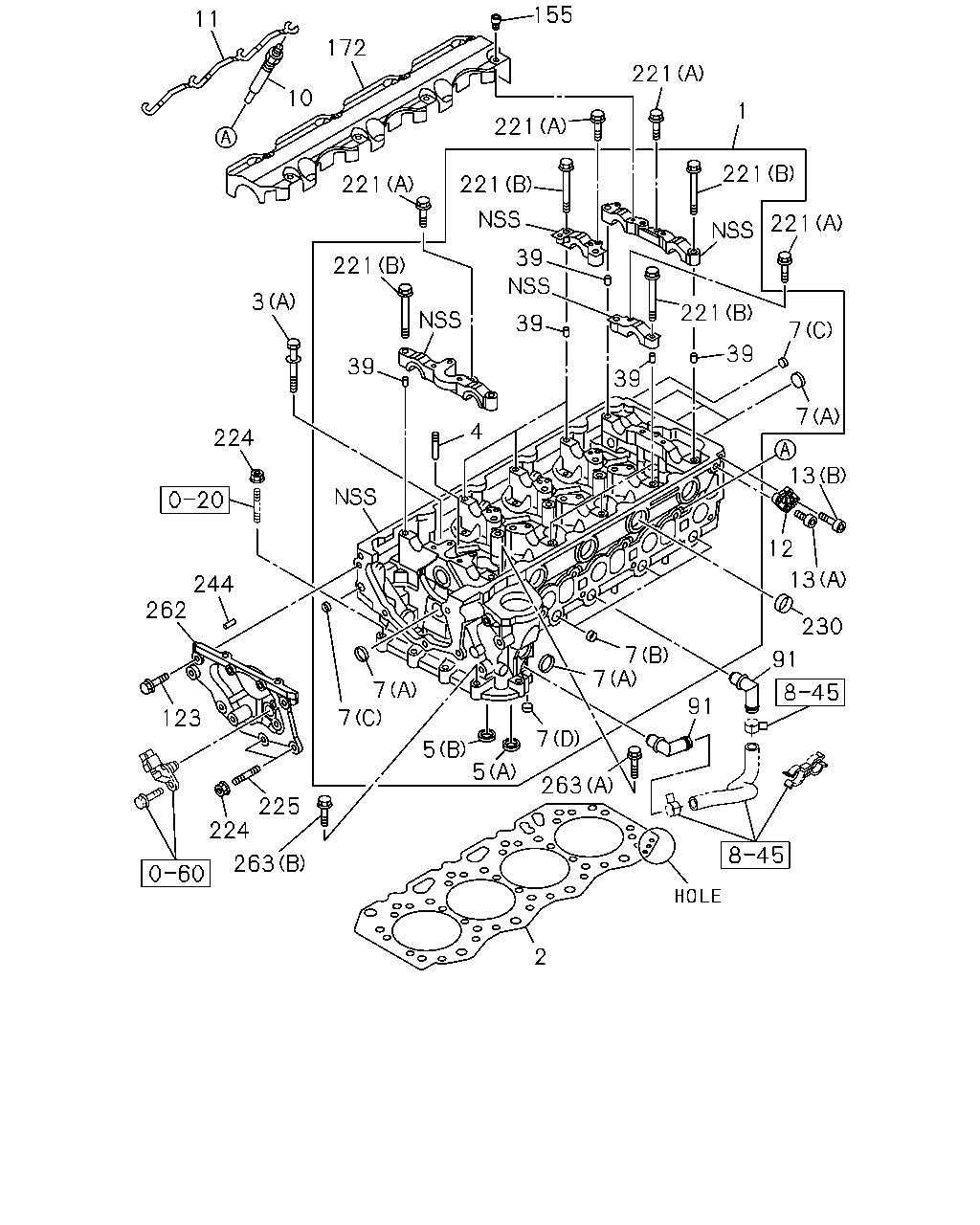

çizim 493139
11 10 172 155 221 221 221 221 3 221 39 39 39 4 1 221 221 7 221 39 39 7 13 12 13 230 91 91 7 7 7 263 5 5 7 7 225 224 263 123 262 244 224 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEAD ASM; CYL
IMA 		8-98270-378-1 01 1 1510- ● ●
1 HEAD ASM; CYL
IMA 		8-98243-869-3 01 1 1510- ●
2 GASKET; CYL HD
OVER SIZE IMA 		8-97388-314-0 01 1 1510- ● ●
2 GASKET; CYL HD
STD GRADE A T=1.14 1-HOLE THA 		8-98261-318-0 01 1 1510- ● ●
2 GASKET; CYL HD
STD GRADE B T=1.19 2-HOLE THA 		8-98261-319-0 01 1 1510- ● ●
2 GASKET; CYL HD
STD GRADE C T=1.24 3-HOLE THA 		8-98261-320-0 01 1 1510- ● ●
2 GASKET; CYL HD
T=0.95 1-HOLE THA 		8-98258-164-0 01 1 1510- ●
2 GASKET; CYL HD
T=1.00 2-HOLE THA 		8-98258-165-0 01 1 1510- ●
2 GASKET; CYL HD
T=1.05 3-HOLE THA 		8-98258-166-0 01 1 1510- ●
3 BOLT; CYL HD TO BLOCK
(A) M11X114 W/WASHER IMA 		8-98201-019-0 18 1 1510- ● ●
3 BOLT; CYL HD TO BLOCK
(B) M8X35 FLANGE THA 		0-28650-835-0 04 1 1510- ●
3 BOLT; CYL HD TO BLOCK
(C) M12X176.5 W/WASHER THA 		8-98273-485-0 10 1 1510- ●
4 GUIDE; VLV
L=42 IMA 		8-98250-248-0 16 1 1510- ●
4 GUIDE; VLV
L=42 IMA 		8-94239-423-0 16 1 1510- ● ●
5 SEAT; VLV INSERT
(C) INLET ID=24 OD=29 IMA 		8-98301-295-0 08 1 1510- ●
5 SEAT; VLV INSERT
(D) EXHAUST ID=22 OD=26 IMA 		8-98301-296-0 08 1 1510- ●
5 SEAT; VLV INSERT
(A) INLET ID=29 OD=35 IMA 		8-97311-378-0 08 1 1510- ● ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=26 OD=32 IMA 		8-97311-379-0 08 1 1510- ● ●
7 CUP; SEALING,CYL HEAD
(E) OD=12.3 IMA 		5-09600-013-0 07 1 1510- ●
7 CUP; SEALING,CYL HEAD
(B) OD=18 IMA 		5-11219-008-0 03 1 1510- ●
7 CUP; SEALING,CYL HEAD
(B) OD=18 IMA 		5-11219-008-0 06 1 1510- ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=14 IMA 		5-11219-011-0 02 1 1510- ● ●
7 CUP; SEALING,CYL HEAD
(D) OD=8 IMA 		8-97233-429-0 01 1 1510- ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=24 IMA 		8-97333-120-0 05 1 1510- ● ●
10 PLUG; GLOW
NGK THA 		8-98117-567-1 04 1 1510- ● ●
10 PLUG; GLOW
NGK THA 		8-98259-502-0 04 1 1510- ●
11 CONNECTOR; GLOW PLUG
THA 		8-98209-370-0 01 1 1510- ● ●
11 CONNECTOR; GLOW PLUG
THA 		8-98287-709-0 01 1 1510- ●
12 HANGER; ENG,RR
THA 		8-98239-364-0 01 1 1510- ● ●
13 BOLT; HANGER
(A) M8X20 HEX SOCKET IMA 		0-58330-820-0 01 1 1510- ● ●
13 BOLT; HANGER
(B) M8X30 HEX SOCKET IMA 		0-58330-830-0 01 1 1510- ● ●
39 DOWEL; CAP,CM/SHF
IMA 		8-97329-129-1 26 1 1510- ● ●
91 PIPE; HTR
THA 		8-98228-414-0 02 1 1510- ● ●
123 BOLT; COVER
M8X20 FLANGE THA 		0-28050-820-0 03 1 1510- ● ●
155 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET THA 		0-58330-610-0 08 1 1510- ● ●
172 PLATE; BAFFLE,CYL HD
THA 		8-98250-484-0 01 1 1510- ● ●
221 BOLT; BRKT
(A) M6X30 FLANGE IMA 		0-28050-630-0 08 1 1510- ● ●
221 BOLT; BRKT
(B) M8X85 THA 		1-09044-074-0 21 1 1510- ● ●
221 BOLT; BRKT
(C) M6X30 FLANGE THA 		0-28060-630-0 20 1 1510- ●
224 NUT; COVER
M8 FLANGE THA 		0-91180-208-0 04 1 1510- ● ●
225 STUD; COVER
M8X20 L=31 THA 		8-97945-022-0 02 1 1510- ● ●
230 GASKET; SLEEVE,INJECTOR
THA 		8-97943-955-0 04 1 1510- ● ●
244 PIN; HEAD GASKET
OD=5 L=10 IMA 		9-08150-510-0 01 1 1510- ● ●
262 COVER; CYL HEAD
THA 		8-98243-226-0 01 1 1510- ● ●
263 BOLT; CYL HD
(A) M8X60 FLANGE THA 		0-28050-860-0 01 1 1510- ● ●
263 BOLT; CYL HD
(B) M8X35 FLANGE THA 		0-28650-835-0 03 1 1510- ● ●

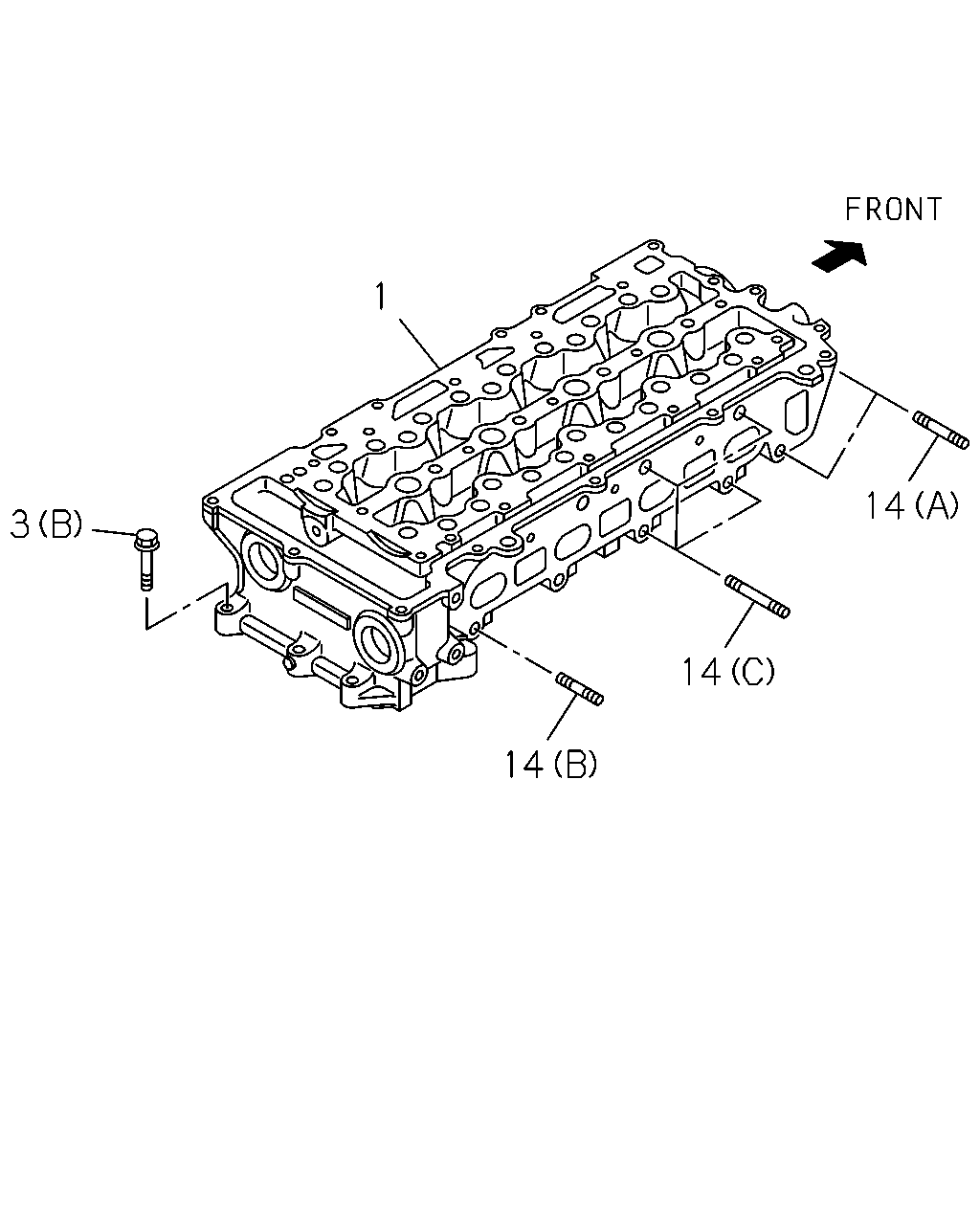

çizim 493436
1 14 14 14 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEAD ASM; CYL
IMA 		8-98270-378-1 01 1 1510- ● ●
1 HEAD ASM; CYL
IMA 		8-98243-869-3 01 1 1510- ●
3 BOLT; CYL HD TO BLOCK
(A) M11X114 W/WASHER IMA 		8-98201-019-0 18 1 1510- ● ●
3 BOLT; CYL HD TO BLOCK
(B) M8X35 FLANGE THA 		0-28650-835-0 04 1 1510- ●
3 BOLT; CYL HD TO BLOCK
(C) M12X176.5 W/WASHER THA 		8-98273-485-0 10 1 1510- ●
14 STUD; EXH MANIF
(A) M10X60 L=75 IMA 		8-94397-286-0 02 1 1510- ●
14 STUD; EXH MANIF
(B) M10X33 L=48 THA 		8-97379-383-0 01 1 1510- ●
14 STUD; EXH MANIF
(C) M10X70 L=83 THA 		8-98048-446-0 04 1 1510- ●
