0-10 — CYLINDER HEAD COVER (#166014) — 26 parça

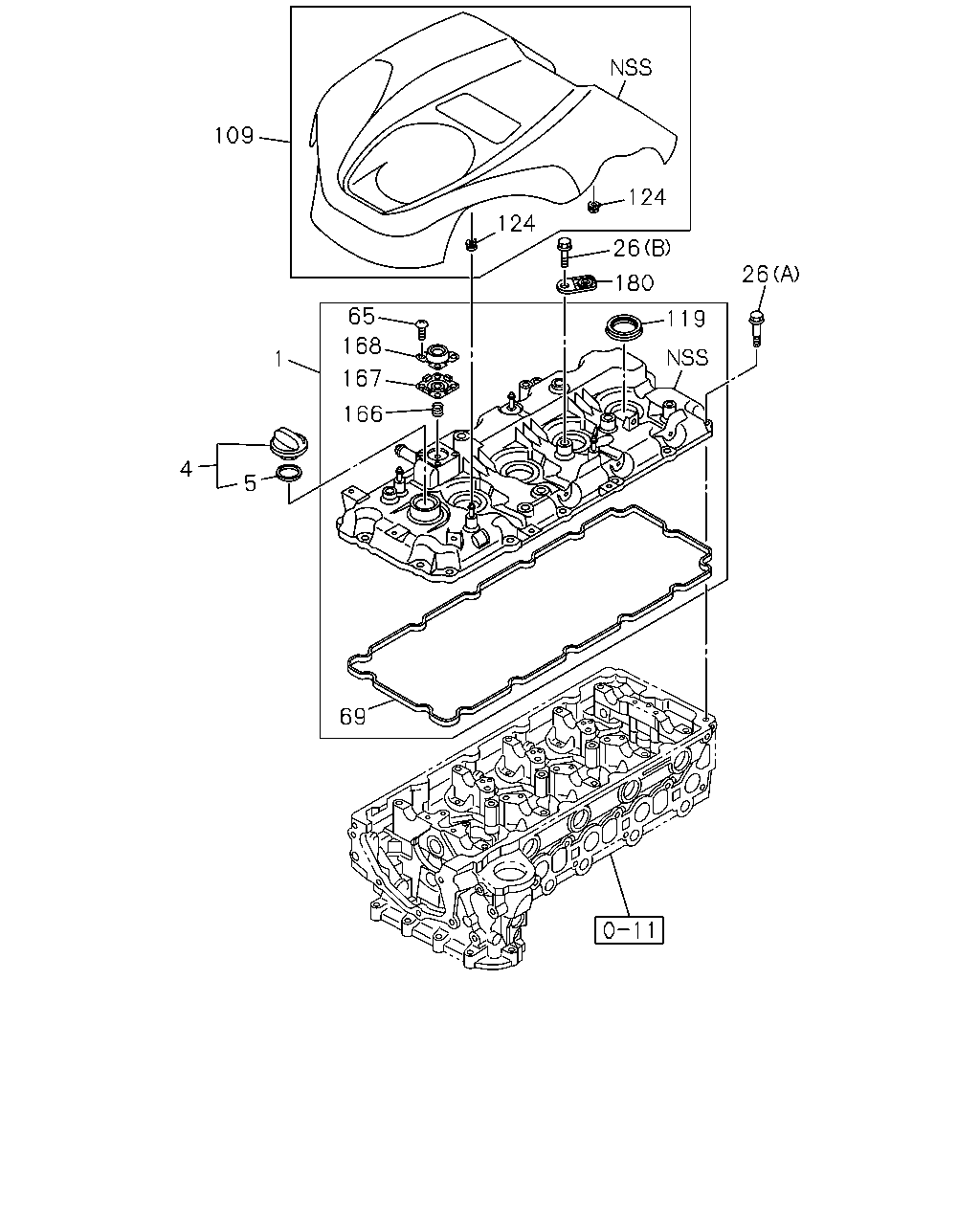

109 1 65 166 167 168 5 4 69 124 124 26 180 26 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COVER; CYL HD THA	8-98228-367-4	01	1	1510-	●	●
1	COVER; CYL HD THA	8-98248-176-3	01	1	1510-			●
4	CAP; OIL FILLER THA	8-98026-084-0	01	1	1510-	●	●	●
5	GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	1510-	●	●	●
26	BOLT; CYL HD COVER (B) M8X20 FLANGE THA	0-28050-820-0	01	1	1510-	●	●
26	BOLT; CYL HD COVER (A) M6X25.7 FLANGE THA	8-98228-370-0	15	1	1510-	●	●
65	SCREW; ADAPTER M4X10 THA	8-98209-387-0	04	1	1510-	●	●
69	GASKET; HD TO COVER THA	8-98228-369-0	01	1	1510-	●	●
109	COVER; ENG THA	8-98319-713-0	01	1	1510-	●	●
109	COVER; ENG THA	8-98279-581-1	01	1	1510-			●
119	COVER; SEAL,NOZZLE THA	8-98228-371-0	04	1	1510-	●	●
124	RUBBER; MTG,COVER THA	8-98269-869-0	04	1	1510-	●	●	●
166	SPRING; VENTILATOR IMA	8-97088-445-0	01	1	1510-	●	●
167	DIAPHRAGM; VENTILATOR THA	8-98003-164-0	01	1	1510-	●	●
168	COVER; VENTILATOR THA	8-98234-092-0	01	1	1510-	●	●
180	DAMPENER; CYL HEAD THA	8-98244-154-0	01	1	1510-	●	●

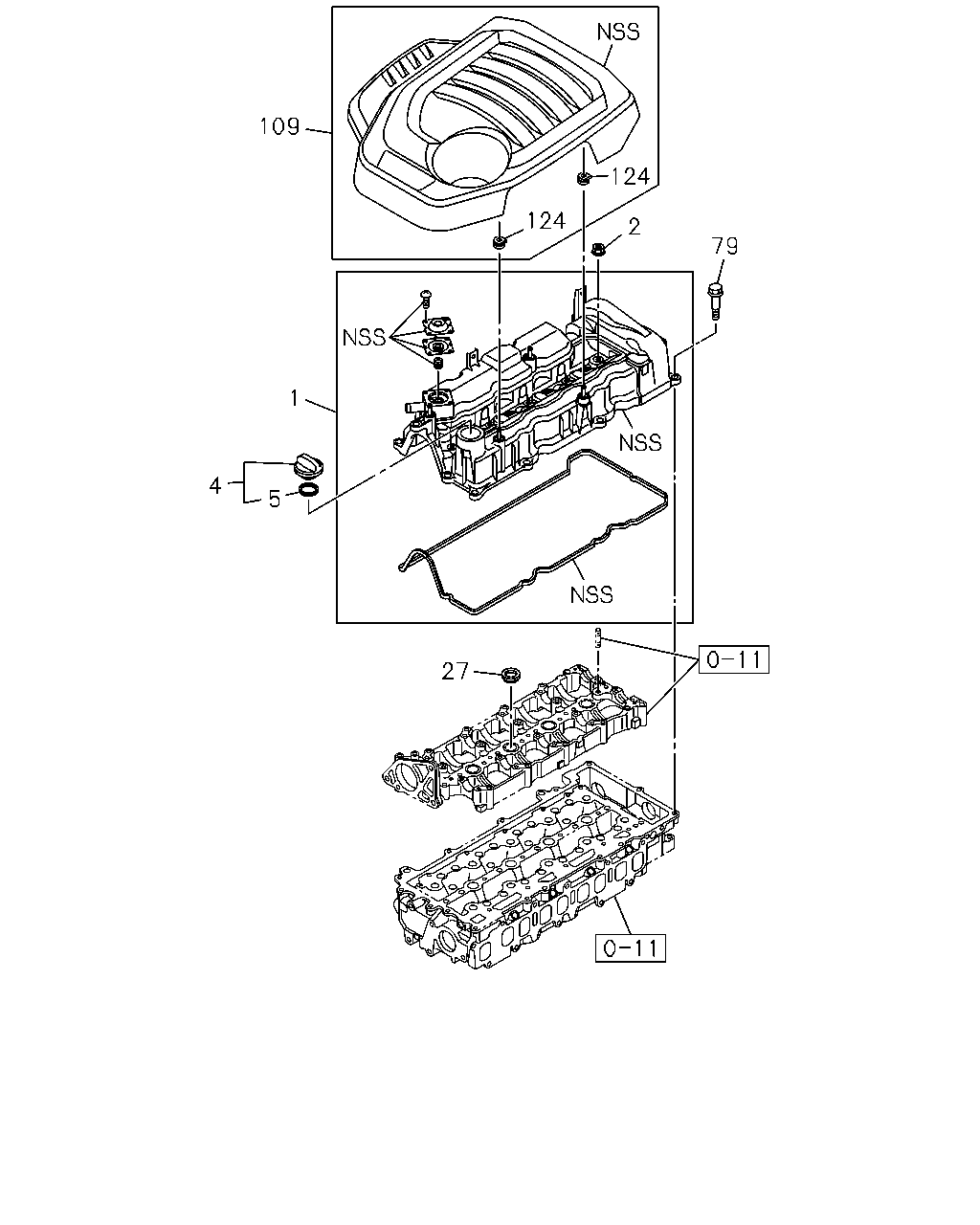

109 124 2 124 79 1 5 4 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COVER; CYL HD THA	8-98228-367-4	01	1	1510-	●	●
1	COVER; CYL HD THA	8-98248-176-3	01	1	1510-			●
2	NUT; COVER,HD M6 FLANGE THA	0-91180-106-0	01	1	1510-			●
4	CAP; OIL FILLER THA	8-98026-084-0	01	1	1510-	●	●	●
5	GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	1510-	●	●	●
27	GASKET; HD COVER THA	8-98286-518-1	04	1	1510-			●
79	BOLT; COVER M6X25.7 FLANGE THA	8-98228-370-0	12	1	1510-			●
109	COVER; ENG THA	8-98319-713-0	01	1	1510-	●	●
109	COVER; ENG THA	8-98279-581-1	01	1	1510-			●
124	RUBBER; MTG,COVER THA	8-98269-869-0	04	1	1510-	●	●	●
