1-50 — EXHAUST PIPE AND SILENCER (#16593) — 102 parça

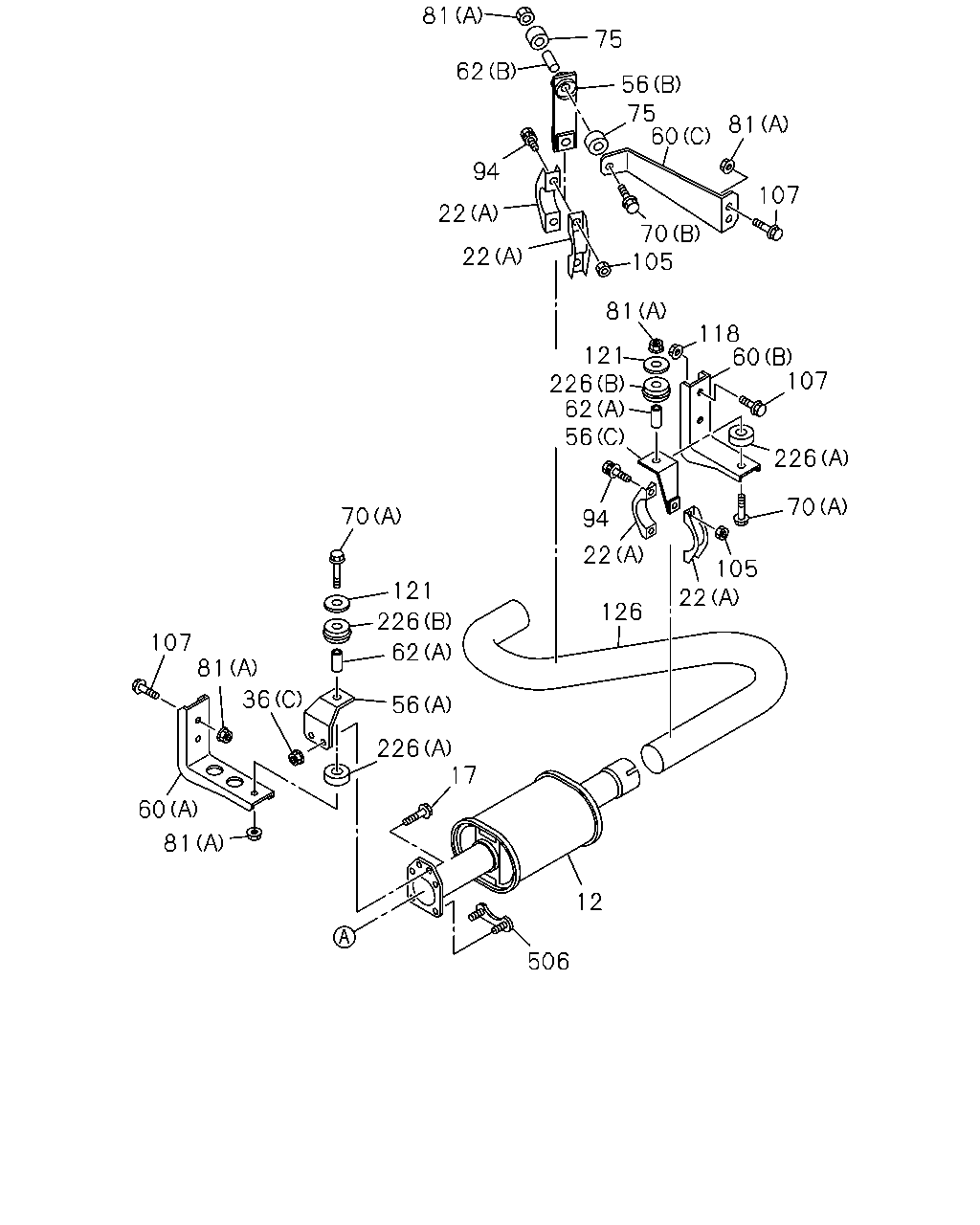

506 12 17 226 56 62 226 121 70 107 81 36 60 81 126 22 22 94 105 70 226 56 62 226 121 81 107 118 60 107 70 105 22 22 94 62 81 75 56 75 60 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH	8-98101-274-1	01	1	1001-
17	BOLT; EXH PIPE M12X35 FLANGE	0-28051-235-0	04	1	1204-
17	BOLT; EXH PIPE M12X35 FLANGE	0-28051-235-0	03	1	1001-
17	BOLT; EXH PIPE M10X35 FLANGE SOU	0-28651-035-0	02	1	1001-
22	CLAMP; EXH PIPE (B)	8-97615-334-0	01	1	1305-
22	CLAMP; EXH PIPE (A) ID=80-84 SOU	1-22133-233-0	02	1	1001-
22	CLAMP; EXH PIPE (A) ID=80-84 SOU	1-22133-233-0	02	1	1001-
36	NUT; EXH PIPE (C) M10 FLANGE SOU	0-91180-210-0	02	1	1001-
36	NUT; EXH PIPE (B) M12 FLANGE SOU	0-91180-212-0	07	1	1001-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1001-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-584-0	01	1	1001-1309
56	BRACKET; CLAMP,EXH PIPE (B)	8-98245-522-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE (C)	8-98073-291-0	01	1	1001-
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-829-1	01	1	1001-
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	1001-
60	BRACKET; FRAME TO BRKT (B)	8-98059-753-1	01	1	1001-1309
60	BRACKET; FRAME TO BRKT (B)	8-98245-530-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	1001-1309
60	BRACKET; FRAME TO BRKT (C)	8-98245-521-0	01	1	1310-
62	TUBE; DIST,BRKT (A) L=39 SOU	8-98060-852-0	02	1	1001-
62	TUBE; DIST,BRKT (B) L=22 SOU	9-22159-024-0	01	1	1001-
70	BOLT; BRKT (B) M10X50 FLANGE SOU	0-28051-050-0	01	1	1001-
70	BOLT; BRKT (A) M10X70 FLANGE SOU	0-28051-070-0	02	1	1001-
75	RUBBER; SUPPORT,BRKT OD=40 SOU	1-22159-193-0	02	1	1001-
81	NUT; BRKT (B) M10 FLANGE SOU	0-91180-110-0	02	1	1305-
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	03	1	1001-1007
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	01	1	1008-
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	02	1	1001-1007
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	02	1	1001-1007
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	02	1	1008-1305
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	02	1	1008-1305
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	02	1	1008-1305
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	02	1	1306-
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	02	1	1306-
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	02	1	1306-
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	02	1	1306-
94	BOLT; CLAMP M10X40 FLANGE SOU	0-28651-040-0	02	1	1001-
94	BOLT; CLAMP M10X40 FLANGE SOU	0-28651-040-0	02	1	1001-
105	NUT; CLAMP M10 FLANGE SOU	0-91180-210-0	02	1	1001-
105	NUT; CLAMP M10 FLANGE SOU	0-91180-210-0	02	1	1001-
107	BOLT; BRKT M10X35 FLANGE SOU	0-28651-035-0	02	1	1001-
107	BOLT; BRKT M10X35 FLANGE SOU	0-28651-035-0	04	1	1001-
118	NUT; SILENCER MTG BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1001-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	1001-
126	PIPE; EXH,RR	8-98073-427-0	01	1	1001-
226	RUBBER; CUSHION (B)	8-94457-277-1	02	1	1001-
226	RUBBER; CUSHION (A)	8-94457-278-1	02	1	1001-
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	1001-1203

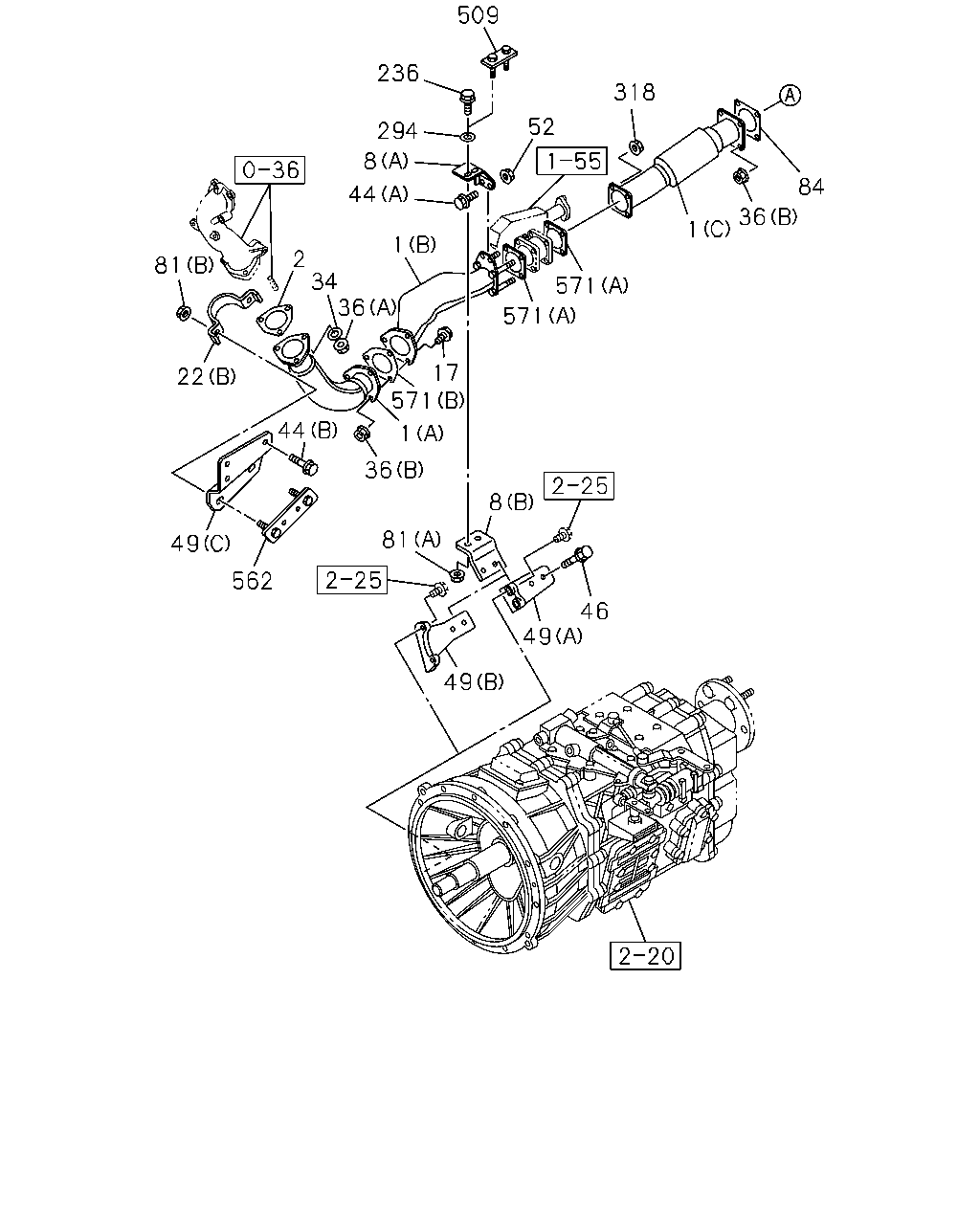

81 22 49 562 81 49 49 8 46 36 44 571 17 571 571 1 1 36 84 318 52 509 236 294 8 44 34 2 1 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH (A)	8-98073-006-3	01	1	1001-
1	PIPE; EXH (B)	8-98073-007-0	01	1	1001-1309
1	PIPE; EXH (B)	8-98245-501-0	01	1	1310-
1	PIPE; EXH (C)	8-98097-032-0	01	1	1001-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). ID=81	8-98043-481-0	01	1	1001-
8	BRACKET; EXH PIPE MLD6S M/T(X7W) (A)	8-98113-013-0	01	1	1001-1304
8	BRACKET; EXH PIPE MLD6S M/T(X7W) (B)	8-98233-345-0	01	1	1305-1310
8	BRACKET; EXH PIPE MLD6S M/T(X7W) (B)	8-98259-873-0	01	1	1311-
8	BRACKET; EXH PIPE MLD6S M/T(X7W) (B)	8-98114-390-0	01	1	1001-1304
8	BRACKET; EXH PIPE MLD6S M/T(X7W) (A)	8-98233-348-0	01	1	1305-
8	BRACKET; EXH PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-98122-677-0	01	1	1001-1304
8	BRACKET; EXH PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-98233-626-0	01	1	1305-1310
8	BRACKET; EXH PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-98259-870-0	01	1	1311-
8	BRACKET; EXH PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ) (A)	8-98122-679-1	01	1	1001-1304
8	BRACKET; EXH PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ) (A)	8-98233-627-0	01	1	1305-1404
8	BRACKET; EXH PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ) (A)	8-98275-817-0	01	1	1405-
17	BOLT; EXH PIPE M12X35 FLANGE	0-28051-235-0	04	1	1204-
17	BOLT; EXH PIPE M12X35 FLANGE	0-28051-235-0	03	1	1001-
17	BOLT; EXH PIPE M10X35 FLANGE SOU	0-28651-035-0	02	1	1001-
22	CLAMP; EXH PIPE (B)	8-97615-334-0	01	1	1305-
22	CLAMP; EXH PIPE (A) ID=80-84 SOU	1-22133-233-0	02	1	1001-
22	CLAMP; EXH PIPE (A) ID=80-84 SOU	1-22133-233-0	02	1	1001-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	1001-
36	NUT; EXH PIPE (C) M10 FLANGE SOU	0-91180-210-0	02	1	1001-
36	NUT; EXH PIPE (B) M12 FLANGE SOU	0-91180-212-0	07	1	1001-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1001-
44	BOLT; BRKT (B) M10X20 FLANGE	0-28751-020-0	03	1	1305-
44	BOLT; BRKT (A) M10X35 FLANGE SOU	0-28651-035-0	02	1	1001-
46	BOLT; BRKT,EXH PIPE M10X30 FLANGE	0-28051-030-0	02	1	1001-
49	BRACKET; EXH PIPE TO TRANS (C)	8-97629-970-0	01	1	1305-
49	BRACKET; EXH PIPE TO TRANS MLD6S M/T(X7W) (A)	8-98113-008-0	01	1	1001-
49	BRACKET; EXH PIPE TO TRANS MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-98122-671-0	01	1	1001-
52	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1001-
81	NUT; BRKT (B) M10 FLANGE SOU	0-91180-110-0	02	1	1305-
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	03	1	1001-1007
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	01	1	1008-
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	02	1	1001-1007
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	02	1	1001-1007
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	02	1	1008-1305
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	02	1	1008-1305
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	02	1	1008-1305
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	02	1	1306-
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	02	1	1306-
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	02	1	1306-
81	NUT; BRKT (A) M10 FLANGE SOU	0-91180-210-0	02	1	1306-
84	GASKET; EXH PIPE	8-98096-305-0	01	1	1001-
236	BOLT; PIPE CLAMP TO BRKT M10X35 FLANGE	0-28051-035-0	02	1	1001-1304
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE ID=10.5	8-98073-091-0	02	1	1001-
318	NUT; EXH PIPE,FRT M10 FLANGE SOU	0-91180-210-0	04	1	1001-
509	STUD; BRKT	8-98233-625-0	01	1	1305-1311
509	STUD; BRKT	8-98259-983-0	01	1	1312-
562	PLATE; STUD,BOLT	8-97615-333-1	01	1	1305-
571	GASKET (A) ID=85.8	1-22116-043-0	02	1	1001-
571	GASKET (B) ID=81	8-98043-481-0	01	1	1001-
