◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRREXC ▶ 11162 - FRREXC.SCAB S.AFRICA ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#16591) — 124 parça
çizim 126950
304 304 418 303 345 345 279 228 39 41 29 65 41 39
BalonParca AdiParca NoAdetTipApplied Date
29 HOSE; FUEL
(C) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 1001-
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 1001-
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1001-
39 PIPE; FUEL
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 02 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(D) L=140 SOU 		5-09707-031-1 04 1 1001-1003
41 CLIP; FUEL PIPE,FUEL TANK
(D) L=250 SOU 		5-09707-030-1 03 1 1004-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=16 SOU 		8-94238-568-0 02 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1001-
65 HOSE; FUEL,DELIVERY PIPE
L=3350 SERVICED BY L=8000 		0-01260-800-0 01 1 1001-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE SOU 		0-28050-825-0 02 1 1001-
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE SOU 		0-28051-050-0 02 1 1001-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1001-
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 1001-
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1001-
303 BOLT; BRKT
(B) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1001-1005
303 BOLT; BRKT
(B) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1001-1005
303 BOLT; BRKT
(B) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1006-1006
303 BOLT; BRKT
(B) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1007-
303 BOLT; BRKT
(B) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1007-
303 BOLT; BRKT
(C) M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 04 1 1001-1009
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 02 1 1010-
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 02 1 1010-
304 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1001-
304 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1001-1005
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1001-1005
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1006-1006
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1007-
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1007-
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 1001-
418 BRACKET; PRE FUEL FILTER 8-98114-787-0 01 1 1001-

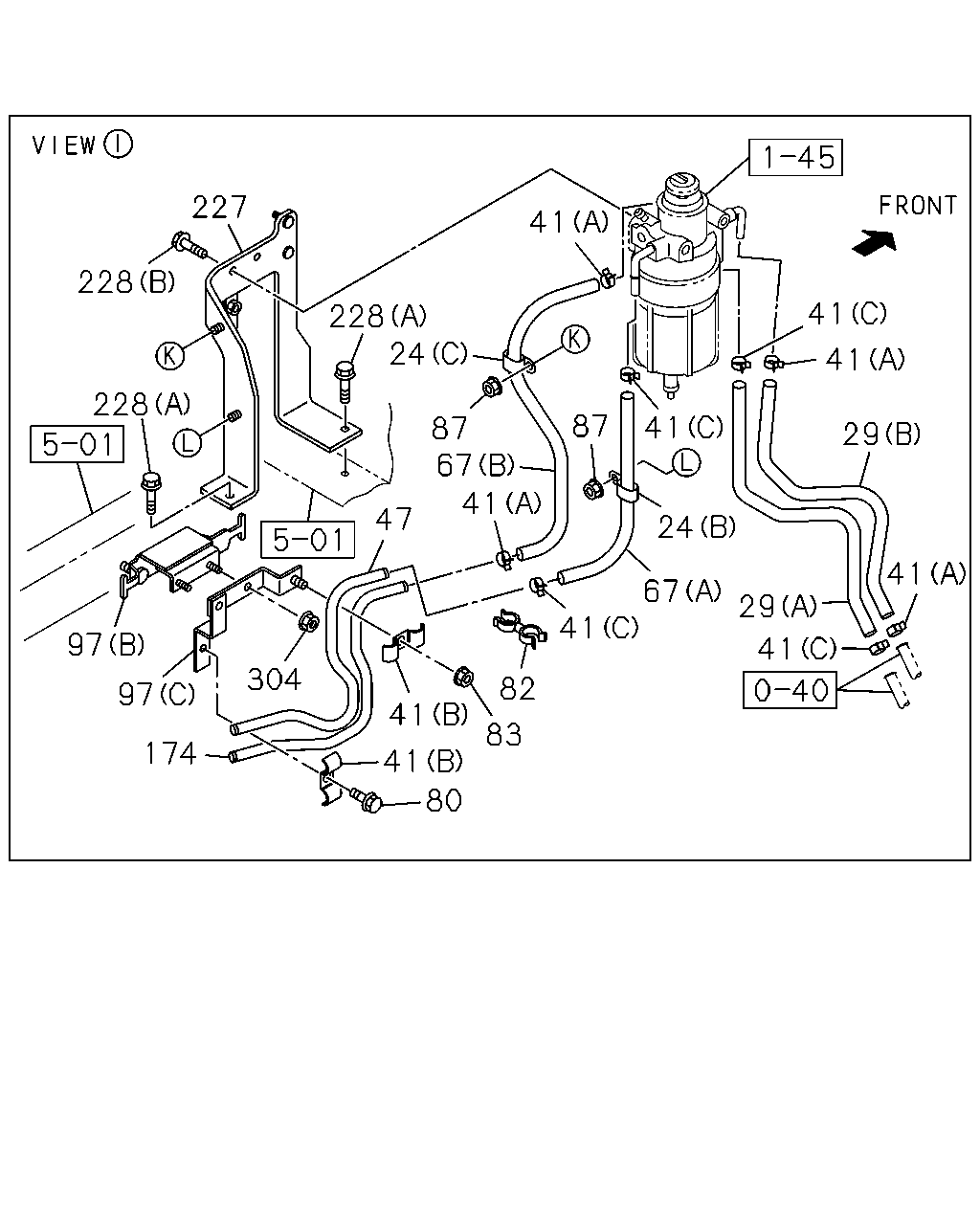

çizim 126953
227 228 228 97 97 174 304 41 41 82 83 80 41 47 41 67 87 24 228 41 41 41 29 41 29 41 67 24 41 87
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 1001-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1001-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1001-
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 07 1 1001-
29 HOSE; FUEL
(C) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 1001-
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 1001-
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 02 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(D) L=140 SOU 		5-09707-031-1 04 1 1001-1003
41 CLIP; FUEL PIPE,FUEL TANK
(D) L=250 SOU 		5-09707-030-1 03 1 1004-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=16 SOU 		8-94238-568-0 02 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1001-
47 PIPE; FUEL,RETURN
L=413 		8-98078-210-0 01 1 1001-
67 HOSE; FUEL,DELIVERY
(A) L=280 SERVICED BY L=3000 		0-01260-300-0 01 1 1001-
67 HOSE; FUEL,DELIVERY
(B) L=440 SERVICED BY L=3000 		0-01558-300-0 01 1 1001-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 1001-
82 CLIP; FUEL HOSE
ID=13 & 16.5 		8-94169-028-0 01 1 1001-
83 NUT; CLIP,FUEL TANK
M8 FLANGE SOU 		0-91180-108-0 01 1 1001-
87 NUT; CLIP,FUEL HOSE
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 1007-
97 BRACKET; CLIP
(B) 		8-98077-895-1 01 1 1001-
97 BRACKET; CLIP
(C) 		8-98077-896-0 01 1 1001-
97 BRACKET; CLIP
(A) 		8-98083-349-0 01 1 1001-
97 BRACKET; CLIP
(E) 		8-98100-216-1 01 1 1001-
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 1001-1005
174 PIPE; FUEL,FEED,FRT 8-98078-209-0 01 1 1001-
227 BRACKET; FUEL SEDIMENTER 8-98044-366-3 01 1 1001-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE SOU 		0-28050-825-0 02 1 1001-
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE SOU 		0-28051-050-0 02 1 1001-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1001-
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 04 1 1001-1009
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 02 1 1010-
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 02 1 1010-
304 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1001-
304 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1001-1005
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1001-1005
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1006-1006
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1007-
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1007-

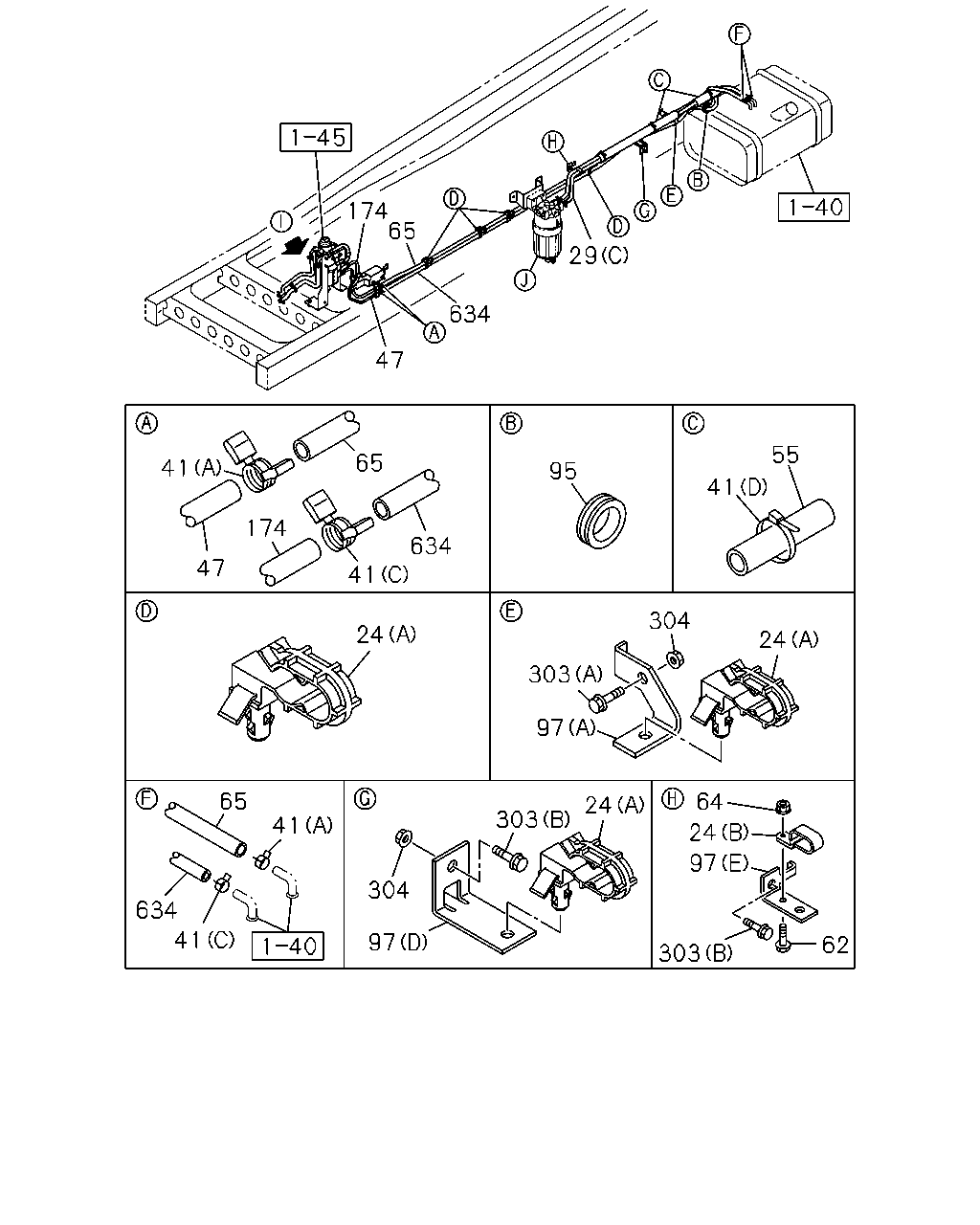

çizim 126955
174 47 65 634 29 55 41 95 634 41 174 65 41 47 24 65 634 41 41 97 304 303 24 303 62 97 24 64 97 303 304 24
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 1001-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1001-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1001-
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 07 1 1001-
29 HOSE; FUEL
(C) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 1001-
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 1001-
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 02 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(D) L=140 SOU 		5-09707-031-1 04 1 1001-1003
41 CLIP; FUEL PIPE,FUEL TANK
(D) L=250 SOU 		5-09707-030-1 03 1 1004-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=16 SOU 		8-94238-568-0 02 1 1001-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1001-
47 PIPE; FUEL,RETURN
L=413 		8-98078-210-0 01 1 1001-
55 COVER; PIPE,FUEL TANK
ID=32 OD=36 L=50 		1-09337-023-0 01 1 1001-1003
55 COVER; PIPE,FUEL TANK
ID=27 L=500 		8-98119-327-0 01 1 1001-1003
55 COVER; PIPE,FUEL TANK
L=800 		1-09361-018-0 01 1 1004-
62 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1001-
64 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1001-
65 HOSE; FUEL,DELIVERY PIPE
L=3350 SERVICED BY L=8000 		0-01260-800-0 01 1 1001-
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1001-
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 1007-
97 BRACKET; CLIP
(B) 		8-98077-895-1 01 1 1001-
97 BRACKET; CLIP
(C) 		8-98077-896-0 01 1 1001-
97 BRACKET; CLIP
(A) 		8-98083-349-0 01 1 1001-
97 BRACKET; CLIP
(E) 		8-98100-216-1 01 1 1001-
97 BRACKET; CLIP
(D) 		8-98109-768-0 01 1 1001-1005
174 PIPE; FUEL,FEED,FRT 8-98078-209-0 01 1 1001-
303 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1001-
303 BOLT; BRKT
(B) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1001-1005
303 BOLT; BRKT
(B) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1001-1005
303 BOLT; BRKT
(B) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1006-1006
303 BOLT; BRKT
(B) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1007-
303 BOLT; BRKT
(B) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1007-
303 BOLT; BRKT
(C) M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 04 1 1001-1009
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 02 1 1010-
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 02 1 1010-
304 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1001-
304 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1001-1005
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1001-1005
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1006-1006
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1007-
304 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1007-
634 HOSE; RUBBER RETURN
L=2600 SERVICED BY L=3000 		0-01558-300-0 01 1 1001-
