Isuzu WW
▶
TRUCKS
▶
FSS
▶
10634 - FSS/FTS-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-52 - REAR DOOR LOCK AND HANDLE
▶

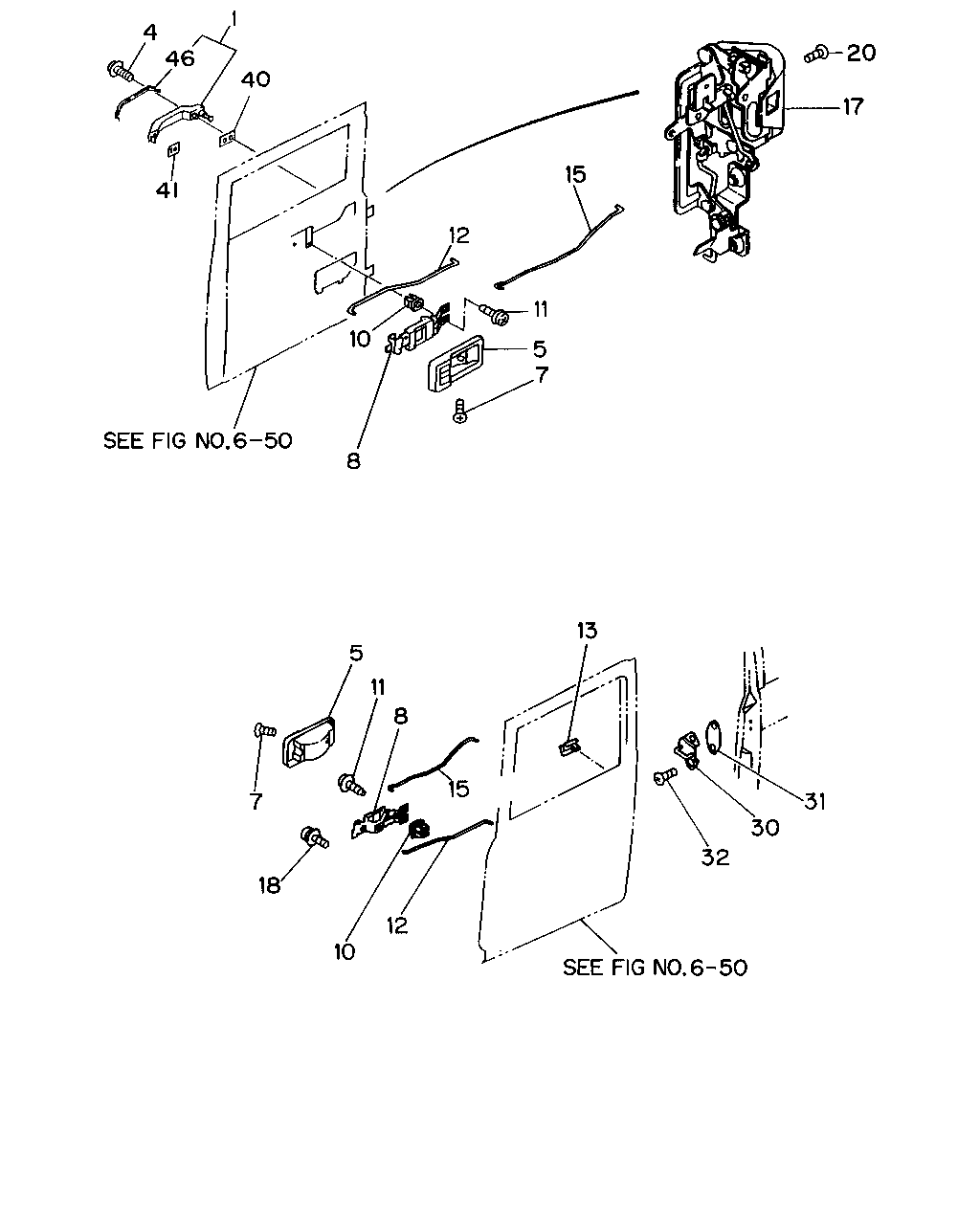

6-52 — REAR DOOR LOCK AND HANDLE
(#1659) — 25 parça
20
17
15
1
4
46
40
41
12
10
8
11
5
7
7
5
11
8
15
13
32
30
31
12
10
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANDLE; OUTSIDE,RR DOOR
1-74617-038-2
02
1
9207-
4
SCREW; DOOR OUTSIDE HANDLE
M6X16 W/LK&PL WASHER
1-09981-439-0
04
1
9207-
5
ESCUTCHEON; INSIDE HANDLE,RR DOOR
BLACK
8-94201-500-1
01
1
9207-
5
ESCUTCHEON; INSIDE HANDLE,RR DOOR
BLACK
8-94201-499-1
01
1
9207-
7
SCREW; ESCUTCHEON
M4X10 TAPPING OVAL-HEAD
0-70580-410-0
02
1
9207-
8
HANDLE; INSIDE,RR DOOR
1-74717-019-4
01
1
9207-
8
HANDLE; INSIDE,RR DOOR
1-74717-018-4
01
1
9207-
10
GROMMET; SCREW,INSIDE LEVER,RR DOOR
1-09983-061-0
04
1
9207-
11
SCREW; INSIDE HANDLE
M6X16 TAPPING W/PL WASHER
0-74110-616-0
04
1
9207-
12
ROD; DOOR LK RR
1-74518-082-1
01
1
9207-
12
ROD; DOOR LK RR
1-74518-081-1
01
1
9207-
13
CLAMP; DOOR INSIDE LOCKING ROD
1-74517-116-0
02
1
9207-
15
LINK; RR DOOR LK
1-74518-080-0
01
1
9207-
15
LINK; RR DOOR LK
1-74518-079-0
01
1
9207-
17
LOCK; DOOR,RR DOOR
1-74517-162-0
01
1
9207-
17
LOCK; DOOR,RR DOOR
1-74517-158-0
01
1
9207-
18
SCREW; BELLCRANK,DOOR LOCK
M6X12 W/LK&PL WASHER
1-09981-430-0
02
1
9207-
20
SCREW; DOOR LK
M6X16
1-09981-447-1
06
1
9207-
20
SCREW; DOOR LK
M6X14
1-09981-512-1
04
1
9207-
30
STRIKER; RR DOOR
1-74527-001-1
02
1
9207-
31
SHEET; ADJ,RR DOOR STRIKER
T=1.4
8-94282-546-0
AR
1
9207-
32
SCREW; DOOR STRIKER
M8X20
1-09981-450-3
04
1
9207-
40
SEAT; DOOR OUTSIDE HANDLE,FRT
1-74618-010-0
02
1
9207-
41
SEAT; DOOR OUTSIDE HANDLE,RR
1-74618-011-1
02
1
9207-
46
COVER; OUTSIDE HANDLE
1-74617-033-1
02
1
9207-
