Isuzu WW
▶
TRUCKS
▶
FRREXC
▶
11162 - FRREXC.SCAB S.AFRICA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#16585) — 55 parça
◀

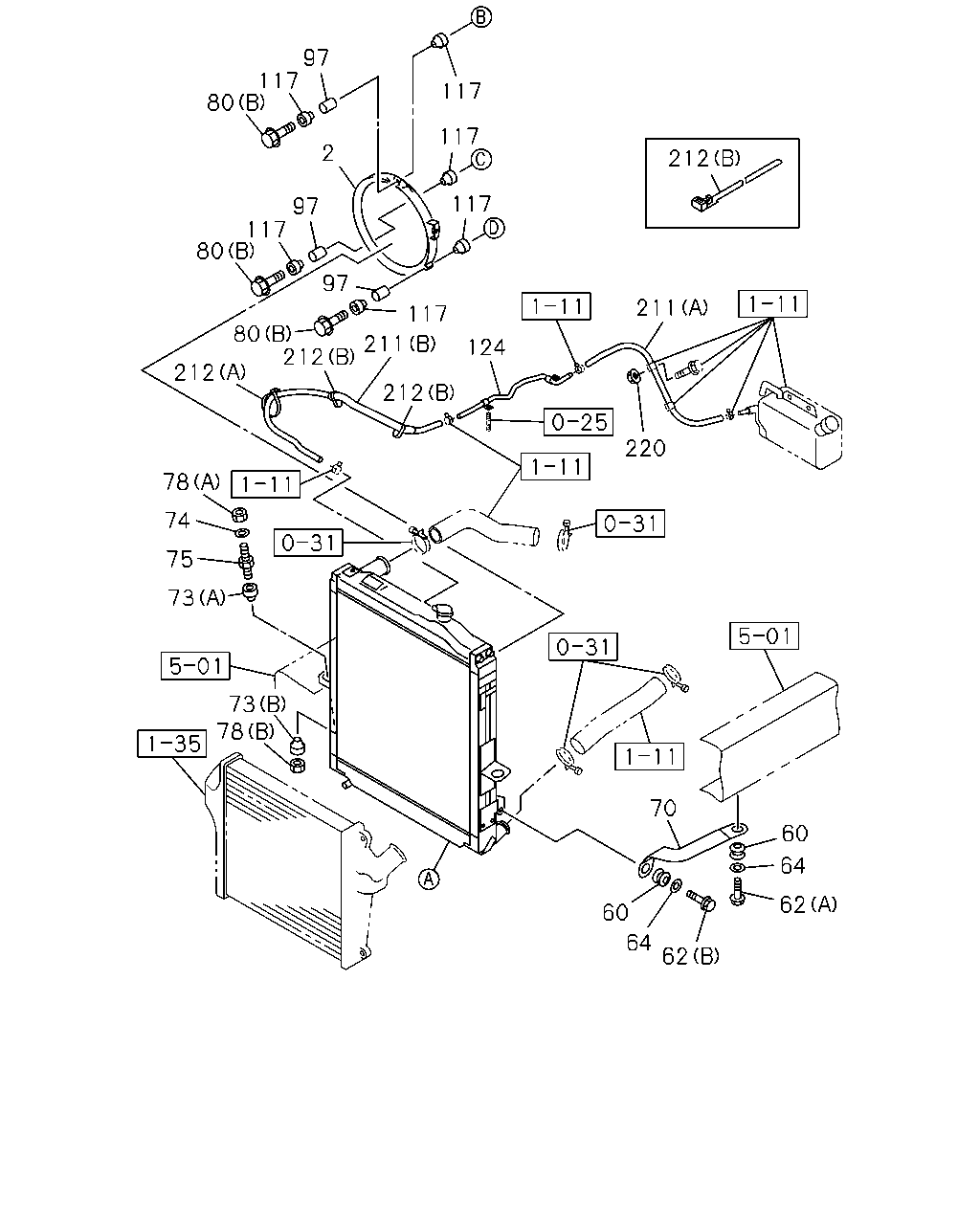

[110A] NO.1 (24 parça)

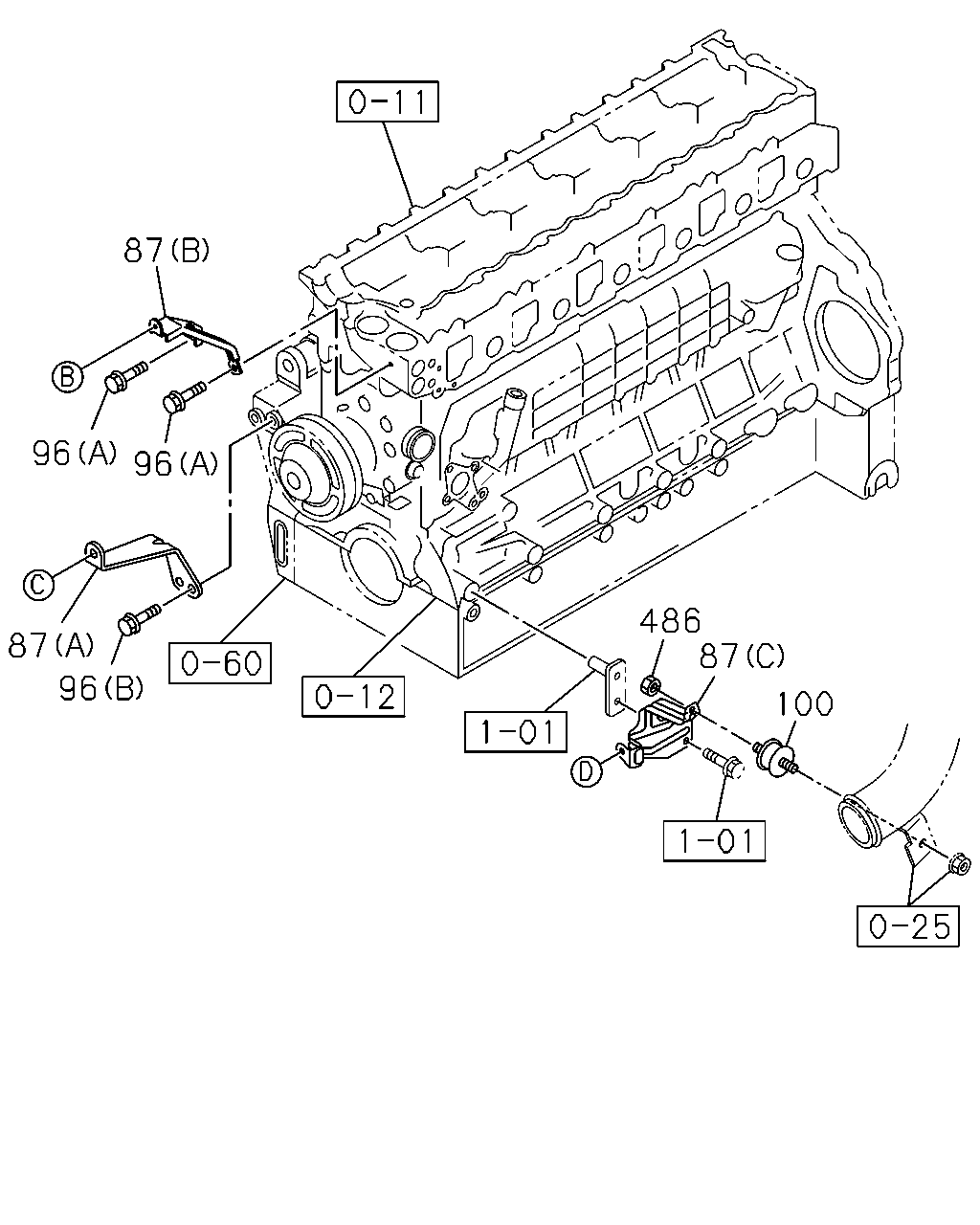

[110A] NO.2 (7 parça)

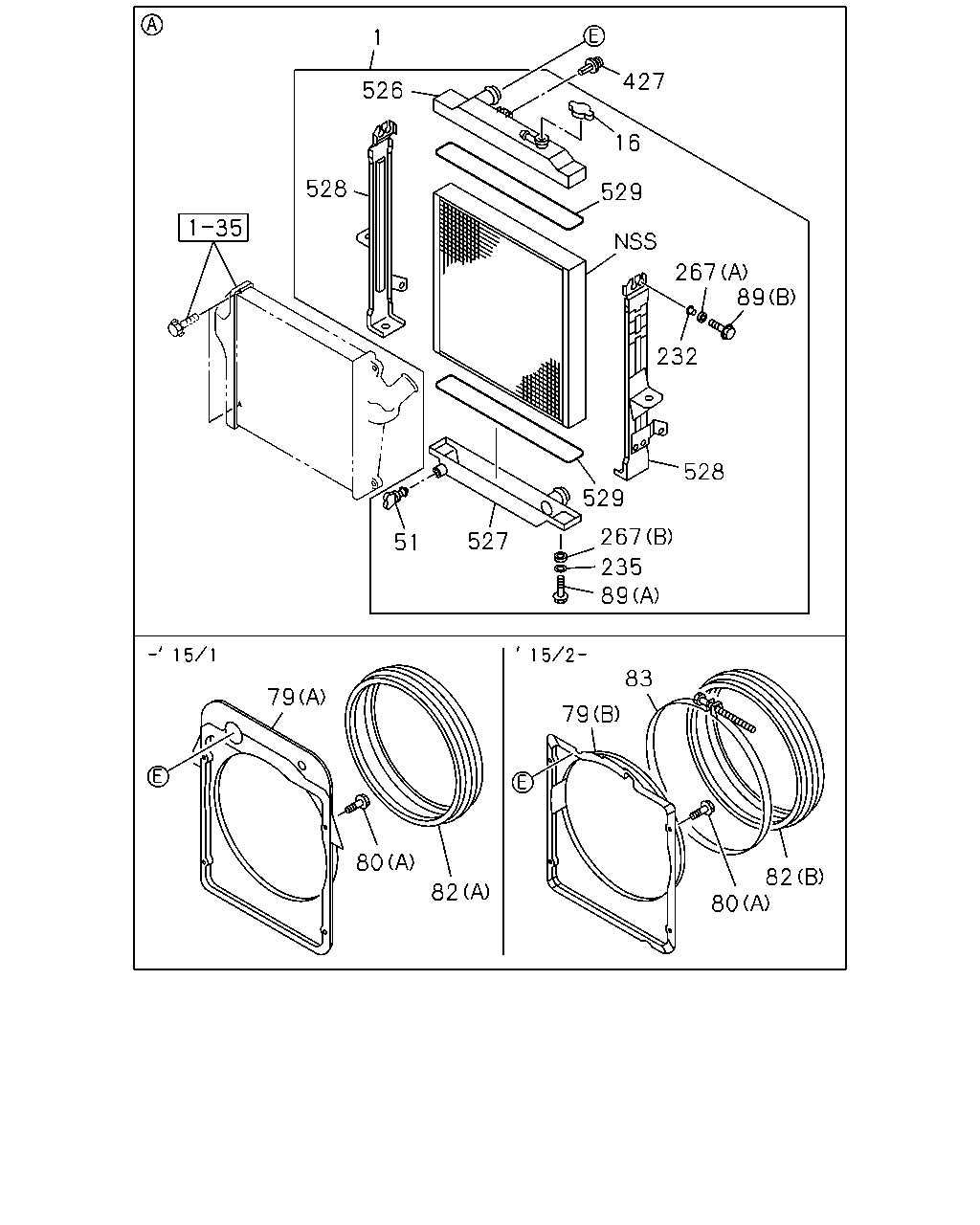

[110A] NO.3 (24 parça)
▶
97
117
80
117
117
2
212
117
97
117
80
97
211
117
80
211
212
124
212
212
220
78
74
75
73
73
78
70
60
64
62
60
64
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GUIDE; FAN
8-94393-779-1
01
1
1001-
60
GROMMET
1-09332-117-0
04
1
1001-
62
BOLT; STAY
(A) M8X30
1-09009-020-1
02
1
1001-
62
BOLT; STAY
(B) M8X26
1-09009-175-0
02
1
1001-
64
WASHER; STAY TO RAD
ID=12.5 OD=26
0-91610-612-0
04
1
1001-
70
STAY; RAD
8-98078-897-0
01
1
1001-
70
STAY; RAD
8-98078-896-0
01
1
1001-
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
1001-
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
1001-
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
1001-
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
1001-
78
NUT; CUSHION RUBBER
(A) M10 FLANGE SOU
0-91180-210-0
02
1
1001-
78
NUT; CUSHION RUBBER
(B) M12 FLANGE SOU
0-91180-212-0
02
1
1001-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1001-
80
BOLT; FAN GUIDE
(A) M8X14
8-98046-222-0
04
1
1001-1505
80
BOLT; FAN GUIDE
(A) M8X12 FLANGE
0-28050-812-0
04
1
1506-
97
TUBE; DIST,FAN GUIDE
9-09651-072-0
03
1
1001-
117
RUBBER; MTG,FAN GUIDE
OD=32
8-94395-766-0
06
1
1001-
124
PIPE; WATER,TANK TO RAD
8-97611-022-1
01
1
1001-
211
HOSE; RAD TO PIPE
(B) L=940
8-98073-544-0
01
1
1001-
211
HOSE; RAD TO PIPE
(A) L=560
8-98119-375-0
01
1
1001-
212
CLIP; HOSE
(A) L=250 SOU
5-09707-030-1
02
1
1001-
212
CLIP; HOSE
(B) L=140 SOU
5-09707-031-1
01
1
1001-
220
NUT; CLIP
M8 FLANGE SOU
0-91180-108-0
01
1
1001-
87
96
96
486
87
87
96
100
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
87
STAY; FAN GUIDE
(B)
8-94393-776-1
01
1
1001-
87
STAY; FAN GUIDE
(C)
8-94393-778-2
01
1
1001-
87
STAY; FAN GUIDE
(A)
8-97602-988-0
01
1
1001-
96
BOLT; STAY FIX
(B) M8X16 FLANGE SOU
0-28050-816-0
02
1
1001-
96
BOLT; STAY FIX
(A) M10X16 FLANGE
0-28151-016-0
02
1
1001-
100
RUBBER; MTG
8-98148-109-0
01
1
1001-
486
NUT; MTG RUBBER
M8 FLANGE SOU
0-91180-108-0
01
1
1001-
1
526
528
427
16
267
529
89
232
528
529
527
51
267
235
89
83
79
82
80
82
80
79
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-98043-027-1
01
1
1001-1505
1
RADIATOR ASM
8-98299-725-0
01
1
1506-
16
CAP; RAD
8-98096-226-0
01
1
1001-
51
PLUG; DRAIN
W/GASKET SOU
8-97171-437-0
01
1
1001-
79
GUIDE; FAN,RAD
(A)
8-98004-207-0
01
1
1001-1505
79
GUIDE; FAN,RAD
(B)
8-98286-937-0
01
1
1506-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1001-
80
BOLT; FAN GUIDE
(A) M8X14
8-98046-222-0
04
1
1001-1505
80
BOLT; FAN GUIDE
(A) M8X12 FLANGE
0-28050-812-0
04
1
1506-
82
COVER; FAN,RAD
(A)
8-98004-211-0
01
1
1001-1505
82
COVER; FAN,RAD
(B)
8-98293-253-0
01
1
1506-
83
CLIP; FAN COVER
1-09707-177-2
01
1
1506-
89
BOLT
(A) M6X12 FLANGE SOU
0-28050-612-0
02
1
1001-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
04
1
1001-
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
04
1
1001-
235
WASHER; CUSHION RUBBER
1-21469-133-0
02
1
1001-
267
RUBBER; CUSHION
(A)
1-21469-130-0
04
1
1001-
267
RUBBER; CUSHION
(B)
1-21469-131-0
02
1
1001-
427
CLIP; FAN GUIDE
1-09470-009-0
01
1
1001-1505
526
TANK; UPR,RADIATOR CORE
8-98004-202-2
01
1
1001-
527
TANK; LWR,RADIATOR CORE
8-98004-203-0
01
1
1001-
528
PLATE; SIDE,RADIATOR CORE
8-98043-029-1
01
1
1001-
528
PLATE; SIDE,RADIATOR CORE
8-98035-117-3
01
1
1001-
529
GASKET; CORE,RADIATOR
8-98004-206-0
02
1
1001-
