6-51 — REAR DOOR GLASS AND REGULATOR (#1658) — 27 parça

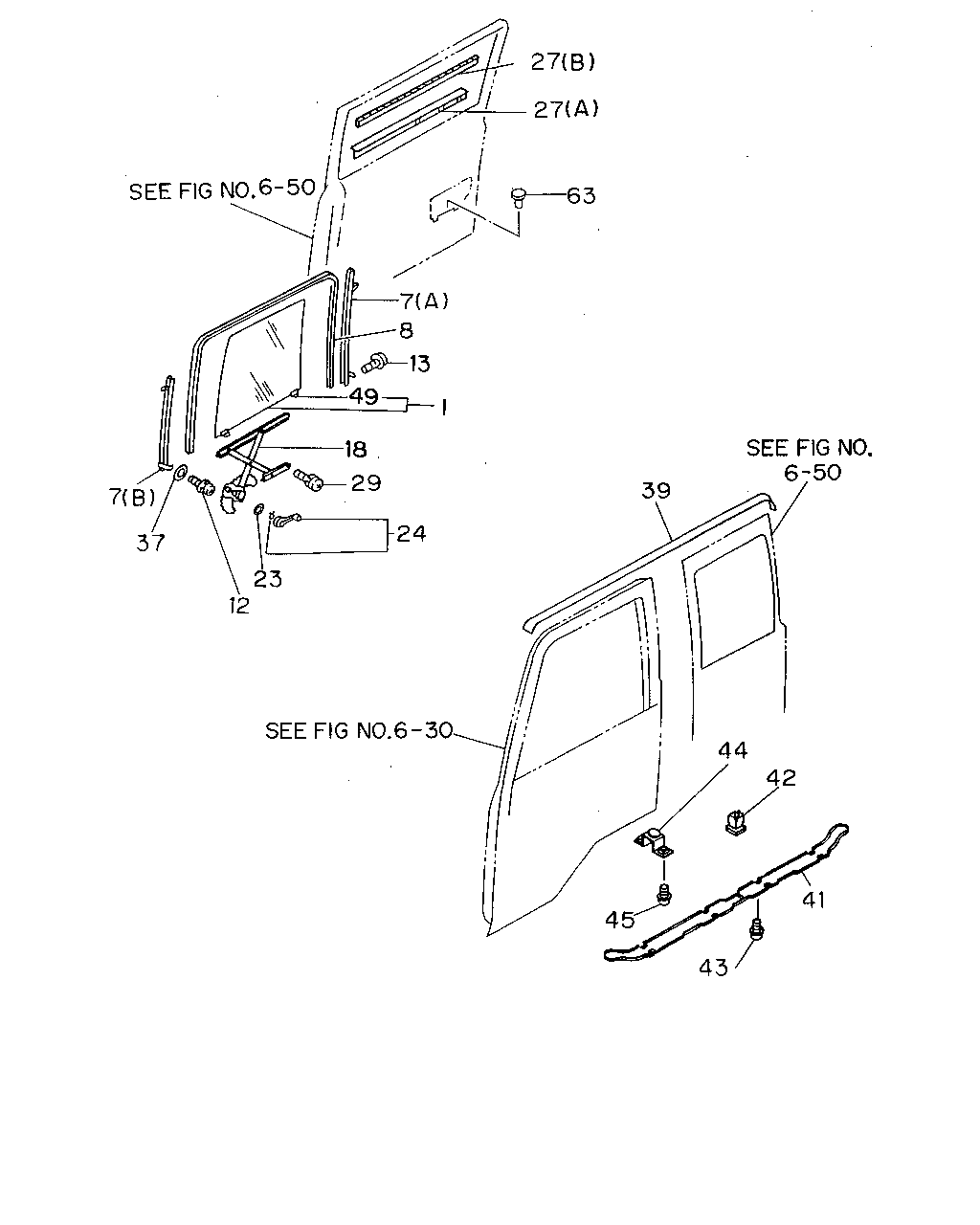

çizim 94338
27 27 63 7 8 13 1 49 18 29 24 23 12 37 7 39 44 42 41 43 45
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; RR DOOR 1-76148-021-0 01 1 9207-
1 GLASS; RR DOOR 1-76148-020-0 01 1 9207-
7 CHANNEL; GLASS RUN,RR DOOR
(A) 		1-74338-023-4 01 1 9207-
7 CHANNEL; GLASS RUN,RR DOOR
(B) 		1-74338-025-2 01 1 9207-
7 CHANNEL; GLASS RUN,RR DOOR
(A) 		1-74338-022-4 01 1 9207-
7 CHANNEL; GLASS RUN,RR DOOR
(B) 		1-74338-024-2 01 1 9207-
8 RUN; GLASS,RR DOOR 1-74318-020-1 02 1 9207-
12 SCREW; CHANNEL,GLASS RUN
M6X16 W/LK&PL WASHER 		1-09981-431-0 04 1 9207-
13 SCREW; RR GLASS CHANNEL,RR DOOR
M6X16 W/LK&PL WASHER 		1-09981-431-0 04 1 9207-
18 REGULATOR; WINDOW,RR DOOR 1-74418-110-0 01 1 9207-
18 REGULATOR; WINDOW,RR DOOR 1-74418-109-0 01 1 9207-
23 ESCUTCHEON; HANDLE,WINDOW REG 1-74458-020-0 02 1 9207-
24 HANDLE; WINDOW REG,RR DOOR 5-74457-001-3 02 1 9207-
27 SEAL; WAIST,RR DOOR
(A) 		1-76738-050-2 02 1 9207-
27 SEAL; WAIST,RR DOOR
(B) 		1-76738-070-1 02 1 9207-
29 SCREW; WINDOW REG
M6X12 W/LK&PL WASHER 		1-09981-430-0 16 1 9207-
37 WASHER; RUBBER,FRT CHANNEL
ID=5.5 		1-71997-525-1 02 1 9207-
39 SEAL; SIDE UPR SUB,REAR DOOR 1-76718-185-0 02 1 9207-9207
39 SEAL; SIDE UPR SUB,REAR DOOR 1-76718-185-0 01 1 9208-
39 SEAL; SIDE UPR SUB,REAR DOOR 1-76718-186-0 01 1 9208-
41 PANEL; COVER,RR DOOR GLASS 1-74998-031-3 02 1 9207-9404
42 GROMMET; SCREW,COVER PANEL,RR DOOR GLA 1-09983-061-0 16 1 9207-
43 SCREW; COVER PANEL,RR DOOR GLASS
M6X16 W/LK&PL WASHER 		1-09981-426-0 16 1 9207-
44 BRACKET; GLASS STOPPER 1-74998-037-0 02 1 9207-
45 SCREW; BRKT,GLASS STOPPER
M6X12 W/LK&PL WASHER 		1-09981-430-0 04 1 9207-
49 HOLDER; DOOR GLASS 1-74427-160-0 04 1 9207-
63 STOPPER; RR DOOR GLASS 1-74907-022-0 02 1 9207-
