6-47 — MUD GUARD AND INSULATOR (#1656) — 139 parça

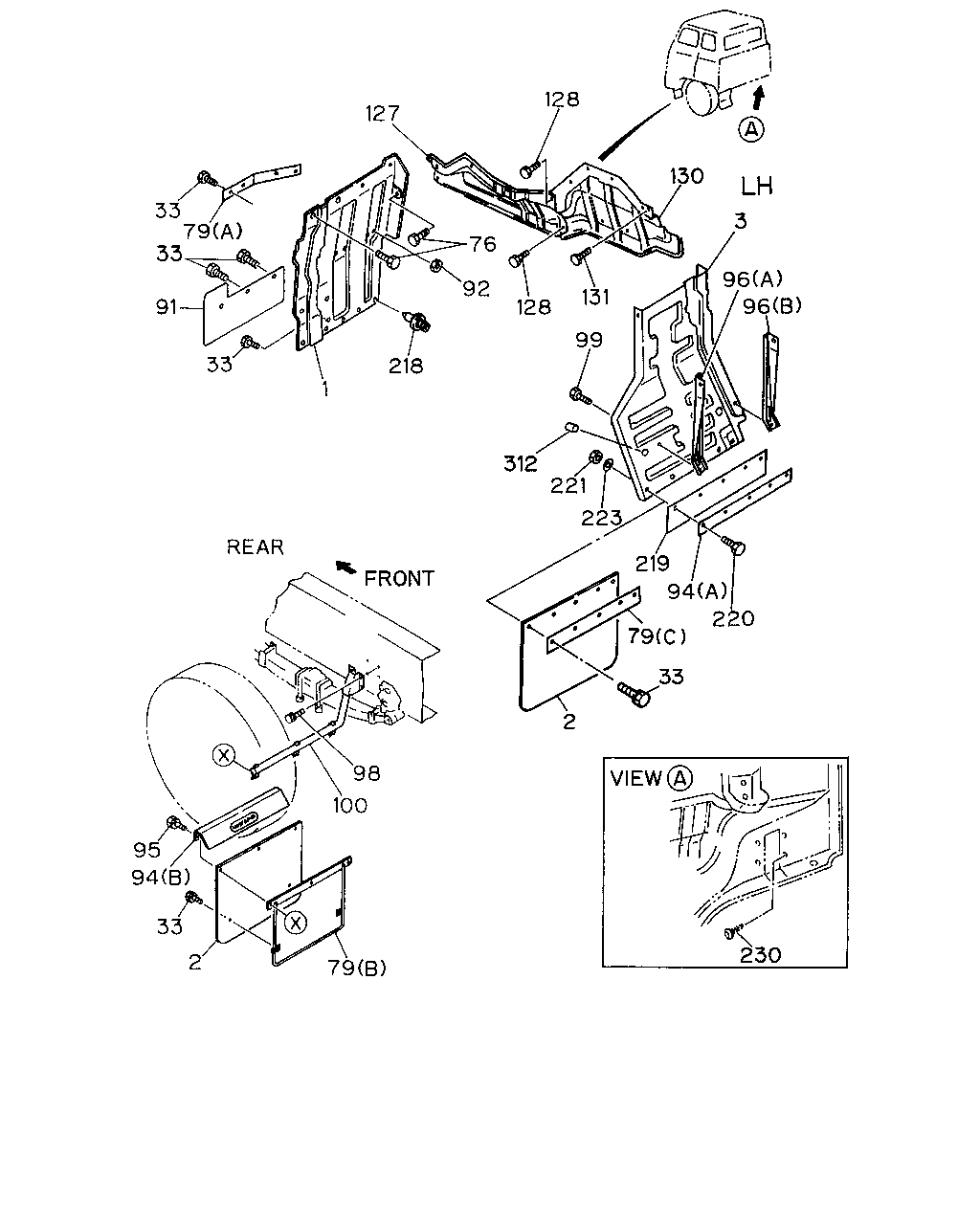

128 127 33 79 33 91 33 218 76 92 128 131 130 3 96 96 99 312 221 223 219 94 220 79 33 2 230 98 100 79 95 94 33 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	COVER; MUD,TIRE RR L=510	1-79930-631-1	01	1	9207-	●	●
2	COVER; MUD,TIRE RR L=568	1-79930-486-2	01	1	9207-	●	●
2	COVER; MUD,TIRE RR L=514	1-79930-584-2	01	1	9207-			●	●
2	COVER; MUD,TIRE RR L=568	1-79930-530-2	01	1	9207-			●	●	●
2	COVER; MUD,TIRE RR L=600	1-79930-533-2	01	1	9207-					●
3	GUARD; MUD,RR	1-79938-707-3	01	1	9207-	●	●	●	●
3	GUARD; MUD,RR	1-79938-714-0	01	1	9207-	●	●	●	●
3	GUARD; MUD,RR	1-79938-708-1	01	1	9207-					●
3	GUARD; MUD,RR	1-79938-713-0	01	1	9207-					●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	10	1	9207-9307	●	●			●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	10	1	9308-	●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9207-9411			●
33	BOLT; MUD COVER EXC. REARWARD INNER SINGLE TIRE<YK3> M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9207-9411				●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9412-			●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9207-9307			●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	08	1	9308-9411					●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	12	1	9412-					●
33	BOLT; MUD COVER REARWARD INNER SINGLE TIRE<YK3> M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9207-9307				●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9308-9401			●	●
33	BOLT; MUD COVER REARWARD INNER SINGLE TIRE<YK3> M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9308-9401				●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9402-			●	●
33	BOLT; MUD COVER REARWARD INNER SINGLE TIRE<YK3> M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9402-9411				●
76	BOLT; MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	03	1	9207-	●	●	●	●
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9207-	●	●	●	●	●
76	BOLT; MUD GUARD M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9207-	●	●	●	●	●
76	BOLT; MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9207-					●
76	BOLT; MUD GUARD M8X20 W/LK&PL WASHER	1-09980-496-0	04	1	9207-					●
79	RETAINER; MUD COVER (A) FRONT	1-79930-619-0	02	1	9207-	●	●
79	RETAINER; MUD COVER (C) REAR L=504	1-79930-520-1	01	1	9207-	●	●
79	RETAINER; MUD COVER (C) REAR	1-79930-488-2	01	1	9207-	●	●
79	RETAINER; MUD COVER (B) REAR	1-79930-651-1	01	1	9207-			●	●
79	RETAINER; MUD COVER (A) FRONT	1-79930-501-1	02	1	9207-			●	●	●
79	RETAINER; MUD COVER (B) REAR	1-79930-521-0	01	1	9207-9307			●	●	●
79	RETAINER; MUD COVER (B) REAR	1-79930-986-0	01	1	9308-9401			●	●	●
79	RETAINER; MUD COVER (B) REAR	1-79931-131-0	01	1	9402-			●	●	●
79	RETAINER; MUD COVER (C) REAR	1-79930-534-2	01	1	9207-					●
91	COVER; MUD,FRT 160X280	1-79930-618-0	02	1	9207-	●	●
91	COVER; MUD,FRT 160X350	1-79930-503-1	02	1	9207-			●	●	●
92	NUT; MUD COVER M6	9-09110-406-0	10	1	9207-	●	●			●
92	NUT; MUD COVER M6	9-09110-406-0	05	1	9207-			●	●
94	RETAINER; FLAP RUBBER (A)	1-79930-586-0	01	1	9207-			●	●
94	RETAINER; FLAP RUBBER (B)	1-79930-649-1	01	1	9207-			●	●
95	BOLT; STAY TO RET M6X16 W/LK WASHER	0-50040-616-0	03	1	9207-			●	●
96	STAY; MUD GUARD (A)	1-79938-643-1	01	1	9207-	●	●	●	●
96	STAY; MUD GUARD (B)	1-79938-645-1	01	1	9207-	●	●	●	●
96	STAY; MUD GUARD	1-79938-684-0	01	1	9207-					●
98	BOLT; STAY TO BRKT M8X25 FLANGE	0-28080-825-0	04	1	9207-			●	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	04	1	9207-	●	●	●	●
100	STAY; UPR,MUD GUARD	1-53497-293-1	01	1	9207-			●
100	STAY; UPR,MUD GUARD EXC. REARWARD INNER SINGLE TIRE<YK3>	1-53497-293-1	01	1	9207-				●
100	STAY; UPR,MUD GUARD REARWARD INNER SINGLE TIRE<YK3>	1-53497-298-1	01	1	9207-				●
127	APRON; FRT	1-79938-623-3	01	1	9207-	●	●	●	●	●
127	APRON; FRT	1-79938-621-3	01	1	9207-	●	●	●	●	●
128	BOLT; APRON,FRT M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9207-	●	●	●	●	●
130	PANEL; SHUTTER NOISE	1-79938-627-5	01	1	9207-	●	●	●	●
130	PANEL; SHUTTER NOISE	1-79938-625-5	01	1	9207-	●	●	●	●
130	PANEL; SHUTTER NOISE	1-79938-672-2	01	1	9207-9306					●
130	PANEL; SHUTTER NOISE	1-79938-864-0	01	1	9307-					●
130	PANEL; SHUTTER NOISE	1-79938-671-4	01	1	9207-9306					●
130	PANEL; SHUTTER NOISE	1-79938-863-0	01	1	9307-					●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	9207-	●	●	●	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	9207-					●
218	FASTENER; RUBBER	1-09470-001-0	06	1	9207-	●	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	9207-			●	●	●
219	FLAP; MUD GUARD	1-79930-650-0	01	1	9207-			●	●
220	BOLT; RET,MUD GUARD M6X16 W/LK WASHER	0-50080-616-0	05	1	9207-			●	●
221	NUT; COVER,MUD GUARD RR	8-94238-948-0	05	1	9207-			●	●
223	WASHER; PL,RET	8-94238-949-0	05	1	9207-			●	●
230	PLUG; MUD GUARD D4.7X11	1-76378-154-0	09	1	9207-	●	●	●	●	●
312	SEAL; DUMMY HOLE OD=36	5-76777-035-0	02	1	9207-	●	●	●	●	●

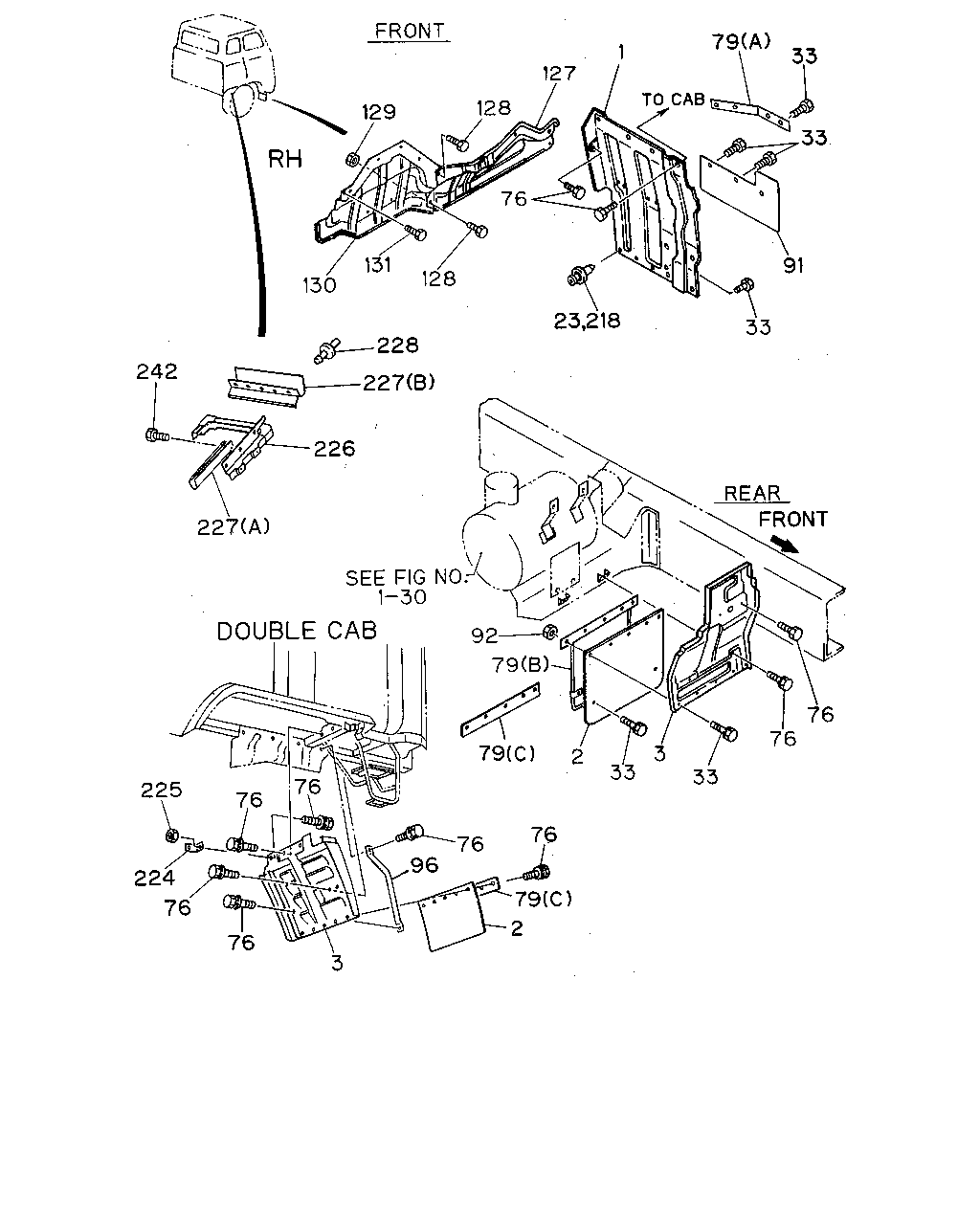

33 33 79 91 33 1 127 128 76 218 23 128 129 131 130 228 227 226 227 242 76 76 33 3 33 2 79 79 92 76 79 2 76 96 76 76 225 224 76 76 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	GUARD; MUD,FRT	1-79938-687-2	01	1	9207-	●	●
1	GUARD; MUD,FRT	1-79938-686-2	01	1	9207-	●	●
1	GUARD; MUD,FRT	1-79938-630-4	01	1	9207-			●	●	●
1	GUARD; MUD,FRT	1-79938-629-4	01	1	9207-			●	●	●
2	COVER; MUD,TIRE RR L=510	1-79930-631-1	01	1	9207-	●	●
2	COVER; MUD,TIRE RR L=568	1-79930-486-2	01	1	9207-	●	●
2	COVER; MUD,TIRE RR L=514	1-79930-584-2	01	1	9207-			●	●
2	COVER; MUD,TIRE RR L=568	1-79930-530-2	01	1	9207-			●	●	●
2	COVER; MUD,TIRE RR L=600	1-79930-533-2	01	1	9207-					●
3	GUARD; MUD,RR	1-79938-707-3	01	1	9207-	●	●	●	●
3	GUARD; MUD,RR	1-79938-714-0	01	1	9207-	●	●	●	●
3	GUARD; MUD,RR	1-79938-708-1	01	1	9207-					●
3	GUARD; MUD,RR	1-79938-713-0	01	1	9207-					●
23	FASTENER; MUD COVER	1-09470-001-0	02	1	9308-9401			●	●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	10	1	9207-9307	●	●			●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	10	1	9308-	●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9207-9411			●
33	BOLT; MUD COVER EXC. REARWARD INNER SINGLE TIRE<YK3> M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9207-9411				●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9412-			●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9207-9307			●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	08	1	9308-9411					●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	12	1	9412-					●
33	BOLT; MUD COVER REARWARD INNER SINGLE TIRE<YK3> M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9207-9307				●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9308-9401			●	●
33	BOLT; MUD COVER REARWARD INNER SINGLE TIRE<YK3> M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9308-9401				●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9402-			●	●
33	BOLT; MUD COVER REARWARD INNER SINGLE TIRE<YK3> M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9402-9411				●
76	BOLT; MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	03	1	9207-	●	●	●	●
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9207-	●	●	●	●	●
76	BOLT; MUD GUARD M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9207-	●	●	●	●	●
76	BOLT; MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9207-					●
76	BOLT; MUD GUARD M8X20 W/LK&PL WASHER	1-09980-496-0	04	1	9207-					●
79	RETAINER; MUD COVER (A) FRONT	1-79930-619-0	02	1	9207-	●	●
79	RETAINER; MUD COVER (C) REAR L=504	1-79930-520-1	01	1	9207-	●	●
79	RETAINER; MUD COVER (C) REAR	1-79930-488-2	01	1	9207-	●	●
79	RETAINER; MUD COVER (B) REAR	1-79930-651-1	01	1	9207-			●	●
79	RETAINER; MUD COVER (A) FRONT	1-79930-501-1	02	1	9207-			●	●	●
79	RETAINER; MUD COVER (B) REAR	1-79930-521-0	01	1	9207-9307			●	●	●
79	RETAINER; MUD COVER (B) REAR	1-79930-986-0	01	1	9308-9401			●	●	●
79	RETAINER; MUD COVER (B) REAR	1-79931-131-0	01	1	9402-			●	●	●
79	RETAINER; MUD COVER (C) REAR	1-79930-534-2	01	1	9207-					●
91	COVER; MUD,FRT 160X280	1-79930-618-0	02	1	9207-	●	●
91	COVER; MUD,FRT 160X350	1-79930-503-1	02	1	9207-			●	●	●
92	NUT; MUD COVER M6	9-09110-406-0	10	1	9207-	●	●			●
92	NUT; MUD COVER M6	9-09110-406-0	05	1	9207-			●	●
96	STAY; MUD GUARD (A)	1-79938-643-1	01	1	9207-	●	●	●	●
96	STAY; MUD GUARD (B)	1-79938-645-1	01	1	9207-	●	●	●	●
96	STAY; MUD GUARD	1-79938-684-0	01	1	9207-					●
127	APRON; FRT	1-79938-623-3	01	1	9207-	●	●	●	●	●
127	APRON; FRT	1-79938-621-3	01	1	9207-	●	●	●	●	●
128	BOLT; APRON,FRT M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9207-	●	●	●	●	●
129	NUT; APRON,FRT M8	9-09110-408-0	02	1	9207-					●
130	PANEL; SHUTTER NOISE	1-79938-627-5	01	1	9207-	●	●	●	●
130	PANEL; SHUTTER NOISE	1-79938-625-5	01	1	9207-	●	●	●	●
130	PANEL; SHUTTER NOISE	1-79938-672-2	01	1	9207-9306					●
130	PANEL; SHUTTER NOISE	1-79938-864-0	01	1	9307-					●
130	PANEL; SHUTTER NOISE	1-79938-671-4	01	1	9207-9306					●
130	PANEL; SHUTTER NOISE	1-79938-863-0	01	1	9307-					●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	9207-	●	●	●	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	9207-					●
218	FASTENER; RUBBER	1-09470-001-0	06	1	9207-	●	●
218	FASTENER; RUBBER	1-09470-001-0	08	1	9207-			●	●	●
224	SUPPORT; MUD GUARD	1-79938-724-0	01	1	9207-					●
225	NUT; MUD GUARD M8	9-09110-408-0	02	1	9207-					●
226	SUPPORT; SEAL,MUD GUARD	1-79938-768-1	01	1	9207-	●	●	●	●
227	SEAL; MUD GUARD (A)	1-79938-675-1	01	1	9207-	●	●	●	●
227	SEAL; MUD GUARD (B) L=342	1-79938-765-0	01	1	9207-	●	●	●	●
228	FASTENER; MUD GUARD SEAL	5-09989-002-0	07	1	9207-	●	●	●	●
242	BOLT; SUPPORT MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9207-	●	●	●	●
