◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11199 - CYZ NEW ZEALAND EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#16554) — 42 parça

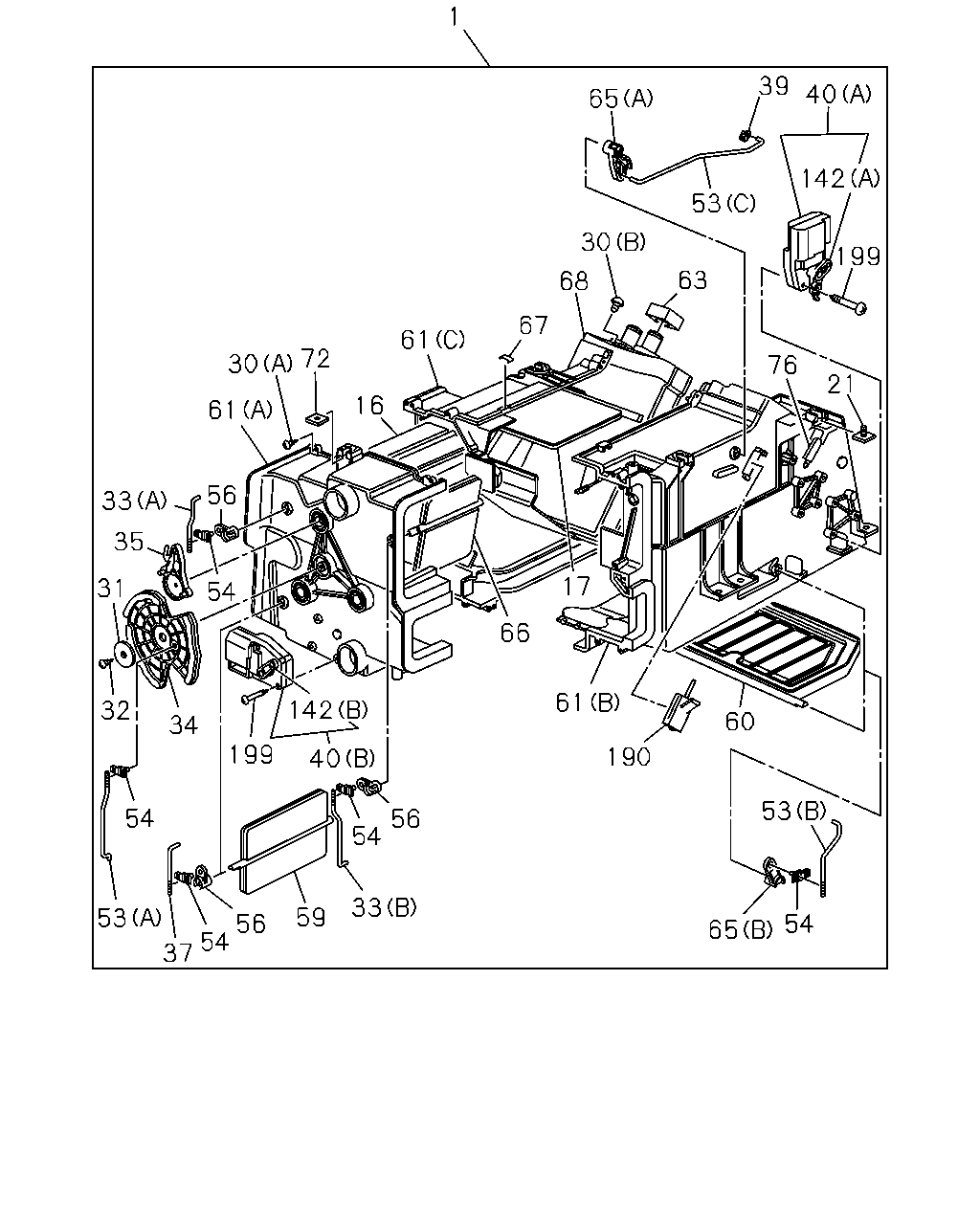

çizim 101993
1 39 40 65 142 53 30 199 63 68 67 61 72 30 76 21 16 61 56 33 35 17 31 54 66 142 61 32 60 34 199 190 40 53 54 56 54 33 59 53 56 54 37 54 65
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 1-83511-184-1 01 1 0904-1409
1 HEATER UNIT 8-98238-482-0 01 1 1410-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 0904-
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 0904-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 0904-
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 0904-
30 SCREW; HTR UNIT
(B) M5X20 		9-09829-324-1 01 1 0904-1409
30 SCREW; HTR UNIT
(B) M5X16 		8-94248-820-0 01 1 1410-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0904-
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 0904-1409
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1410-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 0904-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 0904-
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 0904-
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 0904-
37 ROD; LEVER 1-83579-620-1 01 1 0904-
39 CLIP; HTR UNIT 1-83574-136-0 01 1 0904-
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-2 01 1 0904-
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 0904-
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 0904-
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 0904-
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 0904-
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 0904-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 0904-
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 0904-
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 0904-
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 0904-
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 0904-
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 0904-
63 LINING; HTR UNIT 1-83579-557-0 02 1 0904-
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 0904-
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 0904-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-680-0 01 1 0904-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 0904-
68 CORE; HTR UNIT 1-83562-078-1 01 1 0904-1409
68 CORE; HTR UNIT 8-98238-475-0 01 1 1410-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 0904-
76 BRACKET; HTR UNIT 1-83571-874-0 01 1 0904-
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 0904-
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 0904-
190 SENSOR; HEATER UNIT 1-83579-658-1 01 1 0904-
199 SCREW; ACTUATOR 8-94348-809-0 04 1 0904-
