Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#16543) — 327 parça

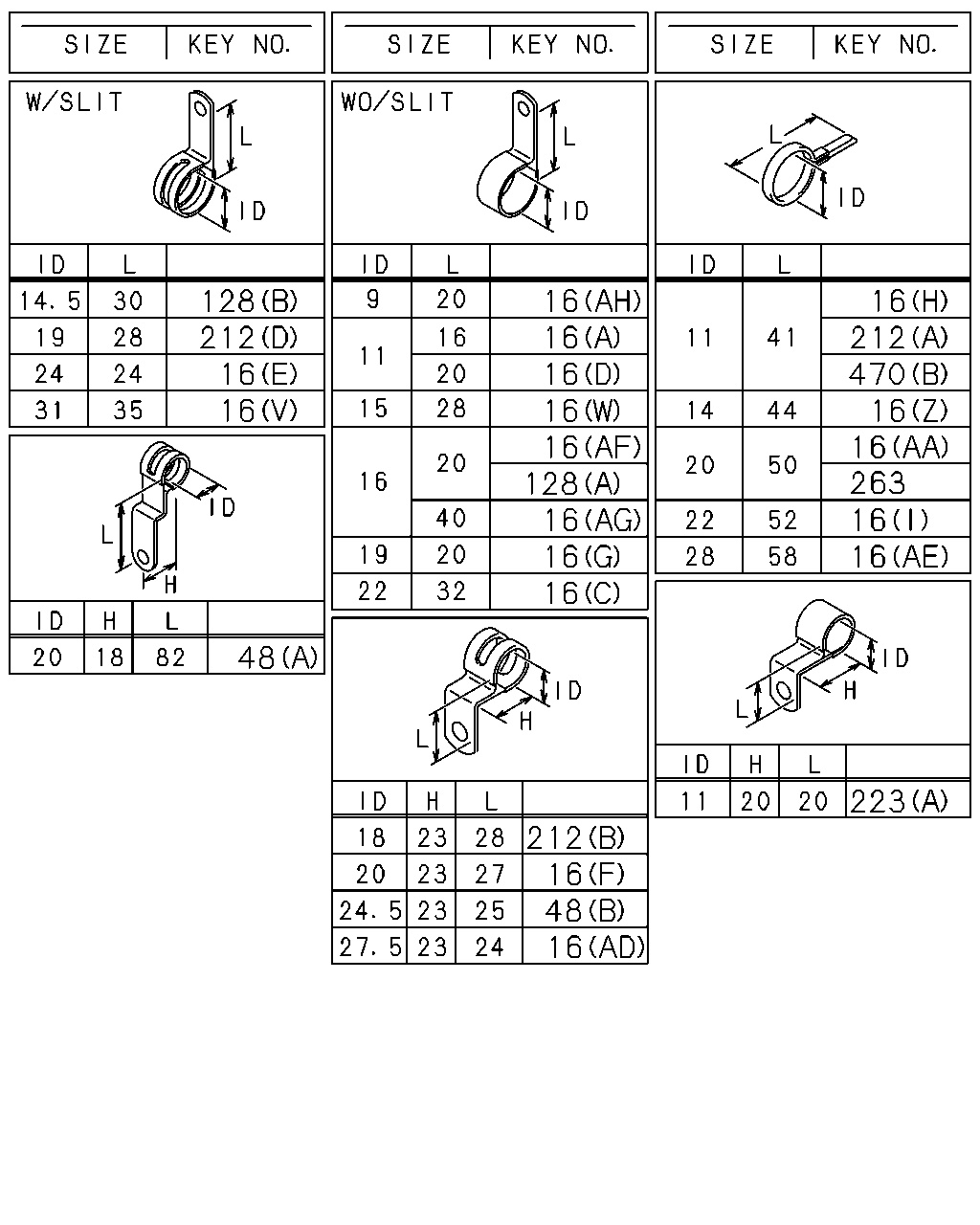

128 212 16 16 16 16 16 16 16 128 16 16 16 16 212 470 16 16 263 16 16 48 223 212 16 48 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (AH) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	01	1	0904-
16	CLIP; HARNESS (AF) T=0.8 ID=16 L=20	0-95235-535-0	01	1	0904-
16	CLIP; HARNESS (C) ID=22 L=32	1-09700-126-1	01	1	0904-
16	CLIP; HARNESS (AE) ID=28 L=58	1-09700-400-0	05	1	0904-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	03	1	0904-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	11	1	0904-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	0904-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	03	1	0904-
16	CLIP; HARNESS (AB) ID=5-12 L=14.5	1-09987-221-0	05	1	0904-0906
16	CLIP; HARNESS (AB) ID=5-12 L=14.5	1-09987-221-0	04	1	0907-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	03	1	0904-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	06	1	0904-
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	03	1	0904-1002
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	02	1	1003-
16	CLIP; HARNESS (AA) ID=20 L=50	9-09917-430-0	08	1	0904-
16	CLIP; HARNESS (I) ID=22 L=52	9-09917-431-0	03	1	0904-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0904-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0904-
16	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	02	1	0904-
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	05	1	0904-1105
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (AF) T=1.2 ID=16 L=20	0-95235-536-0	02	1	0904-
16	CLIP; HARNESS (AG) ID=16 L=40	0-95235-576-0	01	1	0904-
16	CLIP; HARNESS (G) ID=19 L=20	0-95235-836-0	03	1	0904-
16	CLIP; HARNESS (V) ID=31 L=35	1-09700-329-1	01	1	0904-
16	CLIP; HARNESS (M) ID=20 L=50	1-09700-679-1	01	1	0904-
16	CLIP; HARNESS (AD) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0904-
16	CLIP; HARNESS (AD) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0904-
16	CLIP; HARNESS (E) ID=24 L=24	1-09701-001-1	01	1	0904-1002
16	CLIP; HARNESS (Y) ID=13-18 L=18	1-09709-291-0	02	1	1003-
16	CLIP; HARNESS (W) ID=15 L=28	1-09701-216-0	02	1	0904-
16	CLIP; HARNESS (O) L=180	1-09707-162-1	01	1	0904-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	0904-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	0904-
16	CLIP; HARNESS (P) W/SPONGE RUBBER	1-09709-150-0	01	1	0904-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	02	1	0904-
16	CLIP; HARNESS (N) ID=5-12 L=18	1-09709-287-0	01	1	0904-
16	CLIP; HARNESS (N) ID=5-12 L=18	1-09709-287-0	02	1	0904-
16	CLIP; HARNESS (N) ID=5-12 L=18	1-09709-287-0	02	1	0904-
16	CLIP; HARNESS (Y) ID=13-18 L=18	1-09709-291-0	02	1	0904-1002
16	CLIP; HARNESS (Y) ID=13-18 L=18	1-09709-291-0	02	1	0904-1002
16	CLIP; HARNESS (Y) ID=13-18 L=18	1-09709-291-0	03	1	1003-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	09	1	0904-1205
16	CLIP; HARNESS (U) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	02	1	0904-
16	CLIP; HARNESS (R) ID=21 L=47.5	8-94178-108-0	03	1	0904-
16	CLIP; HARNESS (S) L=36	8-94224-891-1	01	1	0904-
16	CLIP; HARNESS (J) ID=18 L=44	8-97367-985-1	05	1	0904-
16	CLIP; HARNESS (AC) OD=9 H=6	8-97368-793-0	03	1	0904-
16	CLIP; HARNESS (K) L=251	8-97619-917-0	03	1	0904-
16	CLIP; HARNESS (X) L=55	8-94432-655-0	03	1	0904-
16	CLIP; HARNESS (L) L=155	8-97173-307-0	03	1	0904-
16	CLIP; HARNESS HIGH ROOF<S2F> (B) L=20 SET=10 PIECE	1-09987-246-2	04	1	0904-
48	CLIP; FRAME HARNESS (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0904-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	11	1	0904-
48	CLIP; FRAME HARNESS (A) ID=20 H=18 L=82	1-09701-288-0	01	1	0904-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	0904-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	0904-
212	CLIP; HORN HARNESS (D) ID=19 L=28	0-95235-856-0	01	1	0904-
212	CLIP; HORN HARNESS (A) ID=11 L=41	1-09700-403-0	01	1	0904-
212	CLIP; HORN HARNESS (B) ID=18 H=23 L=28	1-09700-860-0	03	1	0904-
212	CLIP; HORN HARNESS (C) L=140	5-09707-031-1	01	1	0904-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	01	1	0904-
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	03	1	0904-
263	CLIP; HARNESS,CLIP TO BATTERY RELAY ID=20 L=50	9-09917-430-0	02	1	0904-
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	0904-
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	0904-

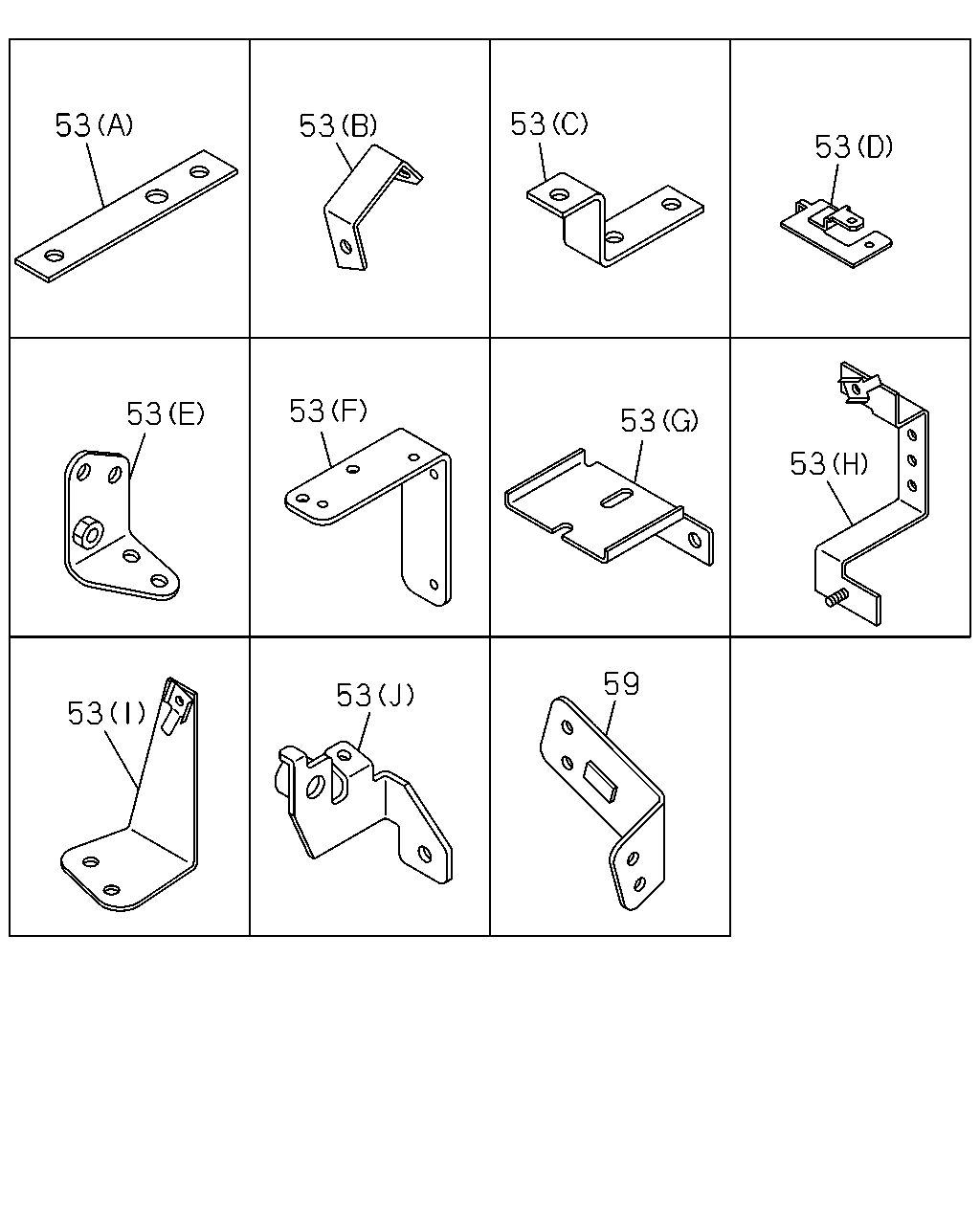

53 53 53 53 53 53 53 53 59 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS (J)	8-98194-068-0	01	1	1112-
53	BRACKET; HARNESS (A) L=130	1-47478-959-0	02	1	0904-
53	BRACKET; HARNESS (B)	1-47479-537-0	04	1	0904-
53	BRACKET; HARNESS (B)	1-47479-537-0	05	1	0904-
53	BRACKET; HARNESS (D)	1-82698-495-2	01	1	0904-
53	BRACKET; HARNESS (E)	8-97610-339-1	01	1	0904-
53	BRACKET; HARNESS (F)	8-97610-340-1	01	1	0904-
53	BRACKET; HARNESS (G)	8-98032-696-0	01	1	0904-
53	BRACKET; HARNESS (H)	8-98050-989-0	01	1	0904-
53	BRACKET; HARNESS (I)	8-98052-592-0	01	1	0904-
53	BRACKET; HARNESS (C)	8-98124-778-0	01	1	0904-
59	BRACKET; FRAME HARNESS	1-82698-531-0	01	1	0904-

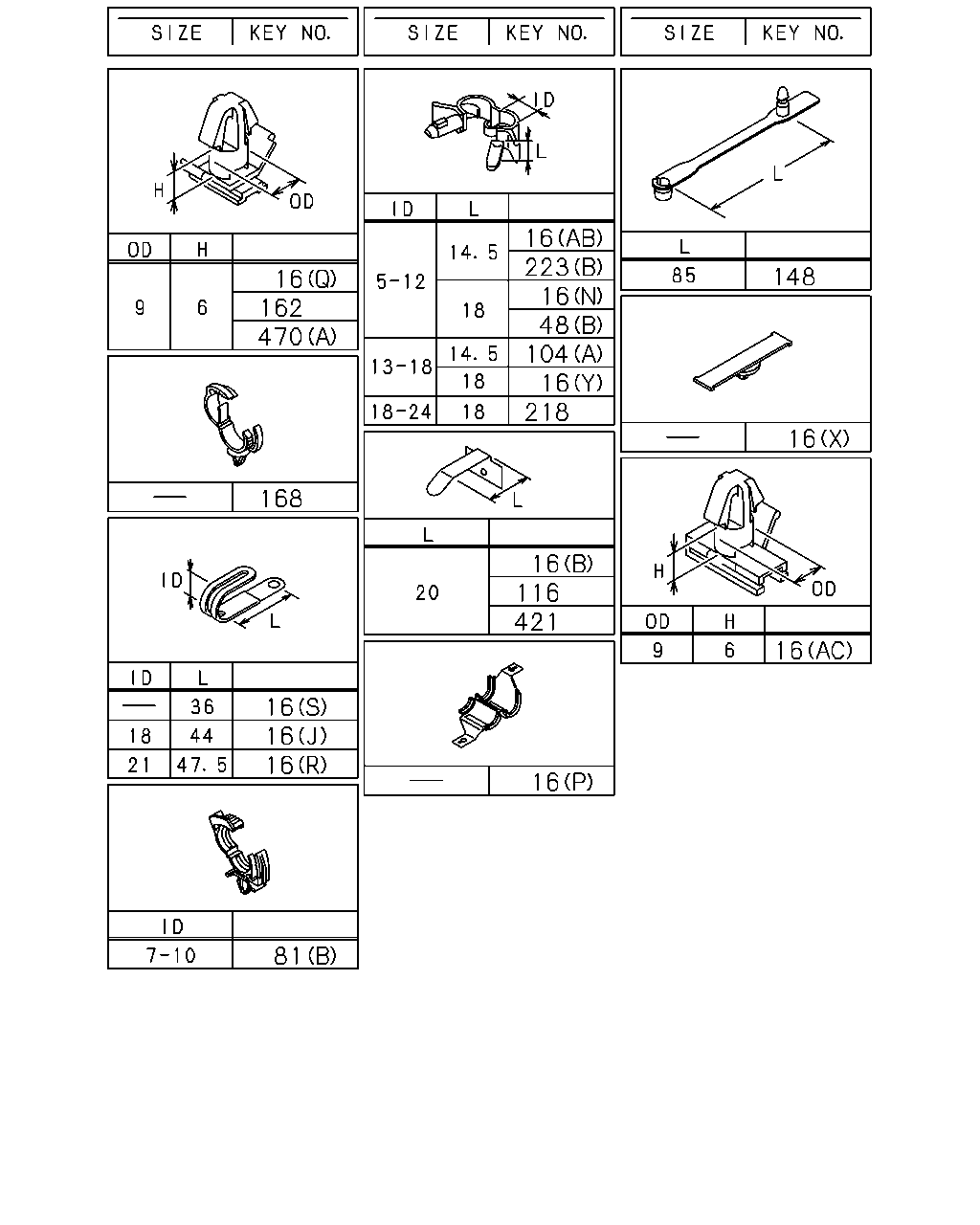

16 223 16 48 104 16 218 148 16 162 470 16 168 16 116 421 16 16 16 16 16 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (AH) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	01	1	0904-
16	CLIP; HARNESS (AF) T=0.8 ID=16 L=20	0-95235-535-0	01	1	0904-
16	CLIP; HARNESS (C) ID=22 L=32	1-09700-126-1	01	1	0904-
16	CLIP; HARNESS (AE) ID=28 L=58	1-09700-400-0	05	1	0904-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	03	1	0904-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	11	1	0904-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	0904-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	03	1	0904-
16	CLIP; HARNESS (AB) ID=5-12 L=14.5	1-09987-221-0	05	1	0904-0906
16	CLIP; HARNESS (AB) ID=5-12 L=14.5	1-09987-221-0	04	1	0907-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	03	1	0904-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	06	1	0904-
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	03	1	0904-1002
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	02	1	1003-
16	CLIP; HARNESS (AA) ID=20 L=50	9-09917-430-0	08	1	0904-
16	CLIP; HARNESS (I) ID=22 L=52	9-09917-431-0	03	1	0904-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0904-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0904-
16	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	02	1	0904-
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	05	1	0904-1105
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (AF) T=1.2 ID=16 L=20	0-95235-536-0	02	1	0904-
16	CLIP; HARNESS (AG) ID=16 L=40	0-95235-576-0	01	1	0904-
16	CLIP; HARNESS (G) ID=19 L=20	0-95235-836-0	03	1	0904-
16	CLIP; HARNESS (V) ID=31 L=35	1-09700-329-1	01	1	0904-
16	CLIP; HARNESS (M) ID=20 L=50	1-09700-679-1	01	1	0904-
16	CLIP; HARNESS (AD) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0904-
16	CLIP; HARNESS (AD) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0904-
16	CLIP; HARNESS (E) ID=24 L=24	1-09701-001-1	01	1	0904-1002
16	CLIP; HARNESS (Y) ID=13-18 L=18	1-09709-291-0	02	1	1003-
16	CLIP; HARNESS (W) ID=15 L=28	1-09701-216-0	02	1	0904-
16	CLIP; HARNESS (O) L=180	1-09707-162-1	01	1	0904-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	0904-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	0904-
16	CLIP; HARNESS (P) W/SPONGE RUBBER	1-09709-150-0	01	1	0904-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	02	1	0904-
16	CLIP; HARNESS (N) ID=5-12 L=18	1-09709-287-0	01	1	0904-
16	CLIP; HARNESS (N) ID=5-12 L=18	1-09709-287-0	02	1	0904-
16	CLIP; HARNESS (N) ID=5-12 L=18	1-09709-287-0	02	1	0904-
16	CLIP; HARNESS (Y) ID=13-18 L=18	1-09709-291-0	02	1	0904-1002
16	CLIP; HARNESS (Y) ID=13-18 L=18	1-09709-291-0	02	1	0904-1002
16	CLIP; HARNESS (Y) ID=13-18 L=18	1-09709-291-0	03	1	1003-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	09	1	0904-1205
16	CLIP; HARNESS (U) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	02	1	0904-
16	CLIP; HARNESS (R) ID=21 L=47.5	8-94178-108-0	03	1	0904-
16	CLIP; HARNESS (S) L=36	8-94224-891-1	01	1	0904-
16	CLIP; HARNESS (J) ID=18 L=44	8-97367-985-1	05	1	0904-
16	CLIP; HARNESS (AC) OD=9 H=6	8-97368-793-0	03	1	0904-
16	CLIP; HARNESS (K) L=251	8-97619-917-0	03	1	0904-
16	CLIP; HARNESS (X) L=55	8-94432-655-0	03	1	0904-
16	CLIP; HARNESS (L) L=155	8-97173-307-0	03	1	0904-
16	CLIP; HARNESS HIGH ROOF<S2F> (B) L=20 SET=10 PIECE	1-09987-246-2	04	1	0904-
48	CLIP; FRAME HARNESS (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0904-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	11	1	0904-
48	CLIP; FRAME HARNESS (A) ID=20 H=18 L=82	1-09701-288-0	01	1	0904-
81	CLIP; HARNESS (A) L=140	5-09707-031-1	06	1	0904-
81	CLIP; HARNESS (B) ID=7-10	8-94472-578-0	02	1	0904-
104	CLIP; HEADLAMP HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	06	1	0904-
104	CLIP; HEADLAMP HARNESS (B) L=140	5-09707-031-1	02	1	0904-
116	CLIP; ROOF HARNESS EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	07	1	1410-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	0904-1409
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	08	1	1410-
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	07	1	0904-1409
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	06	1	1410-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	04	1	0904-
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	0904-
168	CLIP; DASH HARNESS ID=6 & 10-13	8-97069-515-0	06	1	0904-
218	CLIP; BAND,RR COMB ID=18-24 L=18	1-09709-294-0	01	1	0904-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	01	1	0904-
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	03	1	0904-
421	CLIP; FLOOR HARNESS L=20 SET=10 PIECE	1-09987-246-2	05	1	0904-
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	0904-
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	0904-

119 524 219 294 340 515 515 55 423 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	WASHER; PL,CLIP ID=8.4	1-09503-264-0	01	1	0904-
82	WASHER; PL BRKT,HARNESS ID=10.5 OD=22	0-91614-610-0	02	1	0904-
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	0904-
219	NUT M8 FLANGE	0-91180-108-0	01	1	0904-1409
219	NUT M8 FLANGE	0-91180-108-0	12	1	1410-
219	NUT M8 FLANGE	0-91180-108-0	13	1	0904-1409
219	NUT M8 FLANGE	0-91180-108-0	01	1	1410-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1410-
219	NUT M8 FLANGE	0-91180-108-0	02	1	0904-
294	NUT M8 FLANGE	0-91180-108-0	08	1	0904-
294	NUT M8 FLANGE	0-91180-108-0	01	1	0904-
294	NUT M8 FLANGE	0-91180-108-0	01	1	0904-
340	NUT; HARNESS CAB TO FRAME M8 CUTTING NUT W/FLANGE	1-09985-340-0	05	1	0904-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	01	1	0904-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	03	1	0904-
515	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	0904-
515	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0904-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	0904-

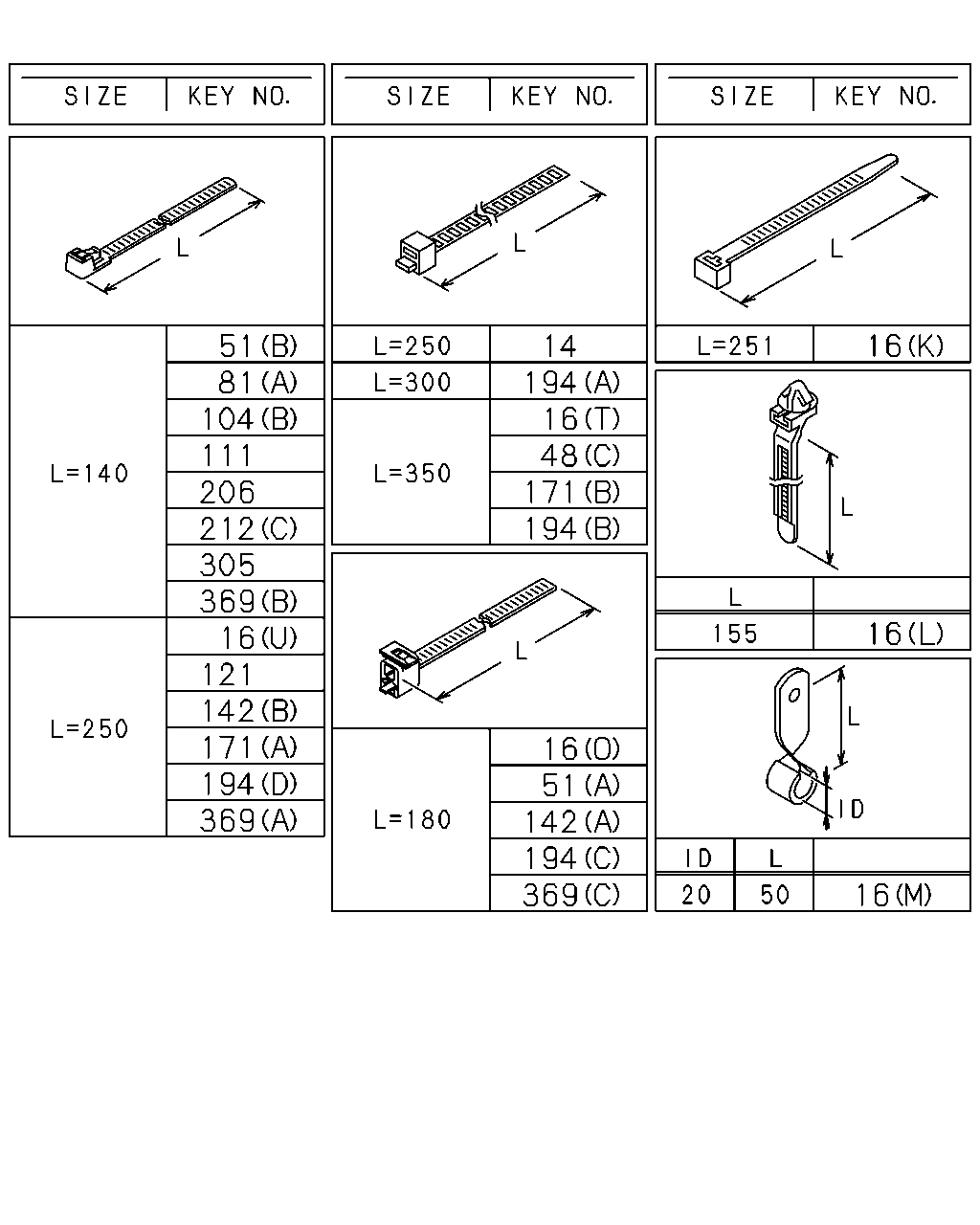

51 81 104 111 206 212 305 369 16 121 142 171 194 369 16 14 194 16 48 171 194 16 16 51 142 194 369 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS L=250	1-09707-126-0	02	1	0904-
16	CLIP; HARNESS (AH) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	01	1	0904-
16	CLIP; HARNESS (AF) T=0.8 ID=16 L=20	0-95235-535-0	01	1	0904-
16	CLIP; HARNESS (C) ID=22 L=32	1-09700-126-1	01	1	0904-
16	CLIP; HARNESS (AE) ID=28 L=58	1-09700-400-0	05	1	0904-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	03	1	0904-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	11	1	0904-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	0904-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	03	1	0904-
16	CLIP; HARNESS (AB) ID=5-12 L=14.5	1-09987-221-0	05	1	0904-0906
16	CLIP; HARNESS (AB) ID=5-12 L=14.5	1-09987-221-0	04	1	0907-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	03	1	0904-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	06	1	0904-
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	03	1	0904-1002
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	02	1	1003-
16	CLIP; HARNESS (AA) ID=20 L=50	9-09917-430-0	08	1	0904-
16	CLIP; HARNESS (I) ID=22 L=52	9-09917-431-0	03	1	0904-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0904-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0904-
16	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	02	1	0904-
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	05	1	0904-1105
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (AF) T=1.2 ID=16 L=20	0-95235-536-0	02	1	0904-
16	CLIP; HARNESS (AG) ID=16 L=40	0-95235-576-0	01	1	0904-
16	CLIP; HARNESS (G) ID=19 L=20	0-95235-836-0	03	1	0904-
16	CLIP; HARNESS (V) ID=31 L=35	1-09700-329-1	01	1	0904-
16	CLIP; HARNESS (M) ID=20 L=50	1-09700-679-1	01	1	0904-
16	CLIP; HARNESS (AD) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0904-
16	CLIP; HARNESS (AD) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0904-
16	CLIP; HARNESS (E) ID=24 L=24	1-09701-001-1	01	1	0904-1002
16	CLIP; HARNESS (Y) ID=13-18 L=18	1-09709-291-0	02	1	1003-
16	CLIP; HARNESS (W) ID=15 L=28	1-09701-216-0	02	1	0904-
16	CLIP; HARNESS (O) L=180	1-09707-162-1	01	1	0904-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	0904-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	0904-
16	CLIP; HARNESS (P) W/SPONGE RUBBER	1-09709-150-0	01	1	0904-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	02	1	0904-
16	CLIP; HARNESS (N) ID=5-12 L=18	1-09709-287-0	01	1	0904-
16	CLIP; HARNESS (N) ID=5-12 L=18	1-09709-287-0	02	1	0904-
16	CLIP; HARNESS (N) ID=5-12 L=18	1-09709-287-0	02	1	0904-
16	CLIP; HARNESS (Y) ID=13-18 L=18	1-09709-291-0	02	1	0904-1002
16	CLIP; HARNESS (Y) ID=13-18 L=18	1-09709-291-0	02	1	0904-1002
16	CLIP; HARNESS (Y) ID=13-18 L=18	1-09709-291-0	03	1	1003-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	09	1	0904-1205
16	CLIP; HARNESS (U) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	02	1	0904-
16	CLIP; HARNESS (R) ID=21 L=47.5	8-94178-108-0	03	1	0904-
16	CLIP; HARNESS (S) L=36	8-94224-891-1	01	1	0904-
16	CLIP; HARNESS (J) ID=18 L=44	8-97367-985-1	05	1	0904-
16	CLIP; HARNESS (AC) OD=9 H=6	8-97368-793-0	03	1	0904-
16	CLIP; HARNESS (K) L=251	8-97619-917-0	03	1	0904-
16	CLIP; HARNESS (X) L=55	8-94432-655-0	03	1	0904-
16	CLIP; HARNESS (L) L=155	8-97173-307-0	03	1	0904-
16	CLIP; HARNESS HIGH ROOF<S2F> (B) L=20 SET=10 PIECE	1-09987-246-2	04	1	0904-
48	CLIP; FRAME HARNESS (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0904-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	11	1	0904-
48	CLIP; FRAME HARNESS (A) ID=20 H=18 L=82	1-09701-288-0	01	1	0904-
51	CLIP; COOLER CMPR (A) L=180	1-09707-162-1	01	1	0904-
51	CLIP; COOLER CMPR (B) L=140	5-09707-031-1	01	1	0904-
81	CLIP; HARNESS (A) L=140	5-09707-031-1	06	1	0904-
81	CLIP; HARNESS (B) ID=7-10	8-94472-578-0	02	1	0904-
104	CLIP; HEADLAMP HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	06	1	0904-
104	CLIP; HEADLAMP HARNESS (B) L=140	5-09707-031-1	02	1	0904-
111	CLIP; STOP LAMP SW HARNESS L=140	5-09707-031-1	01	1	0904-
121	CLIP; FACIA HARNESS L=250	5-09707-030-1	02	1	0904-
142	CLIP; HARNESS,ENG (A) L=180	1-09707-162-1	01	1	0904-1207
142	CLIP; HARNESS,ENG (A) L=180	8-98216-427-0	01	1	1208-
142	CLIP; HARNESS,ENG (B) L=250	5-09707-030-1	01	1	0904-1205
142	CLIP; HARNESS,ENG (B) L=250	8-98216-430-0	01	1	1206-
171	CLIP; STARTER HARNESS (B) L=350	1-09707-183-0	02	1	0904-
171	CLIP; STARTER HARNESS (A) L=250	5-09707-030-1	04	1	0904-
194	CLIP; BAND (B) L=350	1-09707-183-0	04	1	0904-1002
194	CLIP; BAND (B) L=350	1-09707-183-0	06	1	1003-1202
194	CLIP; BAND (B) L=350	1-09707-183-0	07	1	1203-
194	CLIP; BAND (D) L=250	5-09707-030-1	01	1	0904-
194	CLIP; BAND (A) L=300	1-09707-001-1	01	1	0904-
194	CLIP; BAND (C) L=180	1-09707-162-1	01	1	0904-
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	0904-
212	CLIP; HORN HARNESS (D) ID=19 L=28	0-95235-856-0	01	1	0904-
212	CLIP; HORN HARNESS (A) ID=11 L=41	1-09700-403-0	01	1	0904-
212	CLIP; HORN HARNESS (B) ID=18 H=23 L=28	1-09700-860-0	03	1	0904-
212	CLIP; HORN HARNESS (C) L=140	5-09707-031-1	01	1	0904-
305	CLIP; ENG HARNESS L=140	5-09707-031-1	01	1	0904-
369	CLIP; BAND EDS HARNESS (C) L=180	1-09707-162-1	01	1	0907-
369	CLIP; BAND EDS HARNESS (A) L=250	5-09707-030-1	02	1	0904-
369	CLIP; BAND EDS HARNESS (B) L=140	5-09707-031-1	01	1	0904-

38 38 242 139 150 38 242 313 38 133 38 242 38 139 242 313 86 139 313 242 139 358 239 38 358 88 516 139 239 38 358 88

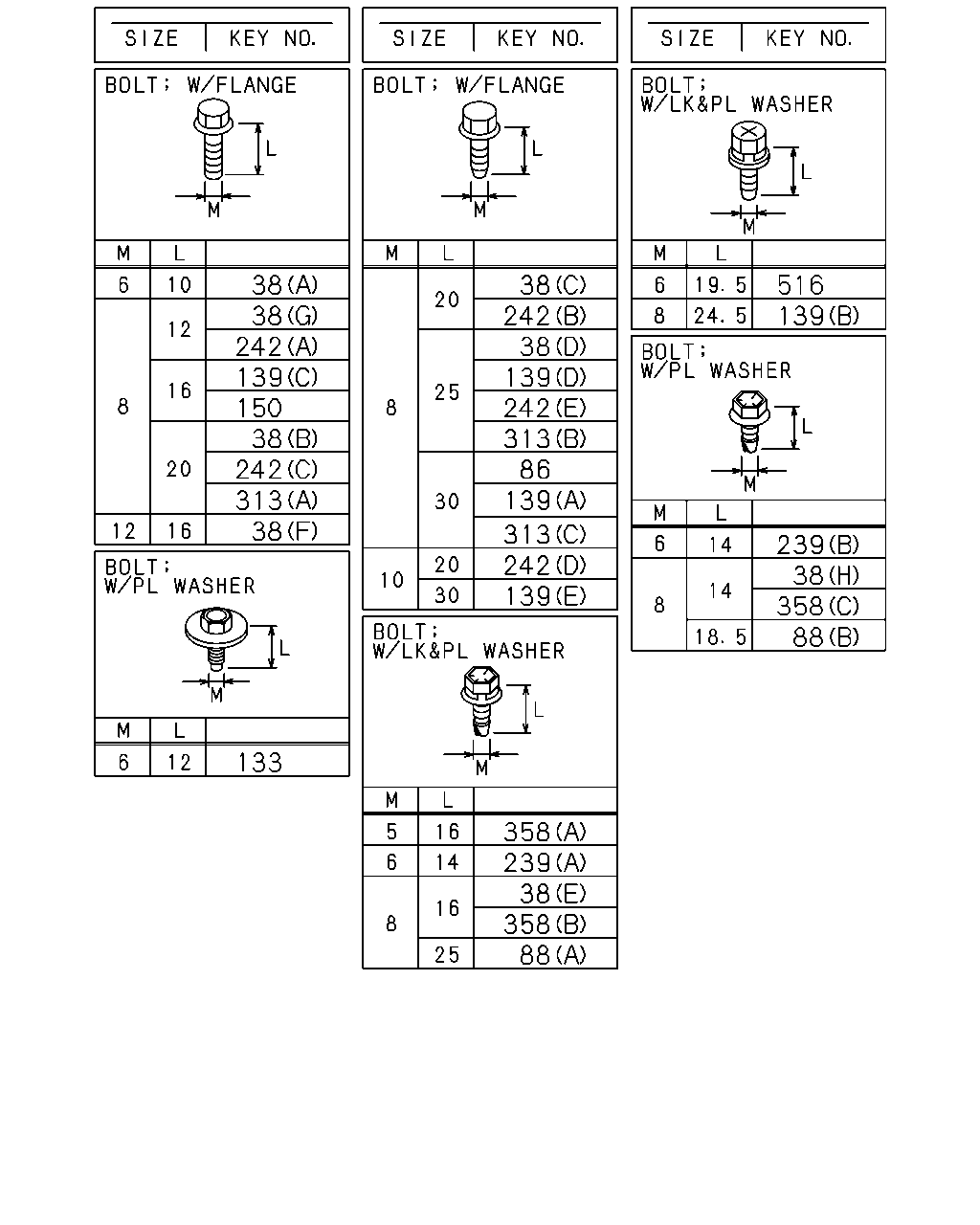

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (G) M8X12 FLANGE	0-28050-812-0	01	1	0904-0906
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28050-820-0	05	1	0904-
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28650-820-0	07	1	0904-
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28650-825-0	02	1	0904-1409
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28650-825-0	01	1	1410-
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28650-825-0	01	1	1410-
38	BOLT; CLIP,HARNESS (A) M6X10 FLANGE	0-28050-610-0	01	1	0904-
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28650-820-0	02	1	0904-
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28650-820-0	03	1	0904-
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	1-09044-079-0	01	1	0904-1105
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	0-28051-216-0	01	1	1106-
38	BOLT; CLIP,HARNESS (E) M8X16 W/LK&PL WASHER	8-97087-055-0	03	1	0904-1201
38	BOLT; CLIP,HARNESS (H) M8X14 W/PL WASHER	8-98164-837-0	03	1	1202-
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0904-
88	BOLT; DOOR HARNESS EARTH (A) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0904-1007
88	BOLT; DOOR HARNESS EARTH (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1008-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	0904-
139	BOLT; BRKT (E) M10X30 FLANGE	0-28151-030-0	01	1	1112-
139	BOLT; BRKT (C) M8X16 FLANGE	0-28050-816-0	02	1	0904-
139	BOLT; BRKT (D) M8X25 FLANGE	0-28650-825-0	01	1	0904-
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	04	1	0904-
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	05	1	0904-
139	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0904-0904
139	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
150	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	13	1	0904-
239	BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0904-1007
239	BOLT; GRAND (B) M6X14 W/PL WASHER	8-98164-836-0	02	1	1008-
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28650-820-0	02	1	0904-
242	BOLT; BRKT,HARNESS (E) M8X25 FLANGE	0-28650-825-0	02	1	0904-
242	BOLT; BRKT,HARNESS (A) M8X12 FLANGE	0-28050-812-0	01	1	0904-
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28050-820-0	04	1	0904-
242	BOLT; BRKT,HARNESS (D) M10X20 FLANGE	0-28651-020-0	02	1	0904-
313	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	03	1	0904-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0904-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	06	1	0904-
358	BOLT; EARTH (A) M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0904-
358	BOLT; EARTH (B) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0904-1201
358	BOLT; EARTH (C) M8X14 W/PL WASHER	8-98164-837-0	01	1	1202-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0904-

211 312 312 211 312 312 312 312 334 335 375 342

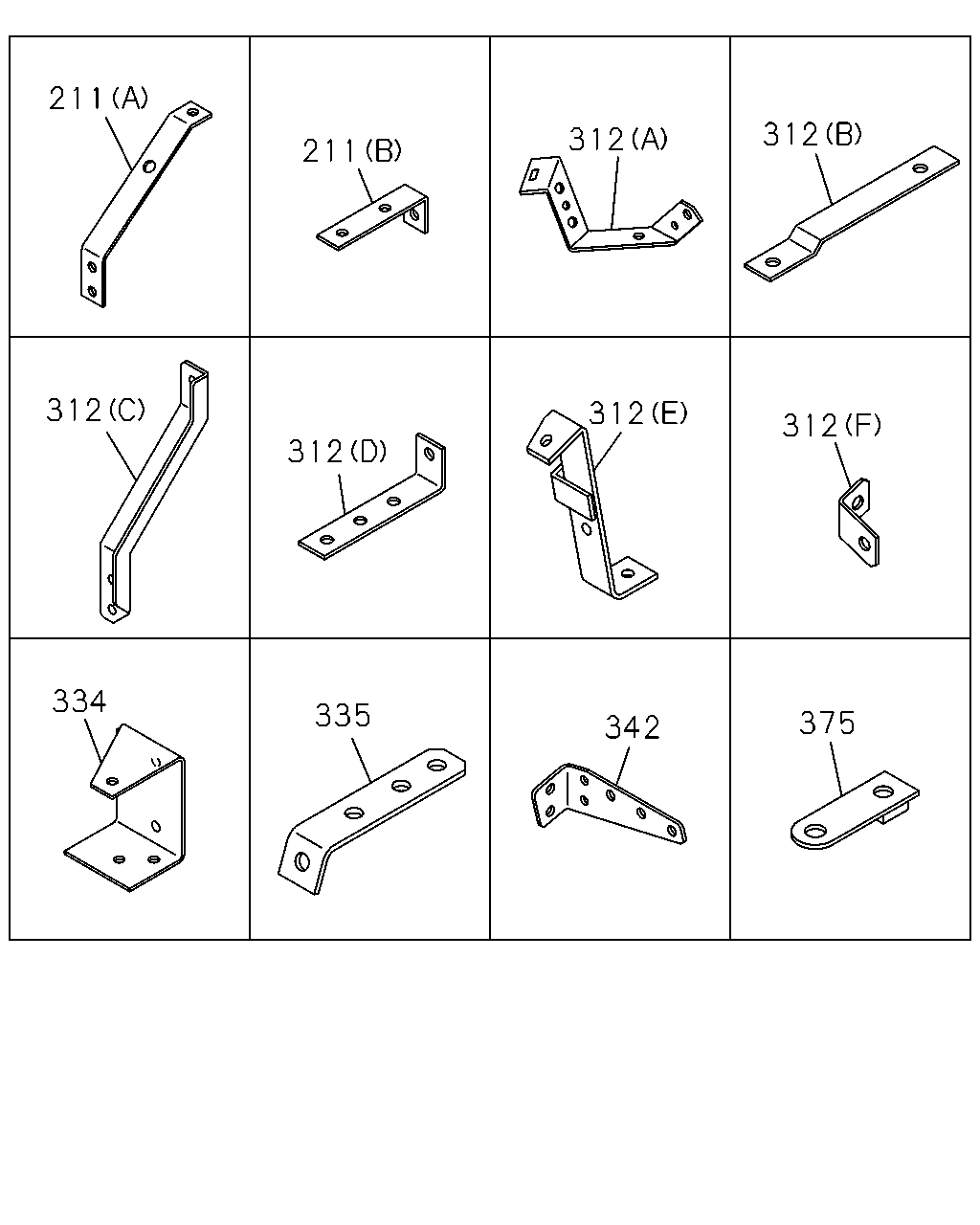

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
211	BRACKET; AXLE HARNESS (A)	1-47479-430-0	02	1	0904-
211	BRACKET; AXLE HARNESS (B)	1-82698-588-0	01	1	0904-
312	BRACKET; CLIP HARNESS (D) L=120 H=35	1-82698-088-0	01	1	0904-
312	BRACKET; CLIP HARNESS (A)	1-82698-556-0	01	1	0904-
312	BRACKET; CLIP HARNESS (F)	1-82699-199-0	01	1	0904-
312	BRACKET; CLIP HARNESS (B)	8-98035-927-1	01	1	0904-
312	BRACKET; CLIP HARNESS (C)	8-98052-591-0	01	1	0904-
312	BRACKET; CLIP HARNESS (E) L=195.5	1-82698-502-0	01	1	0904-
334	BRACKET	1-53457-153-2	01	1	0904-
335	BRACKET; CONNECTOR	1-82698-167-0	01	1	0904-
342	BRACKET; HARNESS CAB MTG	1-82699-625-0	01	1	0904-
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	0904-

530 292 1 1 1 530 292 178 178 178 178 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	0904-
1	SLEEVE; RUBBER (C) ID=38.1 L=50	5-09360-835-0	01	1	0904-
1	SLEEVE; RUBBER (B) ID=18 OD=22 L=25	8-94412-773-0	01	1	0904-
178	GROMMET; HARNESS (B) W/SLIT ID=24 OD=30 T=22	1-09332-104-0	01	1	0904-
178	GROMMET; HARNESS (B) W/SLIT ID=24 OD=30 T=22	1-09332-104-0	01	1	0904-
178	GROMMET; HARNESS (D) ID=39 OD=45 T=13	1-09332-076-0	02	1	0904-
178	GROMMET; HARNESS (C) ID=32 OD=40 T=23	1-09332-112-0	01	1	0904-
178	GROMMET; HARNESS (B) W0/SLIT ID=24 OD=30 T=22	1-09332-126-0	02	1	0904-
178	GROMMET; HARNESS (A) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	0904-
178	GROMMET; HARNESS (E)	1-82698-551-0	01	1	0904-
292	CAP; RUBBER (A)	1-82690-667-0	01	1	0904-
292	CAP; RUBBER (B)	1-82691-239-0	02	1	0904-
530	SEAL; HARNESS (A) 180X40	1-72498-019-1	16	1	0904-
530	SEAL; HARNESS (A) 100X40	1-72498-022-1	02	1	0904-
530	SEAL; HARNESS (B) OD=25 BLACK	1-76798-019-0	01	1	0904-
530	SEAL; HARNESS LOW ROOF<6XQ> (A) 100X40	1-72498-022-1	01	1	0904-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
