Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11199 - CYZ NEW ZEALAND EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶

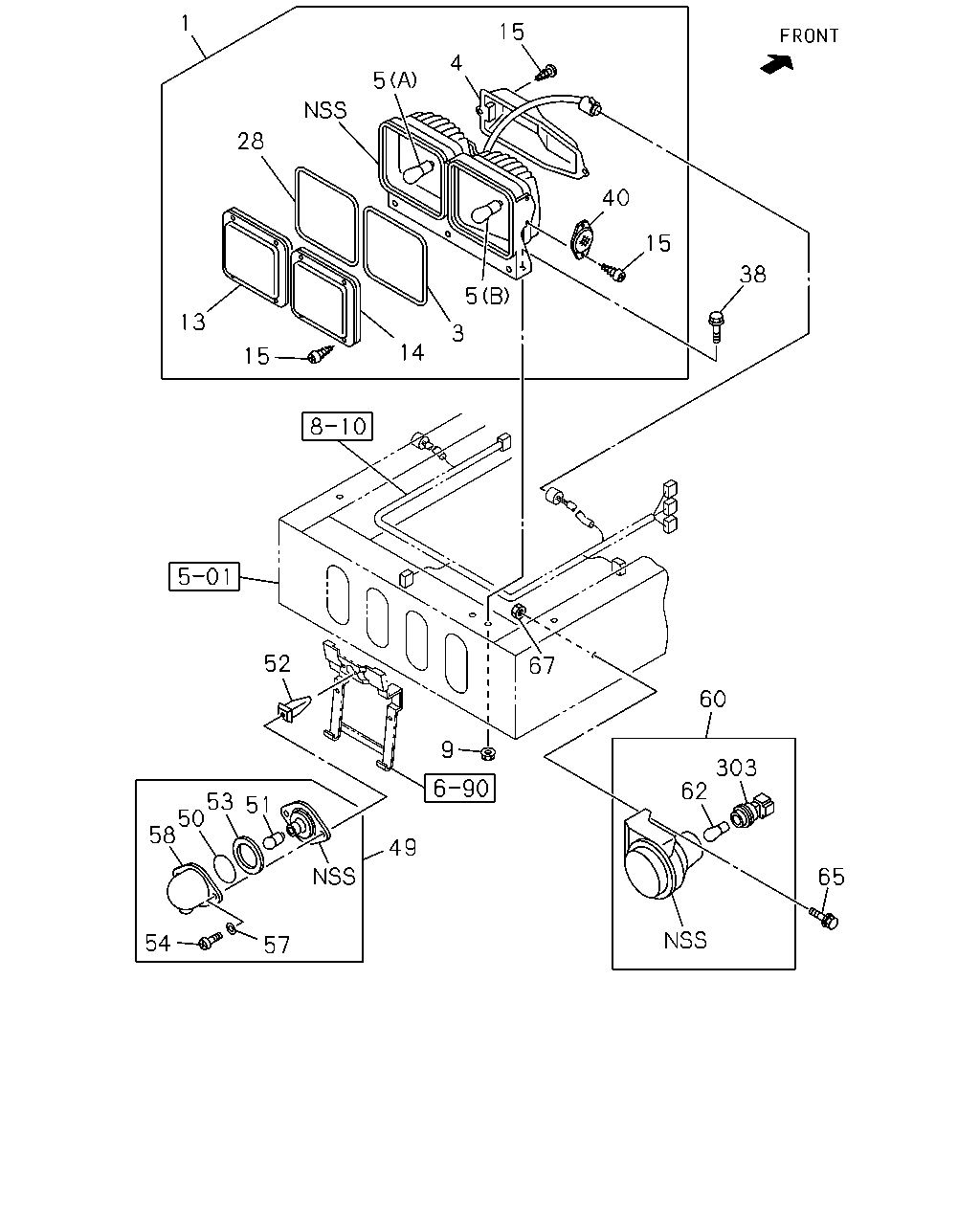

8-03 — LAMP; REAR AND REAR SIDE
(#16540) — 26 parça
1
28
5
4
15
40
15
38
5
3
14
15
13
67
9
52
49
53
51
50
58
54
57
60
303
62
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; RR COMB
1-82230-203-6
01
1
0904-
1
LAMP ASM; RR COMB
1-82230-204-5
01
1
0904-
3
GASKET; RR COMB LAMP
1-82236-008-0
02
1
0904-
4
COVER; RR,RR COMB LAMP
1-82239-011-0
02
1
0904-
5
BULB; RR COMB LAMP
(A) 24V 21W
1-82194-108-0
02
1
0904-
5
BULB; RR COMB LAMP
(B) 24V 21/5W
1-82194-109-0
02
1
0904-
9
NUT; LAMP,RR COMB
M8 FLANGE
0-91180-108-0
02
1
0904-
13
LENS; TURN SIGNAL
1-82235-036-0
02
1
0904-
14
LENS; TAIL & STOP,RR COMB LAMP
1-82235-035-0
02
1
0904-
15
SCREW; RR COMB LAMP
1-82239-012-0
26
1
0904-
28
GASKET; TURN,LAMP
1-82236-008-0
02
1
0904-
38
BOLT; LAMP,RR COMB
M8X35 W/LK&PL WASHER
1-09030-073-0
02
1
0904-
40
REFLECTOR; REFLEX
8-97608-772-0
02
1
0904-
49
LAMP; LICENSE PLATE
24V 10W
1-82120-024-1
01
1
0904-
50
LENS; LICENSE PLATE LAMP
1-82235-006-0
01
1
0904-
51
BULB; LICENSE PLATE LAMP
24V 10W
1-82194-037-0
01
1
0904-
52
GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK
8-94275-946-0
02
1
0904-
53
GASKET; LICENSE LAMP
1-82126-005-0
01
1
0904-
54
SCREW; LICENSE PLATE LAMP
M5X20
1-82129-007-0
02
1
0904-
57
WASHER; PL,LICENSE PLATE LAMP
1-82129-008-0
02
1
0904-
58
COVER; LICENSE PLATE LAMP
1-82129-005-0
01
1
0904-
60
LAMP; BACKUP
1-82130-025-0
01
1
0904-
62
BULB; BACKUP LAMP
24V 21W
1-82194-104-0
01
1
0904-
65
BOLT; LAMP,BACKUP
M10X35 W/LK&PL WASHER
0-50641-035-0
02
1
0904-
67
NUT; FLANGE
M10 FLANGE
0-91180-210-0
02
1
0904-
303
SOCKET ASM; BACKUP LAMP
1-82135-006-0
01
1
0904-
