Isuzu WW
▶
TRUCKS
▶
EXY
▶
11680 - EXY RHD EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶

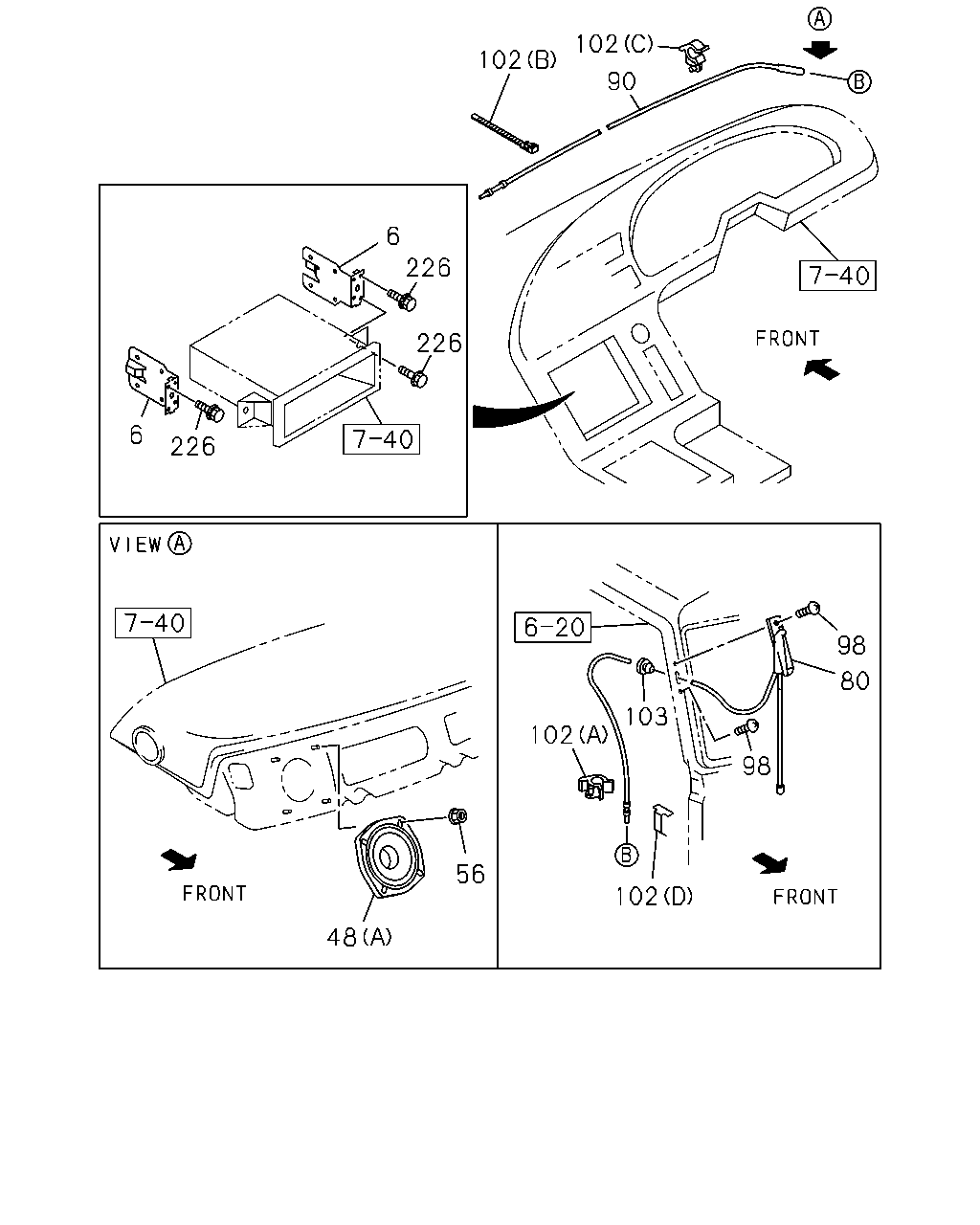

8-90 — RADIO AND TV
(#165348) — 25 parça
◀
[890A] NO.2 (12 parça)
[890A] NO.1 (13 parça)
▶
63
62
49
48
215
52
49
48
68
215
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV> (B)
1-84114-075-1
02
1
1508-
48
SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV> (A)
8-98140-326-1
02
1
1508-
49
SCREW; SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> M5X16 W/LK&PL WASHER
8-94279-400-0
08
1
1508-
52
GROMMET; SCREW,SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> D=8.6X7.7 L=7.5
8-94279-078-0
04
1
1508-
52
GROMMET; SCREW,SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> LOW ROOF<6XQ> D=8.6X7.7 L=7.5
8-94279-078-0
08
1
1508-
62
BOX; RR SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F>
1-73347-749-4
01
1
1508-
62
BOX; RR SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F>
1-73347-748-4
01
1
1508-
63
SCREW; RR SPEAKER BOX
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> M6X16 W/LK&PL WASHER
8-94279-402-0
04
1
1508-
68
BRACKET; RR SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> LOW ROOF<6XQ>
1-73347-786-2
01
1
1508-
68
BRACKET; RR SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> LOW ROOF<6XQ>
1-73347-785-2
01
1
1508-
215
SCREW; BRKT,SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> M5X16 W/PL WASHER TAPPING
8-94279-123-0
04
1
1508-
215
SCREW; BRKT,SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> LOW ROOF<6XQ> M5X16 W/PL WASHER TAPPING
8-94279-123-0
08
1
1508-
102
6
226
226
226
6
102
102
80
98
56
48
102
90
103
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
BRACKET; RADIO TO PANEL
1-65671-822-1
02
1
1508-
48
SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV> (B)
1-84114-075-1
02
1
1508-
48
SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV> (A)
8-98140-326-1
02
1
1508-
56
NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM 4 SPEAKER<NBV> M5 FLANGE
1-09984-170-0
04
1
1508-
80
ANTENNA
8-98210-874-1
01
1
1508-
90
CABLE; ANTENNA,FEEDER
1-84113-011-2
01
1
1508-
98
SCREW; TAP,ANTENNA
M5X11
1-09981-536-1
02
1
1508-
102
CLIP; CABLE
(D) L=20 SET=10 PIECE
1-09987-246-2
01
1
1508-
102
CLIP; CABLE
(A) ID=4.8
1-73907-618-0
05
1
1508-
102
CLIP; CABLE
(B) L=140
5-09707-031-1
01
1
1508-
102
CLIP; CABLE
(C) ID=4.8
8-94128-483-0
03
1
1508-
103
GROMMET; ANTENNA HOLE,FRT
8-97027-381-0
01
1
1508-
226
BOLT; BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
1508-
