◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11680 - EXY RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#165346) — 30 parça

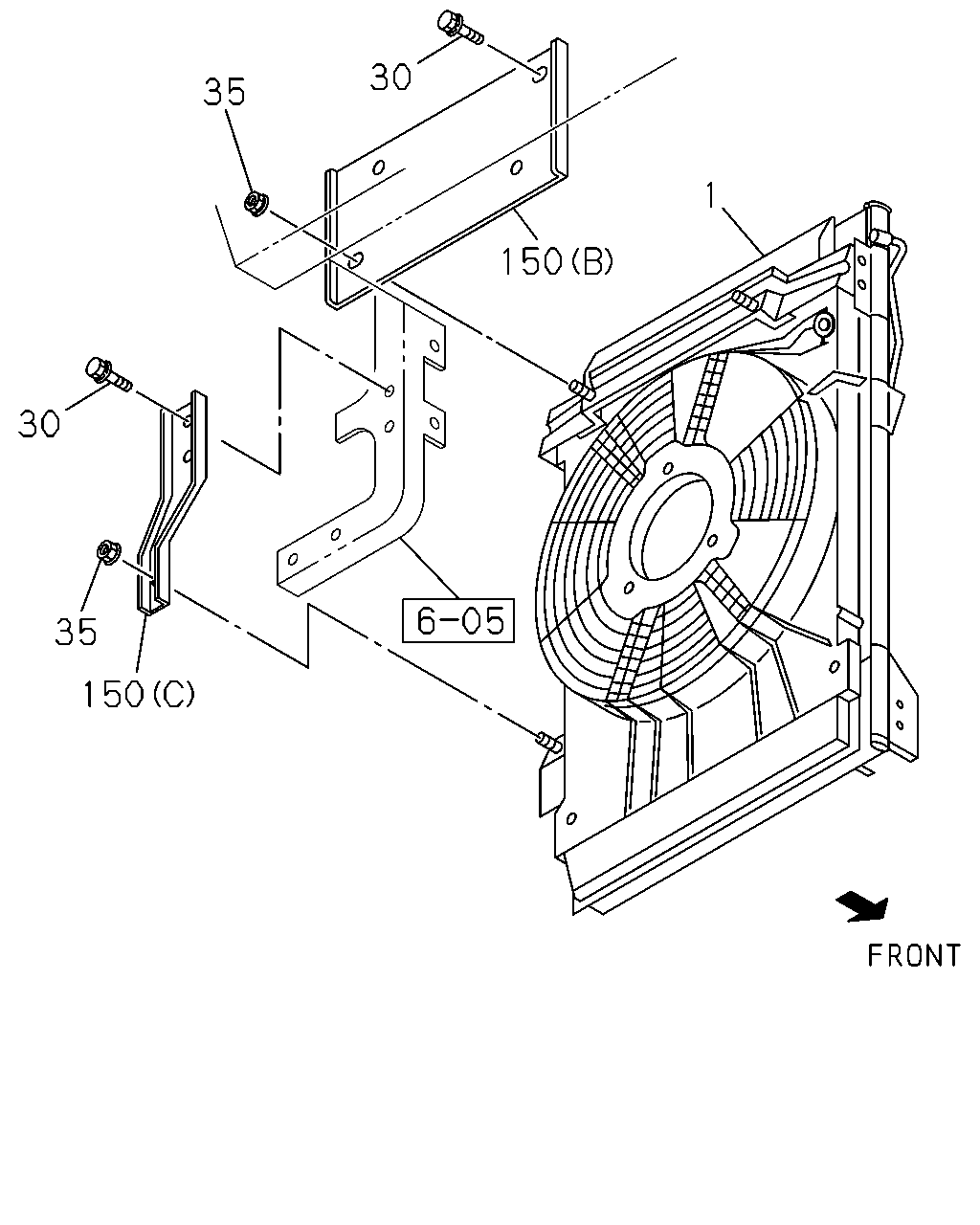

çizim 488338
1 30 35 150 30 35 150
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C 8-98226-805-1 01 1 1508-
30 BOLT; CONDENSER,A/C
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1508-
35 NUT; CONDENSER,A/C
M8 FLANGE 		0-91180-108-0 05 1 1508-
150 BRACKET; CONDENSER,MTG
(B) 		1-83571-984-0 01 1 1508-
150 BRACKET; CONDENSER,MTG
(C) 		1-83571-985-0 01 1 1508-
150 BRACKET; CONDENSER,MTG
(A) 		1-83573-242-1 01 1 1508-

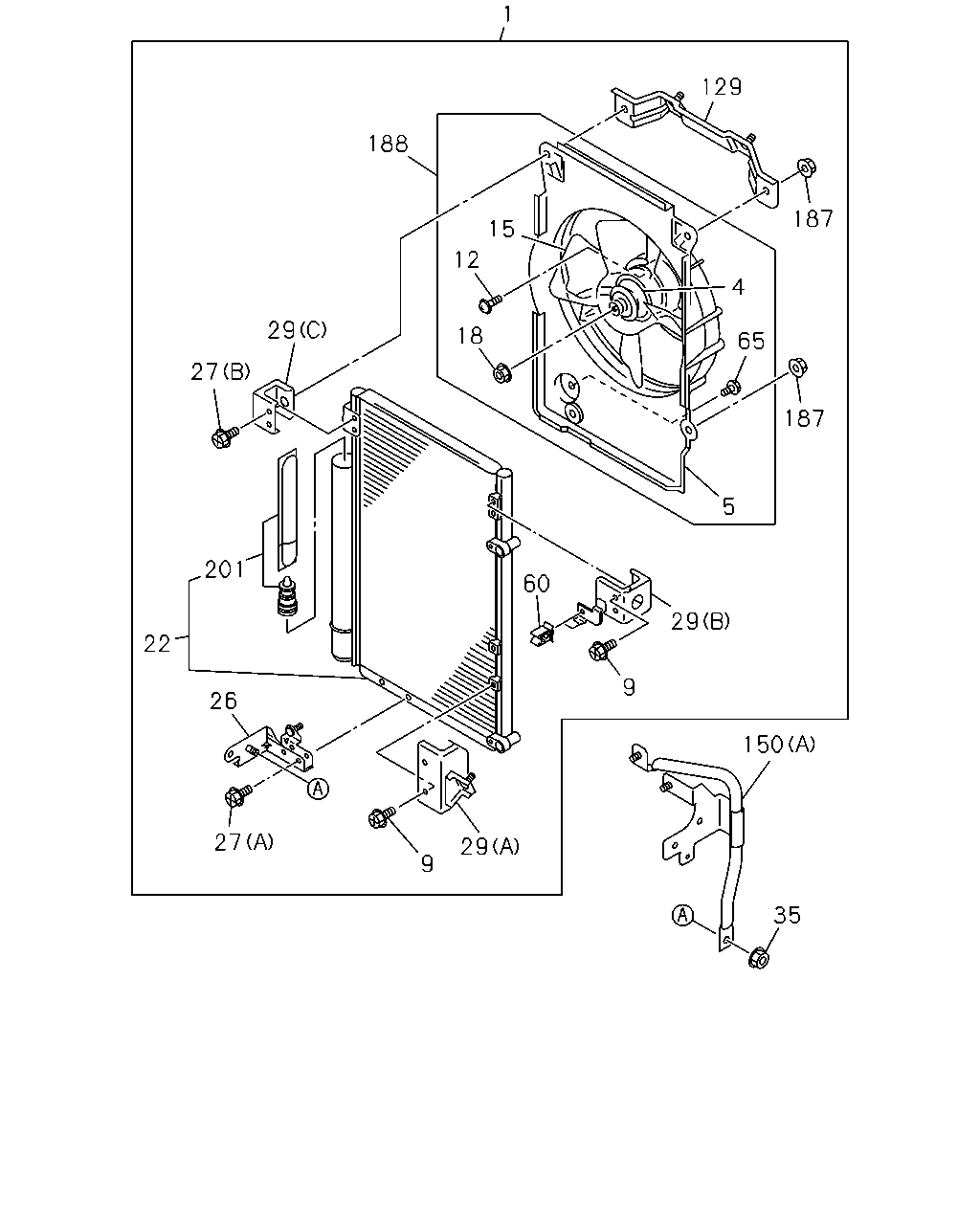

çizim 488470
1 129 187 188 15 12 18 29 27 201 22 26 27 9 29 9 60 29 150 35 65 4 187 5
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C 8-98226-805-1 01 1 1508-
4 MOTOR ASM; FAN 8-98116-585-0 01 1 1508-
5 SHROUD; FAN MOTOR 8-98076-093-0 01 1 1508-
9 BOLT; BRKT
M6X14 		1-83539-382-0 04 1 1508-
12 BOLT; FAN MOTOR 1-83539-314-0 03 1 1508-
15 FAN; MOTOR 8-98076-092-0 01 1 1508-
18 NUT; FAN,CENTER 1-83539-313-0 01 1 1508-
22 CONDENSER ASM; A/C 8-98275-189-0 01 1 1508-
26 BRACKET; LOW 1-83573-281-0 01 1 1508-
27 BOLT; BRKT,LOW SIDE
(B) M6X14 		1-83539-382-0 02 1 1508-
27 BOLT; BRKT,LOW SIDE
(A) M5X25 		8-97178-770-0 02 1 1508-
29 BRACKET; SIDE
(C) 		1-83573-278-0 01 1 1508-
29 BRACKET; SIDE
(B) 		1-83573-279-0 01 1 1508-
29 BRACKET; SIDE
(A) 		1-83573-280-0 01 1 1508-
35 NUT; CONDENSER,A/C
M8 FLANGE 		0-91180-108-0 05 1 1508-
60 CLIP; PIPE 1-83574-266-0 01 1 1508-
65 BOLT; SHROUD
M6X16 		8-97096-525-0 01 1 1508-
129 BRACKET; UPR 1-83573-129-0 01 1 1508-
150 BRACKET; CONDENSER,MTG
(B) 		1-83571-984-0 01 1 1508-
150 BRACKET; CONDENSER,MTG
(C) 		1-83571-985-0 01 1 1508-
150 BRACKET; CONDENSER,MTG
(A) 		1-83573-242-1 01 1 1508-
187 NUT; SHROUD
M6 		1-83539-354-0 04 1 1508-
188 BLOWER ASM; SHROUD 8-98228-444-0 01 1 1508-
201 DRYER ASM; CONDENSER 8-98282-482-0 01 1 1508-
