◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11680 - EXY RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#165342) — 38 parça

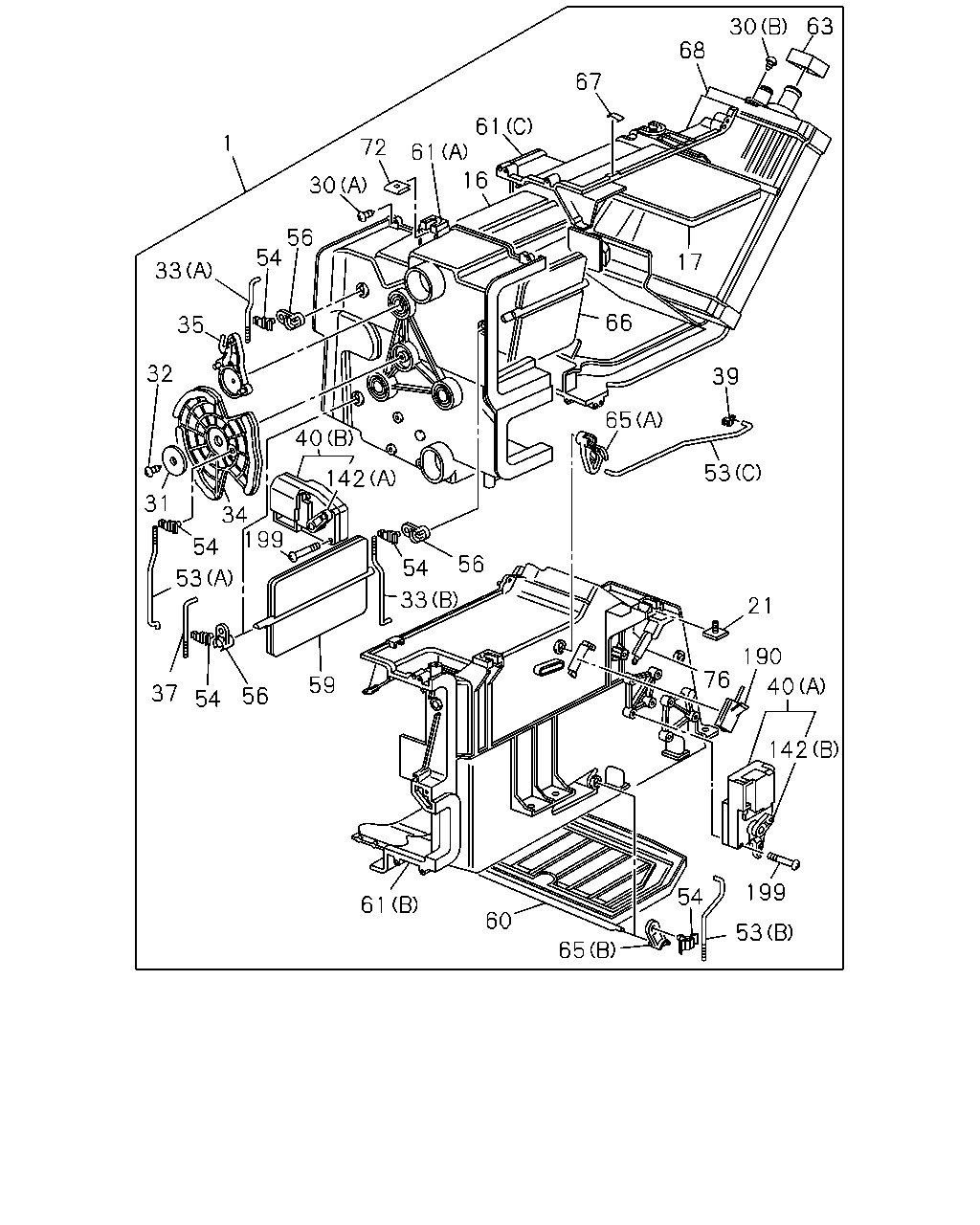

çizim 488637
67 68 30 63 61 61 72 30 56 54 33 35 32 31 34 54 53 37 54 56 59 33 54 56 61 60 65 54 199 53 142 40 190 76 21 65 53 39 66 17 40 142 199 16 1
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 8-98238-482-0 01 1 1508-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 1508-
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 1508-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 1508-
30 SCREW; HTR UNIT
(A) M5X16 		8-94248-820-0 01 1 1508-
30 SCREW; HTR UNIT
(B) M4X16 		8-94324-850-0 12 1 1508-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 1508-
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1508-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 1508-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 1508-
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 1508-
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 1508-
37 ROD; LEVER 1-83579-620-1 01 1 1508-
39 CLIP; HTR UNIT 1-83574-136-0 01 1 1508-
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-2 01 1 1508-
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 1508-
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 1508-
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 1508-
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 1508-
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 1508-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 1508-
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 1508-
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 1508-
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 1508-
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 1508-
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 1508-
63 LINING; HTR UNIT 1-83579-557-0 02 1 1508-
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 1508-
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 1508-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-680-0 01 1 1508-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 1508-
68 CORE; HTR UNIT 8-98238-475-0 01 1 1508-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 1508-
76 BRACKET; HTR UNIT 1-83571-874-0 01 1 1508-
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 1508-
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 1508-
190 SENSOR; HEATER UNIT 1-83579-658-1 01 1 1508-
199 SCREW; ACTUATOR 8-94348-809-0 04 1 1508-
