Isuzu WW
▶
TRUCKS
▶
EXY
▶
11680 - EXY RHD EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-52 - PIPING; AIR CONDITIONING
▶
8-52 — PIPING; AIR CONDITIONING
(#165341) — 60 parça
◀

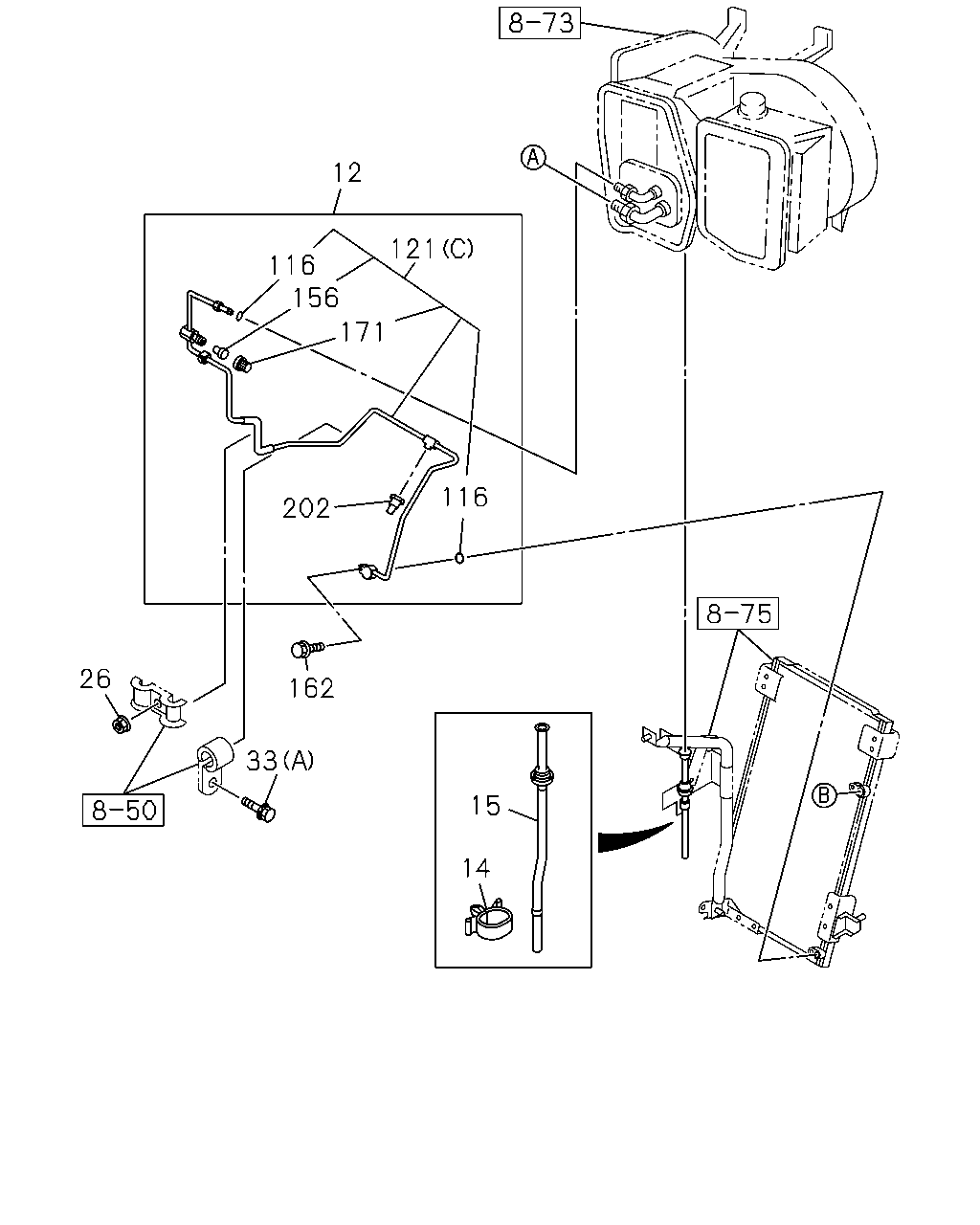

[852A] CAB SIDE NO.1 (14 parça)

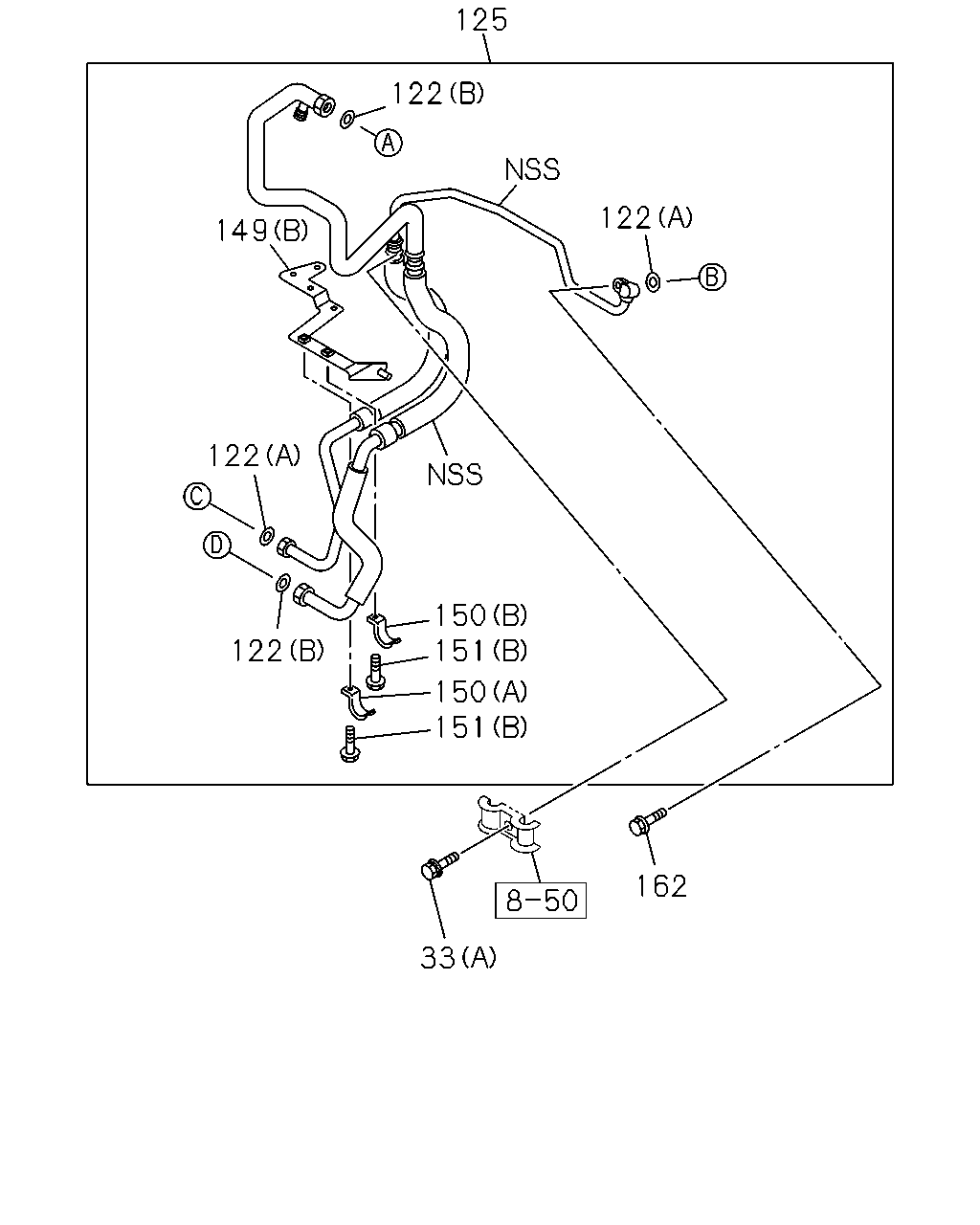

[852A] CAB SIDE NO.2 (16 parça)

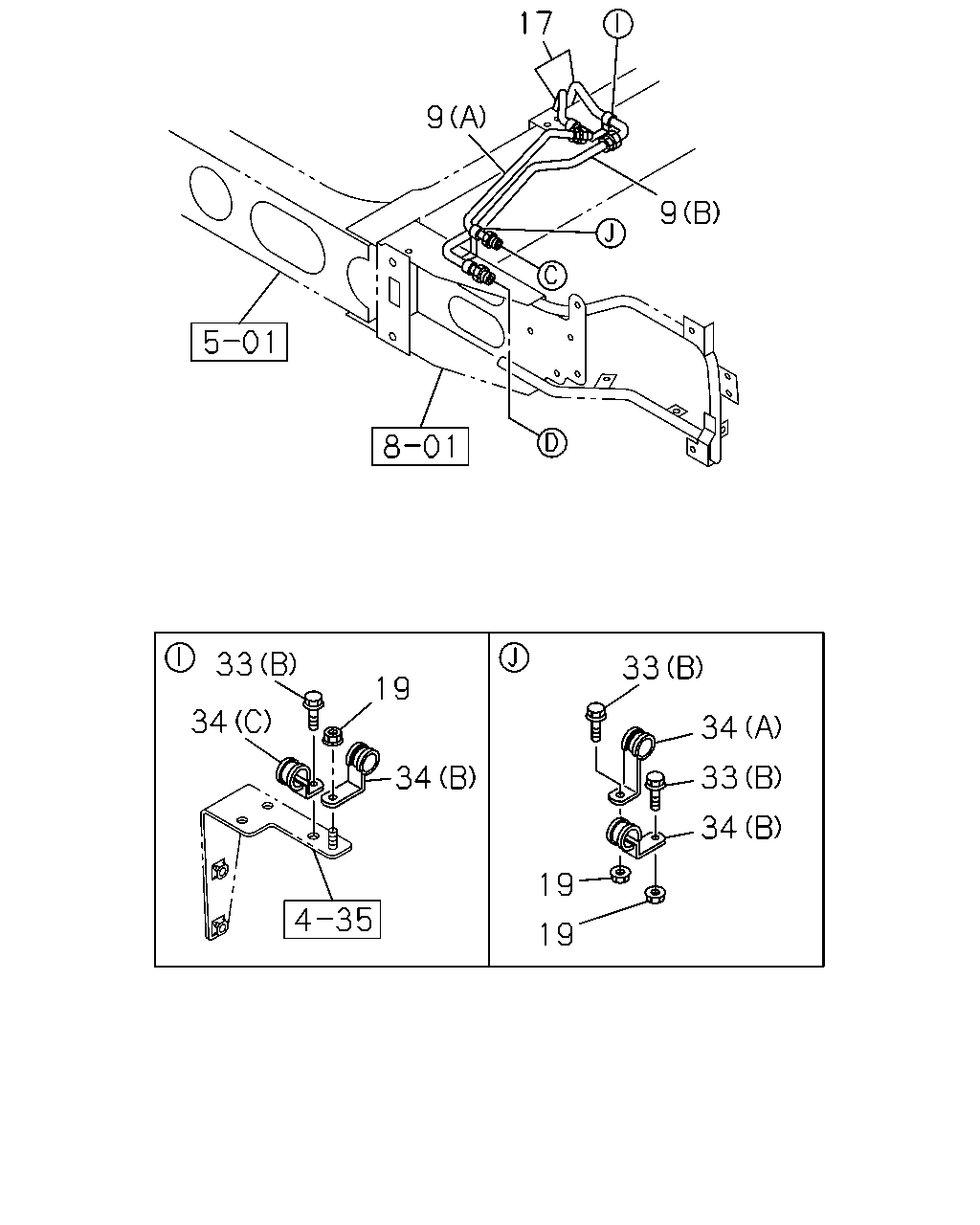

[852A] FRAME SIDE NO.1 (9 parça)

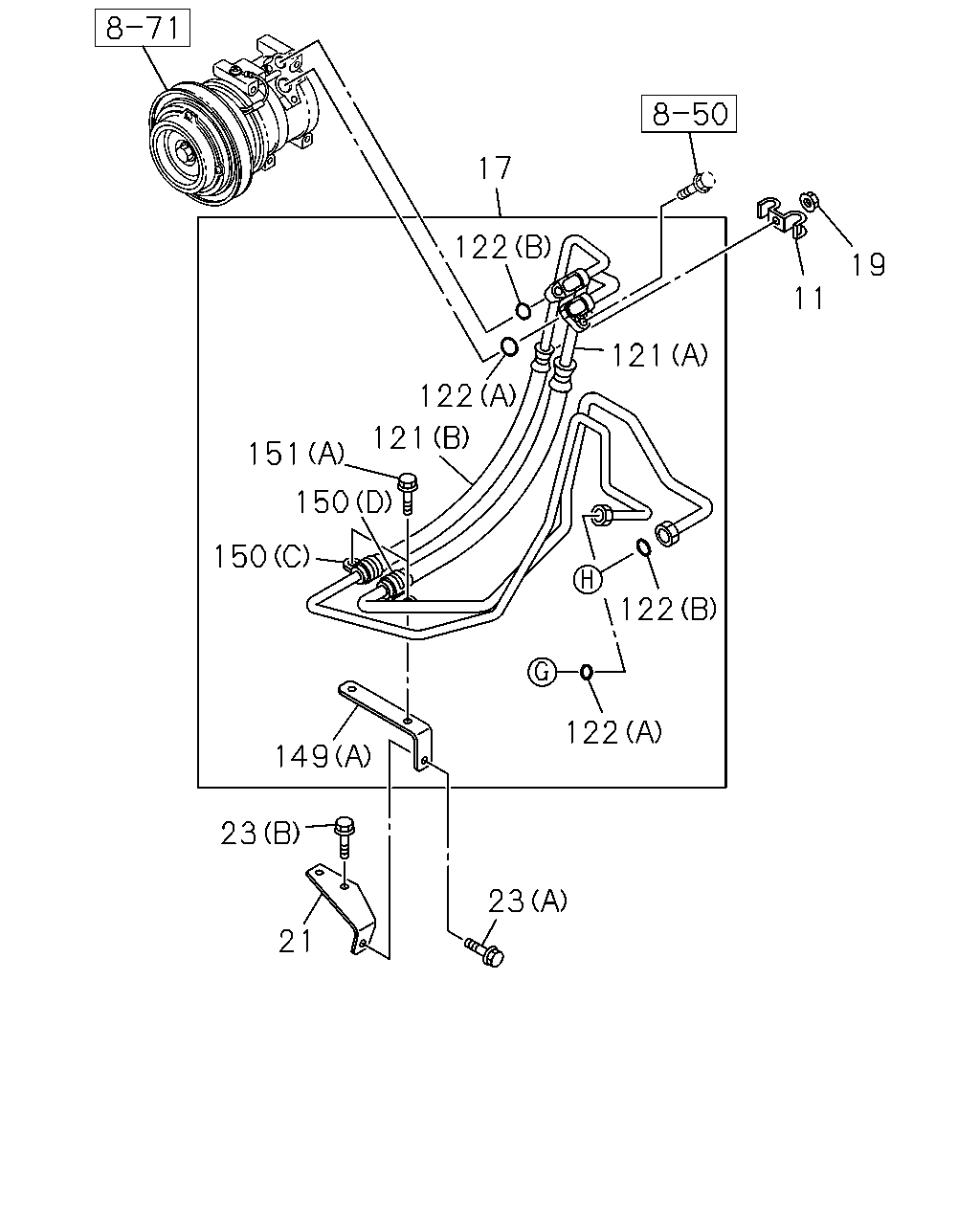

[852A] FRAME SIDE NO.2 (21 parça)
▶
12
116
121
156
171
202
116
162
26
33
15
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
PIPE; COOLER,EVAP TO TANK
1-83567-877-1
01
1
1508-
14
CLIP; BAND,EVAP DRAIN HOSE
ID=20
8-94410-200-0
01
1
1508-
15
HOSE; DRAIN
1-83572-635-0
01
1
1508-
26
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
01
1
1508-
33
BOLT; CLIP
(B) M8X20 FLANGE
0-28650-820-0
02
1
1508-
33
BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1508-
116
GASKET; PIPE
ID=7.4
8-97095-906-0
02
1
1508-
121
HOSE; COOLER
(C)
1-83577-054-0
01
1
1508-
121
HOSE; COOLER
(A)
8-98309-187-0
01
1
1508-
121
HOSE; COOLER
(B)
8-98309-189-0
01
1
1508-
156
VALVE; PIPE
8-97095-909-0
01
1
1508-
162
BOLT; FLEX HOSE
M6X25 FLANGE
0-28050-625-0
02
1
1508-
171
CAP; PIPE
CAP MARK H
8-97095-911-0
01
1
1508-
202
SWITCH; PRESSURE
1-83564-392-1
01
1
1508-
125
122
149
122
122
150
151
150
151
122
33
162
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
BOLT; CLIP
(B) M8X20 FLANGE
0-28650-820-0
02
1
1508-
33
BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1508-
122
GASKET
(A) ID=11.7
8-97095-907-0
02
1
1508-
122
GASKET
(A) ID=11.7
8-97095-907-0
02
1
1508-
122
GASKET
(B) ID=14.5
8-97095-908-0
02
1
1508-
122
GASKET
(B) ID=14.5
8-97095-908-0
02
1
1508-
125
HOSE; FLEX,UNIT TO CMPR
8-98257-060-0
01
1
1508-
149
BRACKET; COOLER HOSE
(B)
8-98165-879-0
01
1
1508-
149
BRACKET; COOLER HOSE
(A)
8-98232-117-0
01
1
1508-
150
CLIP; HOSE
(C)
1-83574-249-0
01
1
1508-
150
CLIP; HOSE
(A)
1-83574-262-0
01
1
1508-
150
CLIP; HOSE
(B)
1-83574-263-0
01
1
1508-
150
CLIP; HOSE
(D)
1-83574-264-0
01
1
1508-
151
BOLT; CLIP FIX,COOLER HOSE
(B)
1-83539-336-0
02
1
1508-
151
BOLT; CLIP FIX,COOLER HOSE
(A)
1-83578-098-0
02
1
1508-
162
BOLT; FLEX HOSE
M6X25 FLANGE
0-28050-625-0
02
1
1508-
17
9
9
33
34
34
33
19
34
33
34
19
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
PIPE; COOLER,HOSE TO HOSE
(A)
8-98285-129-0
01
1
1508-
9
PIPE; COOLER,HOSE TO HOSE
(B)
8-98285-130-0
01
1
1508-
17
HOSE; FLEX,CMPR TO PIPE
8-98285-128-0
01
1
1508-
19
NUT; CLIP FIX
M8 FLANGE
0-91180-108-0
05
1
1508-
33
BOLT; CLIP
(B) M8X20 FLANGE
0-28650-820-0
02
1
1508-
33
BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1508-
34
CLIP; COOLER PIPE
(B) ID=18 L=38 H=23
1-09701-147-0
02
1
1508-
34
CLIP; COOLER PIPE
(A) ID=16 H=45 L=20
1-09701-161-0
01
1
1508-
34
CLIP; COOLER PIPE
(C) ID=16 H=25 L=25
1-09701-162-0
01
1
1508-
17
122
122
121
11
19
121
151
150
150
149
23
21
23
122
122
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
CLIP; COOLER PIPE
ID=12 & 14.5
1-83574-257-0
01
1
1508-
17
HOSE; FLEX,CMPR TO PIPE
8-98285-128-0
01
1
1508-
19
NUT; CLIP FIX
M8 FLANGE
0-91180-108-0
05
1
1508-
21
BRACKET; COOLER HOSE
8-98227-084-0
01
1
1508-
23
BOLT; BRKT
(A) M8X20 FLANGE
0-28650-820-0
02
1
1508-
23
BOLT; BRKT
(B) M10X25 FLANGE
0-28651-025-0
01
1
1508-
121
HOSE; COOLER
(C)
1-83577-054-0
01
1
1508-
121
HOSE; COOLER
(A)
8-98309-187-0
01
1
1508-
121
HOSE; COOLER
(B)
8-98309-189-0
01
1
1508-
122
GASKET
(A) ID=11.7
8-97095-907-0
02
1
1508-
122
GASKET
(A) ID=11.7
8-97095-907-0
02
1
1508-
122
GASKET
(B) ID=14.5
8-97095-908-0
02
1
1508-
122
GASKET
(B) ID=14.5
8-97095-908-0
02
1
1508-
149
BRACKET; COOLER HOSE
(B)
8-98165-879-0
01
1
1508-
149
BRACKET; COOLER HOSE
(A)
8-98232-117-0
01
1
1508-
150
CLIP; HOSE
(C)
1-83574-249-0
01
1
1508-
150
CLIP; HOSE
(A)
1-83574-262-0
01
1
1508-
150
CLIP; HOSE
(B)
1-83574-263-0
01
1
1508-
150
CLIP; HOSE
(D)
1-83574-264-0
01
1
1508-
151
BOLT; CLIP FIX,COOLER HOSE
(B)
1-83539-336-0
02
1
1508-
151
BOLT; CLIP FIX,COOLER HOSE
(A)
1-83578-098-0
02
1
1508-
