8-40 — HEATER SYSTEM (#165338) — 49 parça

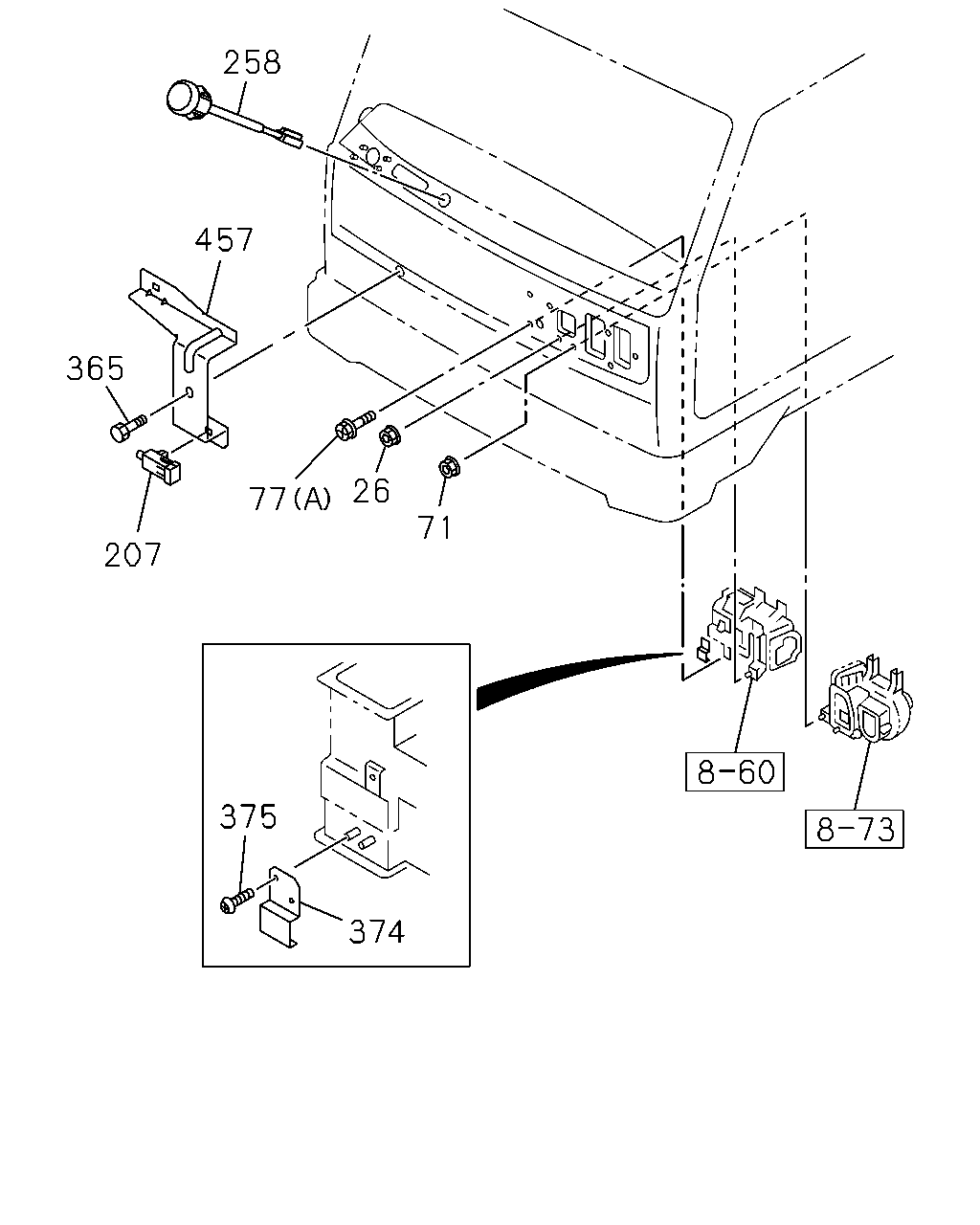

çizim 488330
258 457 365 207 77 26 71 375 374
BalonParca AdiParca NoAdetTipApplied Date
26 NUT; HTR
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1508-
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 1508-
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 1508-
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1508-
207 SENSOR; AMBIENT 8-98214-375-0 01 1 1508-
258 SENSOR; SUN 8-94472-043-2 01 1 1508-
365 BOLT; SENSOR
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 1508-
374 HOLDER; DUCT 1-76398-012-1 01 1 1508-
375 SCREW; HOLDER
M5X14 		8-94279-325-0 02 1 1508-
457 BRACKET; SENSOR 1-71907-603-1 01 1 1508-

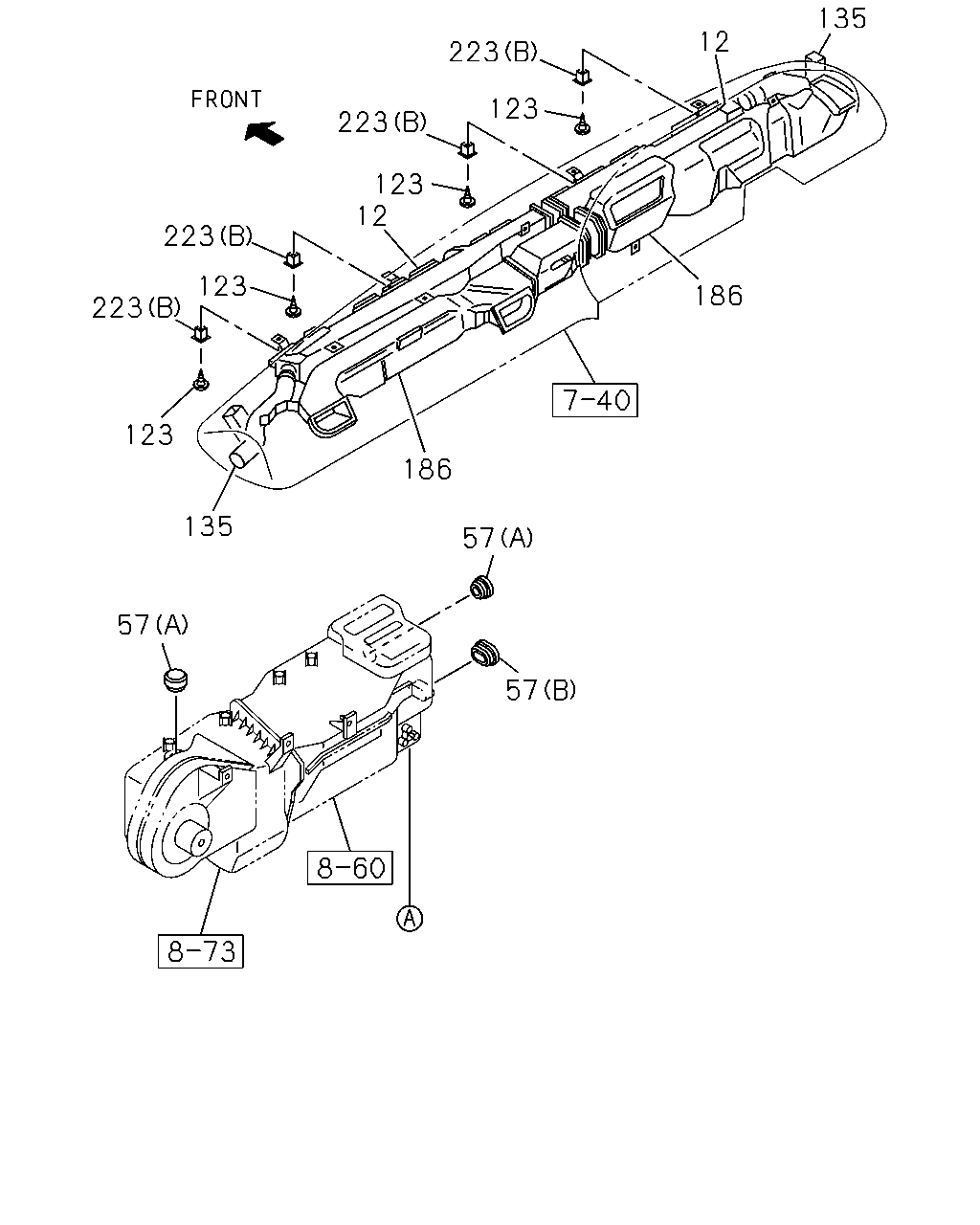

çizim 488386
135 12 223 123 223 123 12 223 123 223 123 135 57 57 57 186 186
BalonParca AdiParca NoAdetTipApplied Date
12 NOZZLE; DEFROSTER 1-76377-153-5 01 1 1508-
12 NOZZLE; DEFROSTER 1-76377-172-7 01 1 1508-
57 COVER; INL DUCT
(A) 		1-83579-617-0 02 1 1508-
57 COVER; INL DUCT
(B) 		1-83579-618-0 01 1 1508-
123 SCREW; DUCT
M5X14 		8-94279-325-0 12 1 1508-
135 HOSE; DEFROSTER 1-76378-253-4 01 1 1508-
135 HOSE; DEFROSTER 1-76378-252-7 01 1 1508-
186 DUCT; VENTILATOR 1-76377-243-1 01 1 1508-
186 DUCT; VENTILATOR 1-76377-246-0 01 1 1508-
223 GROMMET; SCREW
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 05 1 1508-
223 GROMMET; SCREW
(B) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 1508-

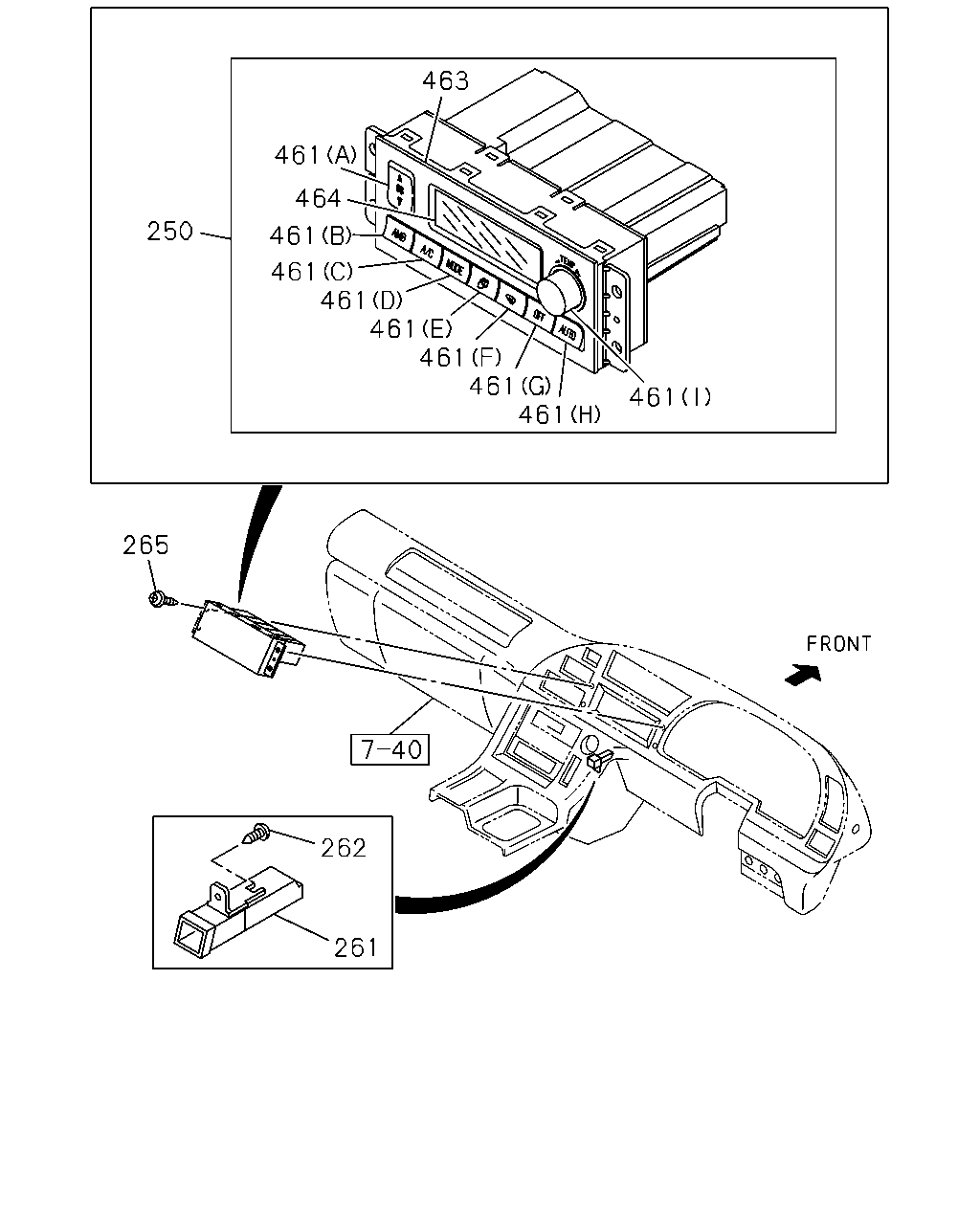

çizim 488397
463 461 464 461 461 461 461 461 461 461 461 250 265 262 261
BalonParca AdiParca NoAdetTipApplied Date
250 CONTROL ASM; A/C 1-83543-038-1 01 1 1508-
261 SENSOR; IN CAR 1-83544-023-1 01 1 1508-
262 SCREW; IN CAR SENSOR
M5X14 		8-94279-325-0 01 1 1508-
265 SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 01 1 1508-
461 KNOB; CONTROL ASM,A/C
(A) FAN 		1-83549-018-0 01 1 1508-
461 KNOB; CONTROL ASM,A/C
(B) AMB 		1-83549-019-0 01 1 1508-
461 KNOB; CONTROL ASM,A/C
(C) A/C 		1-83549-020-0 01 1 1508-
461 KNOB; CONTROL ASM,A/C
(D) MODE 		1-83549-021-0 01 1 1508-
461 KNOB; CONTROL ASM,A/C
(E) REC 		1-83549-022-0 01 1 1508-
461 KNOB; CONTROL ASM,A/C
(F) DEF 		1-83549-023-0 01 1 1508-
461 KNOB; CONTROL ASM,A/C
(G) OFF 		1-83549-024-0 01 1 1508-
461 KNOB; CONTROL ASM,A/C
(H) AUTO 		1-83549-025-0 01 1 1508-
461 KNOB; CONTROL ASM,A/C
(I) TEMP 		1-83549-026-0 01 1 1508-
463 BEZEL; CONTROL PANEL 1-83549-027-0 01 1 1508-
464 PLATE; CONTROL PANEL 1-83549-028-0 01 1 1508-

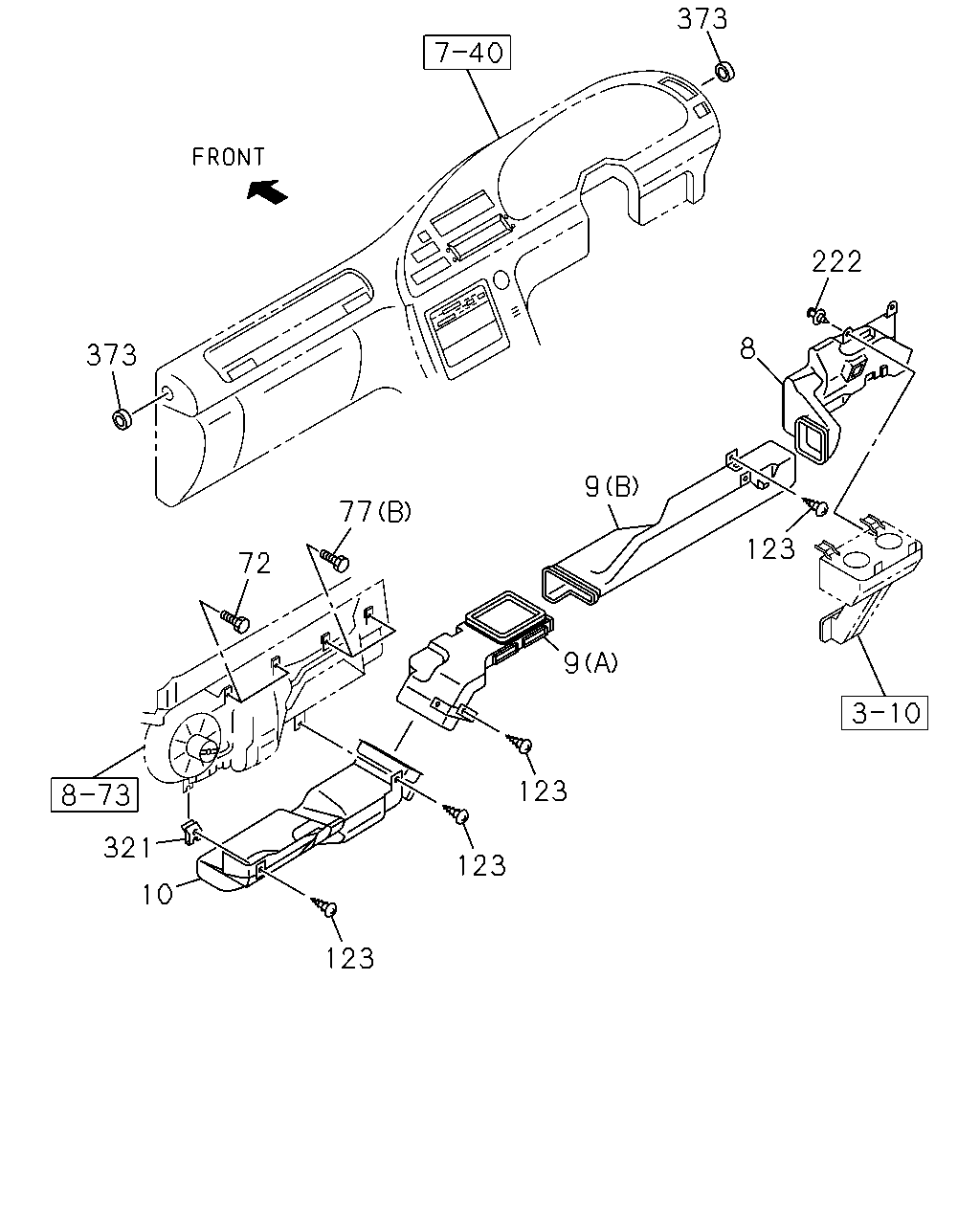

çizim 488512
123 123 123 10 321 72 77 373 373 222 8 123 9 9
BalonParca AdiParca NoAdetTipApplied Date
8 DUCT; HTR AIR,DRIVER FOOT 1-76377-208-0 01 1 1508-
9 DUCT; HTR AIR,FOOT CENTER
(B) 		1-76377-210-1 01 1 1508-
9 DUCT; HTR AIR,FOOT CENTER
(A) 		1-76377-226-2 01 1 1508-
10 DUCT; HTR AIR,ASSIST FOOT 1-76377-204-2 01 1 1508-
72 BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1508-
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 1508-
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1508-
123 SCREW; DUCT
M5X14 		8-94279-325-0 12 1 1508-
222 FASTENER; DUCT
D6X12.5 		8-94146-425-0 02 1 1508-
321 NUT; DUCT FIX
M5 		1-09984-196-0 01 1 1508-
373 RUBBER; JOINT 1-76378-291-0 02 1 1508-

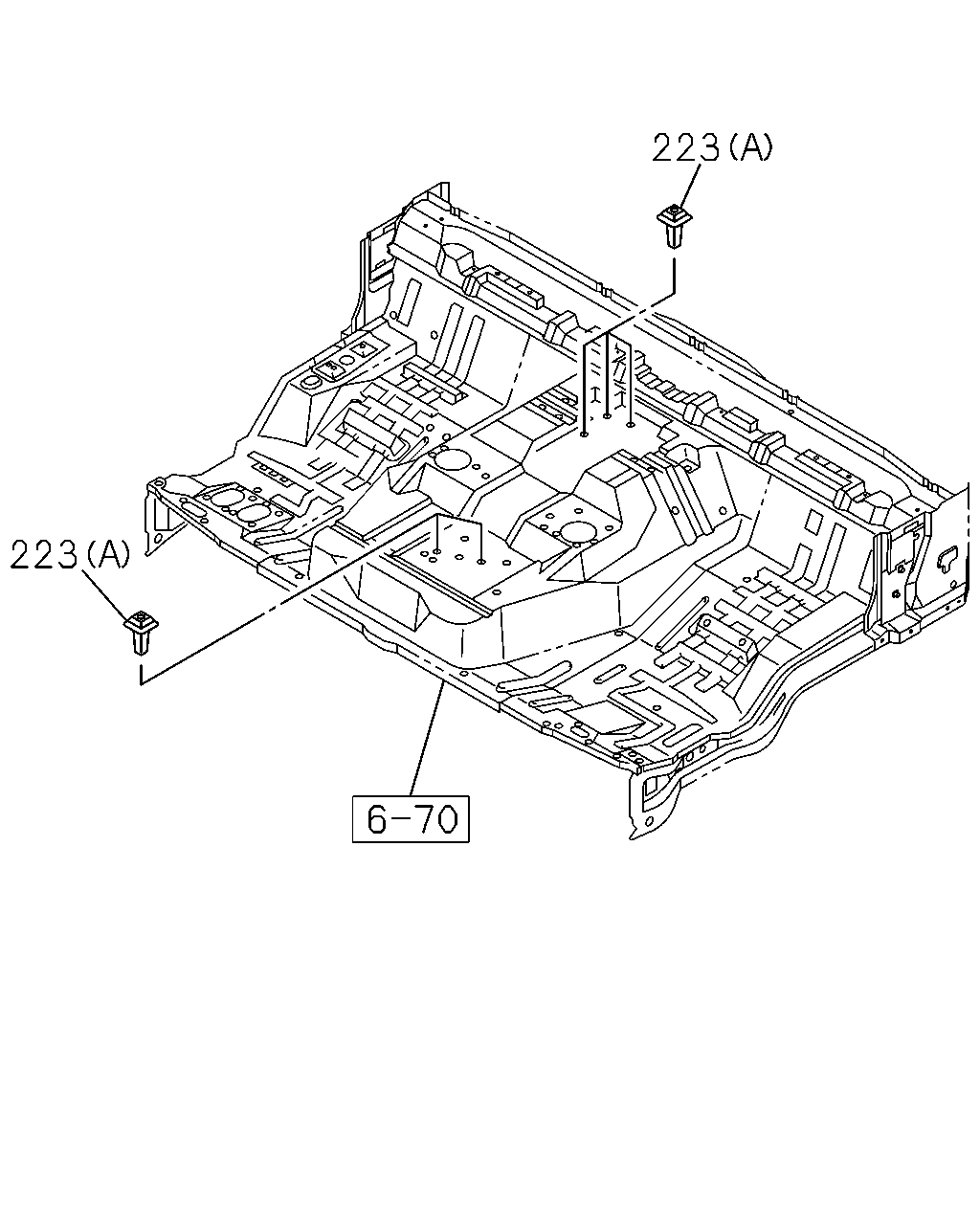

çizim 488706
223 223
BalonParca AdiParca NoAdetTipApplied Date
223 GROMMET; SCREW
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 05 1 1508-
223 GROMMET; SCREW
(B) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 1508-
