Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#165337) — 279 parça

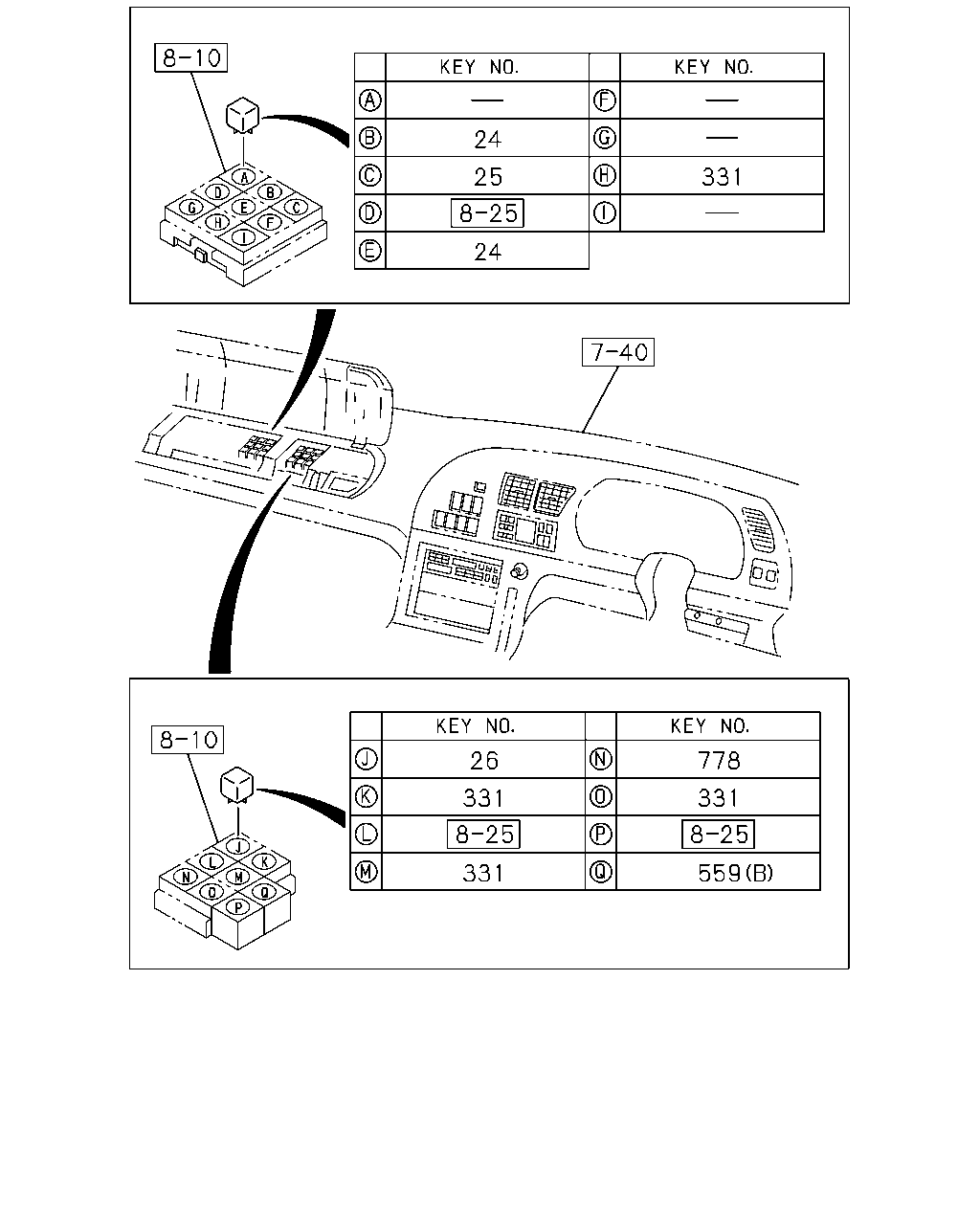

24 25 24 331 26 331 331 778 331 559

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	1508-
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1508-
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	1508-
331	RELAY; A/C 24V 12.5A PANASONIC	8-97262-933-0	04	1	1508-
559	RELAY; MAG VLV MJX16P M/T(Y3Z) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
559	RELAY; MAG VLV MJX16P M/T(Y3Z) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1508-
778	RELAY; DEF DCM EXH NOX SENSOR 24V 12.5A PANASONIC	8-97262-933-0	01	1	1508-

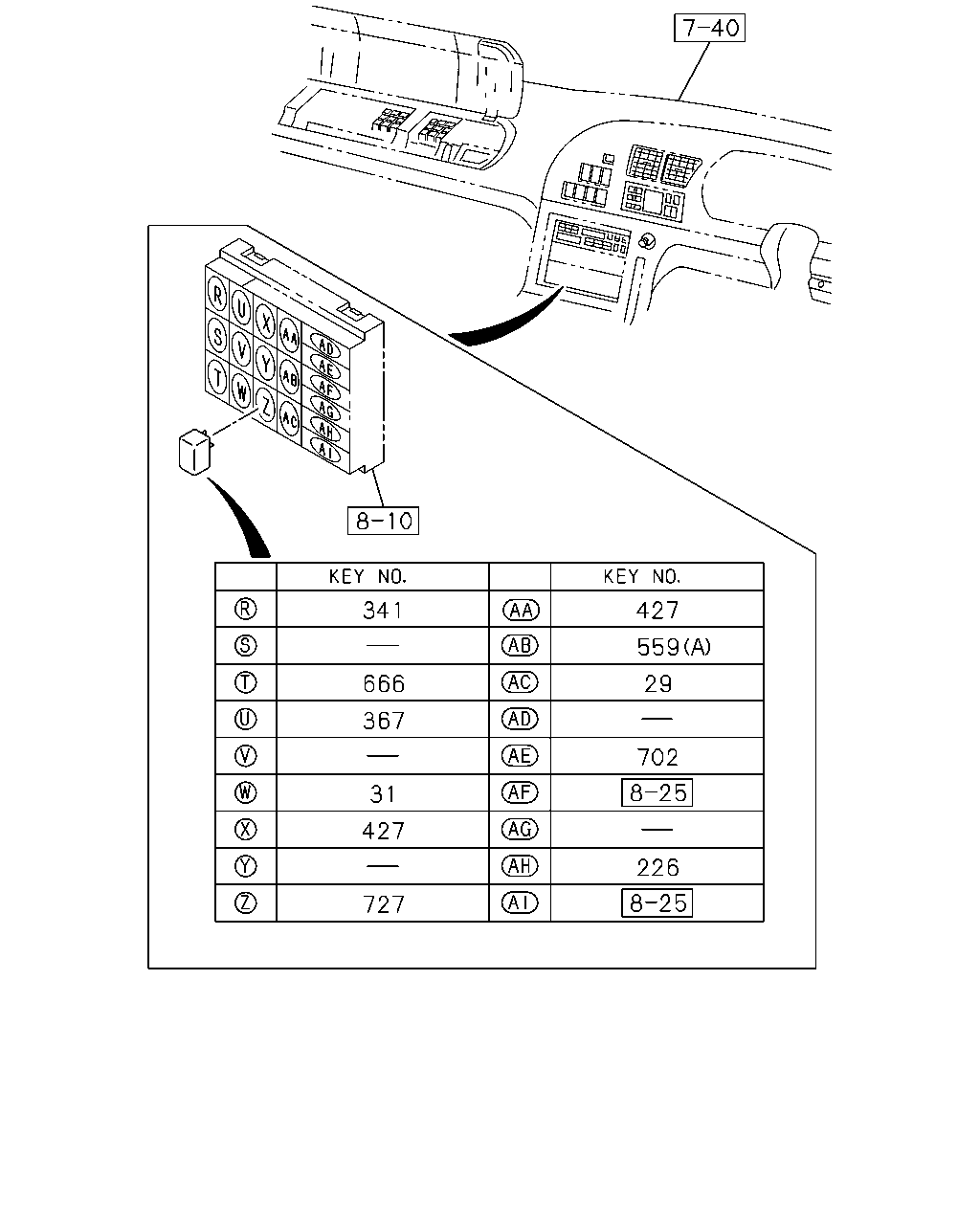

341 666 367 31 427 727 427 559 29 702 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	RELAY; HORN 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
31	RELAY; PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
226	RELAY; EXH BRK 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
341	RELAY FULL FLOATING CAB(W16) 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
367	RELAY; NEUTRAL MJX16P M/T(Y3Z) 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
427	RELAY; RETARDER 24V 10A PANASONIC	8-97173-035-1	02	1	1508-
559	RELAY; MAG VLV MJX16P M/T(Y3Z) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
559	RELAY; MAG VLV MJX16P M/T(Y3Z) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1508-
666	RELAY; STARTER MJX16P M/T(Y3Z) 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
702	RELAY; EBS 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
727	RELAY; START CUT 24V 10A PANASONIC	8-98167-173-0	01	1	1508-

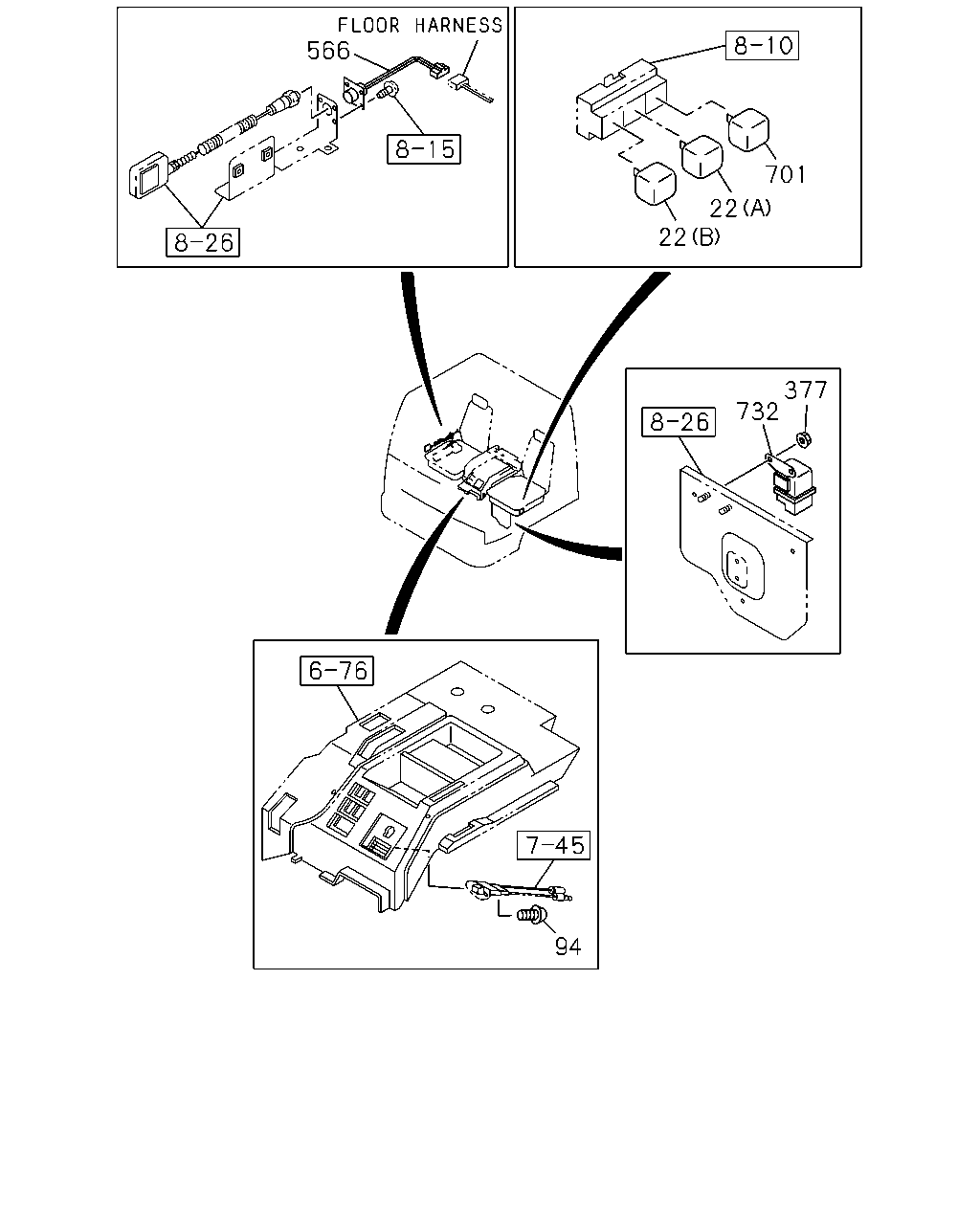

566 701 22 22 377 732 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
22	RELAY; STOP LAMP (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1508-
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	1508-
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	1508-
377	NUT; RELAY SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	1508-
566	HARNESS; REMOTE CONT	1-82626-888-1	01	1	1508-
701	RELAY; BRK,EBS 24V 10A PANASONIC	8-97173-035-1	01	1	1508-
732	RELAY; EDS SMOOTHER-G(C1W)	1-82550-337-1	01	1	1508-

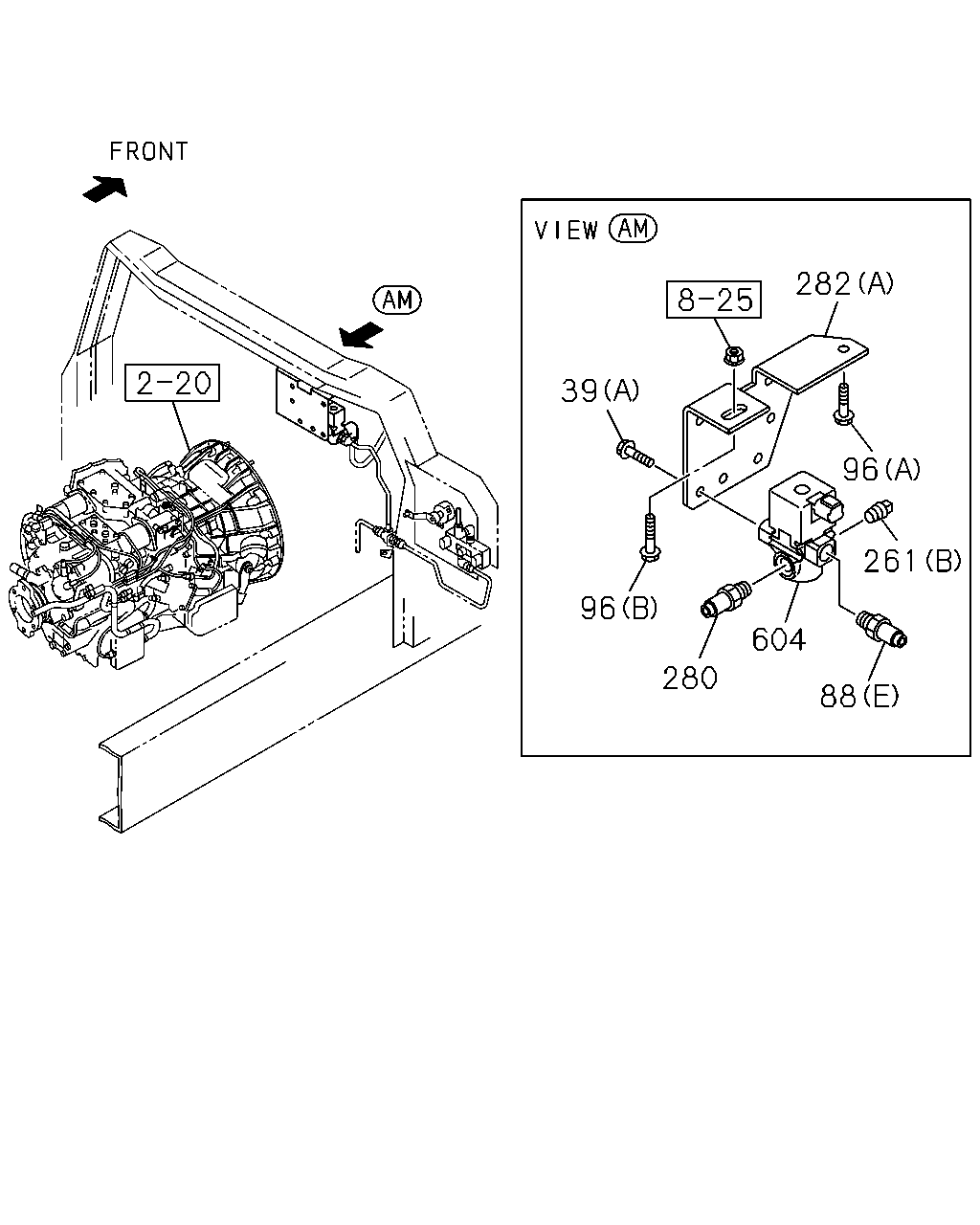

39 282 96 261 88 604 280 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1508-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X30 FLANGE	0-28650-830-0	02	1	1508-
88	CONNECTOR; MAG VLV (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1508-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1508-
88	CONNECTOR; MAG VLV (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1508-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1508-
88	CONNECTOR; MAG VLV (D)	1-09661-073-0	01	1	1508-1508
88	CONNECTOR; MAG VLV (P)	8-98329-642-0	01	1	1508-
88	CONNECTOR; MAG VLV (G) DIN8 & M16 ELBOW	1-09661-520-0	01	1	1508-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (H) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (J) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (K) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (L) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (M) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (O) PT3/8 4WAY	1-09661-489-0	01	1	1508-
96	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28650-825-0	01	1	1508-
96	BOLT; BRKT FIX (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	1508-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) PT1/4	9-99204-513-0	01	1	1508-
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	02	1	1508-
261	PLUG; MAG VLV MJX16P M/T(Y3Z) (B) PT3/8	9-09204-517-0	01	1	1508-
280	CONNECTOR; IN,MAG VLV M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1508-
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	1508-
282	BRACKET; MAG VLV (B)	1-82569-358-0	01	1	1508-
282	BRACKET; MAG VLV (C)	8-98293-779-0	01	1	1508-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D)	1-82569-278-0	01	1	1508-
604	VALVE; MAG,ENG CONT	1-82563-871-2	01	1	1508-

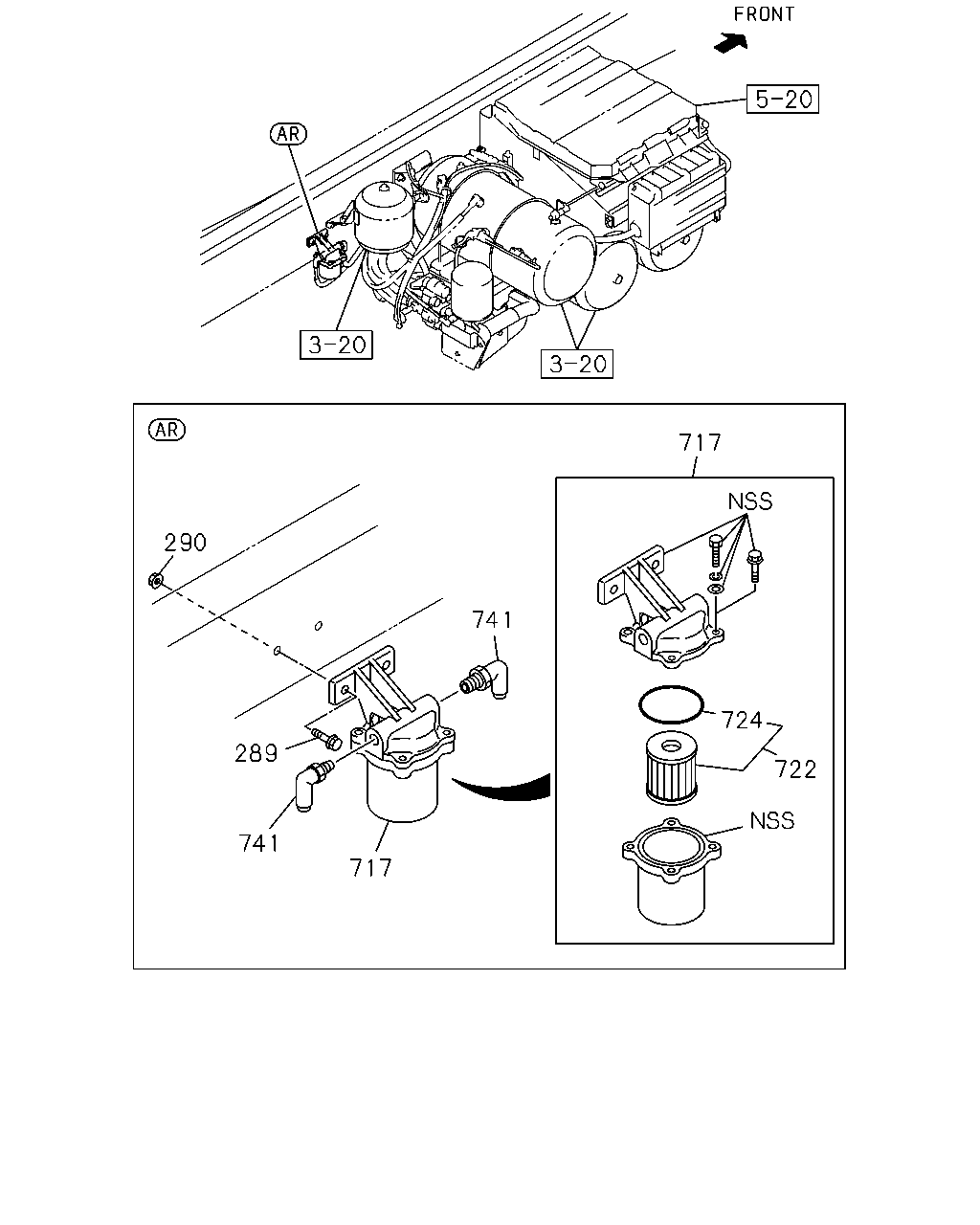

290 741 289 741 717 717 724 722

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
289	BOLT MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	02	1	1508-
290	NUT MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	02	1	1508-
717	FILTER; MAG VLV MJX16P M/T(Y3Z)	8-98092-703-0	01	1	1508-
722	ELEMENT; AIR FILTER MJX16P M/T(Y3Z)	1-33779-040-0	01	1	1508-
724	GASKET; AIR FILTER MJX16P M/T(Y3Z)	5-09623-075-0	01	1	1508-
741	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) DIN8 & M16 STRAIGHT	1-09661-530-0	01	1	1508-
741	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) DIN8 & M16 ELBOW	1-09661-531-0	01	1	1508-

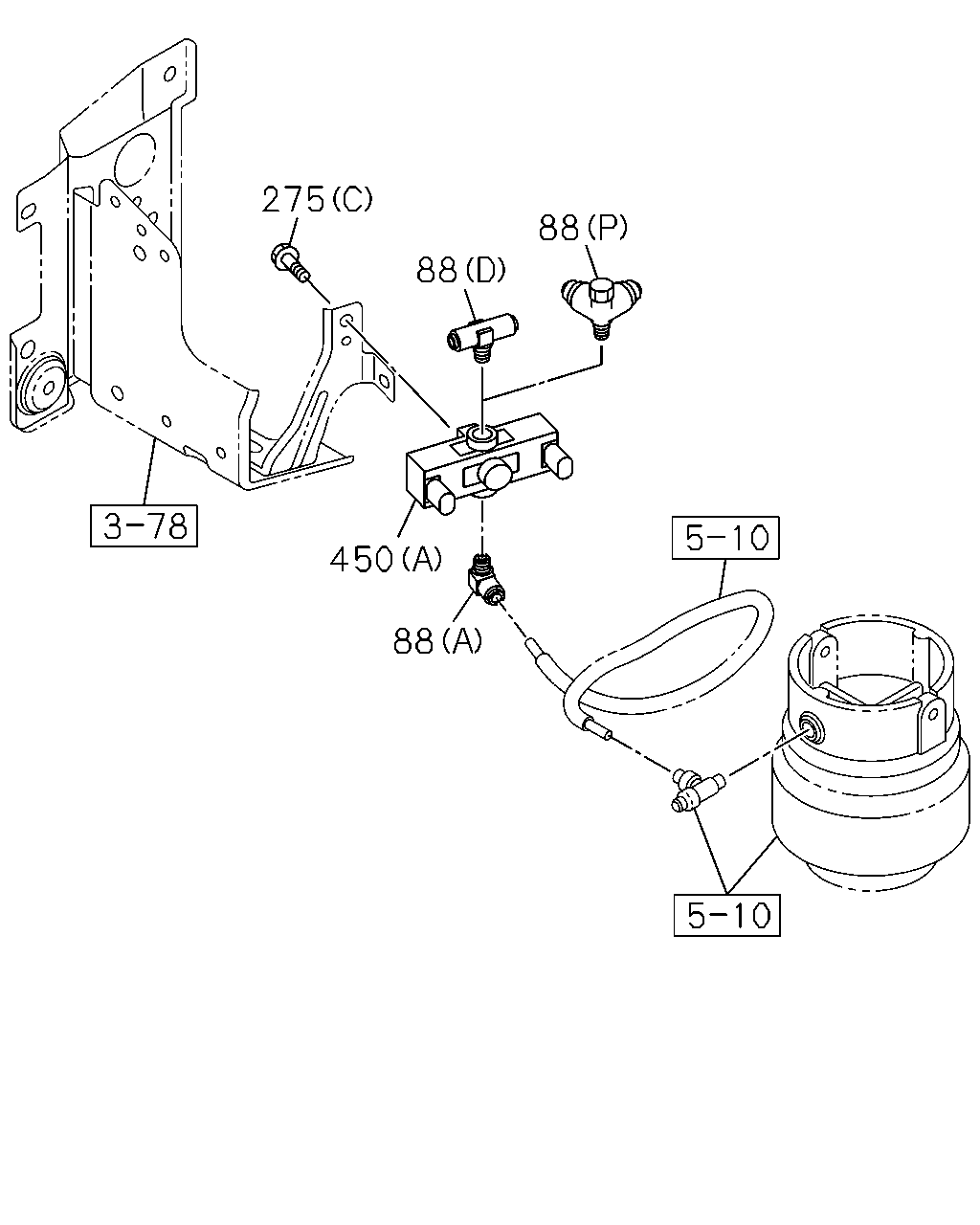

88 88 275 450 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
88	CONNECTOR; MAG VLV (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1508-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1508-
88	CONNECTOR; MAG VLV (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1508-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1508-
88	CONNECTOR; MAG VLV (D)	1-09661-073-0	01	1	1508-1508
88	CONNECTOR; MAG VLV (P)	8-98329-642-0	01	1	1508-
88	CONNECTOR; MAG VLV (G) DIN8 & M16 ELBOW	1-09661-520-0	01	1	1508-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (H) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (J) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (K) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (L) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (M) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (O) PT3/8 4WAY	1-09661-489-0	01	1	1508-
275	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	01	1	1508-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	1508-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1508-
450	VALVE; MAG (B)	1-48240-345-0	01	1	1508-
450	VALVE; MAG (A)	1-53458-378-2	02	1	1508-

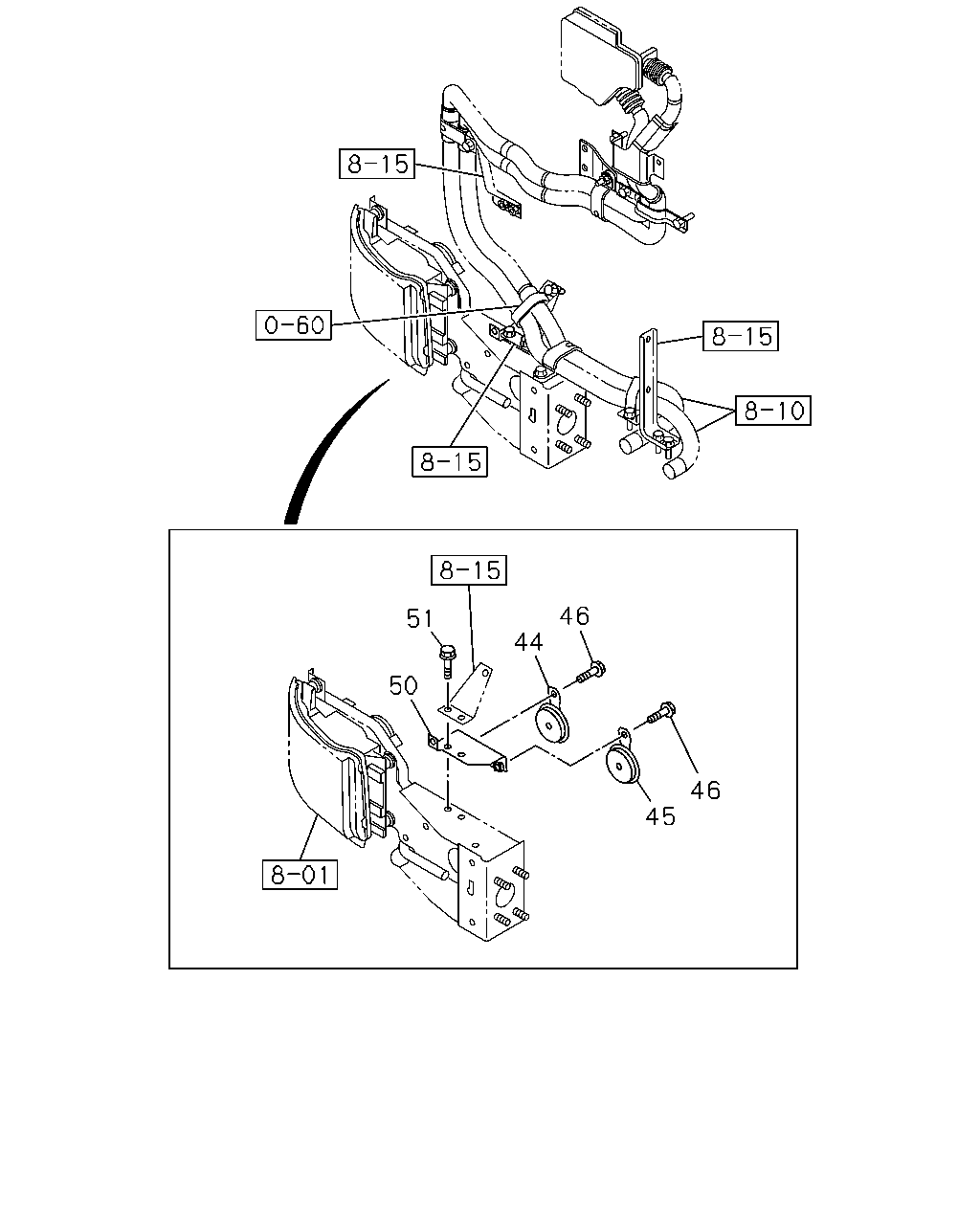

44 46 46 45 51 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE	1-83410-061-1	01	1	1508-
45	HORN; LOW NOTE	1-83410-062-1	01	1	1508-
46	BOLT; HORN TO BODY M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1508-
50	BRACKET; HORN	8-98210-372-0	01	1	1508-
51	BOLT; HORN TO BRKT M8X25 FLANGE	0-28650-825-0	02	1	1508-

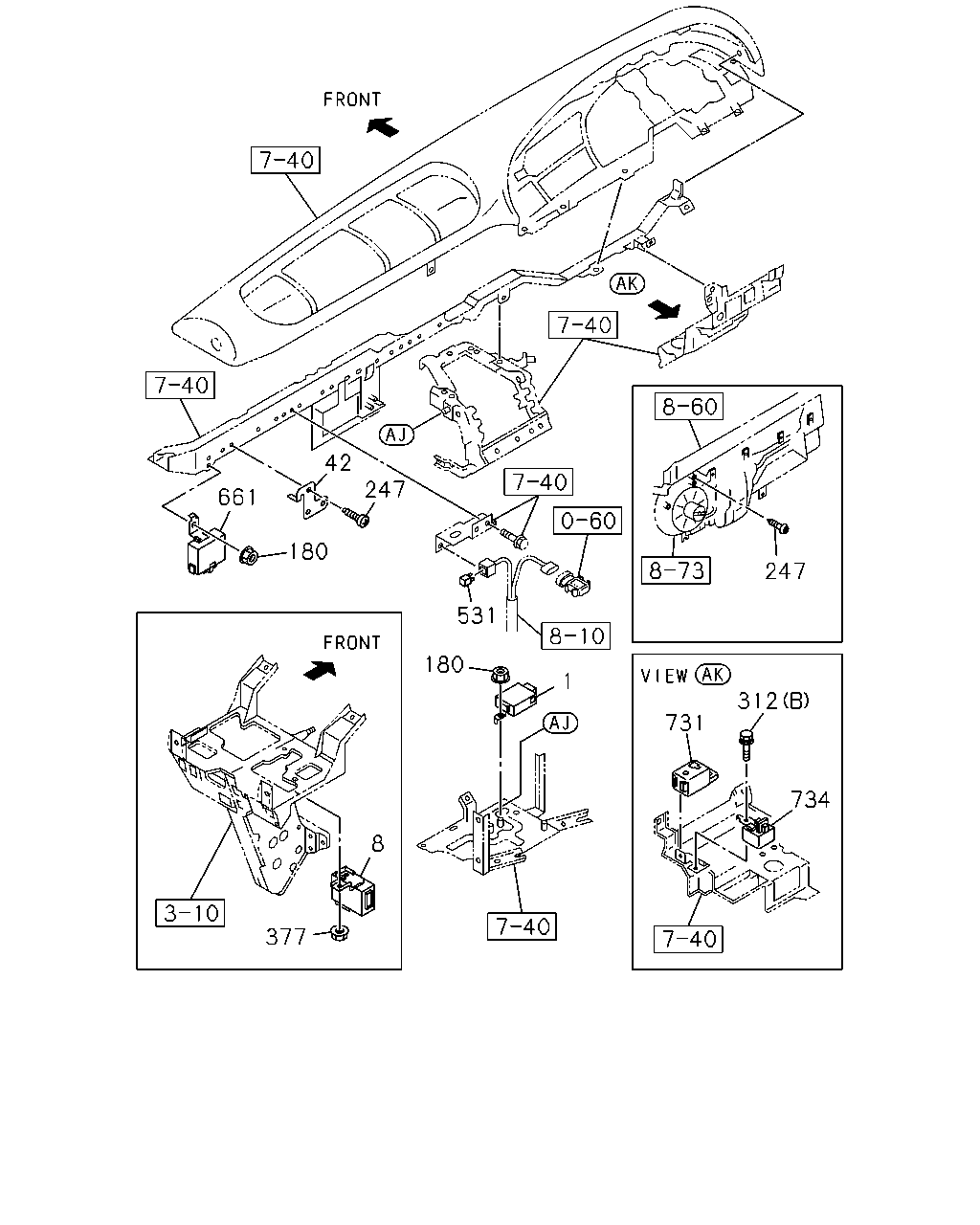

661 180 247 42 531 180 1 731 312 734 247 8 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	8-97613-970-1	01	1	1508-
8	RELAY; WIPER	1-83316-002-4	01	1	1508-
42	BRACKET; RELAY	1-82698-128-2	01	1	1508-
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	02	1	1508-
247	SCREW; BRKT M5X14	8-94279-325-0	01	1	1508-
312	BOLT; BUZZER (A) M10X35 FLANGE	0-28651-035-0	01	1	1508-
312	BOLT; BUZZER (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1508-
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	1508-
377	NUT; RELAY SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	1508-
531	RELAY; MAIN 24V	8-98167-175-0	01	1	1508-
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	1508-
731	ALARM; INFORMATION	1-83460-051-1	01	1	1508-
734	ALARM; MULTI	1-83460-106-0	01	1	1508-

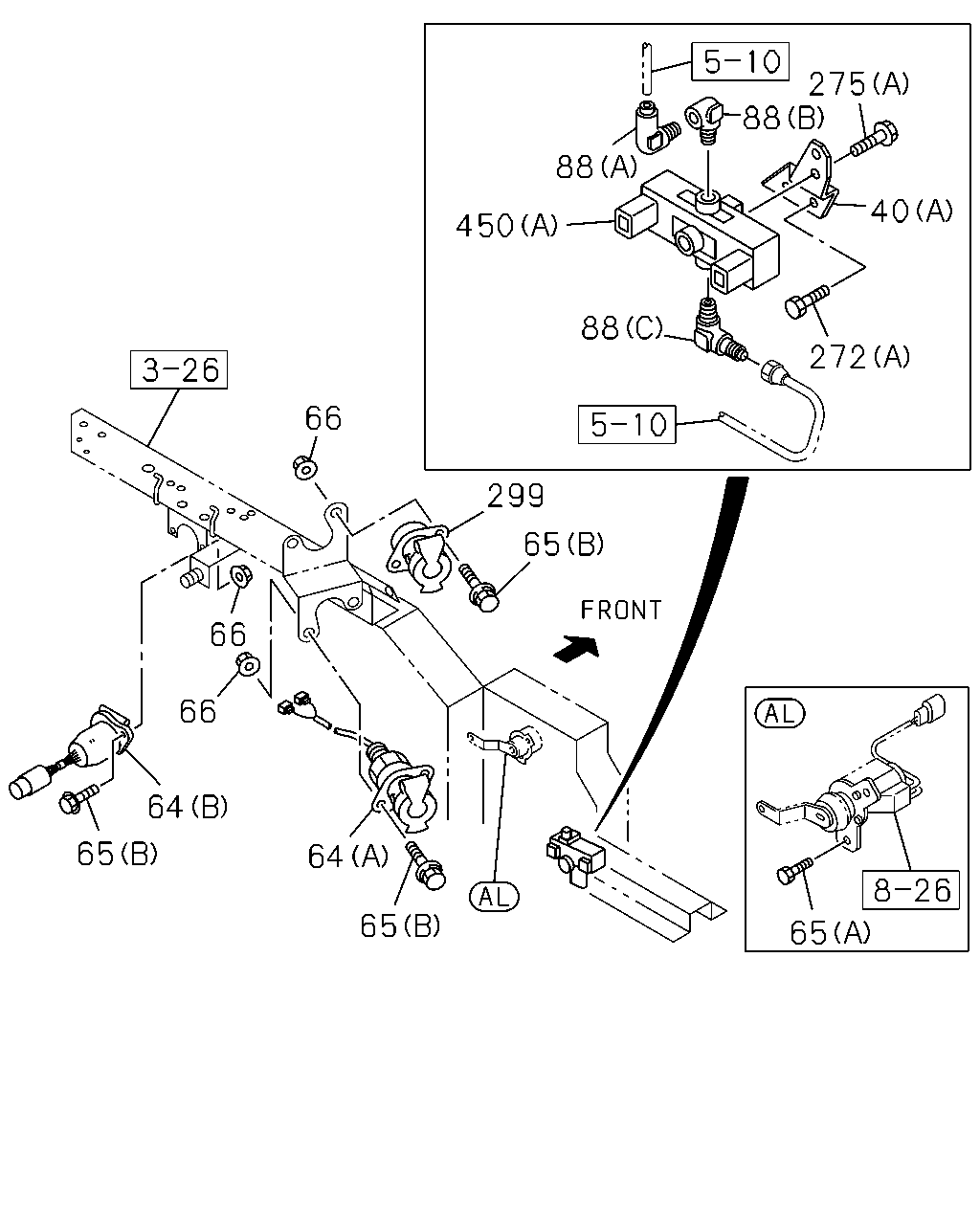

66 299 66 66 64 65 64 65 65 65 88 450 88 272 40 88 275

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV (A)	1-53458-380-0	01	1	1508-
40	BRACKET; MAG VLV MJX16P M/T(Y3Z) (B)	8-98293-781-0	01	1	1508-
64	SOCKET; TRAILER (B) 7P	1-82523-019-0	01	1	1508-
64	SOCKET; TRAILER (A)	8-97637-328-0	01	1	1508-
65	BOLT; SOCKET FIX (A) M8X25 FLANGE	0-28650-825-0	06	1	1508-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (B) M6X25 FLANGE	0-28050-625-0	02	1	1508-
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	05	1	1508-
88	CONNECTOR; MAG VLV (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1508-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1508-
88	CONNECTOR; MAG VLV (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1508-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1508-
88	CONNECTOR; MAG VLV (D)	1-09661-073-0	01	1	1508-1508
88	CONNECTOR; MAG VLV (P)	8-98329-642-0	01	1	1508-
88	CONNECTOR; MAG VLV (G) DIN8 & M16 ELBOW	1-09661-520-0	01	1	1508-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (H) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (J) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (K) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (L) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (M) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (O) PT3/8 4WAY	1-09661-489-0	01	1	1508-
272	BOLT; MAG VLV (A) M10X25 FLANGE	0-28651-025-0	02	1	1508-
272	BOLT; MAG VLV MJX16P M/T(Y3Z) (B) M10X35 FLANGE	0-28651-035-0	02	1	1508-
275	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	01	1	1508-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	1508-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1508-
299	SOCKET; PARKING	1-82699-396-2	01	1	1508-
450	VALVE; MAG (B)	1-48240-345-0	01	1	1508-
450	VALVE; MAG (A)	1-53458-378-2	02	1	1508-

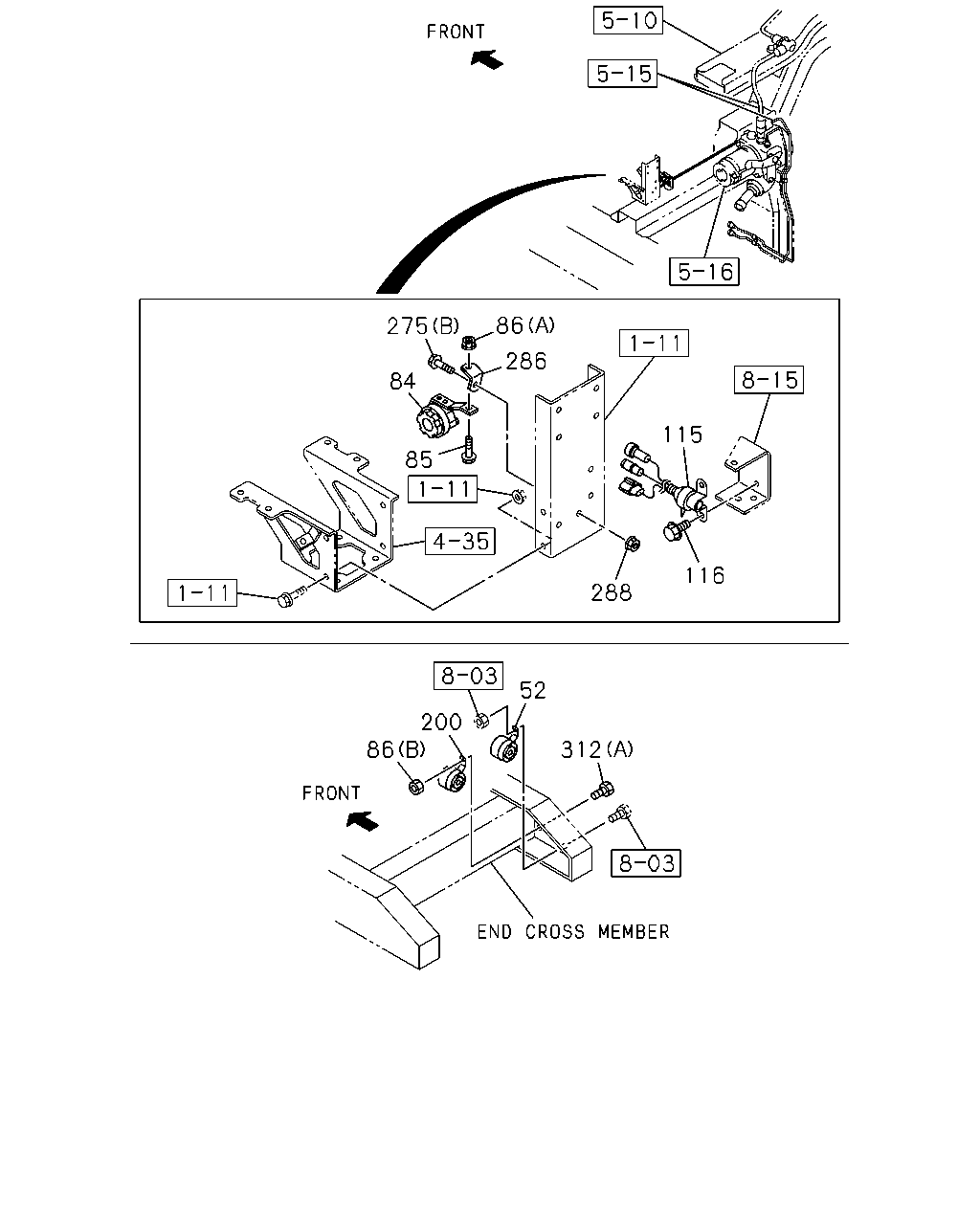

115 116 288 85 286 86 275 84 312 52 200 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BUZZER; BACK METRO DENSO	8-98069-861-0	01	1	1508-
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	1508-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	1508-
86	NUT; BUZZER (A) M8 FLANGE	0-91180-108-0	01	1	1508-
86	NUT; BUZZER (B) M10 FLANGE	0-91180-210-0	01	1	1508-
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	1508-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	1508-
200	BUZZER; WARNING,AIR SUSP	1-83460-104-0	01	1	1508-
275	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	01	1	1508-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	1508-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1508-
286	BRACKET	1-82699-199-0	01	1	1508-
288	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	1508-
312	BOLT; BUZZER (A) M10X35 FLANGE	0-28651-035-0	01	1	1508-
312	BOLT; BUZZER (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1508-

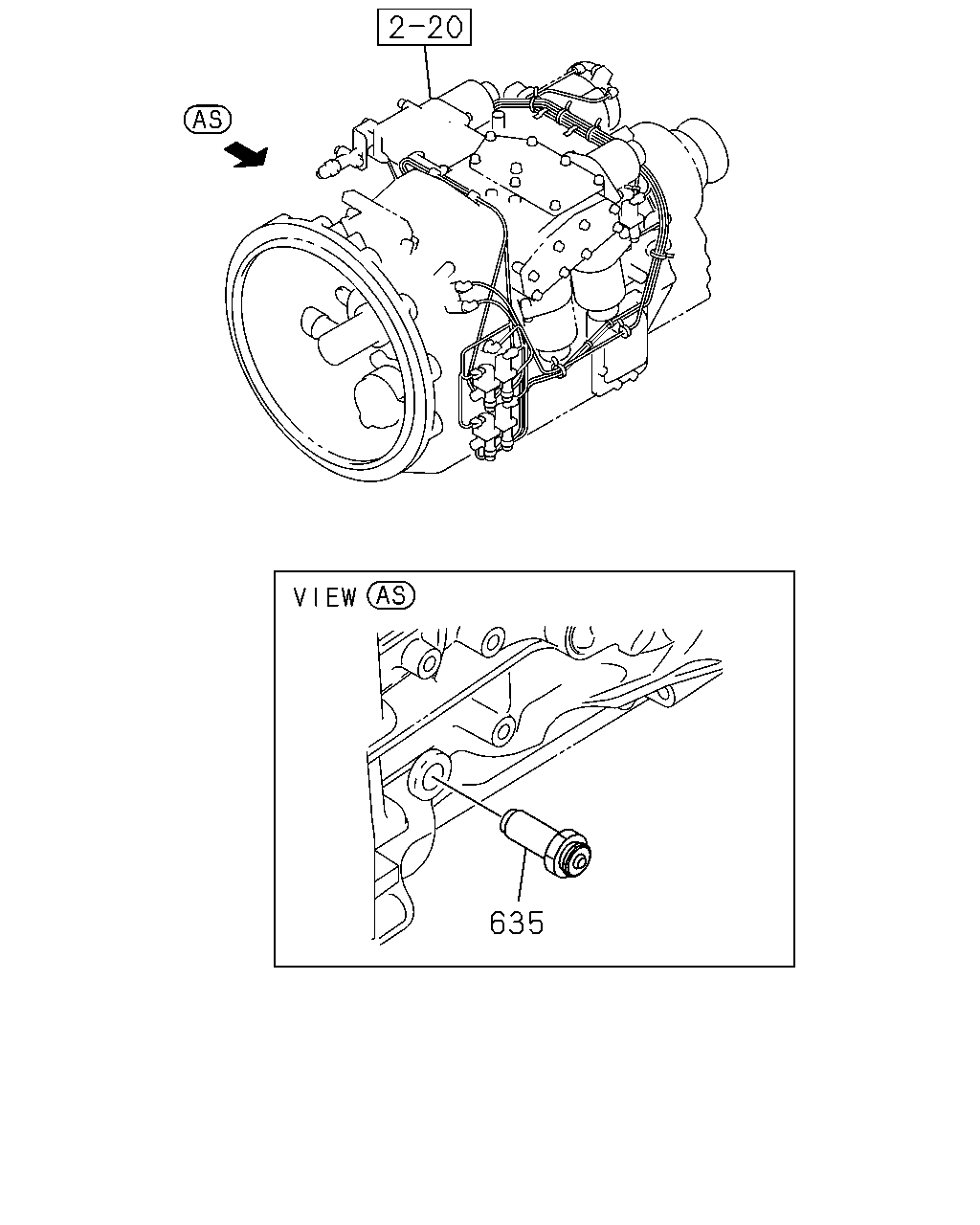

635

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	635	SENSOR; PICK UP,INPUT SHAFT MJX16P M/T(Y3Z)	1-81510-736-1	01	1	1508-

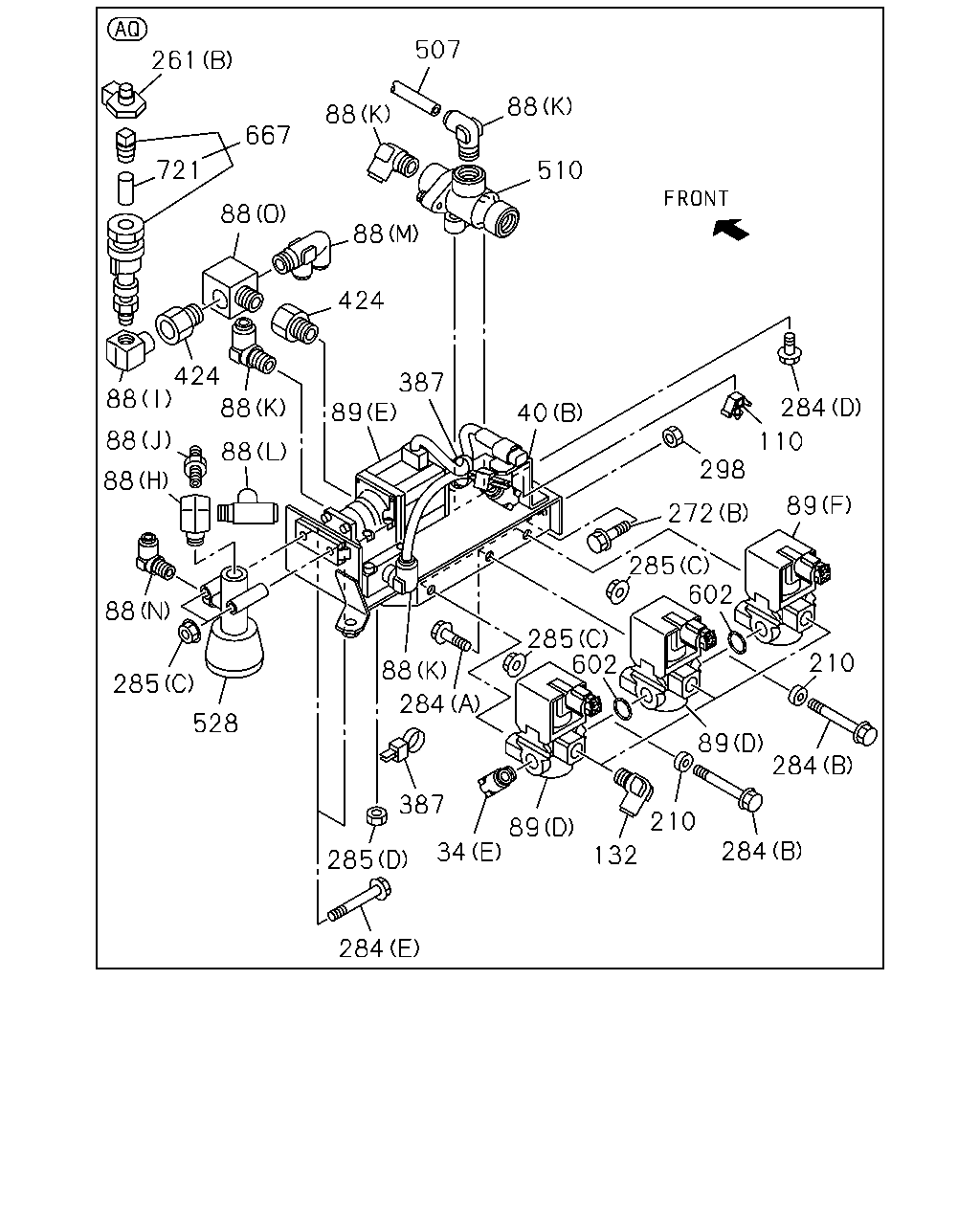

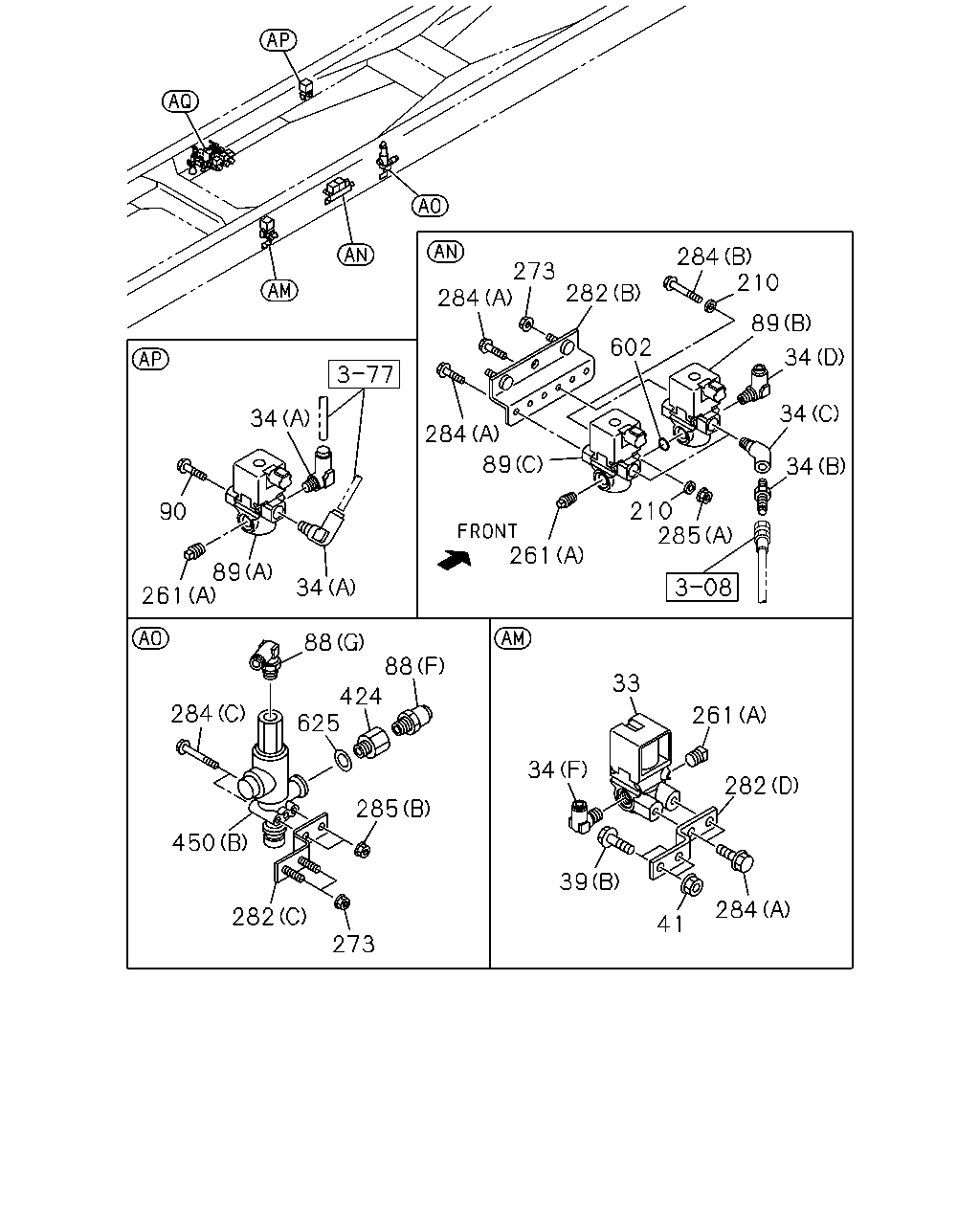

284 282 261 33 41 39 34 88 424 285 273 282 450 284 625 88 34 89 261 90 34 261 210 285 34 34 34 89 210 284 602 282 273 284 284 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-82563-871-2	01	1	1508-
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1508-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1508-
34	CONNECTOR; MAG VLV,INL PORT (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1508-
34	CONNECTOR; MAG VLV,INL PORT (C) R1/4 & RC1/4	1-09664-211-0	02	1	1508-
34	CONNECTOR; MAG VLV,INL PORT MJX16P M/T(Y3Z) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1508-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (F) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1508-
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1508-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X30 FLANGE	0-28650-830-0	02	1	1508-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE	0-91180-108-0	02	1	1508-
88	CONNECTOR; MAG VLV (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1508-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1508-
88	CONNECTOR; MAG VLV (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1508-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1508-
88	CONNECTOR; MAG VLV (D)	1-09661-073-0	01	1	1508-1508
88	CONNECTOR; MAG VLV (P)	8-98329-642-0	01	1	1508-
88	CONNECTOR; MAG VLV (G) DIN8 & M16 ELBOW	1-09661-520-0	01	1	1508-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (H) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (J) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (K) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (L) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (M) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (O) PT3/8 4WAY	1-09661-489-0	01	1	1508-
89	VALVE; MAG,DIFF LOCK (C)	1-82563-871-2	01	1	1508-
89	VALVE; MAG,DIFF LOCK (B)	1-82563-872-1	01	1	1508-
89	VALVE; MAG,DIFF LOCK (A)	8-97641-594-0	01	1	1508-
89	VALVE; MAG,DIFF LOCK MJX16P M/T(Y3Z) (D)	1-82564-095-1	02	1	1508-
89	VALVE; MAG,DIFF LOCK MJX16P M/T(Y3Z) (E)	1-82564-279-1	01	1	1508-
89	VALVE; MAG,DIFF LOCK MJX16P M/T(Y3Z) (F)	8-98160-652-1	01	1	1508-
90	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	1508-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	1508-
210	WASHER; PL,BRKT MJX16P M/T(Y3Z)	1-82569-266-0	04	1	1508-
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	1508-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) PT1/4	9-99204-513-0	01	1	1508-
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	02	1	1508-
261	PLUG; MAG VLV MJX16P M/T(Y3Z) (B) PT3/8	9-09204-517-0	01	1	1508-
273	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	1508-
273	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	1508-
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	1508-
282	BRACKET; MAG VLV (B)	1-82569-358-0	01	1	1508-
282	BRACKET; MAG VLV (C)	8-98293-779-0	01	1	1508-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D)	1-82569-278-0	01	1	1508-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	1508-
284	BOLT; MAG VLV (C) M8X60 FLANGE	0-28050-860-0	02	1	1508-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1508-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	1508-
284	BOLT; MAG VLV MJX16P M/T(Y3Z) (B) M6X50 FLANGE	0-28050-650-0	02	1	1508-
284	BOLT; MAG VLV MJX16P M/T(Y3Z) (E) M6X60 FLANGE	0-28050-660-0	02	1	1508-
284	BOLT; MAG VLV MJX16P M/T(Y3Z) (D) M8X12 FLANGE	0-28050-812-0	02	1	1508-
284	BOLT; MAG VLV MJX16P M/T(Y3Z) (A) M8X20 FLANGE	0-28650-820-0	03	1	1508-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	1508-
285	NUT; MAG VLV (B) M8 FLANGE	0-91180-108-0	02	1	1508-
285	NUT; MAG VLV MJX16P M/T(Y3Z) (D) M5	0-91110-505-0	03	1	1508-
285	NUT; MAG VLV MJX16P M/T(Y3Z) (C) M6 FLANGE	0-91180-106-0	04	1	1508-
424	ADAPTER M16 & PT3/8 STRAIGHT	1-09661-044-0	01	1	1508-
424	ADAPTER MJX16P M/T(Y3Z) PT3/8	1-09664-210-0	02	1	1508-
450	VALVE; MAG (B)	1-48240-345-0	01	1	1508-
450	VALVE; MAG (A)	1-53458-378-2	02	1	1508-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	1508-
602	GASKET; MAG VLV MJX16P M/T(Y3Z) ID=16.8	9-09565-117-0	02	1	1508-
625	GASKET; CONNECTOR ID=16.2 OD=24	9-09571-416-0	01	1	1508-

284 284 210 132 89 34 387 285 284 284 88 285 602 285 602 89 284 110 298 272 40 387 89 88 88 528 285 88 88 88 88 424 721 667 88 261 88 424 510 88 507 210 88 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	1508-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1508-
34	CONNECTOR; MAG VLV,INL PORT (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1508-
34	CONNECTOR; MAG VLV,INL PORT (C) R1/4 & RC1/4	1-09664-211-0	02	1	1508-
34	CONNECTOR; MAG VLV,INL PORT MJX16P M/T(Y3Z) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1508-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (F) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1508-
40	BRACKET; MAG VLV (A)	1-53458-380-0	01	1	1508-
40	BRACKET; MAG VLV MJX16P M/T(Y3Z) (B)	8-98293-781-0	01	1	1508-
88	CONNECTOR; MAG VLV (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1508-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1508-
88	CONNECTOR; MAG VLV (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1508-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	02	1	1508-
88	CONNECTOR; MAG VLV (D)	1-09661-073-0	01	1	1508-1508
88	CONNECTOR; MAG VLV (P)	8-98329-642-0	01	1	1508-
88	CONNECTOR; MAG VLV (G) DIN8 & M16 ELBOW	1-09661-520-0	01	1	1508-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (H) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (J) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (K) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (L) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (M) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (N) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1508-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (O) PT3/8 4WAY	1-09661-489-0	01	1	1508-
89	VALVE; MAG,DIFF LOCK (C)	1-82563-871-2	01	1	1508-
89	VALVE; MAG,DIFF LOCK (B)	1-82563-872-1	01	1	1508-
89	VALVE; MAG,DIFF LOCK (A)	8-97641-594-0	01	1	1508-
89	VALVE; MAG,DIFF LOCK MJX16P M/T(Y3Z) (D)	1-82564-095-1	02	1	1508-
89	VALVE; MAG,DIFF LOCK MJX16P M/T(Y3Z) (E)	1-82564-279-1	01	1	1508-
89	VALVE; MAG,DIFF LOCK MJX16P M/T(Y3Z) (F)	8-98160-652-1	01	1	1508-
110	CLIP; HARNESS,EDS CONT MJX16P M/T(Y3Z) OD=9 H=6	1-09709-178-0	01	1	1508-
132	CONNECTOR; OUTLET,MAG VLV MJX16P M/T(Y3Z) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1508-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	1508-
210	WASHER; PL,BRKT MJX16P M/T(Y3Z)	1-82569-266-0	04	1	1508-
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	01	1	1508-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) PT1/4	9-99204-513-0	01	1	1508-
261	PLUG; MAG VLV (A) PT1/4	9-99204-513-0	02	1	1508-
261	PLUG; MAG VLV MJX16P M/T(Y3Z) (B) PT3/8	9-09204-517-0	01	1	1508-
272	BOLT; MAG VLV (A) M10X25 FLANGE	0-28651-025-0	02	1	1508-
272	BOLT; MAG VLV MJX16P M/T(Y3Z) (B) M10X35 FLANGE	0-28651-035-0	02	1	1508-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	1508-
284	BOLT; MAG VLV (C) M8X60 FLANGE	0-28050-860-0	02	1	1508-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	1508-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	1508-
284	BOLT; MAG VLV MJX16P M/T(Y3Z) (B) M6X50 FLANGE	0-28050-650-0	02	1	1508-
284	BOLT; MAG VLV MJX16P M/T(Y3Z) (E) M6X60 FLANGE	0-28050-660-0	02	1	1508-
284	BOLT; MAG VLV MJX16P M/T(Y3Z) (D) M8X12 FLANGE	0-28050-812-0	02	1	1508-
284	BOLT; MAG VLV MJX16P M/T(Y3Z) (A) M8X20 FLANGE	0-28650-820-0	03	1	1508-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	1508-
285	NUT; MAG VLV (B) M8 FLANGE	0-91180-108-0	02	1	1508-
285	NUT; MAG VLV MJX16P M/T(Y3Z) (D) M5	0-91110-505-0	03	1	1508-
285	NUT; MAG VLV MJX16P M/T(Y3Z) (C) M6 FLANGE	0-91180-106-0	04	1	1508-
298	NUT; MAG VLV MJX16P M/T(Y3Z) M10 FLANGE	0-91180-210-0	02	1	1508-
387	CLIP; BAND MJX16P M/T(Y3Z) L=350	1-09707-183-0	02	1	1508-
424	ADAPTER M16 & PT3/8 STRAIGHT	1-09661-044-0	01	1	1508-
424	ADAPTER MJX16P M/T(Y3Z) PT3/8	1-09664-210-0	02	1	1508-
507	TUBE; NYLON MJX16P M/T(Y3Z) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	1508-
510	VALVE; CHECK MJX16P M/T(Y3Z)	1-48410-531-1	01	1	1508-
528	VALVE; PRESSURE REDUCING MJX16P M/T(Y3Z)	1-48410-744-0	01	1	1508-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	1508-
602	GASKET; MAG VLV MJX16P M/T(Y3Z) ID=16.8	9-09565-117-0	02	1	1508-
667	LUBRICATION MJX16P M/T(Y3Z)	8-98063-001-0	01	1	1508-
721	ELEMENT; LUBRICATION MJX16P M/T(Y3Z)	1-33779-028-0	01	1	1508-

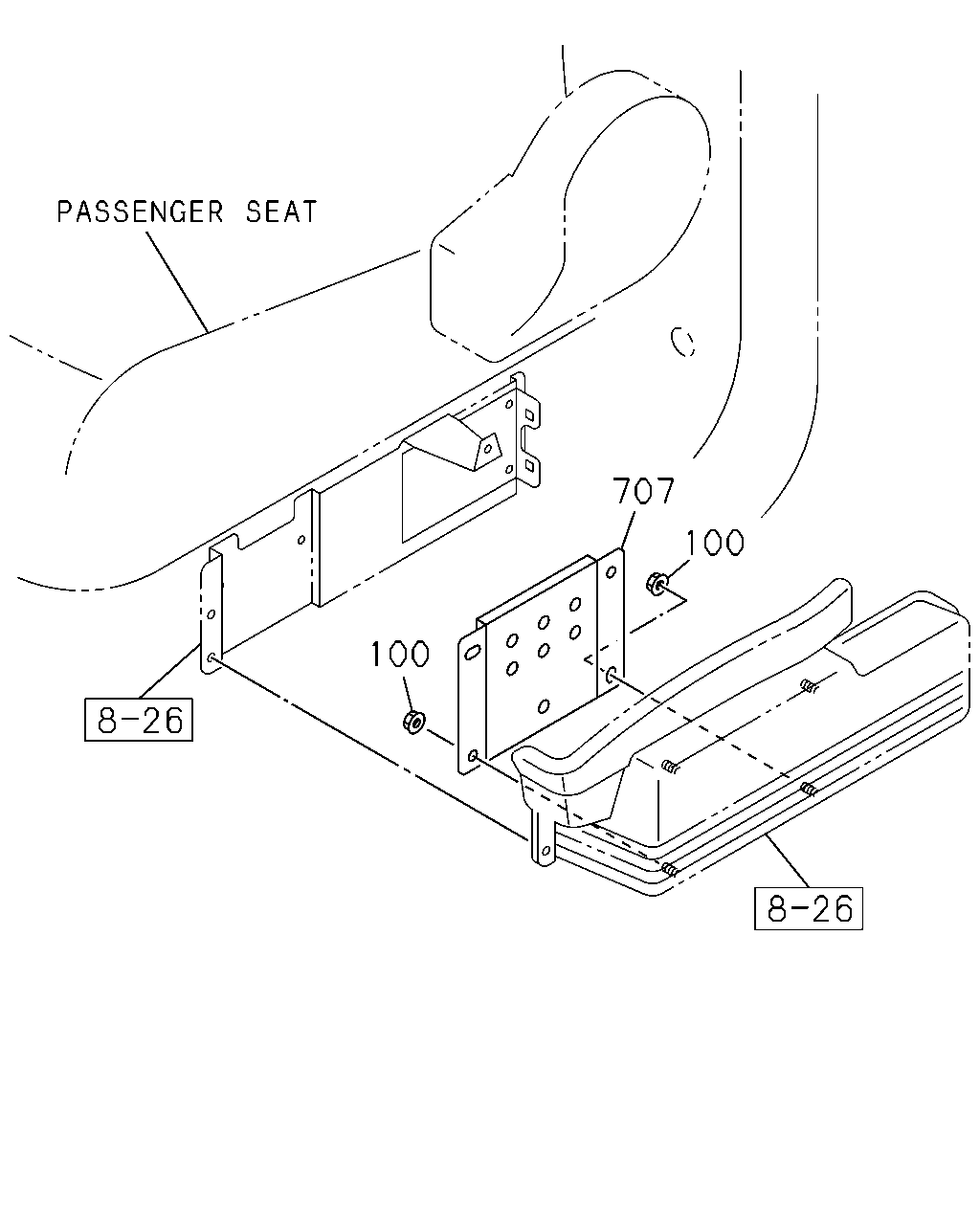

707 100 100

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	100	NUT; RELAY BOX COVER M6 FLANGE	0-91180-106-0	04	1	1508-
	707	BOX; BASE BRKT	1-82510-603-1	01	1	1508-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
