Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#165331) — 426 parça

1 1 1 1 224 178 178 178 178 178 178 178 178 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (A) ID=29 OD=39 L=40	1-09337-013-0	02	1	1508-
1	SLEEVE; RUBBER (D) ID=38.1 OD=48.1 L=25	1-09337-052-0	01	1	1508-
1	SLEEVE; RUBBER (D) ID=38.1 OD=48.1 L=25	1-09337-052-0	02	1	1508-
1	SLEEVE; RUBBER (C) ID=18 OD=22 L=25	8-94412-773-0	01	1	1508-
1	SLEEVE; RUBBER (B) ID=18 OD=22 L=77	8-98248-561-0	01	1	1508-
178	GROMMET; HARNESS (G) ID=28 OD=35 T=25	1-09332-011-1	02	1	1508-
178	GROMMET; HARNESS (A) ID=39 OD=45 T=13	1-09332-076-0	02	1	1508-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=22	1-09332-126-0	02	1	1508-
178	GROMMET; HARNESS (H) ID=32 OD=40 T=18	1-09891-003-0	02	1	1508-
178	GROMMET; HARNESS (D) ID=24 OD=30 T=17	9-09956-092-1	01	1	1508-
178	GROMMET; HARNESS (F) ID=28 OD=35 T=17	9-09956-256-2	03	1	1508-
178	GROMMET; HARNESS (F) ID=28 OD=35 T=17	9-09956-256-2	04	1	1508-
178	GROMMET; HARNESS SMOOTHER-G(C1W) (C) ID=39 OD=45 T=19	1-09332-077-0	02	1	1508-
178	GROMMET; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (C) ID=39 OD=45 T=19	1-09332-077-0	01	1	1508-
178	GROMMET; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (E)	1-82698-551-0	01	1	1508-
224	SLEEVE; RUBBER,HARNESS ID=32 OD=36 L=50	1-09337-023-0	01	1	1508-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1508-
530	SEAL; HARNESS 100X40	1-72498-022-1	02	1	1508-
530	SEAL; HARNESS OD=25 BLACK	1-76798-019-0	01	1	1508-
530	SEAL; HARNESS LOW ROOF<6XQ> 100X40	1-72498-022-1	01	1	1508-
530	SEAL; HARNESS SMOOTHER-G(C1W) 180X40	1-72498-019-1	01	1	1508-

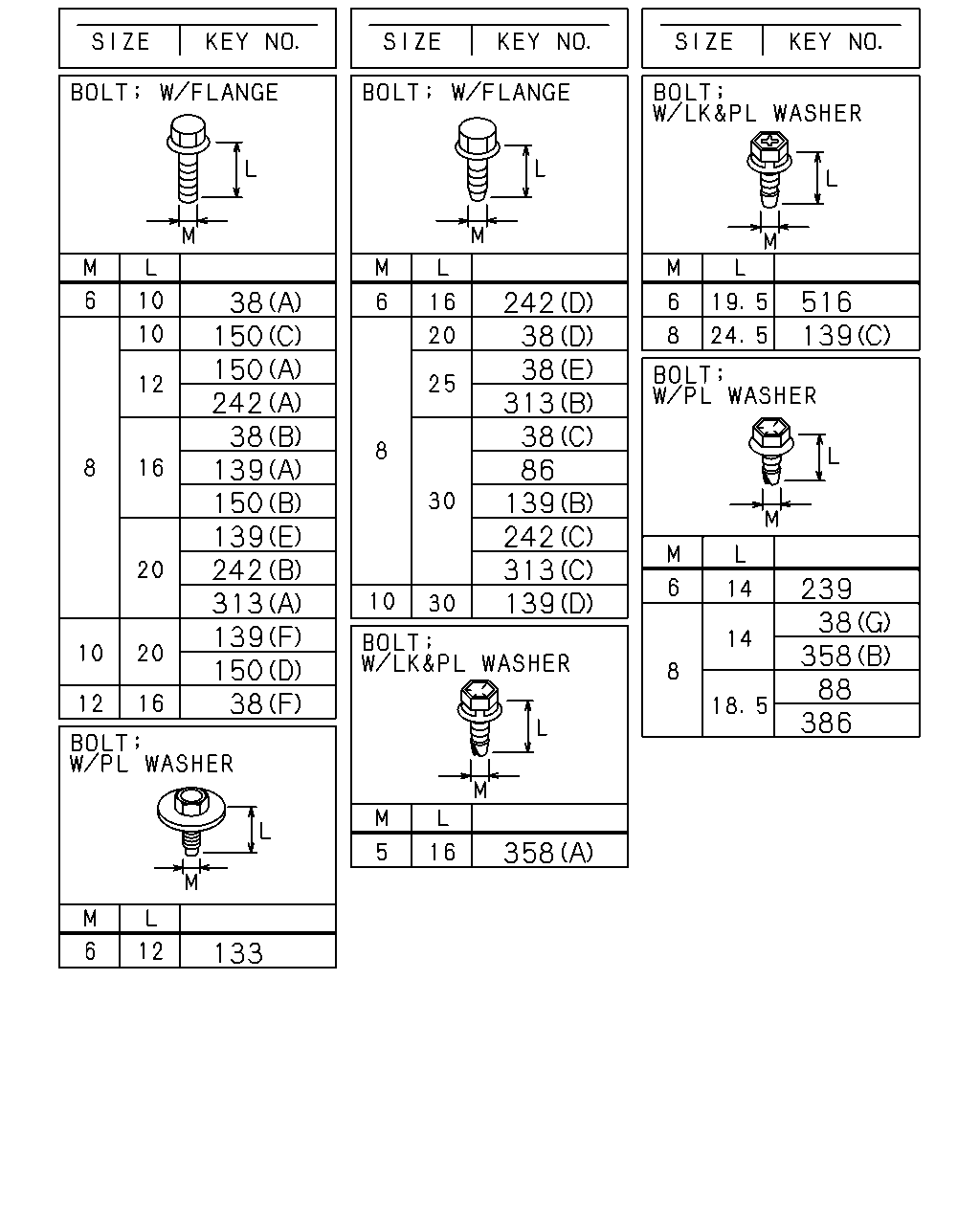

38 38 150 242 150 38 150 139 139 313 242 139 150 242 38 38 139 313 242 139 86 38 313 516 139 239 358 38 88 386 358 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (A) M6X10 FLANGE	0-28050-610-0	01	1	1508-
38	BOLT; CLIP,HARNESS (B) M8X16 FLANGE	0-28050-816-0	02	1	1508-
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	0-28051-216-0	01	1	1508-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	1508-
38	BOLT; CLIP,HARNESS (C) M8X30 FLANGE	0-28650-830-0	04	1	1508-
38	BOLT; CLIP,HARNESS (C) M8X30 FLANGE	0-28650-830-0	02	1	1508-
38	BOLT; CLIP,HARNESS SMOOTHER-G(C1W) (D) M8X20 FLANGE	0-28650-820-0	01	1	1508-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	1508-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	1508-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	1508-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	1508-
38	BOLT; CLIP,HARNESS SMOOTHER-G(C1W) (C) M8X30 FLANGE	0-28650-830-0	01	1	1508-
38	BOLT; CLIP,HARNESS (C) M8X30 FLANGE	0-28650-830-0	01	1	1508-
38	BOLT; CLIP,HARNESS SMOOTHER-G(C1W) (G) M8X14 W/PL WASHER	8-98164-837-0	04	1	1508-
38	BOLT; CLIP,HARNESS TRANSMISSION-FULLER RTLO189 18(Y4W) (D) M8X20 FLANGE	0-28650-820-0	02	1	1508-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1508-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1508-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1508-
38	BOLT; CLIP,HARNESS TRANSMISSION-FULLER RTLO189 18(Y4W) (G) M8X14 W/PL WASHER	8-98164-837-0	03	1	1508-
86	BOLT; CLIP BRKT TRANSMISSION CONTROL CABLE TYPE(C1A) M8X30 FLANGE	0-28650-830-0	01	1	1508-
88	BOLT; DOOR HARNESS EARTH M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1508-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	1508-
139	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	05	1	1508-
139	BOLT; BRKT (E) M8X20 FLANGE	0-28050-820-0	02	1	1508-
139	BOLT; BRKT (F) M10X20 FLANGE	0-28151-020-0	02	1	1508-
139	BOLT; BRKT (D) M10X30 FLANGE	0-28151-030-0	01	1	1508-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1508-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1508-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	05	1	1508-
139	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1508-
150	BOLT; CLIP (C) M8X10 FLANGE	0-28050-810-0	02	1	1508-
150	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	04	1	1508-
150	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	10	1	1508-
150	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	01	1	1508-
150	BOLT; CLIP (D) M10X20 FLANGE	0-28151-020-0	01	1	1508-
239	BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	02	1	1508-
242	BOLT; BRKT,HARNESS (A) M8X12 FLANGE	0-28050-812-0	01	1	1508-
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28050-820-0	01	1	1508-
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28050-820-0	01	1	1508-
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28650-820-0	02	1	1508-
242	BOLT; BRKT,HARNESS (C) M8X30 FLANGE	0-28650-830-0	02	1	1508-
242	BOLT; BRKT,HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>,HALOGEN HEADLAMPS<TT5> (D) M6X16 FLANGE	0-28650-616-0	02	1	1508-
313	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1508-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1508-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	05	1	1508-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	1508-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	1508-
313	BOLT; BRKT SMOOTHER-G(C1W) (A) M8X20 FLANGE	0-28650-820-0	01	1	1508-
358	BOLT; EARTH (A) M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1508-
358	BOLT; EARTH (B) M8X14 W/PL WASHER	8-98164-837-0	01	1	1508-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1508-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1508-

423 82 119 127 340 515 525 515 294 219 524 294

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	WASHER; PL BRKT,HARNESS ID=10.5 OD=22	0-91614-610-0	02	1	1508-
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	1508-
127	SCREW; FACIA HARNESS CLIP M3X10	9-93490-310-0	04	1	1508-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1508-
219	NUT SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	1508-
219	NUT SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	1508-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1508-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1508-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1508-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1508-
219	NUT M8 FLANGE	0-91180-108-0	05	1	1508-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1508-
294	NUT TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8 FLANGE	0-91180-108-0	01	1	1508-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1508-
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	1508-
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	1508-
294	NUT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>,HALOGEN HEADLAMPS<TT5> (B) M6 FLANGE	0-91180-106-0	02	1	1508-
340	NUT; HARNESS CAB TO FRAME M8 CUTTING NUT W/FLANGE	1-09985-340-0	05	1	1508-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	01	1	1508-
423	WASHER; HARNESS,EARTH SMOOTHER-G(C1W) ID=8.4	1-09503-264-0	04	1	1508-
423	WASHER; HARNESS,EARTH TRANSMISSION-FULLER RTLO189 18(Y4W) ID=8.4	1-09503-264-0	03	1	1508-
515	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1508-
515	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1508-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	1508-
525	NUT; CLIP MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	01	1	1508-

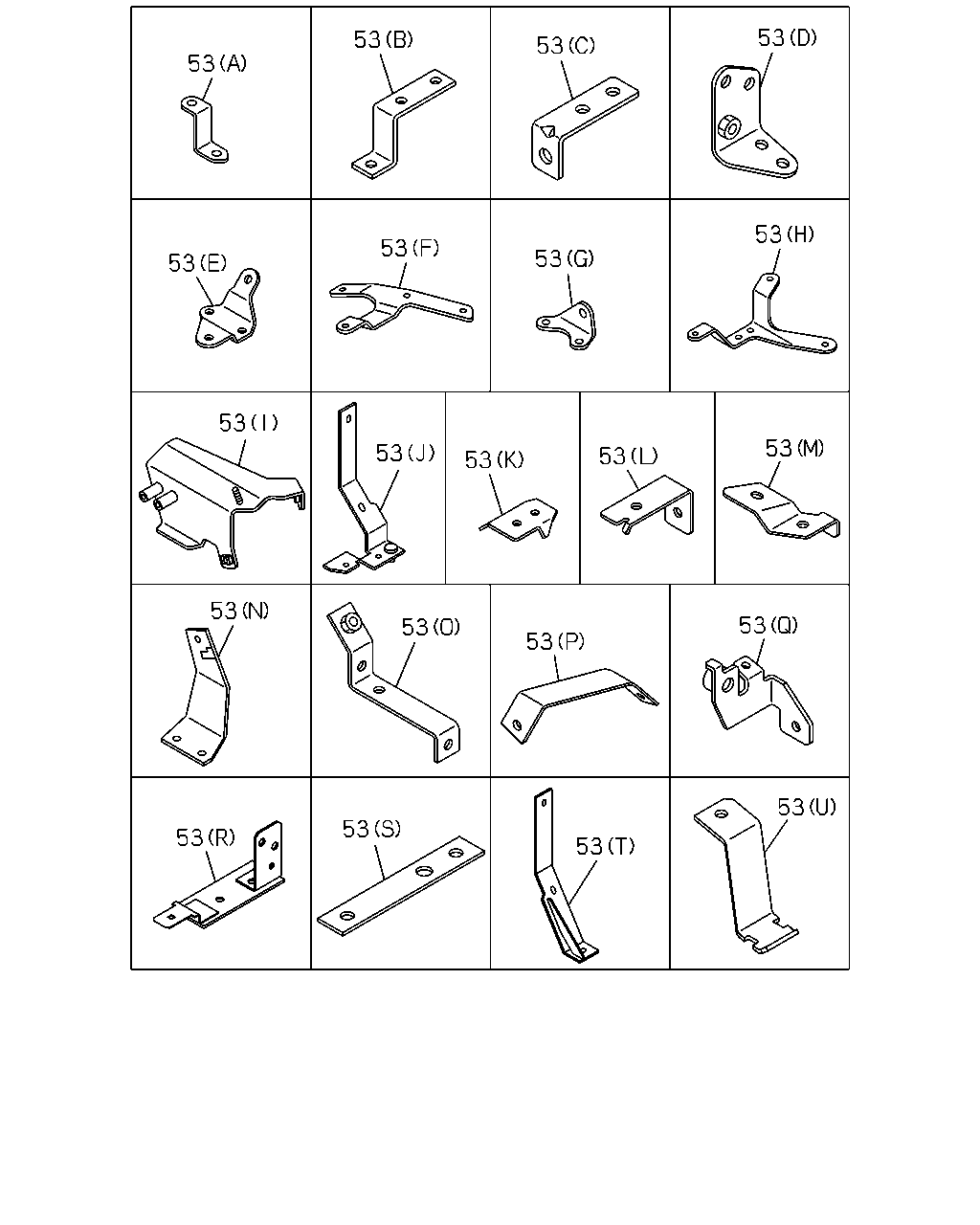

53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS (V)	1-42129-495-0	01	1	1508-
53	BRACKET; HARNESS (S) L=130	1-47478-959-0	02	1	1508-
53	BRACKET; HARNESS (P)	1-47479-537-0	05	1	1508-
53	BRACKET; HARNESS (U)	1-47479-889-0	01	1	1508-
53	BRACKET; HARNESS (O)	1-82699-996-1	01	1	1508-
53	BRACKET; HARNESS (D)	8-97610-339-1	01	1	1508-
53	BRACKET; HARNESS (K)	8-97625-412-0	02	1	1508-
53	BRACKET; HARNESS (L)	8-97625-794-0	01	1	1508-
53	BRACKET; HARNESS (M)	8-97630-437-0	01	1	1508-
53	BRACKET; HARNESS (R)	8-97638-190-0	01	1	1508-
53	BRACKET; HARNESS (A)	8-97640-913-0	02	1	1508-
53	BRACKET; HARNESS (C)	8-98021-694-1	01	1	1508-
53	BRACKET; HARNESS (E)	8-98122-986-0	01	1	1508-
53	BRACKET; HARNESS (B)	8-98124-778-0	01	1	1508-
53	BRACKET; HARNESS (Q)	8-98194-068-0	01	1	1508-
53	BRACKET; HARNESS (F)	8-98209-856-1	01	1	1508-
53	BRACKET; HARNESS (G)	8-98209-858-1	01	1	1508-
53	BRACKET; HARNESS (H)	8-98218-540-0	01	1	1508-
53	BRACKET; HARNESS (I)	8-98247-268-1	01	1	1508-
53	BRACKET; HARNESS (J)	8-98285-517-0	01	1	1508-
53	BRACKET; HARNESS (T)	8-98285-518-1	01	1	1508-
53	BRACKET; HARNESS (N)	8-98285-519-0	01	1	1508-

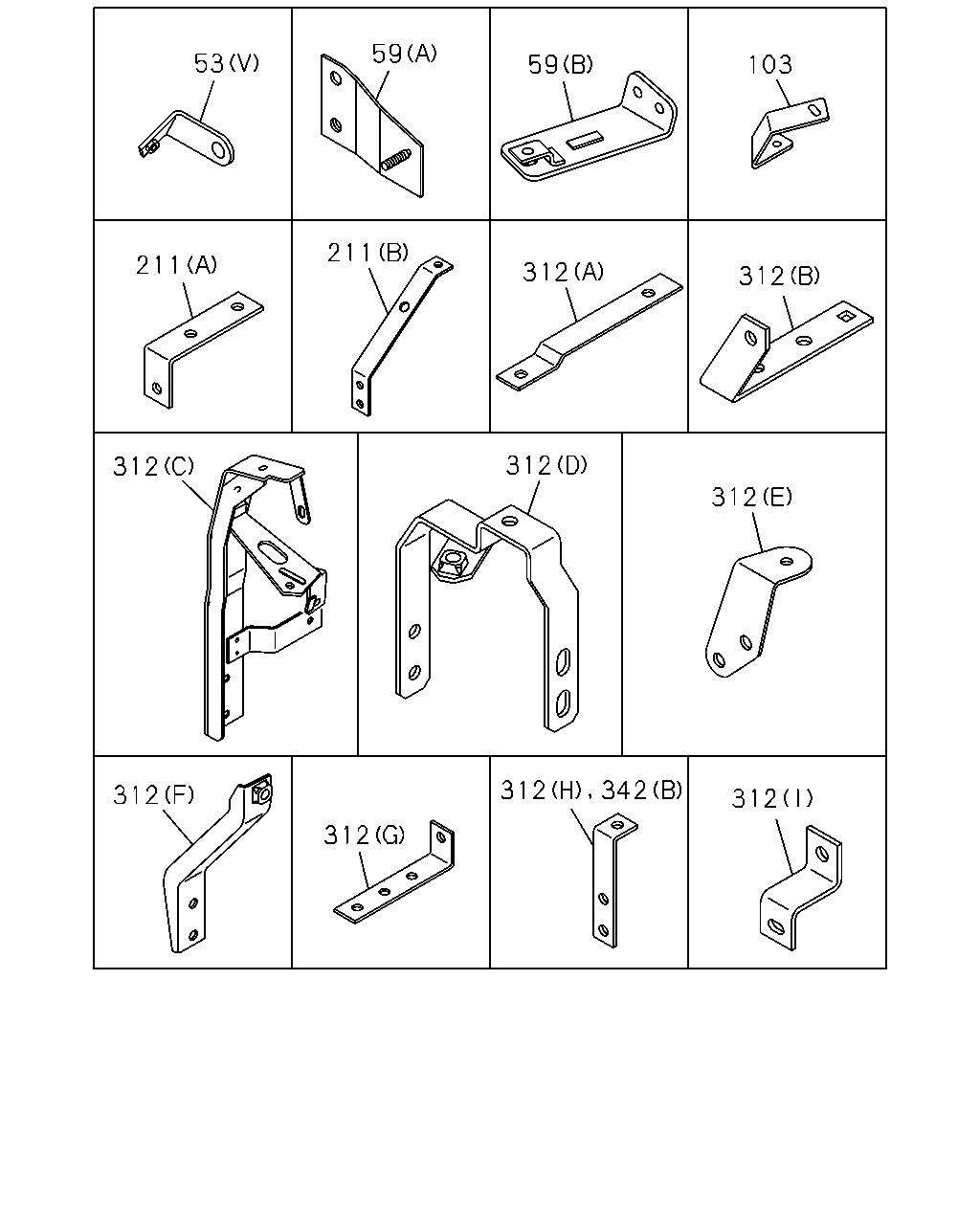

53 59 59 103 211 211 312 312 312 312 312 312 312 312 342 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS (V)	1-42129-495-0	01	1	1508-
53	BRACKET; HARNESS (S) L=130	1-47478-959-0	02	1	1508-
53	BRACKET; HARNESS (P)	1-47479-537-0	05	1	1508-
53	BRACKET; HARNESS (U)	1-47479-889-0	01	1	1508-
53	BRACKET; HARNESS (O)	1-82699-996-1	01	1	1508-
53	BRACKET; HARNESS (D)	8-97610-339-1	01	1	1508-
53	BRACKET; HARNESS (K)	8-97625-412-0	02	1	1508-
53	BRACKET; HARNESS (L)	8-97625-794-0	01	1	1508-
53	BRACKET; HARNESS (M)	8-97630-437-0	01	1	1508-
53	BRACKET; HARNESS (R)	8-97638-190-0	01	1	1508-
53	BRACKET; HARNESS (A)	8-97640-913-0	02	1	1508-
53	BRACKET; HARNESS (C)	8-98021-694-1	01	1	1508-
53	BRACKET; HARNESS (E)	8-98122-986-0	01	1	1508-
53	BRACKET; HARNESS (B)	8-98124-778-0	01	1	1508-
53	BRACKET; HARNESS (Q)	8-98194-068-0	01	1	1508-
53	BRACKET; HARNESS (F)	8-98209-856-1	01	1	1508-
53	BRACKET; HARNESS (G)	8-98209-858-1	01	1	1508-
53	BRACKET; HARNESS (H)	8-98218-540-0	01	1	1508-
53	BRACKET; HARNESS (I)	8-98247-268-1	01	1	1508-
53	BRACKET; HARNESS (J)	8-98285-517-0	01	1	1508-
53	BRACKET; HARNESS (T)	8-98285-518-1	01	1	1508-
53	BRACKET; HARNESS (N)	8-98285-519-0	01	1	1508-
59	BRACKET; FRAME HARNESS (B)	8-97639-069-0	01	1	1508-
59	BRACKET; FRAME HARNESS (A)	8-98061-135-1	01	1	1508-
103	BRACKET; HD LAMP HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>,HALOGEN HEADLAMPS<TT5>	8-98211-939-1	01	1	1508-
103	BRACKET; HD LAMP HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>,HALOGEN HEADLAMPS<TT5>	8-98211-940-1	01	1	1508-
211	BRACKET; AXLE HARNESS (B)	1-47479-430-0	02	1	1508-
211	BRACKET; AXLE HARNESS (A)	1-82698-588-0	01	1	1508-
312	BRACKET; CLIP HARNESS (H)	1-82698-588-0	01	1	1508-
312	BRACKET; CLIP HARNESS (F)	8-97636-868-1	01	1	1508-
312	BRACKET; CLIP HARNESS (A)	8-98035-927-1	01	1	1508-
312	BRACKET; CLIP HARNESS (D)	8-98285-566-1	01	1	1508-
312	BRACKET; CLIP HARNESS (E)	8-98285-567-0	01	1	1508-
312	BRACKET; CLIP HARNESS (C)	8-98316-678-0	01	1	1508-1511
312	BRACKET; CLIP HARNESS	8-98325-978-0	01	1	1512-
312	BRACKET; CLIP HARNESS (I)	8-98319-720-0	01	1	1508-
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (B)	8-98290-753-0	01	1	1508-
312	BRACKET; CLIP HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (G) L=120 H=35	1-82698-088-0	01	1	1508-
342	BRACKET; HARNESS CAB MTG (B)	1-82698-588-0	02	1	1508-
342	BRACKET; HARNESS CAB MTG (A)	1-82699-625-0	01	1	1508-

14 16 51 102 104 194 206 369 14 16 121 142 171 208 305 380 14 14 16 48 194 194 380 16 51 142 16 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1508-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	01	1	1508-
14	CLIP; BAND,HARNESS (D) L=350	1-09707-183-0	01	1	1508-
14	CLIP; BAND,HARNESS (D) L=350	1-09707-183-0	07	1	1508-
14	CLIP; BAND,HARNESS (B) L=250	5-09707-030-1	01	1	1508-
14	CLIP; BAND,HARNESS (B) L=250	5-09707-030-1	02	1	1508-1511
14	CLIP; BAND,HARNESS L=350	1-09707-183-0	02	1	1512-
14	CLIP; BAND,HARNESS (C) L=140	5-09707-031-1	01	1	1508-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1508-
16	CLIP; HARNESS (F) T=0.8 ID=11 L=20	0-95235-035-0	02	1	1508-
16	CLIP; HARNESS (F) T=0.8 ID=11 L=20	0-95235-035-0	02	1	1508-
16	CLIP; HARNESS (F) T=1.2 ID=19 L=20	0-95235-836-0	01	1	1508-1508
16	CLIP; HARNESS (AO) ID=21 L=24	8-94176-807-1	01	1	1508-
16	CLIP; HARNESS (AI) ID=11 H=30 L=17	1-09700-113-0	01	1	1508-
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	1508-
16	CLIP; HARNESS (AN) ID=31 L=35	1-09700-329-1	01	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AN) ID=31 L=35	1-09700-329-1	01	1	1508-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	02	1	1508-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	05	1	1508-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	06	1	1508-
16	CLIP; HARNESS (L) ID=20 L=50	1-09700-679-1	01	1	1508-
16	CLIP; HARNESS (AJ) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1508-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1508-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1508-
16	CLIP; HARNESS (A) ID=35 H=45 L=33	1-09700-947-0	01	1	1508-
16	CLIP; HARNESS (O) ID=26 L=27	1-09701-006-0	02	1	1508-
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1508-
16	CLIP; HARNESS (J) ID=9 H=80 L=23	1-09701-061-0	02	1	1508-
16	CLIP; HARNESS (R) ID=18 L=28	1-09701-067-0	03	1	1508-
16	CLIP; HARNESS (AG) ID=18 L=38 H=23	1-09701-147-0	01	1	1508-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1508-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1508-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1508-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1508-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1508-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (T) L=350	1-09707-183-0	02	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (T) L=350	1-09707-183-0	02	1	1508-
16	CLIP; HARNESS (AF) W/SPONGE RUBBER	1-09709-150-0	01	1	1508-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1508-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1508-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1508-
16	CLIP; HARNESS (AM) OD=9 H=13.5	1-09709-180-0	01	1	1508-
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	01	1	1508-
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	02	1	1508-
16	CLIP; HARNESS (AL) ID=13-18 L=18	1-09709-291-0	02	1	1508-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1508-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1508-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1508-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1508-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	09	1	1508-
16	CLIP; HARNESS (E) L=140	5-09707-031-1	01	1	1508-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	03	1	1508-
16	CLIP; HARNESS (AE) L=36	8-94224-891-1	01	1	1508-
16	CLIP; HARNESS (M) ID=14-20	8-97061-603-0	03	1	1508-
16	CLIP; HARNESS (Y) ID=18 L=44	8-97367-985-1	03	1	1508-
16	CLIP; HARNESS (Z) OD=9 H=6	8-97368-793-0	02	1	1508-
16	CLIP; HARNESS (AA) ID=17 L=20	8-97619-251-0	01	1	1508-
16	CLIP; HARNESS (AC) ID=10 L=16.5	8-98082-034-0	04	1	1508-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	1508-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	1508-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	01	1	1508-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	06	1	1508-
16	CLIP; HARNESS (AH) ID=22 L=52	9-09917-431-0	01	1	1508-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (Z) OD=9 H=6	1-09709-178-0	08	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (H) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1508-
16	CLIP; HARNESS SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (V) L=20 SET=10 PIECE	1-09987-246-2	04	1	1508-
16	CLIP; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (F) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1508-
16	CLIP; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (K) L=250	5-09707-030-1	01	1	1508-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1508-
16	CLIP; HARNESS TRANSMISSION-FULLER RTLO189 18(Y4W) (F) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1508-
16	CLIP; HARNESS TRANSMISSION-FULLER RTLO189 18(Y4W) (AD) ID=16 L=40	0-95235-576-0	01	1	1508-
16	CLIP; HARNESS TRANSMISSION-FULLER RTLO189 18(Y4W) (T) L=350	1-09707-183-0	01	1	1508-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1508-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1508-
48	CLIP; FRAME HARNESS (A) ID=39 H=28 L=32	1-09701-263-0	04	1	1508-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1508-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	07	1	1508-
48	CLIP; FRAME HARNESS (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1508-
51	CLIP; COOLER CMPR (A) L=180	1-09707-162-1	01	1	1508-
51	CLIP; COOLER CMPR (B) L=140	5-09707-031-1	01	1	1508-
102	CLIP; BAND TRANSMISSION-FULLER RTLO189 18(Y4W) L=140	5-09707-031-1	01	1	1508-
104	CLIP; HEADLAMP HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>,HALOGEN HEADLAMPS<TT5> L=140	5-09707-031-1	04	1	1508-
121	CLIP; FACIA HARNESS L=250	5-09707-030-1	02	1	1508-
142	CLIP; HARNESS,ENG (C) L=251	8-97619-917-0	03	1	1508-
142	CLIP; HARNESS,ENG (A) L=180	8-98216-427-0	01	1	1508-
142	CLIP; HARNESS,ENG (B) L=250	8-98216-430-0	10	1	1508-
171	CLIP; STARTER HARNESS L=250	5-09707-030-1	02	1	1508-
194	CLIP; BAND (A) L=300	1-09707-001-1	01	1	1508-
194	CLIP; BAND (B) L=350	1-09707-183-0	01	1	1508-
194	CLIP; BAND (B) L=350	1-09707-183-0	03	1	1508-
194	CLIP; BAND (C) L=140	5-09707-031-1	01	1	1508-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1508-
208	CLIP; HARNESS,MAG VLV L=250	5-09707-030-1	02	1	1508-
305	CLIP; ENG HARNESS L=250	5-09707-030-1	04	1	1508-
369	CLIP; BAND EDS HARNESS L=140	5-09707-031-1	01	1	1508-
380	CLIP; EARTH HARNESS (A) L=350	1-09707-183-0	01	1	1508-
380	CLIP; EARTH HARNESS (B) L=250	5-09707-030-1	03	1	1508-

16 168 16 470 16 16 16 16 81 470 16 48 16 16 116 421 81 148 16 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1508-
16	CLIP; HARNESS (F) T=0.8 ID=11 L=20	0-95235-035-0	02	1	1508-
16	CLIP; HARNESS (F) T=0.8 ID=11 L=20	0-95235-035-0	02	1	1508-
16	CLIP; HARNESS (F) T=1.2 ID=19 L=20	0-95235-836-0	01	1	1508-1508
16	CLIP; HARNESS (AO) ID=21 L=24	8-94176-807-1	01	1	1508-
16	CLIP; HARNESS (AI) ID=11 H=30 L=17	1-09700-113-0	01	1	1508-
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	1508-
16	CLIP; HARNESS (AN) ID=31 L=35	1-09700-329-1	01	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AN) ID=31 L=35	1-09700-329-1	01	1	1508-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	02	1	1508-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	05	1	1508-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	06	1	1508-
16	CLIP; HARNESS (L) ID=20 L=50	1-09700-679-1	01	1	1508-
16	CLIP; HARNESS (AJ) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1508-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1508-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1508-
16	CLIP; HARNESS (A) ID=35 H=45 L=33	1-09700-947-0	01	1	1508-
16	CLIP; HARNESS (O) ID=26 L=27	1-09701-006-0	02	1	1508-
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1508-
16	CLIP; HARNESS (J) ID=9 H=80 L=23	1-09701-061-0	02	1	1508-
16	CLIP; HARNESS (R) ID=18 L=28	1-09701-067-0	03	1	1508-
16	CLIP; HARNESS (AG) ID=18 L=38 H=23	1-09701-147-0	01	1	1508-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1508-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1508-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1508-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1508-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1508-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (T) L=350	1-09707-183-0	02	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (T) L=350	1-09707-183-0	02	1	1508-
16	CLIP; HARNESS (AF) W/SPONGE RUBBER	1-09709-150-0	01	1	1508-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1508-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1508-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1508-
16	CLIP; HARNESS (AM) OD=9 H=13.5	1-09709-180-0	01	1	1508-
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	01	1	1508-
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	02	1	1508-
16	CLIP; HARNESS (AL) ID=13-18 L=18	1-09709-291-0	02	1	1508-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1508-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1508-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1508-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1508-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	09	1	1508-
16	CLIP; HARNESS (E) L=140	5-09707-031-1	01	1	1508-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	03	1	1508-
16	CLIP; HARNESS (AE) L=36	8-94224-891-1	01	1	1508-
16	CLIP; HARNESS (M) ID=14-20	8-97061-603-0	03	1	1508-
16	CLIP; HARNESS (Y) ID=18 L=44	8-97367-985-1	03	1	1508-
16	CLIP; HARNESS (Z) OD=9 H=6	8-97368-793-0	02	1	1508-
16	CLIP; HARNESS (AA) ID=17 L=20	8-97619-251-0	01	1	1508-
16	CLIP; HARNESS (AC) ID=10 L=16.5	8-98082-034-0	04	1	1508-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	1508-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	1508-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	01	1	1508-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	06	1	1508-
16	CLIP; HARNESS (AH) ID=22 L=52	9-09917-431-0	01	1	1508-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (Z) OD=9 H=6	1-09709-178-0	08	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (H) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1508-
16	CLIP; HARNESS SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (V) L=20 SET=10 PIECE	1-09987-246-2	04	1	1508-
16	CLIP; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (F) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1508-
16	CLIP; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (K) L=250	5-09707-030-1	01	1	1508-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1508-
16	CLIP; HARNESS TRANSMISSION-FULLER RTLO189 18(Y4W) (F) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1508-
16	CLIP; HARNESS TRANSMISSION-FULLER RTLO189 18(Y4W) (AD) ID=16 L=40	0-95235-576-0	01	1	1508-
16	CLIP; HARNESS TRANSMISSION-FULLER RTLO189 18(Y4W) (T) L=350	1-09707-183-0	01	1	1508-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1508-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1508-
48	CLIP; FRAME HARNESS (A) ID=39 H=28 L=32	1-09701-263-0	04	1	1508-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1508-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	07	1	1508-
48	CLIP; FRAME HARNESS (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1508-
81	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	02	1	1508-
81	CLIP; HARNESS (C) ID=5-12 L=18	1-09709-287-0	01	1	1508-
81	CLIP; HARNESS (B)	1-09709-313-0	02	1	1508-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	08	1	1508-
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	06	1	1508-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	03	1	1508-
168	CLIP; DASH HARNESS ID=6 & 10-13	8-97069-515-0	05	1	1508-
421	CLIP; FLOOR HARNESS SMOOTHER-G(C1W) L=30 SET=10 PIECE	1-09987-265-0	05	1	1508-
421	CLIP; FLOOR HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) L=20 SET=10 PIECE	1-09987-246-2	05	1	1508-
470	CLIP; HARNESS,LICENSE LAMP (C) ID=11 L=41	1-09700-403-0	01	1	1508-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	1508-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-

334 342 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
334	BRACKET SMOOTHER-G(C1W)	1-82698-495-2	01	1	1508-
342	BRACKET; HARNESS CAB MTG (B)	1-82698-588-0	02	1	1508-
342	BRACKET; HARNESS CAB MTG (A)	1-82699-625-0	01	1	1508-
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	1508-

128 16 16 16 16 16 128 16 230 16 16 81 16 16 48 16 16 16 16 16 48 16 16 16 16 16 470 16 16 16 16 16 16 230 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1508-
16	CLIP; HARNESS (F) T=0.8 ID=11 L=20	0-95235-035-0	02	1	1508-
16	CLIP; HARNESS (F) T=0.8 ID=11 L=20	0-95235-035-0	02	1	1508-
16	CLIP; HARNESS (F) T=1.2 ID=19 L=20	0-95235-836-0	01	1	1508-1508
16	CLIP; HARNESS (AO) ID=21 L=24	8-94176-807-1	01	1	1508-
16	CLIP; HARNESS (AI) ID=11 H=30 L=17	1-09700-113-0	01	1	1508-
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	1508-
16	CLIP; HARNESS (AN) ID=31 L=35	1-09700-329-1	01	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AN) ID=31 L=35	1-09700-329-1	01	1	1508-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	02	1	1508-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	05	1	1508-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	06	1	1508-
16	CLIP; HARNESS (L) ID=20 L=50	1-09700-679-1	01	1	1508-
16	CLIP; HARNESS (AJ) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1508-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1508-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1508-
16	CLIP; HARNESS (A) ID=35 H=45 L=33	1-09700-947-0	01	1	1508-
16	CLIP; HARNESS (O) ID=26 L=27	1-09701-006-0	02	1	1508-
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1508-
16	CLIP; HARNESS (J) ID=9 H=80 L=23	1-09701-061-0	02	1	1508-
16	CLIP; HARNESS (R) ID=18 L=28	1-09701-067-0	03	1	1508-
16	CLIP; HARNESS (AG) ID=18 L=38 H=23	1-09701-147-0	01	1	1508-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1508-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1508-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1508-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1508-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1508-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (T) L=350	1-09707-183-0	02	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (T) L=350	1-09707-183-0	02	1	1508-
16	CLIP; HARNESS (AF) W/SPONGE RUBBER	1-09709-150-0	01	1	1508-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1508-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1508-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1508-
16	CLIP; HARNESS (AM) OD=9 H=13.5	1-09709-180-0	01	1	1508-
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	01	1	1508-
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	02	1	1508-
16	CLIP; HARNESS (AL) ID=13-18 L=18	1-09709-291-0	02	1	1508-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1508-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1508-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1508-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1508-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	09	1	1508-
16	CLIP; HARNESS (E) L=140	5-09707-031-1	01	1	1508-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	03	1	1508-
16	CLIP; HARNESS (AE) L=36	8-94224-891-1	01	1	1508-
16	CLIP; HARNESS (M) ID=14-20	8-97061-603-0	03	1	1508-
16	CLIP; HARNESS (Y) ID=18 L=44	8-97367-985-1	03	1	1508-
16	CLIP; HARNESS (Z) OD=9 H=6	8-97368-793-0	02	1	1508-
16	CLIP; HARNESS (AA) ID=17 L=20	8-97619-251-0	01	1	1508-
16	CLIP; HARNESS (AC) ID=10 L=16.5	8-98082-034-0	04	1	1508-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	1508-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	1508-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	01	1	1508-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	06	1	1508-
16	CLIP; HARNESS (AH) ID=22 L=52	9-09917-431-0	01	1	1508-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (Z) OD=9 H=6	1-09709-178-0	08	1	1508-
16	CLIP; HARNESS SMOOTHER-G(C1W) (H) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1508-
16	CLIP; HARNESS SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (V) L=20 SET=10 PIECE	1-09987-246-2	04	1	1508-
16	CLIP; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (F) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1508-
16	CLIP; HARNESS TRANSMISSION CONTROL CABLE TYPE(C1A) (K) L=250	5-09707-030-1	01	1	1508-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	01	1	1508-
16	CLIP; HARNESS TRANSMISSION-FULLER RTLO189 18(Y4W) (F) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1508-
16	CLIP; HARNESS TRANSMISSION-FULLER RTLO189 18(Y4W) (AD) ID=16 L=40	0-95235-576-0	01	1	1508-
16	CLIP; HARNESS TRANSMISSION-FULLER RTLO189 18(Y4W) (T) L=350	1-09707-183-0	01	1	1508-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1508-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1508-
48	CLIP; FRAME HARNESS (A) ID=39 H=28 L=32	1-09701-263-0	04	1	1508-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1508-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	07	1	1508-
48	CLIP; FRAME HARNESS (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1508-
81	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	02	1	1508-
81	CLIP; HARNESS (C) ID=5-12 L=18	1-09709-287-0	01	1	1508-
81	CLIP; HARNESS (B)	1-09709-313-0	02	1	1508-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	1508-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	1508-
230	CLIP; C/MBR HARNESS (A) ID=19 L=28	0-95235-856-0	01	1	1508-
230	CLIP; C/MBR HARNESS (B) ID=20 L=50	1-09700-679-1	01	1	1508-
470	CLIP; HARNESS,LICENSE LAMP (C) ID=11 L=41	1-09700-403-0	01	1	1508-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	1508-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=5-12 L=18	1-09709-287-0	01	1	1508-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
