8-10 — WIRING HARNESS AND FUSE (#165330) — 119 parça

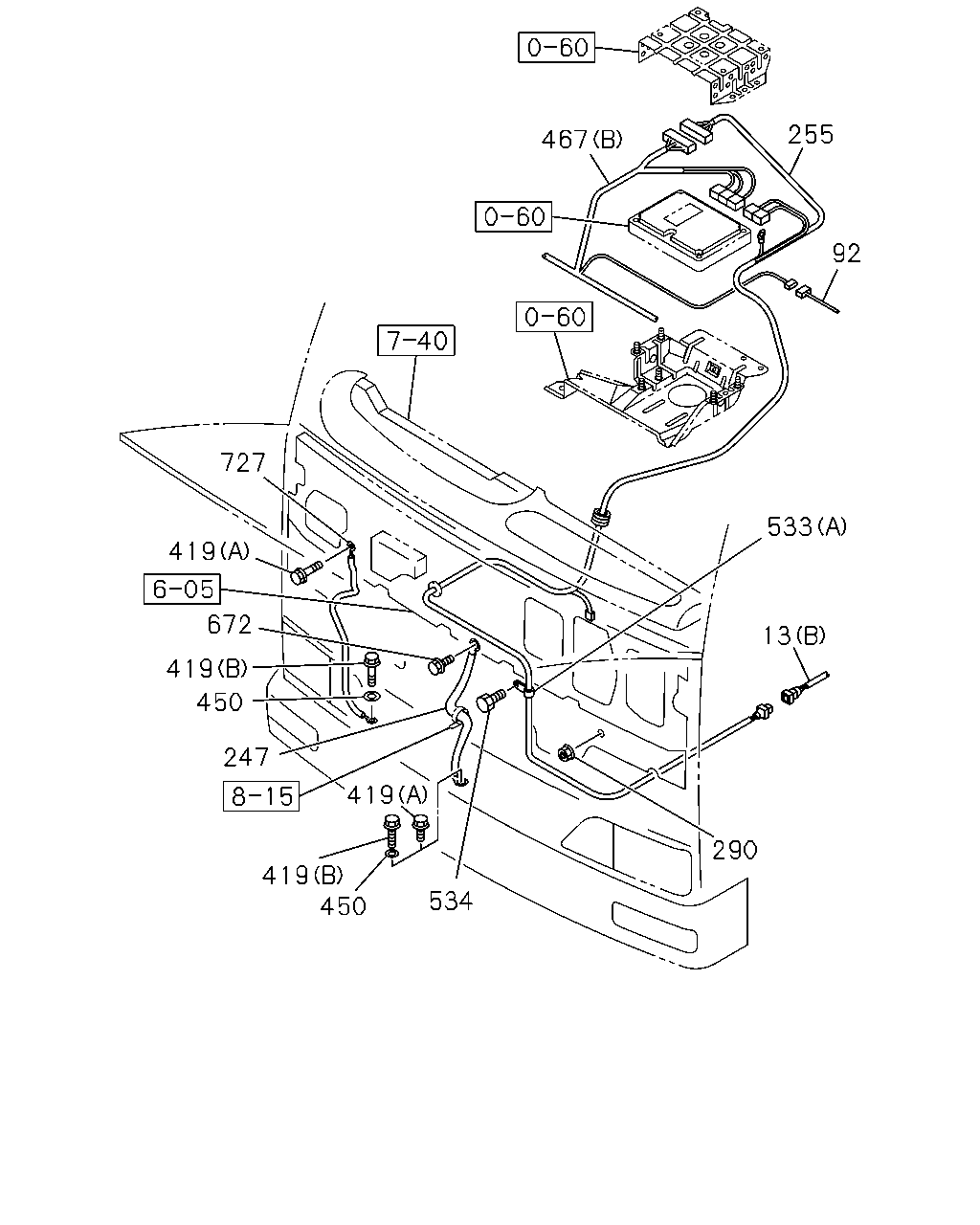

çizim 488019
467 255 92 533 13 290 534 450 419 247 450 419 672 419 727 419
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(A) 		8-97646-554-3 01 1 1508-
13 HARNESS; ENG
(B) 		8-98208-801-0 01 1 1508-
92 HARNESS; FLOOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) REMOTE CONT DOOR LOCK<SLG> CAN INTERFACE FMS STD<8PG> PASSENGER SIDE 		8-98291-240-0 01 1 1508-
92 HARNESS; FLOOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) REMOTE CONT DOOR LOCK<SLG> EXC. CAN INTERFACE FMS STD<8PG> PASSENGER SIDE 		8-98291-241-0 01 1 1508-
92 HARNESS; FLOOR
SMOOTHER-G(C1W) DRIVER SIDE 		8-98291-242-0 01 1 1508-
92 HARNESS; FLOOR
TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER SIDE 		8-98291-243-0 01 1 1508-
92 HARNESS; FLOOR
TRANSMISSION-FULLER RTLO189 18(Y4W) TRANSMISSION CONTROL CABLE TYPE(C1A) REMOTE CONT DOOR LOCK<SLG> CAN INTERFACE FMS STD<8PG> PASSENGER SIDE 		8-98291-236-0 01 1 1508-
92 HARNESS; FLOOR
TRANSMISSION-FULLER RTLO189 18(Y4W) TRANSMISSION CONTROL CABLE TYPE(C1A) REMOTE CONT DOOR LOCK<SLG> EXC. CAN INTERFACE FMS STD<8PG> PASSENGER SIDE 		8-98291-237-0 01 1 1508-
247 CABLE; BONDING,CAB 8-98285-591-0 01 1 1508-
255 HARNESS; ELEC GOV 8-98291-244-1 01 1 1508-
290 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1508-
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1508-
419 BOLT; CAB EARTH
(B) M8X24 W/PL WASHER 		8-98141-256-1 02 1 1508-
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 02 1 1508-
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1508-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 01 1 1508-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 03 1 1508-
467 HARNESS; FACIA
(A) 		8-98282-904-0 01 1 1508-
467 HARNESS; FACIA
MJX16P M/T(Y3Z) (B) 		8-98291-224-3 01 1 1508-
467 HARNESS; FACIA
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) 		8-98291-223-2 01 1 1508-
533 CLIP
SMOOTHER-G(C1W) (A) ID=28 & 34 L=63 		1-09701-310-0 01 1 1508-
533 CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=35 L=35 		1-09700-684-0 01 1 1508-
533 CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=350 		1-09707-183-0 01 1 1508-
534 BOLT
M8X16 FLANGE 		0-28050-816-0 01 1 1508-
672 BOLT; BONDING
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1508-
727 HARNESS; CAB,EARTH 8-98285-125-0 01 1 1508-

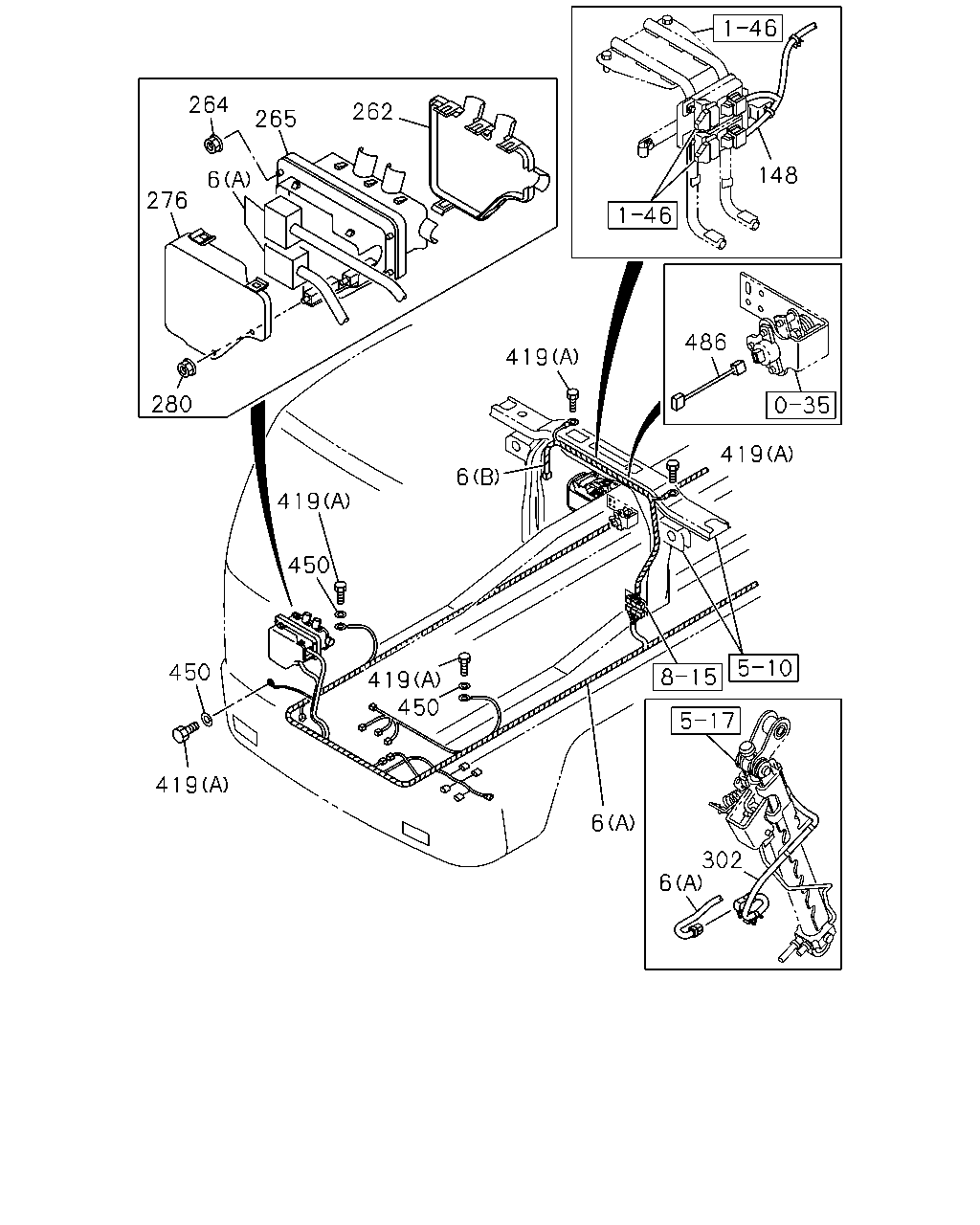

çizim 488101
264 265 262 6 276 280 419 450 450 419 419 450 419 6 486 419 6 302 6 148
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(B) 		8-98290-402-2 01 1 1508-
6 HARNESS; FRAME
SMOOTHER-G(C1W) (A) 		8-98290-390-2 01 1 1508-
6 HARNESS; FRAME
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-98290-389-2 01 1 1508-
148 HARNESS; EXH 8-98318-307-0 01 1 1508-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-582-1 01 1 1508-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 1508-
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 1508-
276 COVER; BOX,FRAME HARNESS 1-82699-585-2 01 1 1508-
280 NUT; BOX ASM FIX
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1508-
302 HARNESS; POWER CAB TILT 8-97636-525-0 01 1 1508-
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1508-
419 BOLT; CAB EARTH
(B) M8X24 W/PL WASHER 		8-98141-256-1 02 1 1508-
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 02 1 1508-
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1508-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 01 1 1508-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 03 1 1508-
486 HARNESS; ALL SPEED ACCEL
PTO CONTROL OPERATION CAB BACK<TBZ> 		8-97624-338-0 01 1 1508-

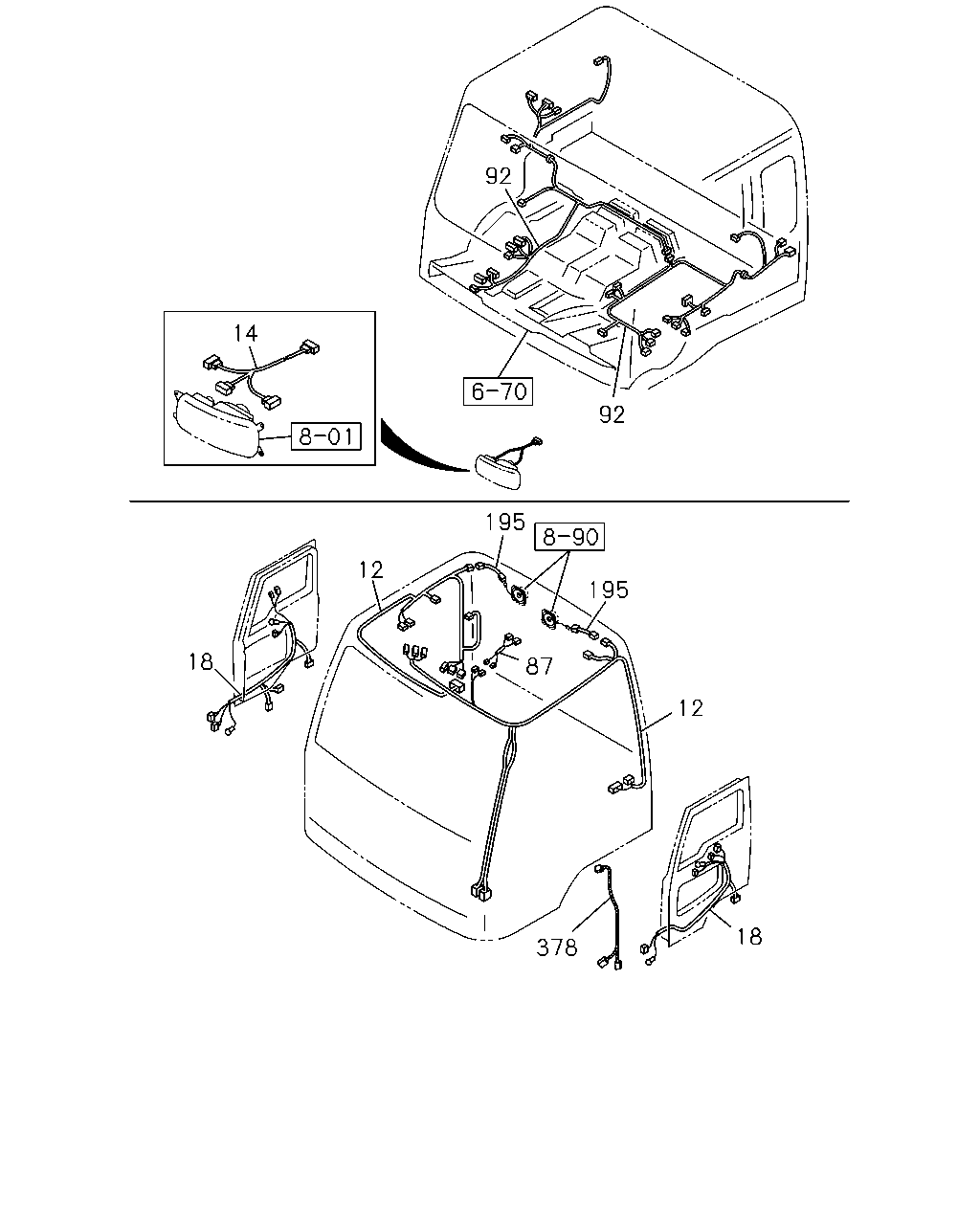

çizim 488294
14 92 195 195 12 12 18 18 378 87 92
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
DRIVER SIDE 		8-97611-862-0 01 1 1508-
12 HARNESS; ROOF
LAMP-ROOM OPERATION W/CONSOLE LESS<SKJ> LOW ROOF<6XQ> PASSENGER SIDE 		8-98282-900-0 01 1 1508-
12 HARNESS; ROOF
LAMP-ROOM OPERATION W/CONSOLE<C93> HIGH ROOF<S2F> PASSENGER SIDE 		8-98291-246-0 01 1 1508-
12 HARNESS; ROOF
LAMP-ROOM OPERATION W/CONSOLE<C93> LOW ROOF<6XQ> PASSENGER SIDE 		8-98291-245-0 01 1 1508-
14 HARNESS; HEADLAMP
HALOGEN HEADLAMPS<TT5> 		8-98289-468-0 02 1 1508-
14 HARNESS; HEADLAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		8-98289-467-0 02 1 1508-
18 HARNESS; DOOR
REMOTE CONT DOOR LOCK<SLG> 		8-97632-130-0 01 1 1508-
18 HARNESS; DOOR
REMOTE CONT DOOR LOCK<SLG> 		8-97632-131-0 01 1 1508-
87 HARNESS; EXT,ROOM LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F> 		1-82661-333-0 01 1 1508-
92 HARNESS; FLOOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) REMOTE CONT DOOR LOCK<SLG> CAN INTERFACE FMS STD<8PG> PASSENGER SIDE 		8-98291-240-0 01 1 1508-
92 HARNESS; FLOOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) REMOTE CONT DOOR LOCK<SLG> EXC. CAN INTERFACE FMS STD<8PG> PASSENGER SIDE 		8-98291-241-0 01 1 1508-
92 HARNESS; FLOOR
SMOOTHER-G(C1W) DRIVER SIDE 		8-98291-242-0 01 1 1508-
92 HARNESS; FLOOR
TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER SIDE 		8-98291-243-0 01 1 1508-
92 HARNESS; FLOOR
TRANSMISSION-FULLER RTLO189 18(Y4W) TRANSMISSION CONTROL CABLE TYPE(C1A) REMOTE CONT DOOR LOCK<SLG> CAN INTERFACE FMS STD<8PG> PASSENGER SIDE 		8-98291-236-0 01 1 1508-
92 HARNESS; FLOOR
TRANSMISSION-FULLER RTLO189 18(Y4W) TRANSMISSION CONTROL CABLE TYPE(C1A) REMOTE CONT DOOR LOCK<SLG> EXC. CAN INTERFACE FMS STD<8PG> PASSENGER SIDE 		8-98291-237-0 01 1 1508-
195 HARNESS; EXT
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> 		1-82625-300-1 02 1 1508-
378 HARNESS; EXT,MIRROR 8-97621-787-0 02 1 1508-

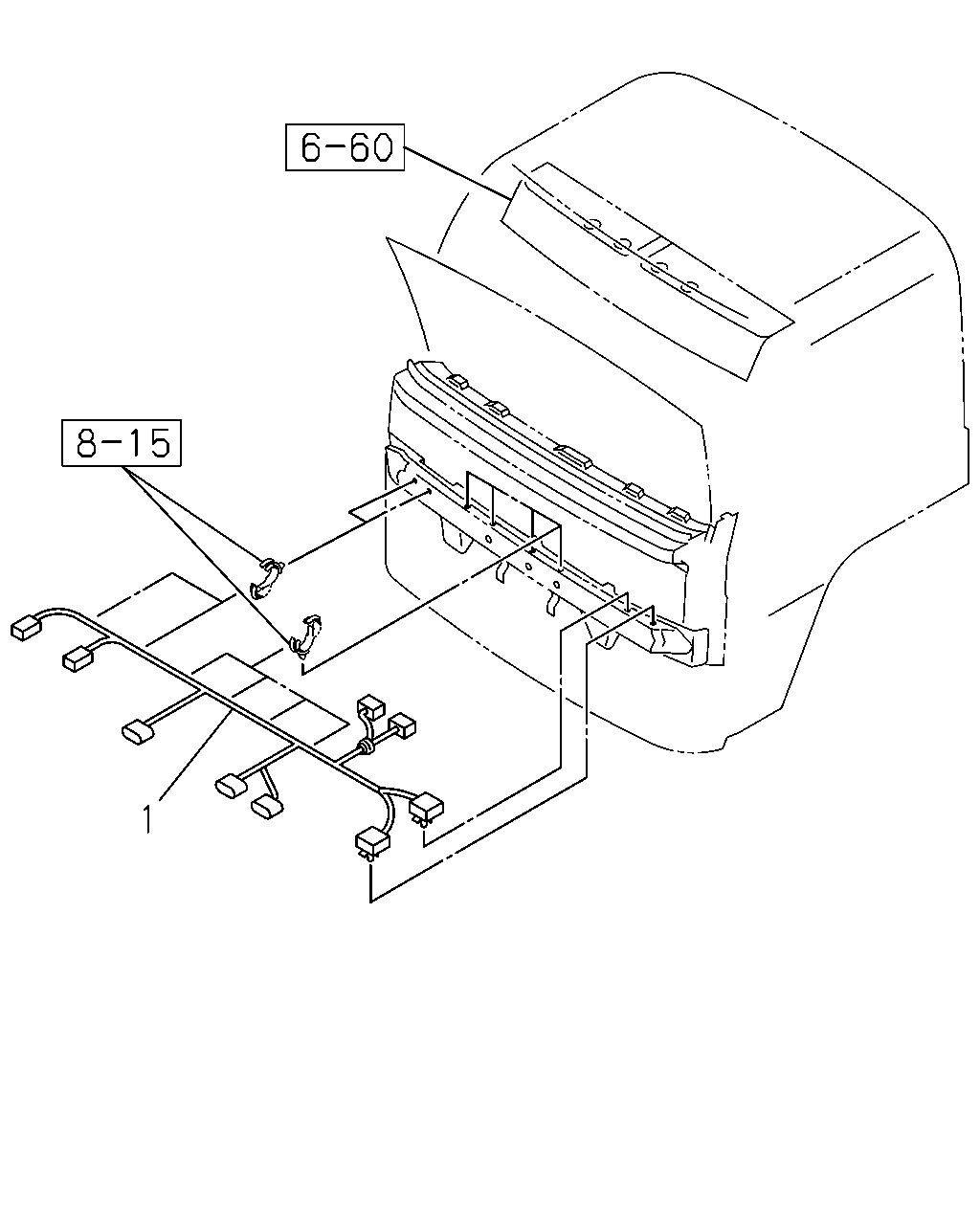

çizim 488296
1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 1-82629-234-1 01 1 1508-

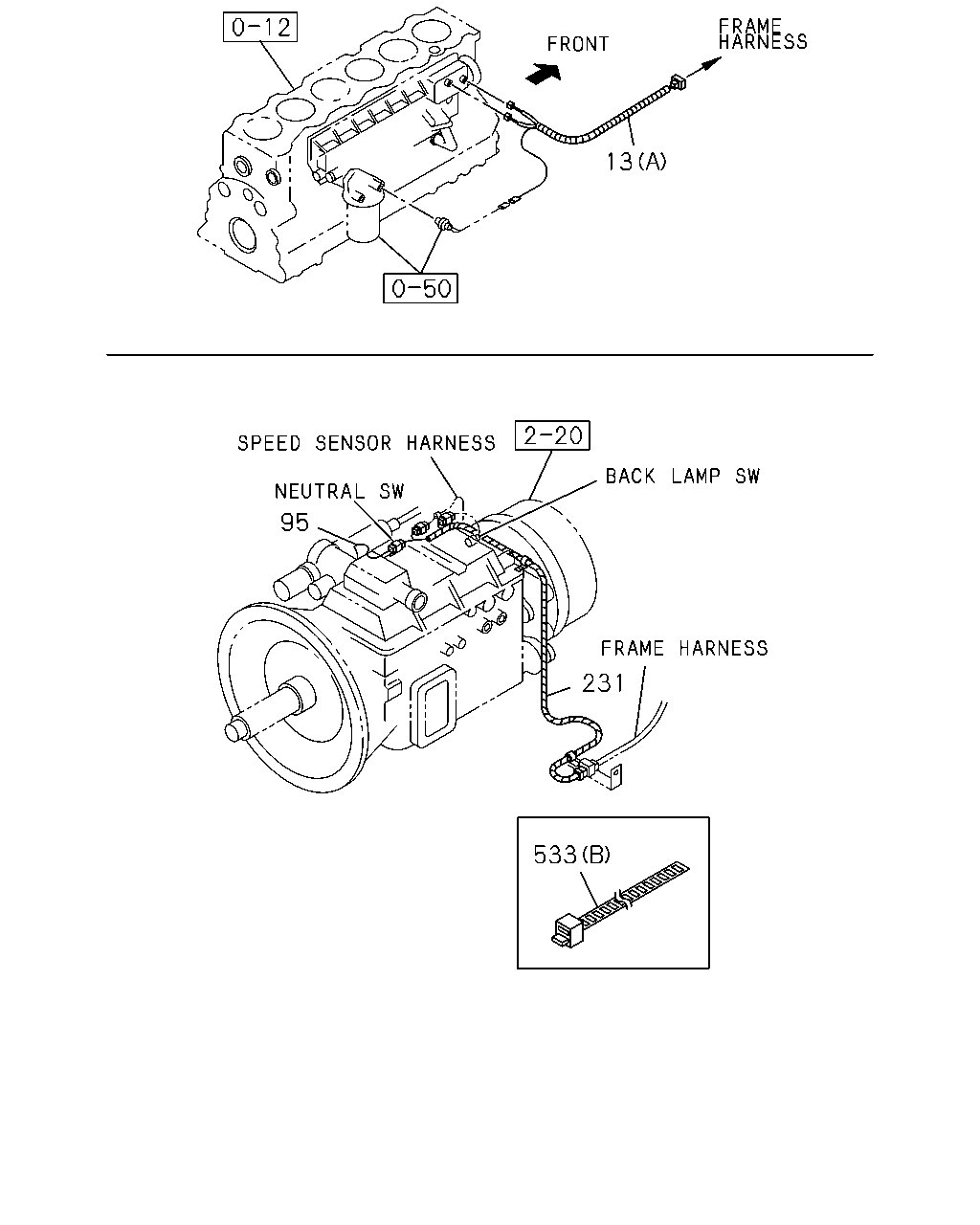

çizim 488313
13 95 231 533
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(A) 		8-97646-554-3 01 1 1508-
13 HARNESS; ENG
(B) 		8-98208-801-0 01 1 1508-
95 HARNESS; NEUTRAL SW
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-82639-626-0 01 1 1508-
231 HARNESS; TRANS
MJX16P M/T(Y3Z) (B) 		8-98299-435-1 01 1 1508-
231 HARNESS; TRANS
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) 		8-98214-252-0 01 1 1508-
533 CLIP
SMOOTHER-G(C1W) (A) ID=28 & 34 L=63 		1-09701-310-0 01 1 1508-
533 CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) ID=35 L=35 		1-09700-684-0 01 1 1508-
533 CLIP
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) L=350 		1-09707-183-0 01 1 1508-

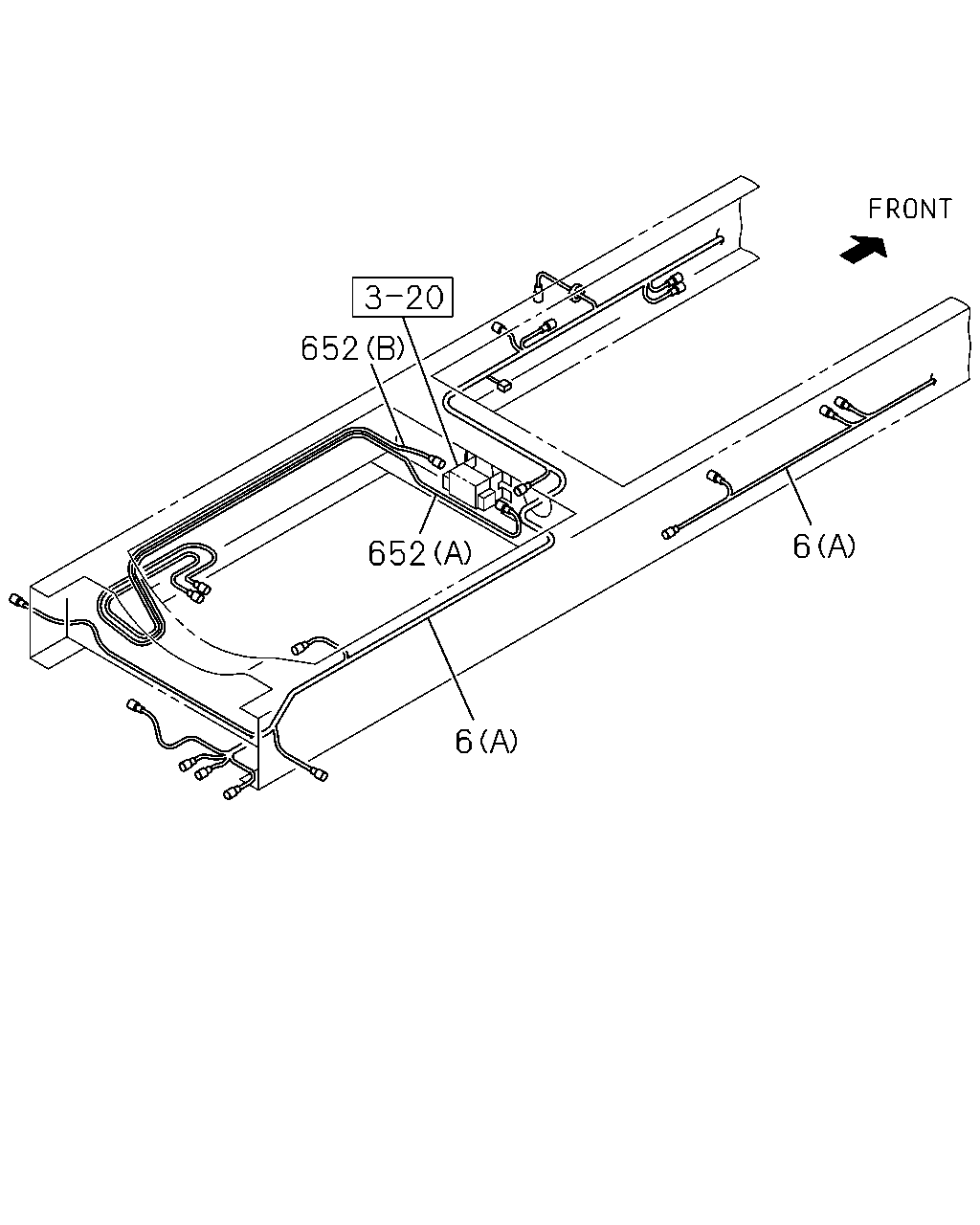

çizim 488315
652 652 6 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(B) 		8-98290-402-2 01 1 1508-
6 HARNESS; FRAME
SMOOTHER-G(C1W) (A) 		8-98290-390-2 01 1 1508-
6 HARNESS; FRAME
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-98290-389-2 01 1 1508-
652 HARNESS; EBS
(B) 		1-82678-138-0 01 1 1508-
652 HARNESS; EBS
(A) 		8-98086-767-1 01 1 1508-

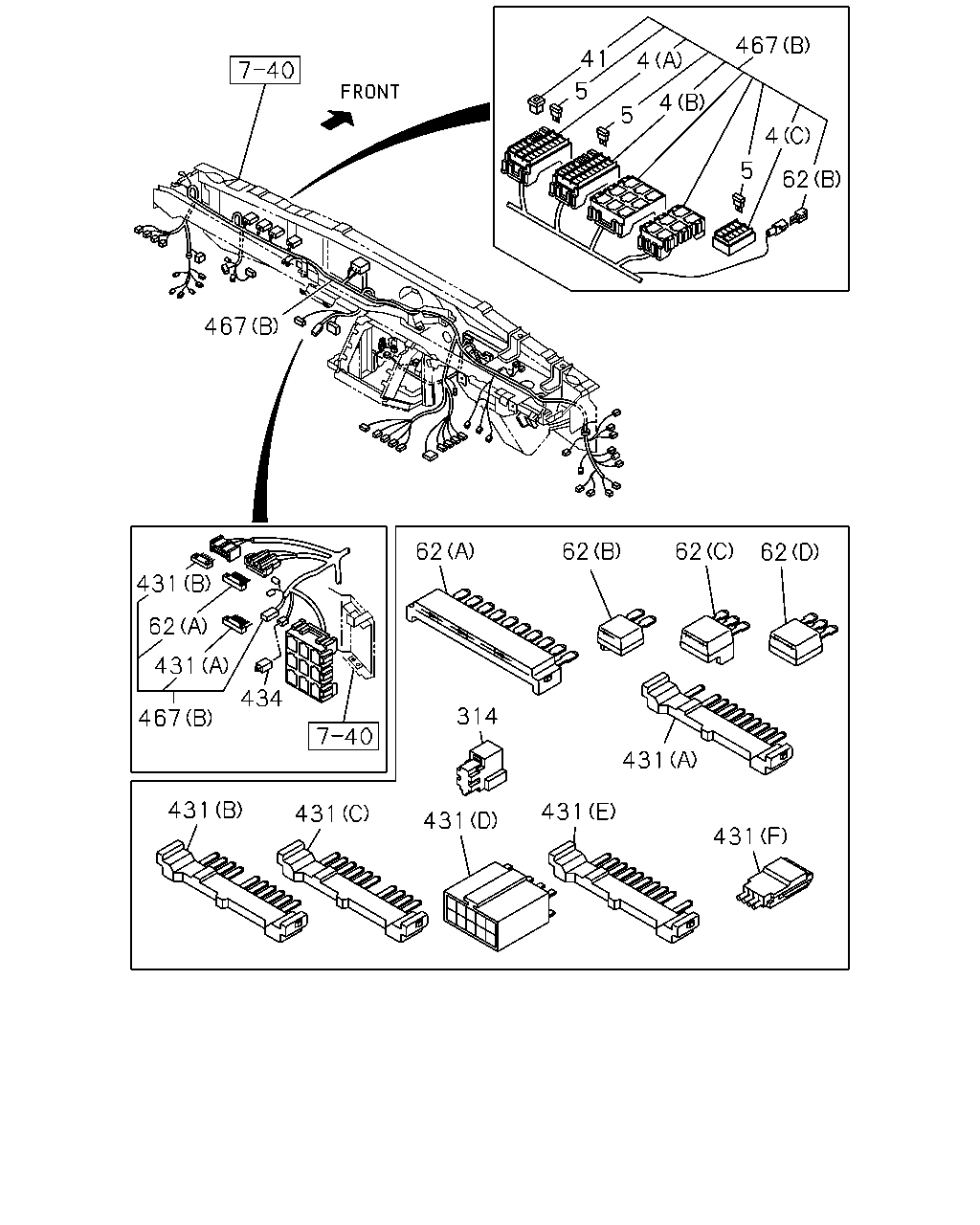

çizim 488463
41 5 5 4 4 467 4 5 62 62 62 62 62 314 431 431 431 431 431 431 434 467 431 62 431 467
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX21 10AX4 		1-82510-451-0 01 1 1508-
4 BOX ASM; FUSE,HARNESS
(B) 15AX24 25AX2 		1-82510-601-0 01 1 1508-
4 BOX ASM; FUSE,HARNESS
(C) 15AX3 		1-82510-638-0 01 1 1508-
5 FUSE; FACIA HARNESS
10A RED 		5-82516-002-0 04 1 1508-
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 25 1 1508-
5 FUSE; FACIA HARNESS
25A CLEAR 		5-82516-005-0 02 1 1508-
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 21 1 1508-
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 1508-
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 03 1 1508-
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 02 1 1508-
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 09 1 1508-
62 DIODE; HARNESS
(D) BLACK 3P-1.5A 		8-94422-640-1 03 1 1508-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1508-
431 CONNECTOR; JOINT
(E) 10P GREEN 		1-82698-579-0 05 1 1508-
431 CONNECTOR; JOINT
(B) 10P BLUE 		1-82699-598-0 13 1 1508-
431 CONNECTOR; JOINT
(C) 10P GREEN 		1-82699-599-0 08 1 1508-
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 10 1 1508-
431 CONNECTOR; JOINT
(D) 10P 		8-97077-943-0 01 1 1508-
431 CONNECTOR; JOINT
(F) 4P 		8-97376-776-0 17 1 1508-
434 CONNECTOR; SHORT CIRCUIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82691-051-0 01 1 1508-
467 HARNESS; FACIA
(A) 		8-98282-904-0 01 1 1508-
467 HARNESS; FACIA
MJX16P M/T(Y3Z) (B) 		8-98291-224-3 01 1 1508-
467 HARNESS; FACIA
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) 		8-98291-223-2 01 1 1508-

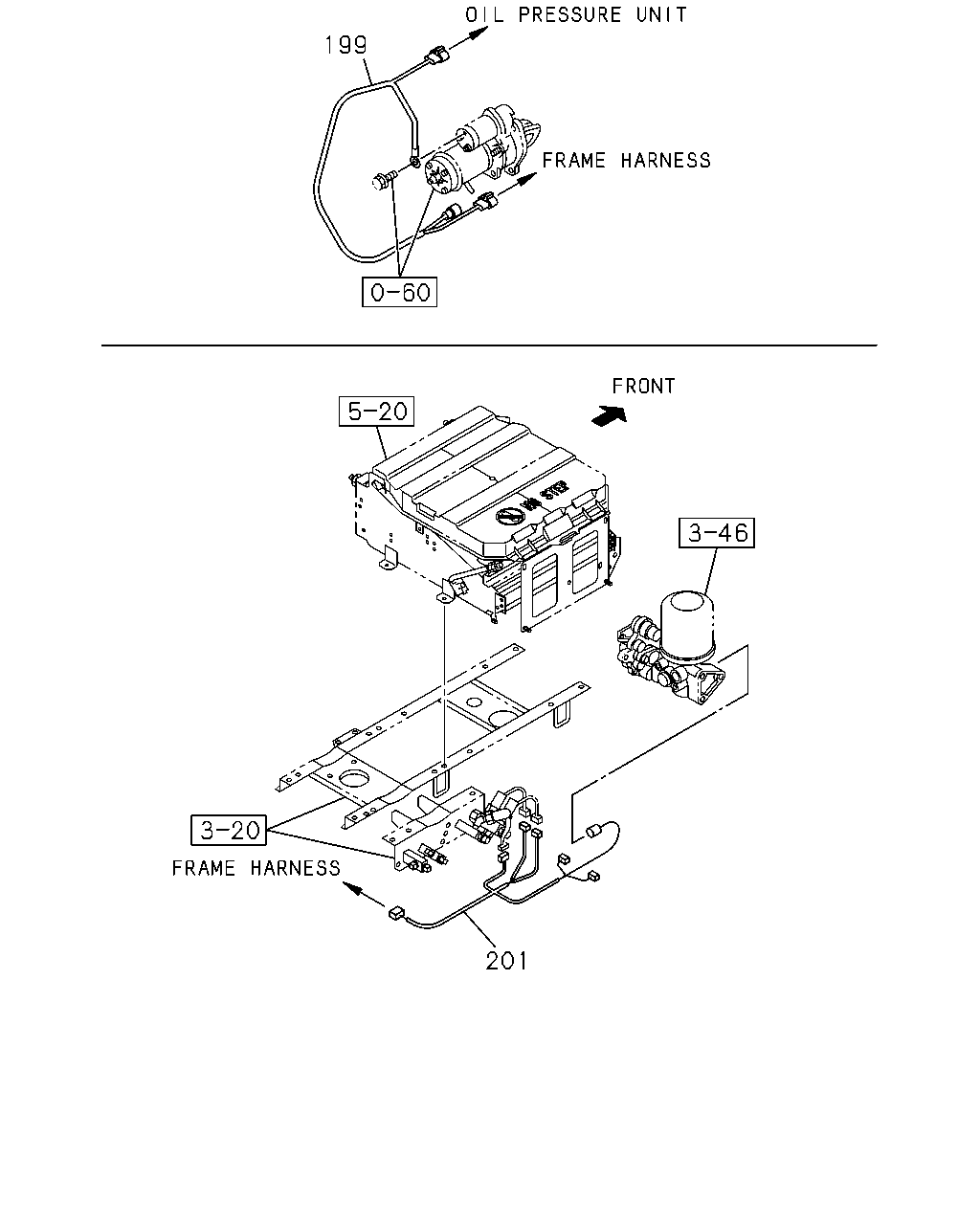

çizim 488560
199 201
BalonParca AdiParca NoAdetTipApplied Date
199 HARNESS; STARTER 8-97607-313-0 01 1 1508-
201 HARNESS; AIR TANK 8-98318-304-0 01 1 1508-

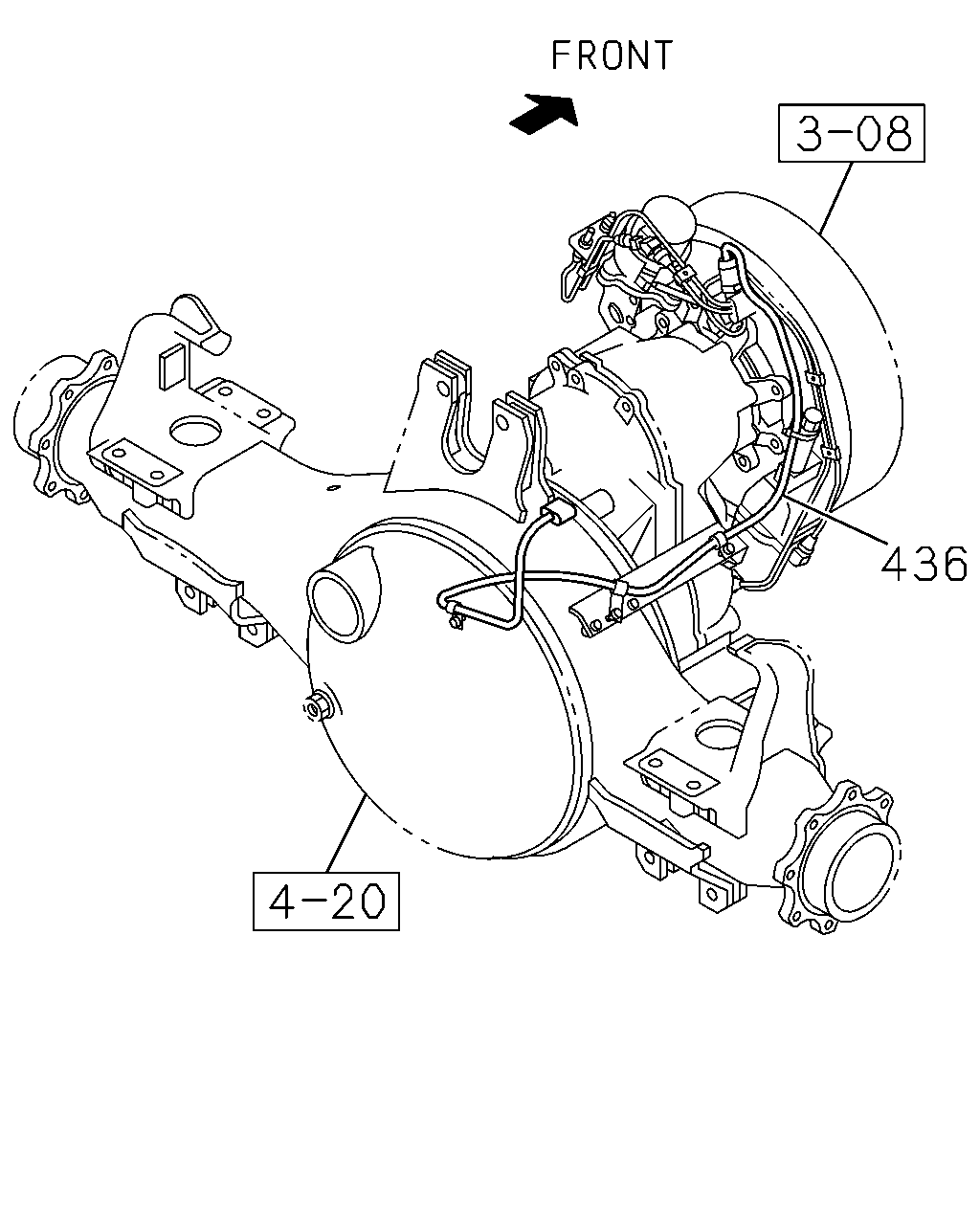

çizim 488596
436
BalonParca AdiParca NoAdetTipApplied Date
436 HARNESS; RETARDER 1-82677-224-2 01 1 1508-

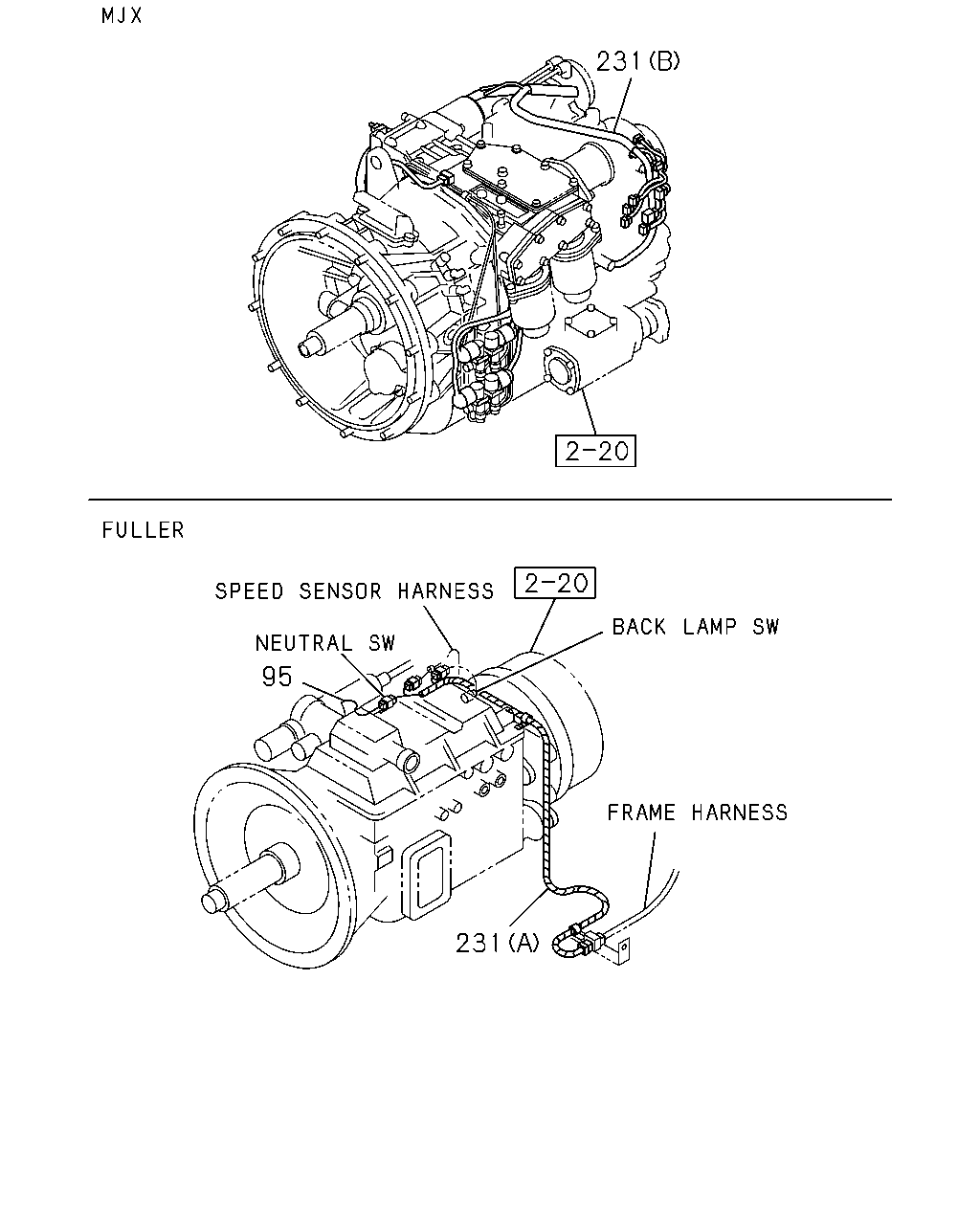

çizim 488625
95 231 231
BalonParca AdiParca NoAdetTipApplied Date
95 HARNESS; NEUTRAL SW
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-82639-626-0 01 1 1508-
231 HARNESS; TRANS
MJX16P M/T(Y3Z) (B) 		8-98299-435-1 01 1 1508-
231 HARNESS; TRANS
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) 		8-98214-252-0 01 1 1508-

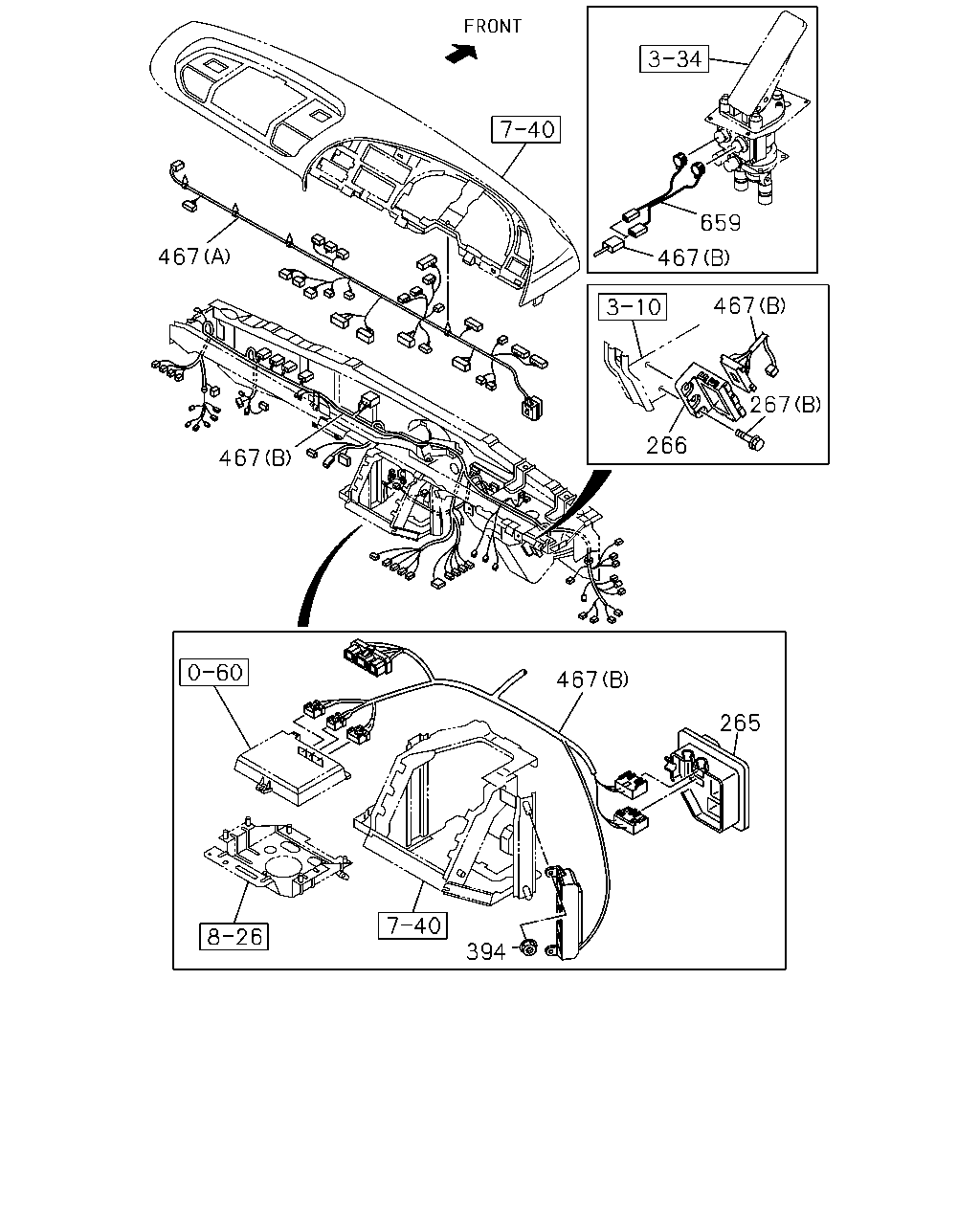

çizim 488756
659 467 467 267 266 467 265 467 467 394
BalonParca AdiParca NoAdetTipApplied Date
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 1508-
266 BRACKET; CONN BOX 1-82699-580-0 01 1 1508-
267 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1508-
267 BOLT; BRKT
(A) M6X16 W/PL WASHER 		1-09981-438-0 02 1 1508-
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91180-106-0 01 1 1508-
467 HARNESS; FACIA
(A) 		8-98282-904-0 01 1 1508-
467 HARNESS; FACIA
MJX16P M/T(Y3Z) (B) 		8-98291-224-3 01 1 1508-
467 HARNESS; FACIA
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) 		8-98291-223-2 01 1 1508-
659 HARNESS; EXT,BRAKE VALVE 1-82660-995-0 01 1 1508-

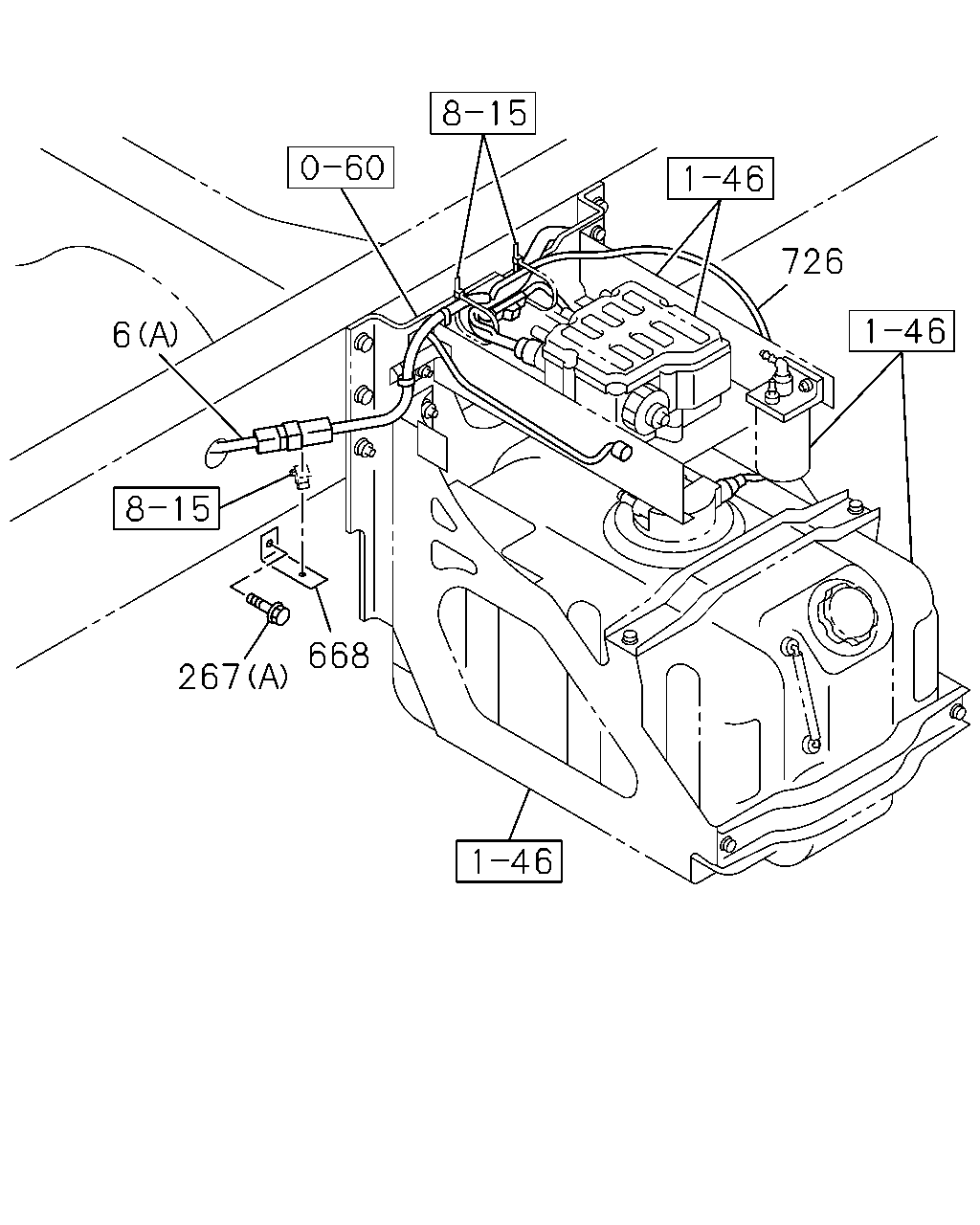

çizim 488791
6 726 267 668
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(B) 		8-98290-402-2 01 1 1508-
6 HARNESS; FRAME
SMOOTHER-G(C1W) (A) 		8-98290-390-2 01 1 1508-
6 HARNESS; FRAME
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-98290-389-2 01 1 1508-
267 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1508-
267 BOLT; BRKT
(A) M6X16 W/PL WASHER 		1-09981-438-0 02 1 1508-
668 BRACKET; HARNESS
L=60 		1-47475-455-0 01 1 1508-
726 HARNESS; EXT,DCU 8-98289-458-1 01 1 1508-
